- 1.9 cu. ft. capacity
- Easy clean interior with steam clean
- Melt feature
- Weight and time defrost
- Filter indicator light
- Four-speed, 400-CFM venting fan system
- Turntable On/Off
- Sensor cooking controls
1.9 cu. ft. capacity
1000 Watts (IEC-705 test procedure)
Easy clean interior with steam clean
Makes cleaning spills and splatters a snap
Melt feature
Worry-free melting of butter, caramel, chocolate and marshmallows
Weight and time defrost
Simply enter the weight of the food, and the oven automatically sets the optimal defrosting time and power level or set your desired time for defrosting
Filter indicator light
Light indicates when odor-removing charcoal filter needs to be replaced
Four-speed, 400-CFM venting fan system
Quickly removes smoke, steam and odors from the cooktop to keep kitchen air fresh and clean
Turntable On/Off
Controls turntable operation

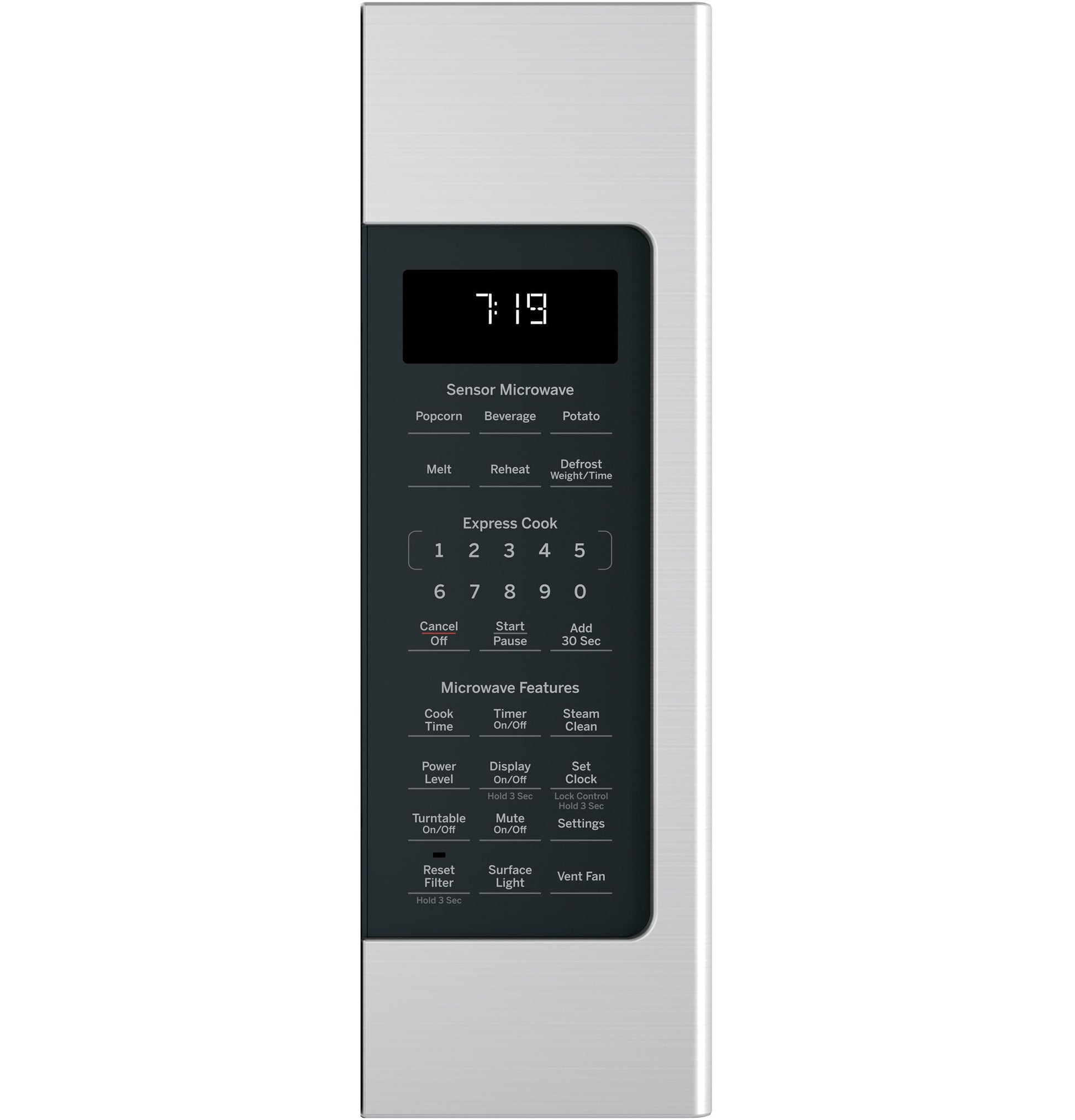

Sensor cooking controls
Automatically adjusts time and power for delicious cooking results
1000 Watts (IEC-705 test procedure)
Easy clean interior with steam clean
Makes cleaning spills and splatters a snap
Melt feature
Worry-free melting of butter, caramel, chocolate and marshmallows
Weight and time defrost
Simply enter the weight of the food, and the oven automatically sets the optimal defrosting time and power level or set your desired time for defrosting
Filter indicator light
Light indicates when odor-removing charcoal filter needs to be replaced
Four-speed, 400-CFM venting fan system
Quickly removes smoke, steam and odors from the cooktop to keep kitchen air fresh and clean
Turntable On/Off
Controls turntable operation
Sensor cooking controls
Automatically adjusts time and power for delicious cooking results
CAPACITY | |
Total Capacity (cubic feet) | 1.9 cu ft |
Vent CFM | 400 |
FILTER | |
App Filter - Control Type | Electronic touchpad |
App Filter - Wattage | 1100 and Above |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Microwave Over-the-Range |
App Filter - Capacity | Microwave Large (1.9 cu. ft. and above) |
App Filter - Voltage | 120V |
App Filter - Convection | No |
App Filter - Venting Type | External |
App Filter - Cooking Technology | Microwave Only |
APPEARANCE | |
Door Swing | Hinges on Left |
Handle Color | Stainless Steel Appearance |
Oven Door Features | Oven Window |
Installation | Easy Mount |
Door Color | Stainless Steel |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Input Volts/Hertz | 120/60 |
Electrical Input - 120V Amperage | 15 |
Electrical Input - 120V Watts | 1580 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
ECONOMICAL / QUIET | |
Non-Vented | Convertible to Recirculating (Filter Included) |
Venting Type | Externally Vented (Factory Set) |
ACCESSORIES | |
Optional Side Filler Panel Kit | JX36BSS |
Optional Kits | 15" Bump Out Kit - JX15BUMPBB |
Recirculating Charcoal Filter Kit | Included WB06X10807 |
WEIGHTS & DIMENSIONS | |
Approximate Shipping Weight | 66 lb |
Cabinet Width | 30 in |
Net Weight | 57 lb |
Depth with Door Open | 39.125 in |
Overall Width | 29.875 in |
Cutout Width (in) | 30 |
Cutout Depth (in) | 13 |
Cutout Height (in) | 16.5 |
Overall Depth | 15.5625 in |
Overall Height | 16.3125 in |
Cavity (W x H x D) | 21-15/16 x 11-5/8 x 14-9/16 |
FEATURES | |
Display Type | LED |
Microwave Sensor Cooking Controls | Beverage Defrost: Weight/Time Melt Popcorn Potato Reheat |
Electronic Digital Display with Clock | Digital (1 line) |
Display Screen Size (Diagonal Length) | 3.13 |
Express Cook | 1-5 Minutes |
Control Location | Side Controls |
Style | Over-The-Range |
Oven Interior | Easy Clean Interior |
Microwave Watts (IEC-705) | 1000 W |
Turntable On / Off | Yes |
Power Levels | 10 |
Control Type | Electronic Touch |
Cooktop Lighting | Bright/Night/Off Halogen |
Control Features | Add 30 Seconds Cancel/Off Cook Time Lock Controls Melt Power Level Replace Filter Notification Settings Start/Pause Steam Clean |
Product Type | Over-the-range Microwave |
Turntable | Glass |
Cooking Technology | Microwave |
Exhaust Fan | 4-Speed 400-CFM |
Vent | Back Front Top |
Turntable Size | 14.2 in |
Interior Oven Light | Incandescent |
