- ADA Compliant with Low-Profile Installation
- 3 Level Wash
- Autosense Cycle
- PIRANHA Hard Food Disposer with Removable Filter
- Sanitize option (NSF Certified)
- WiFi Capable
- Quiet Package
ADA Compliant with Low-Profile Installation
Great for 34" counter top heights and raised subfloors

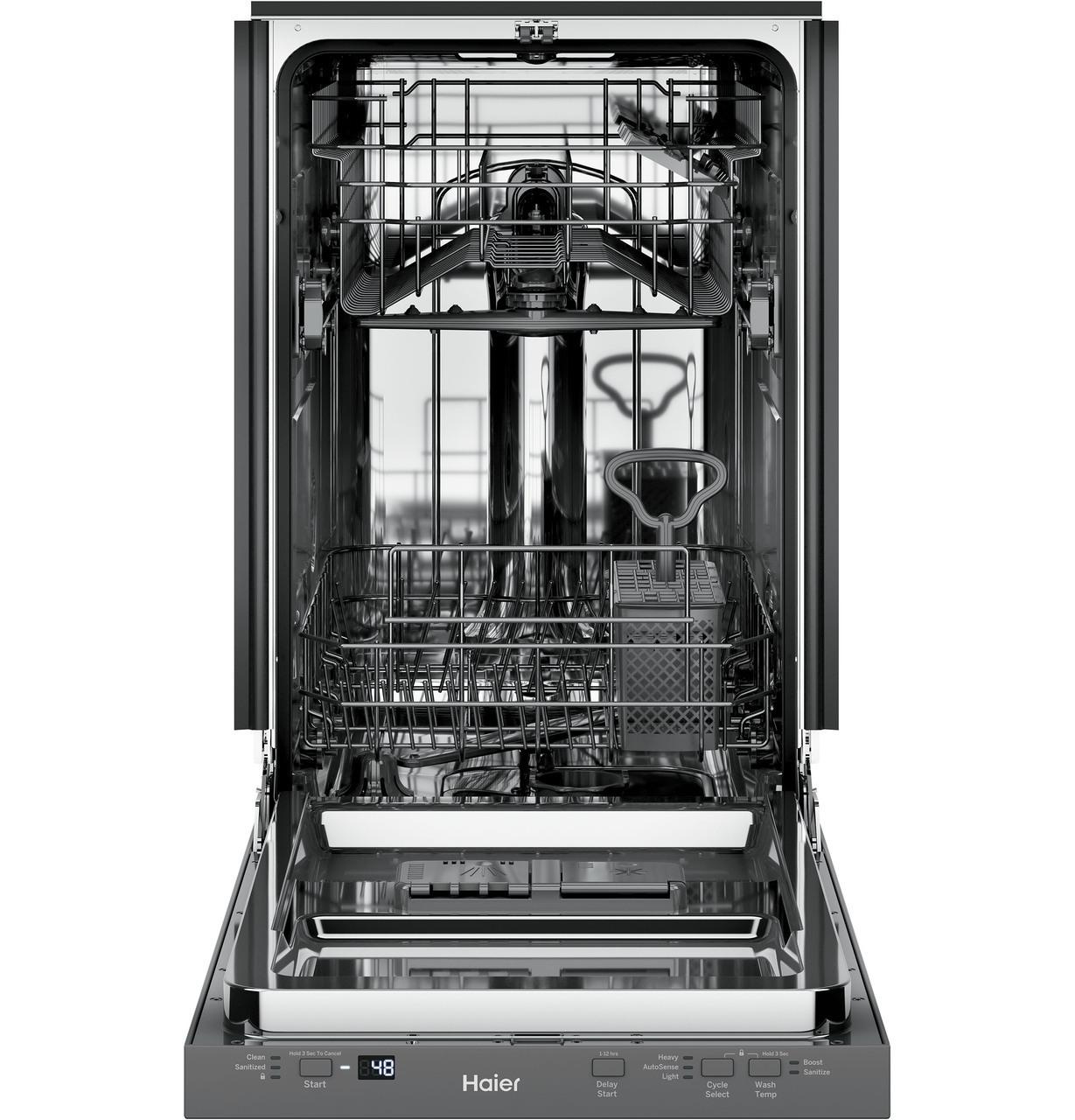

3 Level Wash
Powerful wash arms enable exceptionally clean dishes
Autosense Cycle
Ideal cycle time adjusted based on soil levels and water temperature
PIRANHA Hard Food Disposer with Removable Filter
A stainless steel blade pulverizes food particlesto ensure consistently clean items
Sanitize option (NSF Certified)
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
WiFi Capable
Through the SmartHQ™ app, monitor performance, check status, and automatically reorder detergent. ConnectPlus accessory part number PBX10W00Y0
Quiet Package
dBA 47, dramatically reduces the sound of washing the dishes
Great for 34" counter top heights and raised subfloors
3 Level Wash
Powerful wash arms enable exceptionally clean dishes
Autosense Cycle
Ideal cycle time adjusted based on soil levels and water temperature
PIRANHA Hard Food Disposer with Removable Filter
A stainless steel blade pulverizes food particlesto ensure consistently clean items
Sanitize option (NSF Certified)
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
WiFi Capable
Through the SmartHQ™ app, monitor performance, check status, and automatically reorder detergent. ConnectPlus accessory part number PBX10W00Y0
Quiet Package
dBA 47, dramatically reduces the sound of washing the dishes
APPEARANCE | |
Handle | Pocket Handle |
Handle Color | Stainless Steel |

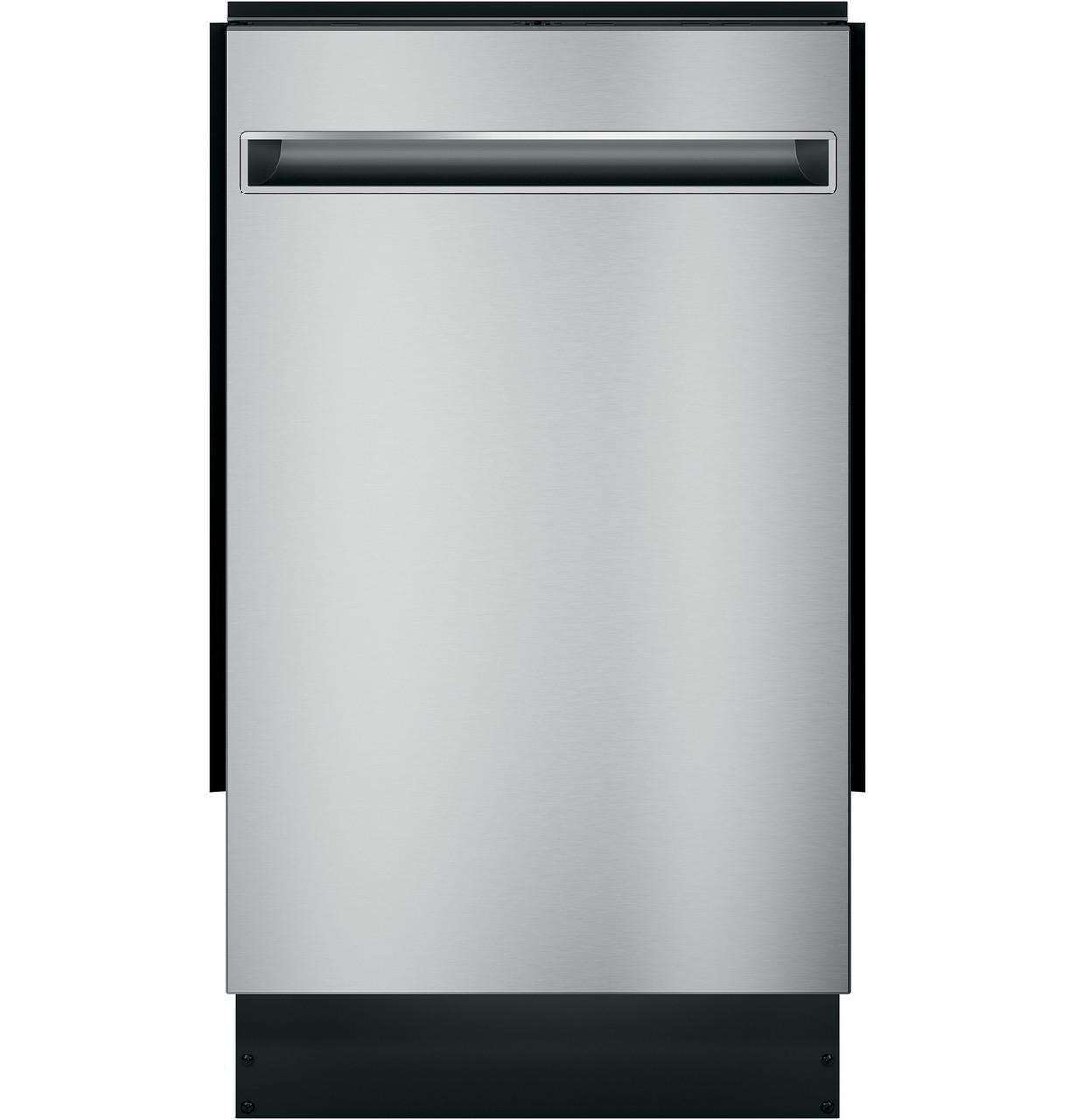

Door Style | Stainless Full-Length Flat Door |
Color Appearance | Stainless Steel |
Handle Design | Recessed |
POWER / RATINGS | |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Energy Consumption (kWh/year) | 240 |
Hertz | 60 |
Electrical Requirements | 120V ; 60 Hz ; 8.9 A |
Watts | 1068 |
Calrod Heater Watts | 1100 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET | |
Door Insulation | Insulation Mastic |
Quiet Package | 47 dBA |
Outer Wrap | U-Blanket |
Motor Type | Single Speed |
Quiet Features | Sealed Toe Kick Tub Collar Trim |
WEIGHTS & DIMENSIONS | |
Height w/ Legs Retracted - Minimum Height | 32.375 in |
Cutout Height (in) | 32 1/2 in |
Cutout Width (in) | 18 in |
Overall Depth | 22.5 in |
Cabinet Width | 18 in |
Net Weight | 72 lb |
Overall Width | 18 in |
Depth Without Handle | 22.5 in |
Approximate Shipping Weight | 85 lb |
Overall Height | 32.375 in |
Overall Depth with Handle | 22.5 in |
Cutout Depth (in) | 24 in |
Height w/Legs Extended - Maximum Height | 34.625 in |
Depth with Door Open | 23.125 in |
FEATURES | |
Wash System | 3-Level Standard |
Sensor | Clean Sensor |
Lower Rack | Nylon |
Leveling System | Leveling Legs |
Number of Place Settings | 8 |
Dishwasher Options | Child Lock Delay Start 1-12 Hr. Sani (Certified to NSF Standard 184) Start/Reset TempBoost |
Latch | Center Pull |
Number of Options | 5 |
Style | Built-In Front Control |
Water Filtration System | 3-Stage Manual Clean Filtration |
Rack Features | 1 Piece Mid Silverware Basket w/ 1 Cell Cover 1 Plastic Utility Shelf - Upper Ball-Tipped Tines Stem Safe |
Dishwasher Cycles | AutoSense Heavy Wash Light Wash |
Dispenser | Rinse Aid with Indicator and Adjustment |
WiFi Connect | Optional (Requires part no. PBX23W00Y1) |

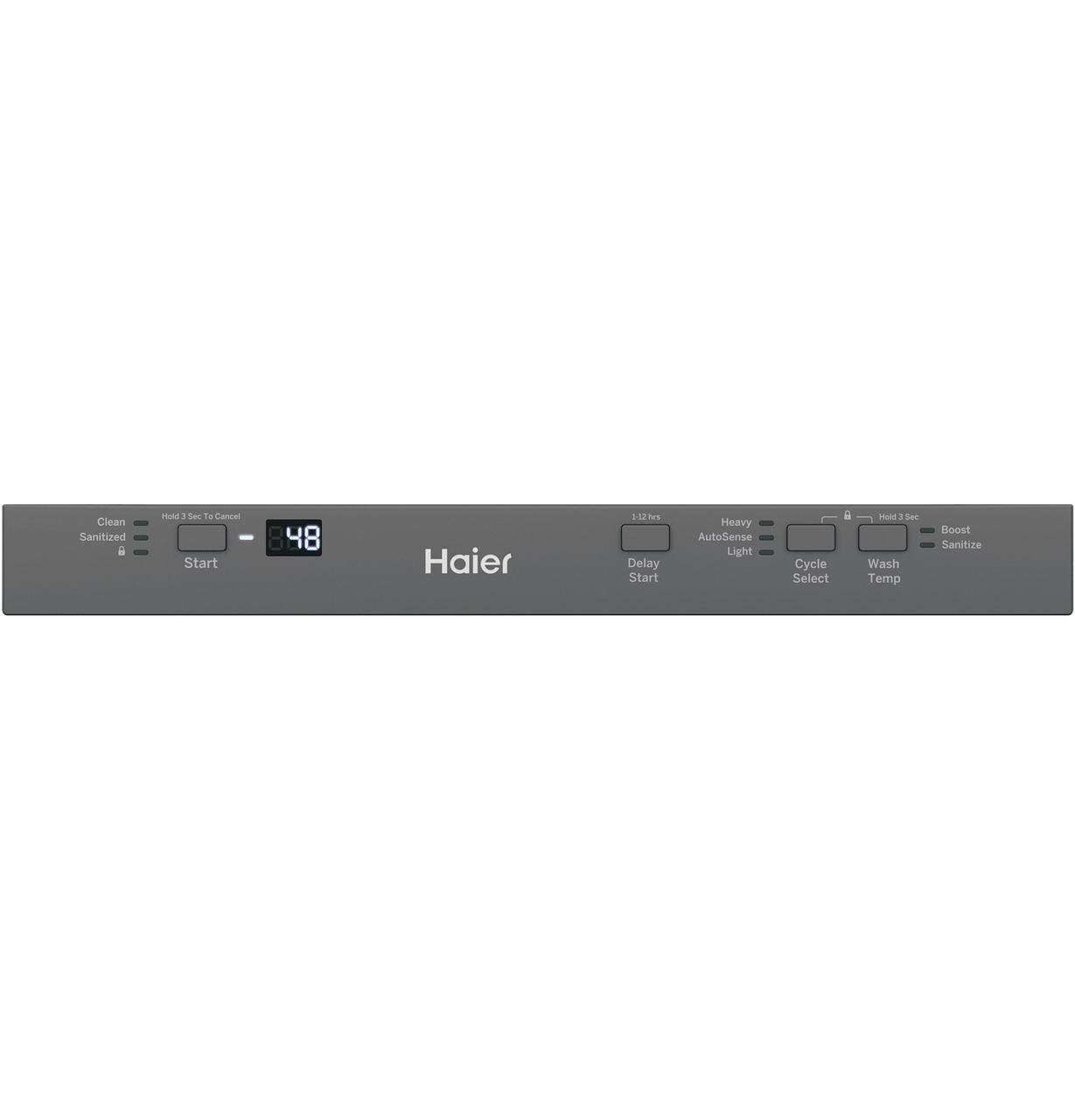

Control Type | 4 Pushbuttons Fully Integrated Electronic Top Controls |
Racking System | Gray |
Dishwasher Drying Features | Condensate Dry |
Wash Arms | 2 with Upper Nozzle |
Wash System Features | Automatic HotStart Automatic Temperature Control Dual Pump Flood Control System Piranha™ Hard Food Disposer |
Exterior Style | 18" Wide |
Product Type | Built-In |
Connected Capabilities | Amazon Alexa IFTTT Sonos The Google Assistant |
Upper Rack | Adjustable Nylon |
Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown Last Cycle Memory Start/Reset Pad |
Number of Cycles | 3 |
Tub and Door Liner | Stainless Steel |
