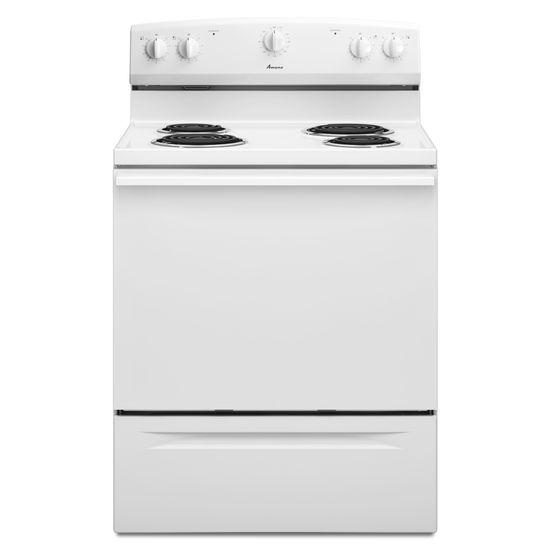

Amana® 30-inch Amana® Electric Range - White ACR3130BAW

The Versatile Cooktop on this 30-inch Amana® Electric Range gives you multiple element options to help satisfy your cravings. And with 4.8 cu. ft. Capacity, you can make even more of your favorites at the same time. Plus, the raised edges of the SpillSaver™ Upswept Cooktop keeps messes contained for easy cleanup.

External Dimensions
Depth	27 3/4
Height	46 7/8
Width	29 7/8
Depth With Door Open 90 Degree	46 11/16
Key Features
Versatile Cooktop - Our multiple burner options provide up to 12,500 BTUs, helping you cook your favorites all at once.
Large Oven Capacity - Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
SpillSaver™ Upswept Cooktop - Go ahead, spill the beans. The raised edges of this upswept cooktop make cleanup a cinch.
Specifications
Configuration and Overview
Fuel Type	Electric
Range Type	Freestanding
ADA Compliant	No
Cooktop Features
Cooktop Element Style	Coil
Cooktop Surface Color	White
Cooktop Surface Material	Porcelain Coated Steel
Number of Cooking Element-Burners	4
Left Front Element-Burner Power	2100W
Left Front Element-Burner Size	8"
Left Front Element-Burner Type	Coil
Left Rear Element-Burner Power	1250W
Left Rear Element-Burner Size	6"
Left Rear Element-Burner Type	Coil
Right Front Element-Burner Power	1250W
Right Front Element-Burner Size	6"
Right Front Element-Burner Type	Coil
Right Rear Element-Burner Power	2100W
Right Rear Element-Burner Size	8"
Right Rear Element-Burner Type	Coil
Oven Features
Automatic Convection Conversion Temperature Adjust	No
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	No
Power On Indicator Light	Yes
Bake Element Power	2400W
Broiler Element Power	3400W
Broiler Location	Top of Oven
Convection Element Type	None
Convection Functions	No
Hidden Bake Element	No
Light Type	None
Number of Oven Lights	0
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cooking System	Thermal
Oven Rack Type	Standard
Self-Cleaning	No
Controls
Drawer Type	Storage Drawer
Handle Material	Plastic
ADA Compliant	No
UL	Yes
