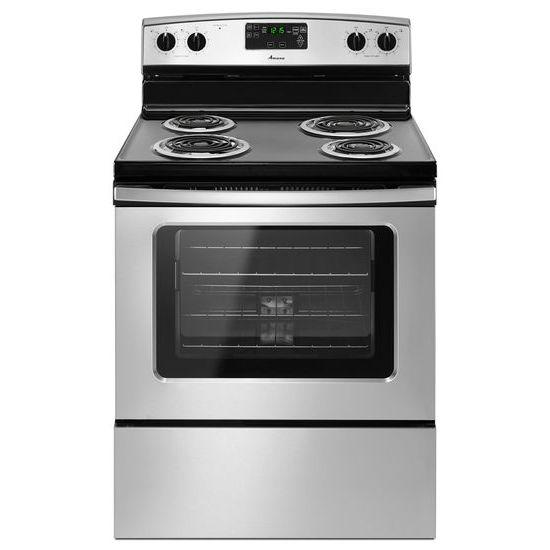

ACR4503SES Amana® 30-inch Amana® Electric Range with Self Clean - Black-on-Stainless ACR4503SES

This 30-inch Amana® Electric Range comes with a Versatile Cooktop to help you cook favorites all at once. Now you can boil your pasta and simmer the sauce at the same time! Plus, keep tabs on those T-bones with our Extra-Large Oven Window. And when you need a place to hide the pots and pans right after, use our spacious Storage Drawer. You can also use the Self Clean Option to help bust up the buildup and make cleaning a cinch.

External Dimensions
Depth	27 3/4
Width	29 7/8
Depth With Door Open 90 Degree	46 5/8
Key Features
Versatile Cooktop - Our multiple burner options provide up to 12,500 BTUs, helping you cook your favorites all at once.
Large Oven Capacity - Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Storage Drawer - This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Self Clean Option - There's no need to scrape and scrub with the Self Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Extra-Large Window - See and savor. A bigger view lets you check on food without having to open the oven door.
Specifications
Configuration and Overview
Fuel Type	Electric
Range Type	Freestanding
Capacity	4.8
Cooktop Features
Cooktop Element Style	Coil
Cooktop Surface Color	Color Coordinated Black on Stainless
Cooktop Surface Material	Porcelain Coated Steel
Number of Cooking Element-Burners	4
Left Front Element-Burner Power	2100W
Left Front Element-Burner Size	8"
Left Front Element-Burner Type	Coil
Left Rear Element-Burner Power	1250W
Left Rear Element-Burner Size	6"
Left Rear Element-Burner Type	Coil
Right Front Element-Burner Power	1250W
Right Front Element-Burner Size	6"
Right Front Element-Burner Type	Coil
Right Rear Element-Burner Power	2100W
Right Rear Element-Burner Size	8"
Right Rear Element-Burner Type	Coil
Oven Features
Automatic Convection Conversion Temperature Adjust	No
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	No
Bake Element Power	2400
Broiler Element Power	3400@240 V
Broiler Location	Top of Oven
Convection Element Type	None
Hidden Bake Element	No
Light Type	Incandescent
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cooking System	Thermal
Oven Rack Type	Standard
Self-Cleaning	Self-Cleaning
Controls
Drawer Type	Storage Drawer
Handle Material	Plastic
Selections	Control Lock
UL	Yes
