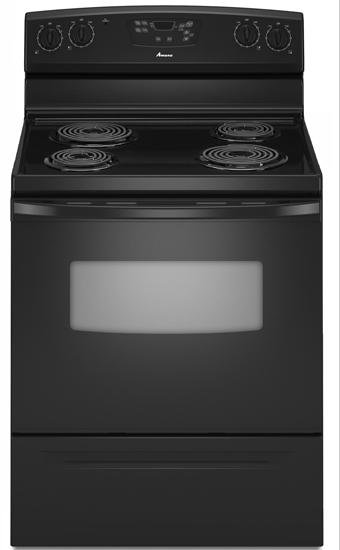

Amana AER5523XAB 4.8 cu. ft. Electric Range with Temp Assure™ Cooking System AER5523XAB
Amana AER5523XAB 4.8 cu. ft. Electric Range with Temp Assure™ Cooking System
- Versatile Electric Cooktop
- Oven Capacity
- SpillSaver™ Upswept Cooktop
- Easy Touch Electronic Controls
- Adjustable Time Self-Cleaning Oven
- Temp Assure™ Cooking System
- Custom Broil
- Limited One Year Warranty - Parts and Labor. For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or replaced free of charge. Refer to the Use and Care for warranty details
- Before operating your new range, carefully read its Use and Care Guide for instruction on the proper use, care and maintenance of your range and for warranty information. Click here to download a copy of the Use and Care Guide.
This 4.8 cu. ft. electric range offers the Temp Assure™ cooking system and adjustable time self-cleaning oven for added convenience.
| Capacity | |
| Capacity | 4.8 Cu. Ft. |
| Performance | |
| Model Type | Electric |
| Cooktop Features | |
| Cooking Surface Element On Light | 1 - Console |
| Cooking Surface Finish | Gloss |
| Cooktop Color | W(Wht)S(Blk) |
| Cooktop Material | Porcelain |
| Cooktop Style | Spillsaver™ Upswept Cooktop Design |
| Cooktop Type | Coil |
| Lift Top Cooktop | Yes |
| Dimensions | |
| Overall Height | 46 7/8 Inches |
| Overall Width | 29 7/8 Inches |
| Overall Depth | 27 3/4 Inches |
| Weight | 130 LB |
| Oven Features | |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Number of Oven Lights | 1 |
| Cooking System | Thermal |
| Broiler Type | 4-pass waist high |
| Broiler | Single Element Broil |
| Drawer Type | Storage Drawer |
| Oven Light Location | Back Oven, Right Rear Corner |
| Cleaning System | High Temp Self |
| Oven Control Features | |
| Preheat Type | Temperature |
| Self Clean Oven Time Clean | Hi 4 1/2 Hrs/ Lo 3 1/2 Hrs |
| Kitchen Timer | Yes |
| Oven Light Switch | On Control |
| Control Lockout | Yes |
| Oven Control Display Colors | Green |
| Oven Control Location | Console |
| Automatic Door Latch | Yes |
| Clock | Yes |
| Electric Cooktop Detail | |
| Left Front Power (watts) | 2600 |
| Left Rear Power (watts) | 1500 |
| Right Front Power (watts) | 1500 |
| Right Rear Power (watts) | 2600 |
