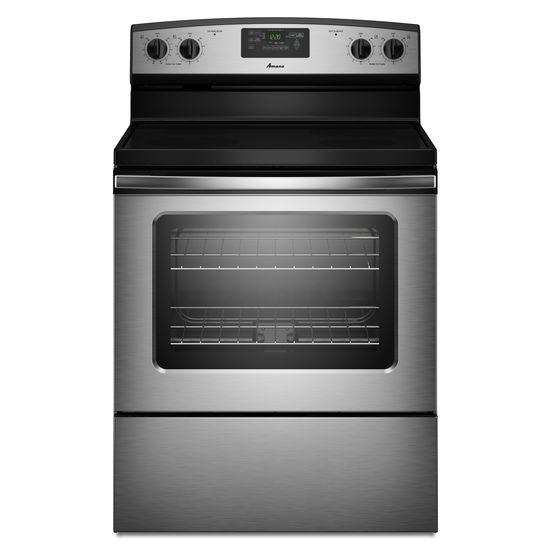

AER5630BAS Amana® 30-inch Amana® Electric Range with Easy Touch Electronic Controls - Stainless Steel AER5630BAS

This 30-inch Amana® Electric Range comes with 4.8 cu. ft. Capacity to help you fit more of your favorites. And when you're ready to bake or broil, use the Easy Touch Electronic Controls to get just the right temperature. You can also keep the heat in by using the Extra-Large Oven Window to check on dinner. Then when dinner is done, use the Self Clean Option to help clear away any buildup inside the oven.

External Dimensions
Depth	27 3/4
Height	46 7/8
Width	29 7/8
Depth With Door Open 90 Degree	46 11/16
Key Features
Versatile Cooktop - Our multiple element options provide up to 3,000 watts to help you cook more of your favorites at the same time.
Large Oven Capacity - Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Easy Touch Electronic Controls - It's smooth sailing on casserole night when you can set bake or broil temperatures with ease.
Temp Assure™ Cooking System - Distributes heat throughout the entire oven to help comfort food favorites like chicken parmesan or mom's beef pot roast taste just how you like them.
Self Clean Option - There's no need to scrape and scrub with the Self Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Extra-Large Oven Window - With our Extra-Large Oven Window, you can easily check on dinner without having to open the oven door and interrupt cooking.
Custom Broil - Use this setting to broil in five degree-increments to melt cheese, sear steak or toast those buns with more precision.
Keep Warm™ Setting - Use this setting to make sure the sauce stays warm while you finish boiling the pasta.
Delay-Bake Oven Control - Use this feature to get dinner done on your schedule. With the oven hot and ready by the time you get home, it's even easier to make a last-minute meal.
SpillSaver™ Upswept Cooktop - Go ahead, spill the beans. The raised edges of this upswept cooktop make cleanup a cinch.
Specifications
Configuration and Overview
Fuel Type	Electric
Range Type	Freestanding
ADA Compliant	No
Star K Compliant	Sabbath Mode
Cooktop Features
Cooktop Element Style	Radiant/Smoothtop
Cooktop Surface Color	Black
Cooktop Surface Material	Glass
Number of Cooking Element-Burners	4
Left Front Element-Burner Power	3000W/1400W
Left Front Element-Burner Size	9"/6"
Left Front Element-Burner Type	Dual
Left Rear Element-Burner Power	1200W
Left Rear Element-Burner Size	6"
Left Rear Element-Burner Type	Single
Right Front Element-Burner Power	1200W
Right Front Element-Burner Size	6"
Right Front Element-Burner Type	Single
Right Rear Element-Burner Power	1800W
Right Rear Element-Burner Size	8"
Right Rear Element-Burner Type	Single
Oven Features
Automatic Convection Conversion Temperature Adjust	No
Heating Element On Indicator Light	No
Hot Surface Indicator Light	Yes
Power On Indicator Light	Yes
Bake Element Power	2400W
Broiler Element Power	3400W
Broiler Location	Top of Oven
Convection Element Type	None
Convection Functions	No
Hidden Bake Element	No
Light Type	Incandescent
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cooking System	Thermal
Oven Rack Type	Standard
Self-Cleaning	Adjustable Self Cleaning
Controls
Drawer Type	Storage Drawer
Handle Material	Plastic
Selections	Audible Signal, Clock, Control Lock, Cook Time Indicator, Delay Start, Timer, Warm Hold
ADA Compliant	No
UL	Yes
