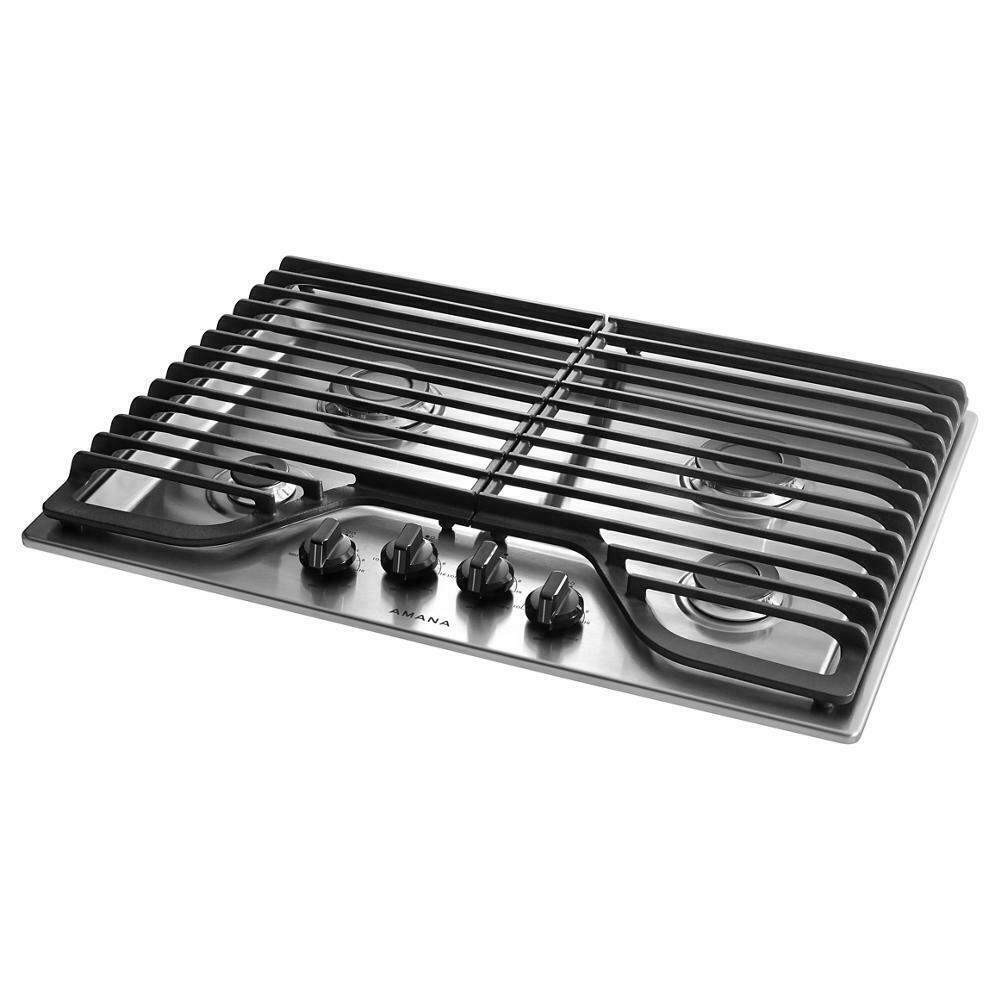

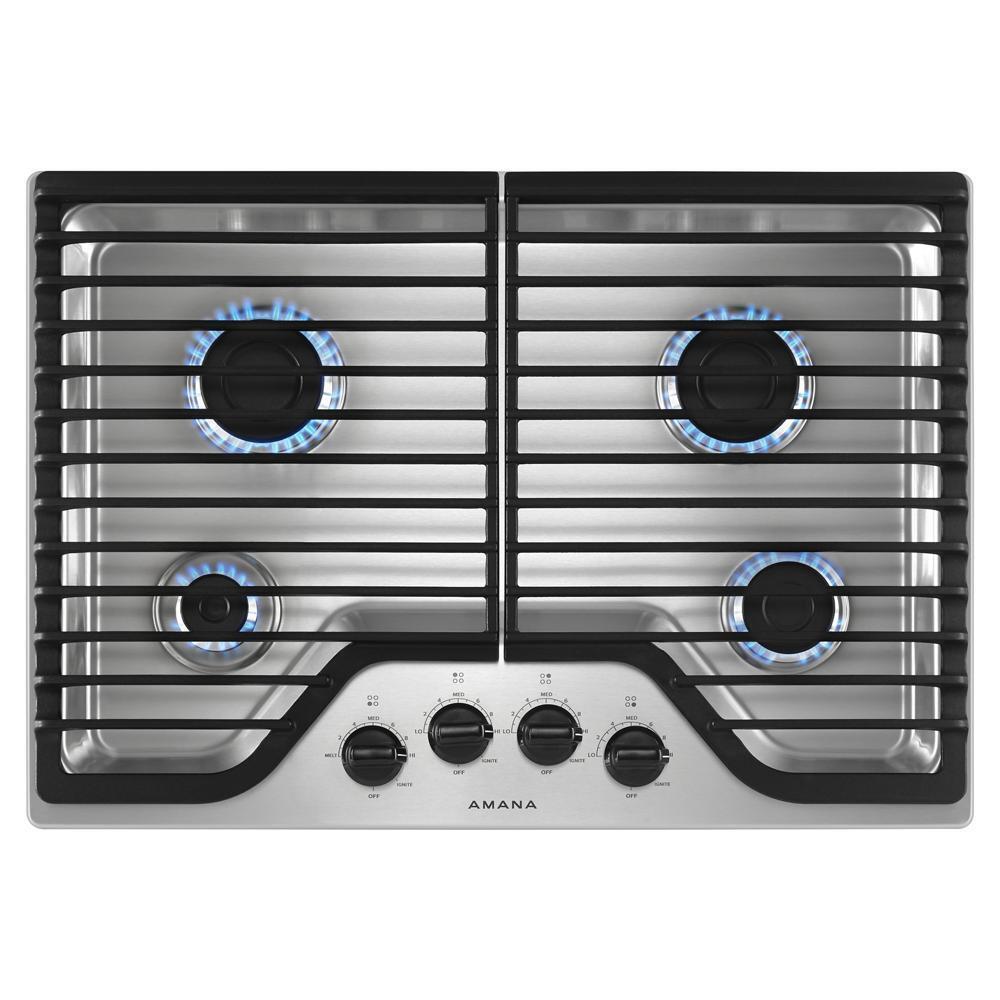

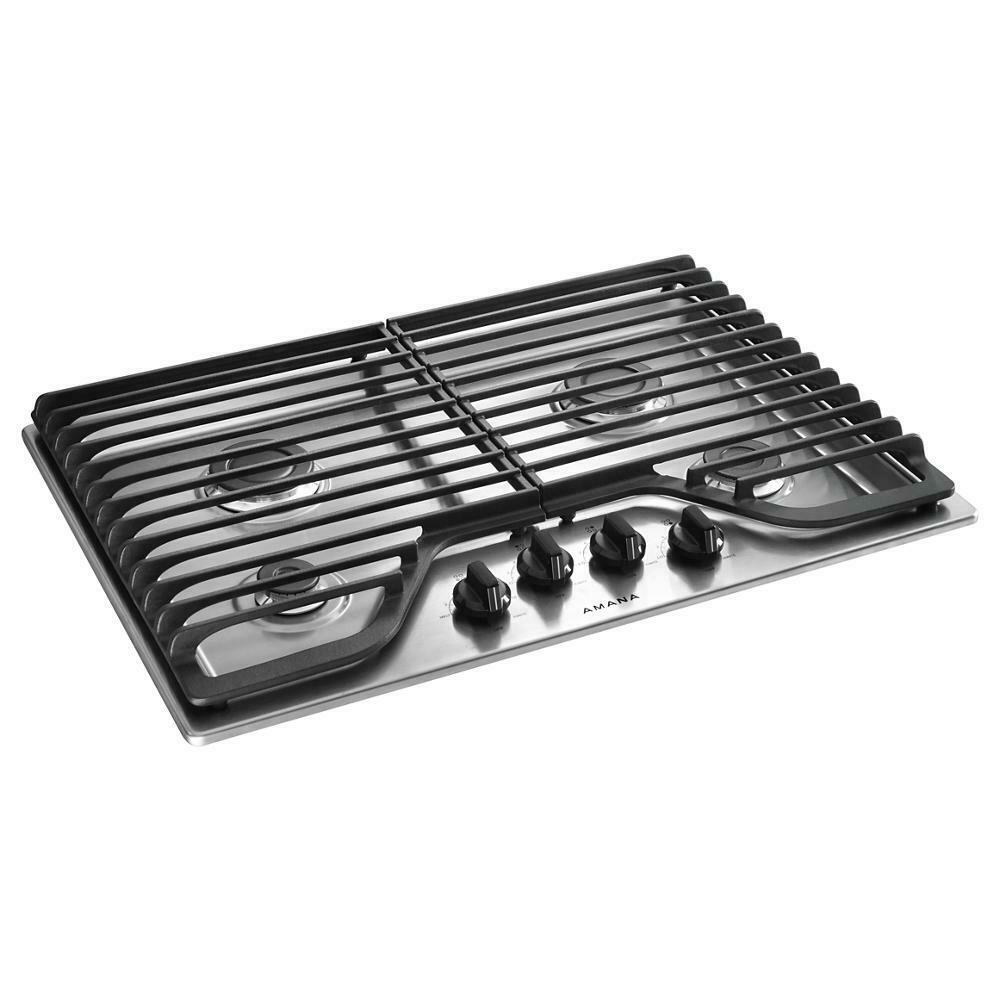

Amana AGC6540KFS 30-inch Gas Cooktop with 4 Burners AGC6540KFS
Amana AGC6540KFS 30-inch Gas Cooktop with 4 Burners
- 4 Burners
- Installs Over the Wall Oven
- Front Controls
- Sealed Burners
- Dishwasher-Safe Grates and Knobs

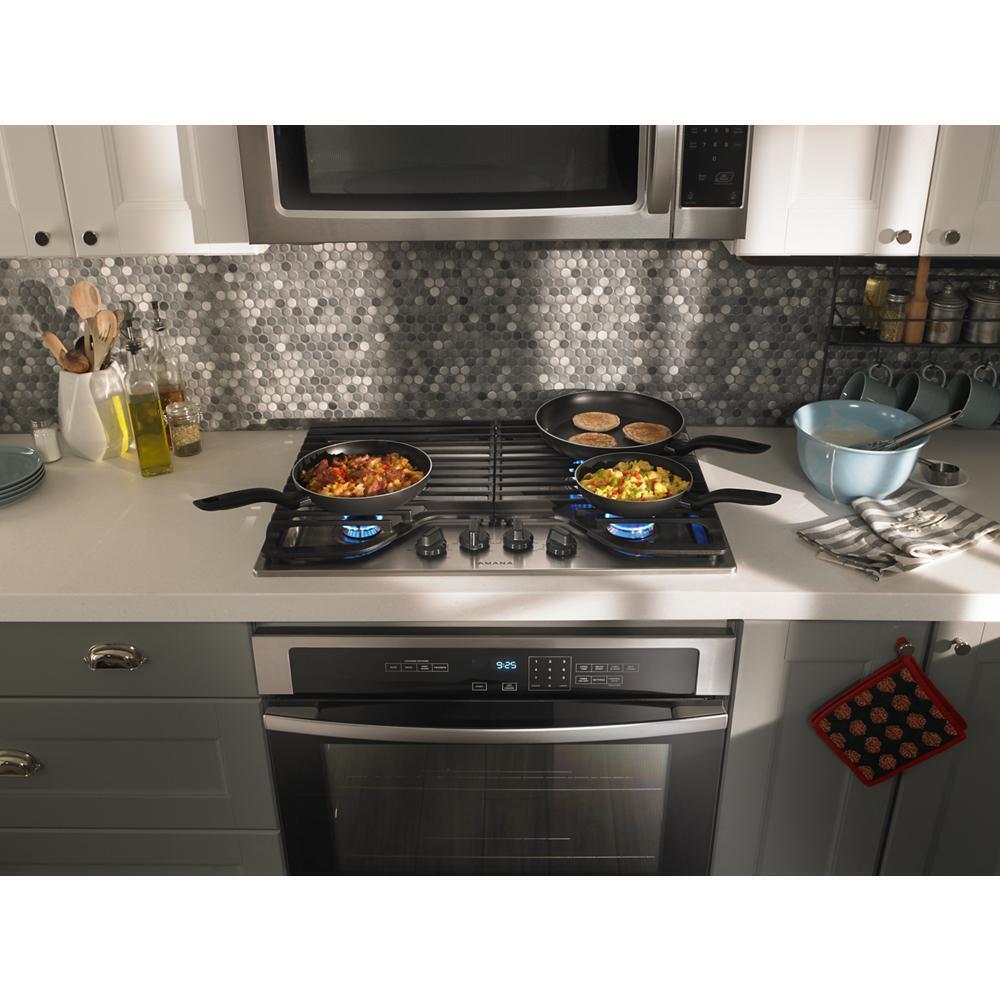

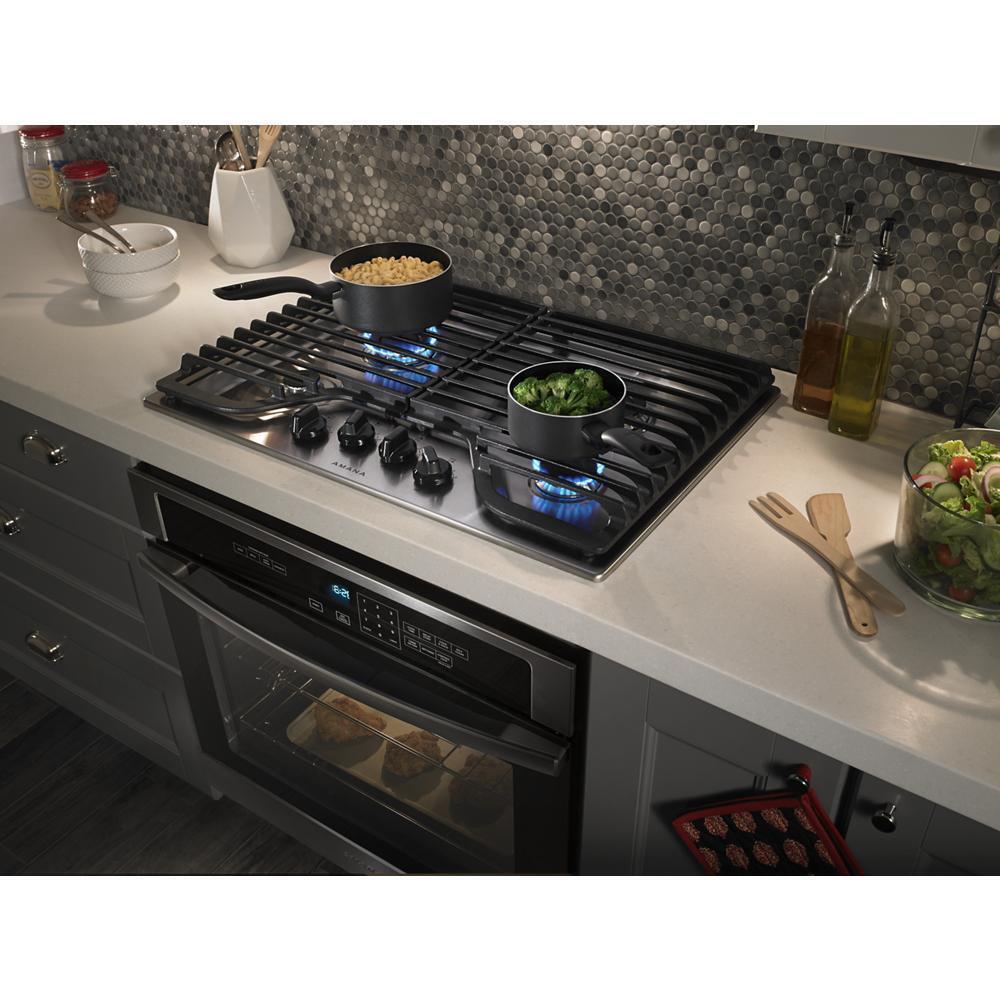

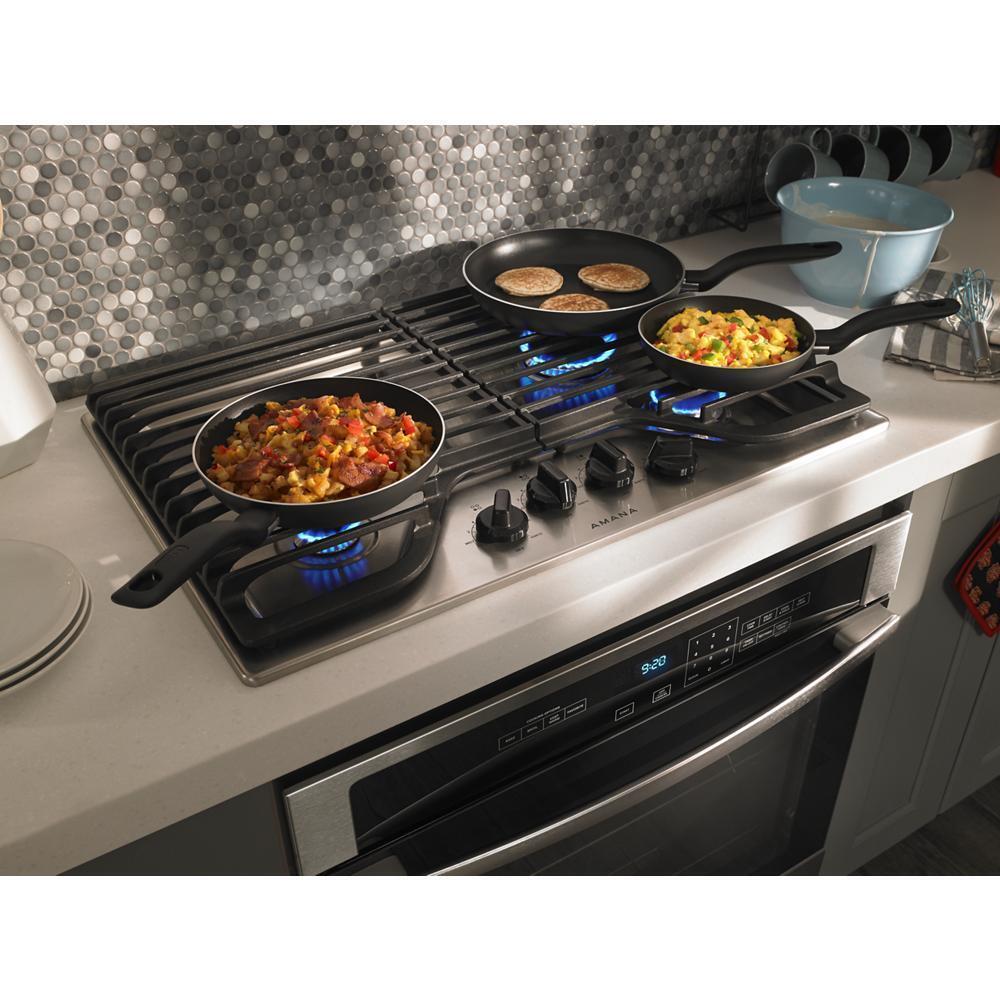

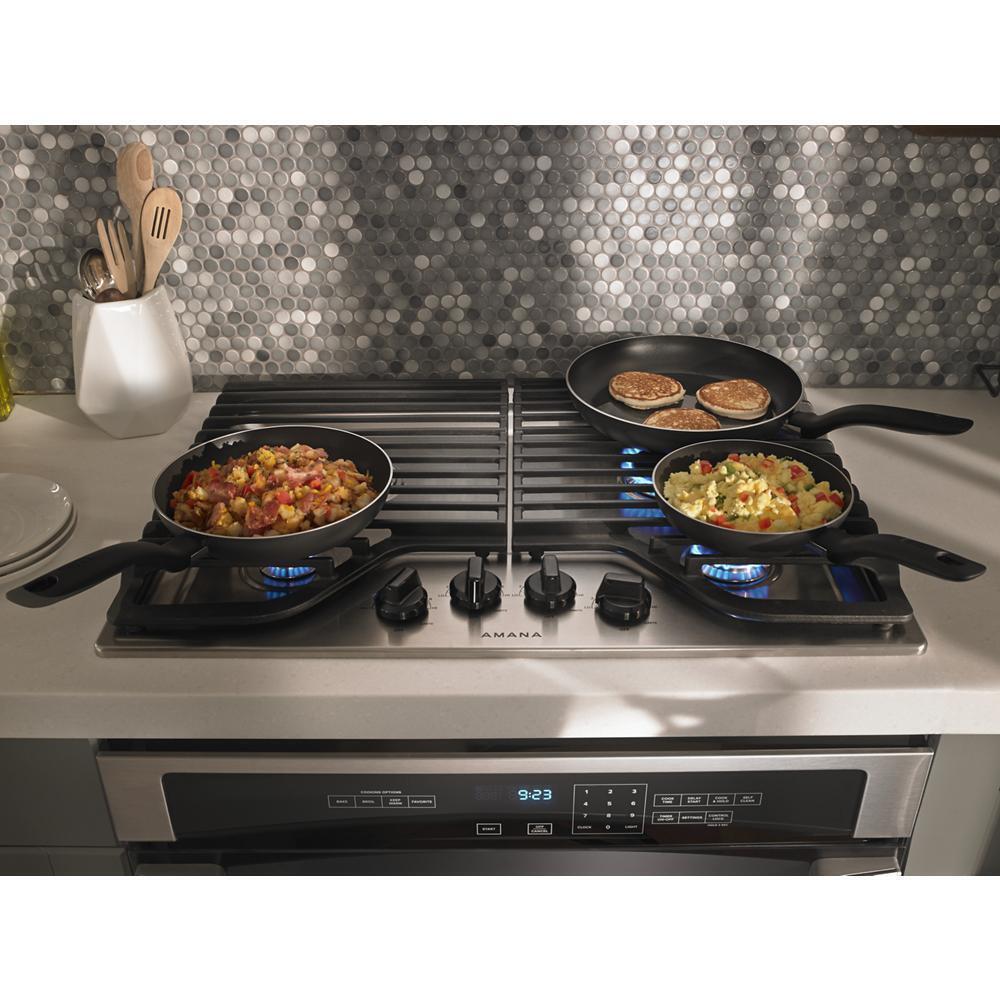

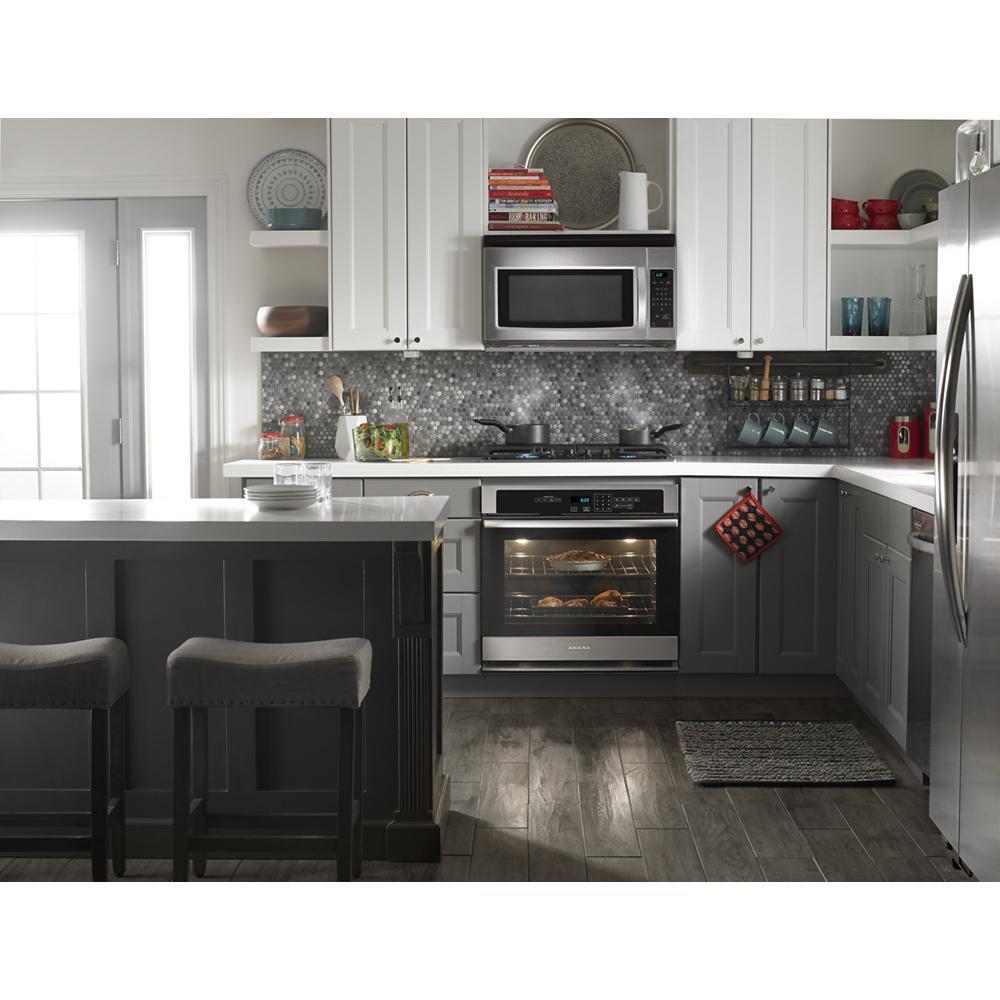

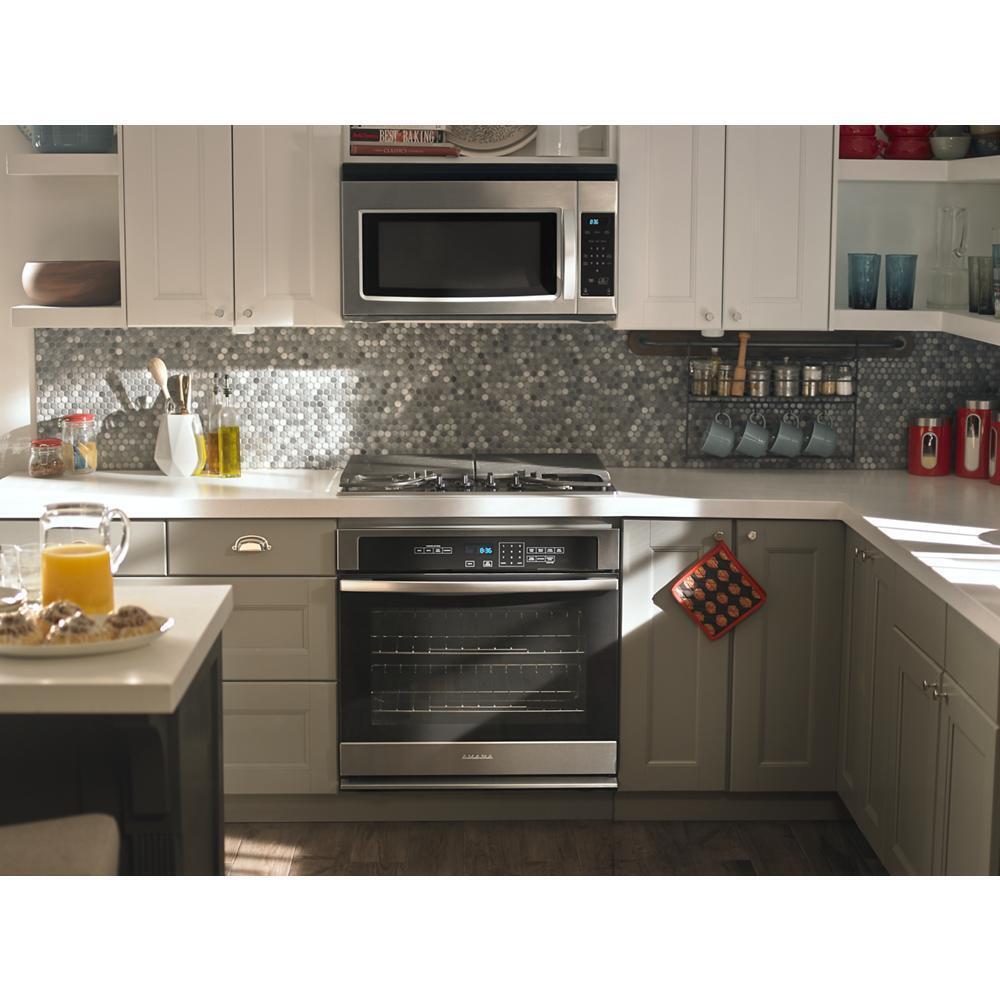

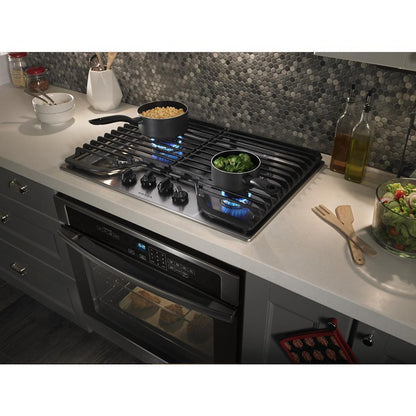

Get a seamless look with this 30-inch Amana® Gas Cooktop that installs over your Wall Oven. With 4 Burners providing up to 12,000 BTUs, you can melt, boil and simmer at the same time, and turn up the heat how you like with easily accessible Front Controls. Plus, cleaning is a breeze with Sealed Burners that keep spills from spreading.
| Certifications | |
| Ada Compliant | ADA Height and Side and Front Reach Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Combinations With Oven | AWO6313; AWO6317 |
| Fuel Type | Gas |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Dimensions | |
| Product Height | 4.125 |
| Carton Height | 12.04 |
| Gross Weight | 40 |
| Carton Width | 34.76 |
| Product Depth | 21.0 |
| Cutout Depth Max | 20 |
| Cutout Width Min | 28.5 |
| Cutout Depth | 19.5 |
| Carton Depth | 25 |
| Cutout Width | 28.875 |
| Cutout Depth Min | 19 |
| Cutout Width Max | 29.313 |
| Net Weight | 34 |
| Product Width | 30.0 |
| Electrical | |
| Power Cord Included | Yes |
| Element/burner Details | |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 5,000 BTU |
| Left Front Element-burner Type | Simmer |
| Left Rear Element-burner Power | 12,000 BTU |
| Left Rear Element-burner Type | SpeedHeat™ |
| Number of Cooking Element-burners | 4 |
| Power Boost | No |
| Right Front Element-burner Power | 9,100 BTU |
| Right Front Element-burner Type | Sealed Burner |
| Right Rear Element-burner Power | 12,000 BTU |
| Right Rear Element-burner Type | Sealed Burner |
| Exterior Details | |
| Knob Color | Color Coordinated/Black on Stainless |
| Knob Type | Dishwasher-Safe Plastic |
| General | |
| Combination Match With Oven | AWO6313; AWO6317 |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Gloss Finish |
| Number of Grates | 2 |
| Ventilation Details | |
| Downdraft Vent | No |
