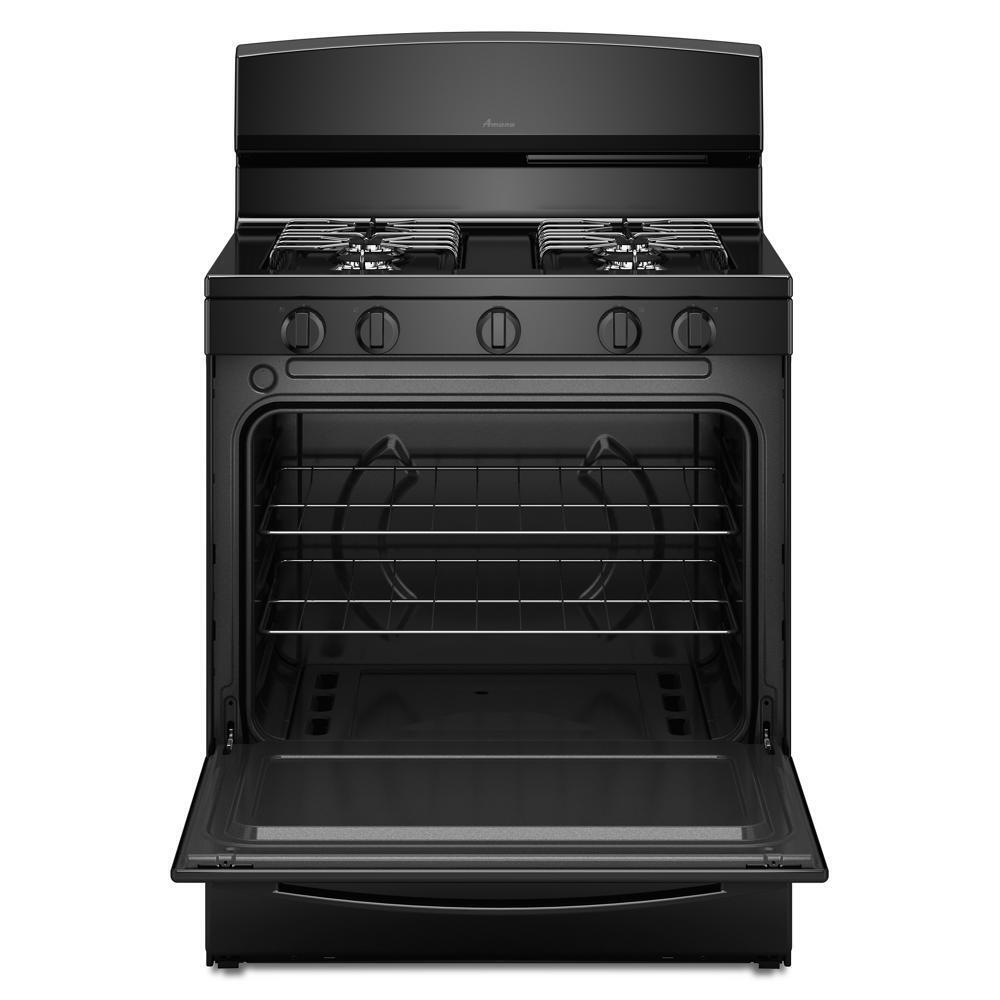

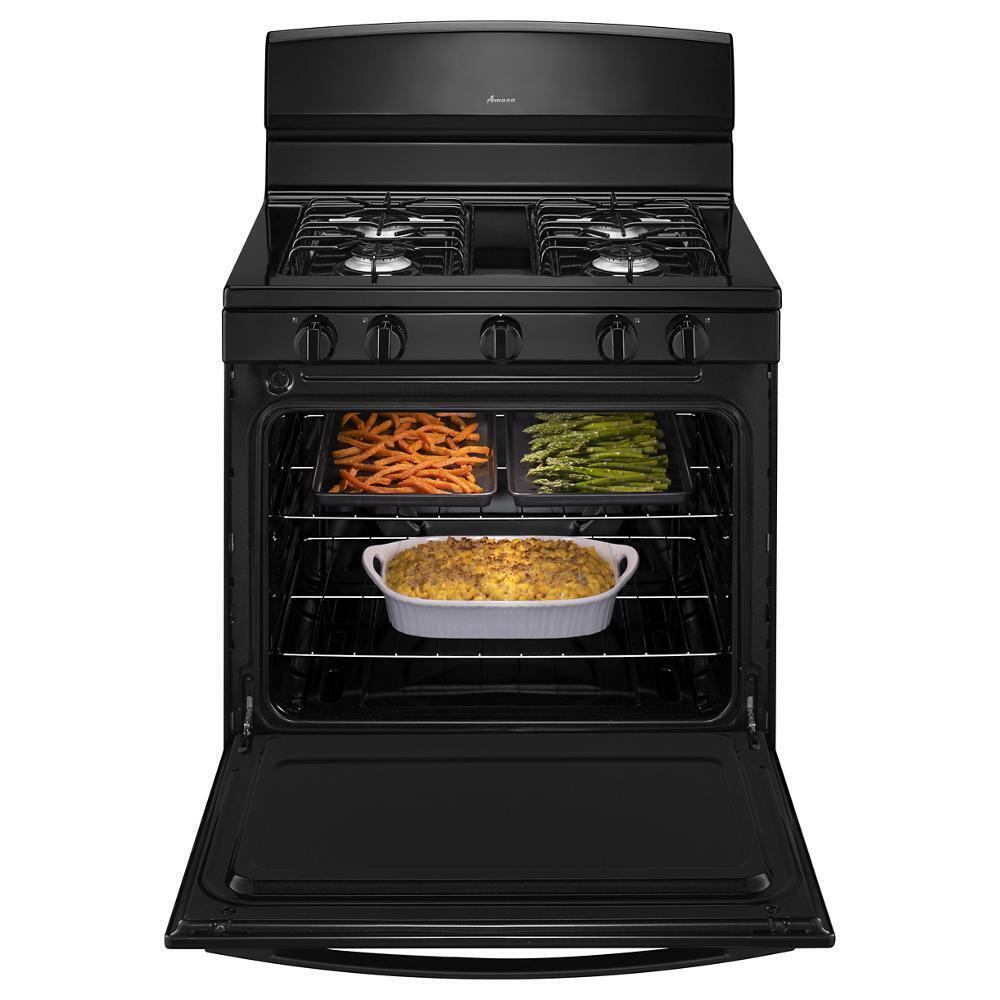

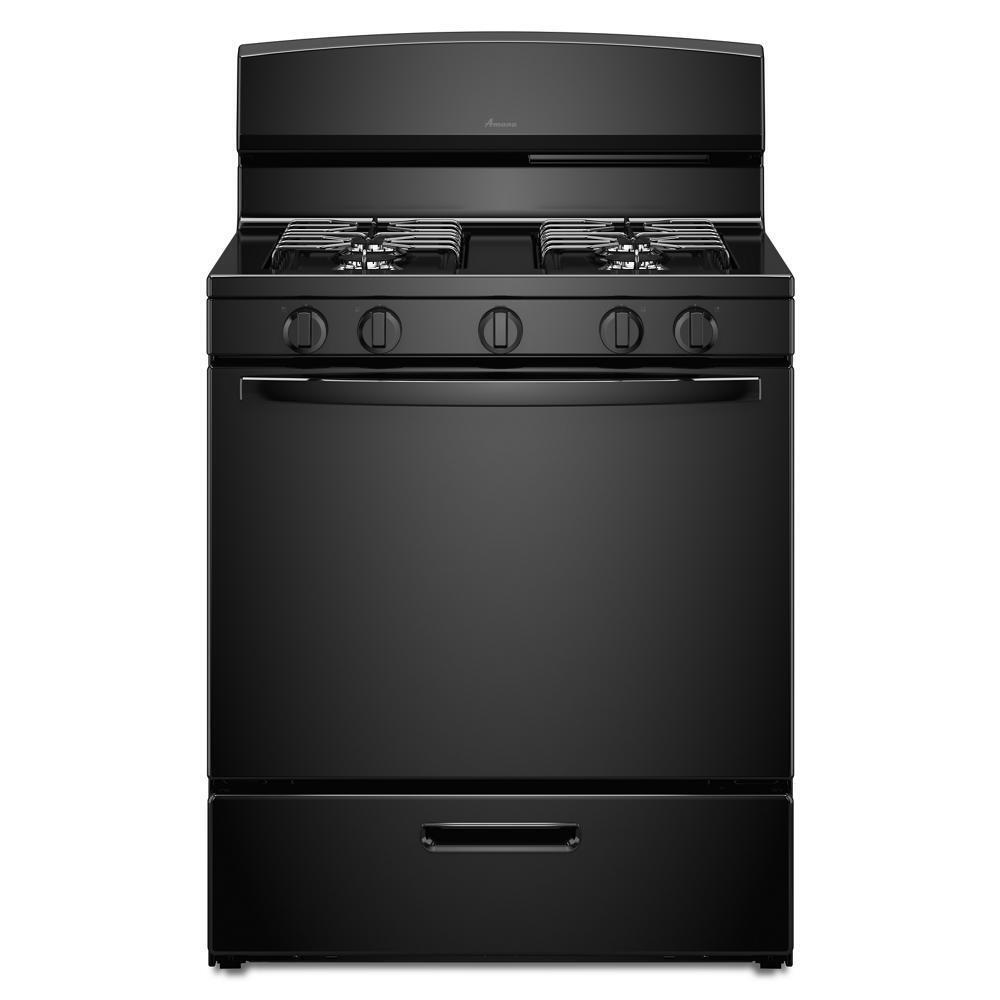

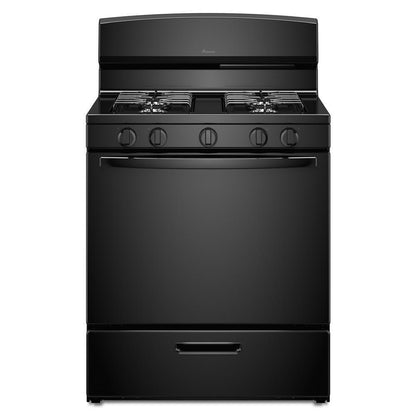

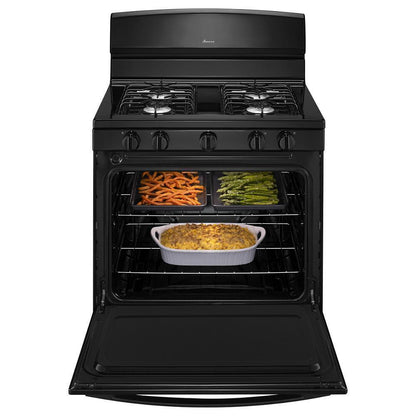

30-inch Gas Range with EasyAccess™ Broiler Door AGR4230BAB

This 30-inch Amana® Gas Range features a Versatile Cooktop, so you can cook everything from instant noodles to a big pot of black bean chili. The 5.1 Cu. Ft. Capacity lets you fit more favorites, and an EasyAccess™ Broiler Door is not only easy to reach, but it also conveniently fits wide dishes.

Details
Oven Cleaning Type	Manual Clean
Oven Control Location	Front
Interior Color	Grey
Oven Cooking System	Thermal
Convection Functions	No
Number of Rack Guides	5
Oven Control Type	Knobs
Hidden Bake Element	Yes
Oven Rack Type	Standard
Number of Oven Racks	2
Broiler Location	Drawer
Convection Element Type	None
Oven Light Type	None
Cooktop Surface Material	Porcelain Coated Steel
Description
Size (in.)	30
Configuration
Oven Configuration	Single Oven
Range Configuration	Freestanding
Certifications
ADA Compliant	No
Prop 65	Standard
UL	Yes
Cooktop Details
Left Rear Element-Burner Power	9,500 BTU
Number of Cooking Element-Burners	4
Right Front Element-Burner Type	Sealed Burner
Number of Grates	2
Left Front Element-Burner Power	9,500 BTU
Cooktop Control Location	Front
Ignition Type	Electronic
Right Rear Element-Burner Power	5,000 BTU
Left Rear Element-Burner Type	Sealed Burner
Right Rear Element-Burner Type	Sealed Burner
Left Front Element-Burner Type	Sealed Burner
Cooktop Control Type	Knobs
Cooktop Surface Color	Black
Cooktop Element Style	Sealed Burner
Grate Details	Gloss Finish,Porcelain Coated Steel Grates
Right Front Element-Burner Power	9,500 BTU
General
Accessory Relationships	Yes
Width Doors Open 90 Degrees	45.210
Controls
Knob Color	Color Coordinated
Knob Type	Dishwasher-Safe Plastic
Dimensions
Gross Weight(LB,pounds)	136
Carton Depth(IN,inches)	28.0000
Cutout Height Min(IN,inches)	36.0200
Capacity(FT3,cubic feet)	5.10
Carton Height(IN,inches)	48.0000
Carton Width(IN,inches)	32.0000
Features
Griddle	Optional Accessory
Power On Indicator Light	No
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
LP Convertible	Yes
Power Outage Compatible	No
Automatic Convection Conversion Temperature Adjust	No
Electrical
Volts	120
Amps	15
Hz	60
Power Cord Included	Yes
Exterior
Handle Material	Plastic
Range Drawer Type	Broiler Drawer
Oven Window Size	None
Handle Color	Black
Door Type	Enameled Steel
