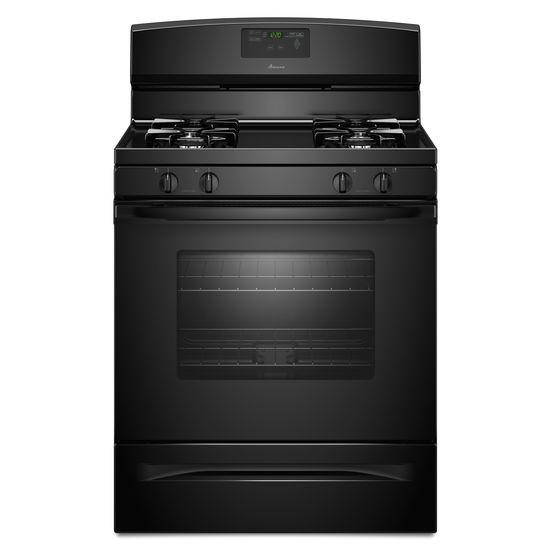

Amana® 5.0 cu. ft. Gas Oven Range with Easy Touch Electronic Controls - Black AGR5630BDB

From large family dinners to snacktime solutions, the 5.0 cu. ft. capacity of this oven fits it all. Easy Touch electronic controls and the Temp Assure™ cooking system help ensure even cooking for meals. While four sealed gas burners and a versatile cooktop offer superior cooking power with one 12,500 BTU, two 9,500 BTU and one 5,000 BTU burner. The Spillsaver™ upswept cooktop makes for easy cleanup, and five rack positions offer the flexibility needed to fit everyone's favorites.

External Dimensions
Depth	27 7/8
Height	46 7/8
Width	29 7/8
Depth With Door Open 90 Degree	46 9/16
Key Features
Versatile Gas Cooktop - Use only what you need. Multiple burner options provide precise control at all temperatures, so you can prepare food while using the right amount of energy with the right burner.
5.0 Cu. Ft. Capacity - The 5.0 cu. ft. capacity oven lets you cook multiple dishes at once, so you can handle everything from daily meals to large family dinners with ease.
Sealed Burners - Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
SpillSaver™ Upswept Cooktop - Go ahead, spill the beans. The raised edges of this upswept cooktop make cleanup a cinch.
Easy Touch Electronic Controls - It's smooth sailing on casserole night when you can set bake or broil temperatures with ease.
Extra-Large Window - See and savor. A bigger view lets you check on food without having to open the oven door.
LP Gas Convertible - Convert your natural gas range for use with propane gas with the included LP gas conversion kit.
High/Low Self-Cleaning Oven - Let the oven do the dirty work. This adjustable self-cleaning oven lets you select the right amount of cleaning for light or heavy soils.
Specifications
Configuration and Overview
Fuel Type	Gas
Range Type	Freestanding
ADA Compliant	No
Cooktop Features
Cooktop Element Style	Sealed Burner
Cooktop Surface Color	Black
Cooktop Surface Material	Porcelain Coated Steel
Number of Cooking Element-Burners	4
Left Front Element-Burner Power	12,500 BTU
Left Front Element-Burner Type	High Output
Left Rear Element-Burner Power	9500 BTU
Left Rear Element-Burner Type	Sealed Burner
Right Front Element-Burner Power	9500 BTU
Right Front Element-Burner Type	Sealed Burner
Right Rear Element-Burner Power	5000 BTU
Right Rear Element-Burner Type	Simmer
Dishwasher Safe	Yes
Grate Finish	Gloss
Grate Material	Stamped Steel
Grate Type	Individual
Number of Grates	4
Oven Features
Automatic Convection Conversion Temperature Adjust	No
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Power On Indicator Light	Yes
Bake Element Power	16500 BTU
Broiler Element Power	10000 BTU
Broiler Location	Top of Oven
Convection Element Type	None
Convection Functions	No
Hidden Bake Element	Yes
Light Type	Incandescent
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cooking System	Thermal
Oven Rack Type	Standard
Self-Cleaning	Self-Cleaning
Controls
Drawer Type	Storage Drawer
Handle Material	Plastic
Handle Type	Towel Bar
Selections	Clock, Control Lock, Hidden Bake Element, Timer
ADA Compliant	No
UL	Yes
