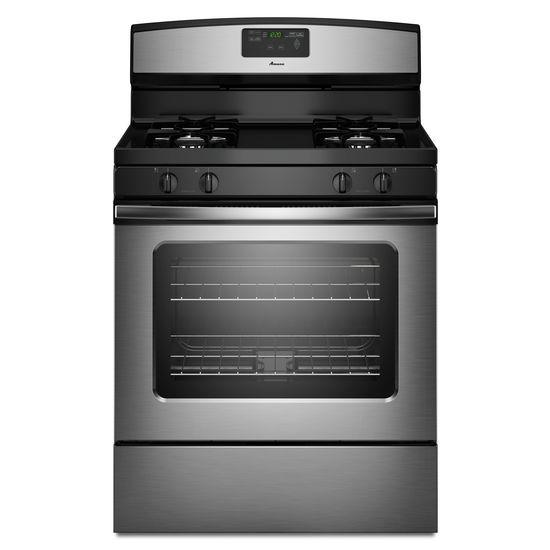

Amana® 5.0 cu. ft. Gas Oven Range with Easy Touch Electronic Controls - Stainless Steel AGR5630BDS

SKU/Model #: AGR5630BDS Discontinued
Amana® 5.0 cu. ft. Gas Oven Range with Easy Touch Electronic Controls - Stainless Steel
Authorized Reseller
SKU/Model #: AGR5630BDS
Amana® 5.0 cu. ft. Gas Oven Range with Easy Touch Electronic Controls - Stainless Steel
Discontinued
$0.00
List Price:
Instant Savings:
  • Versatile Gas Cooktop
  • 5.0 Cu. Ft. Capacity
  • SpillSaver™ Upswept Cooktop
  • Sealed Burners
  • Easy Touch Electronic Controls
  • Extra-Large Window
  • LP Gas Convertible
  • High/Low Self-Cleaning Oven
From large family dinners to snacktime solutions, the 5.0 cu. ft. capacity of this oven fits it all. Easy Touch electronic controls and the Temp Assure™ cooking system help ensure even cooking for meals. While four sealed gas burners and a versatile cooktop offer superior cooking power with one 12,500 BTU, two 9,500 BTU and one 5,000 BTU burner. The Spillsaver™ upswept cooktop makes for easy cleanup, and five rack positions offer the flexibility needed to fit everyone's favorites.
External Dimensions
Depth 27 7/8
Height 46 7/8
Width 29 7/8
Depth With Door Open 90 Degree 46 9/16
Key Features
Versatile Gas Cooktop - Use only what you need. Multiple burner options provide precise control at all temperatures, so you can prepare food while using the right amount of energy with the right burner.
5.0 Cu. Ft. Capacity - The 5.0 cu. ft. capacity oven lets you cook multiple dishes at once, so you can handle everything from daily meals to large family dinners with ease.
Sealed Burners - Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
SpillSaver™ Upswept Cooktop - Go ahead, spill the beans. The raised edges of this upswept cooktop make cleanup a cinch.
Easy Touch Electronic Controls - It's smooth sailing on casserole night when you can set bake or broil temperatures with ease.
Extra-Large Window - See and savor. A bigger view lets you check on food without having to open the oven door.
LP Gas Convertible - Convert your natural gas range for use with propane gas with the included LP gas conversion kit.
High/Low Self-Cleaning Oven - Let the oven do the dirty work. This adjustable self-cleaning oven lets you select the right amount of cleaning for light or heavy soils.
Specifications
Configuration and Overview
Fuel Type Gas
Range Type Freestanding
ADA Compliant No
Cooktop Features
Cooktop Element Style Sealed Burner
Cooktop Surface Color Black
Cooktop Surface Material Porcelain Coated Steel
Number of Cooking Element-Burners 4
Left Front Element-Burner Power 12,500 BTU
Left Front Element-Burner Type High Output
Left Rear Element-Burner Power 9500 BTU
Left Rear Element-Burner Type Sealed Burner
Right Front Element-Burner Power 9500 BTU
Right Front Element-Burner Type Sealed Burner
Right Rear Element-Burner Power 5000 BTU
Right Rear Element-Burner Type Simmer
Dishwasher Safe Yes
Grate Finish Gloss
Grate Material Stamped Steel
Grate Type Individual
Number of Grates 4
Oven Features
Automatic Convection Conversion Temperature Adjust No
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Power On Indicator Light Yes
Bake Element Power 16500 BTU
Broiler Element Power 10000 BTU
Broiler Location Top of Oven
Convection Element Type None
Convection Functions No
Hidden Bake Element Yes
Light Type Incandescent
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cooking System Thermal
Oven Rack Type Standard
Self-Cleaning Self-Cleaning
Controls
Drawer Type Storage Drawer
Handle Material Plastic
Handle Type Towel Bar
Selections Clock, Control Lock, Hidden Bake Element, Timer
ADA Compliant No
UL Yes
