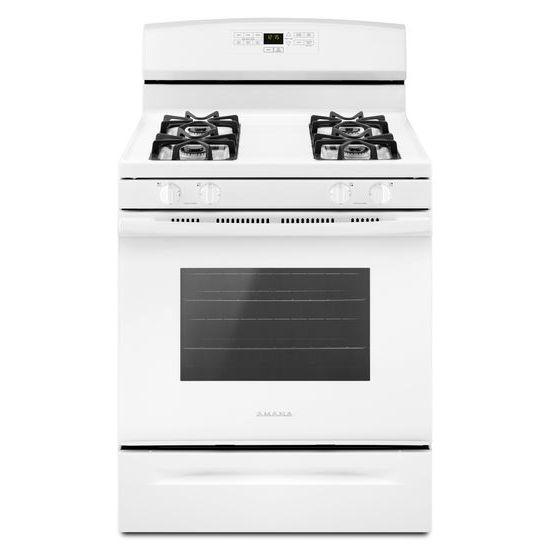

Amana® 30-inch Gas Range with Bake Assist Temps - White AGR6303MFW

This 30-inch Amana® Gas Range with 5.0 cu. ft. Capacity bring cooking and convenience together with Bake Assist Temps. Simply choose a preset temperature setting to get started. And if you need to delay dinner, use the Warm Hold feature so that your food is still ready when you are.

External Dimensions
Depth	27 7/8
Height	46 7/8
Width	29 7/8
Depth With Door Open 90 Degree	46 9/16
Key Features
Large Oven Capacity - Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Versatile Cooktop - Our multiple burner options provide up to 12,500 BTUs, helping you cook your favorites all at once.
Bake Assist Temps - These preset temperature settings make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Easy Touch Electronic Controls Plus - Quickly select bake or broil temperatures with these extra-large and easy-to-read electronic controls.
Extra-Large Oven Window - See and savor. A bigger view lets you check on food without having to open the oven door.
Warm Hold - Can't serve dinner right away? Warm Hold keeps the oven at 145°F to 190°F, so dishes like your baked chicken parmesan are still ready when you are.
Oven Lockout - This safety feature locks your oven and its controls to help protect against accidental use.
Sealed Burners - Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Specifications
Configuration and Overview
Fuel Type	Gas
Range Type	Freestanding
Size	30
Capacity	5.00
ADA Compliant	No
Cooktop Features
Cooktop Element Style	Sealed Burner
Cooktop Surface Color	Color Coordinated Black on Stainless
Cooktop Surface Material	Porcelain Coated Steel
Number of Cooking Element-Burners	4
Left Front Element-Burner Power	12,500 BTU
Left Front Element-Burner Type	High Output
Left Rear Element-Burner Power	9500 BTU
Left Rear Element-Burner Type	Multi Purpose
Right Front Element-Burner Power	9500 BTU
Right Front Element-Burner Type	Sealed Burner
Right Rear Element-Burner Power	5000 BTU
Right Rear Element-Burner Type	Simmer
Number of Grates	4
Grate Details	Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates
Oven Features
Number of Oven Lights	1
Automatic Convection Conversion Temperature Adjust	No
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Power On Indicator Light	Yes
Light Type	Incandescent
Self-Cleaning	Standard Clean
Bake Element Power	16,500 BTU
Hidden Bake Element	Yes
Broiler Element Power	10,000 BTU
Broiler Location	Top of Oven
Convection Element Type	None
Convection Functions	No
Oven Cooking System	Thermal
Number of Oven Racks	2
Number of Rack Guides	5
Oven Rack Type	Standard
Controls
Drawer Type	Storage Drawer
Handle Material	Metal
Handle Type	Reach Through Handle
Selections	Audible Signal, Clock, Control Lock, Sabbath Mode, Timer, Warm Hold
ADA Compliant	No
