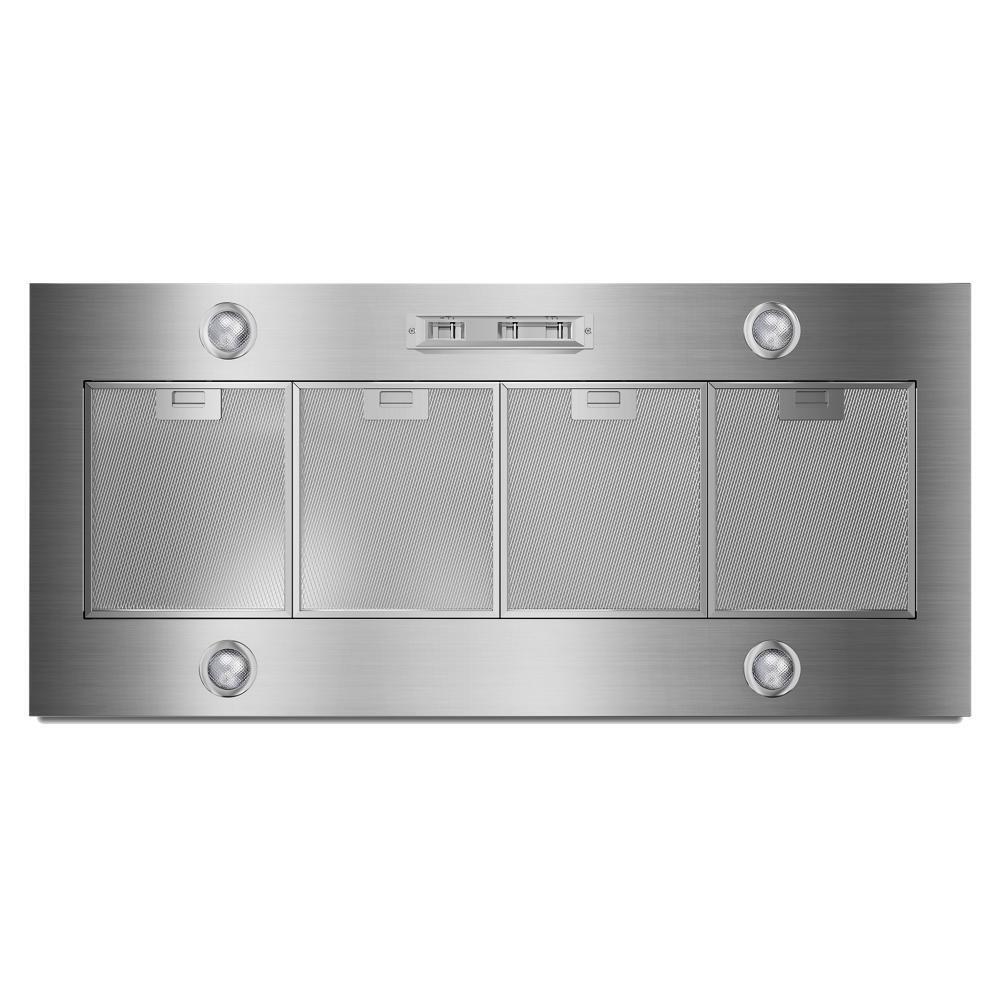

48" 585 or 1170 CFM Motor Class Custom Hood Liner

This 48-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 48-inch rangesor cooktops of comparable output.

Details
Style	Hoods
Description
Hood Type	Under Cabinet
Size (in.)	48
Certifications
Kosher Consumer Friendly	No
Prop 65	Standard
Energy Star® Qualified	No
UL	Yes
Ventilation System
Filters	Grease Filters
Blower Type	Centrifugal
Duct Direction	Vertical
Venting	Exterior
Duct Length	13.000
HVI (Sones HS Horizontal)	N/A
Duct Outlet Size (in.)	10
Vent Fan Location	Side
Sound Max Speed (Sones)	1200.0
Auto Function	No
Duct Type	Round
HVI (CFM HS Horizontal)	N/A
HVI (CFM HS Vertical)	510
Exhaust Vent Location	Top
General
Accessory Relationships	Yes
Controls
Control Type	Slide Controls
Control Location	Hidden

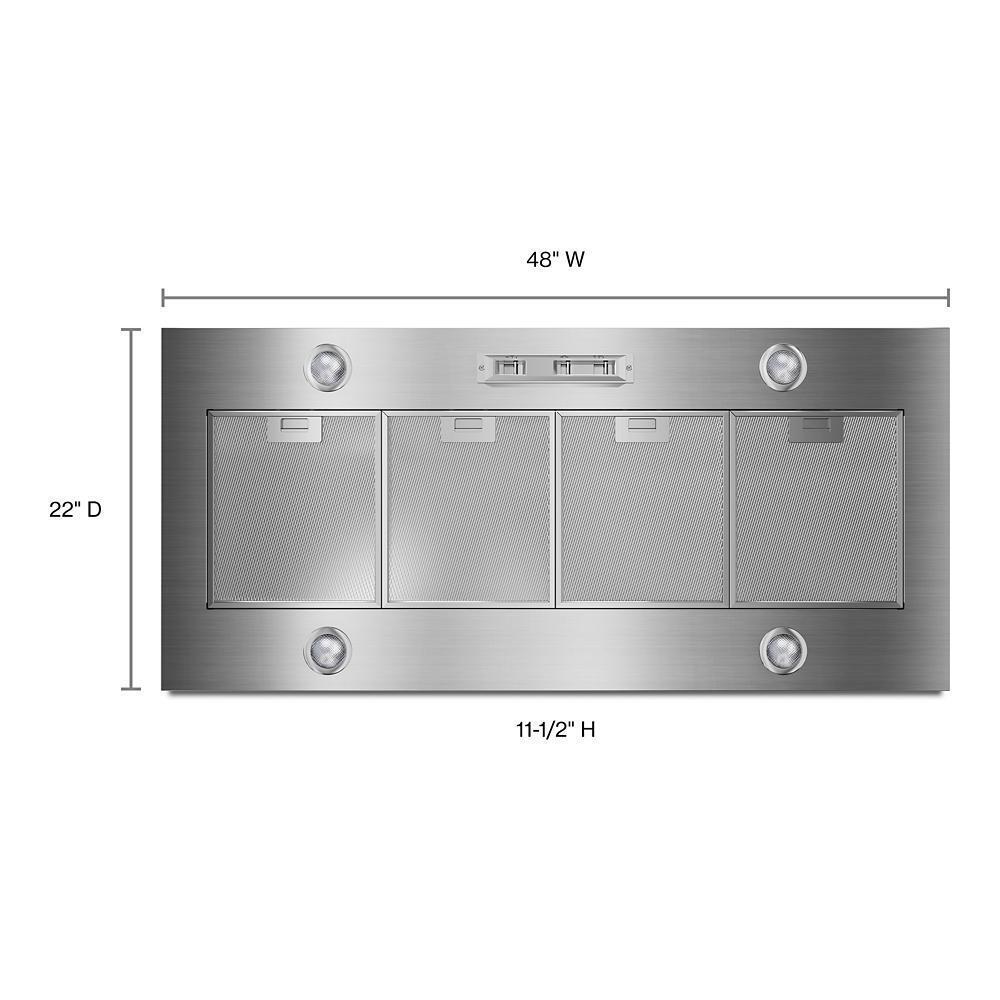

Dimensions
Gross Weight(LB,pounds)	53
Width(IN,inches)	48.0000
Carton Height(IN,inches)	16.6250
Canopy Height (IN,inches)	11.50000
Carton Depth(IN,inches)	53.3125
Carton Width(IN,inches)	27.5625
Features
Number of Night Light Settings	1
Night Light	No
Task Light Type	LED
BTU Threshold	65K/105K
Lighting Control Type	Slider
Task Lighting	Yes
Damper Included	Yes
Electrical
Volts	120
Power Cord Included	No
Watts	446
Amps	3.72 (1S50)/7.22 (2S50)
Hz	60
