- 4 sealed burners (10000, 2x 7000 and 3500 BTU)
- Electronic ignition
- 2.3 cu. ft oven with interior light
- European gas safety shutoff
- Cast iron grates
- Chrome plated racks
- Ships NG with LP conversion kit
- Slide-in style - No backguard included or available

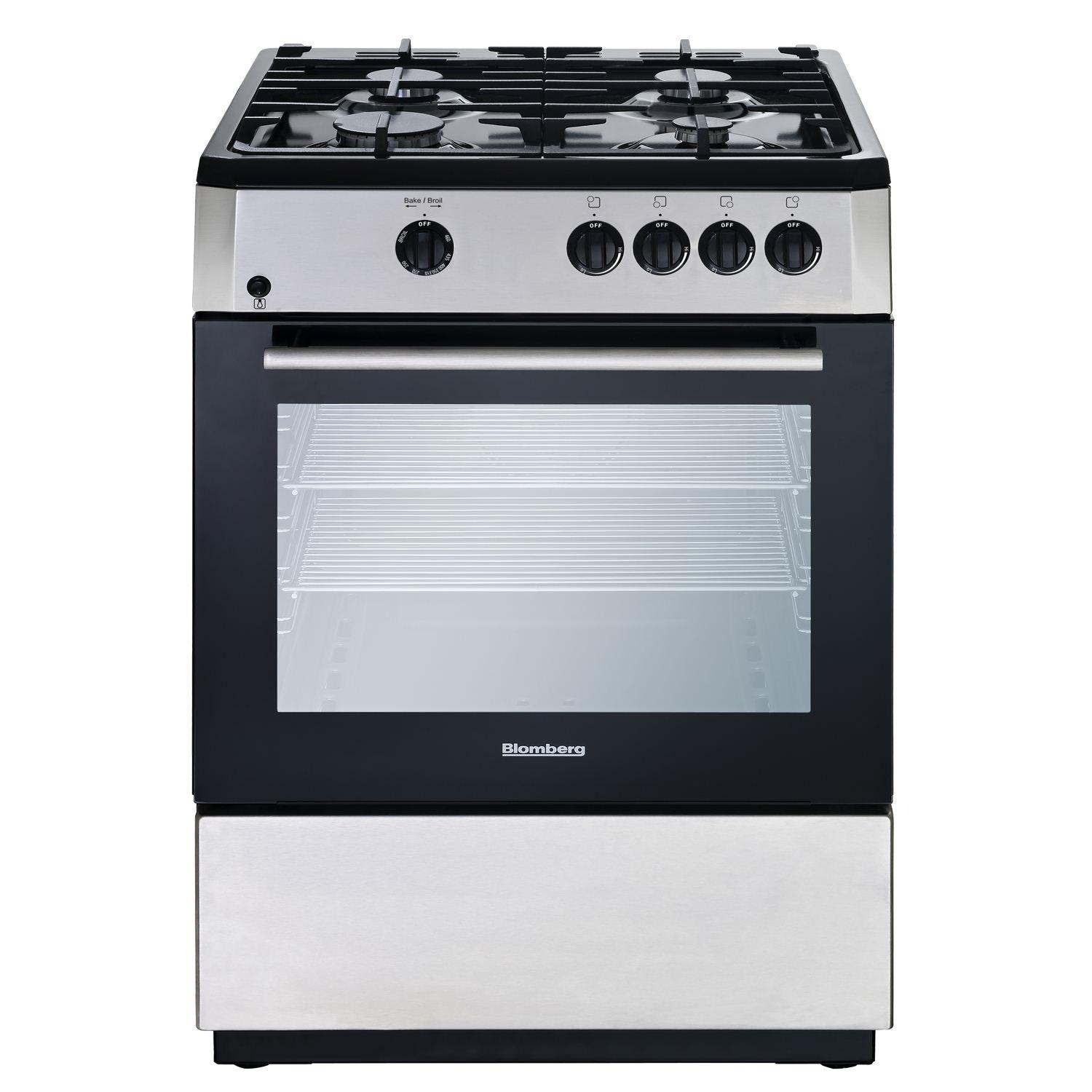

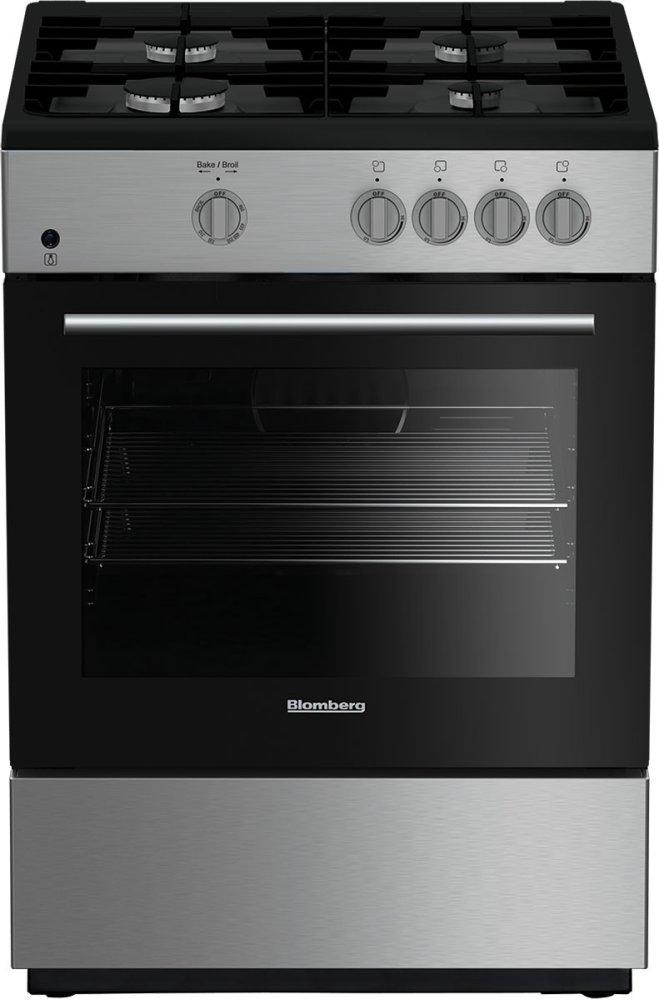

Counter depth 24" range with one of the largest ovens in its class, Stylish and fully featured in a small package. Features integrated electronic knob ignition and child safety thermocouple to prevent gas from flowing if the burner is out. Ships natural gas - LP conversion kit included.
| General | |
| Model | BGR24102SS |
| Type | Freestanding |
| Size | 24 |
| Color | Stainless Steel |
| Side Walls | Black |
| Control type | Mechanical Control |
| Functions | |
| Bottom Heater | Yes |
| Broil | Gas |
| Special Features | |
| Island Trim | Included |
| Adjustable Feet | Yes |
| Cavity Enameling Color | Gray |
| Oven Lights | 1 x Round light |
| Anti-tip (tilting) bracket | Yes |
| Fuel Type | NG |
| LPG Conversion Kit | Yes |
| Cooktop | |
| Zone Configuration | 4 Gas |
| Front Left | 10,900 BTU |
| Rear Left | 7,050 BTU |
| Front Right | 3,650 BTU |
| Rear Right | 7,050 BTU |
| Pan Support Type | Continuous cast iron |
| Pan Support Quantity | 2 |
| Gas Safety Device for hob | Yes |
| Gas Safety Device for oven | Yes |
| Oven Features | |
| Oven Glass Window | Full Glass |
| Door Cooling System | 2Pane Heat Resistant Glass(fixed) |
| Net Capacity cu. ft. | 2.51 cu. ft. |
| Accessories / Oven Cavity | |
| Rack Positions | 5 levels |
| Chromed Wire Racks | 2 |
| Power Ratings | |
| KW/Amps rating at 240V, 60Hz | 120-240V 60Hz |
| Supply Cord & Plug | USA-Canada |
| Cable | Yes |
| Dimensions / Weight | |
| Required cutout dim (H x W x D) in. | 36" x 24" x 24" |
| Overall dim - height | 36 |
| Overall dim - width | 23 5/9 |
| Overall dim - depth | 25 3/4 |
| Weight (lb./kg) | 149.5 lbs/68 kg |
| Overall dim - height (packed) | 40 3/8 |
| Overall dim - width (packed) | 26 |
| Overall dim - depth (packed) | 27 5/9 |
| Brut shipping weight (lb./kg) | 142 lbs/64 kg |
| Instructions for Use | |
| Use & Care Manual | EN, FR, SP |
| Installation Manual | EN, FR, SP |
