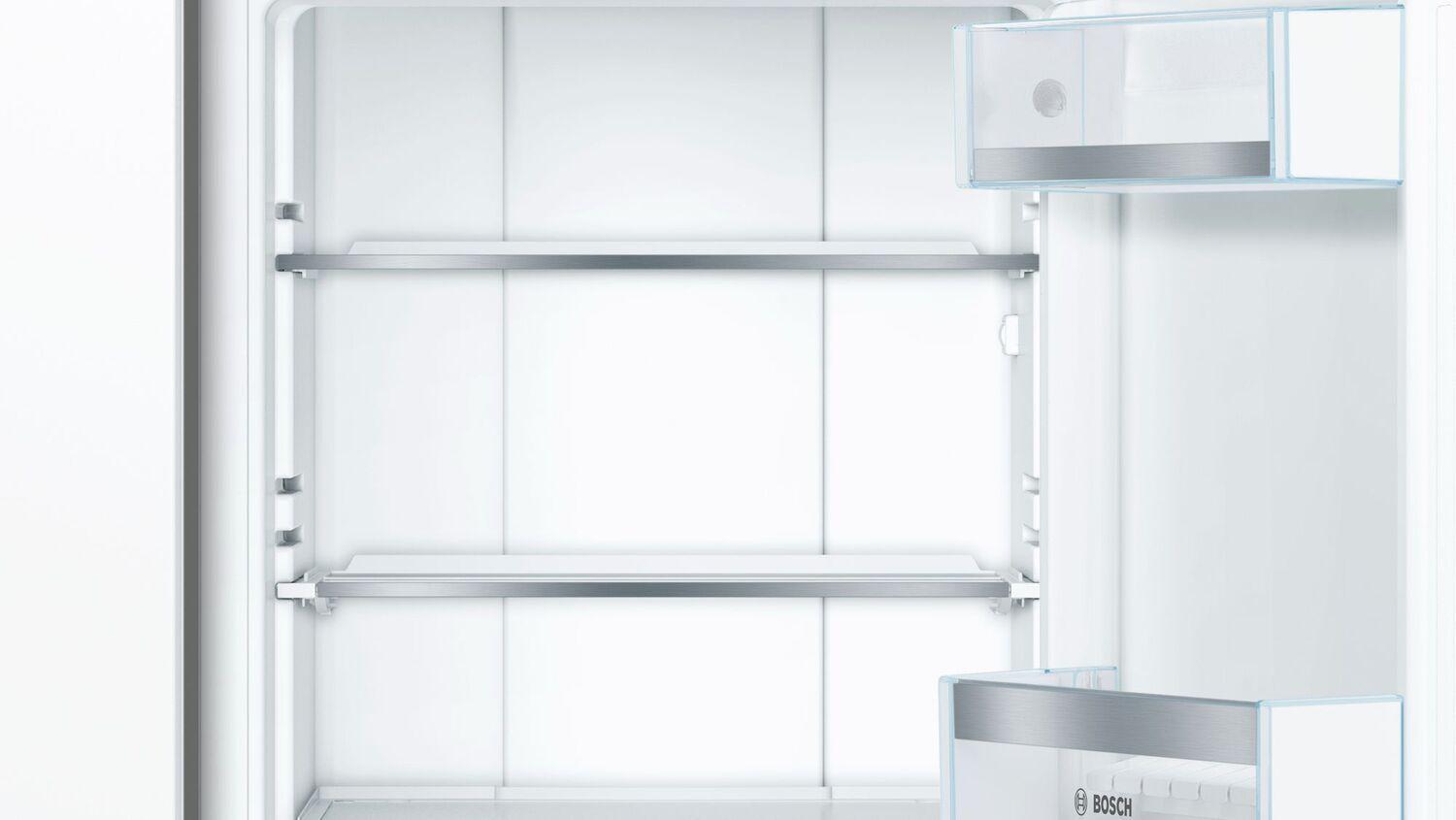

- Door bins offer additional storage, while a small items railing helps to keep items organized and clearly in view\
- 5.9 cu. ft. refrigerator capacity with 2.4 cu. ft. of freezer capacity

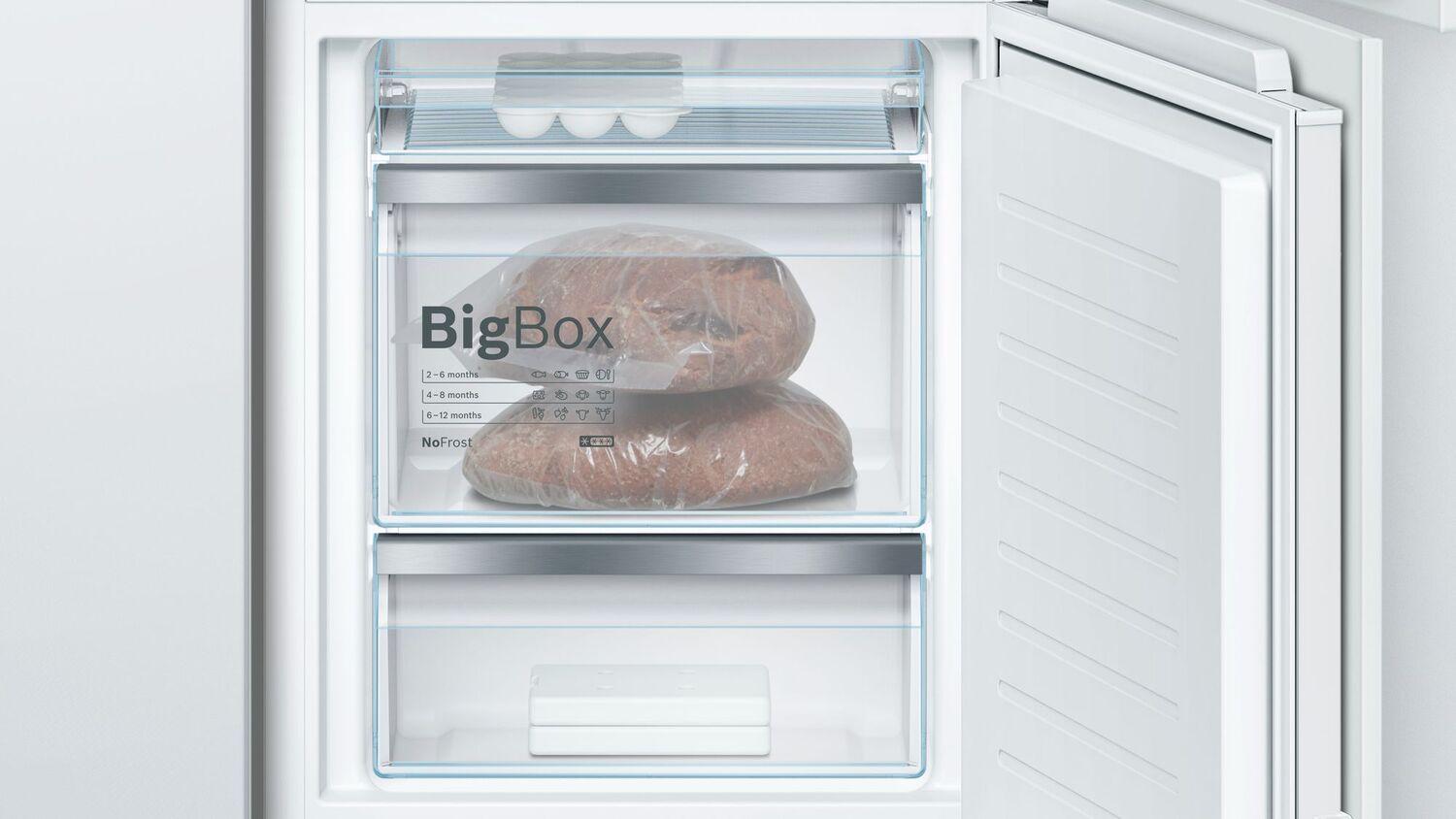

- Use the provided extra-deep freezer drawer to help organize frozen food, or remove the bin to offer additional storage space for larger items
- Connected refrigerator can notify you on your smart device if the temperature increases, in case the door didn't quite close all the way

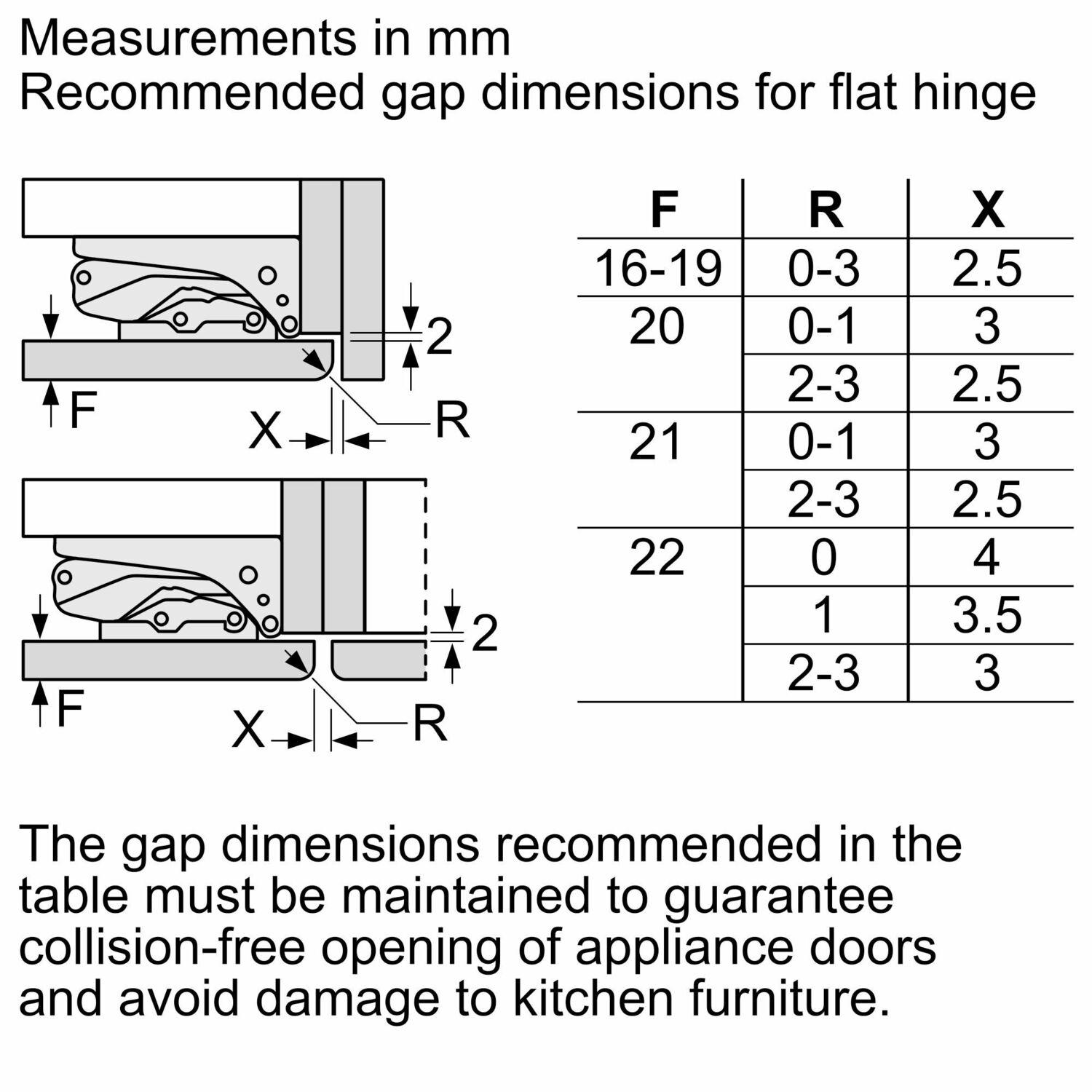

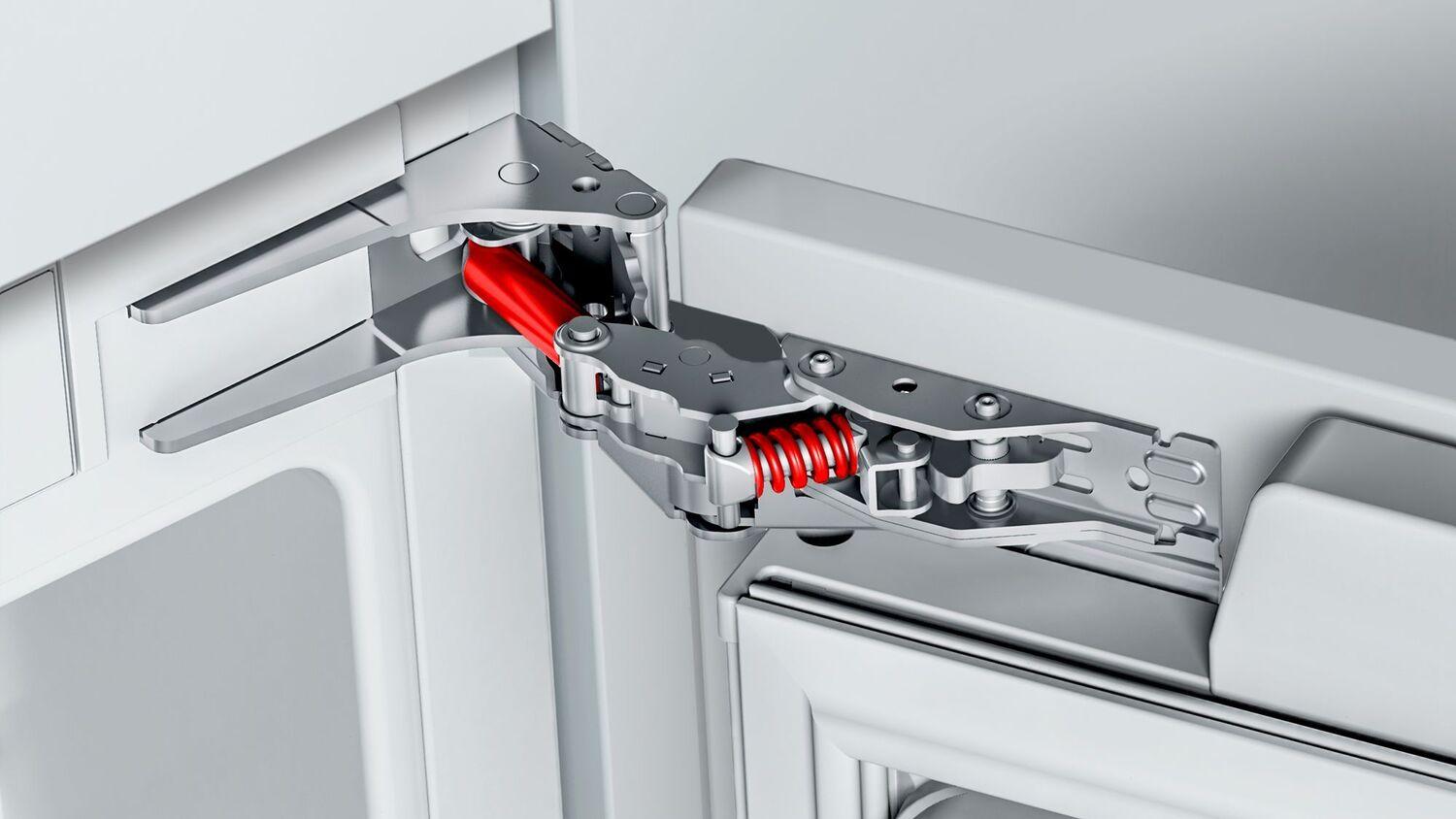

- Unique design of the OptiFlex hinge allows for a fully flush installation bringing a new level of sophistication to your kitchen

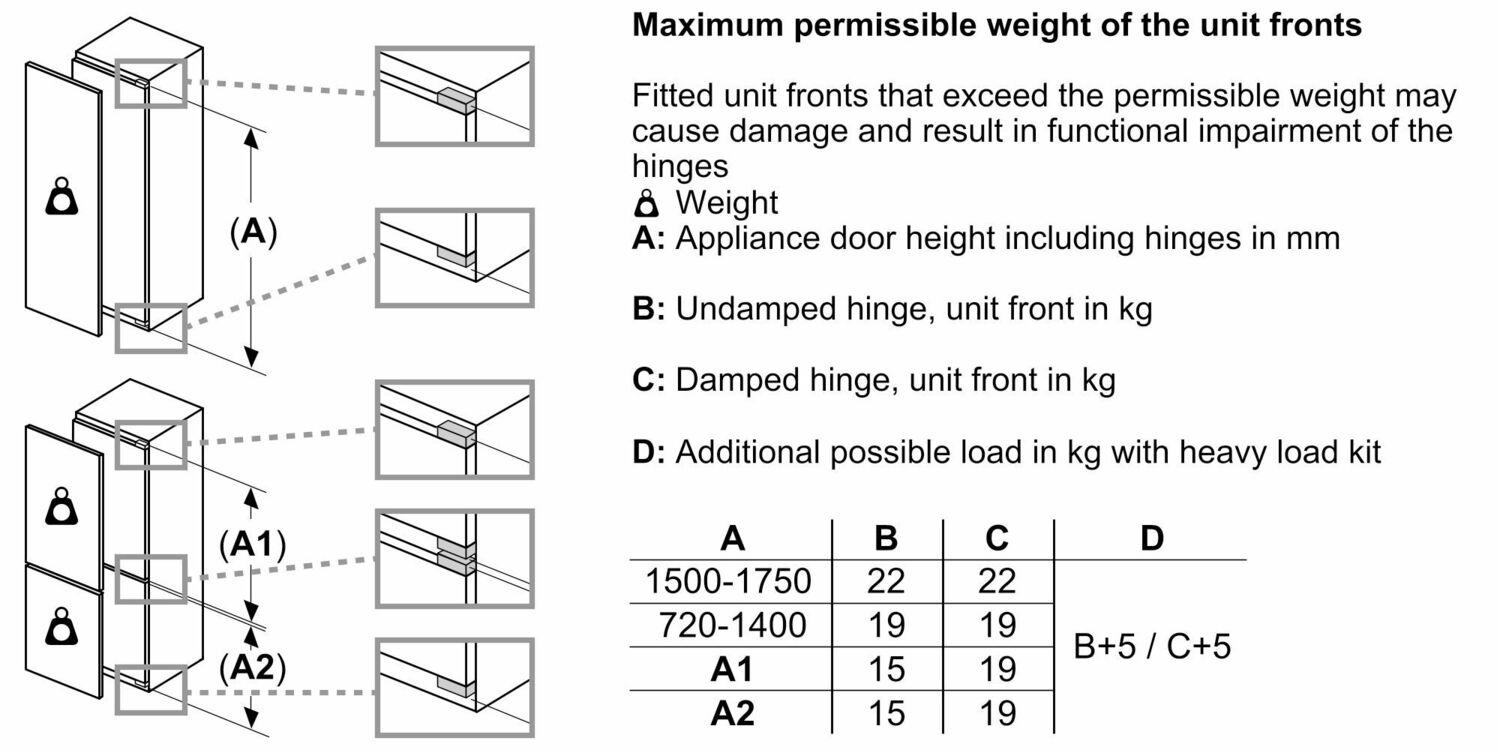

- Accepts easy to install custom panels (panels are not included)
- Bright LED lighting illuminates the entire interior

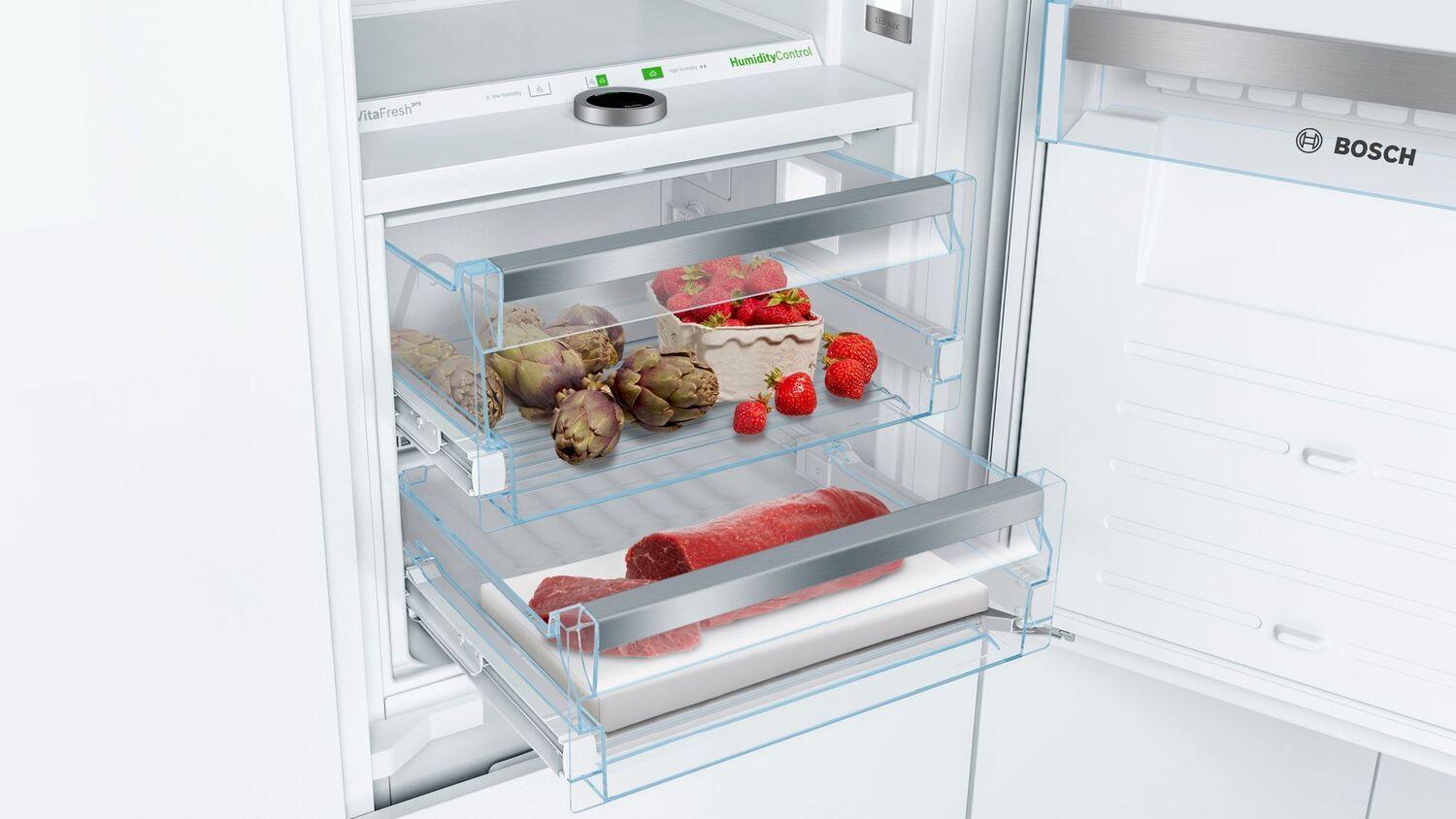

- Refrigerator compartment offers two drawers, and the freezer compartment offers three drawers
- Before stocking your freezer with new groceries, set it to SuperFreeze® to help new food freeze even faster.
- The Home Connect app offers useful storage tips, recipes, along with recommendations for the ideal temperature and humidity settings for a variety of food, making it easier to store your meat, produce and more in the optimal condition for extended freshness

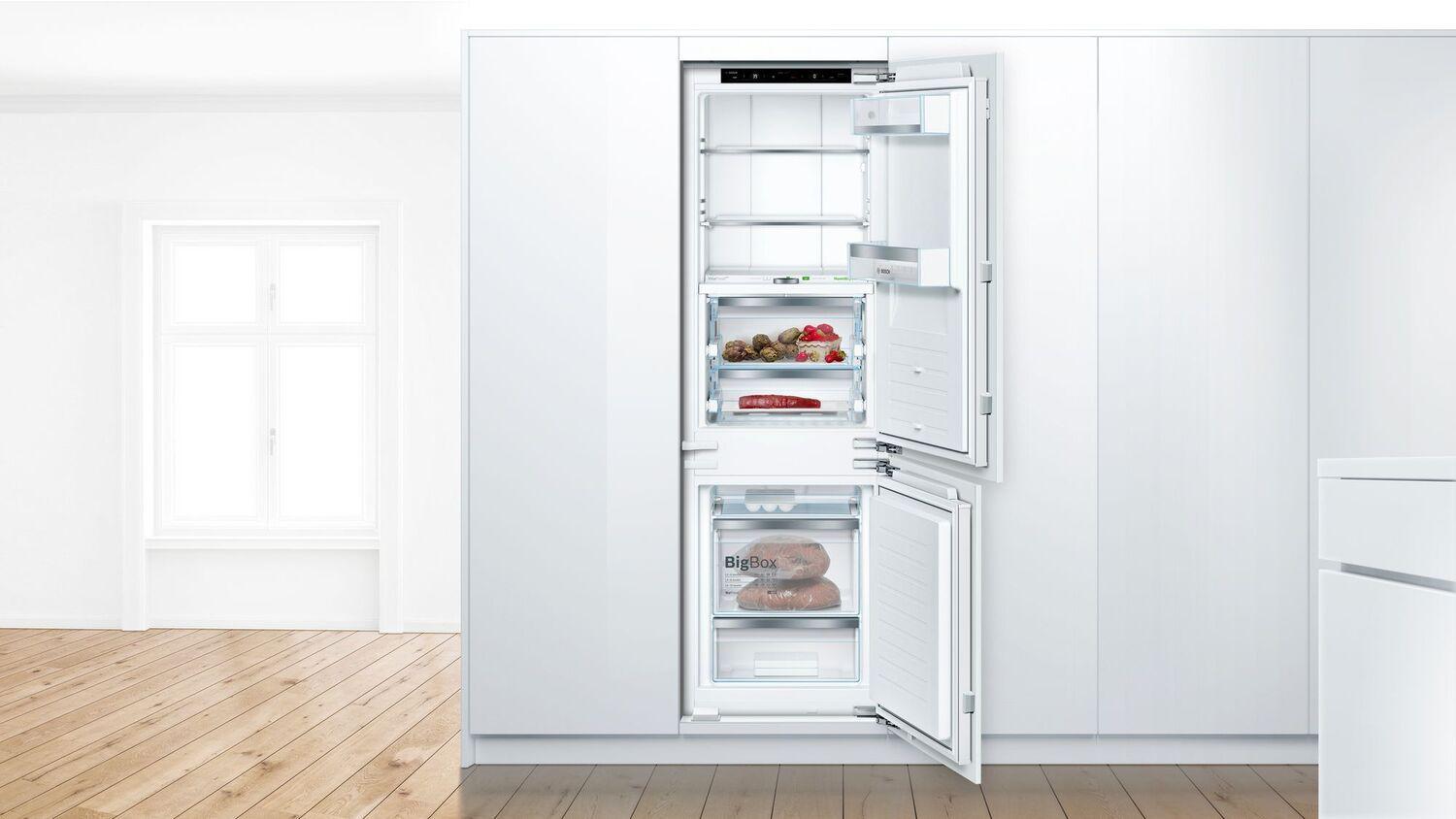

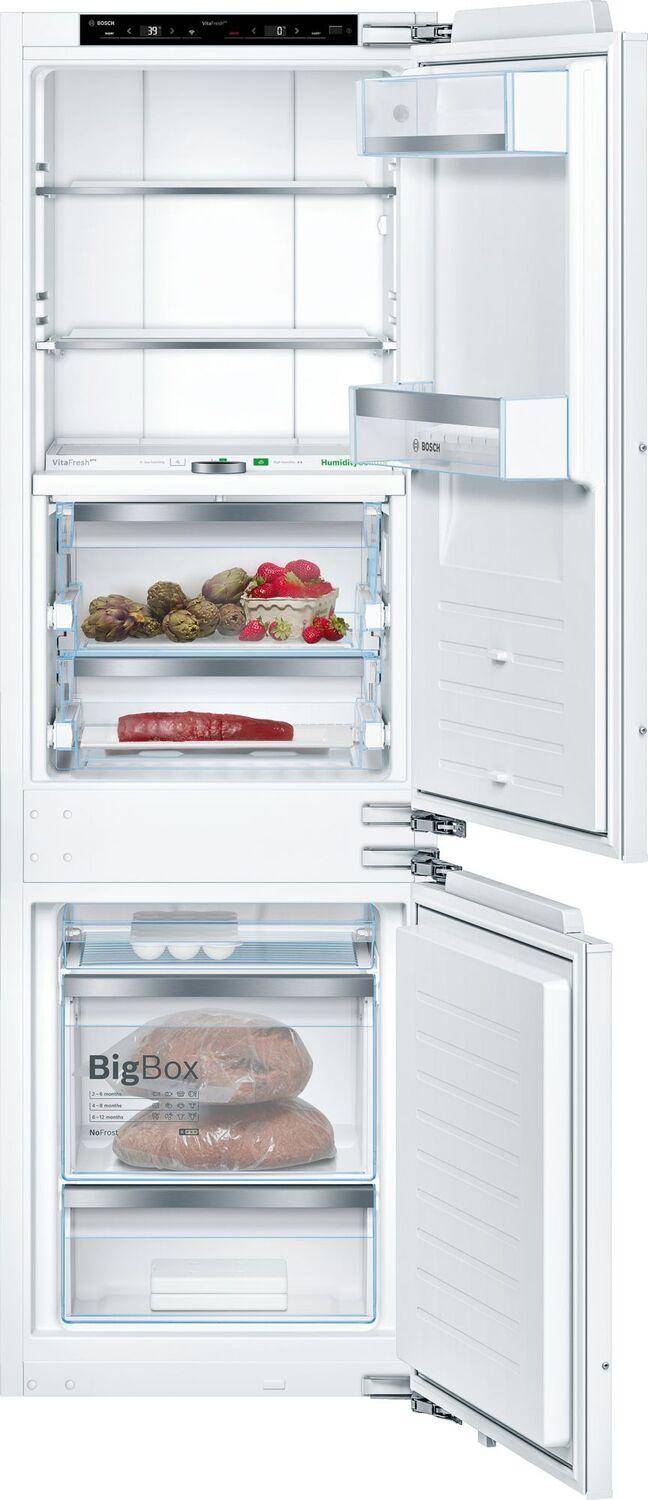

The 24 Custom Panel Bottom Freezer Refrigerator, with Home Connect, provides smart solutions and the optimal freshness environment for small kitchen spaces. Remotely monitor and control your refrigerator with the Home Connect app, and receive helpful notifications to help you master your day, in your own way.
| Specifications | |
| General | |
| Material Number | B09IB91NSP |
| Brand Name | Bosch |
| Category | Bottom Freezer without Ice Maker |
| Product Name | 800 Series, built-in fridge-freezer with freezer at bottom, soft close flat hinge |
| Upc | 825225955238 |
| Series | 800 Series |
| Appliance Color/Finish | Custom Panel |
| Included Accessories | 2 x cold accumulator, 2 x ice cube tray, 1 x bottle holder in door tray |
| Energy Star® Certified | Yes |
| Total Unit Gross Capacity (Cu Ft) | 8.3 |
| Installation | Integrated |
| Built-In / Free-Standing | Built-in |
| Door Panel Options | Not possible |
| Freezer Gross Capacity (Cu Ft) | 2.4 |
| Noise Level (Db(A) Re 1Pw) | 36 |
| Total Annual Energy Consumption (Kwh/Annum) | 388 |
| Technical Specifications | |
| Connection Rating (W) | 90 |
| Fuse Protection (A) | 10 |
| Voltage (V) | 120 |
| Frequency (Hz) | 60 |
| Design | |
| Basic Touch Control | No |
| Camera | No |

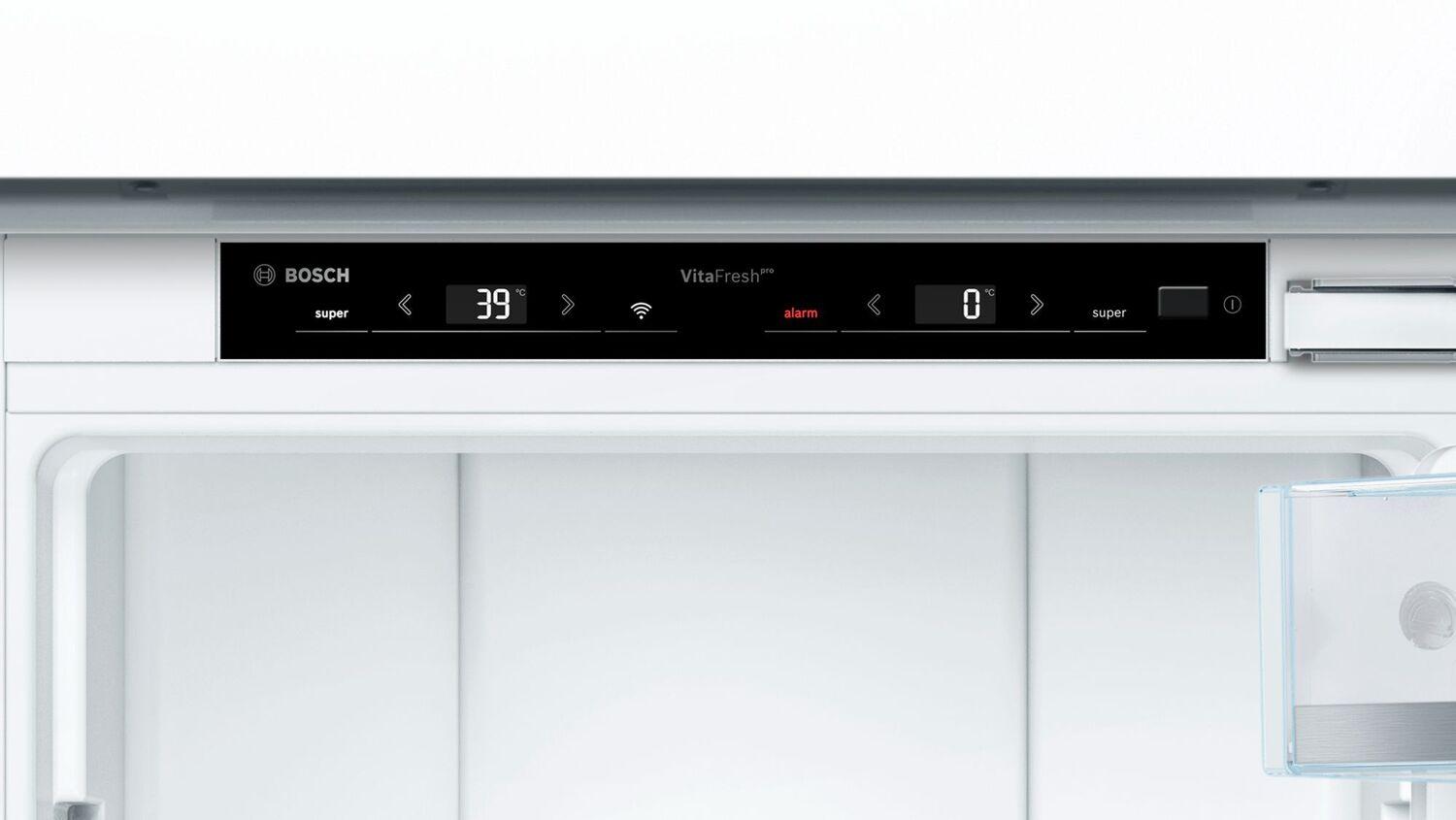

| Type Of Control | Electronic |
| Convenience | |
| Door Alarm | Yes |
| Ecomode | No |
| Ice Maker | false |
| Ice Storage Capacity (Lbs) | 0 |
| Number Of Door Bins - Refrigerator | 1 |
| Sabbath Mode | No |
| Supercooling | Yes |
| Superfreezing | Yes |
| Water Filter | No |
| Interior Light | Yes |
| Connectivity | |
| Connected Appliances With Home Connect | Yes |
| Home Connect Features | Remote Monitoring and Control |
| Size And Weight | |
| Adjustable Feet | No |

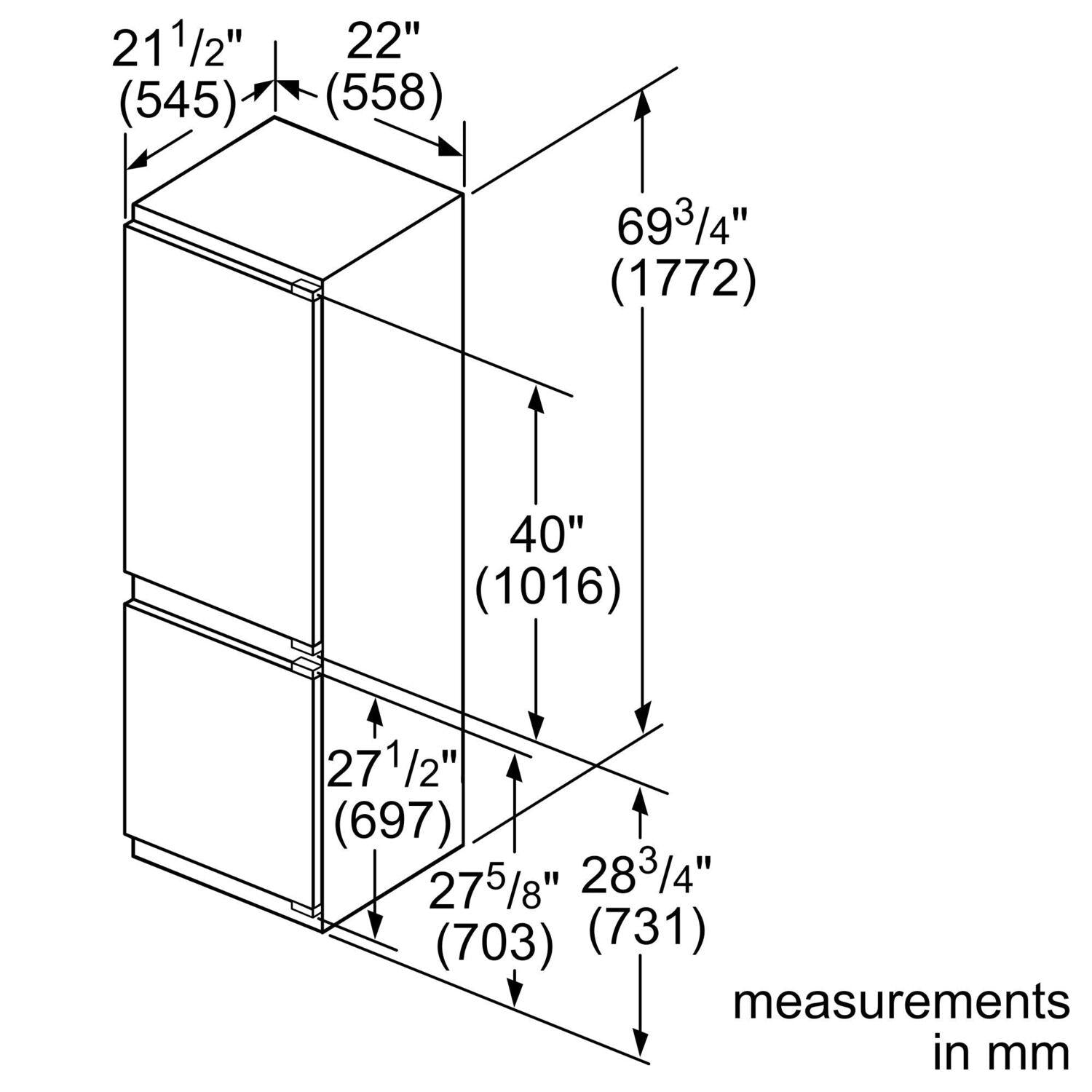

| Appliance Dimensions (H X W X D) (In) | 69 12/16'' x 21 15/16'' x 21 7/16'' |
| Gross Weight (Lbs) | 157 |
| Net Weight (Lbs) | 145 |

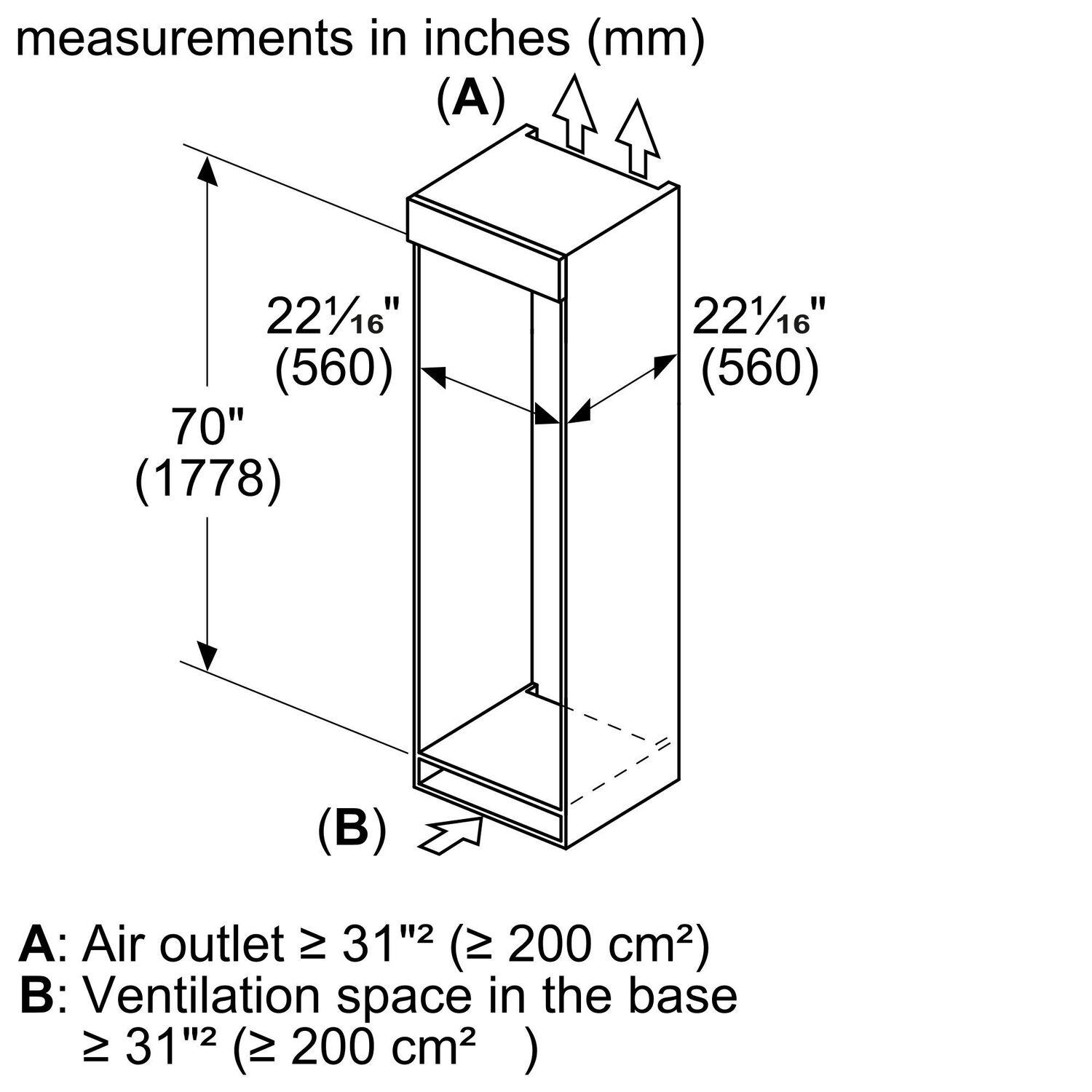

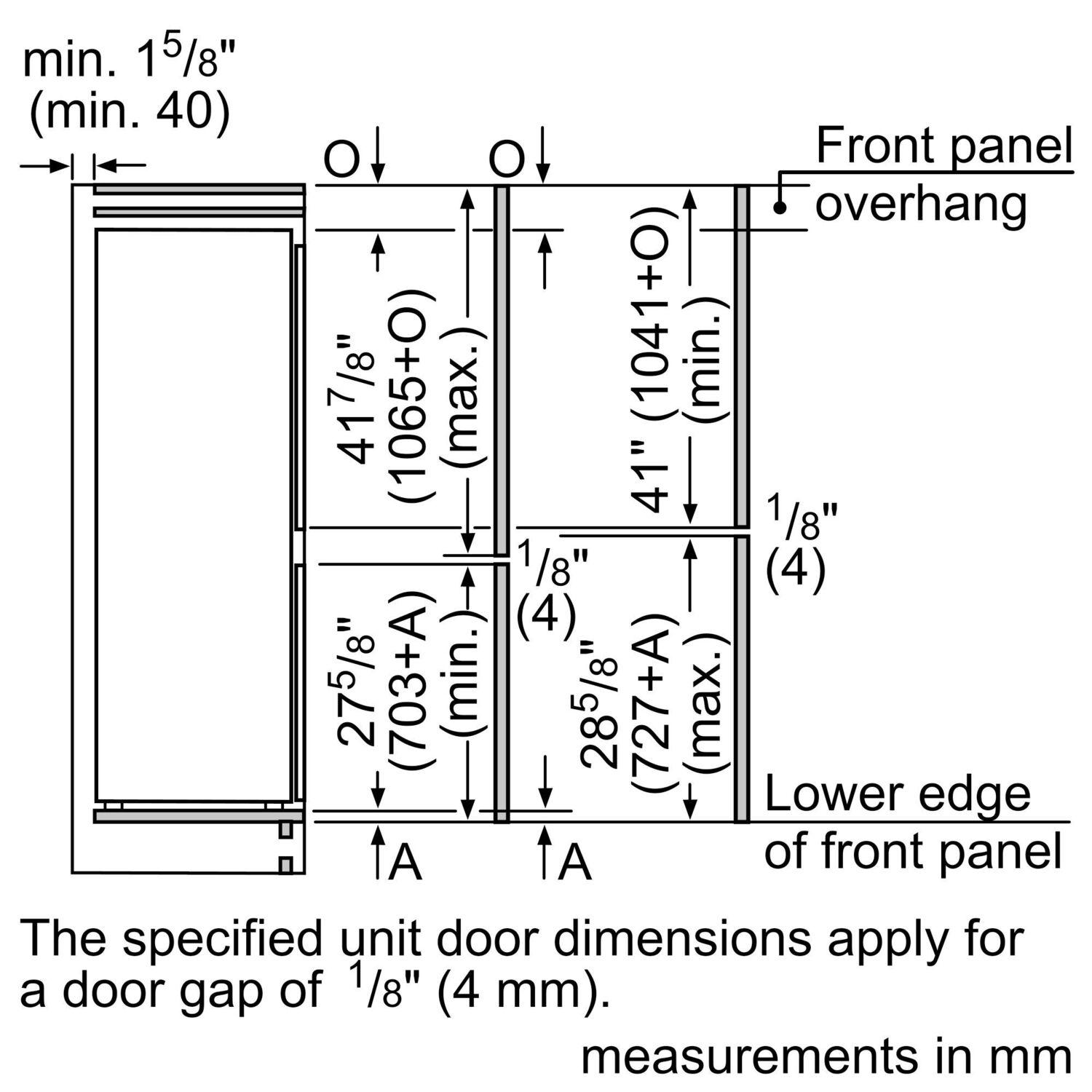

| Required Cutout/Niche Size For Installation (In) | 69 14/16'' x 22 1/16'' x 21 10/16'' |
| Power Cord Length | 90 9/19 |
| Installation | |
| Plug Type | 120V-3 prong |
| Safety | |
| Child Safety Locks | false |
| Water Protection With Warranty - Aquastop | No |
