- Remotely monitor and control your chimney hood with the Home Connect app

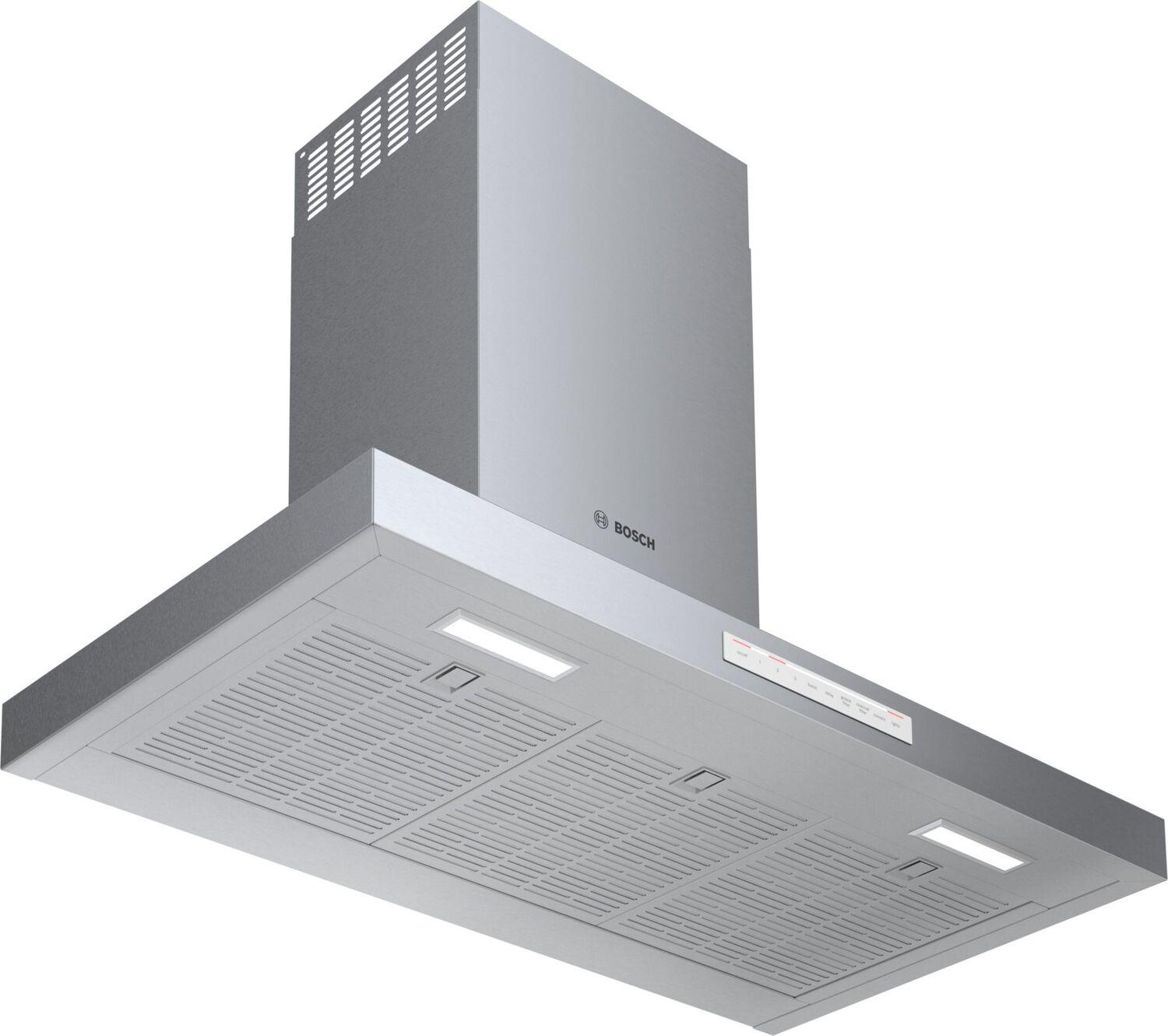

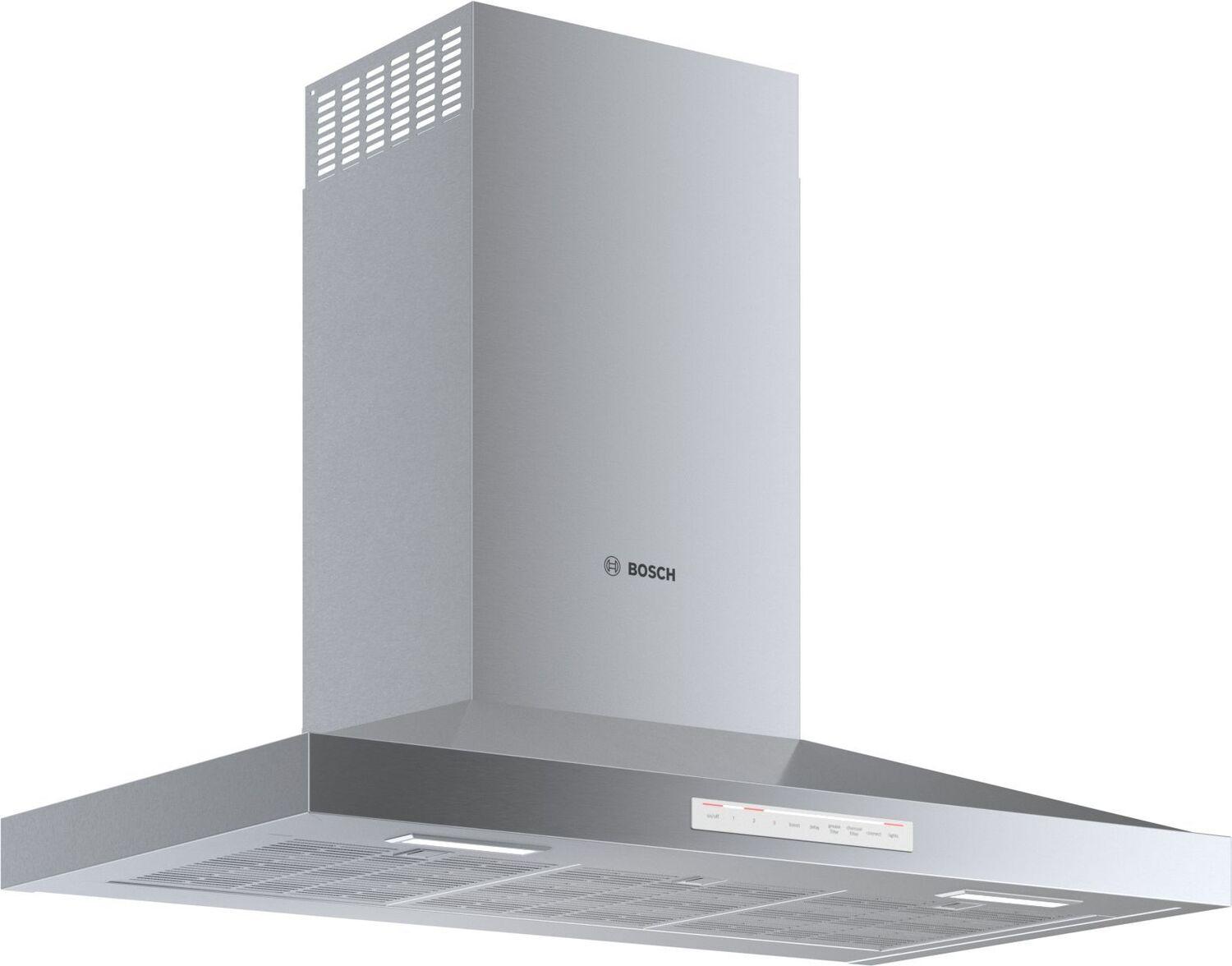

- Wall mounted chimney hood adds style and sophistication to the kitchen and gives you greater freedom in your kitchen planning

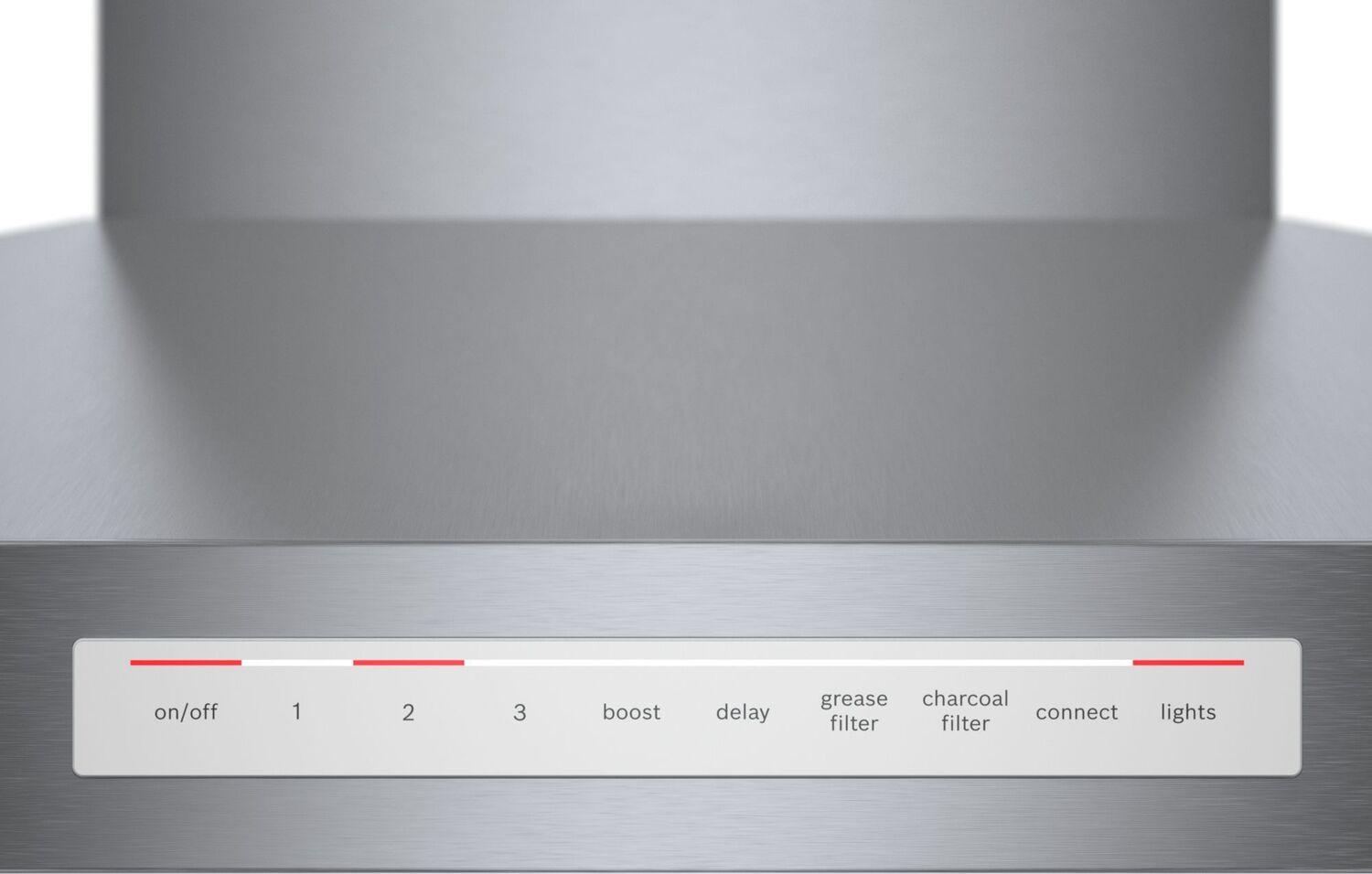

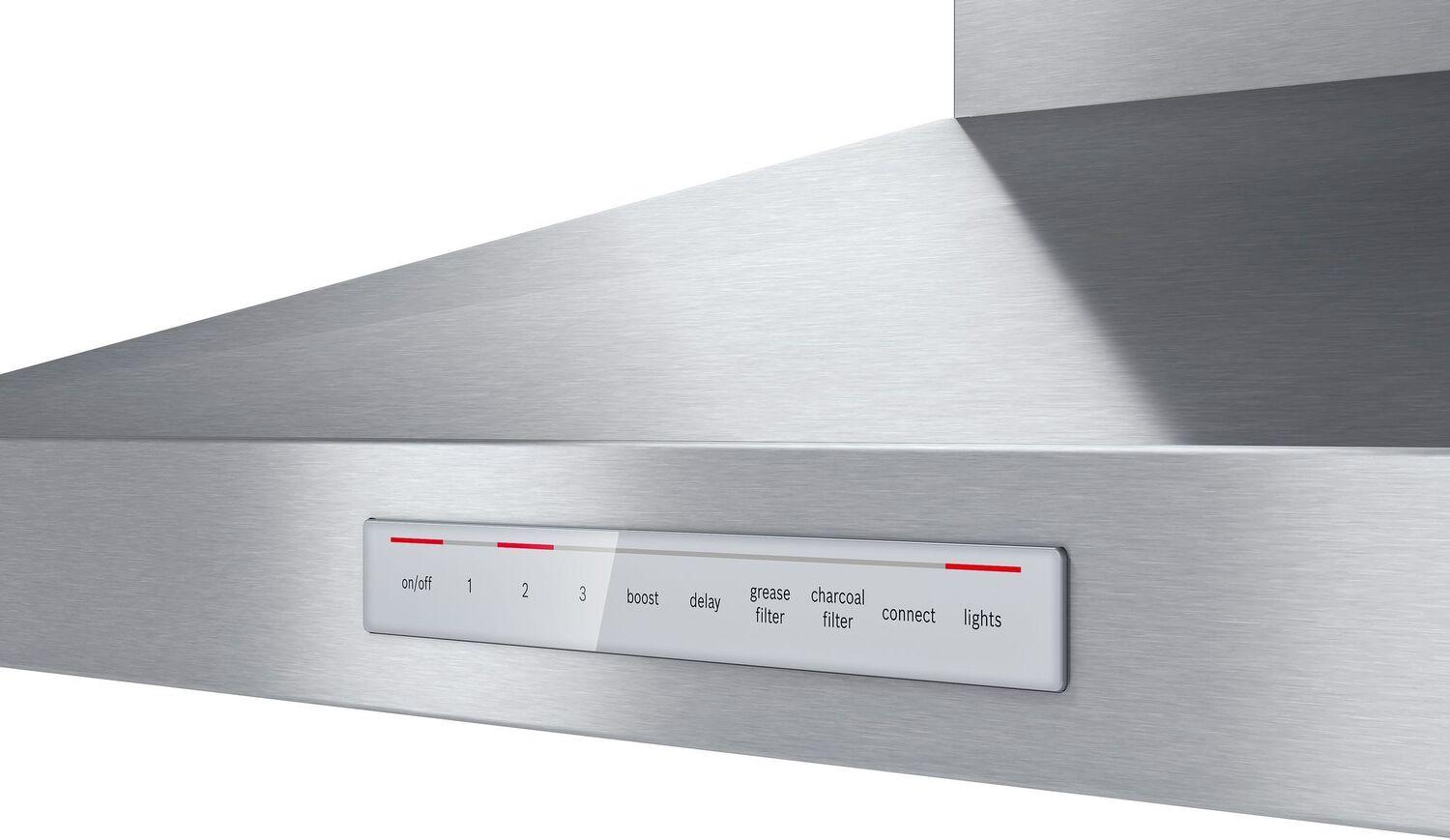

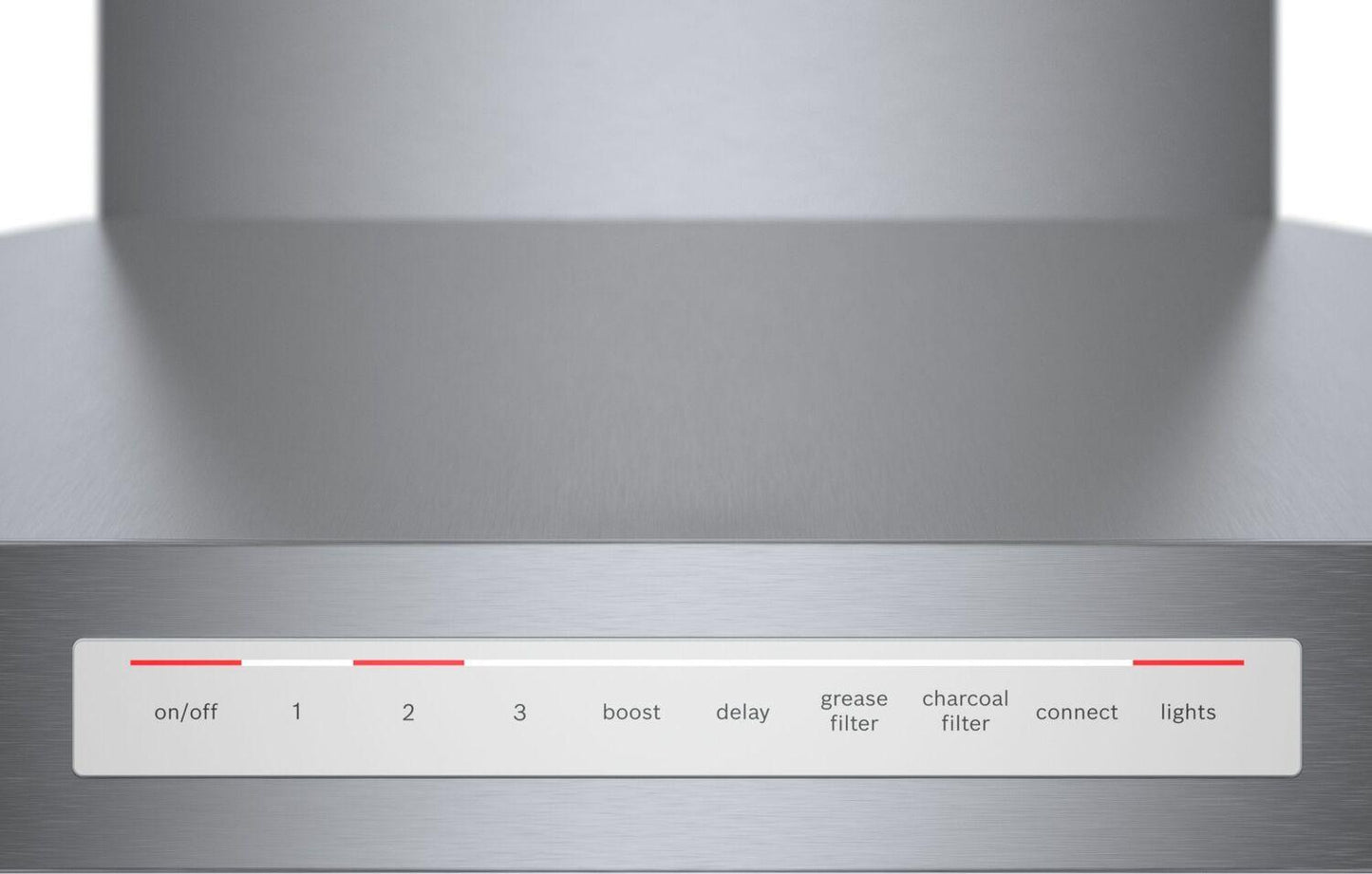

- Touch controls with LCD display
- 4-speeds with audible tone when select controls are pressed. Blower will automatically turn on at high speed if excessive heat is sensed in the control area
- 600 CFM centrifugal integrated blower included

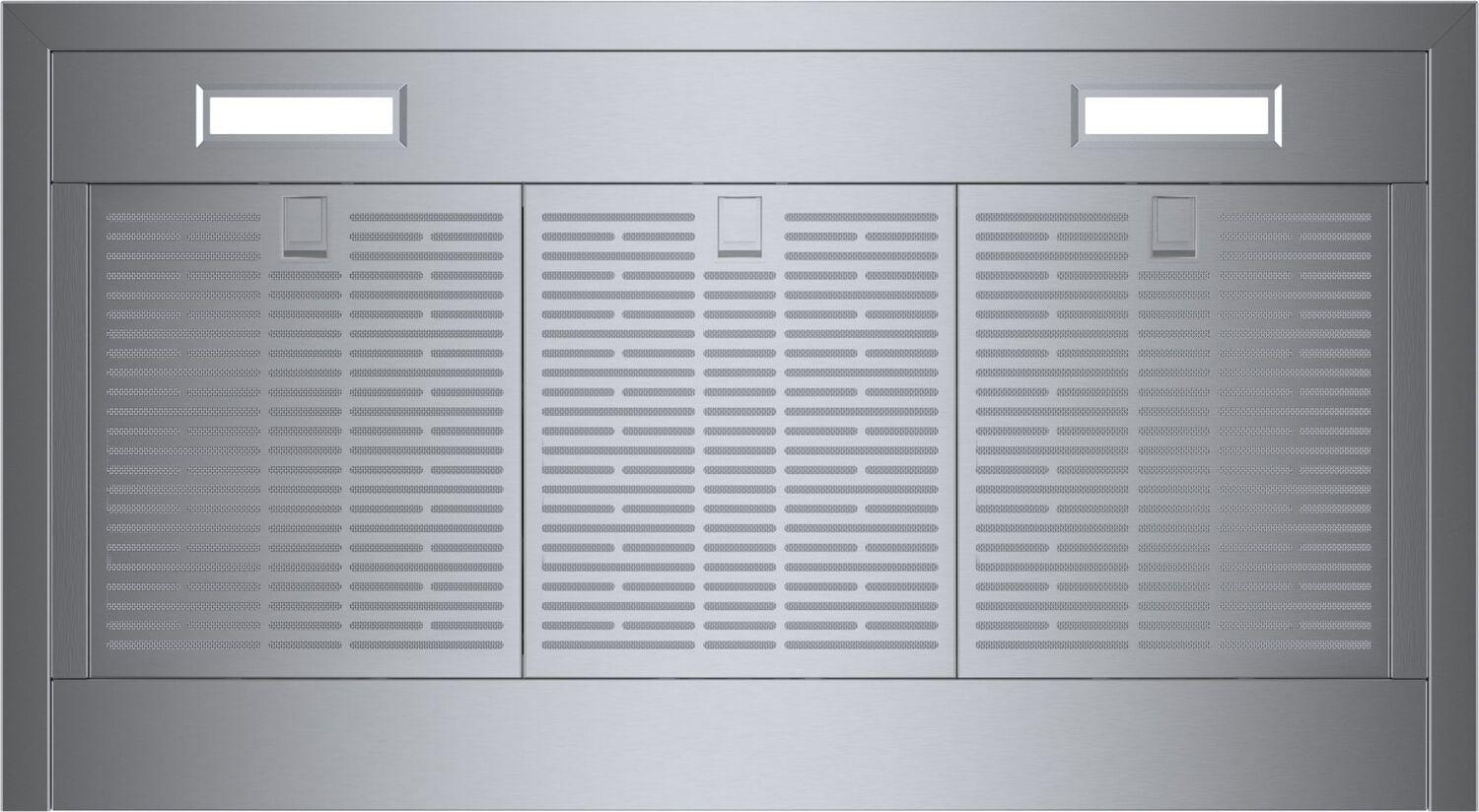

- Absorb odors with charcoal replacement filters.ignal on LCD display will illuminate as a reminder to check filters for cleaning

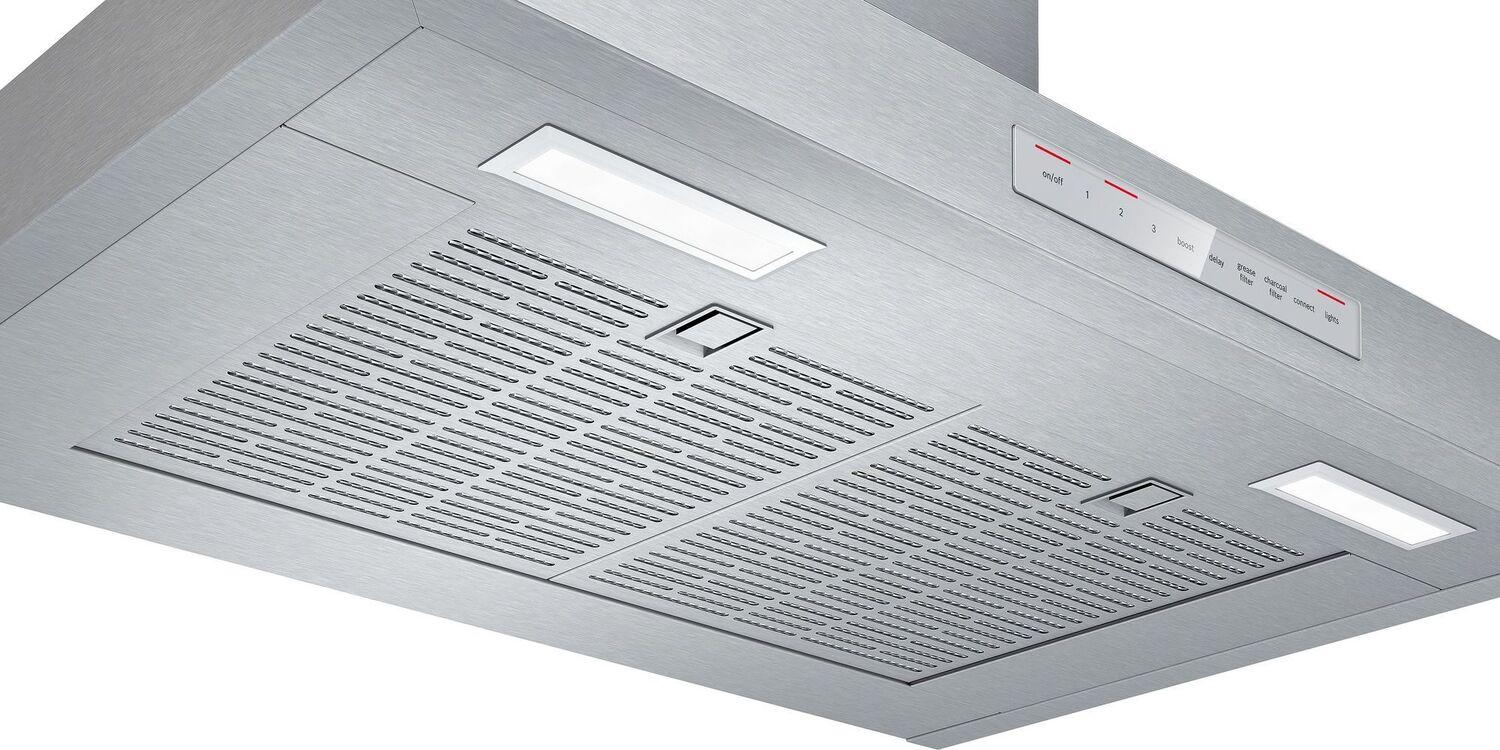

- 2 halogen lights

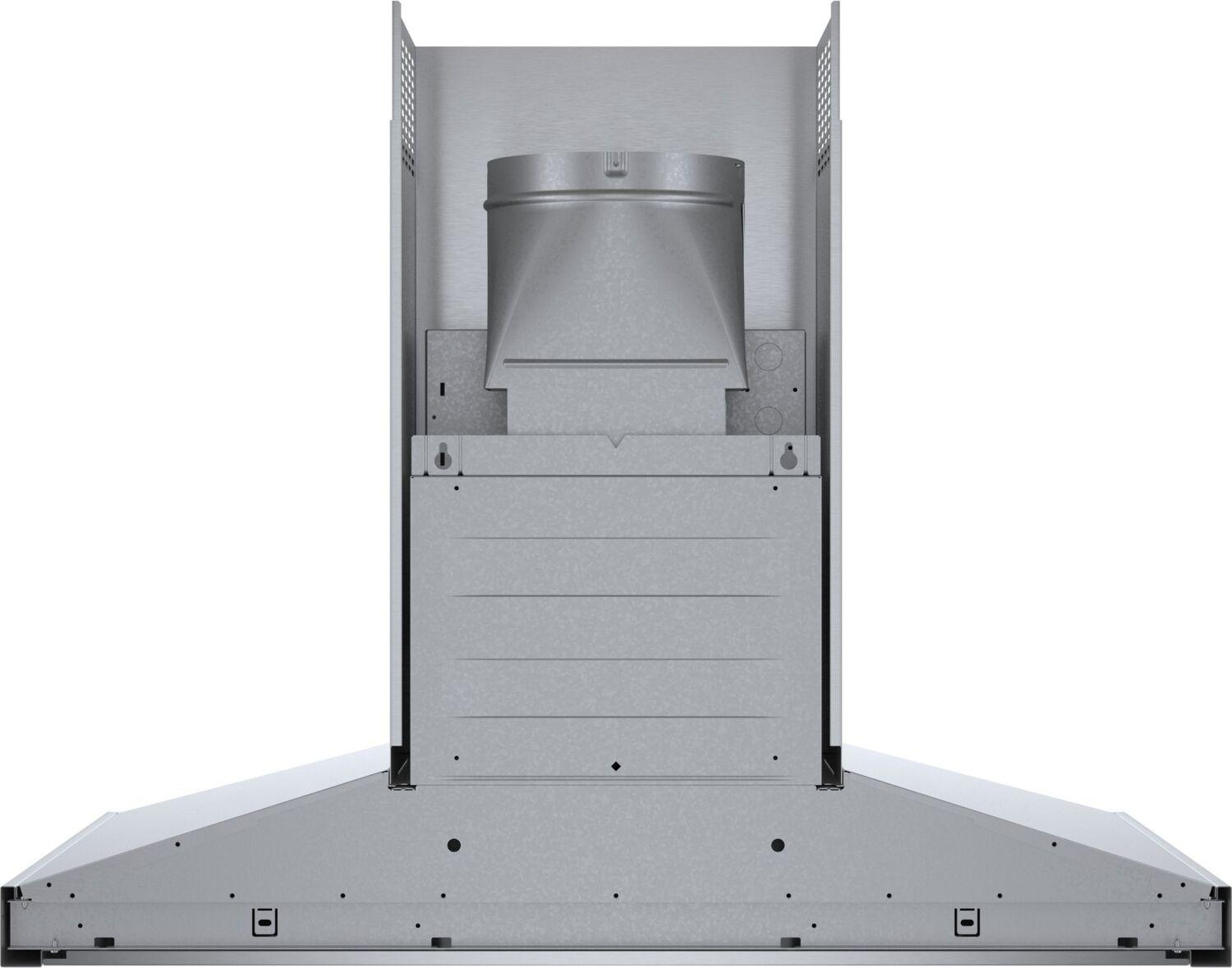

- 8" round duct at discharge
- Quiet blower 4.6ones / 178 CFM low to 9.9ones / 600 CFM high
- Duct extension accessory kit available for 9' to 11.5' ceilings
- Convenient timer built into control from 1-60 minutes

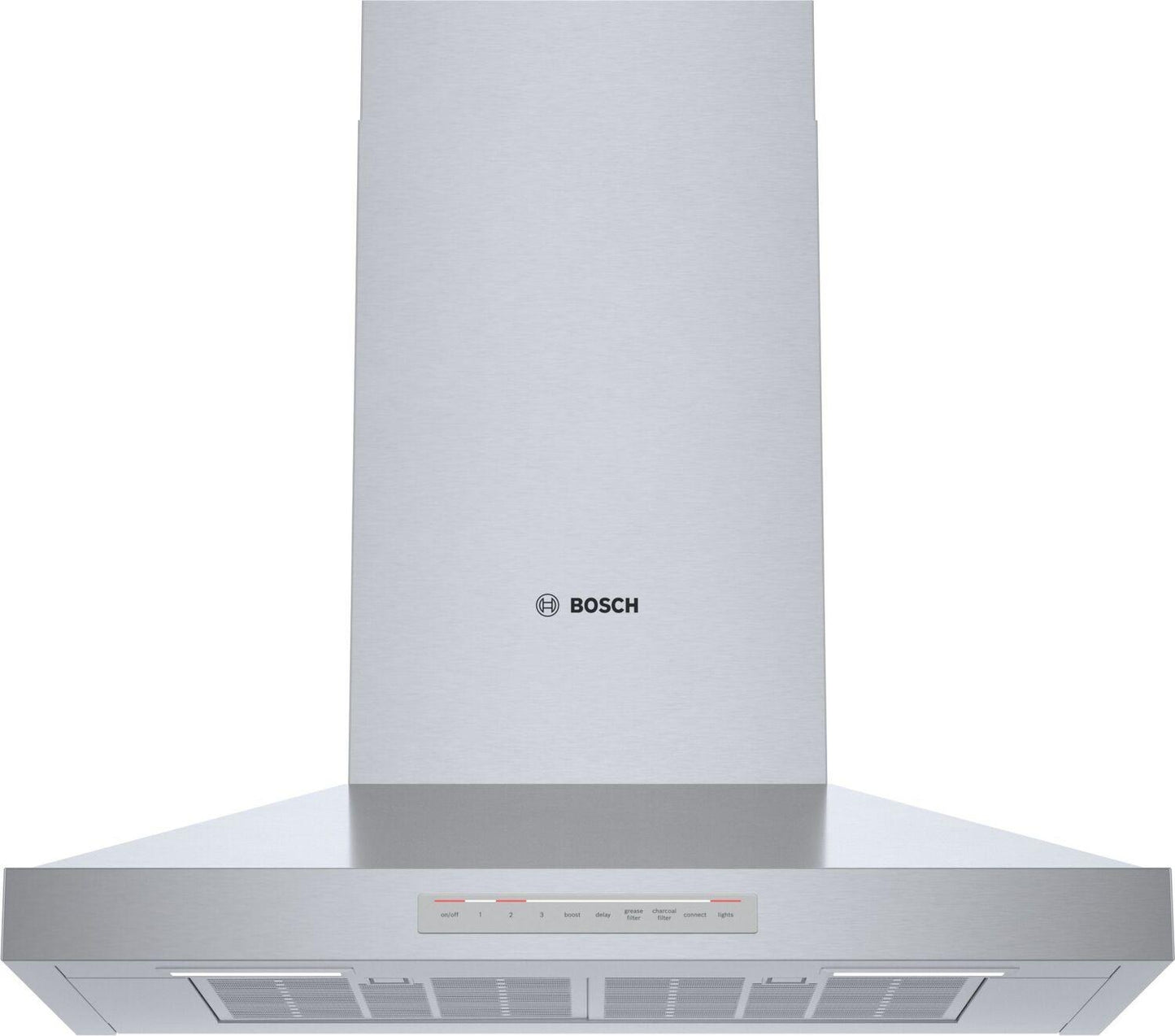

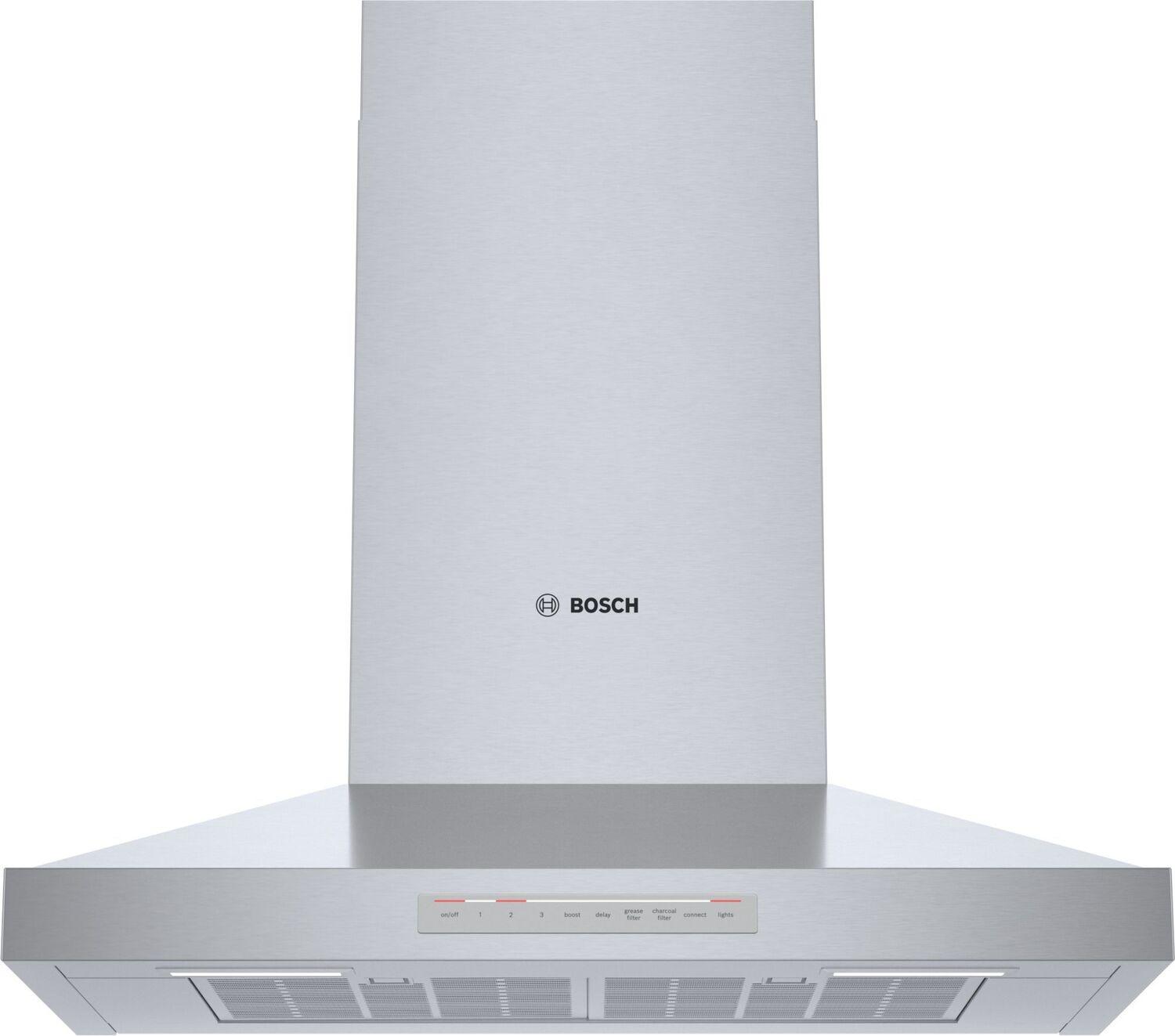

Bosch's inventive ventilation systems keeps mealtime fresh by quietly purifying the air while you cook. Stainless steel 30 in. pyramid chimney hood integrate matching user interfaces and design aesthetics to complete the Bosch kitchen suite with sleek and sophisticated styling. With 600 CFM of power, beautiful Bosch hoods will quickly clear the air of grease, steam, smoke and odor to keep your home fresh and odor free.
Specifications | |
General | |
Material Number | HCP50652UC |
Brand Name | Bosch |
Category | Wall Mounted Range Hoods |
Product Name | 500 Series, wall-mounted cooker hood, 30'', Stainless steel |
Upc | 825225959458 |
Series | 500 Series |
Appliance Color/Finish | Stainless Steel |
Installation Type | Wall-mounted |
Installation | Wall-mounted |
Ada Compliant | No |
Wattage | 530 |
Technical Specifications | |
Connection Rating (W) | 530 |
Voltage (V) | 110 |
Frequency (Hz) | 60 |
Design | |
Clean Filter Reminders | Yes |
Basic Touch Control | No |
Grease Filter Type | Kassette |
Heat Lamps | No |
Light Control Type | Continuous |
Number Of Speed Settings | 4-stage |
Operating Mode | Exhaust / Recirculation (Accessory available separately) |
Total Luminance (Lm) | 0 |
Touch Slider | No |
Type Of Control | Electronic |
Cleaning | |
Extremely Quiet - Ecosilence Drive | No |
Convenience | |
Number Of Lights | 2 |
Type Of Lamps Used | Bulbs |
Connectivity | |
Connected Appliances With Home Connect | Yes |
Home Connect Features | Remote Monitoring and Control |
Size And Weight | |

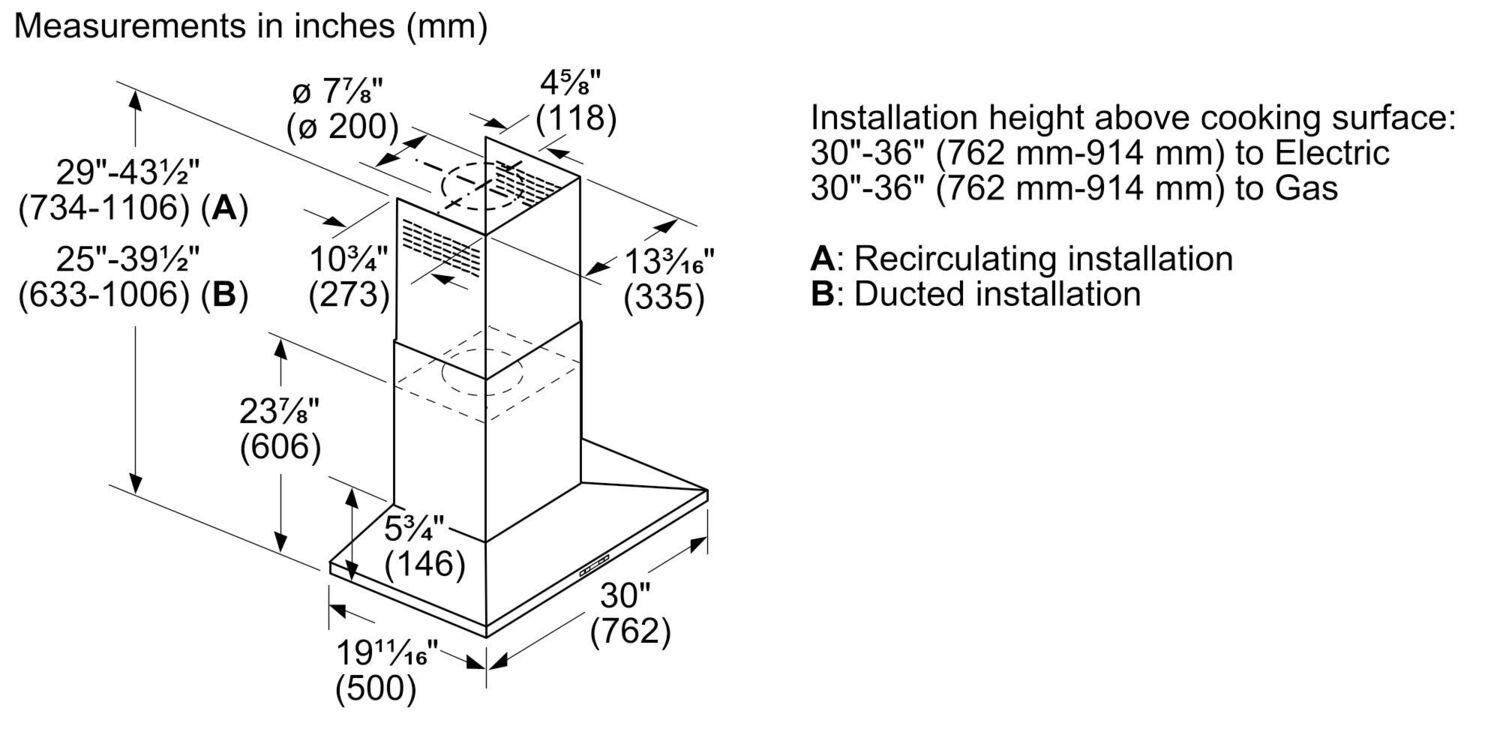

Appliance Dimensions (H X W X D) (In) | 28 1/4 - 42 9/16 x 30 '' x 19 11/16 '' |
Product Packaging Dimensions (HxWxD (In)) | 26 1/2 x 34 1/4 x 18 |
Damper Included | Yes |
Net Weight (Lbs) | 41 |
Installation | |
Plug Type | No Plug |
Required Distance Above Cooktop/Ranges | 30/30 |
