- Black stainless steel guards against scratches and fingerprints

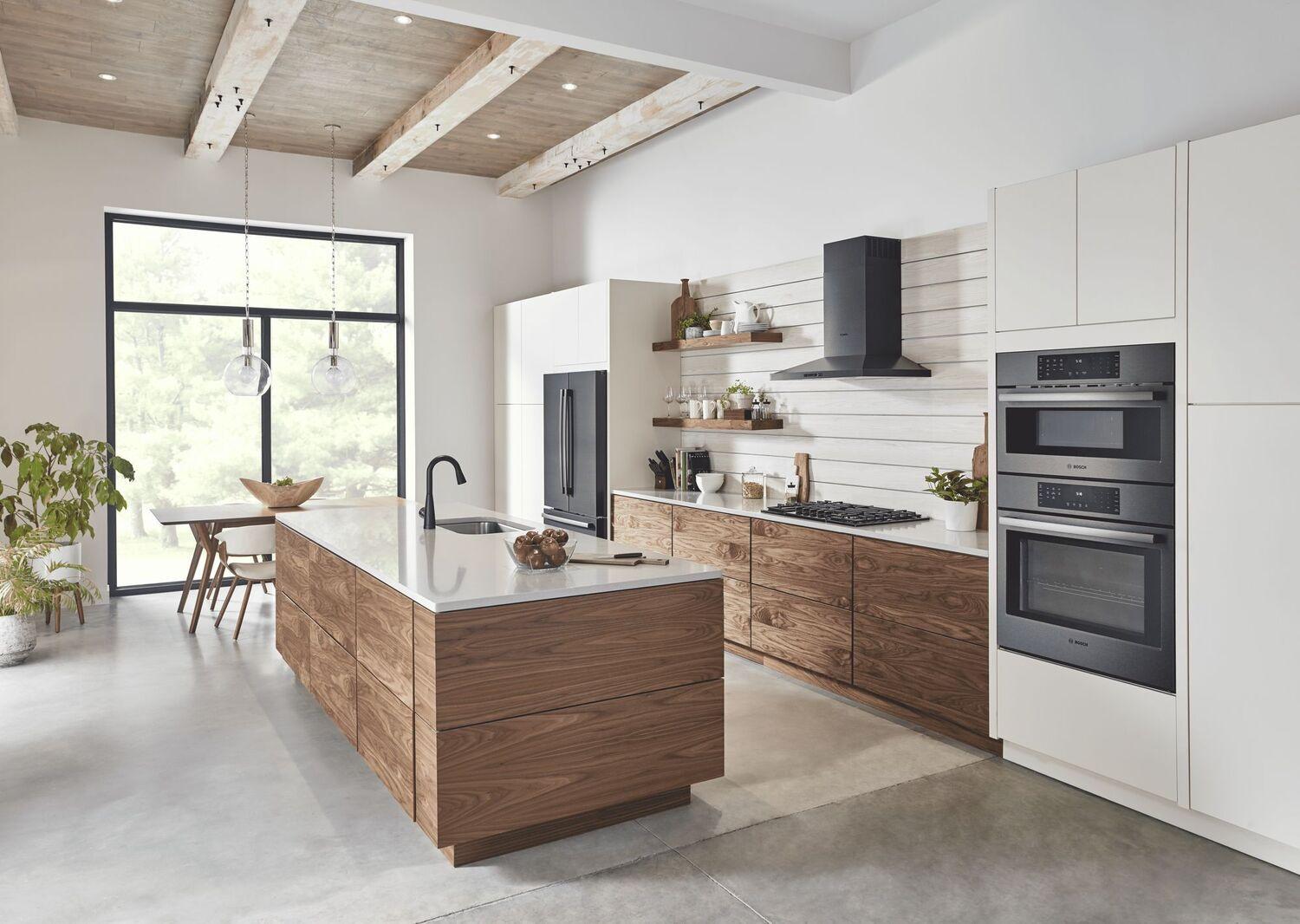

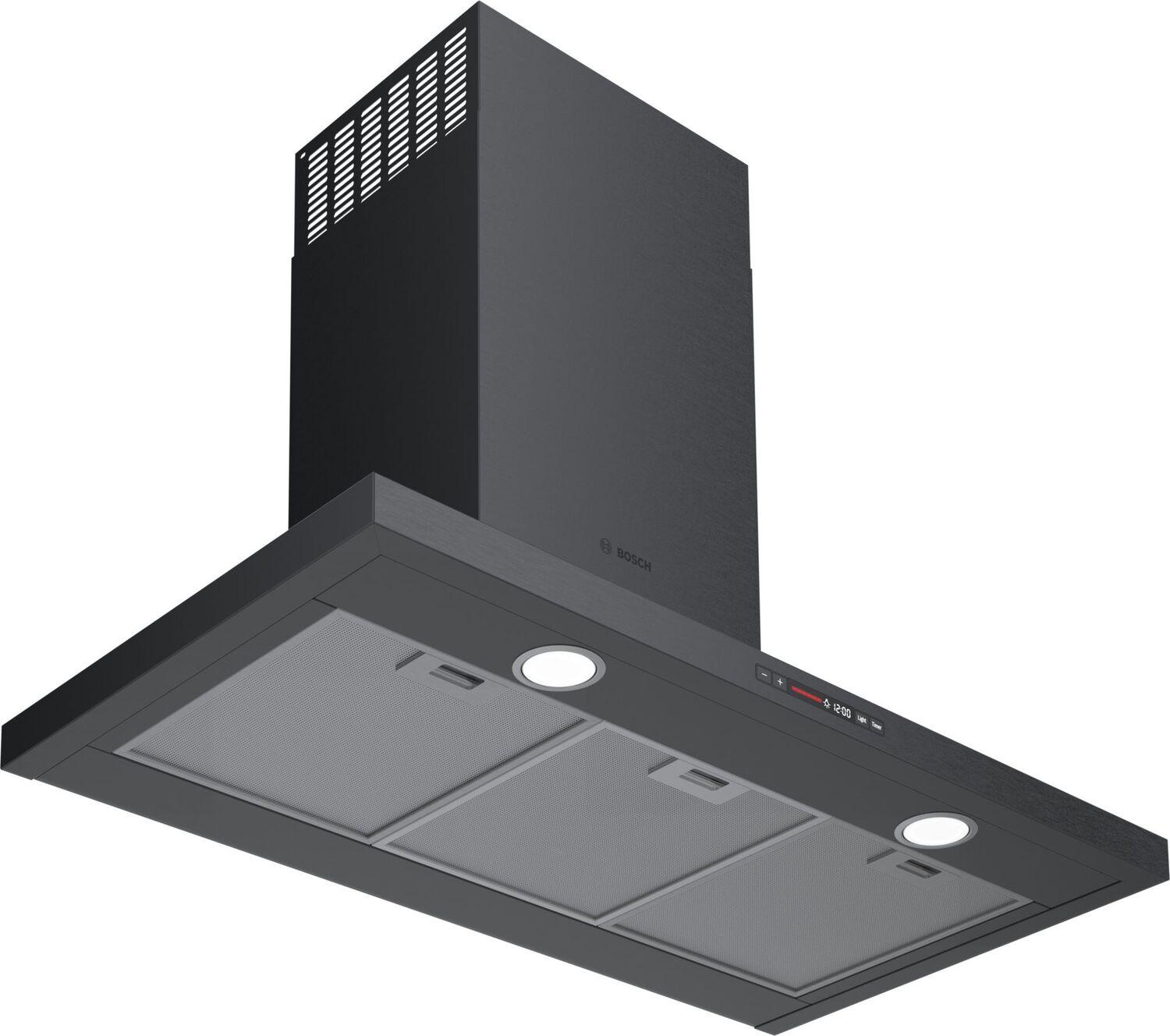

- Wall mounted chimney hood adds style and sophistication to the kitchen and gives you greater freedom in your kitchen planning

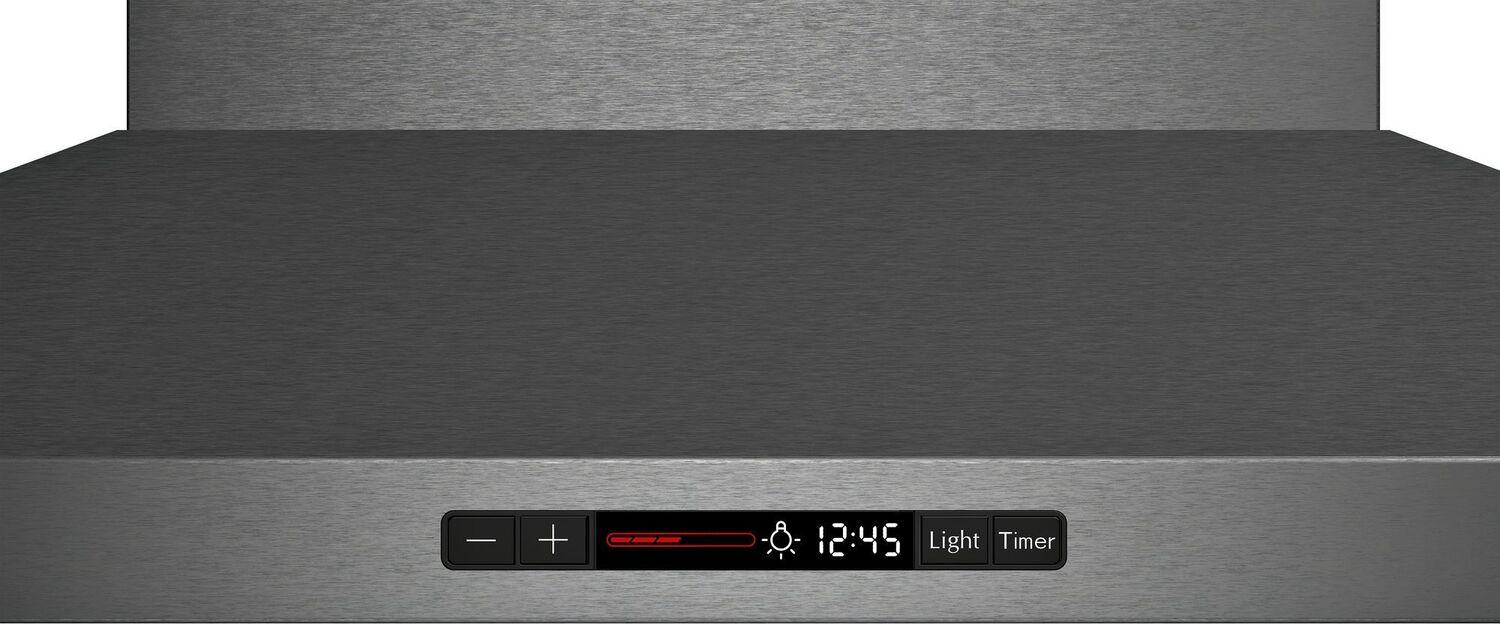

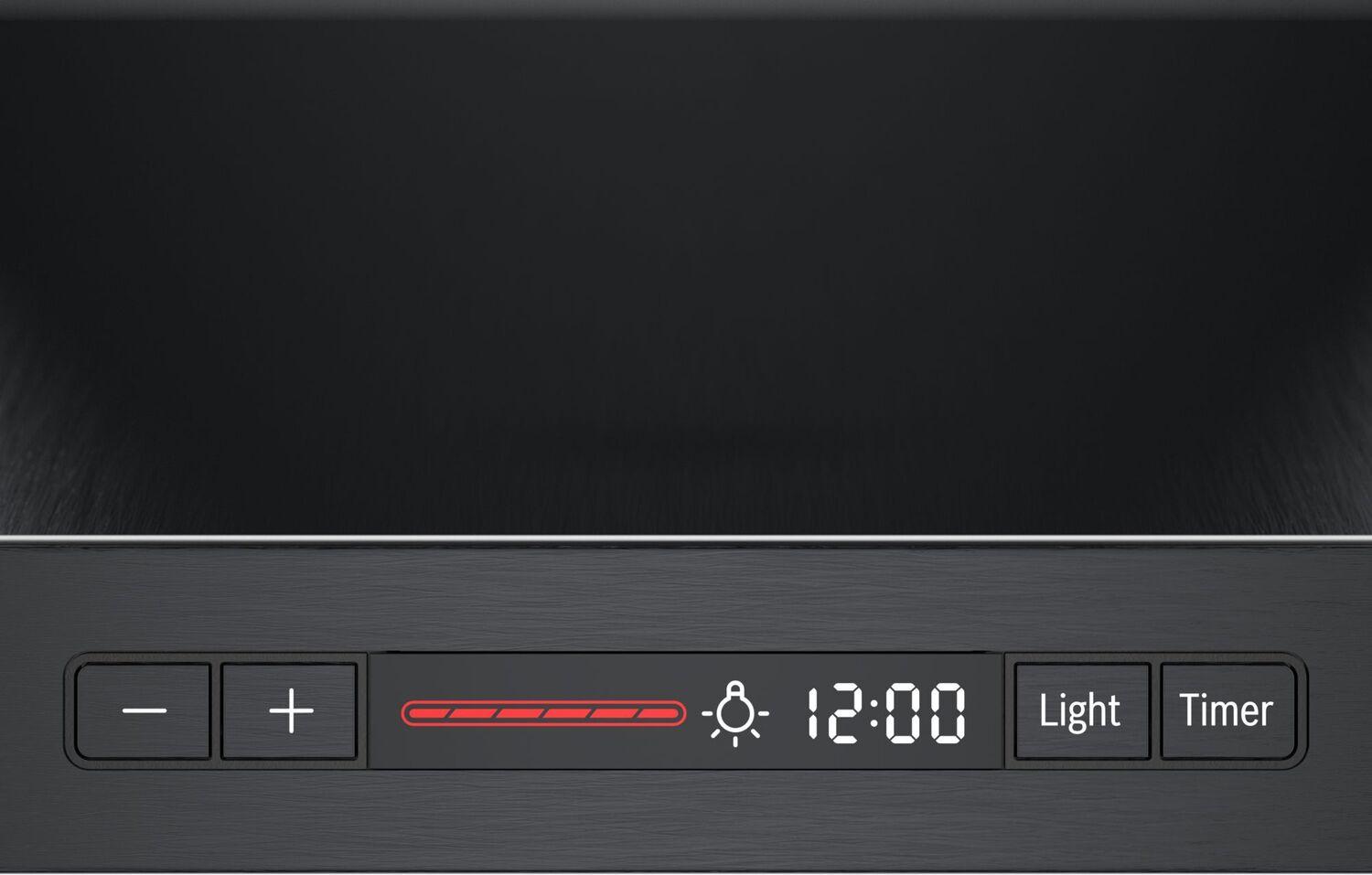

- Touch controls with LCD display
- 4-speeds with audible tone when select controls are pressed. Blower will automatically turn on at high speed if excessive heat is sensed in the control area
- 600 CFM centrifugal integrated blower included

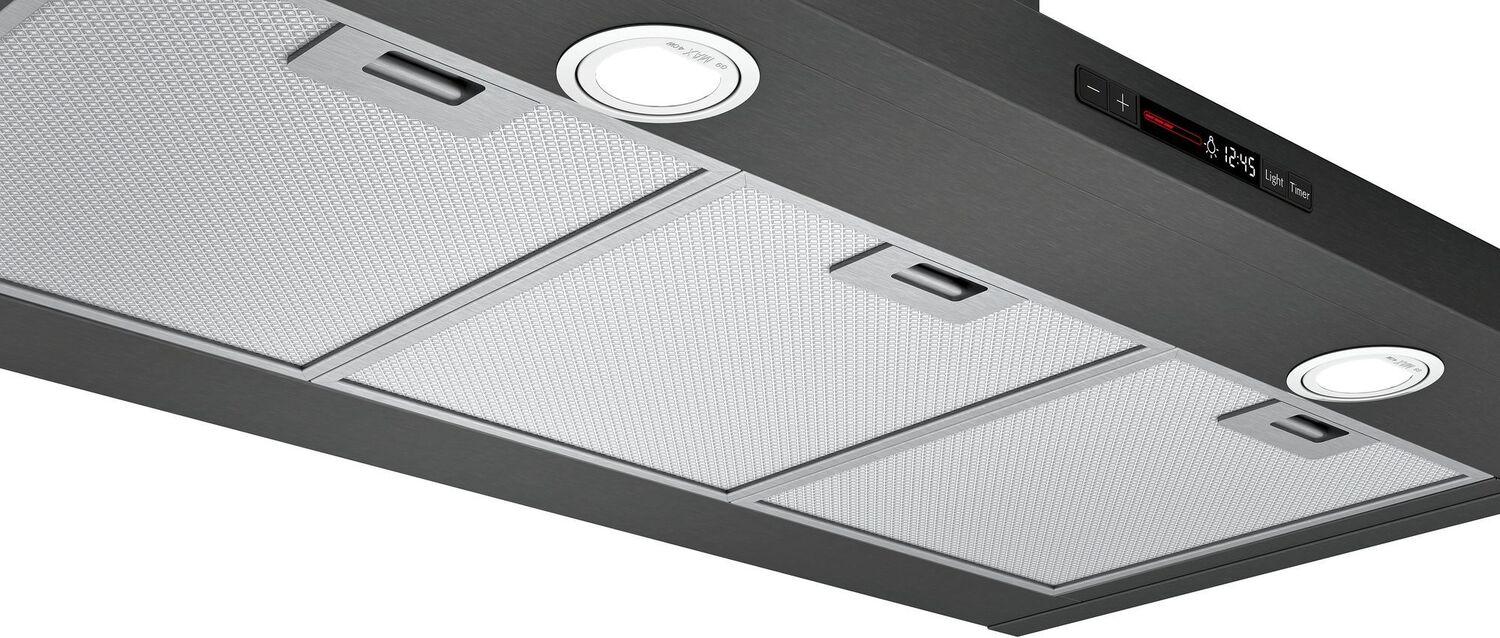

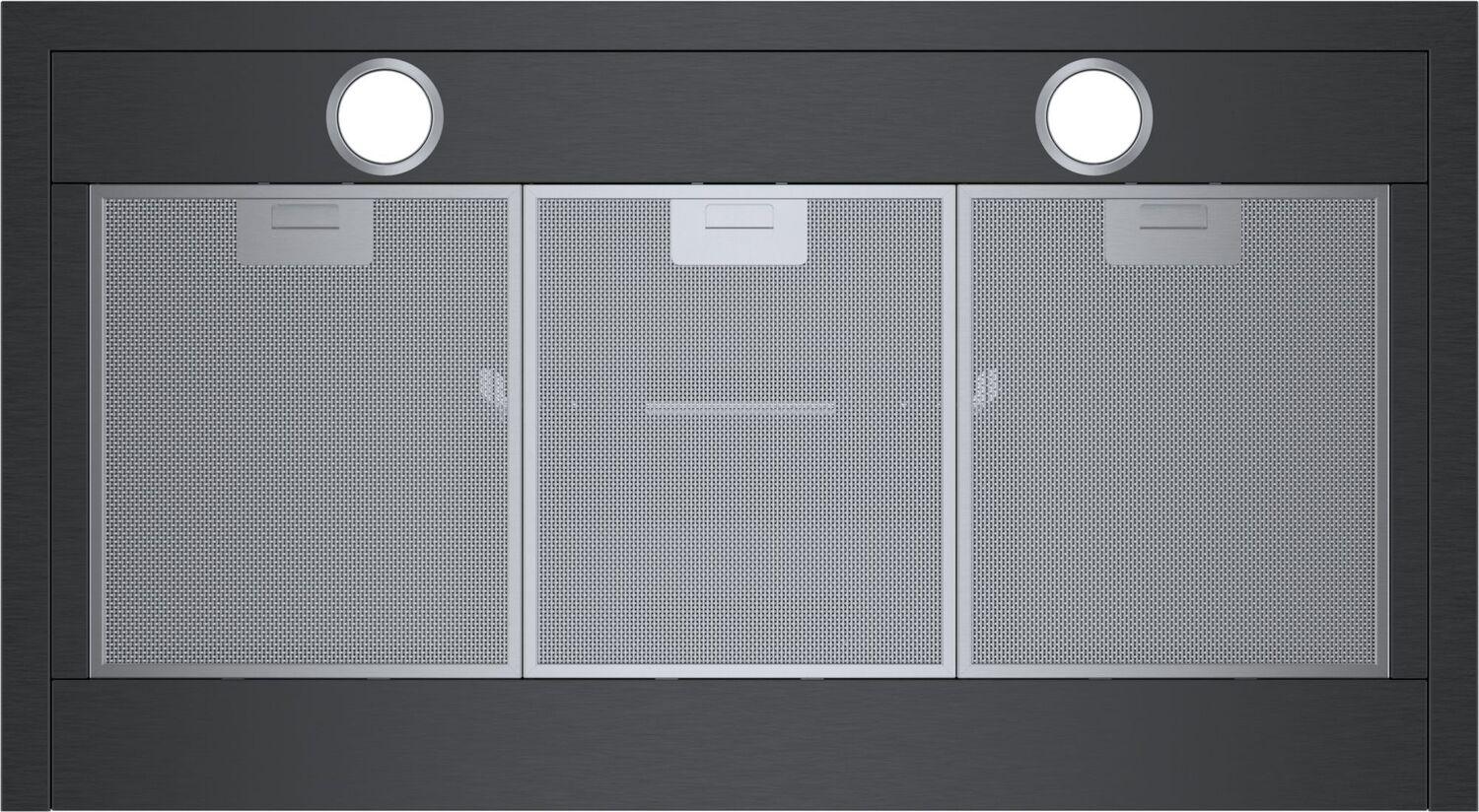

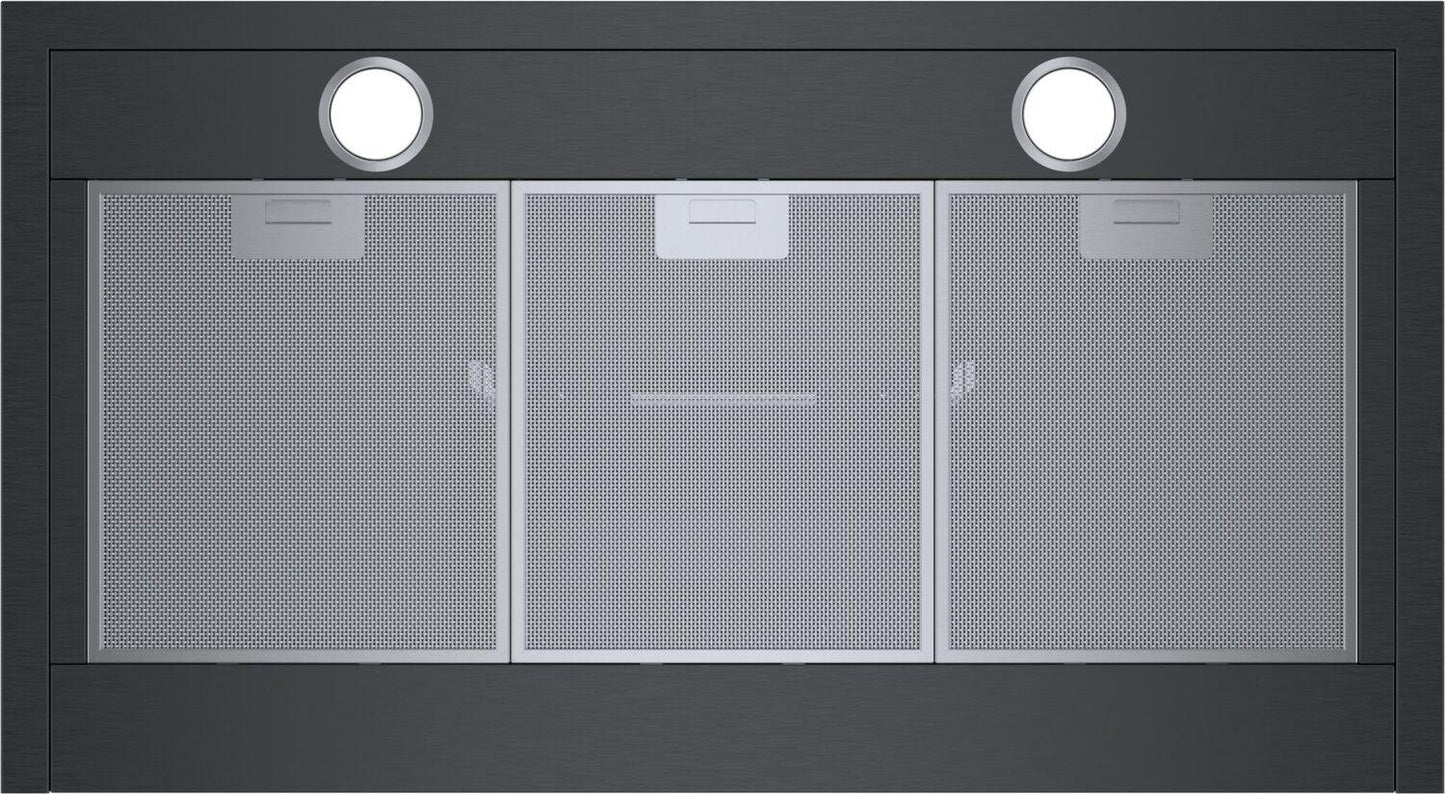

- Dishwasherafe aluminum mesh filters makes cleaning and maintenance easy.ignal on LCD display will illuminate as a reminder to check filters for cleaning
- 2 halogen lights
- 8" round duct at discharge
- Absorb odors with charcoal replacement filters
- Quiet blower 4.6ones / 178 CFM low to 9.9ones / 600 CFM high
- Duct extension accessory kit available for 9' to 11.5' ceilings
- Convenient timer built into control from 1-60 minutes

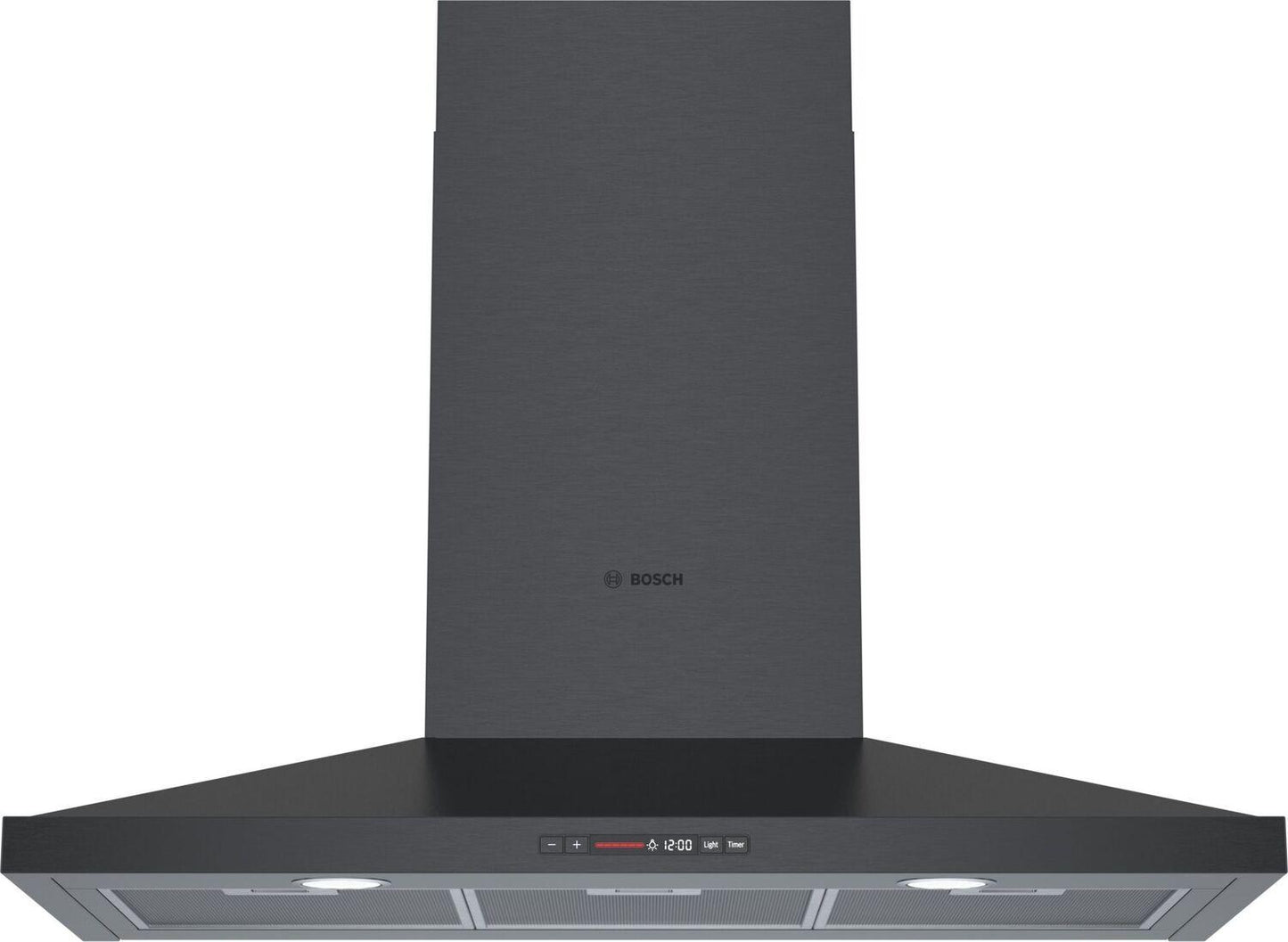

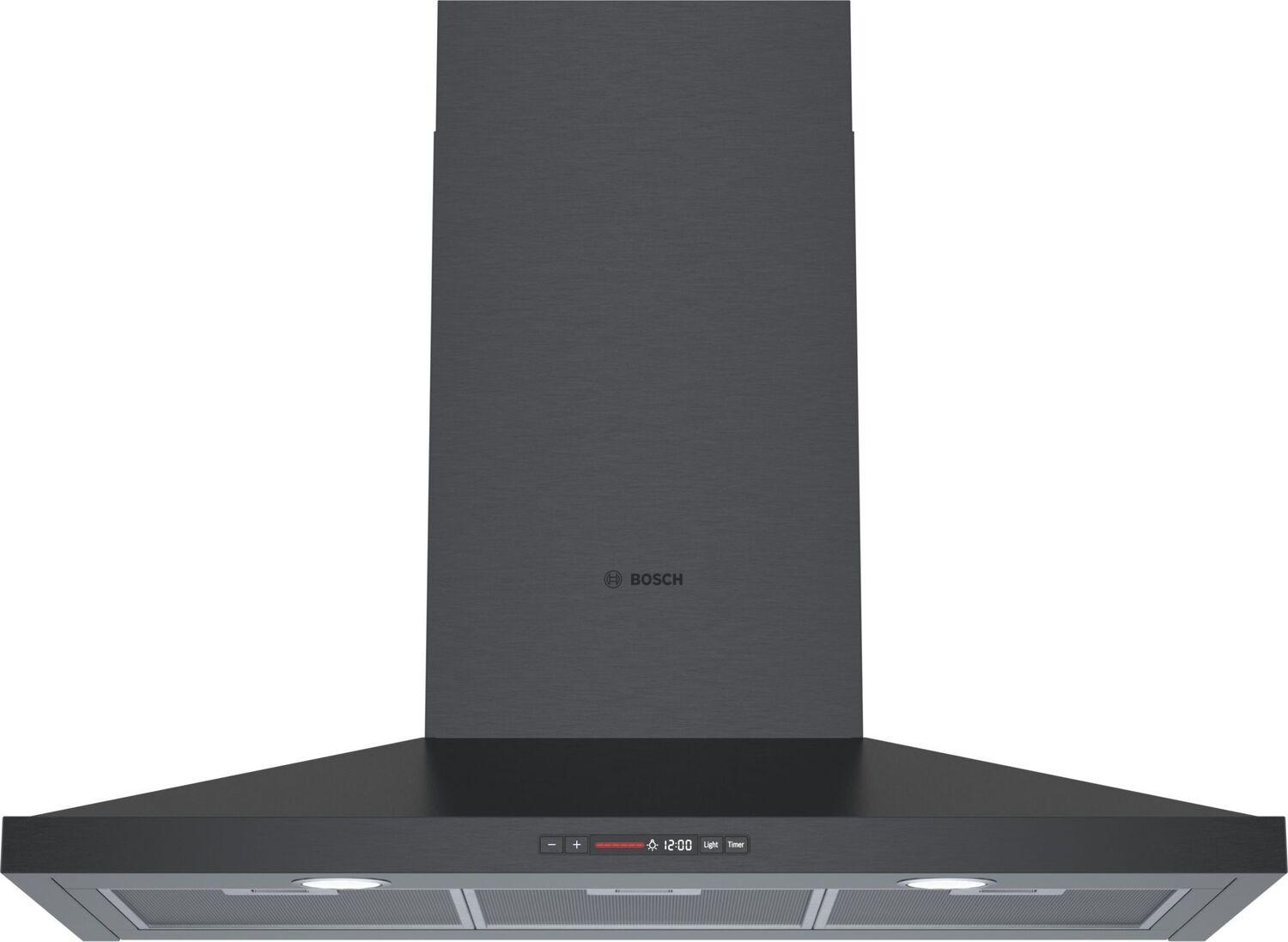

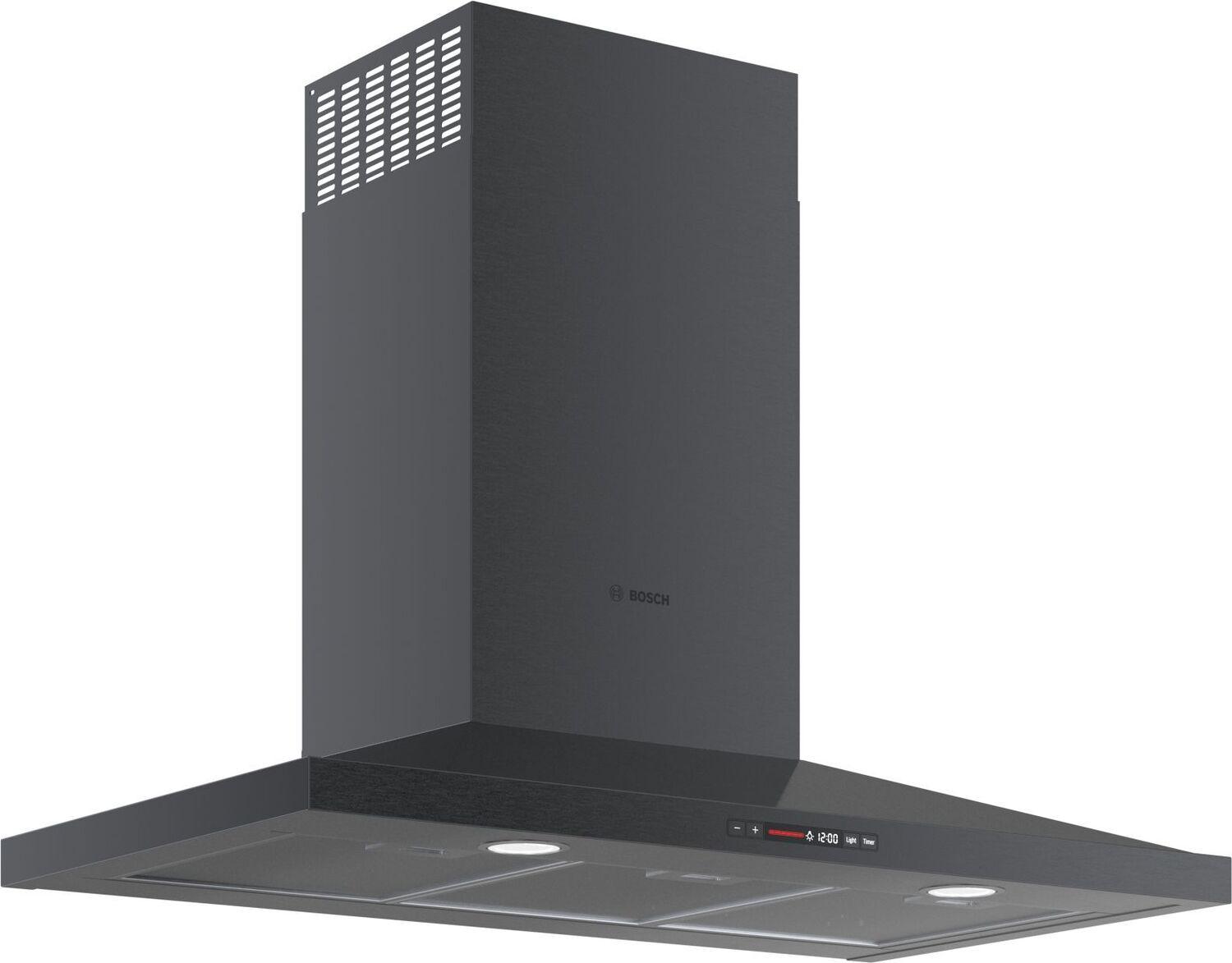

Bosch's inventive ventilation systems keeps mealtime fresh by quietly purifying the air while you cook. Black Stainless steel 36 in. pyramid canopy chimney hood integrate matching user interfaces and design aesthetics to complete the Bosch kitchen suite with sleek and sophisticated styling. With 600 CFM of power, beautiful Bosch hoods will quickly clear the air of grease, steam, smoke and odor to keep your home fresh and odor free.
Specifications | |
General | |
Material Number | HCP86641UC |
Brand Name | Bosch |
Category | Wall Mounted Range Hoods |
Product Name | 800 Series, wall-mounted cooker hood, 36'', Black stainless steel |
Upc | 825225959472 |
Series | 800 Series |
Appliance Color/Finish | Black Stainless Steel |
Installation Type | Wall-mounted |
Installation | Wall-mounted |
Ada Compliant | No |
Wattage | 530 |
Technical Specifications | |
Connection Rating (W) | 530 |
Voltage (V) | 110 |
Frequency (Hz) | 60 |
Design | |
Clean Filter Reminders | Yes |
Basic Touch Control | No |
Grease Filter Type | Kassette |
Heat Lamps | No |
Light Control Type | Continuous |
Number Of Speed Settings | 4-stage |
Operating Mode | Exhaust / Recirculation (Accessory available separately) |
Total Luminance (Lm) | 0 |
Touch Slider | No |
Type Of Control | Electronic |
Cleaning | |
Extremely Quiet - Ecosilence Drive | No |
Convenience | |
Number Of Lights | 2 |
Type Of Lamps Used | Bulbs |
Connectivity | |
Connected Appliances With Home Connect | No |
Size And Weight | |

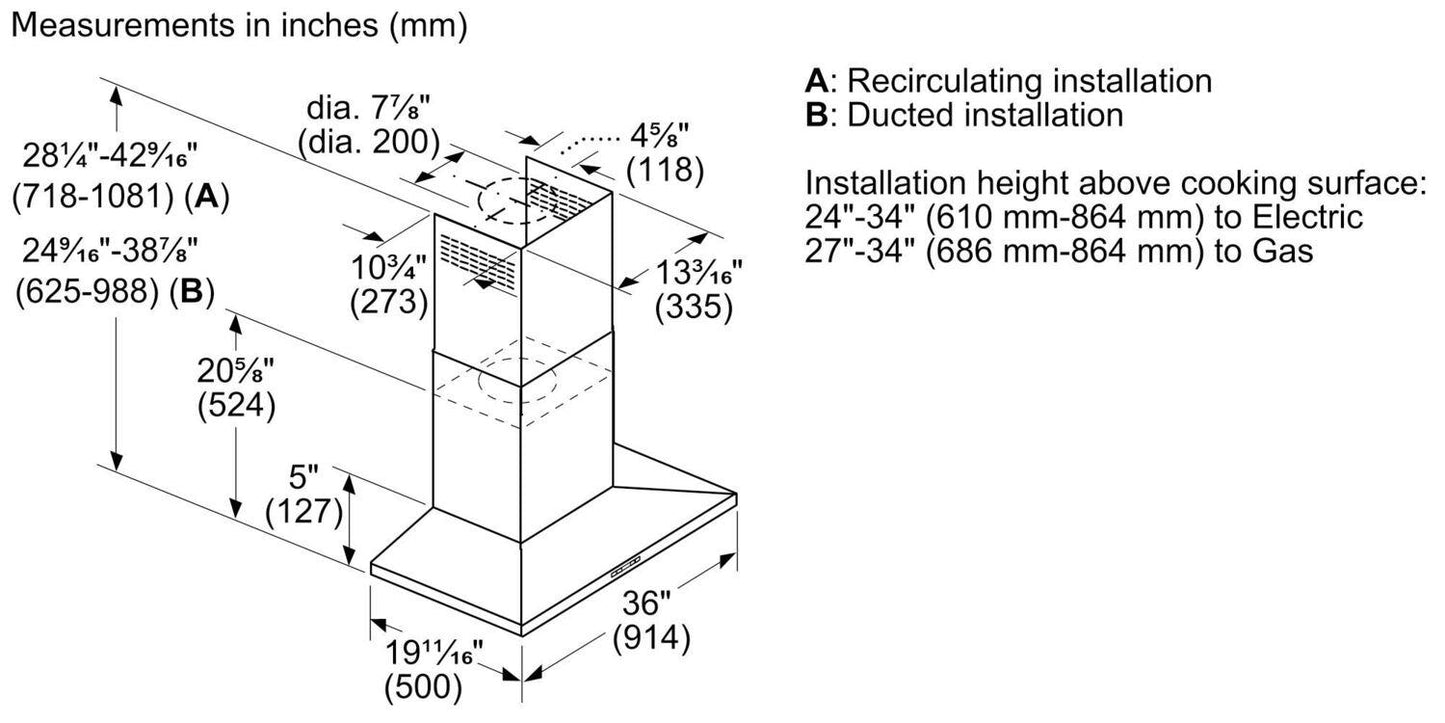

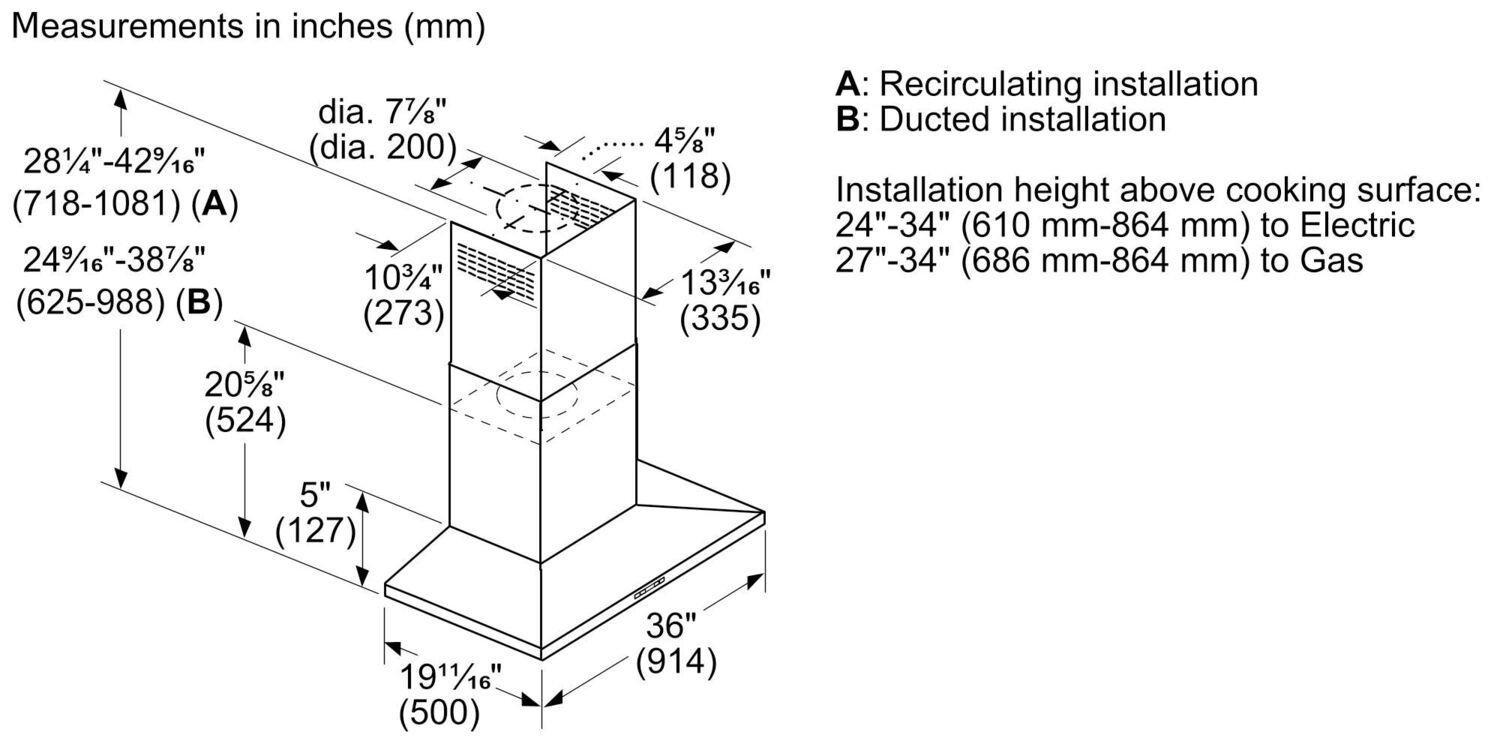

Appliance Dimensions (H X W X D) (In) | 28 1/4 - 42 9/16 x 36 '' x 19 11/16 '' |
Product Packaging Dimensions (HxWxD (In)) | 26 1/4 x 40 x 17 3/4 |
Damper Included | Yes |
Net Weight (Lbs) | 45 |
Installation | |
Plug Type | No Plug |
Required Distance Above Cooktop/Ranges | 24/27 |
