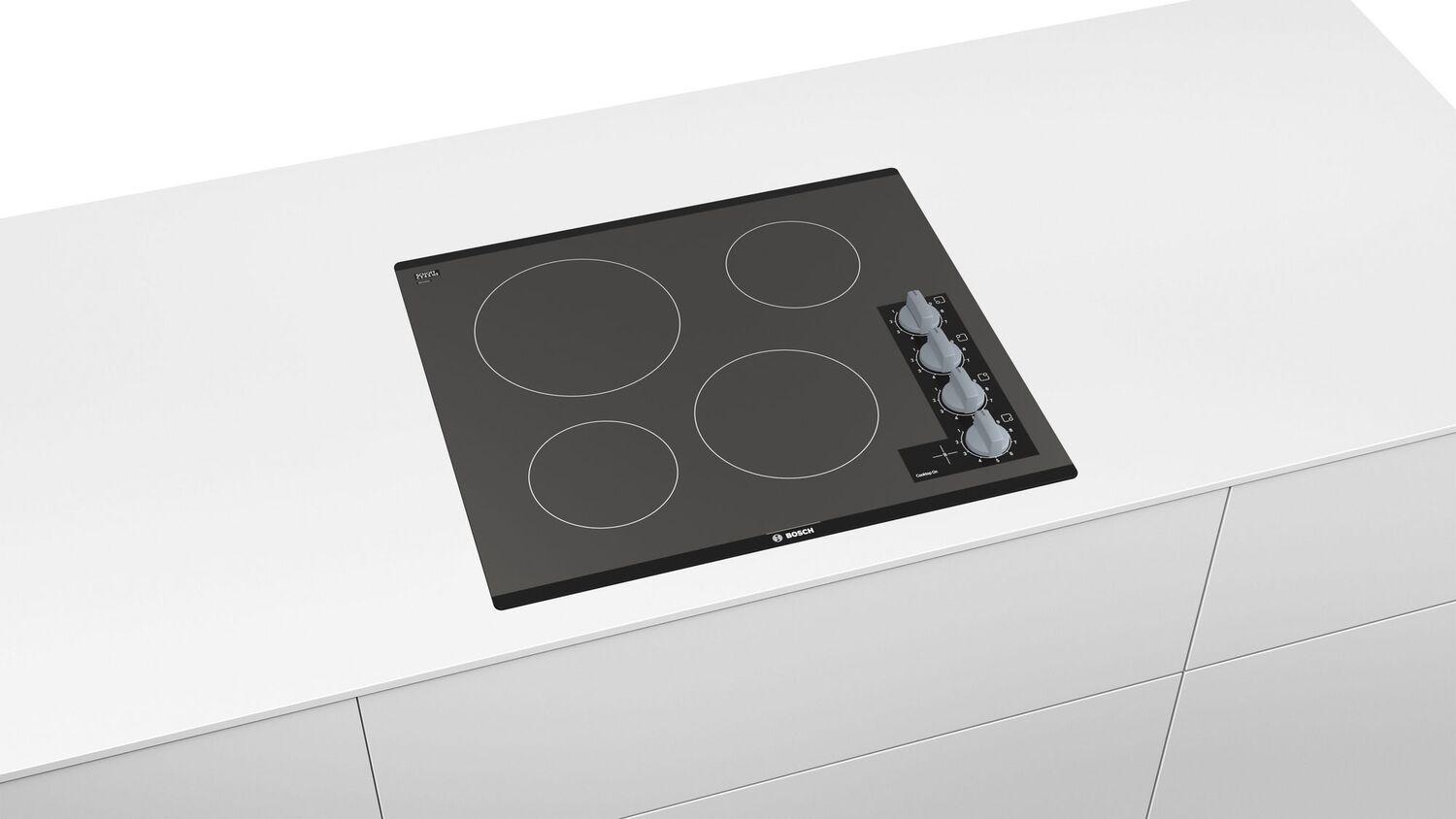

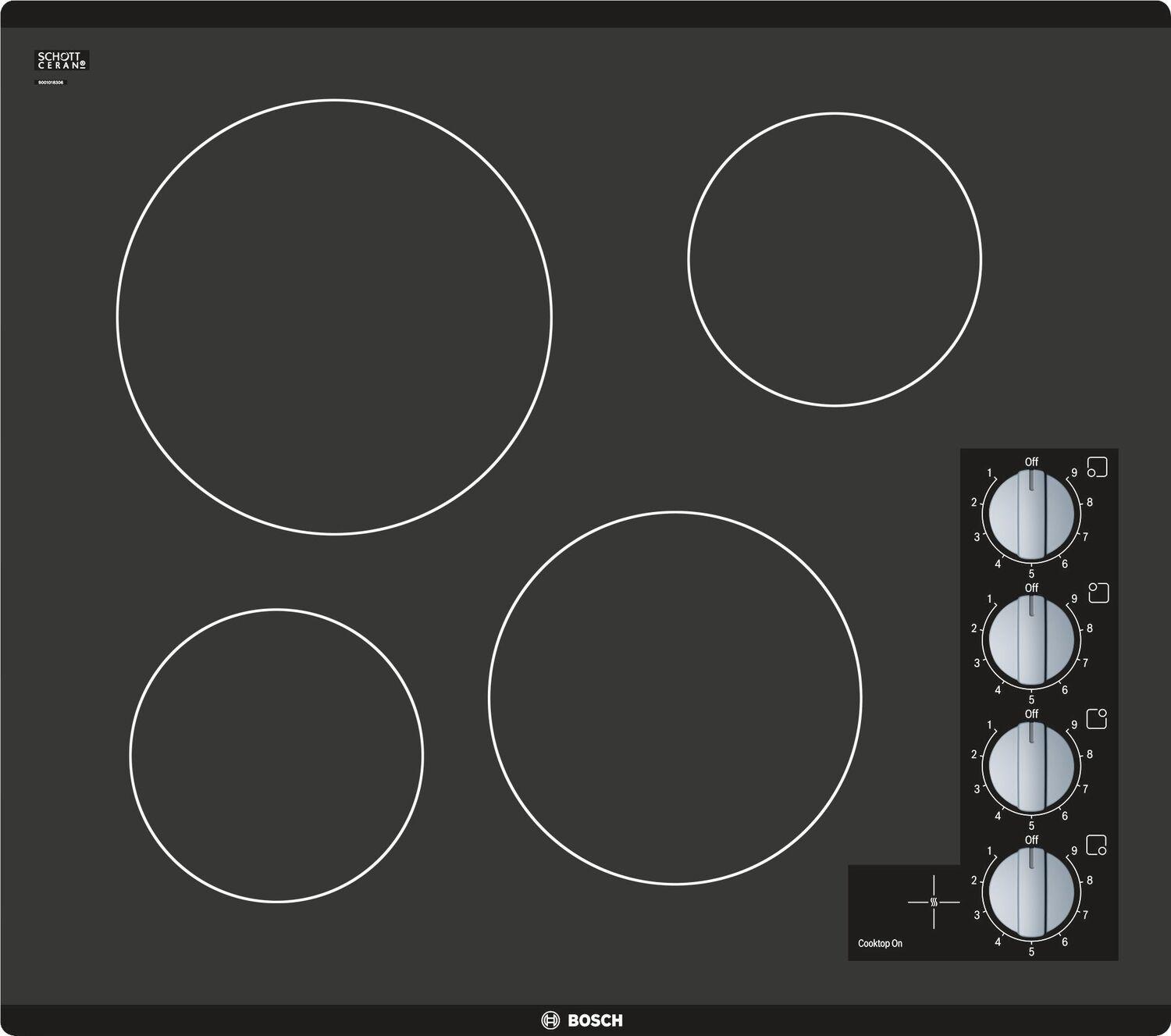

- 4 cooking elements, including a 2,200-watt element for faster boiling

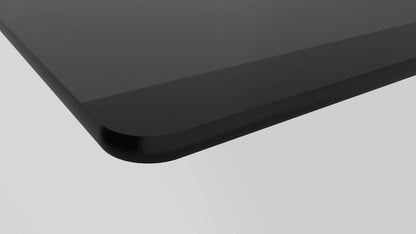

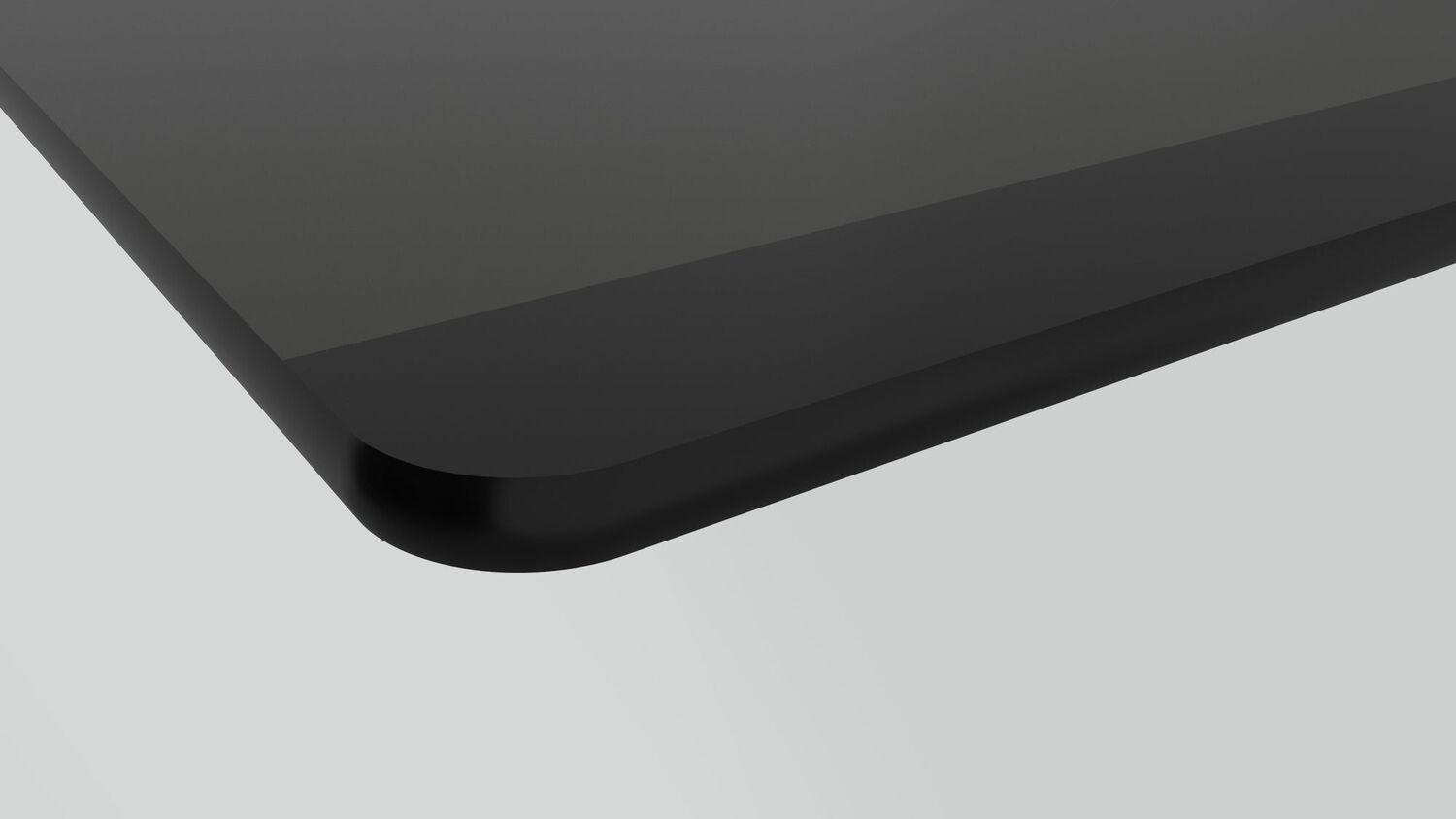

- Smooth surface is easy to clean and offers a modern look

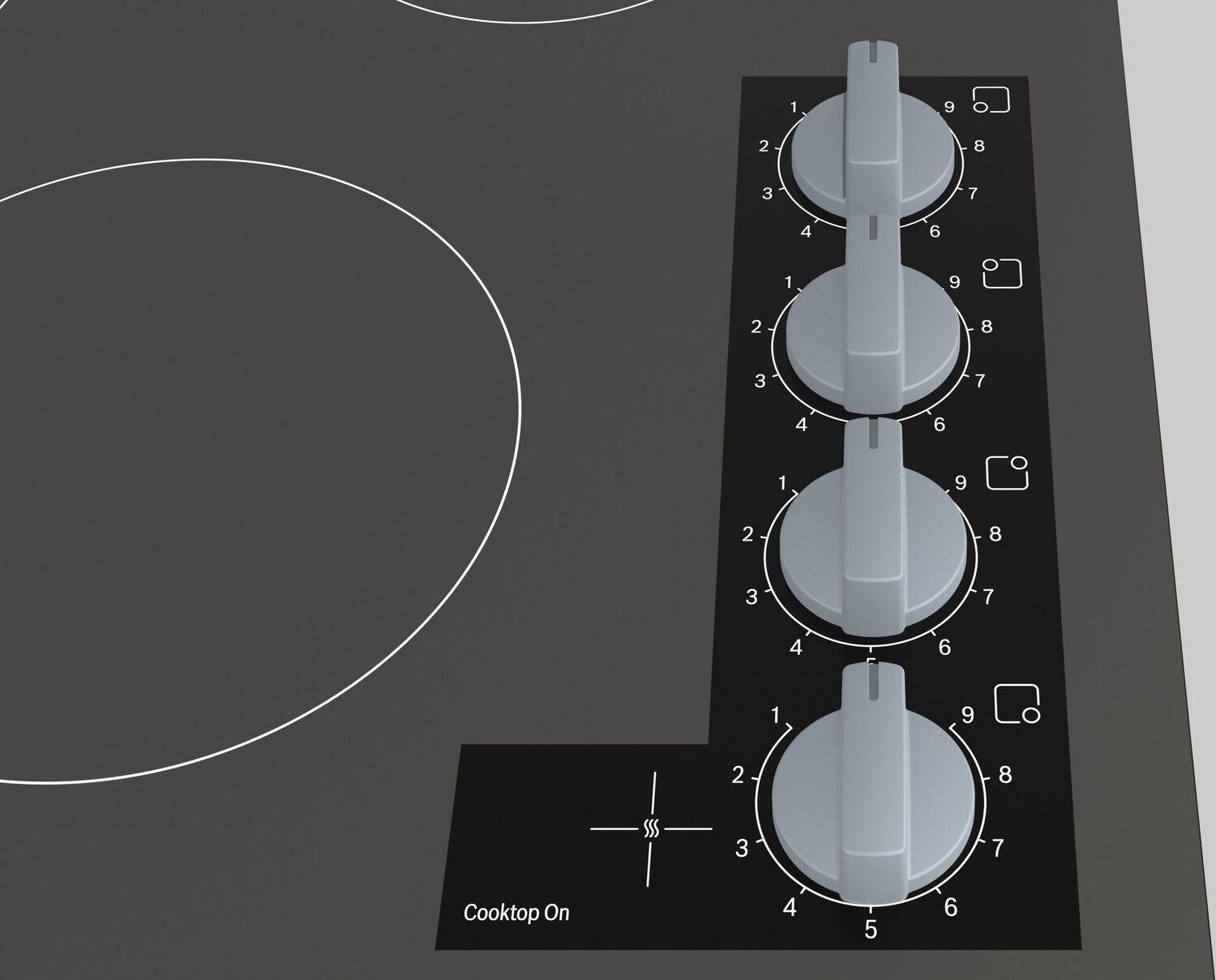

- Control knobs provide precise temperature control for delicious cooking results

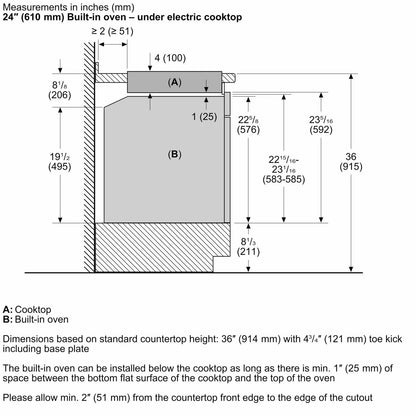

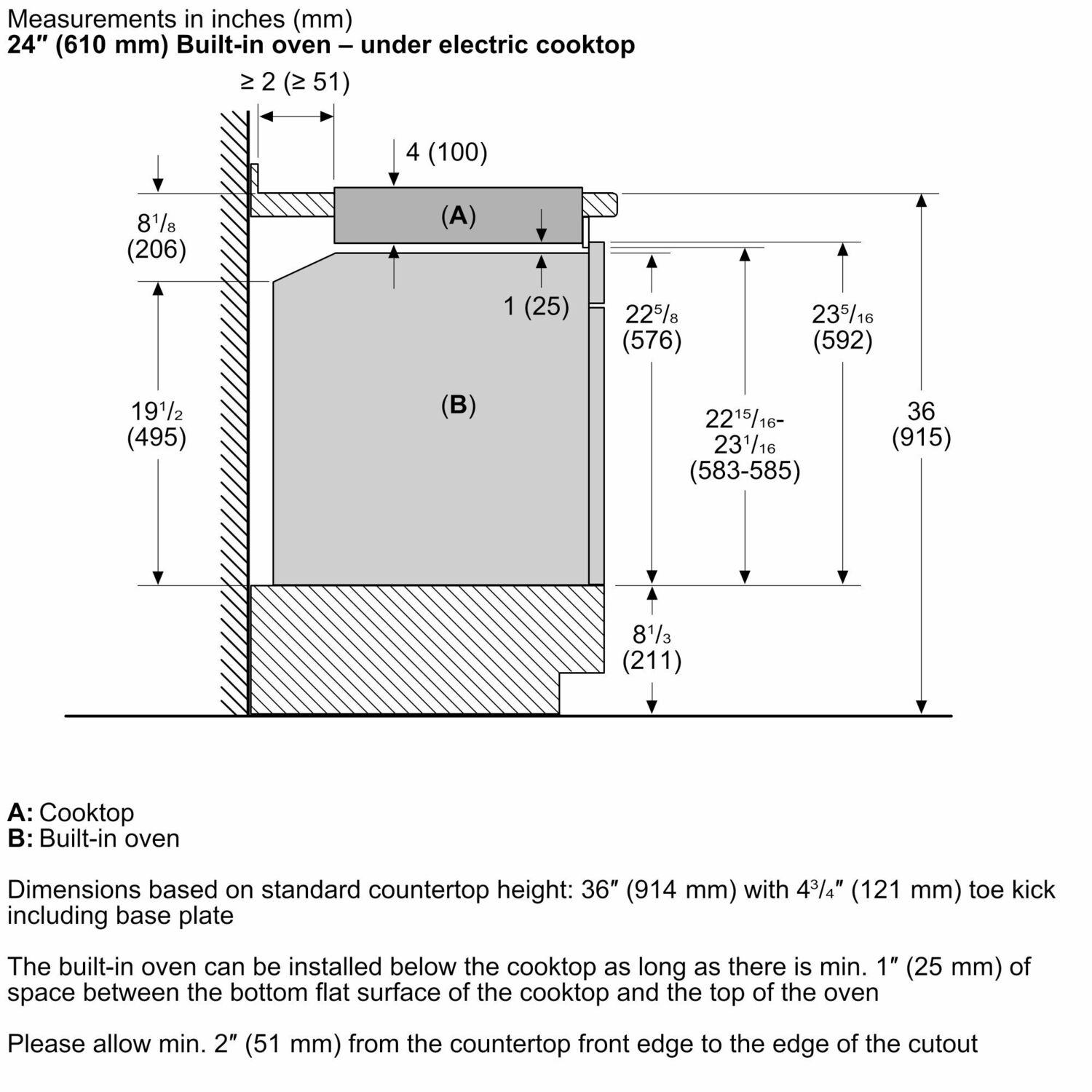

- Installable over most single wall ovens to create a seamless appearance
- Heat indicators for each element let you know when the cooktop is warm or hot for added safety
Bosch cooktops are designed to deliver perfect results with minimal effort.
Whether you chose induction, gas or electric, every Bosch cooktop combines
simplicity with intuitive usability. Because at the end of a long day, Bosch believes cooking should bring joy, not frustration.
Whether you chose induction, gas or electric, every Bosch cooktop combines
simplicity with intuitive usability. Because at the end of a long day, Bosch believes cooking should bring joy, not frustration.
Specifications | |
General | |
Material Number | NEM5466UC |
Brand Name | Bosch |
Category | Electric Cooktops |
Product Name | 500 Series, Electric hob, 24", surface mount without frame |
Upc | 825225916772 |
Series | 500 Series |
Appliance Color/Finish | Black |
Installation | Built-in |
Ada Compliant | No |
Basic Surface Material | Ceramic |
Cooking Zone Flexibility | Ring Zone |
Extralow® Burners | No |
Number Of Gas Burners | 0 |
Technical Specifications | |
Connection Rating (W) | 7100 |
Energy Input | Electric |
Type Of Electrical Connection | 2 phase |
Voltage (V) | 240 |
Frying Sensor | No |
Design | |
Basic Touch Control | No |
Comfort Touch Control | No |
Directselect | No |
Directselect Premium | No |
Flameselect | No |
Location Of Control Panel | Lateral |
Number Of Induction Plates | 0 |
Number Of Radiant Plates | 4 |
Perfectfry | No |
Powermove | No |
Residual Heat Iidicator | Yes |
Sealed Burners | No |
Total Number Of Positions That Can Be Used At The Same Time | 4 |
Touch Slider | No |
Type Of Control | mechanical |
Wok Burner | No |
Electric Cooktop Features - Automatic Setting Transfer | No |
Electric Cooktop Features - Increase/ Decrease Power Level Via Move Mode | No |
Glass Protect | No |
Convenience | |
Keep Warm Function | No |
Timer | No |
Connectivity | |
Connected Appliances With Home Connect | No |
Flexibility Of Cooking Zones | |
Automatic Connection/ Separation Of The Cooking Zones | No |
Flexinduction | No |
Teppanyakipro™ | No |
Size And Weight | |
Appliance Dimensions (H X W X D) (In) | 1/8" + 4 x 23" x 20 1/5" |

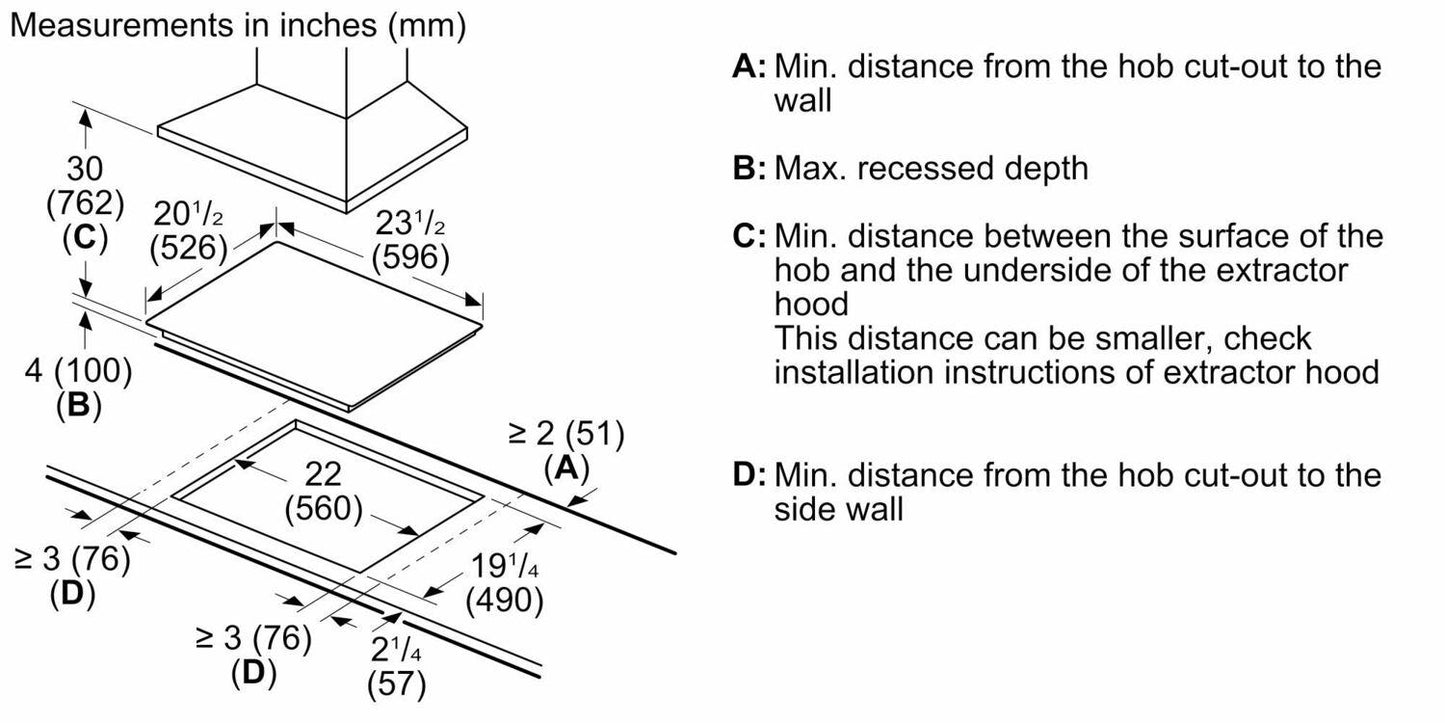

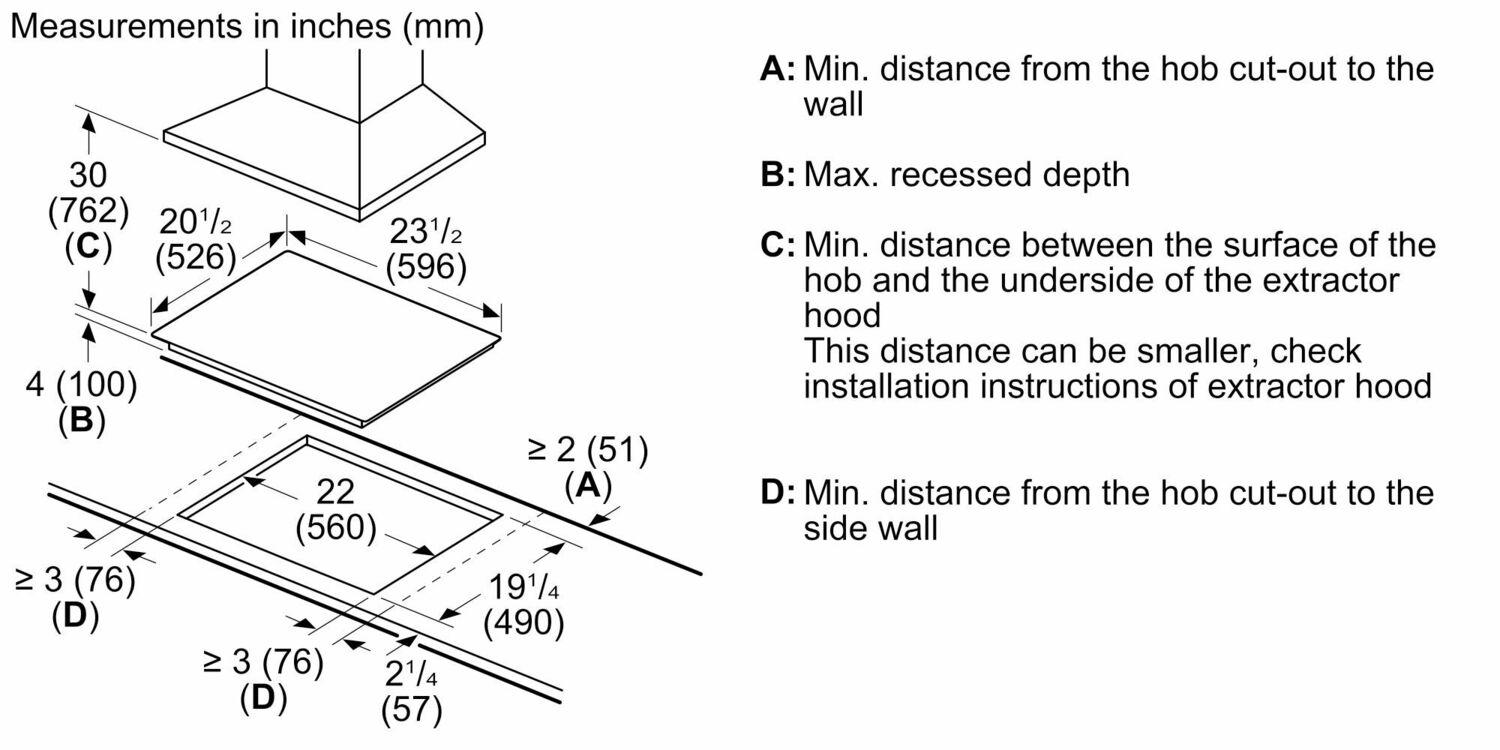

Required Cutout/Niche Size For Installation (In) | 4 x 22" x 19 1/4" |
Installation | |

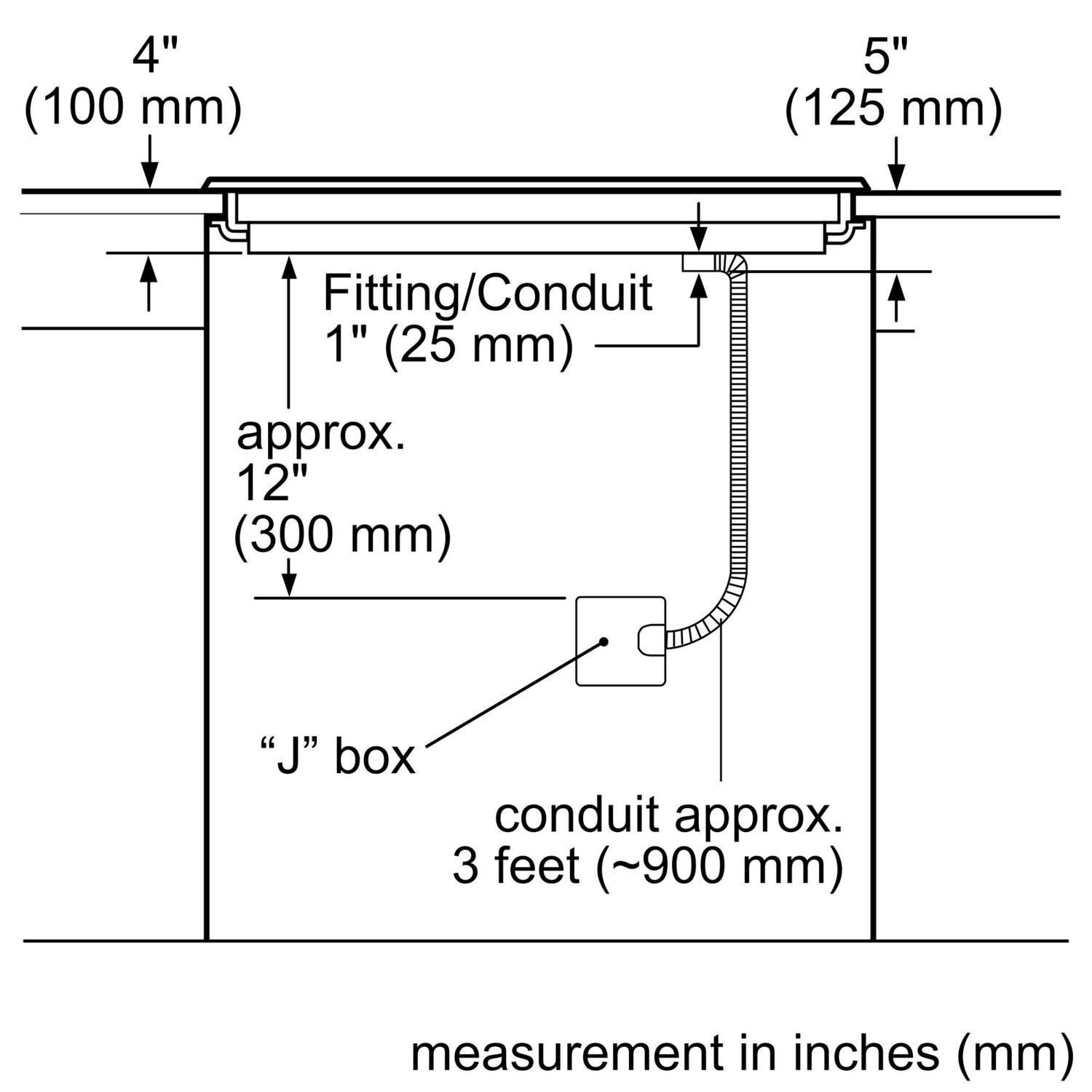

Plug Type | No plug (electrical connection by electrician) |
