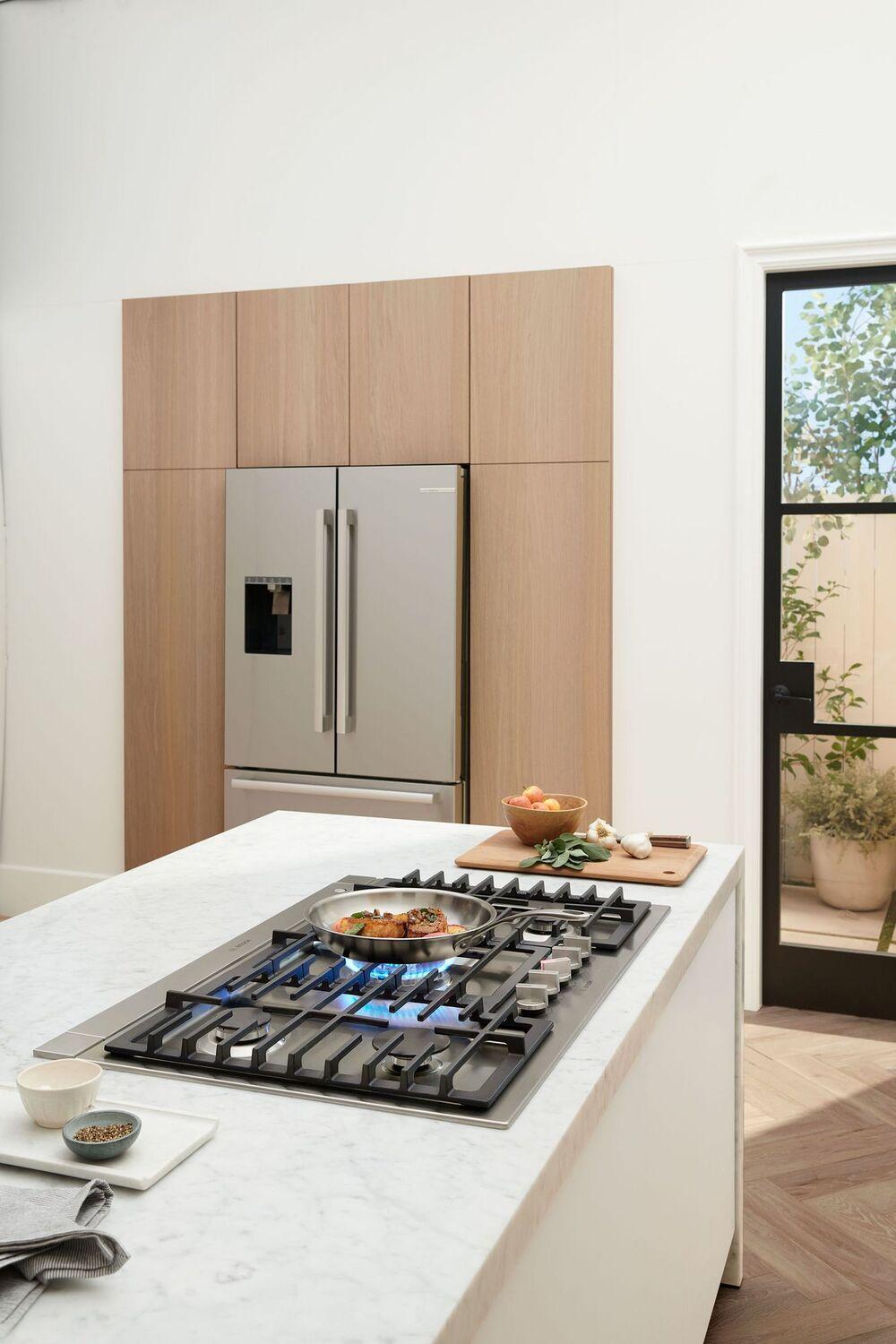

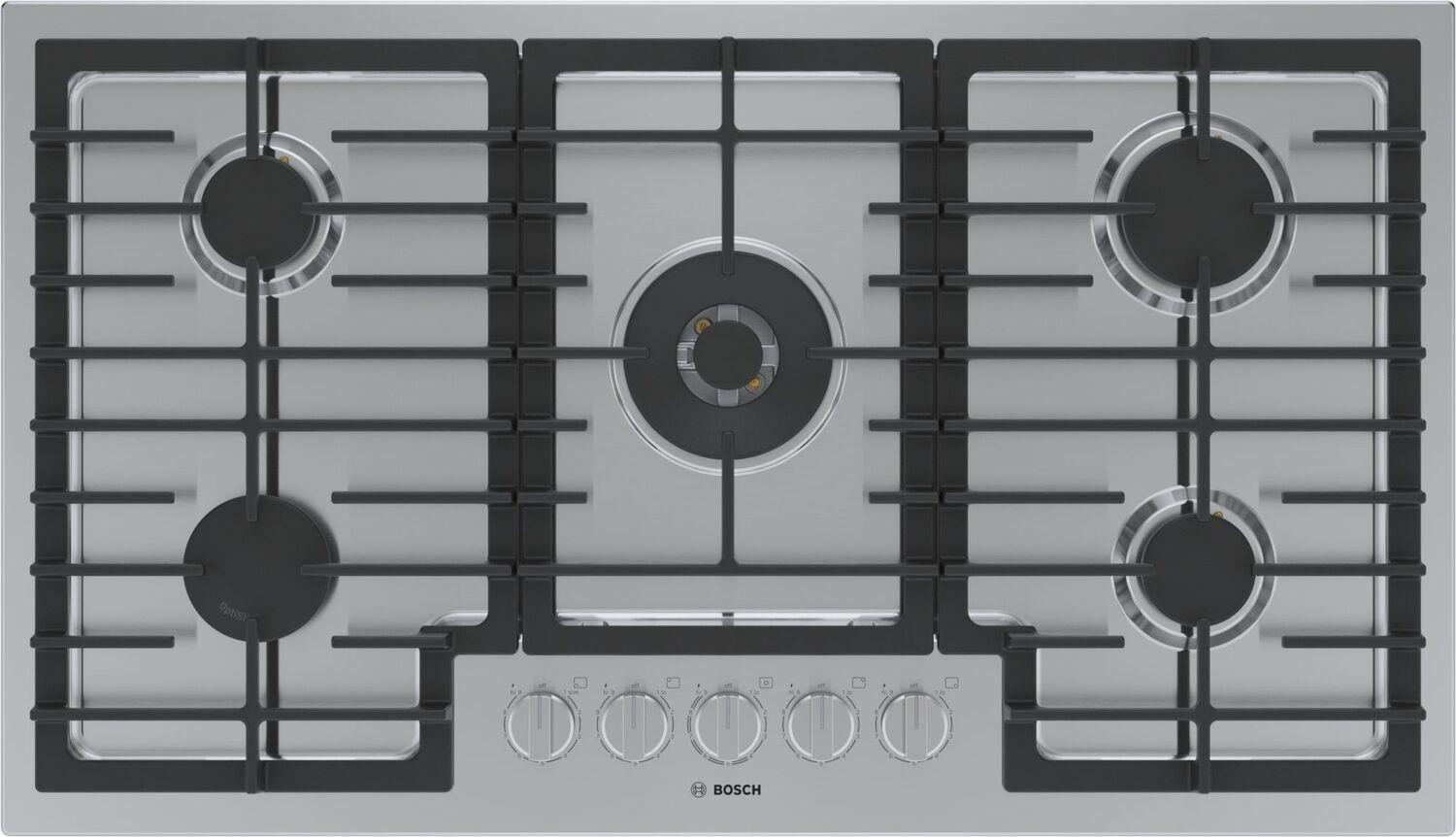

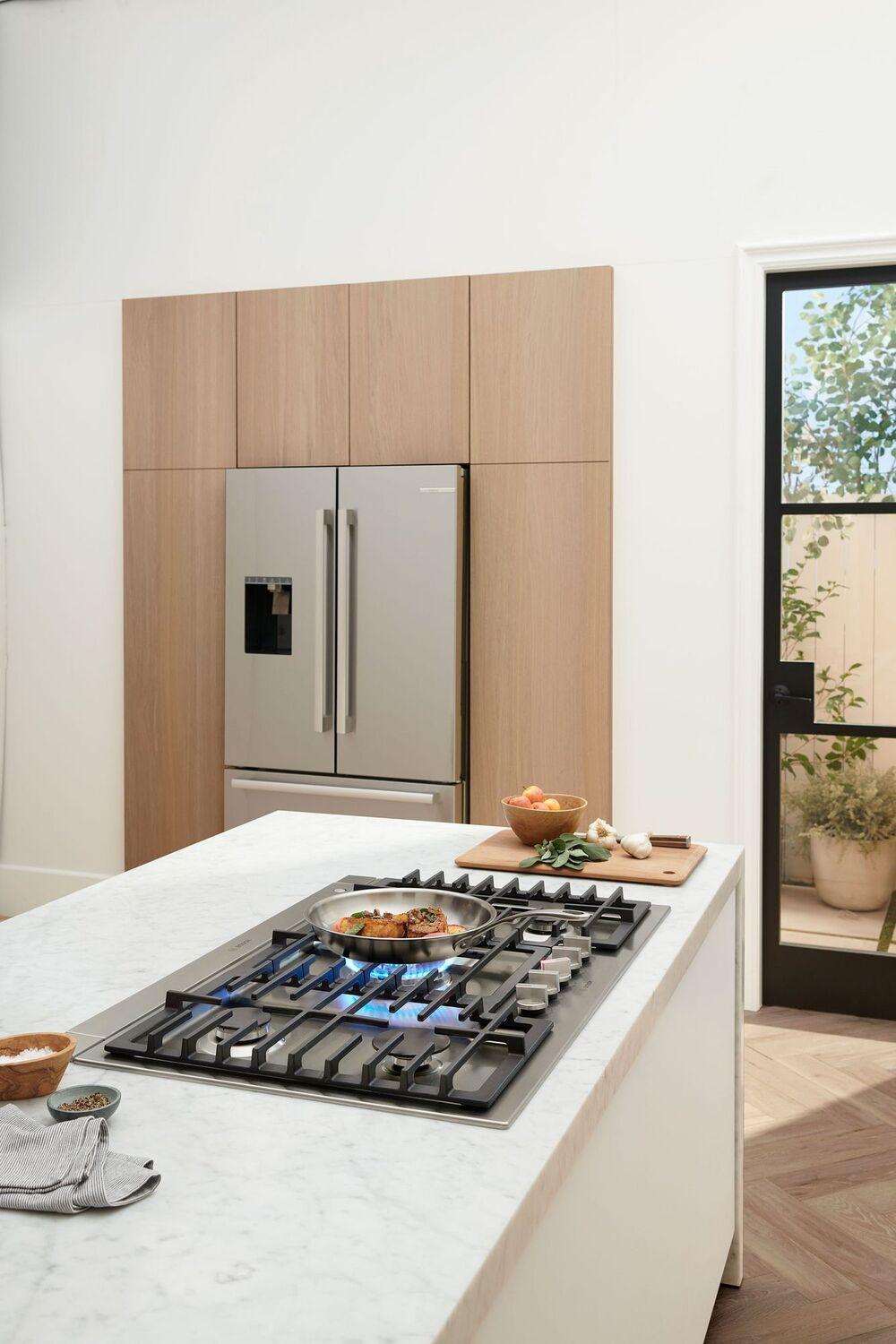

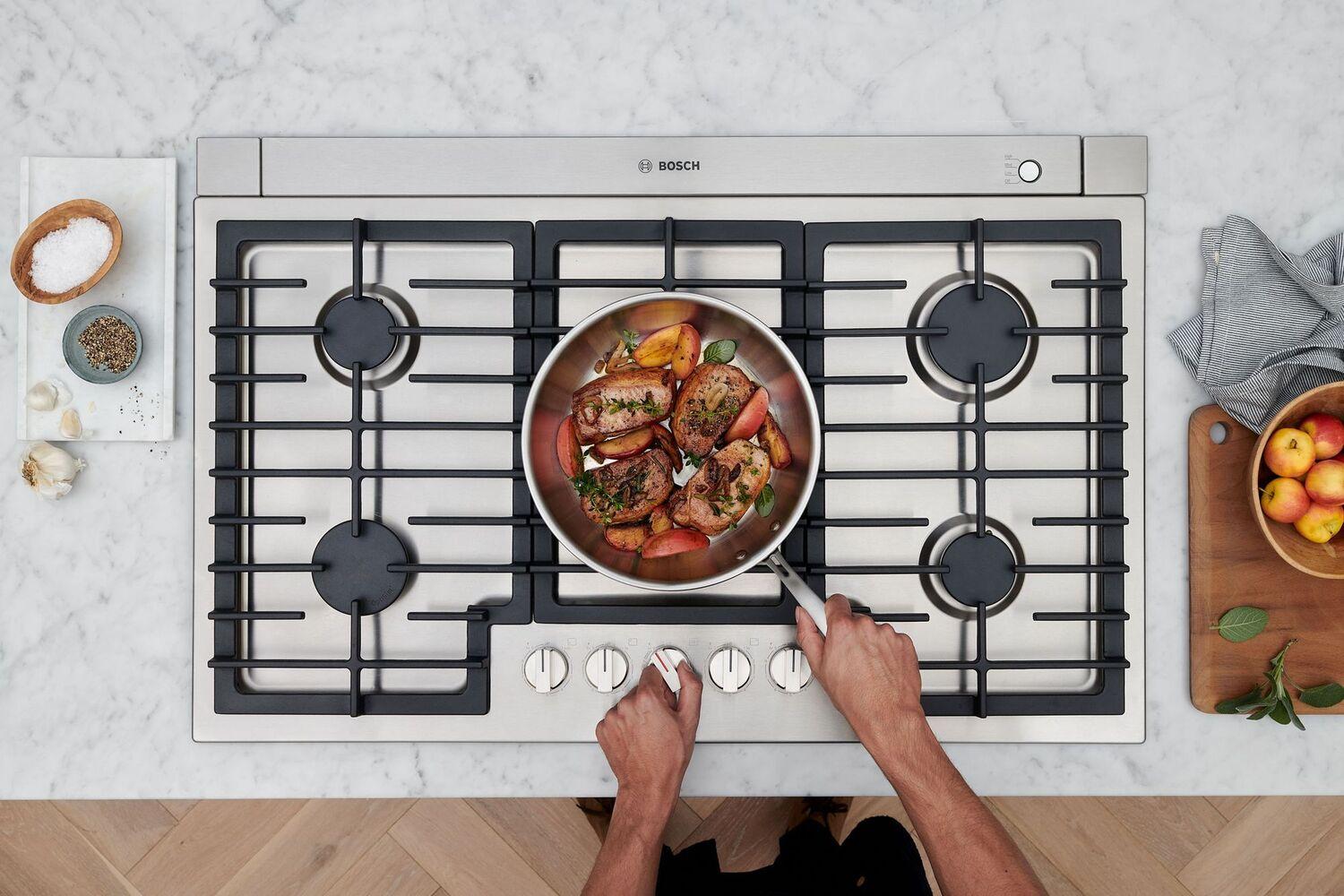

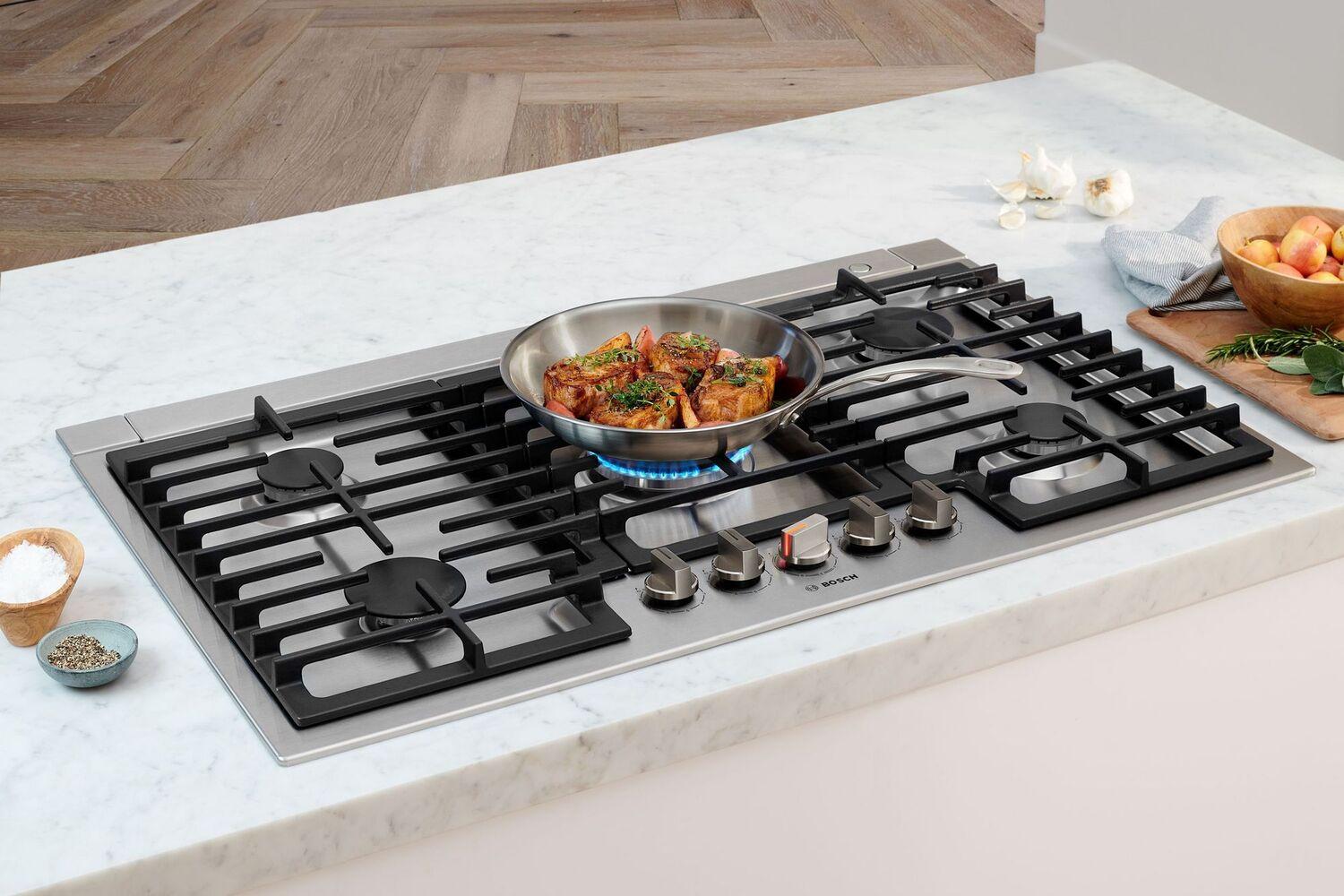

Bosch 800 Series Gas Cooktop 36" Stainless steel NGM8658UC NGM8658UC

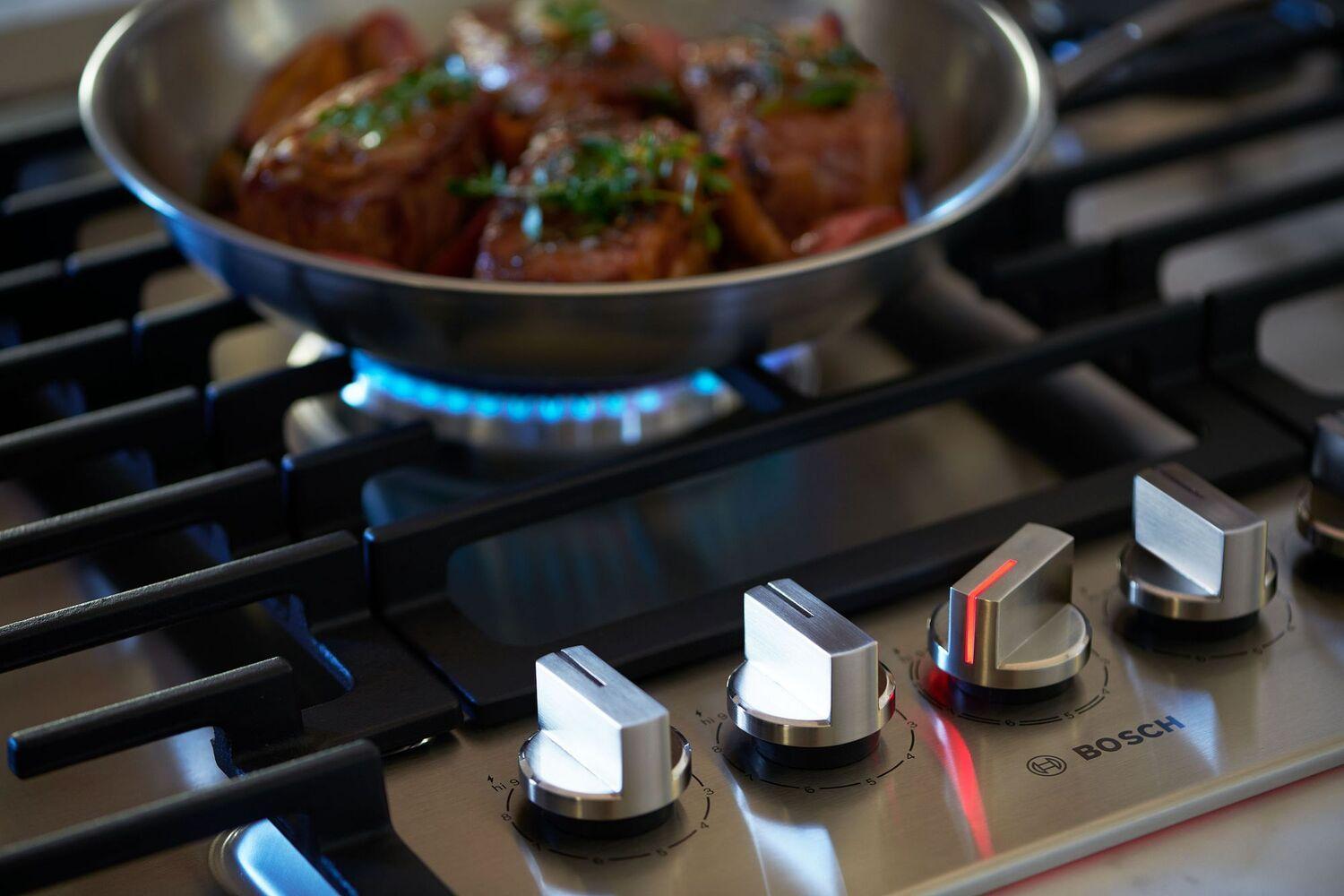

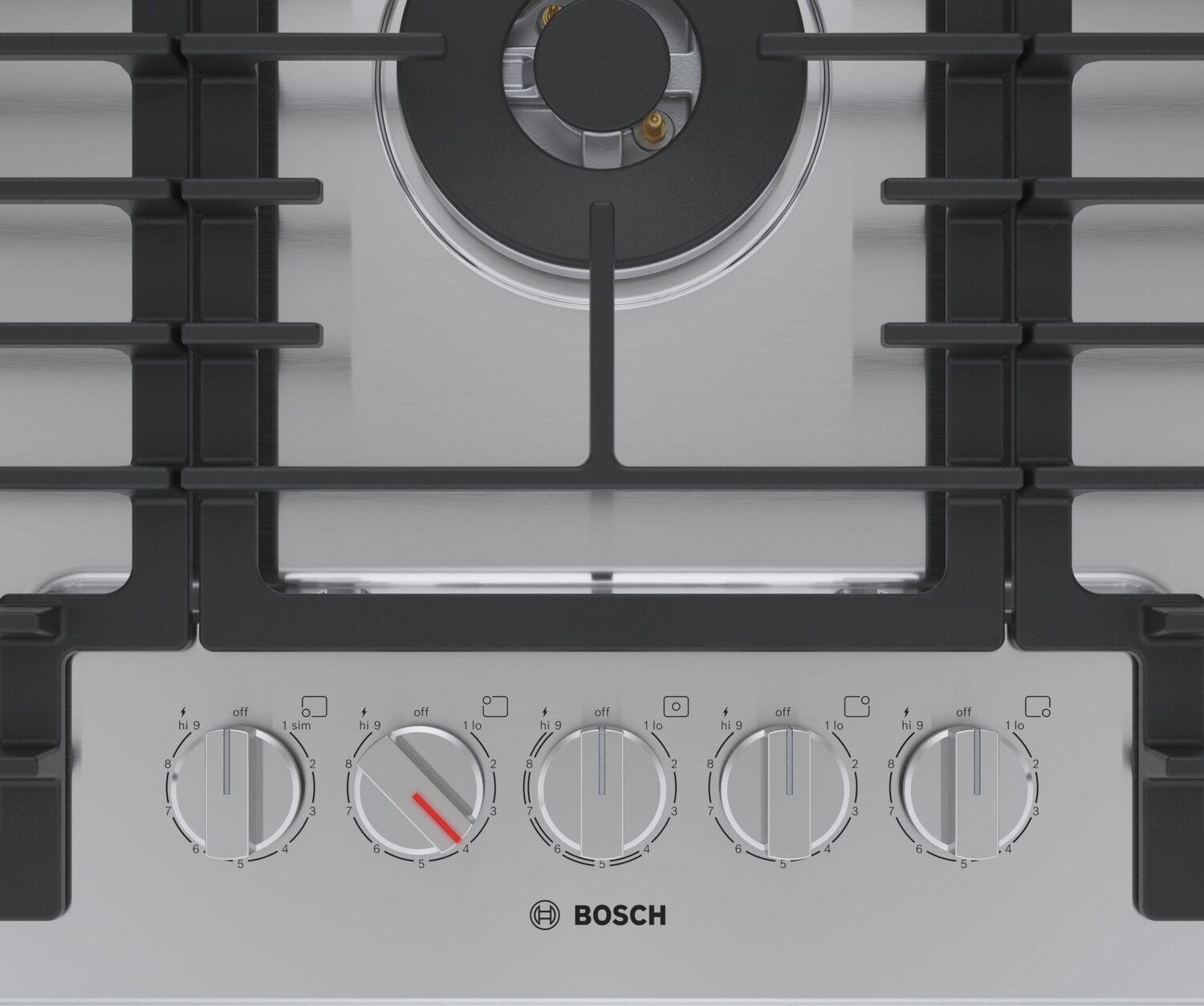

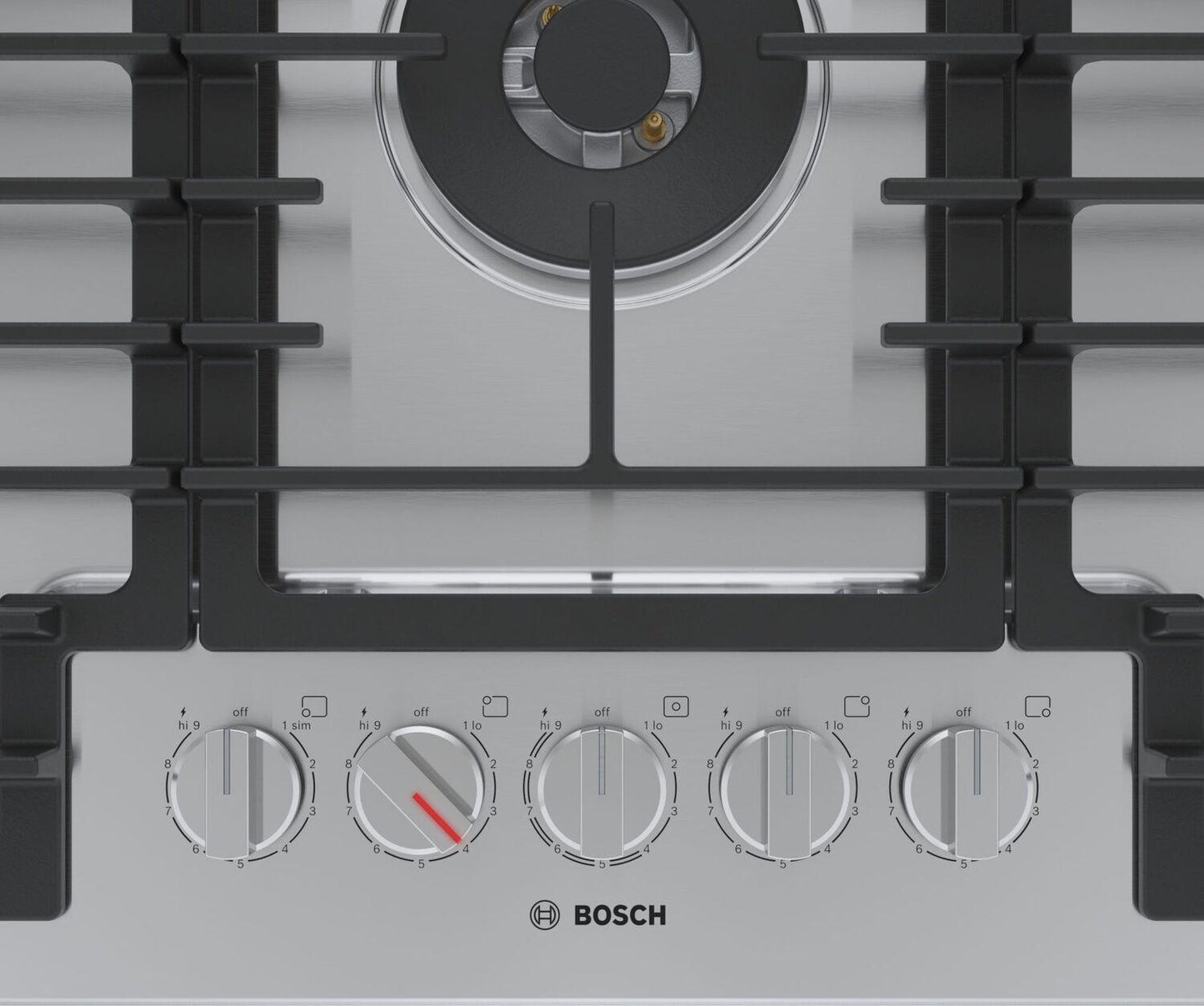

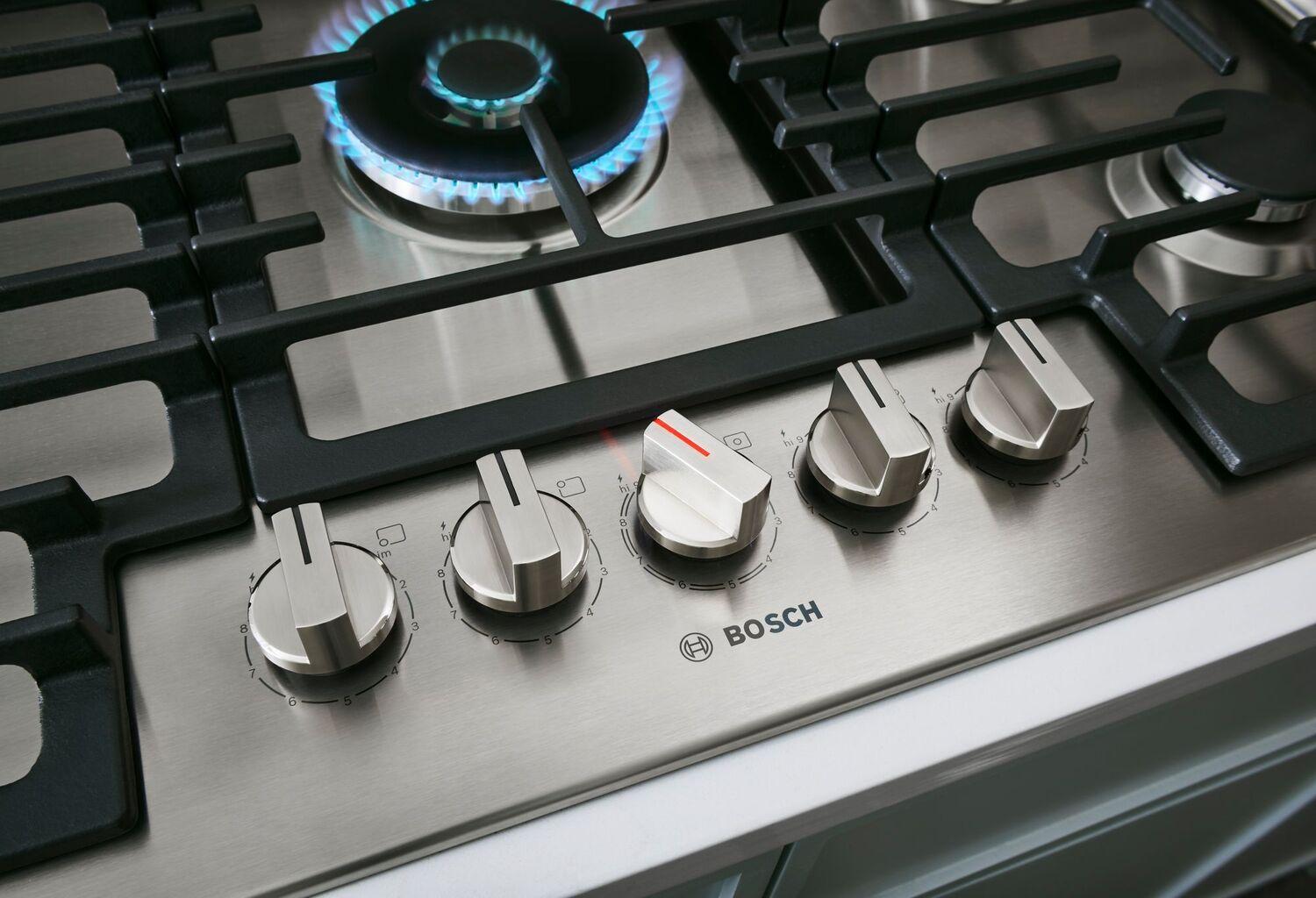

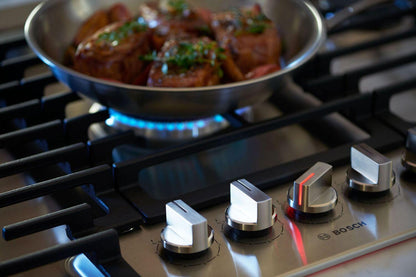

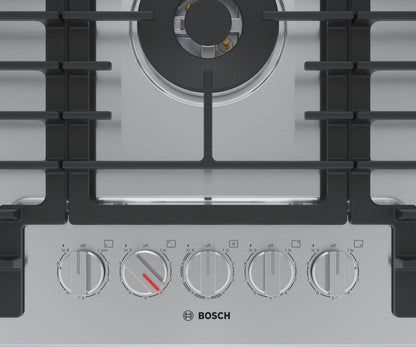

Discontinued- Sleek Knobs with LED Indicators

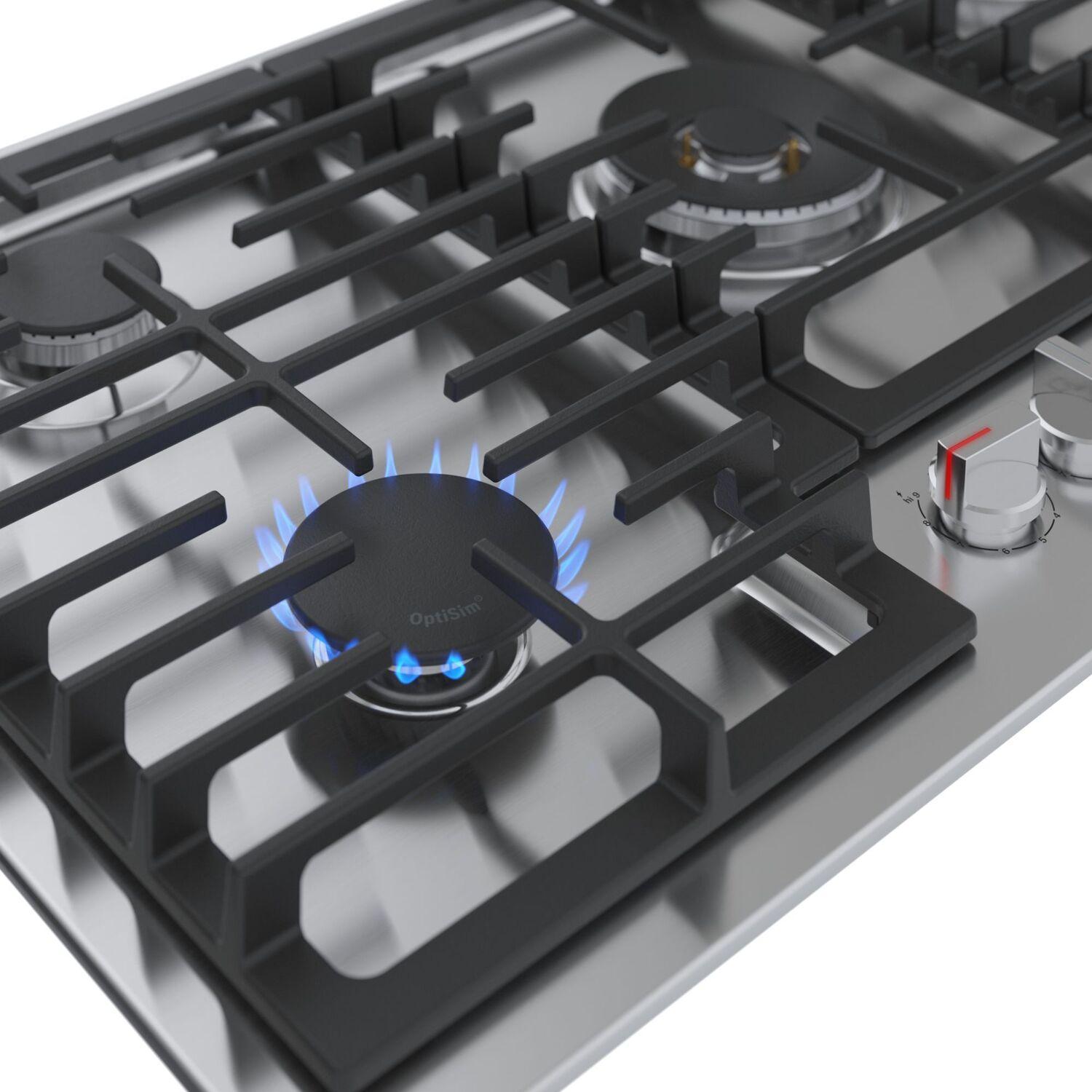

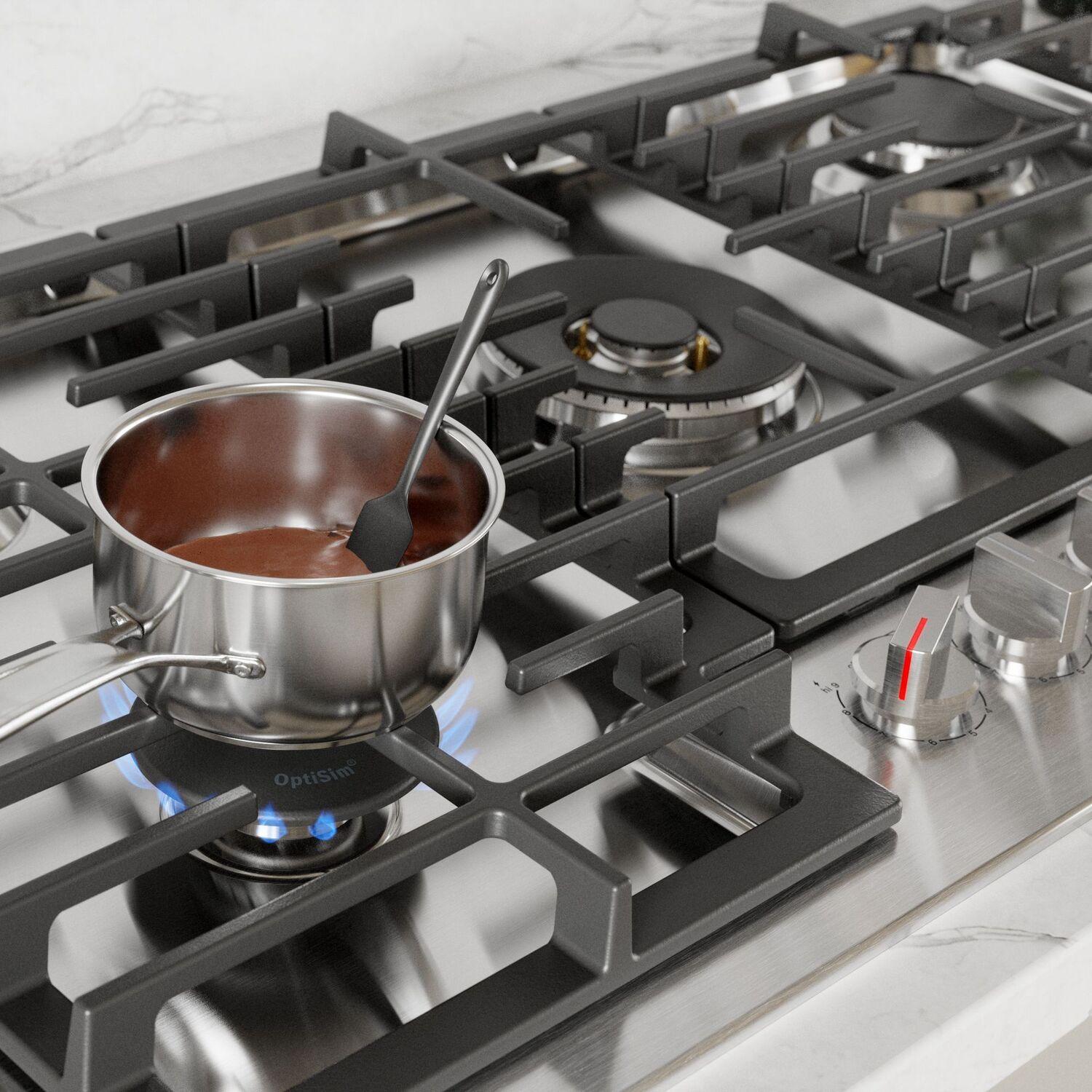

- Simmer delicate sauces with the OptiSim® Burner

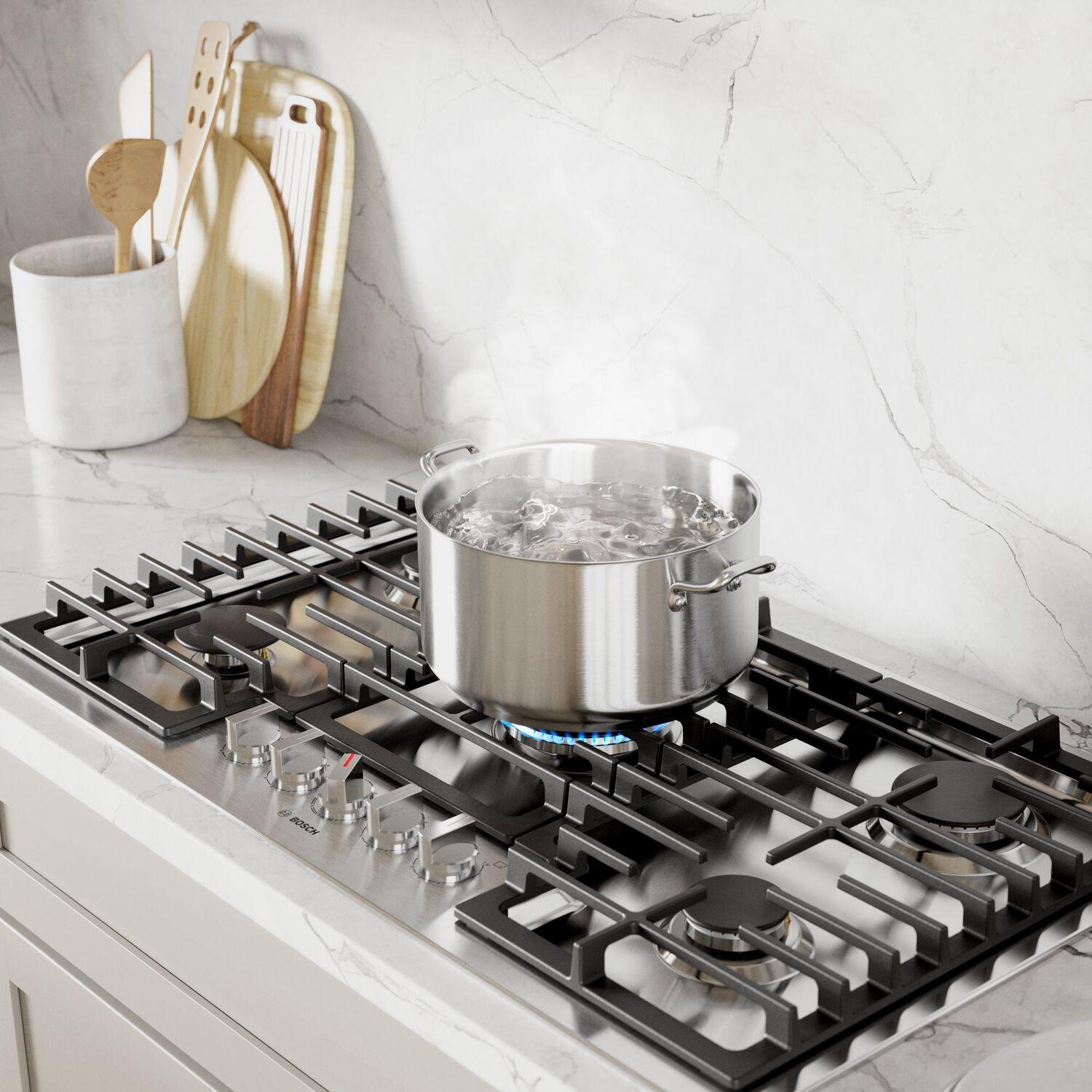

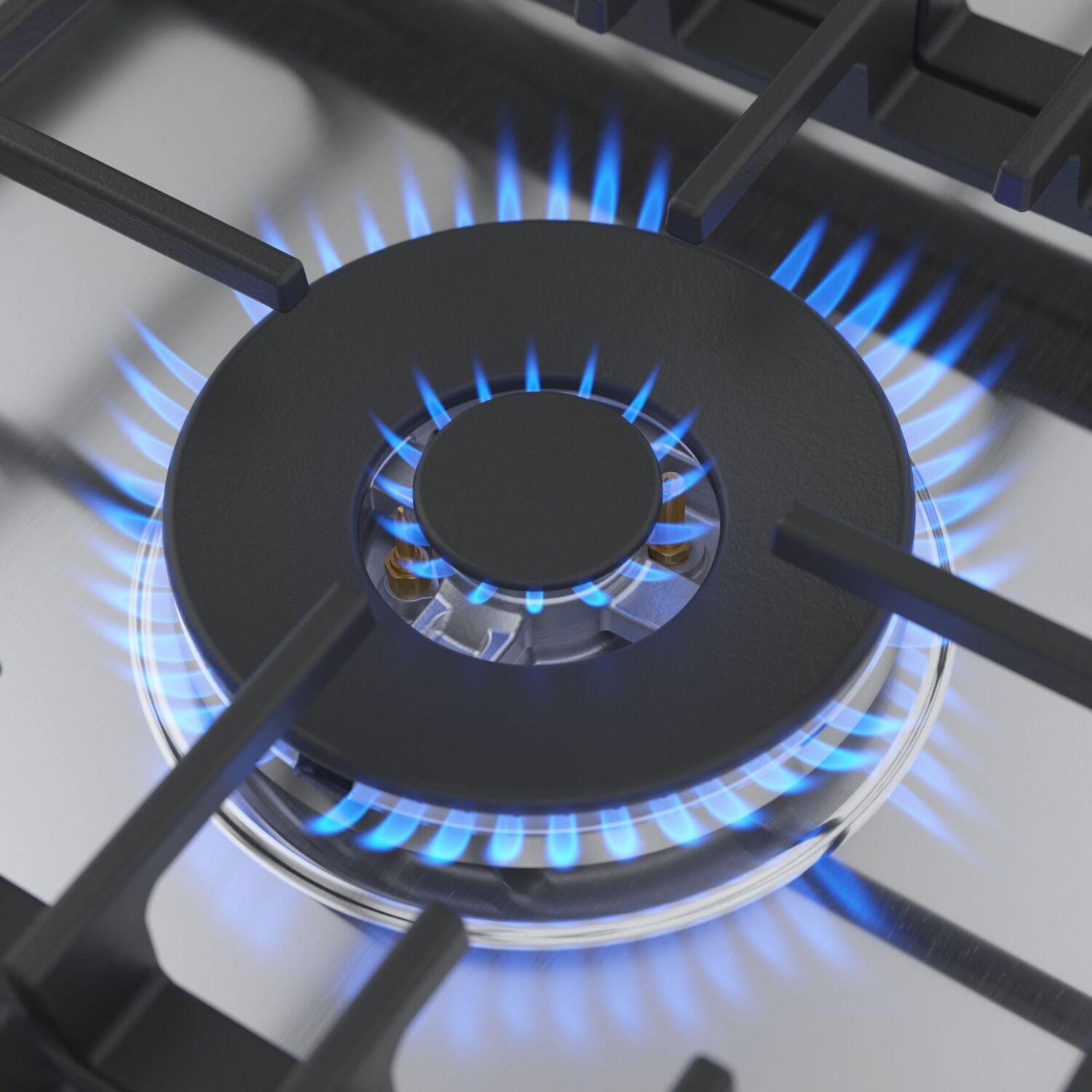

- Boil water quickly with a Dual-Flame Power Burner
- Eliminate the guesswork of cooking with FlameSelect®
- Dishwasher-safe grates

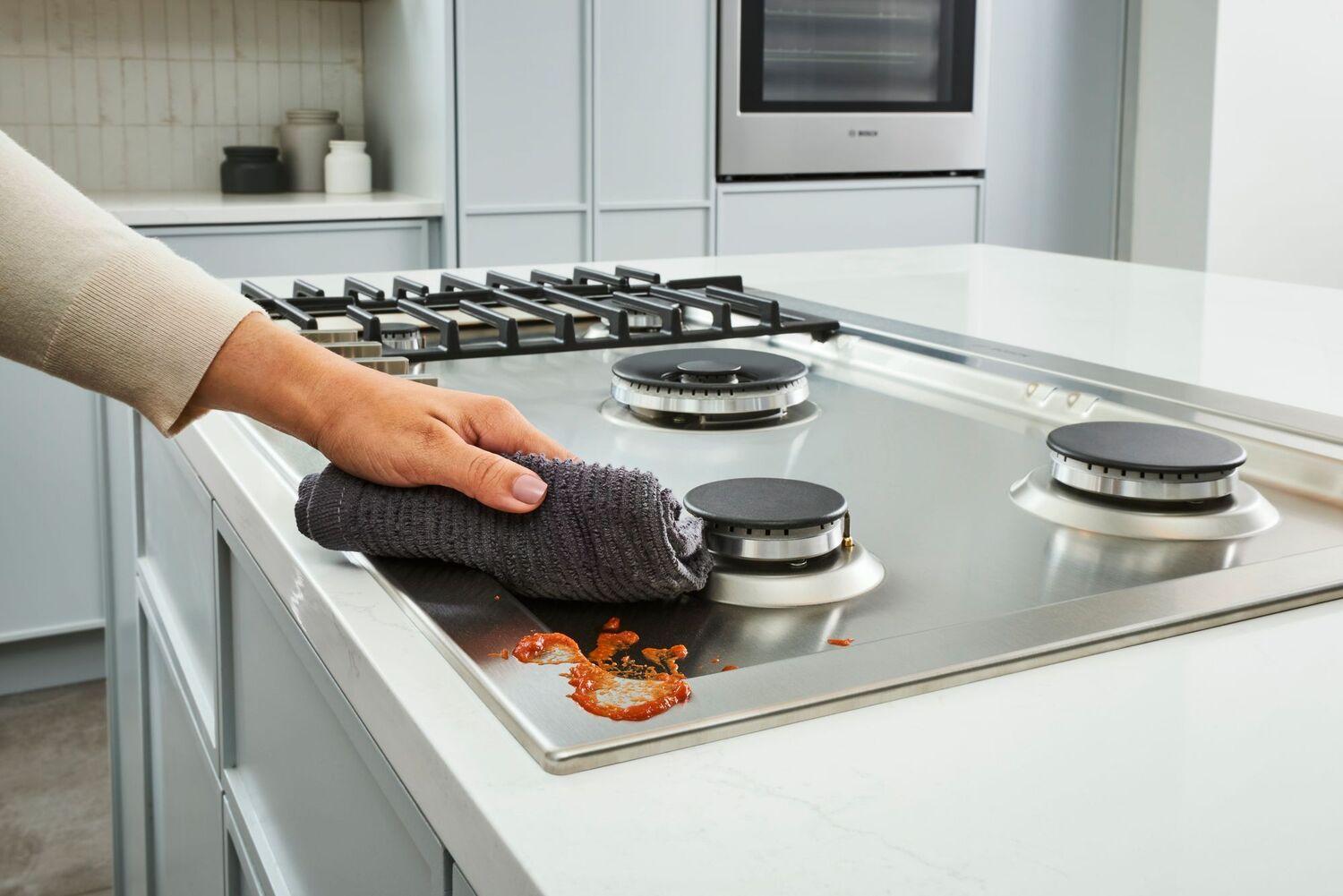

- Easy to clean, low-profile design
- Slide your pans from burner to burner
Features and Specifications | |
General | |
Energy source | Gas |
Type of Control | Front, Illuminated, sword knobs |
Safety | SMARTFLAME |
Features | Flame select, Wok burner |
Construction type | |
Color of frame | Stainless steel |
Color of Surface | Stainless steel |
Design | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 0 |

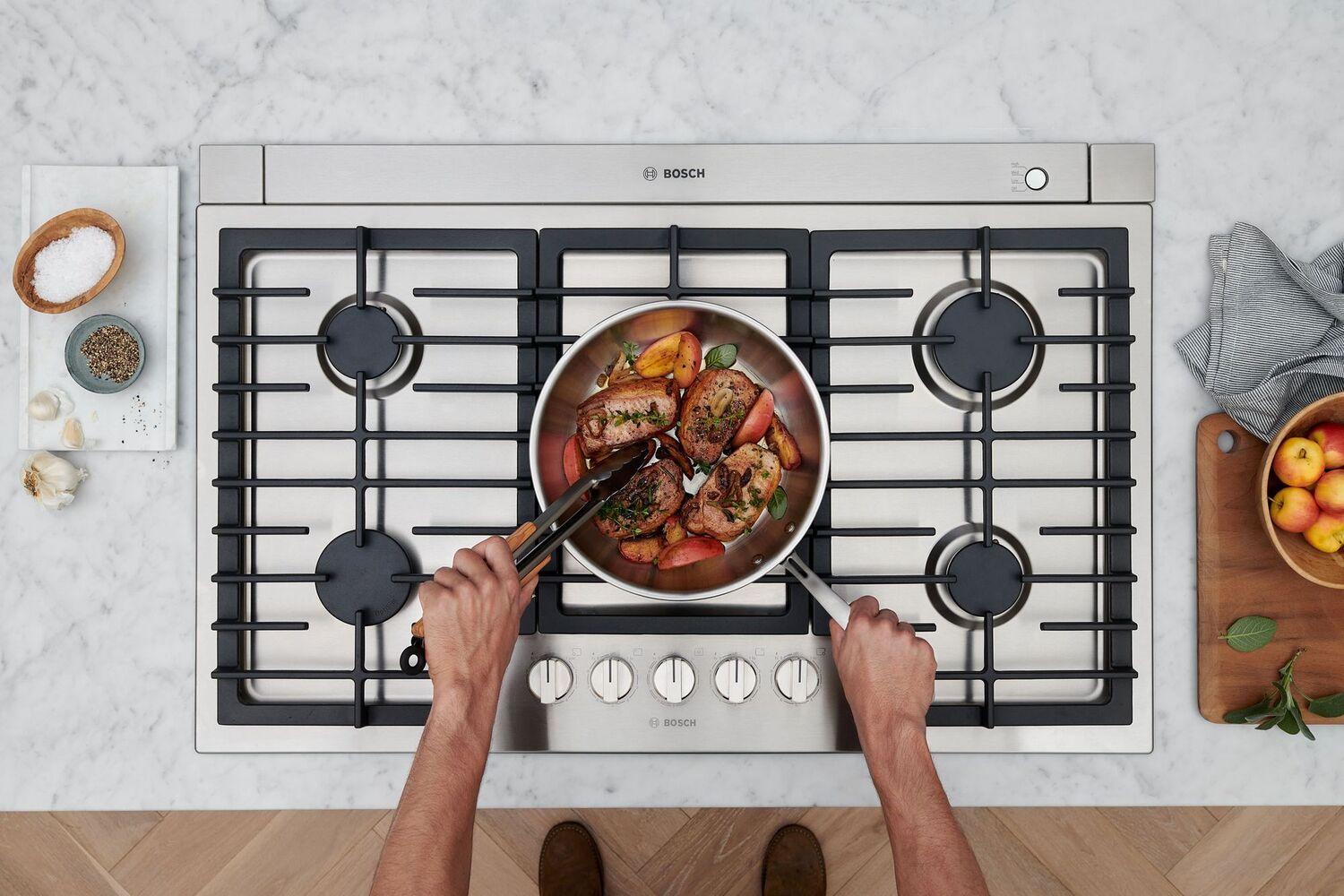

Number of gas burners | 5 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Type of grate | Cast iron |
Total Number of Heating Elements | 5 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |

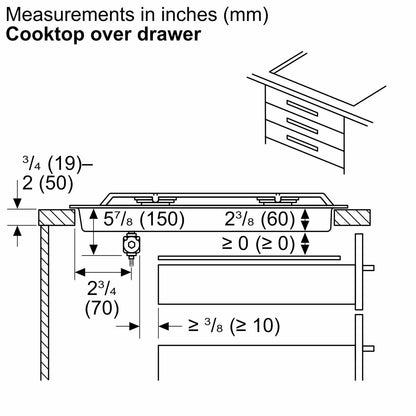

Size and weight | |

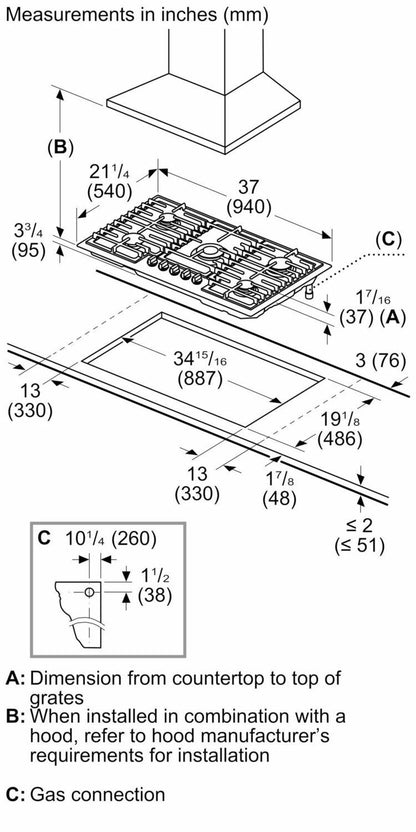

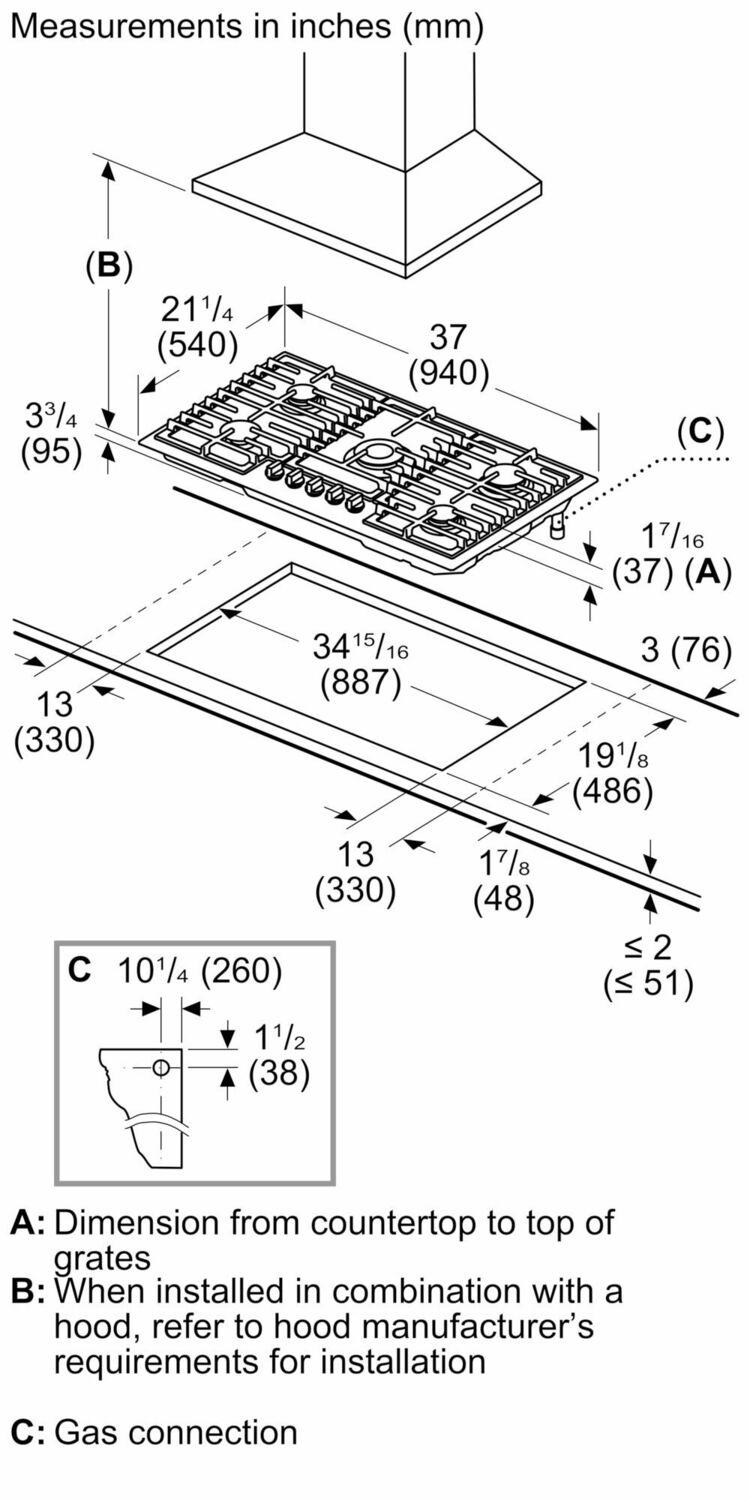

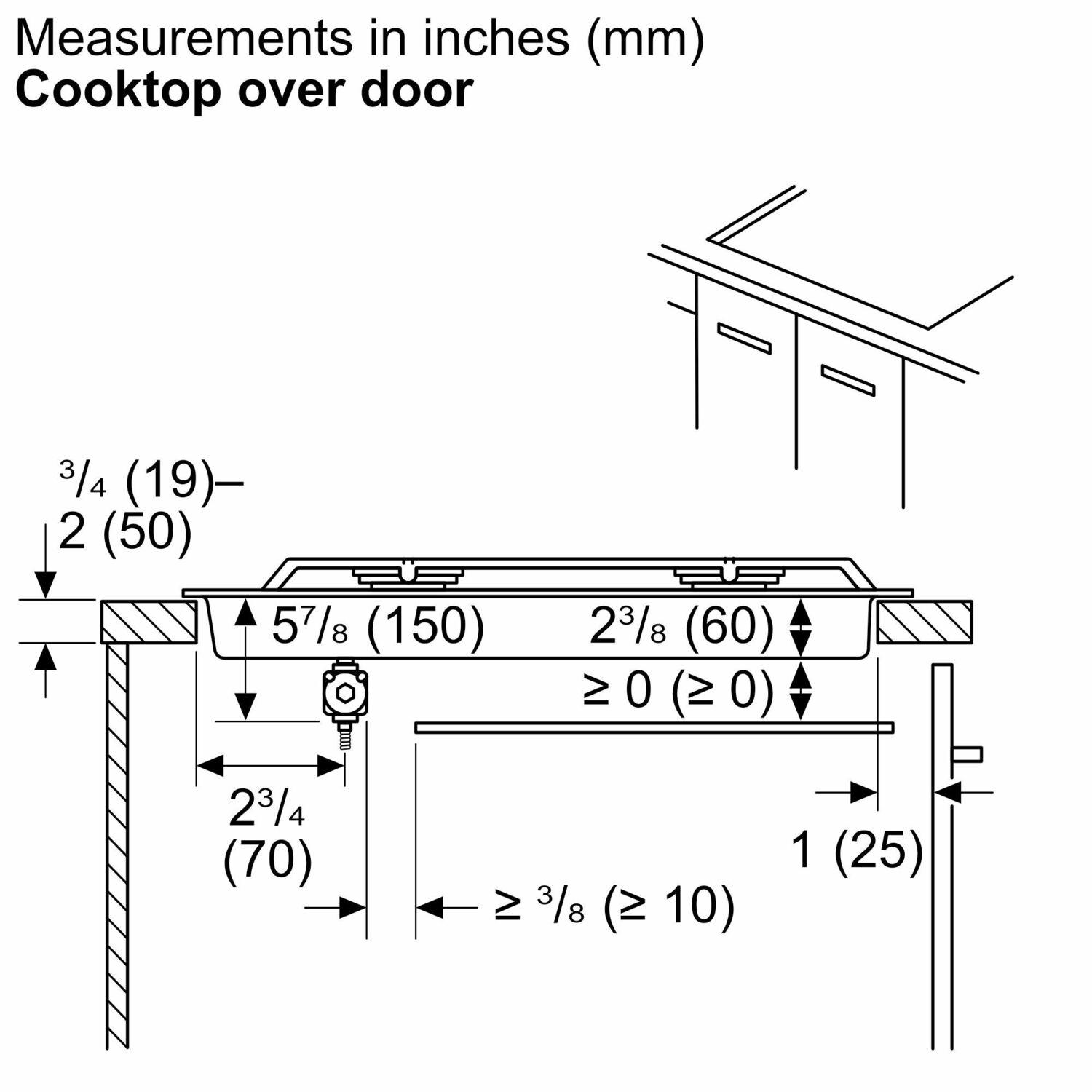

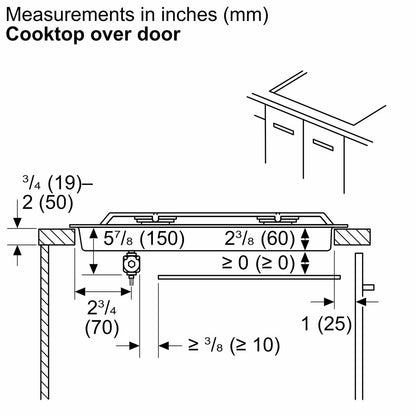

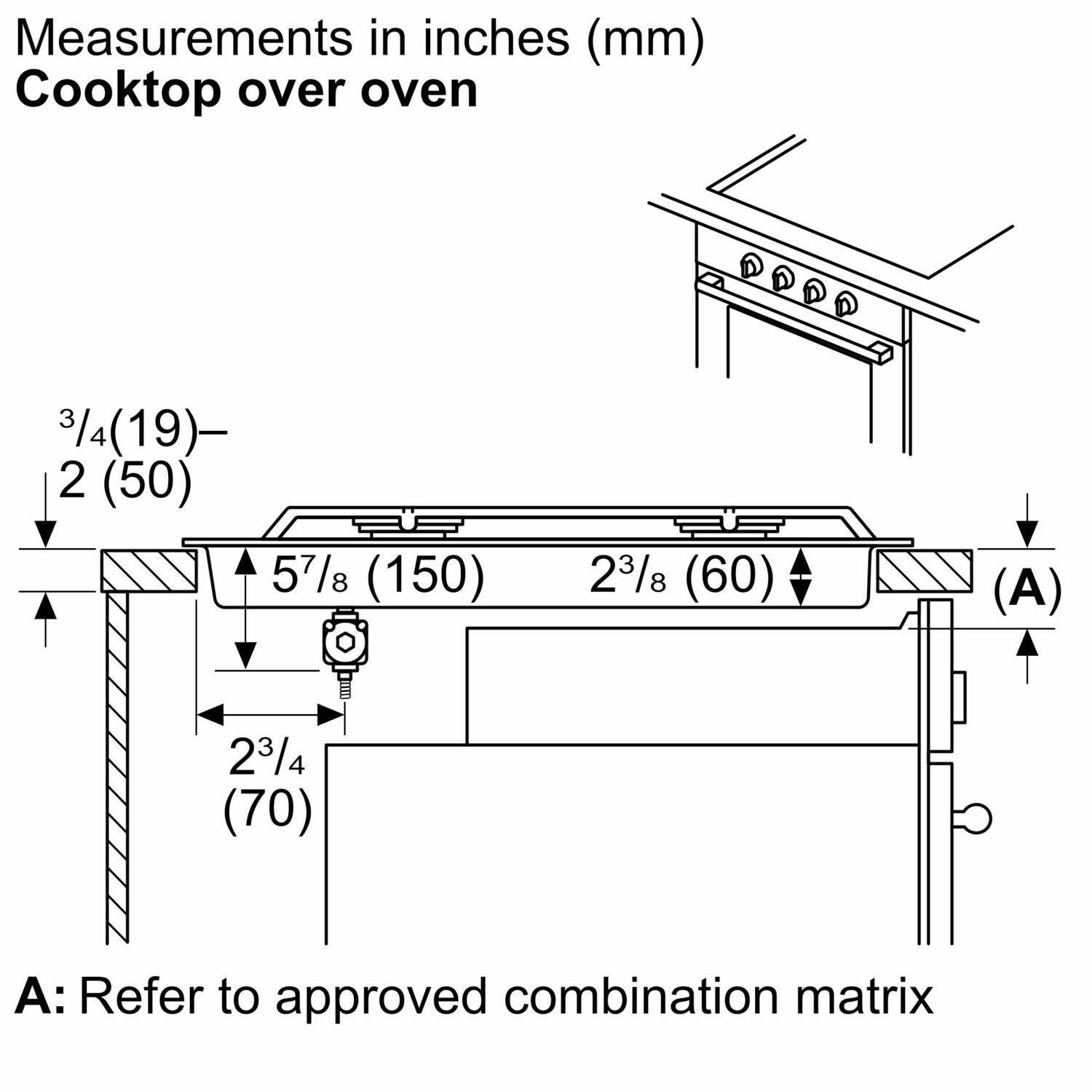

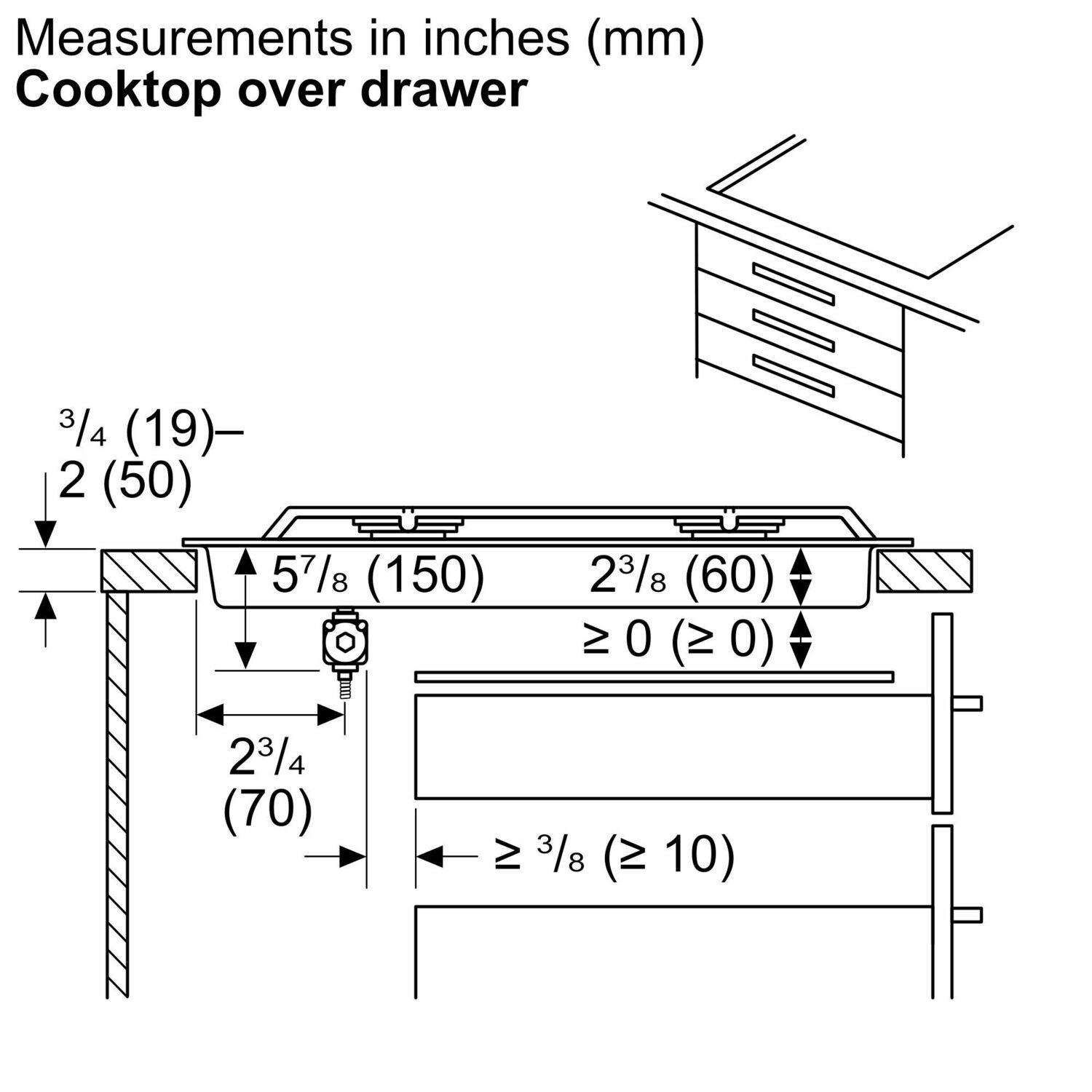

Overall Appliance Dimensions (HxWxD) (in) | 3 13/16'' x 37'' x 21 1/4'' |
Net Weight | 26.000 lbs |

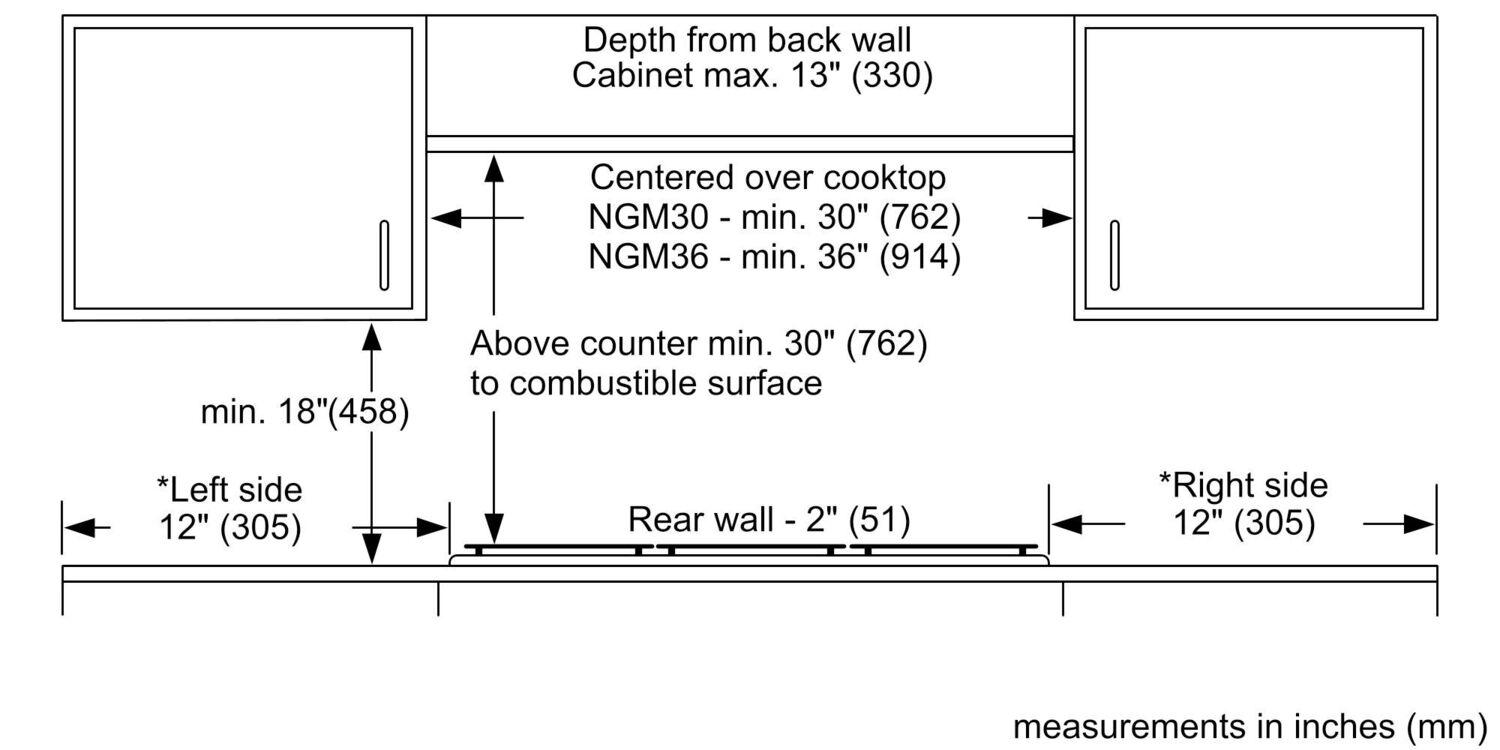

Minimum distance from counter front (in) | 1 7/8'' |
Minimum distance from rear wall (in) | 3'' |
Cooking zone 1 | |
Location of heating element | front left |
Power of heating element (kW) | 1 kW |
Type of heating element | Gas |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 1.75 kW |
Type of 3rd heating element | Gas |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 3 kW |
Type of 5th heating element | Gas |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1.75 kW |
Type of 7th heating element | Gas |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Residual Heat Indicator | Separate |
Type of safety device for gas | Electromagnetic for each burner |
Safety | SMARTFLAME |
Connection | |
Total connected gas load | 12,500 W |
Location of gas connection | Bottom, Rear, Right |
Frequency | 60 Hz |
Energy source | Gas |
Power Cord Length | 40'' |
Watts | 360 W |
Accessories | |
Included Accessories | 1 x nozzle set for liquid gas, 3 x cast iron pan support |
