- ADA compliant and compact size, designed for small spaces and customers with lower dishwasher height requirements

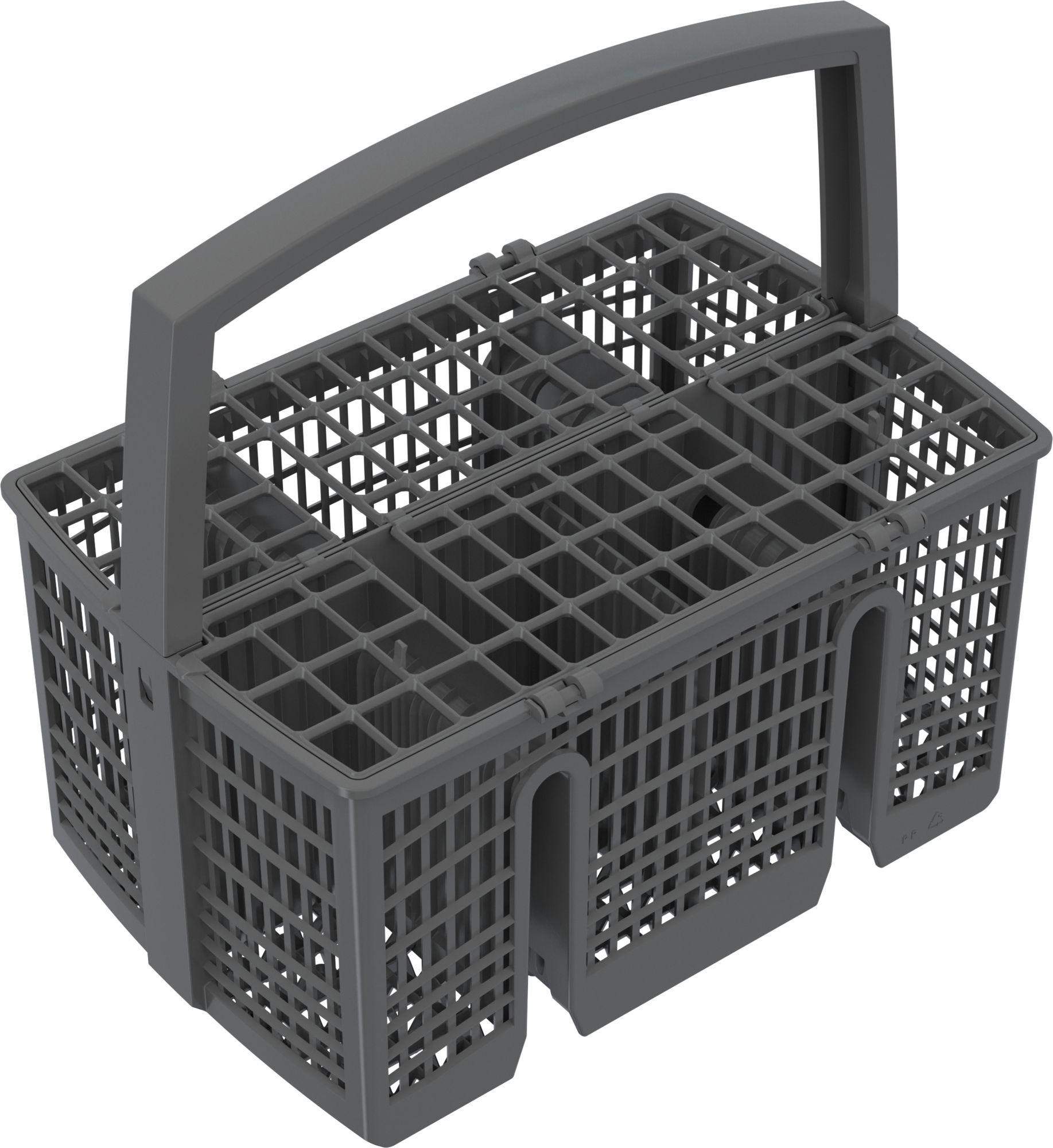

- Standard 3rd rack provides the perfect space for silverware and large utensils, while its V shape leaves room below both sides for taller items like stemware; also includes a lower rack silverware basket

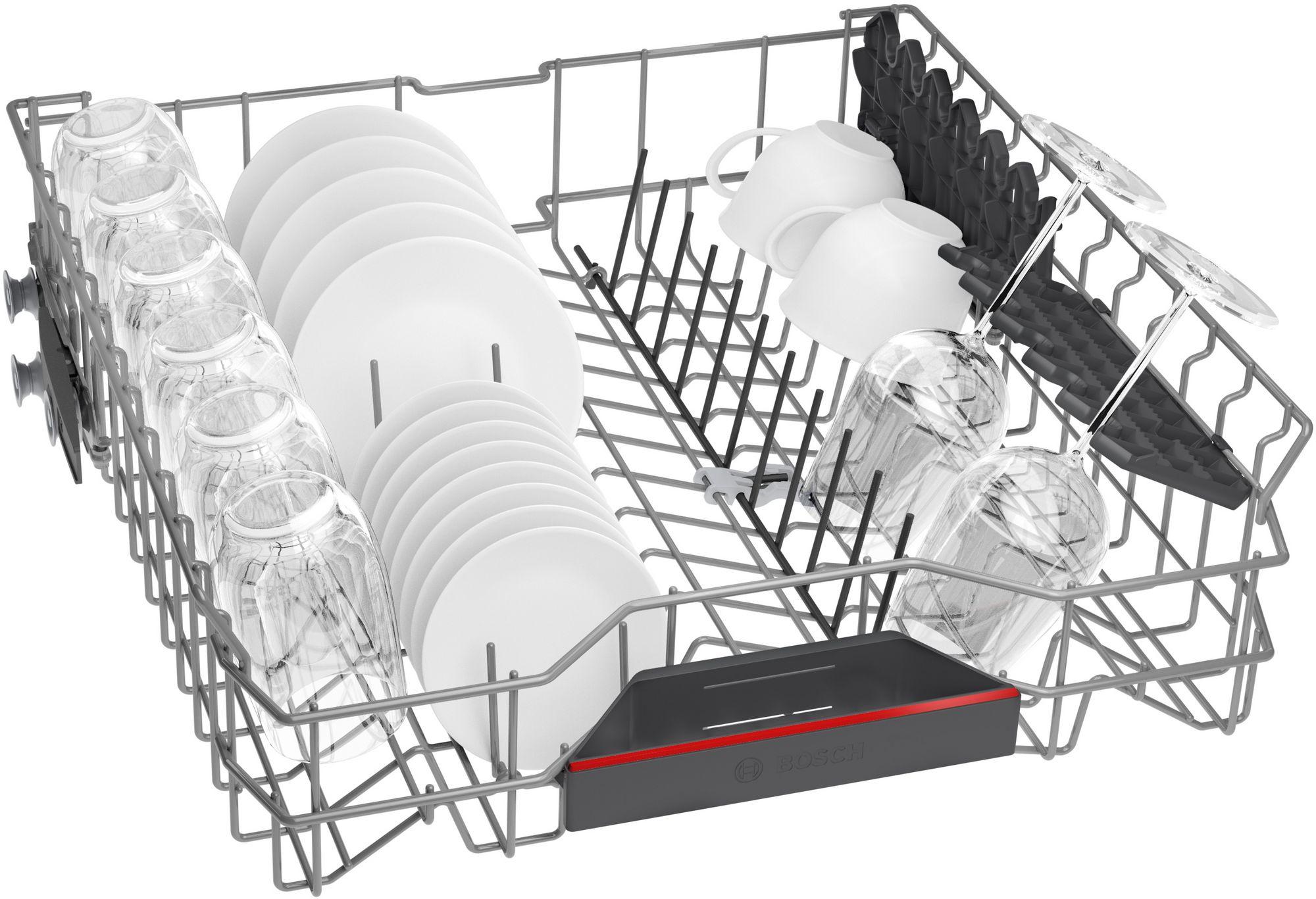

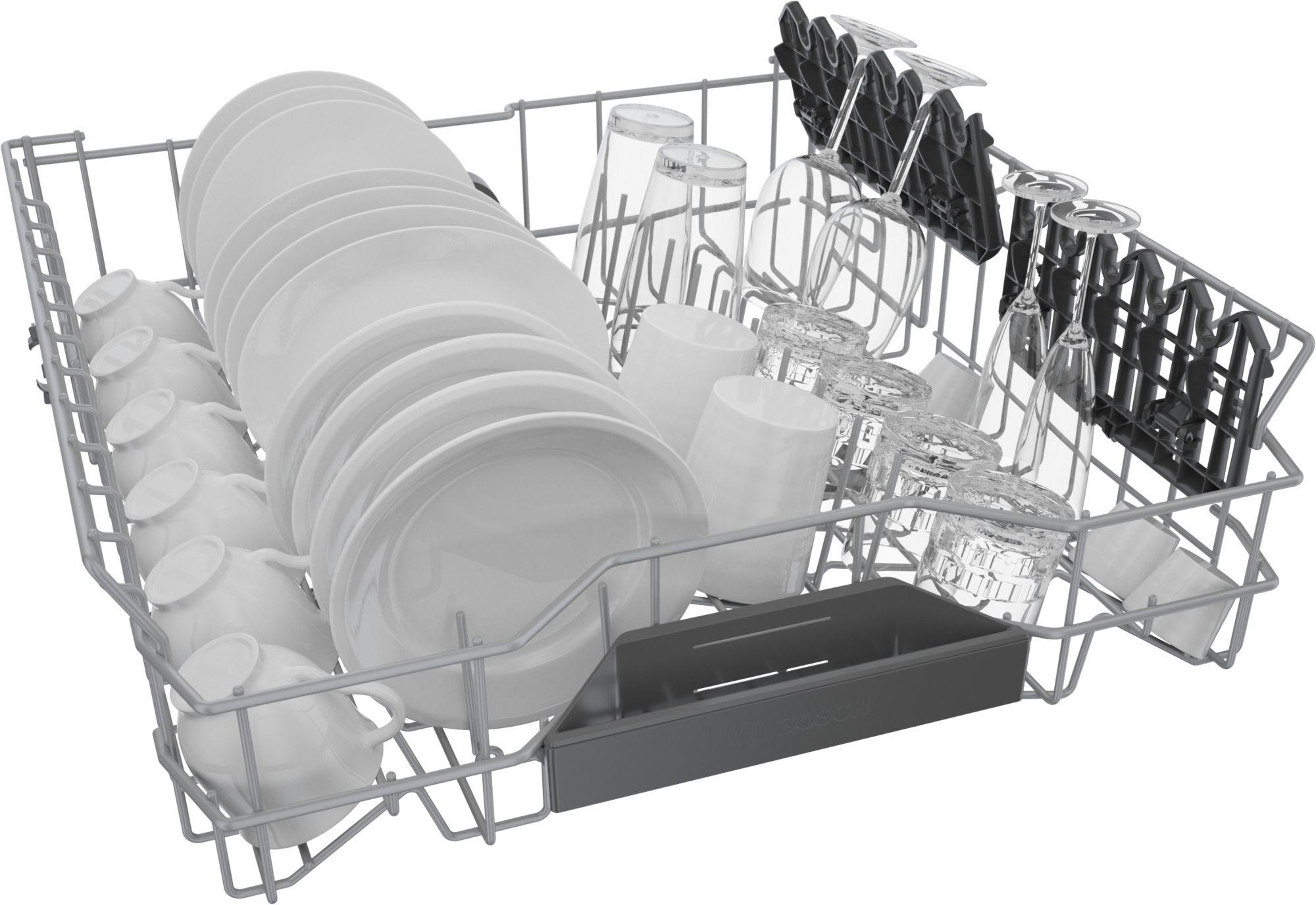

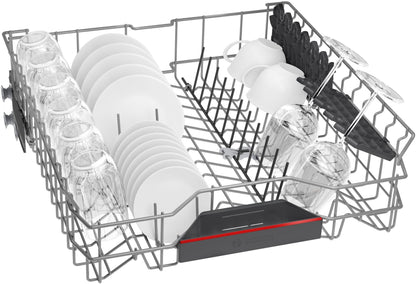

- RackMatic adjustable middle rack easily adjusts to 9 different positions, to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below; the flip tines make loading wide bowls easy

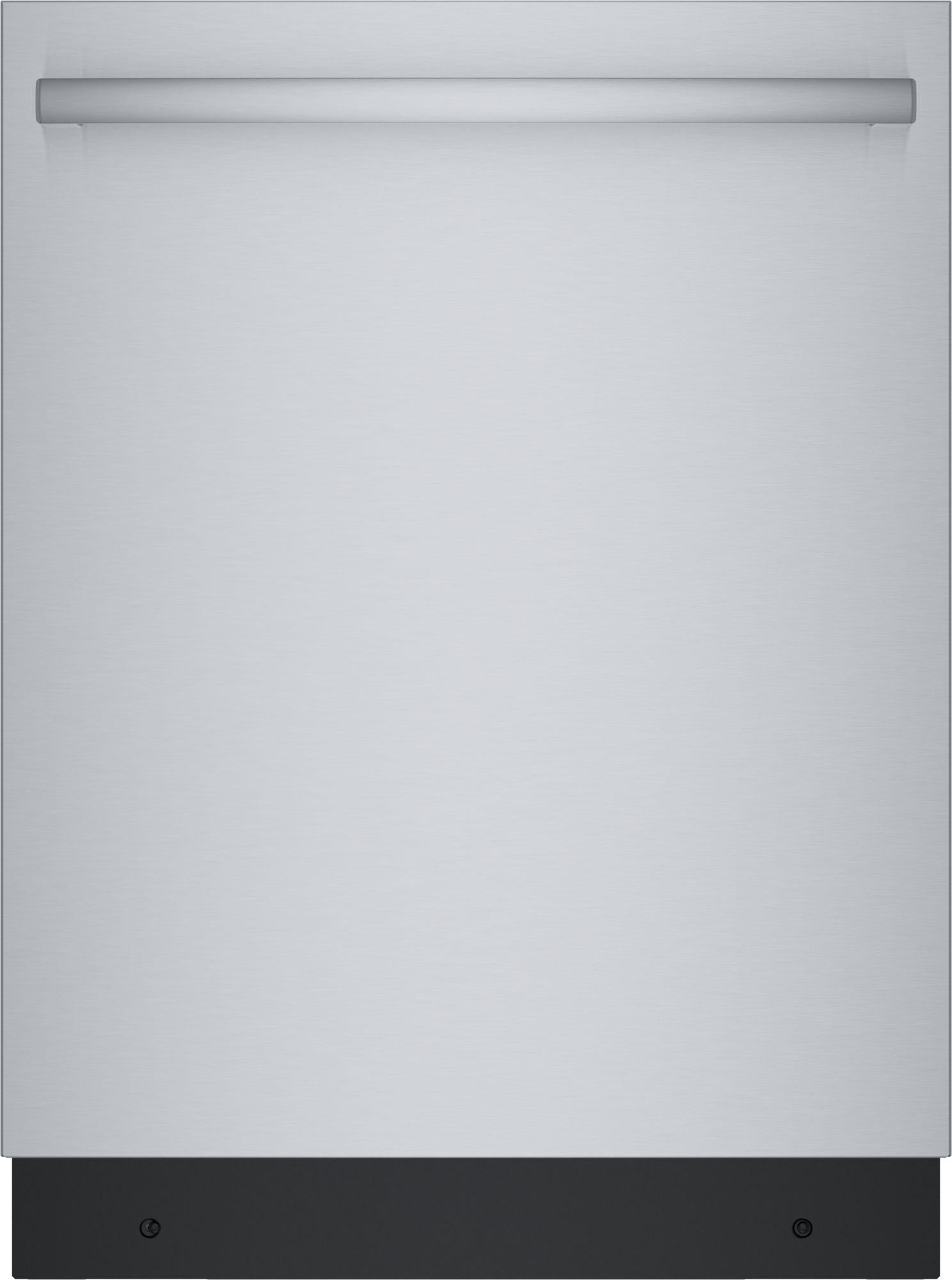

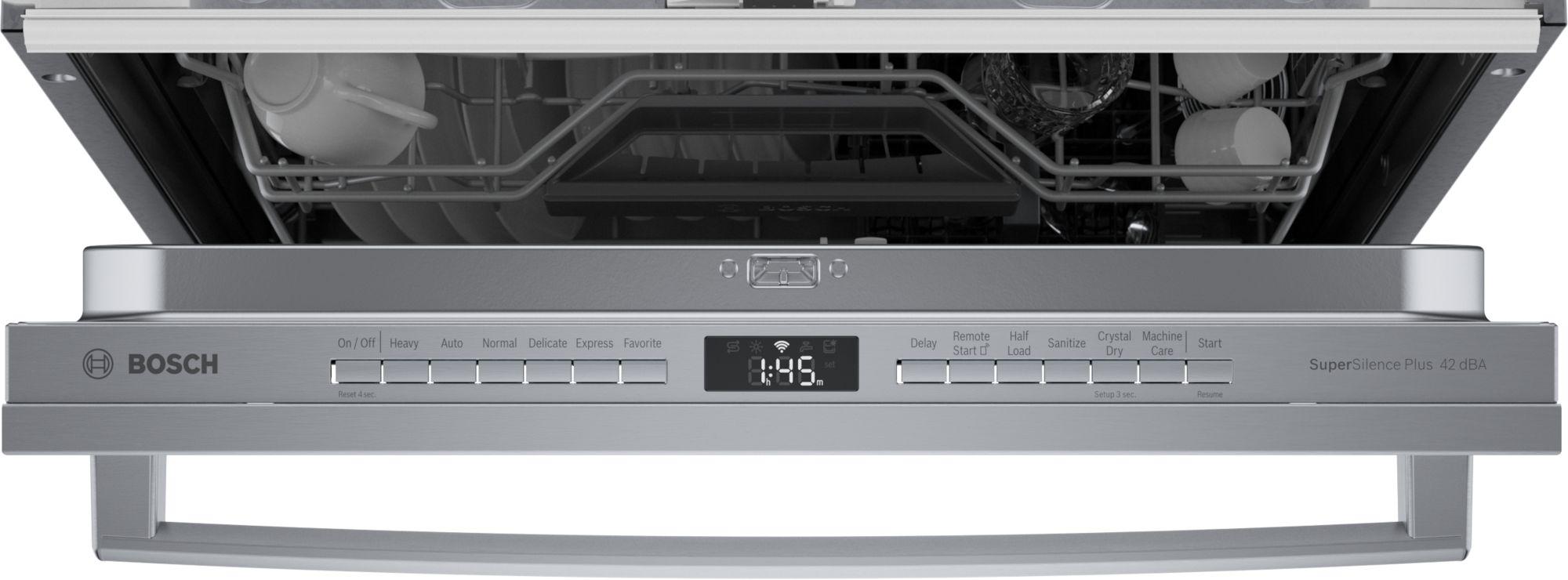

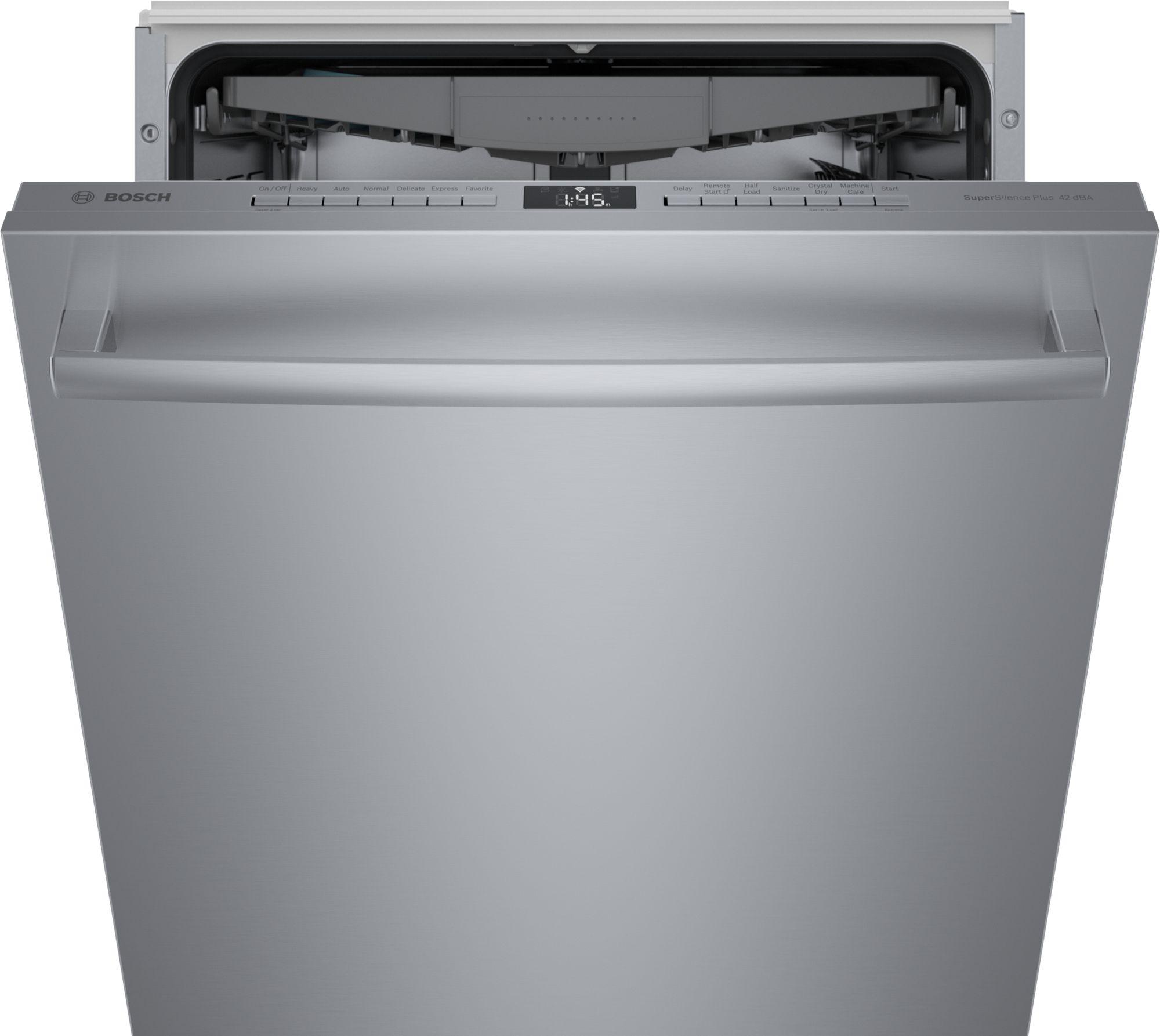

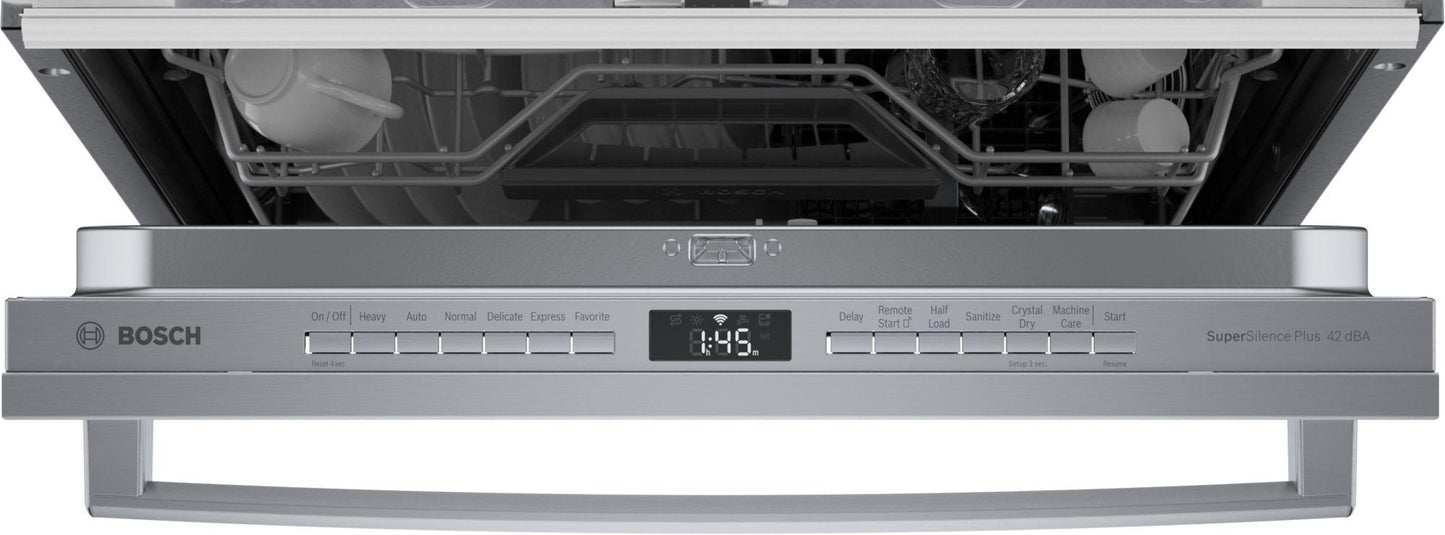

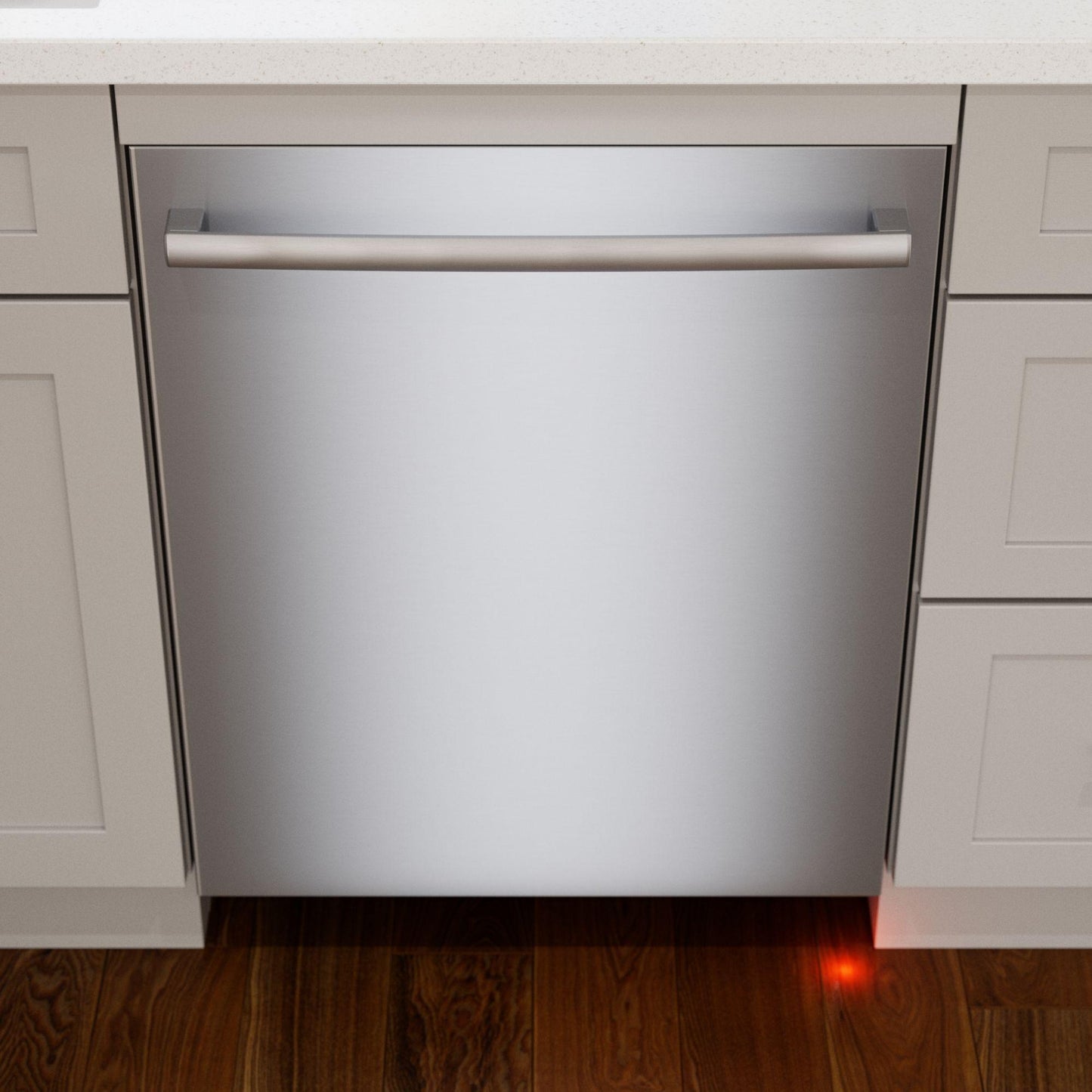

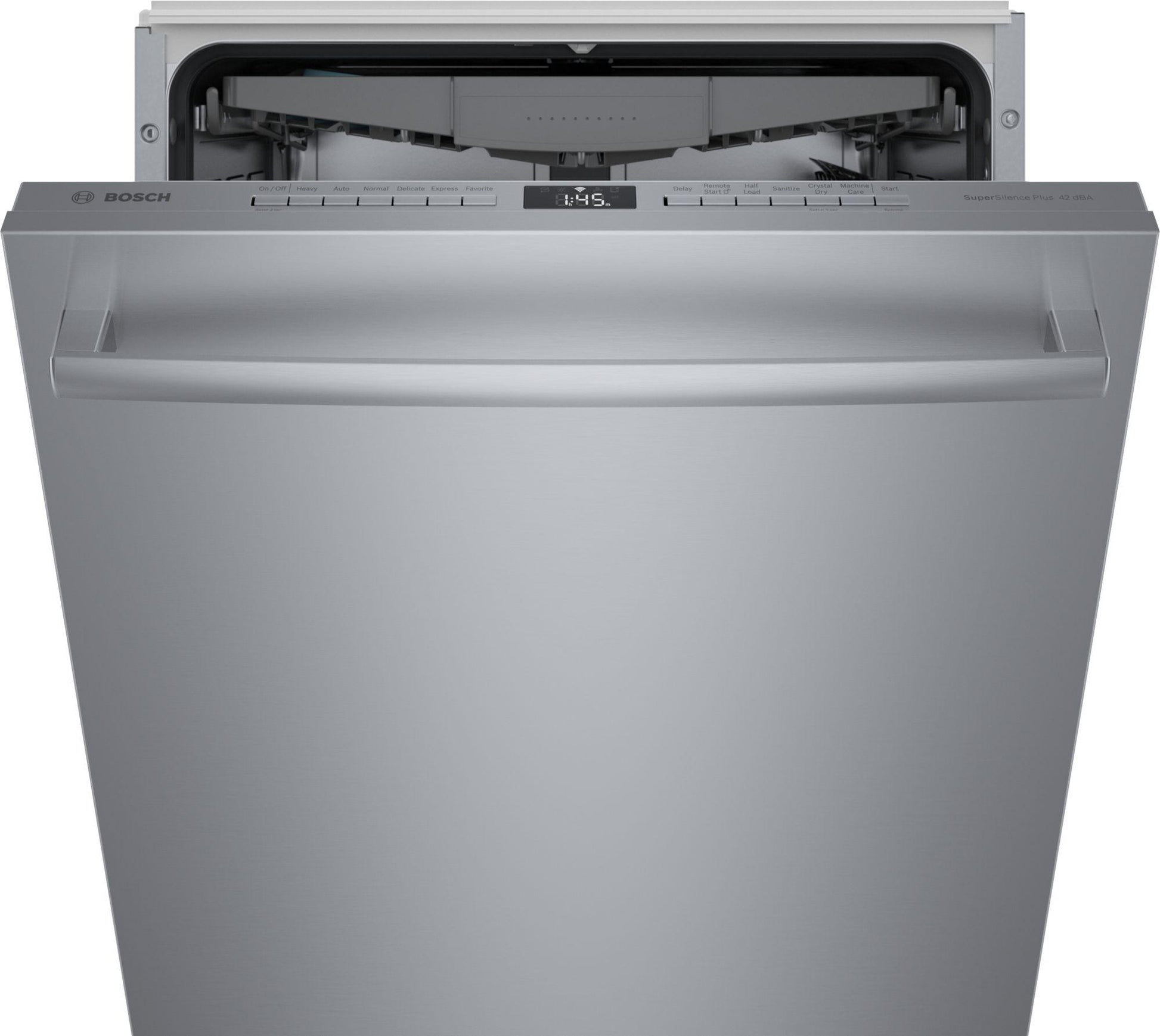

- Hidden integrated electronic controls maintain a clean exterior and InfoLight shines a red beam on the floor to indicate when the dishwasher is running

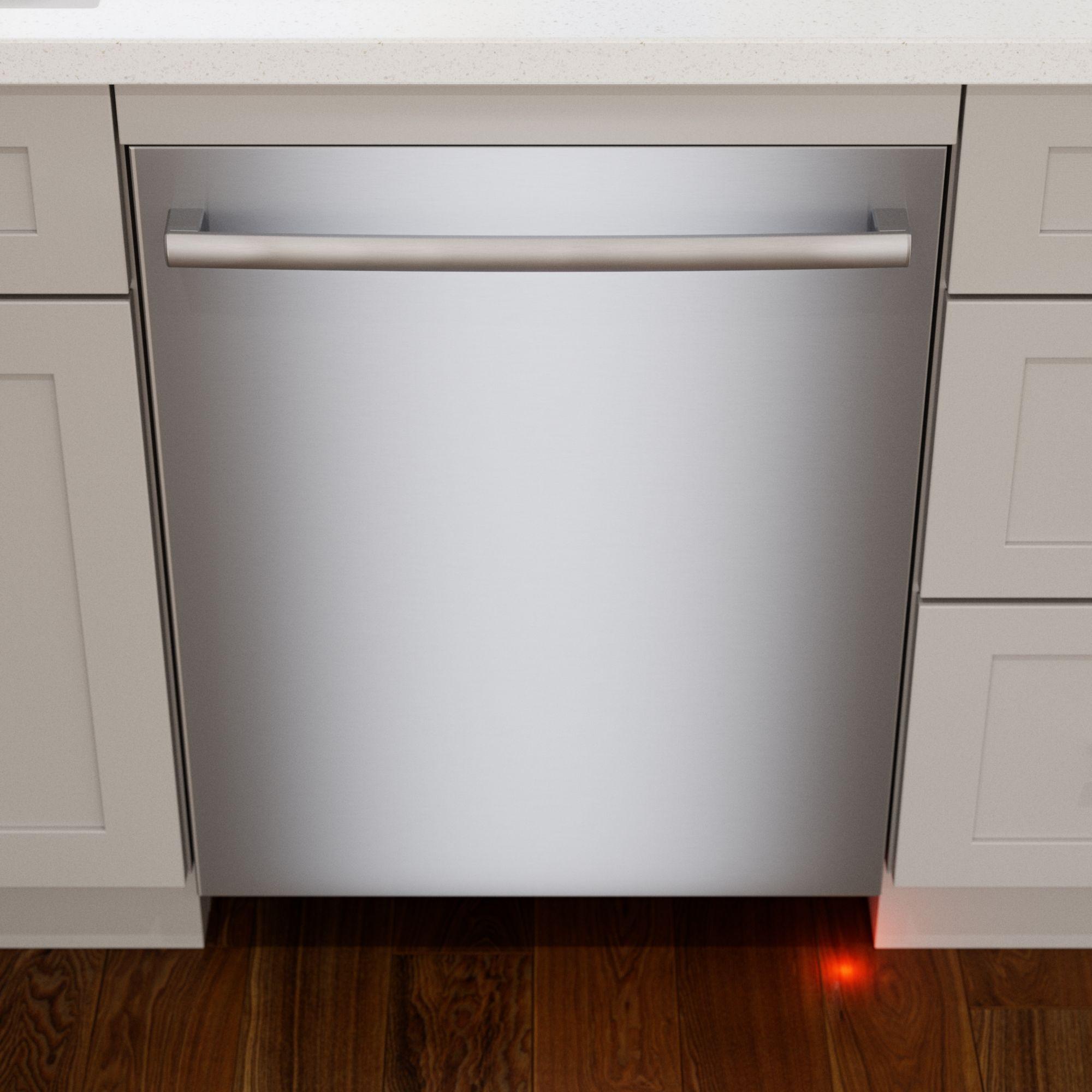

- Extremely quiet operation (42 dBA) with InfoLight that shines a red beam on the floor to indicate when the dishwasher is running

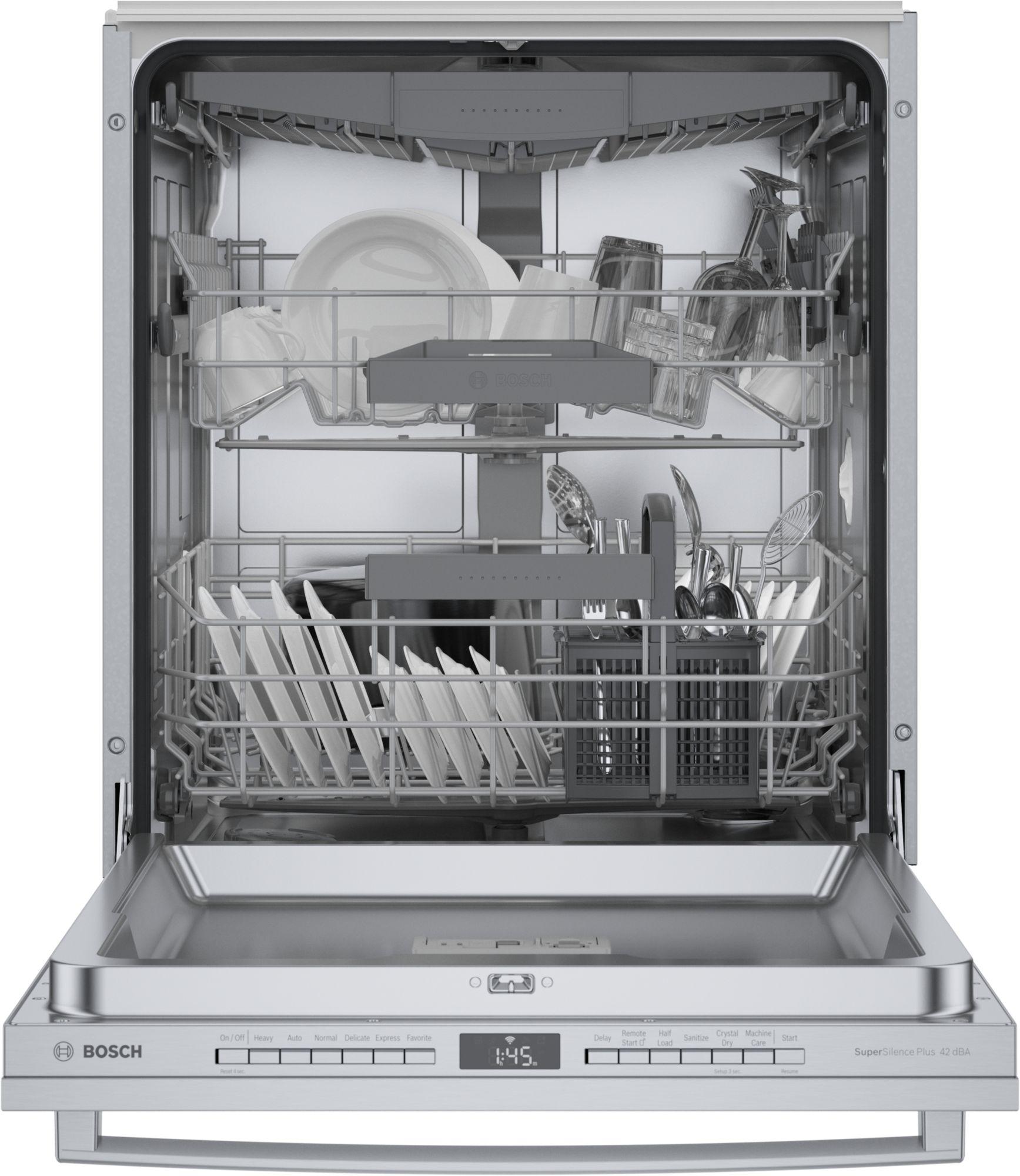

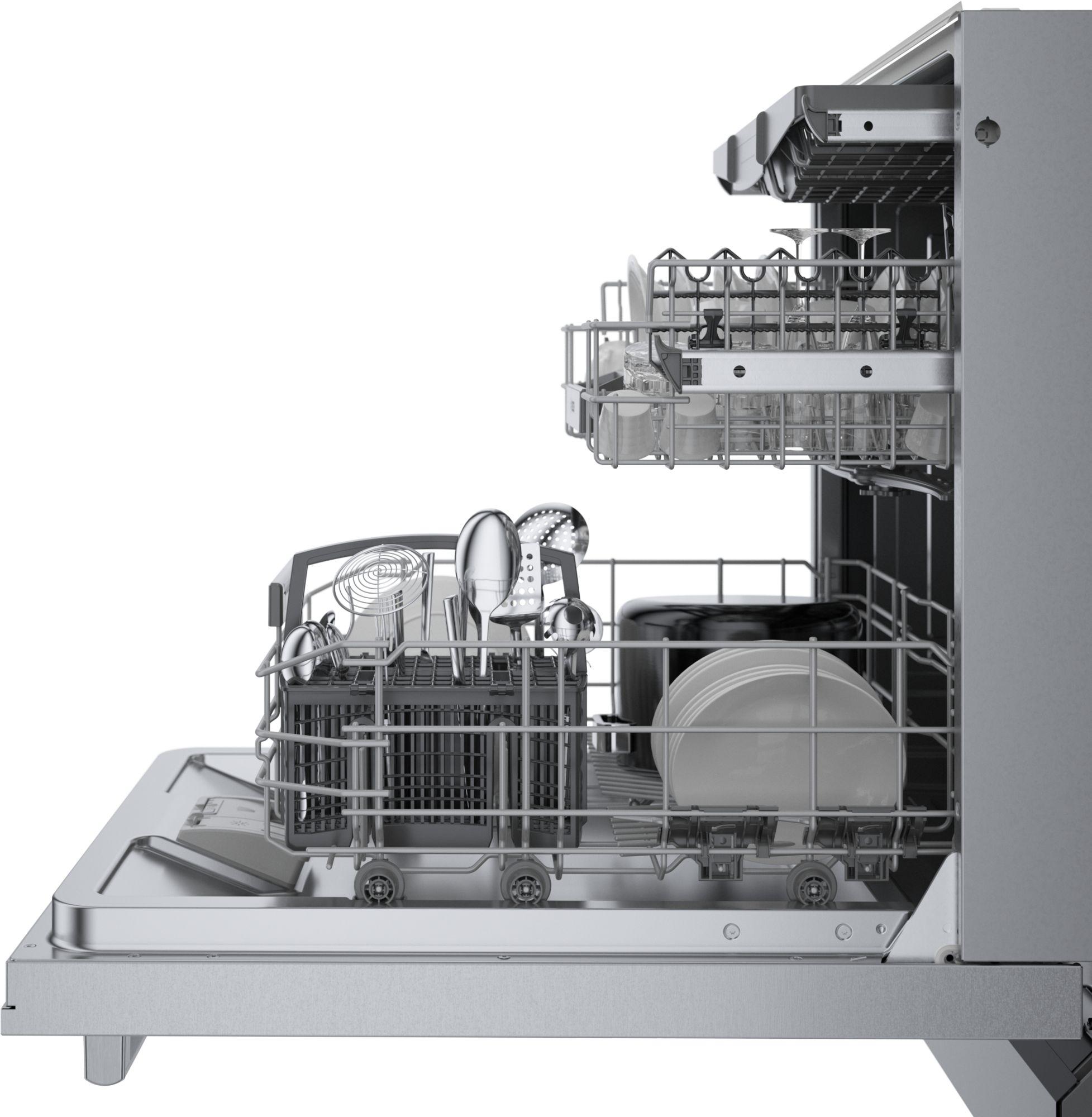

- Large interior provides the space and loading flexibility to easily accommodate 15 place settings, and the 3rd rack provides additional space for silverware and utensils

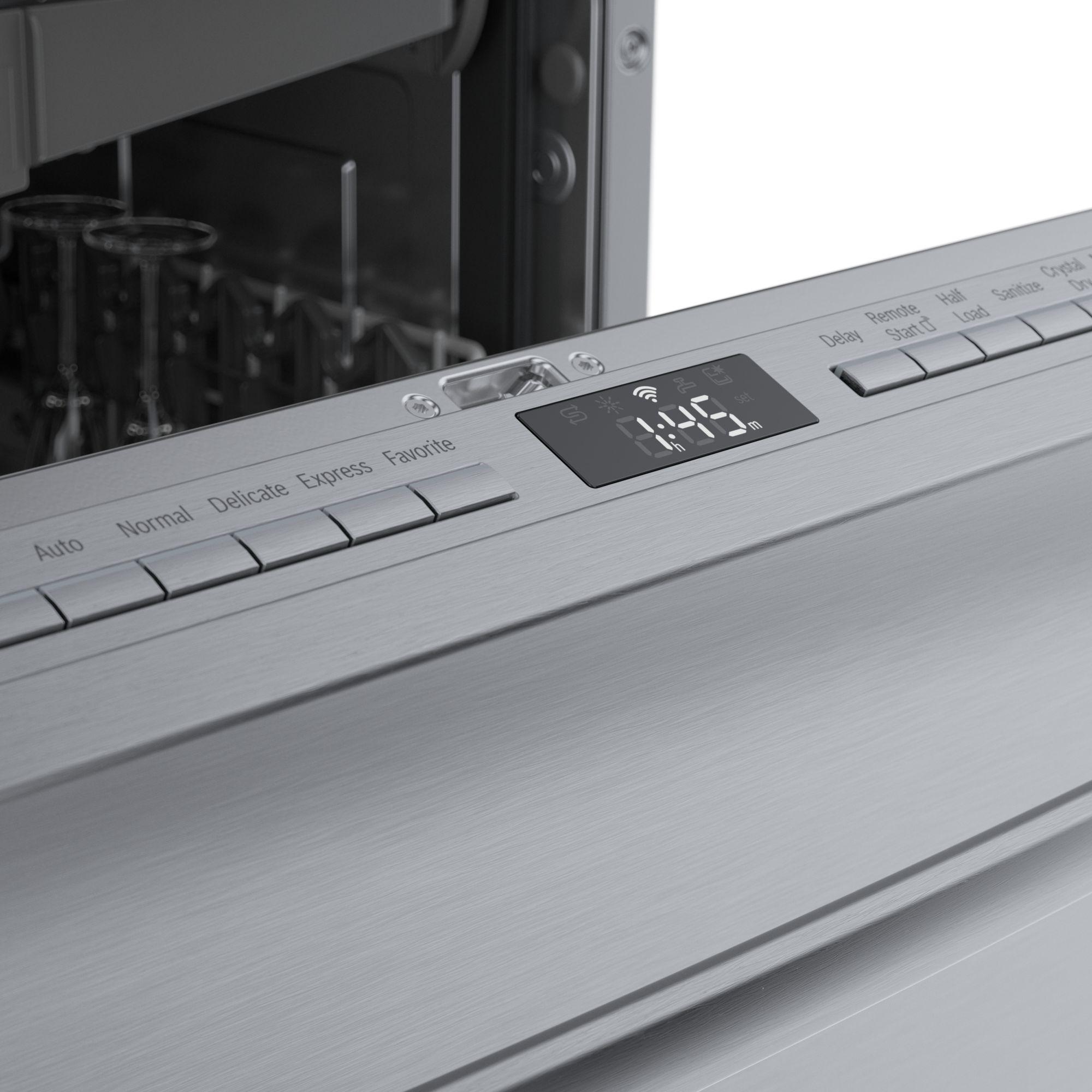

- Offers 6 wash cycles, including the following Heavy, Auto, Normal, Express, Delicate, Favorite and 6 options, including Delay Start, Remote Start, Half Load, Sanitize, CrystalDry and Machine Care
- Water savings - With advanced wash technologies, Bosch dishwashers allow you to skip the need to pre-rinse, saving water.
- Full stainless steel tub is sleek, durable and long-lasting

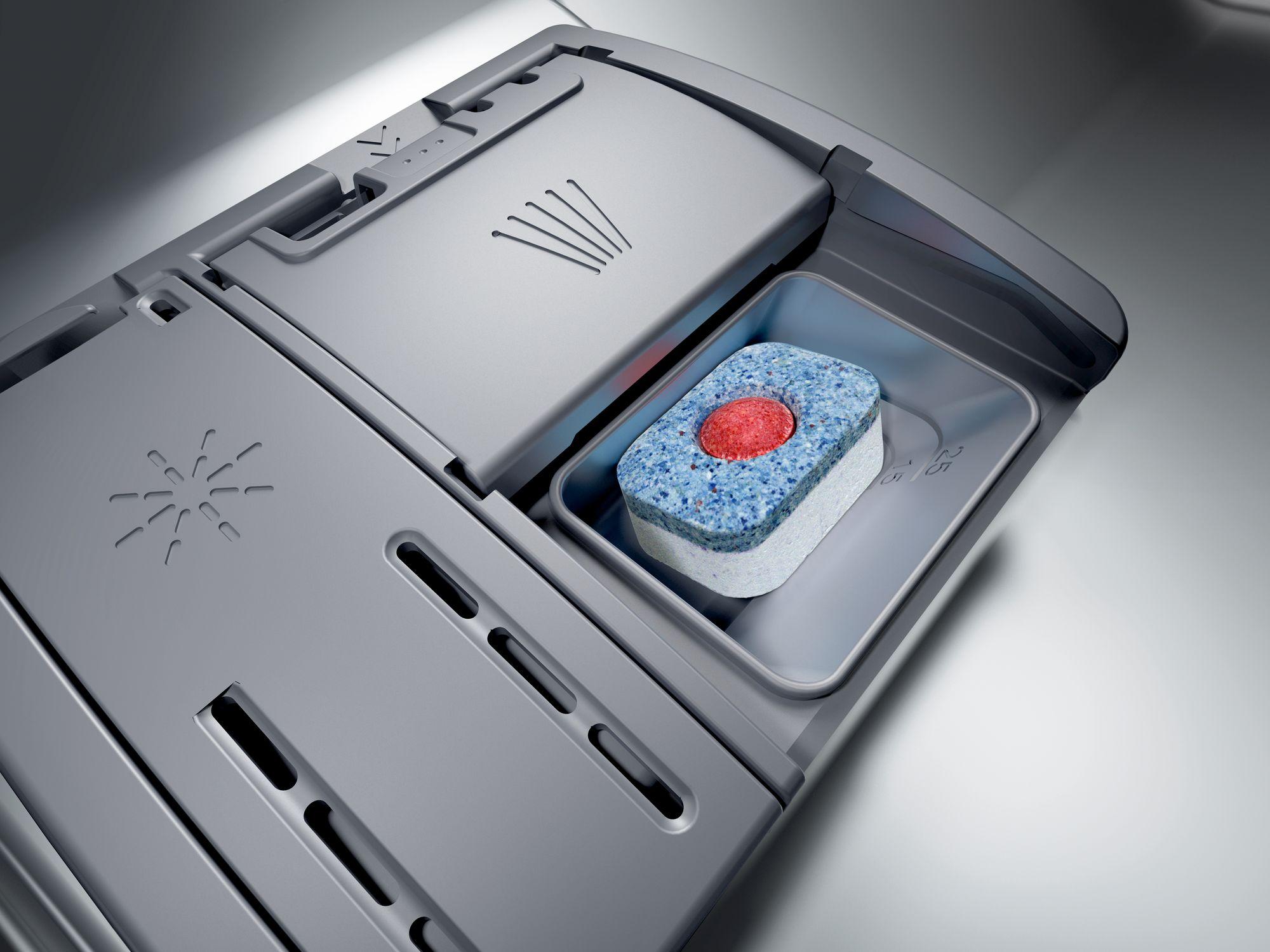

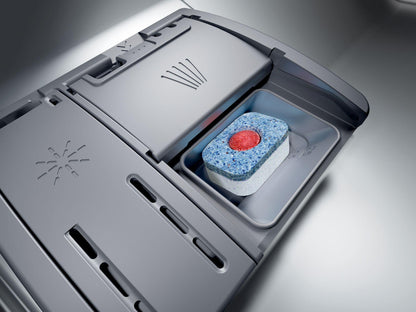

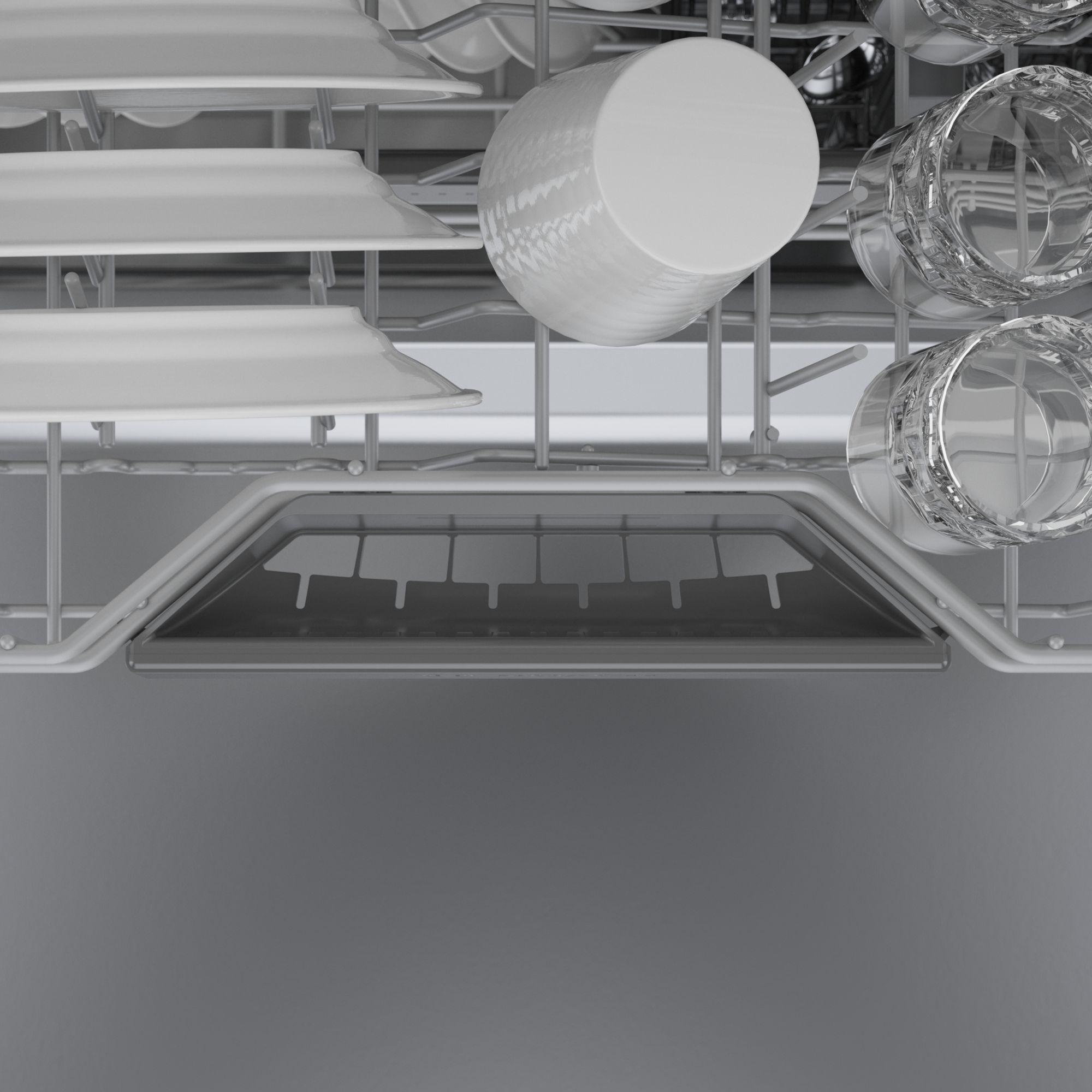

- Precisely engineered detergent tray holds detergent tabs in place for a dedicated spray jet to directly dissolve them, preventing buildup for a deeper clean
- 24h delay start timer lets you run dishwasher at off-peak times
- Features 2 lower rack flip tines for improved storage capacity, with dedicated space for a tall vase or baby bottle

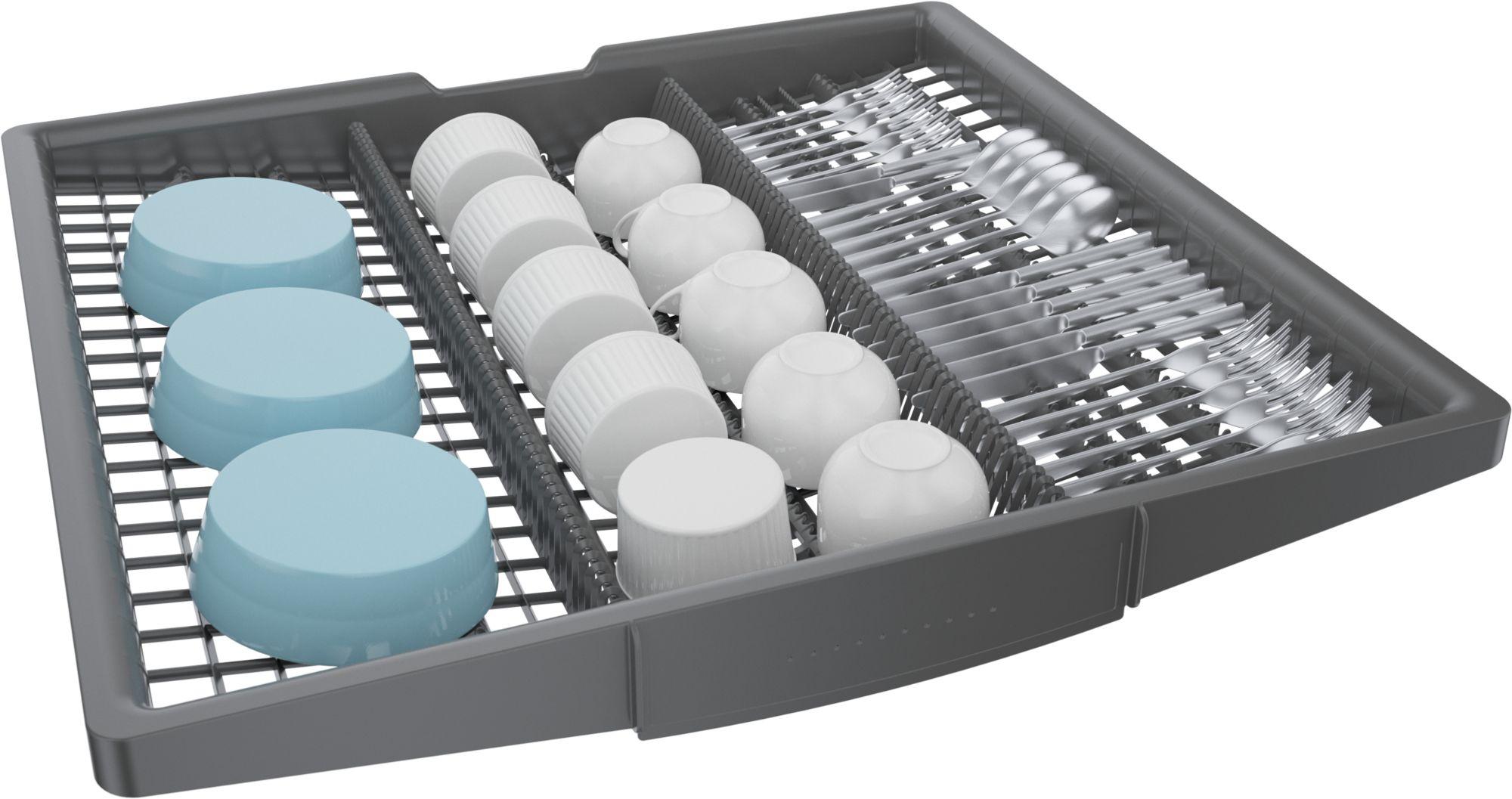

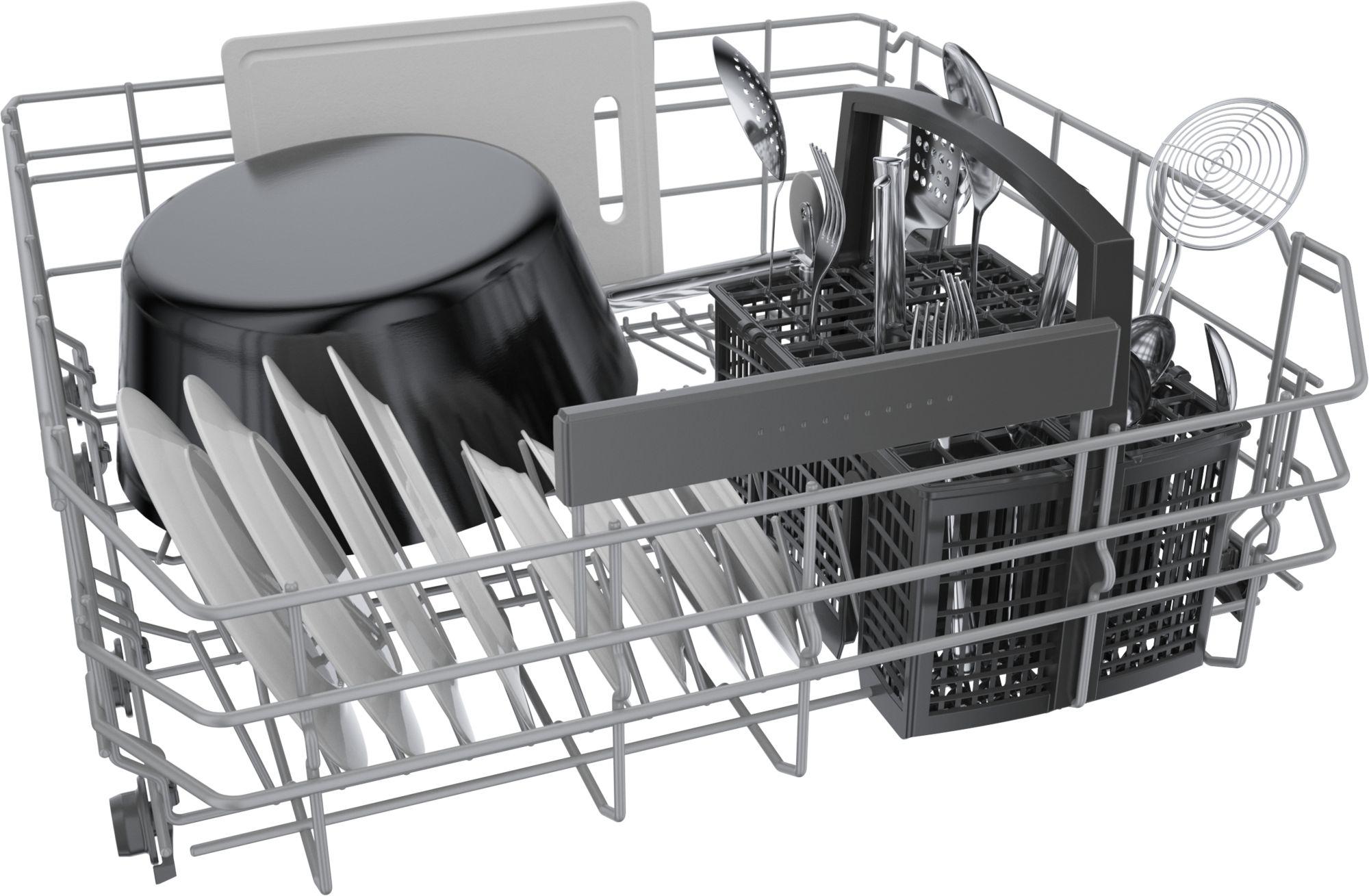

- 3rd rack provides the perfect space for silverware and large utensils while its V shape leaves room below both sides for taller items like stemware. Also includes a lower rack silverware basket
- Bosch's advanced PrecisionWash system has intelligent sensors that continually scan and check the progress of dishes throughout the cycle, and powerful spray arms target every item of every load, for the ultimate clean

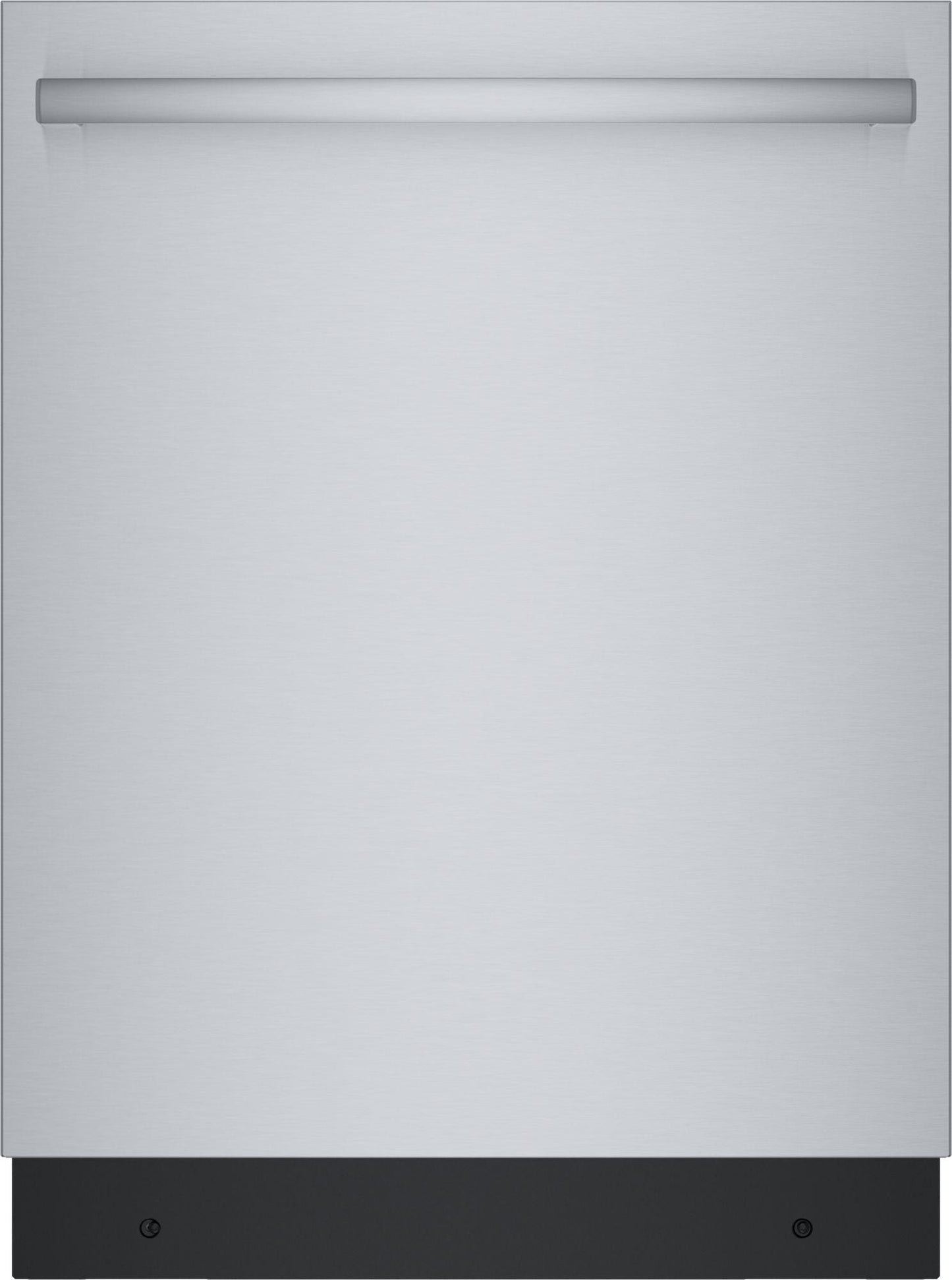

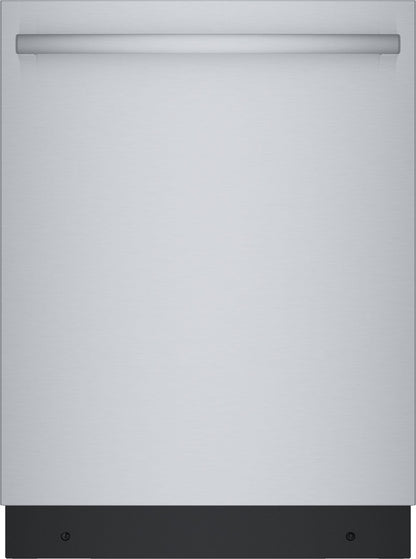

This 24" ADA-compliant dishwasher is uniquely designed for customers with special height requirements. It features sophisticated technologies for quiet operation, outstanding performance and remarkable flexibility. It also contains a built-in water softener to ensure optimally spot-free and shiny dishes.
| Specifications | |
| General | |
| Material Number | SGX78C55UC |
| Brand Name | Bosch |
| Category | Built-in Dishwashers |
| Product Name | 800 Series, built-under dishwasher, 24'', Brushed steel |
| Upc | 825225970361 |
| Series | 800 Series |
| Appliance Color/Finish | Stainless Steel |
| Energy Star® Certified | Yes |
| Installation | Built-under |
| Built-In / Free-Standing | Built-in |
| Ada Compliant | Yes |
| Decibel (Sound) Rating | 42 |
| Door Panel Options | Not possible |
| Drying System | Zeolith, Inherent heat |
| List Of Programs | Intensive, Auto 53-60°C, Eco, Delicate, Quick S, Custom program |
| Noise Level (Db(A) Re 1Pw) | 42 |
| Number Of Place Settings | 15 |
| Removable Top | No |
| Total Annual Water Consumption | 557 |
| Variable Hinge | No |
| Number Of Programs | 6 |
| Technical Specifications | |
| Connection Rating (W) | 1440 |
| Fuse Protection (A) | 12 |
| Voltage (V) | 120 |
| Frequency (Hz) | 60 |
| Design | |
| Basic Touch Control | No |
| Location Of Control Panel | Top |
| Type Of Control | Electronic |
| Cleaning | |
| Extremely Quiet - Ecosilence Drive | Yes |
| Nsf Certified | No |
| Water Softener | Yes |
| Convenience | |
| Emotionlight | No |
| Program Status Light | Red |
| Sidelight | No |
| Delay Start | TRUE |
| Interior Light | No |
| Pause/Reload | No |
| Program Status Indication | Program Status Light |
| Connectivity | |
| Connected Appliances With Home Connect | Yes |
| Home Connect Features | Remote Monitoring and Control |
| Size And Weight | |
| Adjustable Feet | Yes - all from front |

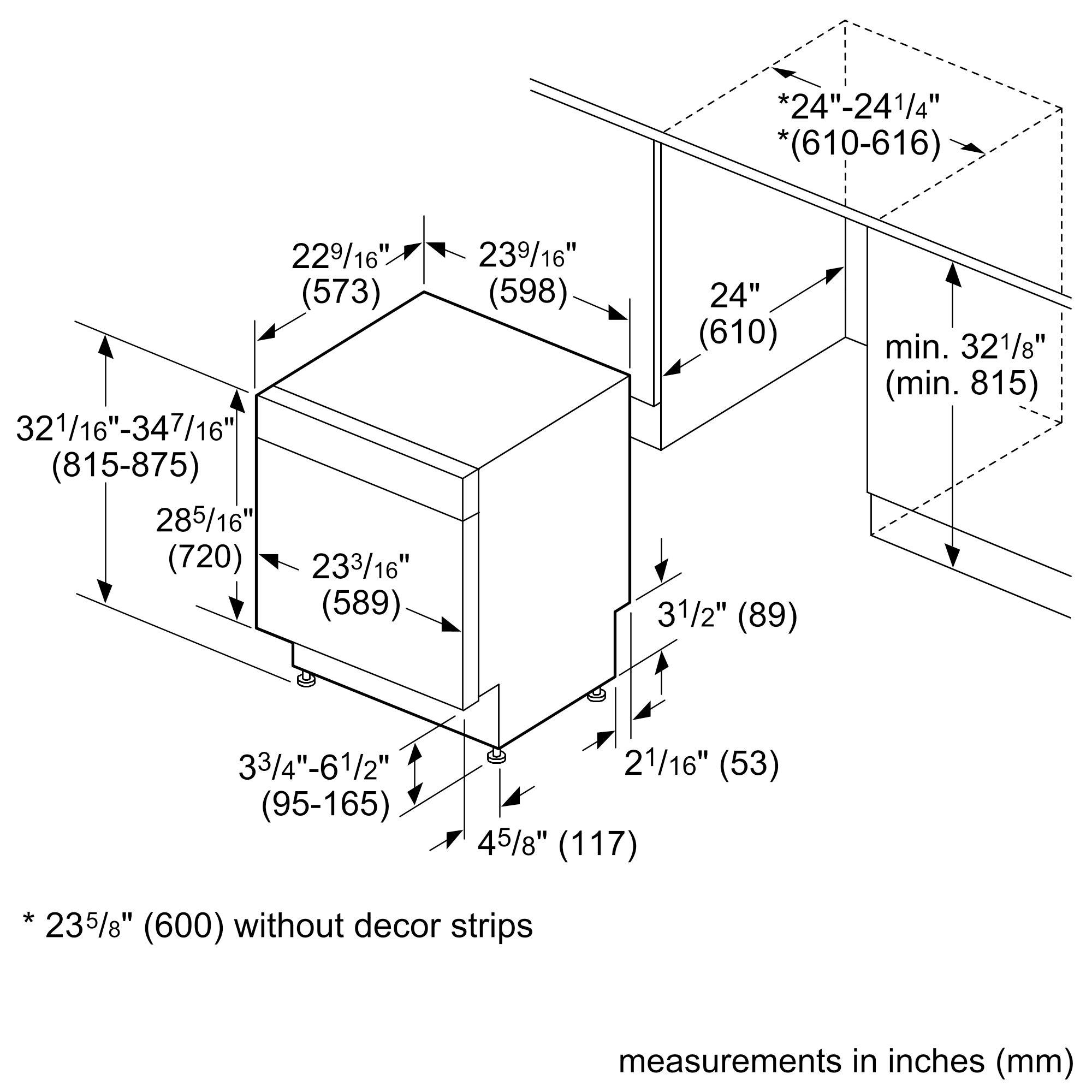

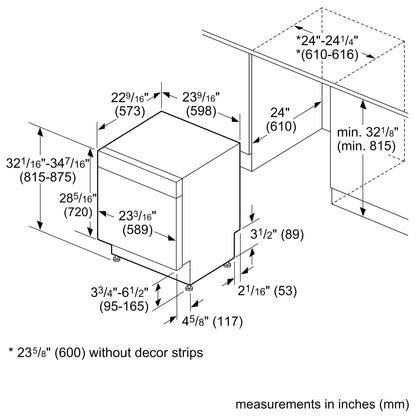

| Appliance Dimensions (H X W X D) (In) | 32 1/16'' x 23 9/16'' x 22 9/16'' |
| Gross Weight (Lbs) | 112 |
| Net Weight (Lbs) | 106 |
| Required Cutout/Niche Size For Installation (In) | 32 1/8'' x 24'' x 24'' |
| Power Cord Length | 67'' |
| Installation | |
| Plug Type | Nema5-15P |
| Safety | |
| Child Safety Locks | FALSE |
| Water Protection With Warranty - Aquastop | Yes |
