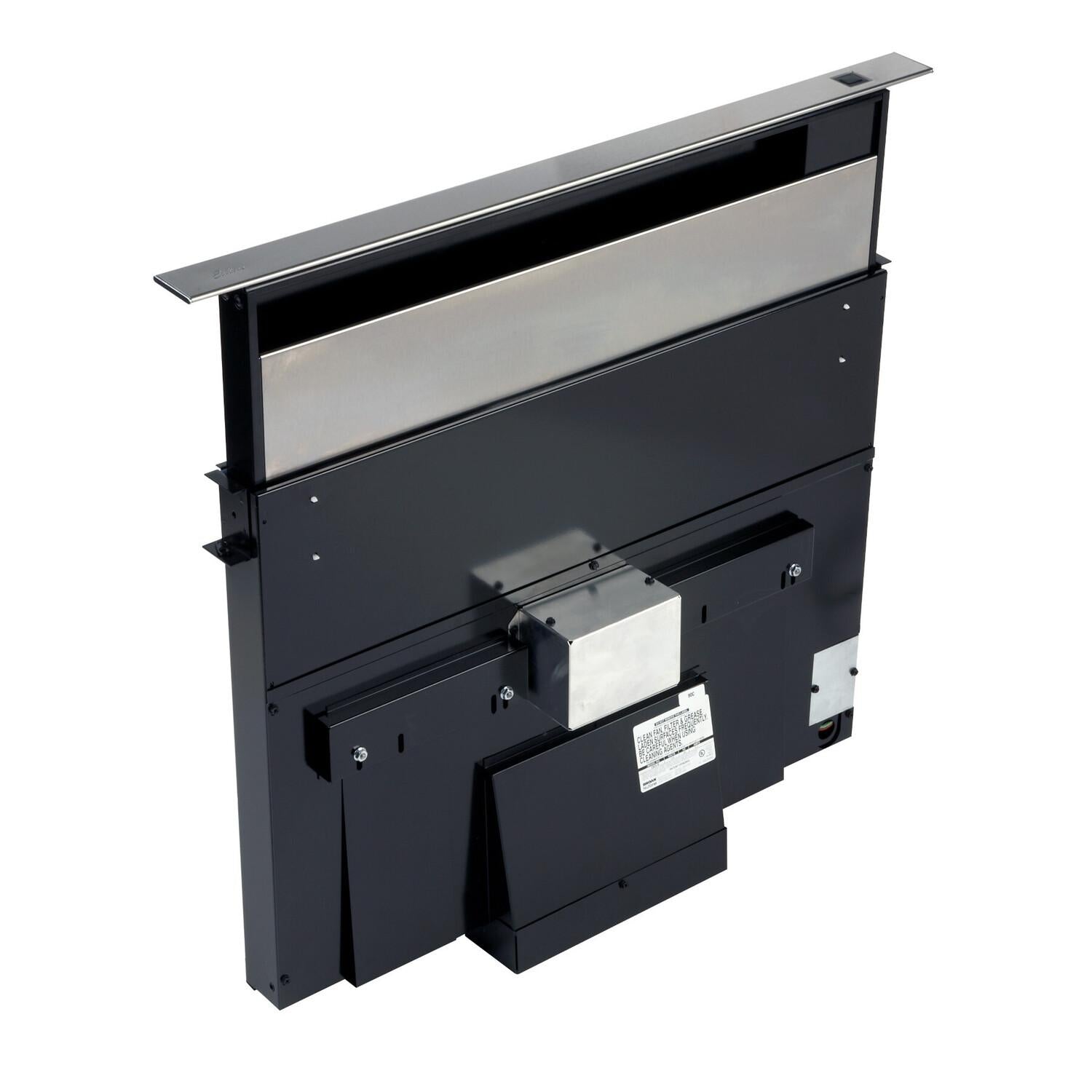

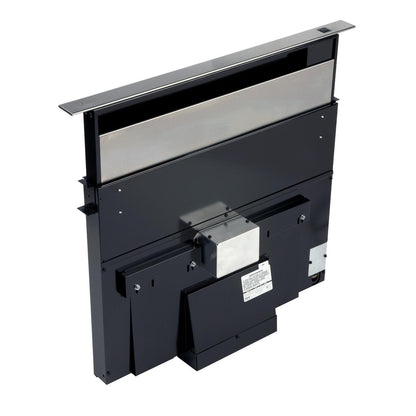

Broan® 36-Inch Telescopic Downdraft System, External Blower, Stainless Steel 283603
Discontinued





- Retractable downdraft hood is ideal for use above island and peninsula countertops
- Infinitely adjustable speed control is flush with the side of the unit
- Compatible with Broan exterior blowers and most in-line blower models (required, not included)
- Dishwasher-safe aluminum filter for easy cleaning and maintenance
- Designed to fit rectangular ductwork for simple installation
- UL/ cUL Listed for your safety
Innovative downdraft system compatible with virtually all self-contained cooktops. Sleek, trim styling complements any cooktop style or color. Automatically raises into position with the touch of a button. Disappears flush with cooktop surface. Space-saving design lets you make the most of precious, under-counter cabinet space. Infinitely adjustable speed control is flush with the side of the unit; inconspicuous, yet easy to reach and simple to use. Blower discharges right, left or down and slides side-to-side to ease installation (insufficient space for built-in ovens). Front access panel allows easy cleaning.
Filter Type | Aluminum |
Heat Sentry™ | No |
HVI Certified | No |
Sound Level (Sones) | 0 |
UL Listed | Yes |
ADA Compliance | No |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | No |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | Variable |
Switch Control Type | Rotary |
Rated Voltage | 120 |
Boost Mode | No |
Color Finish | Stainless Steel |
Rated Amps | 6 |

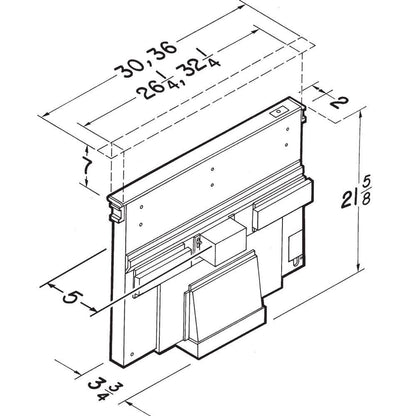

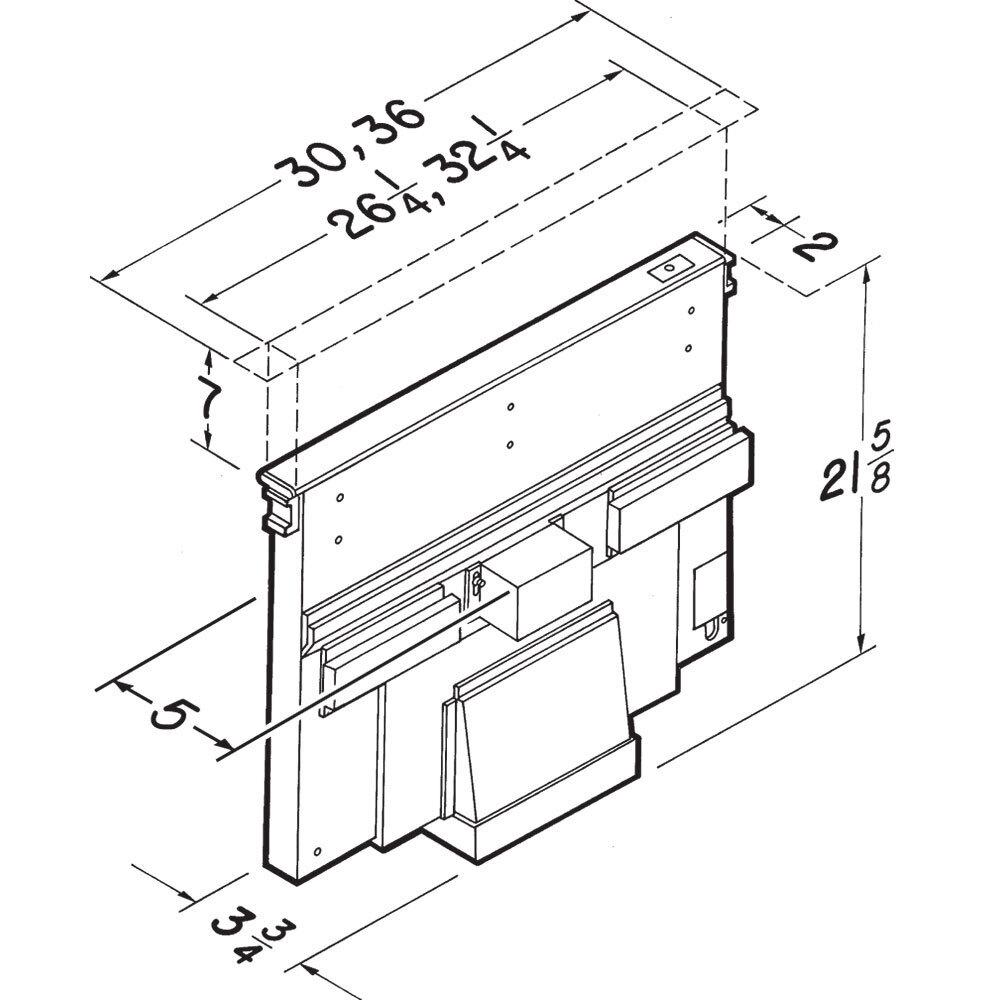

Product Height | 21.625" |
Product Width | 36" |
Built-In Timer | No |
Diameter | 6" Round |
Vent Type | Ducted Only |
Duct Direction | Horizontal/Vertical |
Manufacturer Warranty | 1 Year |
Wattage | 720 |
