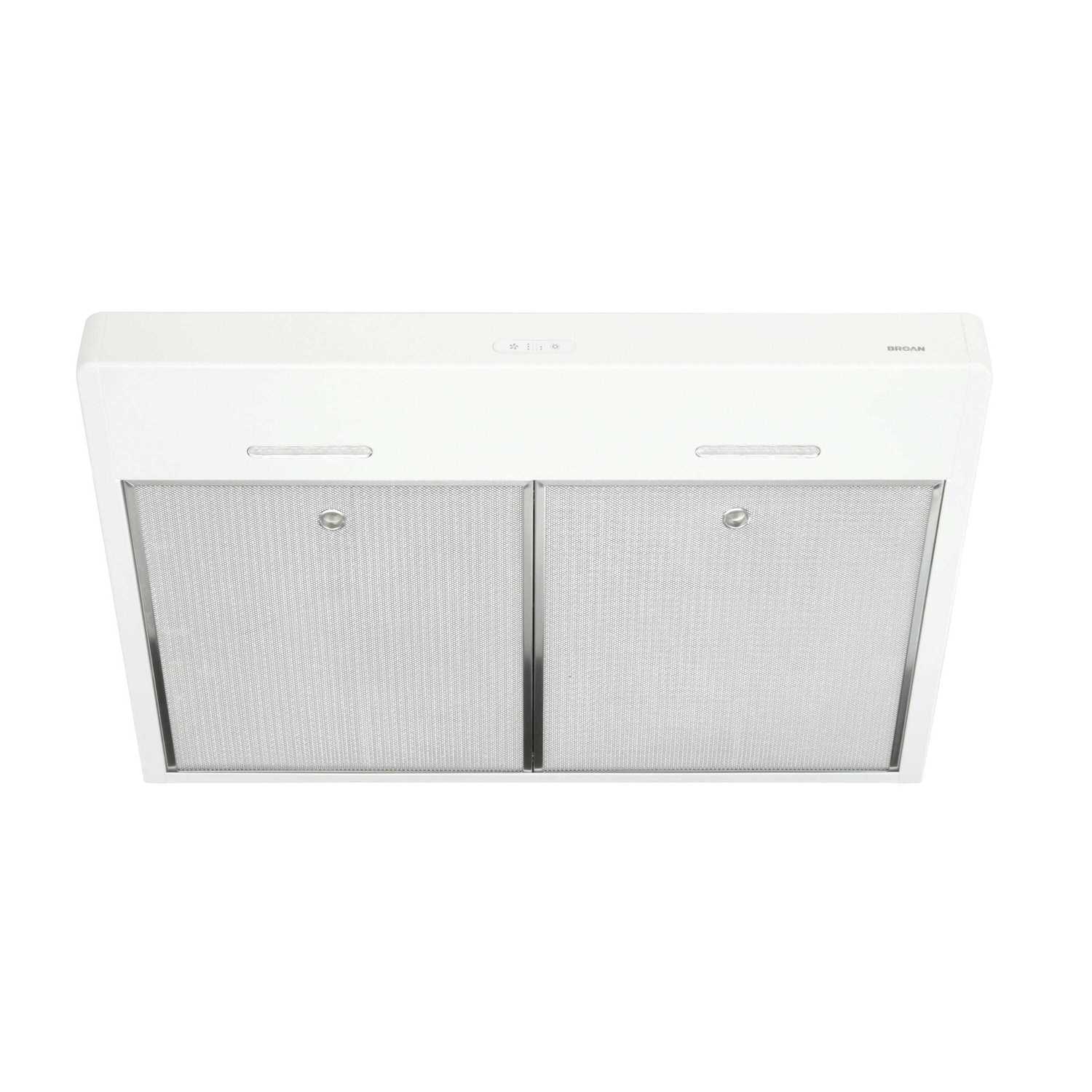

Tenaya BNDF1 Series Tenaya is a slim, transitional design with gentle radius features which makes it perfect for today's contemporary kitchens. This beautiful design includes features like LED lighting and tap-touch capacitive controls that make it a pleasure to use and easy to maintain.
Features & Benefits
Features & Benefits
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM Max high
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
- Bright, two-level LED modules - supported by a 3-year warranty - illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch. See additional information above
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
| Color Finish | White |
| CFM | 300 Max high - 110 Min normal |
| Sones | 5.5 Max high - 1.2 Min normal |
| Product Depth | 21-1/8" |
| Product Height | 5" |
| Product Width | 35-7/8" |
| Light Number Of Levels | 2 |
| Light Color Temp | 3000 K |
| Light Lumens | 450/module |
| Light Type | LED |
| Nightlight Or Nightlight Setting | No |
| Light Bulb Wattage | 4.5/module |
| Light Bulb Recommended Type | Integrated LED Module |
| Light Bulbs Included | Yes |
| Light Bulb Quantity | 2 LED Modules |
| Filter Quantity | 2 |
| Boost Mode | No |
| Heat Sentry® - Temperature Sensor | No |
| Filter Type | Micro Mesh |
| Motor Number Of Speeds | 3 |
| Built In Timer | No |
| Remote Operation Capable | No |
| ADA Compliance | Yes |
| Damper Included | Yes |
| Non-ducted Filter Included | No |
| Amperage | 0.65 |
| Rated Voltage | 120 |
| Wattage | 78 |
| Switch Control Type | Capacitive Touch |
| Non-Ducted Recirculation Capable | Convertible built-in |
| Warranty | 1 Year |
| UL Listed | Yes |
| Duct Connector Size | 3-1/4" x 10" or 7" Round |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular or Round |
| Duct Diameter | 7" |
| Duct Height Rectangular | 3-1/4" |
| Duct Width Rectangular | 10" |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
