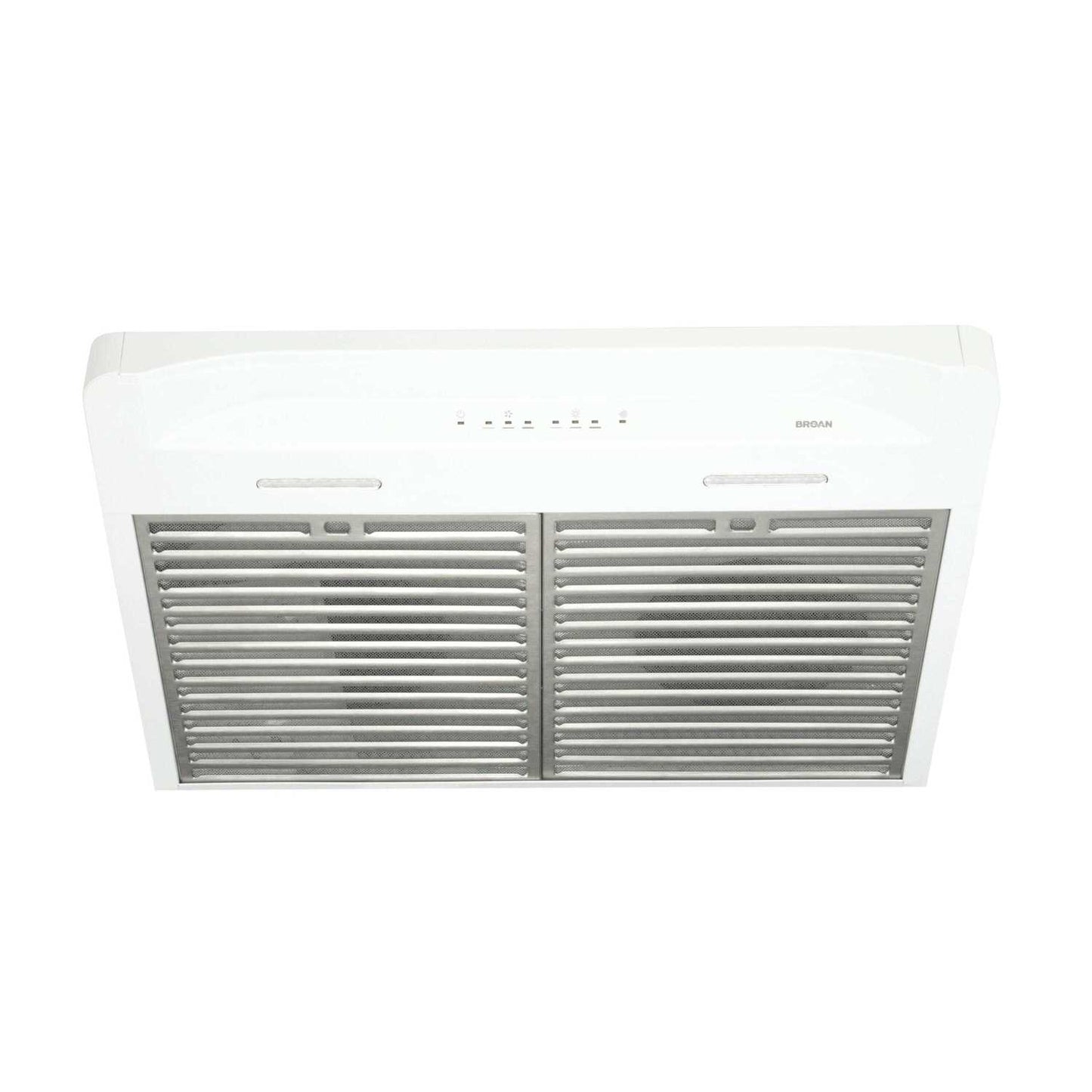

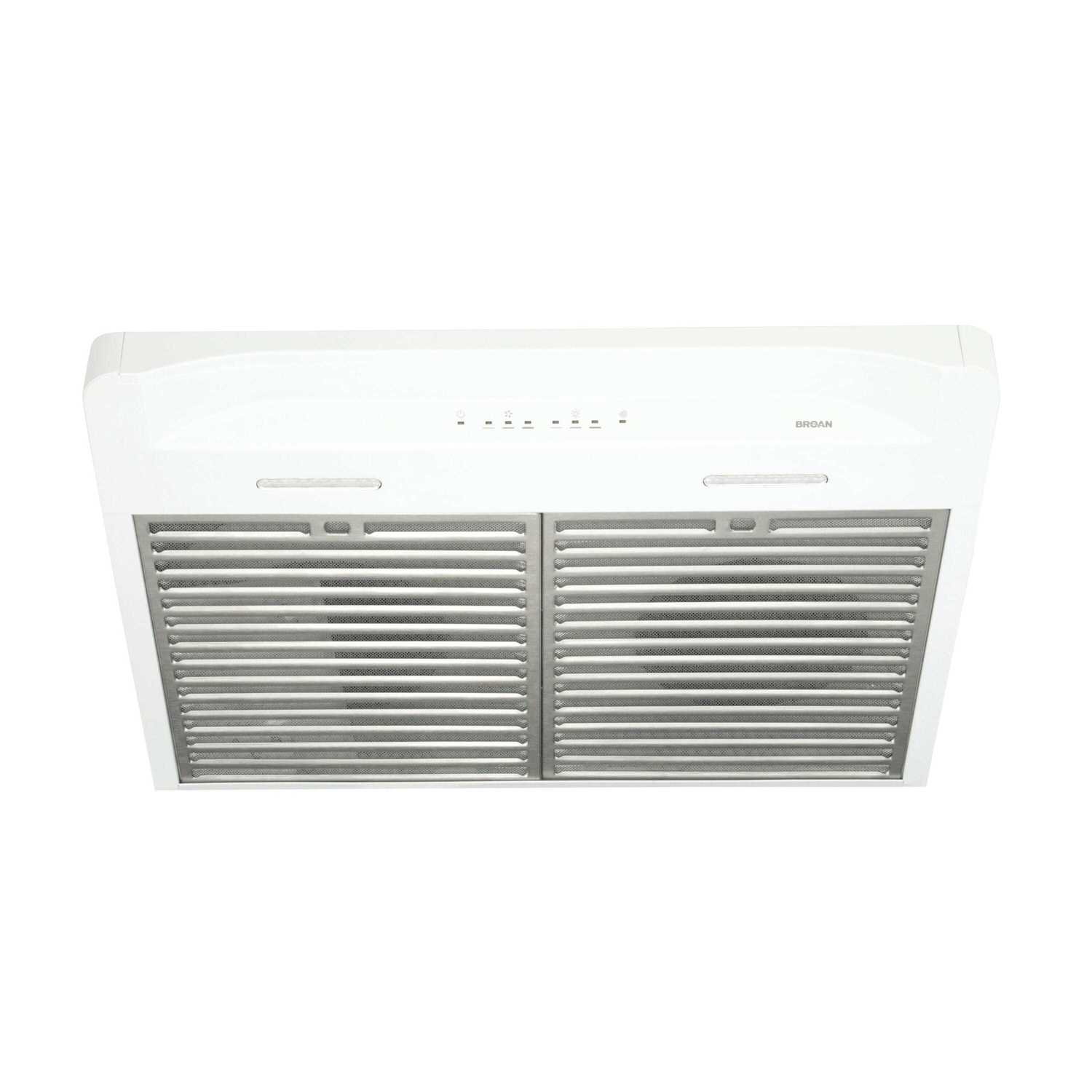

Alta BQLA1 Series The sculpted lines of Alta bring an exciting, new choice to typical range hood shapes. Infrared controls, hybrid baffle filters and LED lighting lends a pro-style edge to your kitchen.
Features & Benefits
Features & Benefits
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 400 CFM Max high
- Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed
- Bright, three-level LED modules - supported by a 3-year warranty - illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air
- Broan Heat Sentry detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
- Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch. See additional information above
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Optional HCR3 handheld remote enables control from anywhere in the kitchen
| Color Finish | White |
| CFM | 400 Max high - 150 Min normal |
| Sones | 6.0 Max high - 0.4 Min normal |
| Product Depth | 22" |
| Product Height | 5" |
| Product Width | 35-7/8" |
| Light Number Of Levels | 3 |
| Light Color Temp | 3000 K |
| Light Lumens | 450/module |
| Light Type | LED |
| Nightlight Or Nightlight Setting | No |
| Light Bulb Wattage | 4.5/module |
| Light Bulb Recommended Type | Integrated LED Module |
| Light Bulbs Included | Yes |
| Light Bulb Quantity | 2 LED Modules |
| Filter Quantity | 2 |
| Boost Mode | No |
| Heat Sentry® - Temperature Sensor | Yes |
| Filter Type | Hybrid Baffle |
| Motor Number Of Speeds | 3 |
| Built In Timer | No |
| Remote Operation Capable | No |
| ADA Compliance | Yes |
| Damper Included | Yes |
| Non-ducted Filter Included | No |
| Amperage | 1.4 |
| Rated Voltage | 120 |
| Wattage | 168 |
| Switch Control Type | Infrared |
| Non-Ducted Recirculation Capable | Convertible built-in |
| Warranty | 1 Year, 3 Year LED module |
| UL Listed | Yes |
| Duct Connector Size | 3-1/4" x 10" or 7" Round |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular or Round |
| Duct Diameter | 7" |
| Duct Height Rectangular | 3-1/4" |
| Duct Width Rectangular | 10" |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
