BROAN RM503623
Authorized Reseller

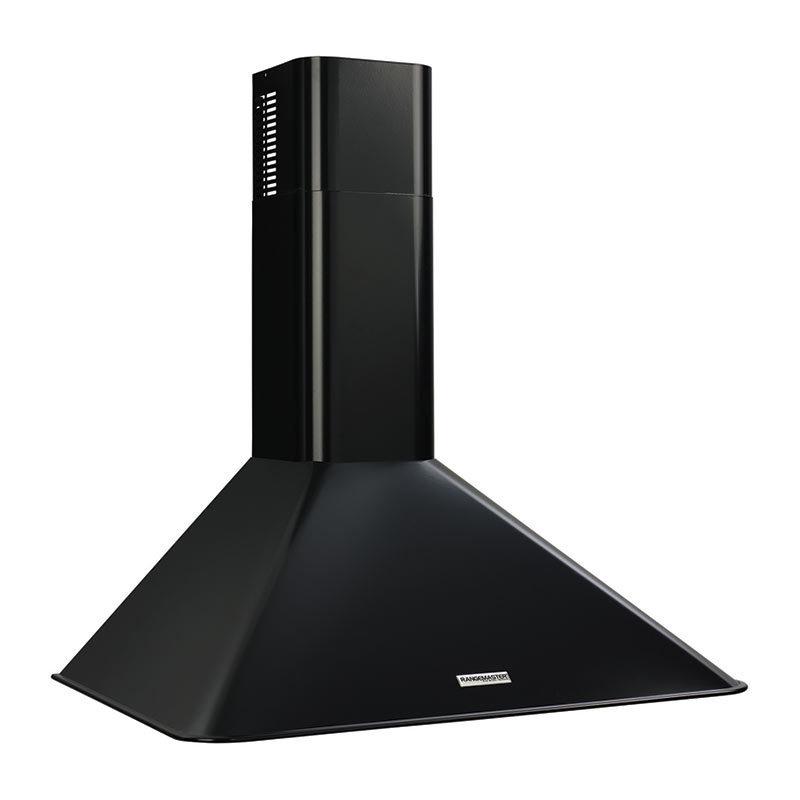

RM503623 Broan 290 CFM, 35-7/16" Wall-Mounted Chimney Hood in Black
RM503623 Broan 290 CFM, 35-7/16" Wall-Mounted Chimney Hood in Black
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- European design chimney hood.
- Multispeed side control and integrated dual light assembly.
- Heat Sentry adjusts speed of blower to high in case of excess heat.
- Dual 40-watt incandescent lamps included.
- Includes non-ducted kit for indoor exhaust recirculation.
- Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 feet. Extension flues for higher ceilings are also available.
- Install hood so that the bottom of the unit is 24 to 30 in. above the cooking surface.
Broan Elite RM50000 (Rangemaster®) Broan Elite RM50000 wall mounted chimney hood combines graceful curves with traditional European styling to meet today's conventional appliance and kitchen styles. A highly affordable chimney hood, available in white, black or stainless steel to complement your d(eback)cor.
Features & Benefits
Features & Benefits
- 290 CFM internal blower provides the power you need at 6.5 sones, using 6" round ductwork for easy installation
- Multi-speed slide control allows you to set just the right exhaust speed to keep up with whatever is cooking
- Dual 40-watt incandescent lamps (included) are protected within an integrated light assembly; one light level on lamps
- Dishwasher-safe aluminum filter features a quick-release latch and professional style appearance for good looks and a fresh kitchen
- Ducted/non-ducted telescopic flue accommodates ceiling heights from 8 to 9 feet (included); non-duct flue extensions available in stainless steel only. Extension flues for higher ceilings are also available, sold separately
- Optional non-duct filter for indoor exhaust recirculation is included for installations that cannot be ducted out
- Heat Sentry detects excessive heat and adjusts speed of blower to High automatically to prolong product life
| Color Finish | Black |
| CFM | 290 |
| Sones | 6.5 |
| Product Depth | 19-5/8" |
| Product Height | 33" min - 43" max |
| Product Width | 35-7/16" |
| Light Number Of Levels | 1 |
| Light Type | Incandescent |
| Nightlight Or Nightlight Setting | No |
| Light Bulb Wattage | 40W |
| Light Bulb Recommended Type | E12 |
| Light Bulbs Included | Yes |
| Light Bulb Quantity | 2 |
| Filter Quantity | 1 |
| Boost Mode | No |
| Heat Sentry® - Temperature Sensor | Yes |
| Filter Type | Aluminum |
| Motor Number Of Speeds | 4 |
| ADA Compliance | No |
| Accommodates Ceiling Height | 8' - 9' Opt. 10' |
| Damper Included | Yes |
| Non-ducted Filter Included | No |
| Amperage | 2.86 |
| Rated Voltage | 120 |
| Switch Control Type | Slide |
| Non-Ducted Recirculation Capable | Yes |
| Warranty | 1 Year |
| UL Listed | Yes |
| Duct Connector Size | 6" Round |
| Duct Direction | Vertical |
| Duct Shape | Round |
| Duct Diameter | 6" |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
