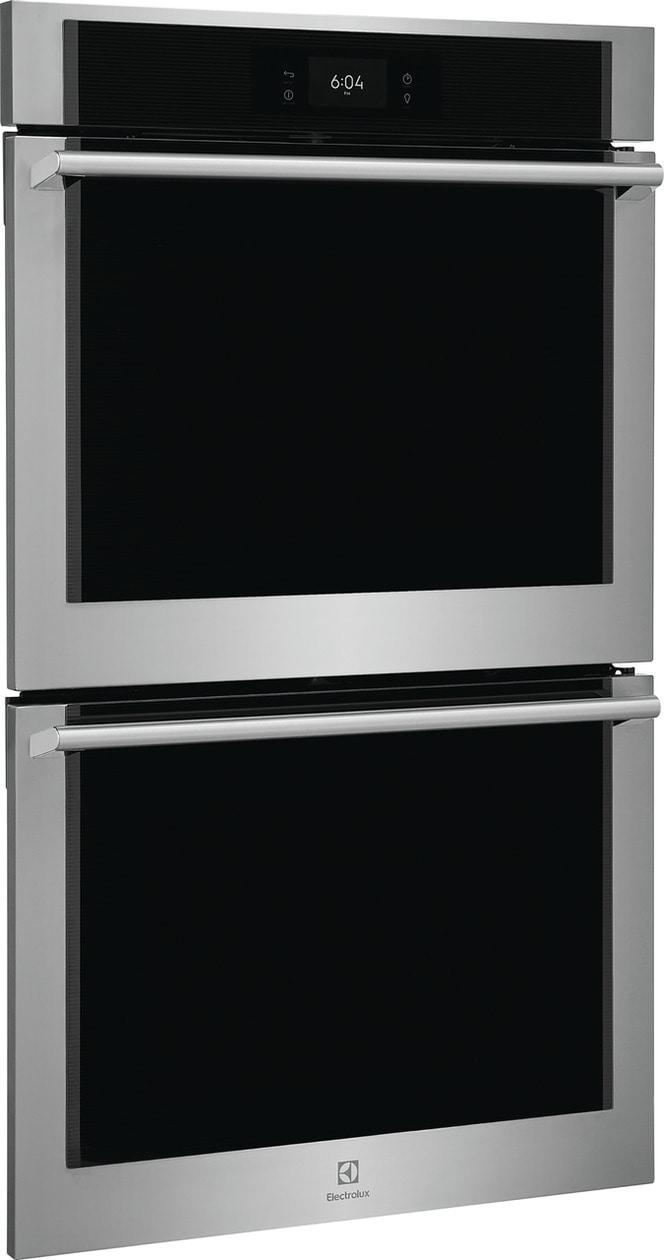

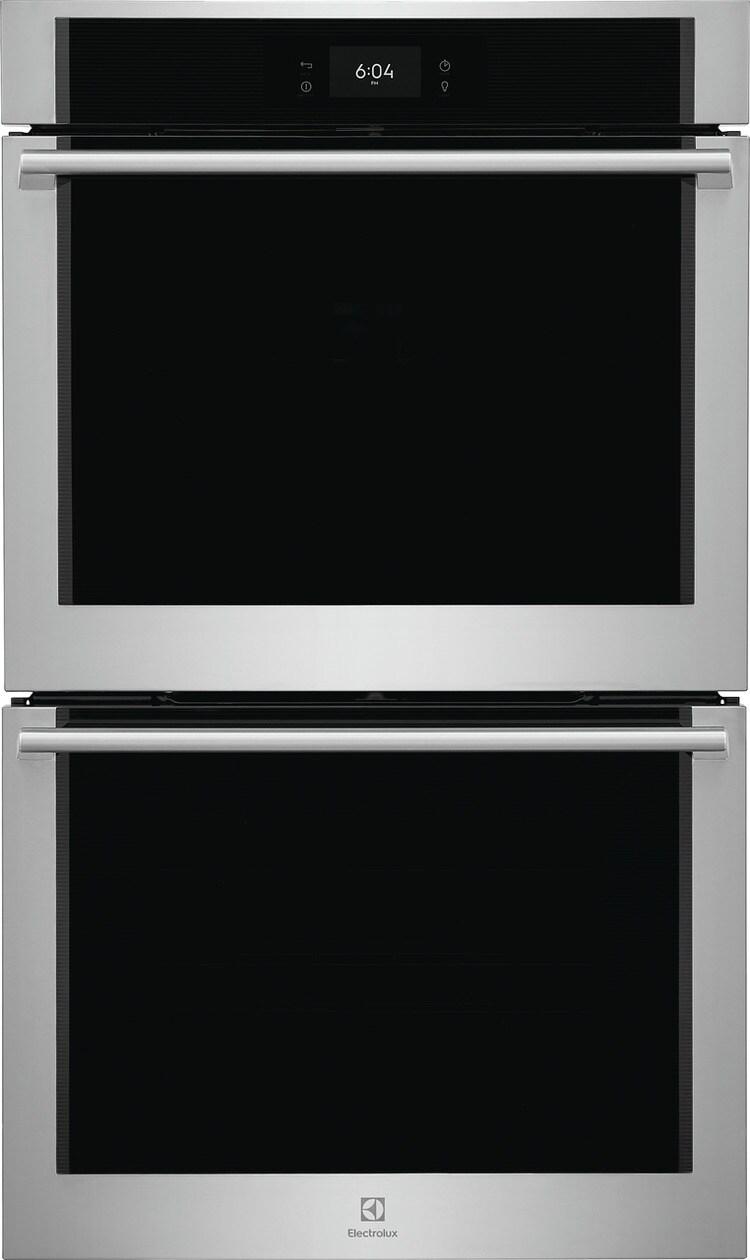

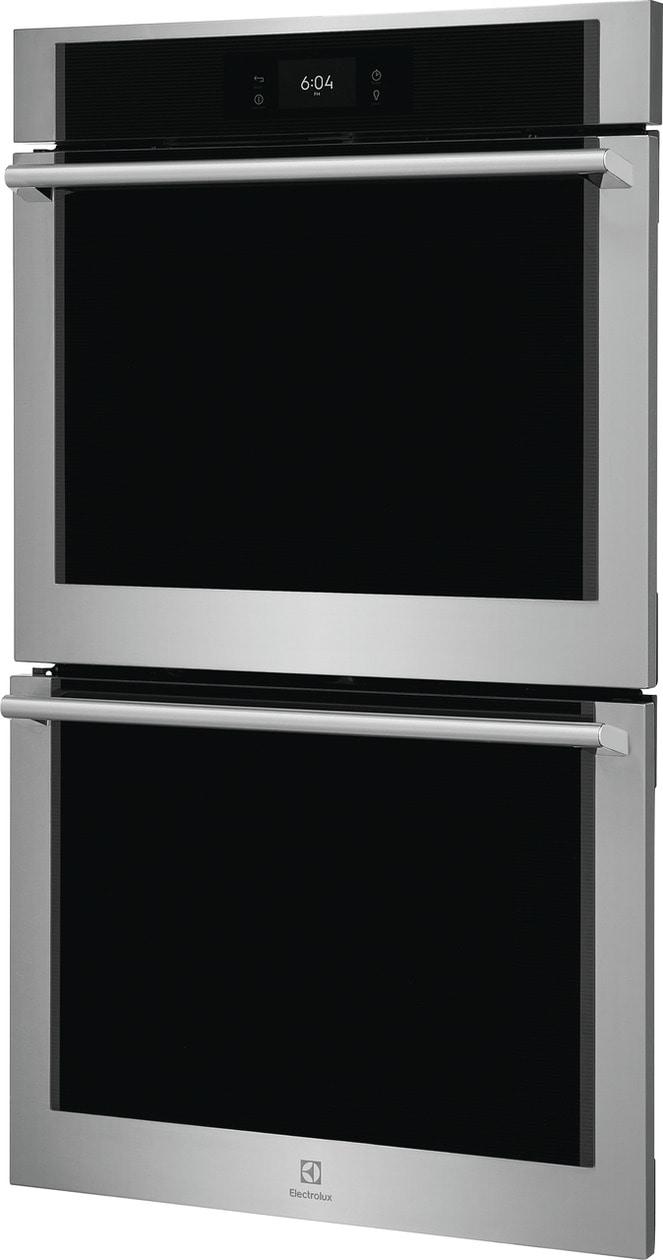

Electrolux Canada ECWD3012AS 30" Electric Double Wall Oven with Air Sous Vide

The Electrolux Wall Oven is packed with features designed to inspire culinary creativity, like Air Sous Vide, Steam cooking modes and Built-In Air Fry, all enabled by Advanced Convection.

Product Line	Double Wall Oven
Power Type	Electric 240v
Size	30"
Factory	Springfield
Color	Stainless Steel
Right to Repair Details
Right to Repair	Partially Available - Visit electrolux.ca/en/Owner-Support/right-to-repair for more information

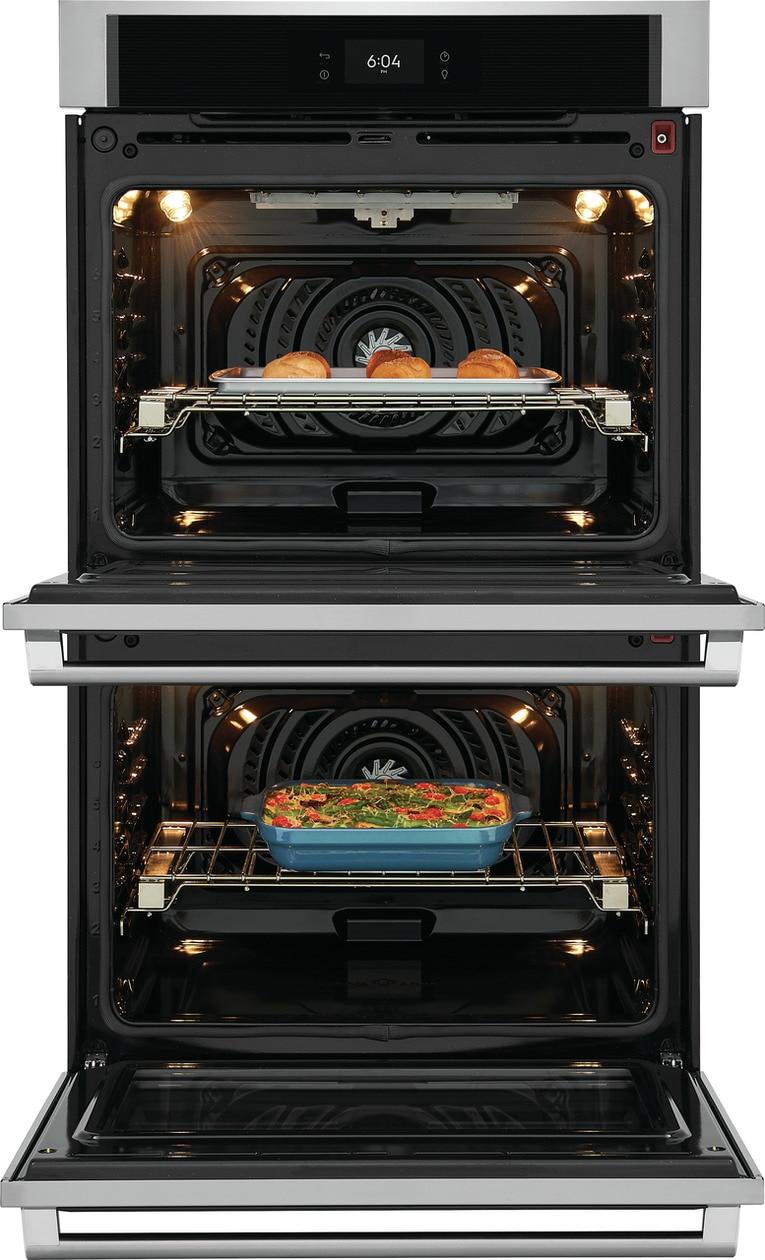

Oven
Bake Element	2500 Watts
Bake Element Pass	8
Bake Element Type	Hidden
Broil Element	4000 Watts
Broil Element Pass	6
Convection Element	3800 Watts
Convection Type	Total
Number of Convection Fans	1
Number of Rack Positions	6
Oven Interior Color	Midnight Black
Oven Light Quantity	2
Oven Light Type	Halogen
Oven Light Watts	40 Watts

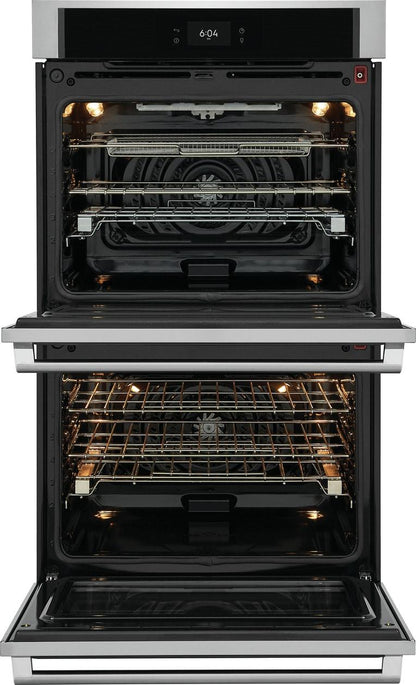

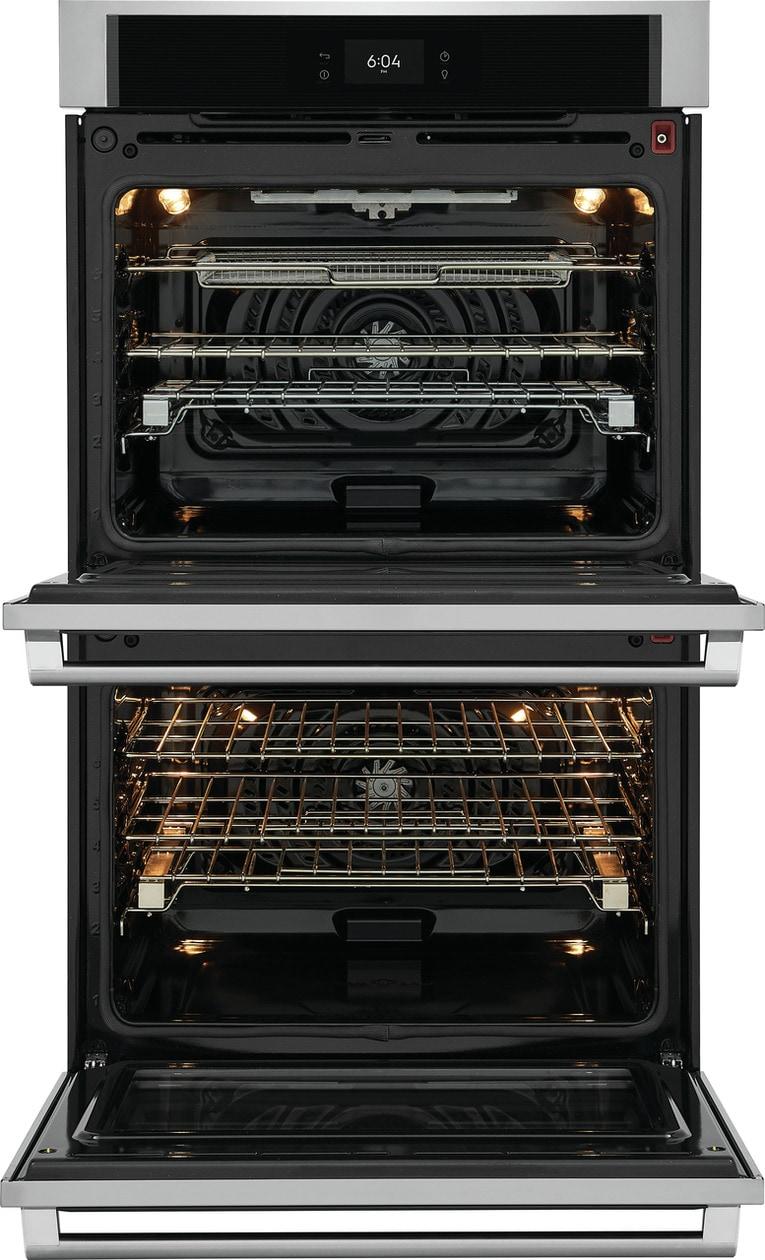

Rack Position Type	Embossed
Rack Type 1	Handle Bull Nose
Rack Type 1 Quantity	3
Rack Type 2	Glide
Rack Type 2 Quantity	2
Rack Type 3	Air Fry Tray
Rack Type 3 Quantity	1

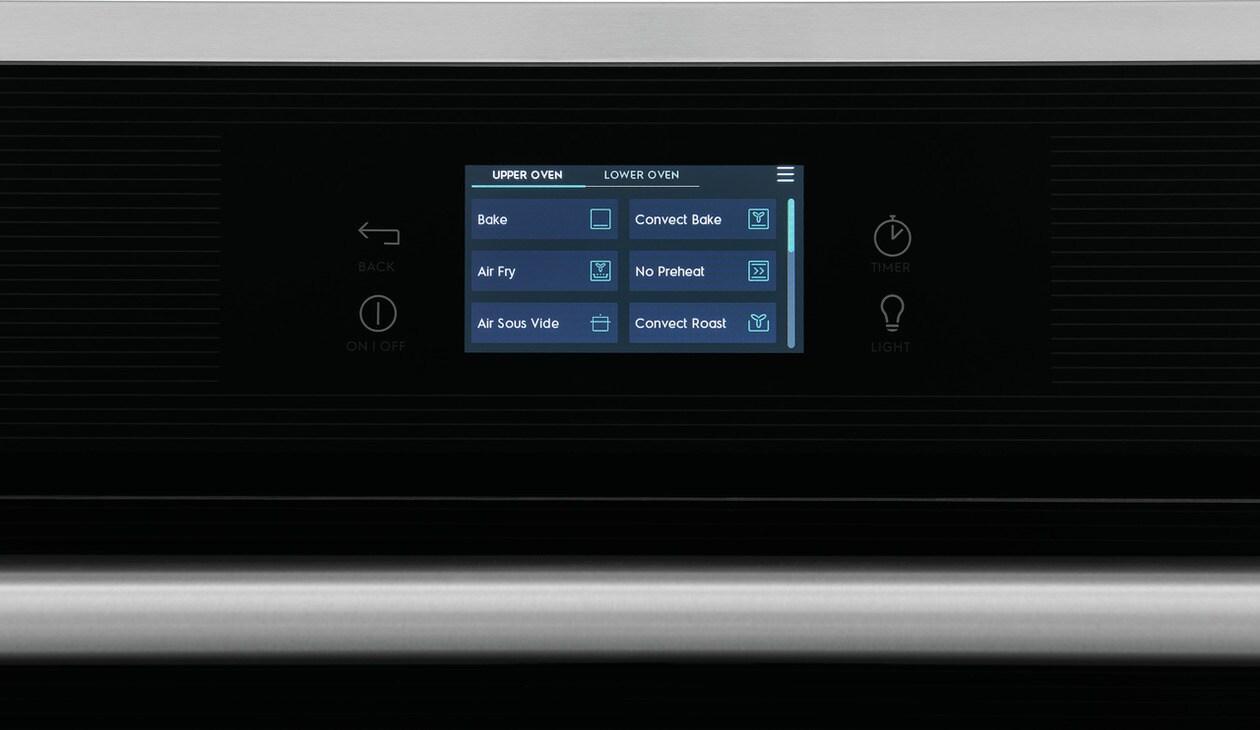

Display
Control Location	Top
Display Interface Color	White
Display Light Color	White
Display Type	Capacitive Touch
Dimensions and Volume
Height	50 3/4"
Width	29 7/8"
Depth	25 3/16"
Depth With Door 90° Open	48 3/16"
Depth With Handle	27 3/5"
Lower Oven Interior Height	18 1/8"
Lower Oven Interior Width	25 1/5"
Lower Oven Interior Depth	19 7/8"
Upper Oven Interior Height	18 1/8"
Upper Oven Interior Width	25 1/5"
Upper Oven Interior Depth	19 7/8"
Minimum Cutout Height	48 7/8"
Minimum Cutout Width	28 1/2"
Minimum Cutout Depth	23 1/2"
Maximum Cutout Height	50 1/4"
Maximum Cutout Width	29"
Oven Lower Capacity	5.3 Cu. Ft.
Oven Upper Capacity	5.3 Cu. Ft.
Total Capacity	10.6 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	40 Amps
Connected Load @ 240V	9 kW
Voltage Rating	240 V
Installation
Power Supply Connection Location	Top Left
General Specifications
Product Weight	300 lbs
Warranty - Labor	1 Year
