- Fit Guarantee
- Convection Bake
- 5.4 cu. ft. oven capacity
- Baking drawer
- Self-clean oven
- Non-stick griddle
- 20,000 BTU tri-ring burner
- Center oval burner
- Precise Simmer burner
- Front controls
Fit Guarantee

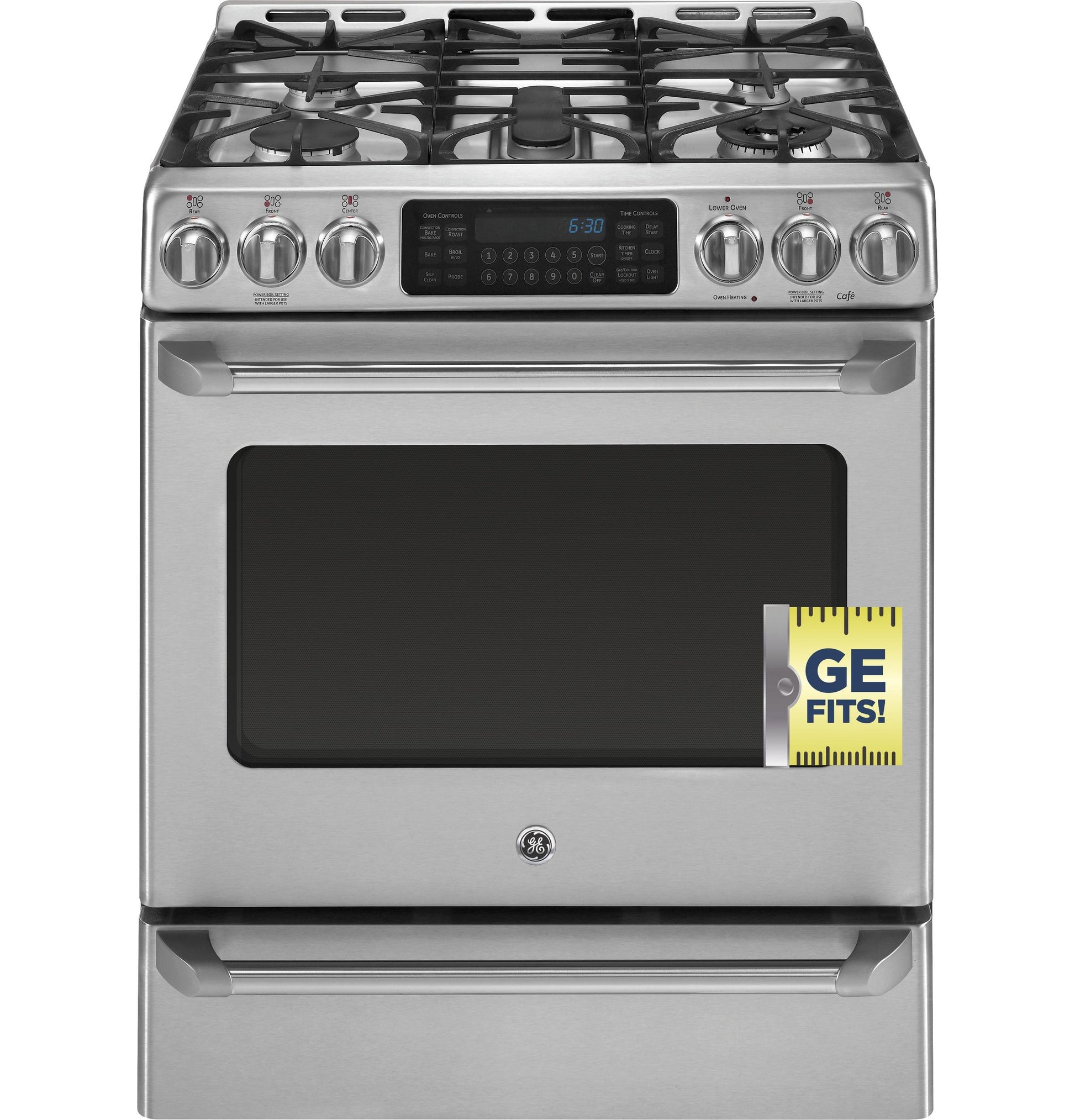

Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details
Convection Bake
Optimal setting for baked goods and casseroles
5.4 cu. ft. oven capacity
Enough room to cook an entire meal at once
Baking drawer
Offers an additional 1.0 cu. ft. of capacity for convenient baking from 140 to 450
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Non-stick griddle
Ideal for pancakes, bacon, sandwiches and more
20,000 BTU tri-ring burner
Offers the flexibility of three different burners
Center oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware
Precise Simmer burner
Delicate foods don't burn with low, even heat
Front controls
Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details
Convection Bake
Optimal setting for baked goods and casseroles
5.4 cu. ft. oven capacity
Enough room to cook an entire meal at once
Baking drawer
Offers an additional 1.0 cu. ft. of capacity for convenient baking from 140 to 450
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Non-stick griddle
Ideal for pancakes, bacon, sandwiches and more
20,000 BTU tri-ring burner
Offers the flexibility of three different burners
Center oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware
Precise Simmer burner
Delicate foods don't burn with low, even heat
Front controls
| CAPACITY | |
| Total Capacity (cubic feet) | 6.4 cu ft |
| Capacity (Cu. Ft.) | 5.4 Upper / 1.0 Lower |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Slide-In Single Oven |
| App Filter - Fuel Type | Dual Fuel |
| App Filter - Cooking Technology | Convection |
| App Filter - Tri-Ring Burner | Yes |
| App Filter - Convection | Yes |
| App Filter - Drawer Type | Baking Drawer |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Cooktop Type | Continuous Grates with Griddle |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Frameless Oven Door(s) | Stainless Steel |
| Installation | Power Cord Included |
| Oven Door Features | Big Clear View Oven Window |
| Handle Design | GE Café |
| Handle Color | Stainless Steel |
| Control Knobs | Dishwasher Safe Professional-Style Stainless Steel Appearance |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 20.0 Tri-Ring; (1) 17.0; (1) 9.1; (1) 5.0; (1) 8.0 |
| Volts/Hertz/Amps | 208/240V; 60Hz; 40A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0 Tri-Ring; (1) 11.0; (1) 9.1; (1) 5.0; (1) 8.0 |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| Bake/Broil Wattage - Main Oven | 2585/3410W |
| Power Connection | Power Cord - Included |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Optional Backguard | JXS80SS |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 225 lb |
| Height to Cooking Surface (in.) | 35.8125 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 245 lb |
| Overall Width | 30 in |
| Overall Height | 37.25 in |
| Overall Depth | 26.5 in |
| Depth with Door Open | 47 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 20-5/8 |
| FEATURES | |
| Cleaning Time | Variable with Delay Clean Option |
| Ignition System | Electronic |
| Lower Oven Features | Bake knob control; infinite heat settings Dual element bake |
| Oven Interior | 2 Oven Interior Lights |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Automatic Oven Timer (Time Bake) Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Digipad Numeric Entry Electronic Clock and Timer Front Controls In-Oven Broiling Sabbath Mode Self-Clean Cool Down Time Display Temperature Probe |
| Oven Rack Features | 3 Self-Clean Heavy-Duty Oven Racks |
| Clock and Minute Timer | Electronic |
| Power Boil Burner | (1) 17,000 BTU |
| Oven Cleaning Type | Self-Clean |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Product Type | Slide-In Single Oven |
| Style | Commercial |
| Cooktop Burner Grate Material | Cast-Iron |
| Fuel Type | 240V Electric and Natural Gas |
| Control Location | Front controls |
| Tri-Ring Burner | (1) 20,000 BTU / 140F degree simmer |
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Grate Features | Heavy-Cast Edge-to-Edge Grates |
| Center Oval Burner | (1) 8,000 BTU |
| Control Type | Digital Temperature Display Glass Touch Oven Control - Single Knob |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Drawer Type | Baking Drawer |
| Temperature Management System | True Temp System |
| Leveling System | 4 Leveling Legs |
| Cooking Technology | Convection |
| Configuration | Range with Baking Drawer |
| Oven Cooking Modes | Convection Bake Convection Roast |
| Cooktop Burner Type | Sealed |
| Valves (Degree of Turn) | 270 |
| Cooktop Surface | Deep Recessed Stainless Steel |
| Self-Clean Oven Door Lock | Automatic |
