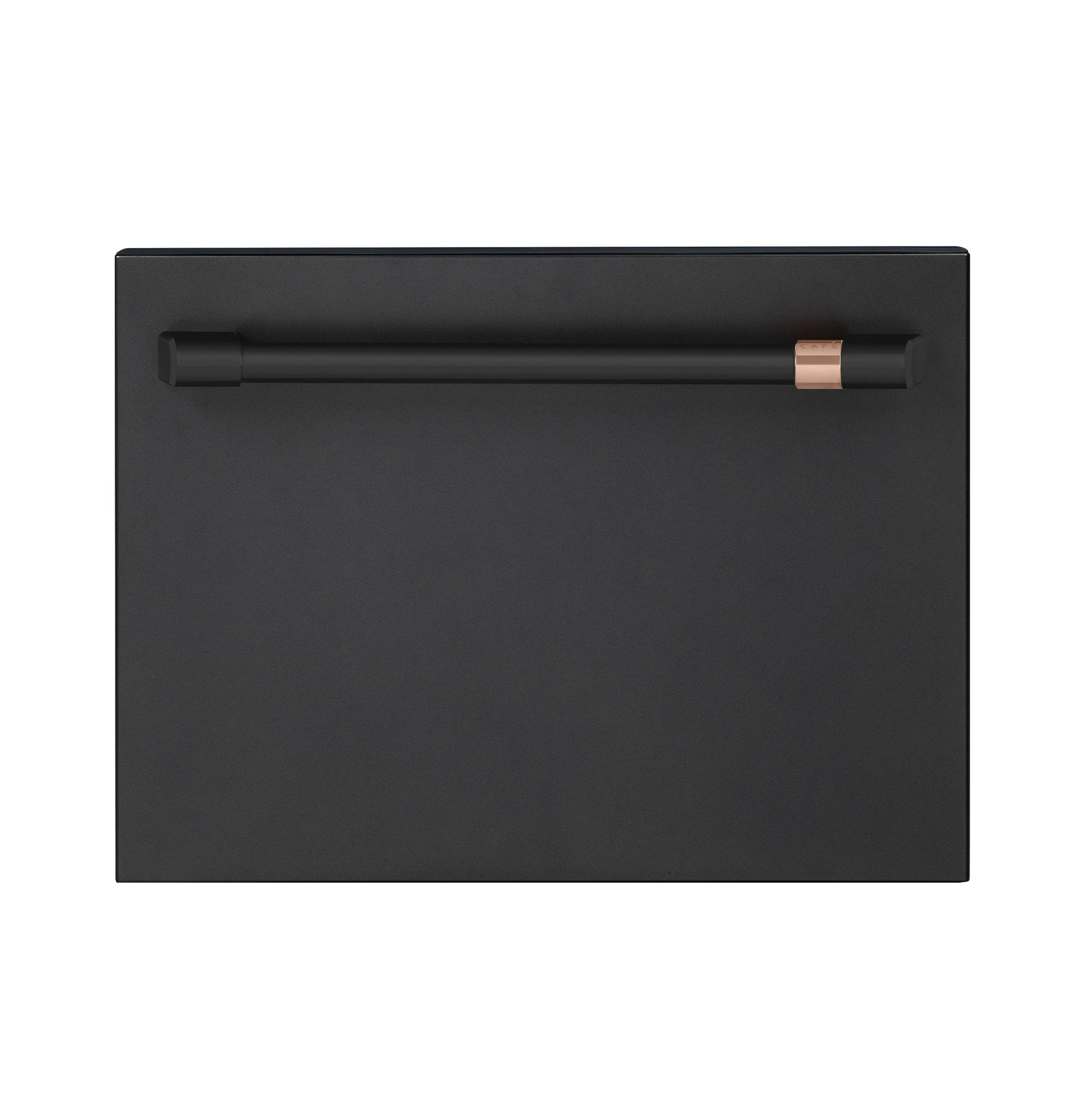

Cafe CDD220P3WD1 Caf(eback)™ ENERGY STAR Smart Single Drawer Dishwasher CDD220P3WD1

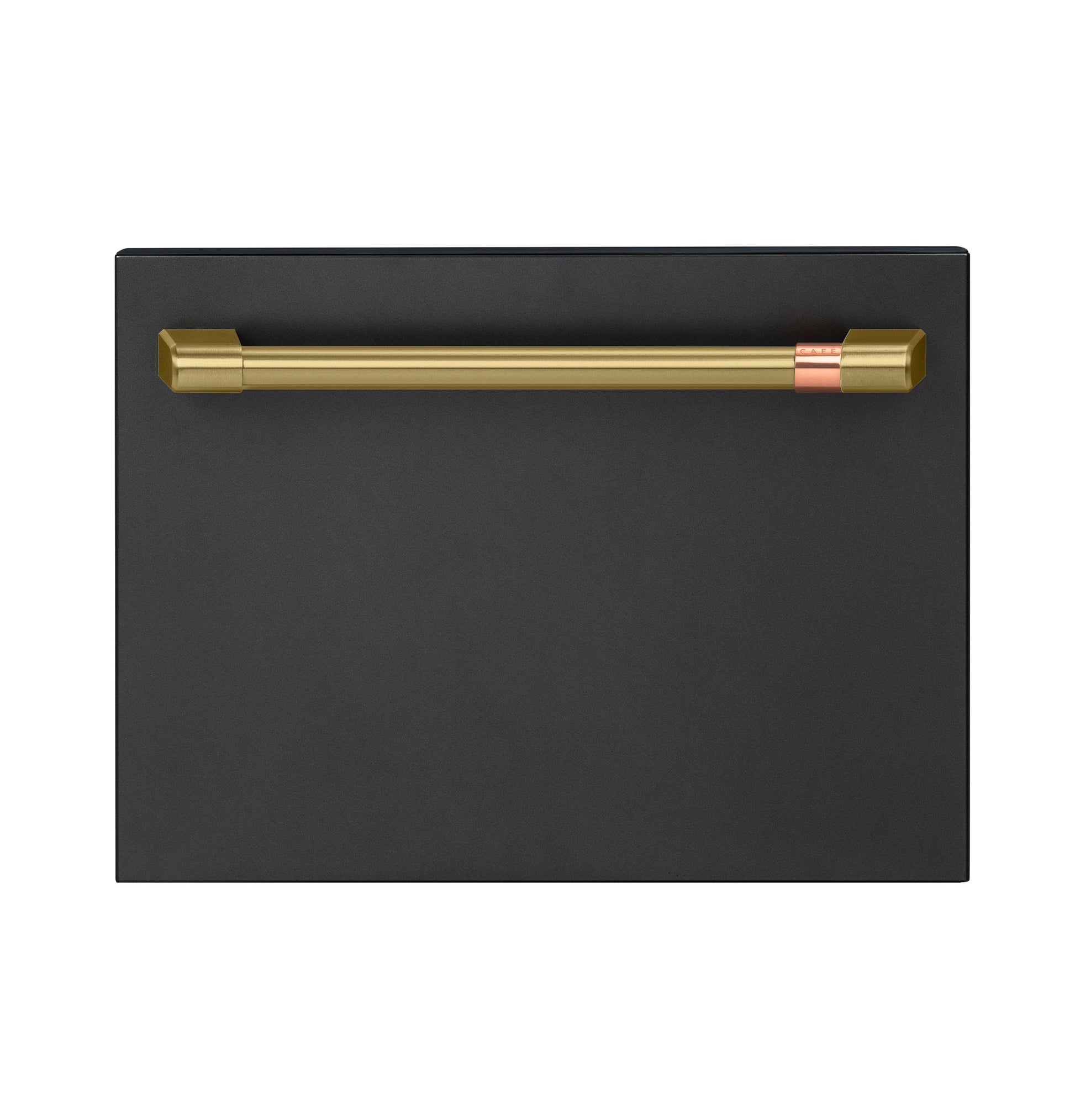

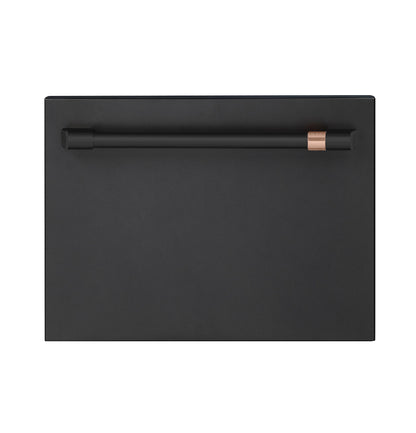

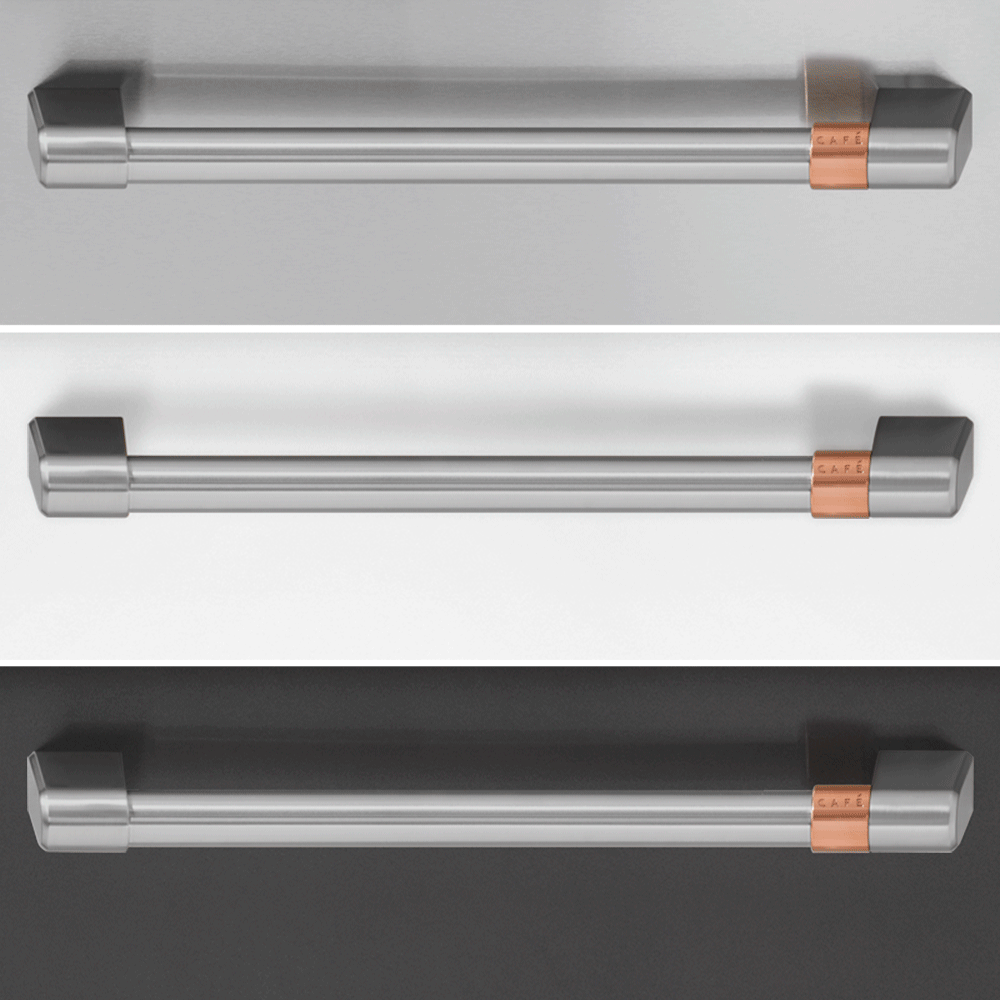

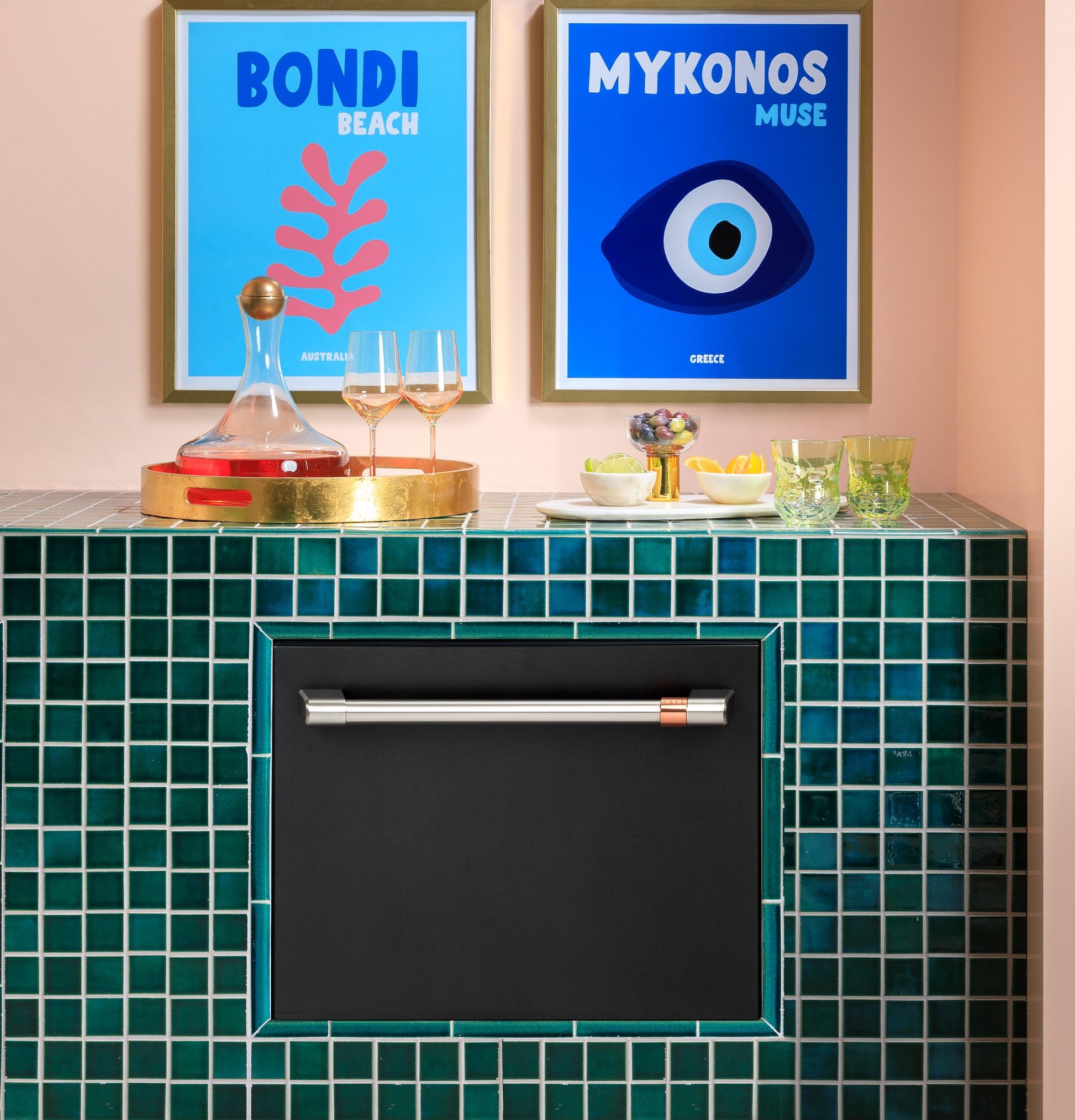

Match Your Personal Style

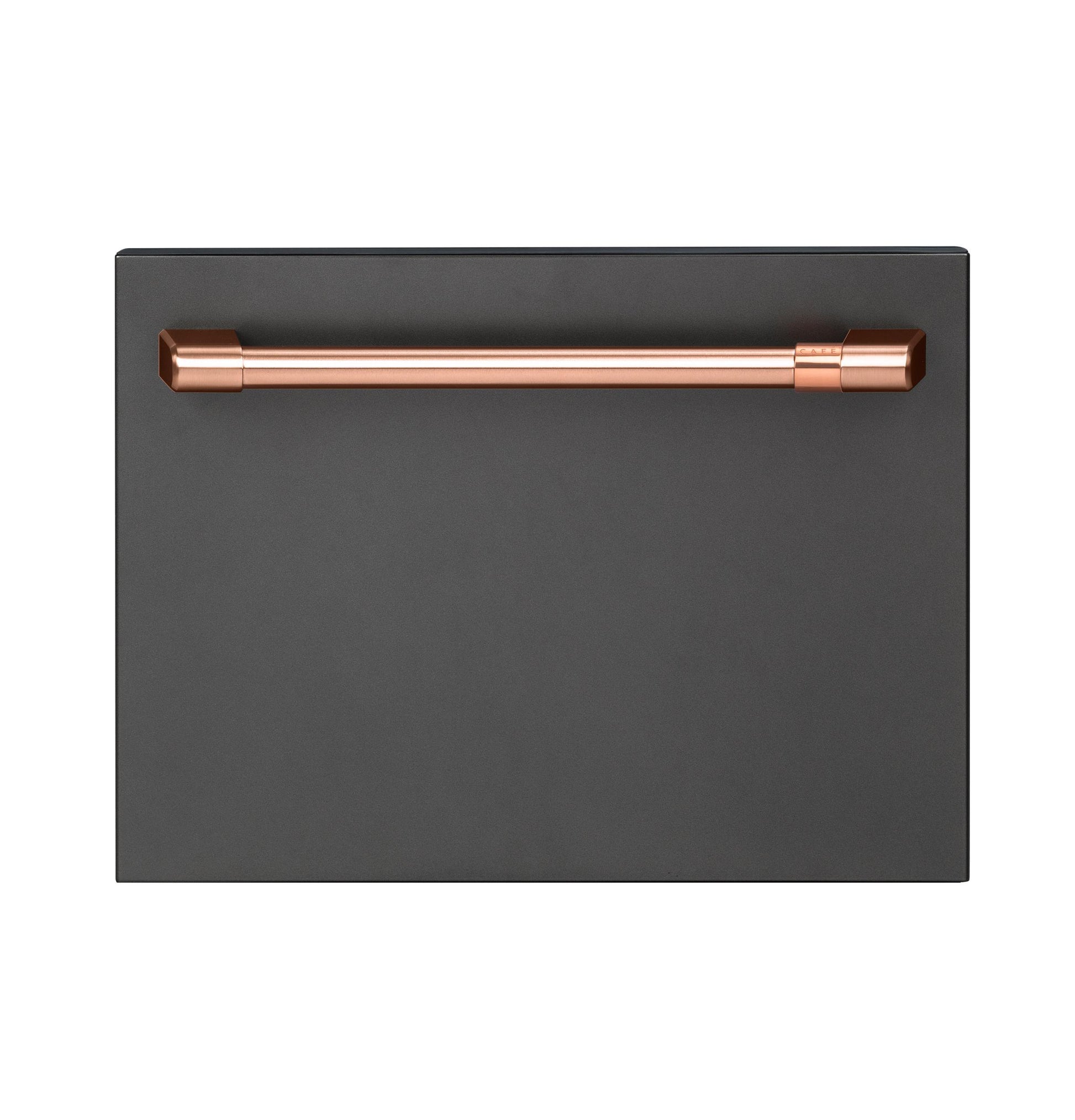

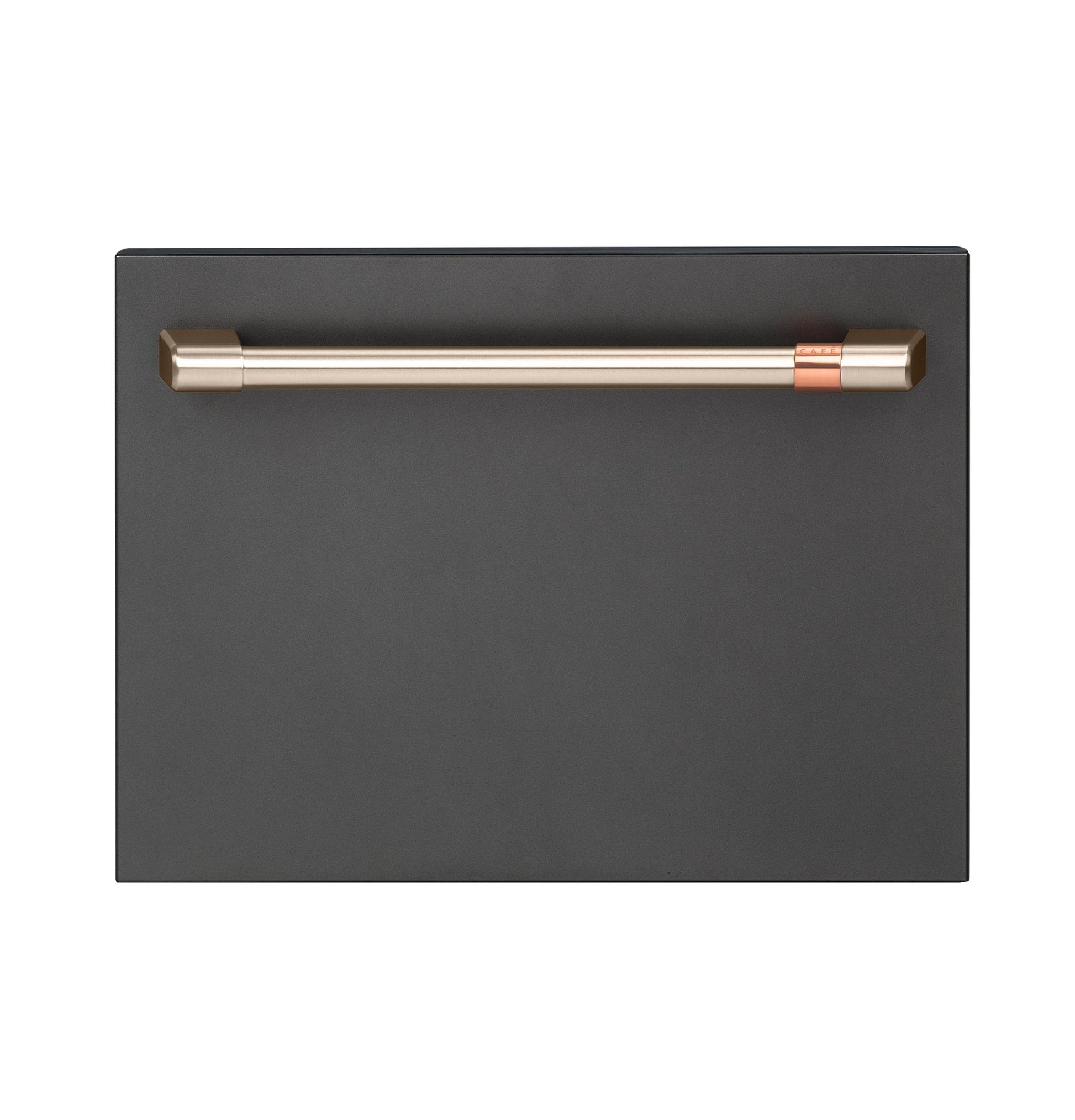

Customize this stylish dishwasher with any combination of premium finishes and hardware options for a unique look that matches your personal style.

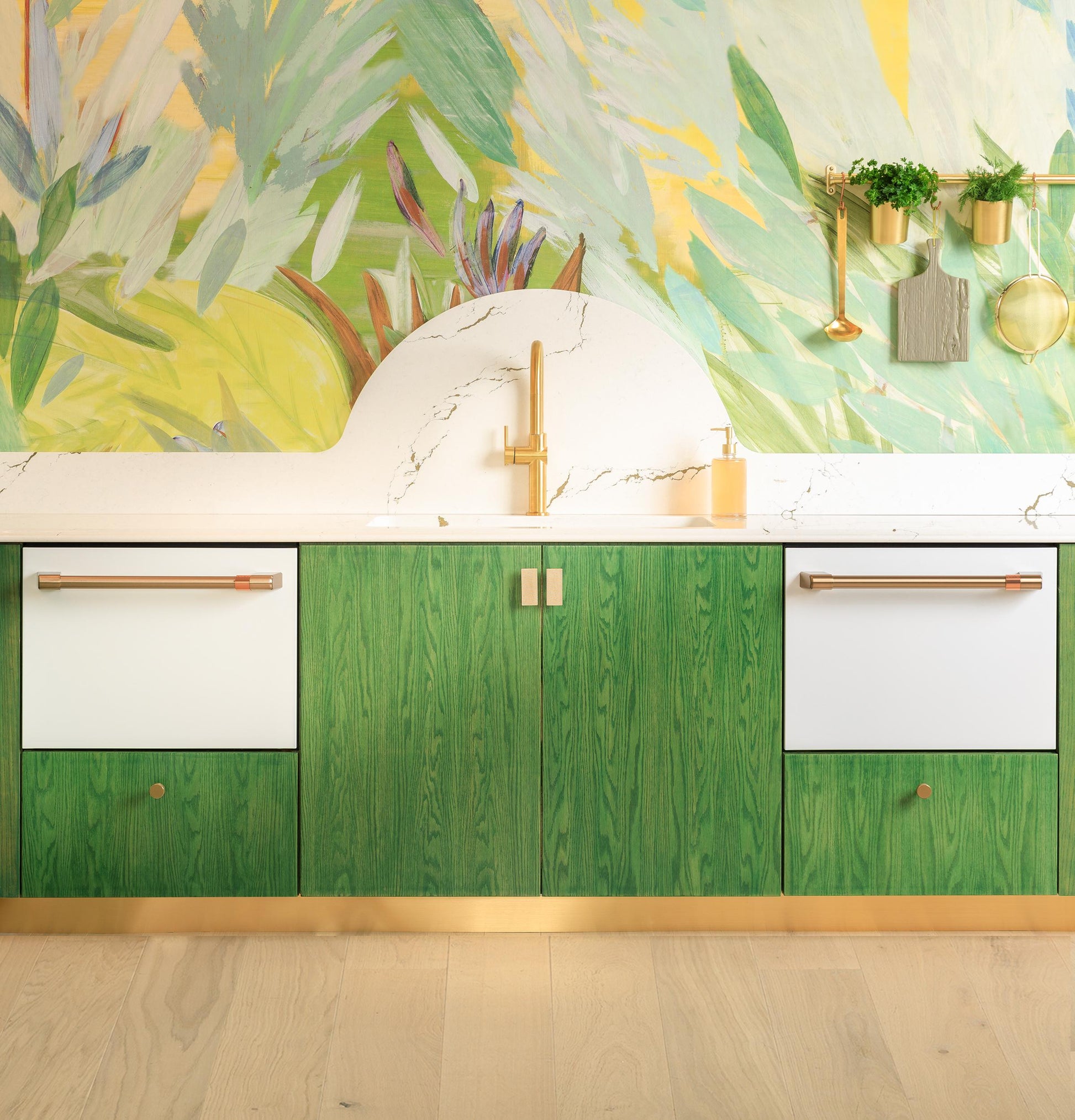

Two Single Drawers

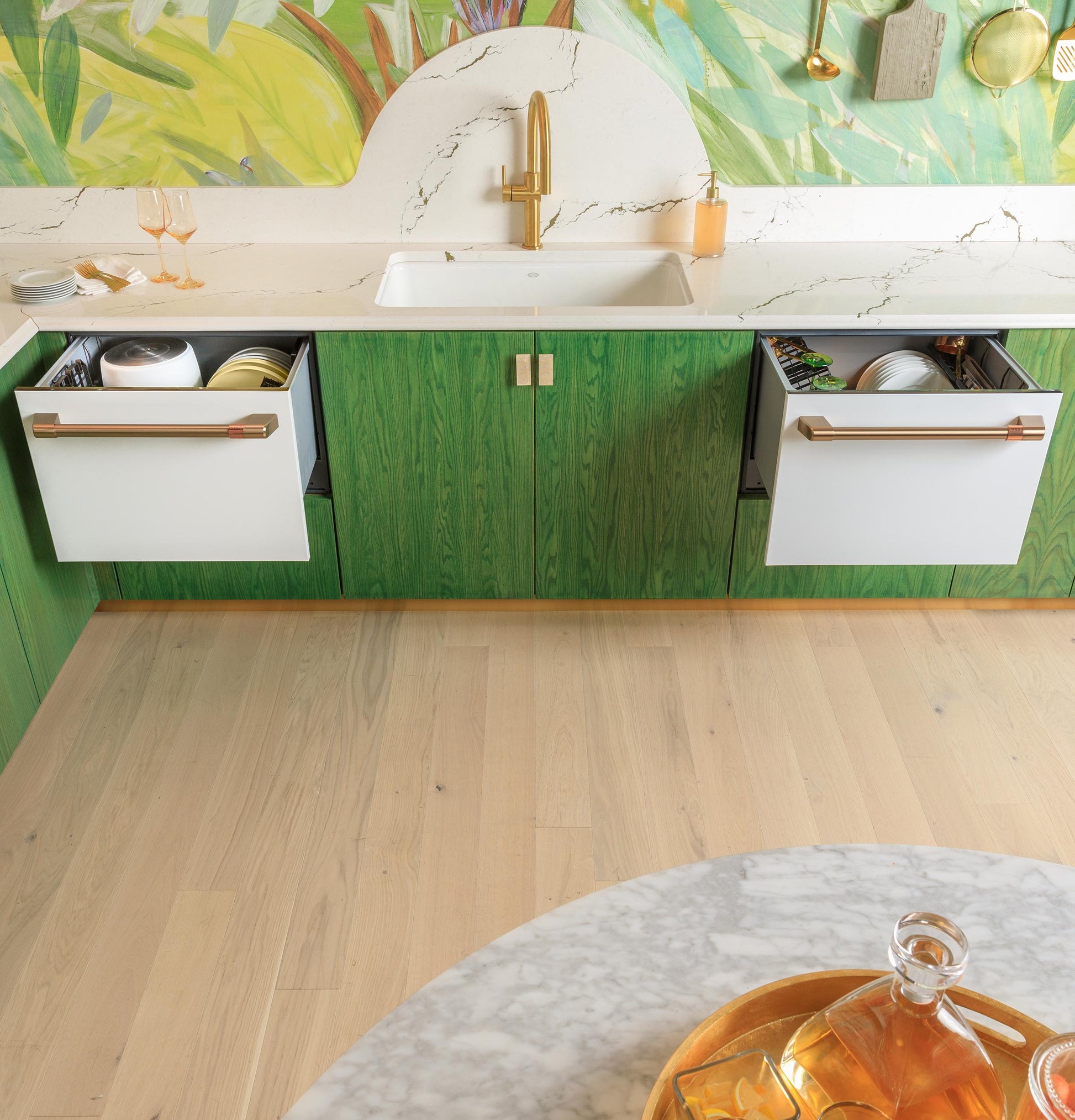

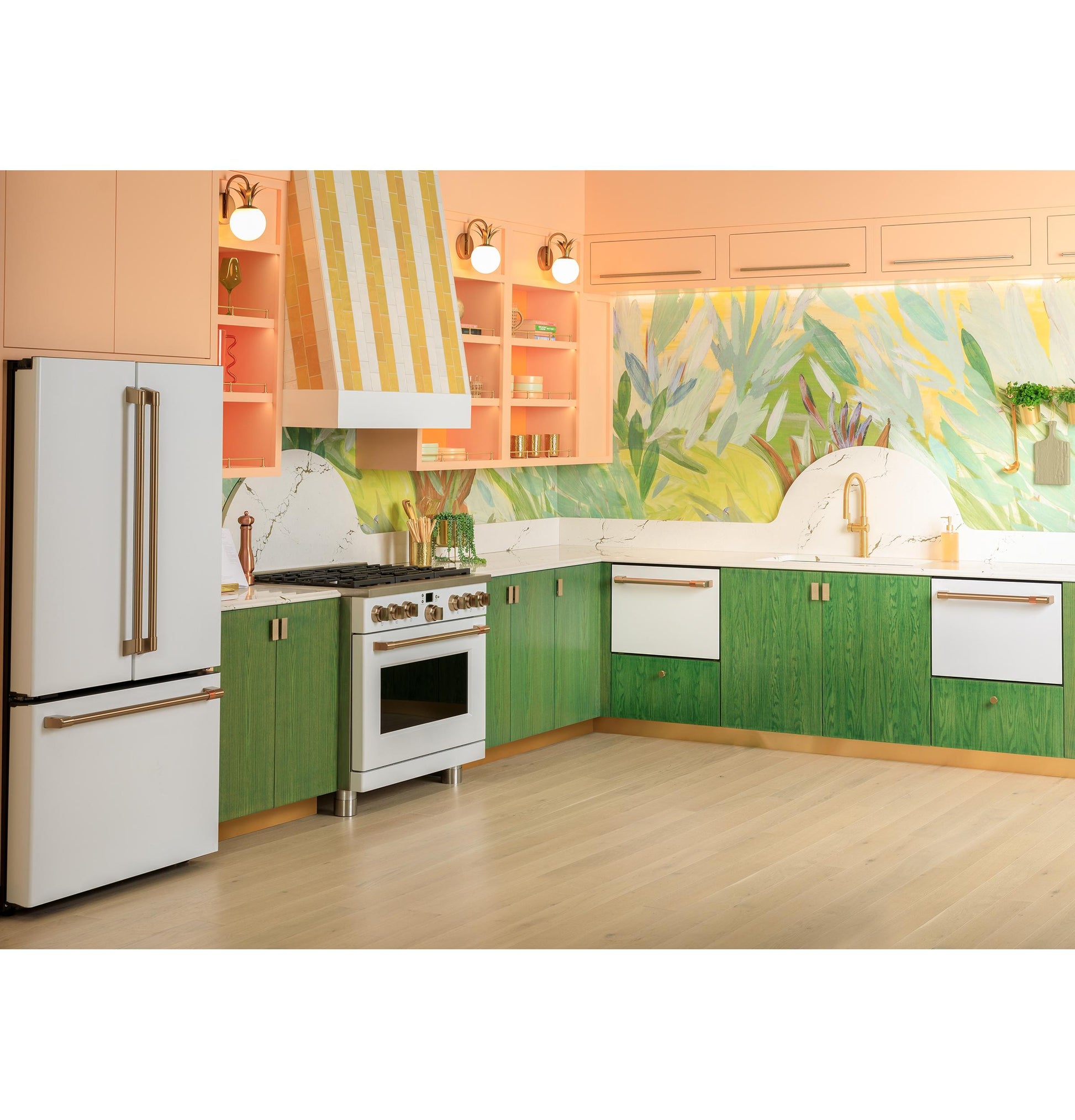

With one drawer on either side of the sink, this single-drawer dishwasher offers a beautiful aesthetic and gives owners the ability to experience the appeal of its ergonomic design with modern functionality.

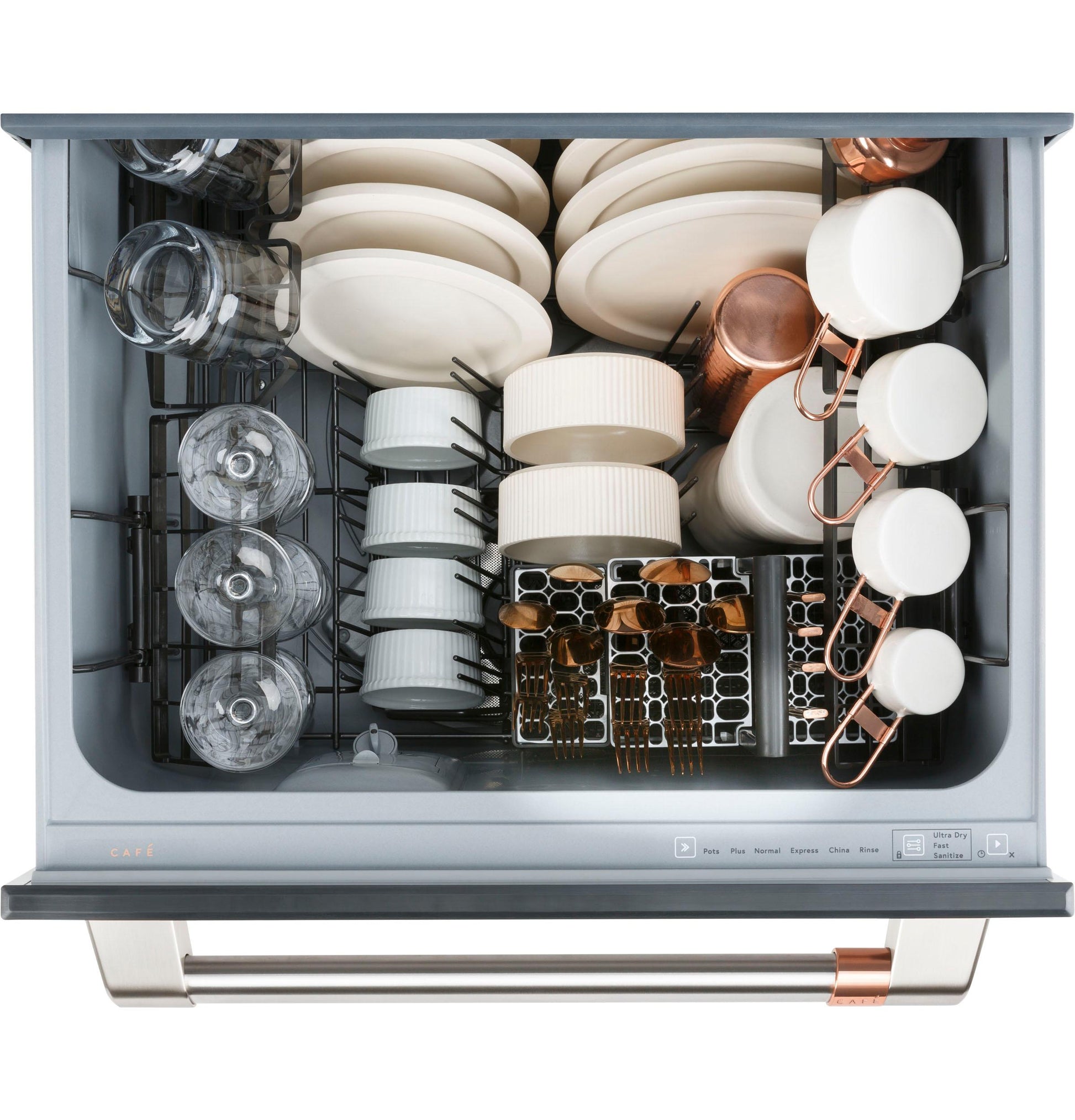

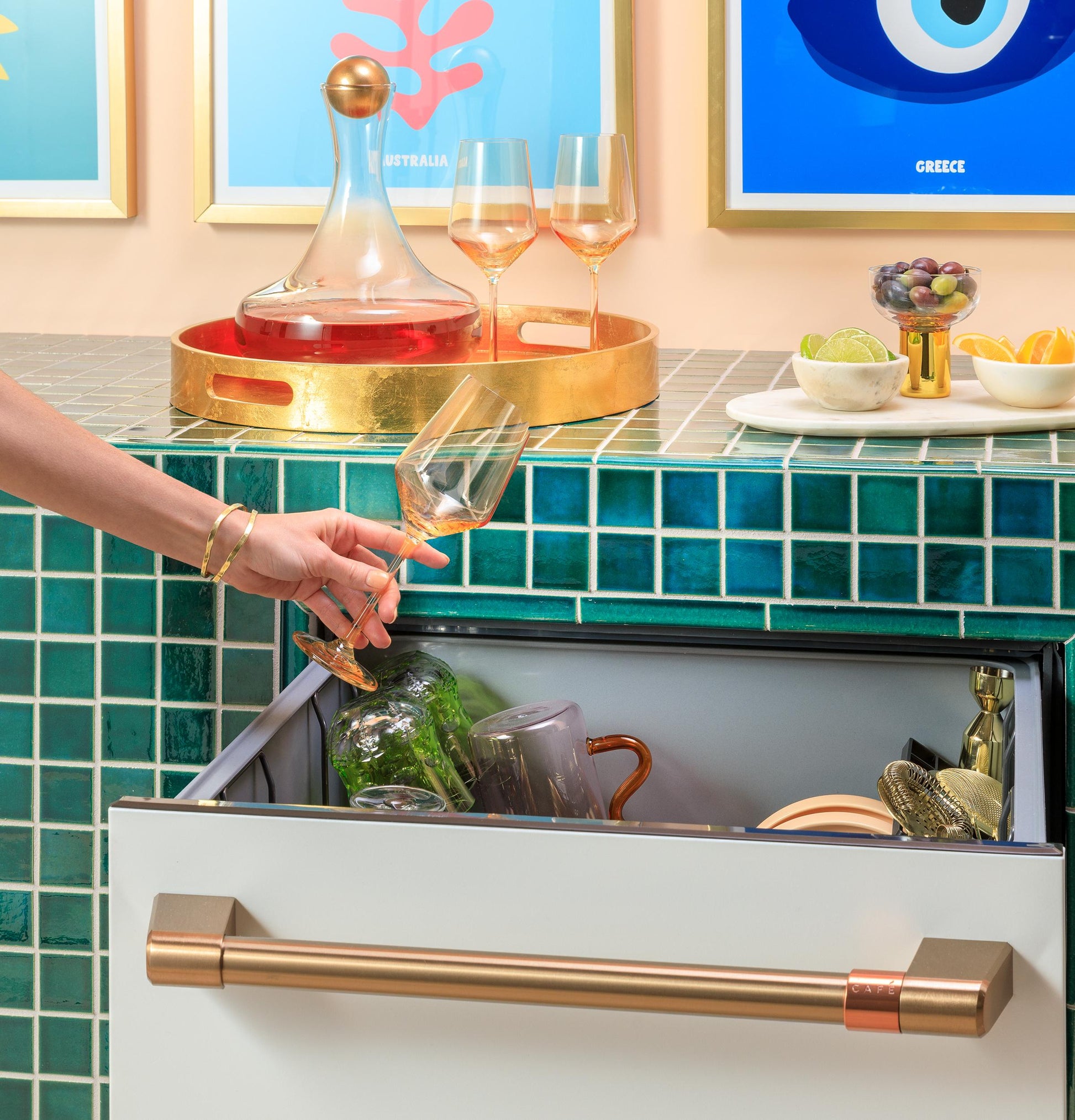

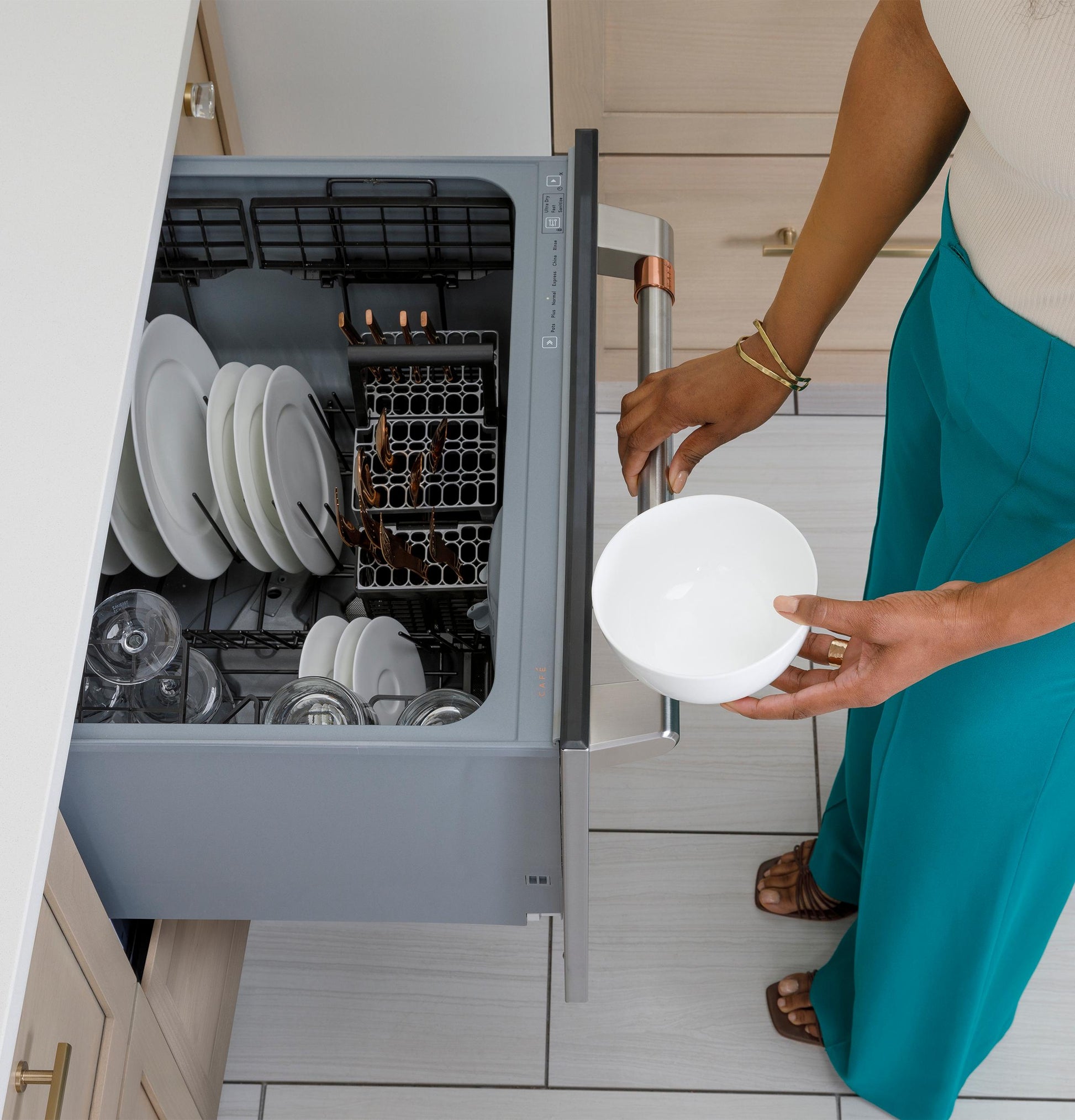

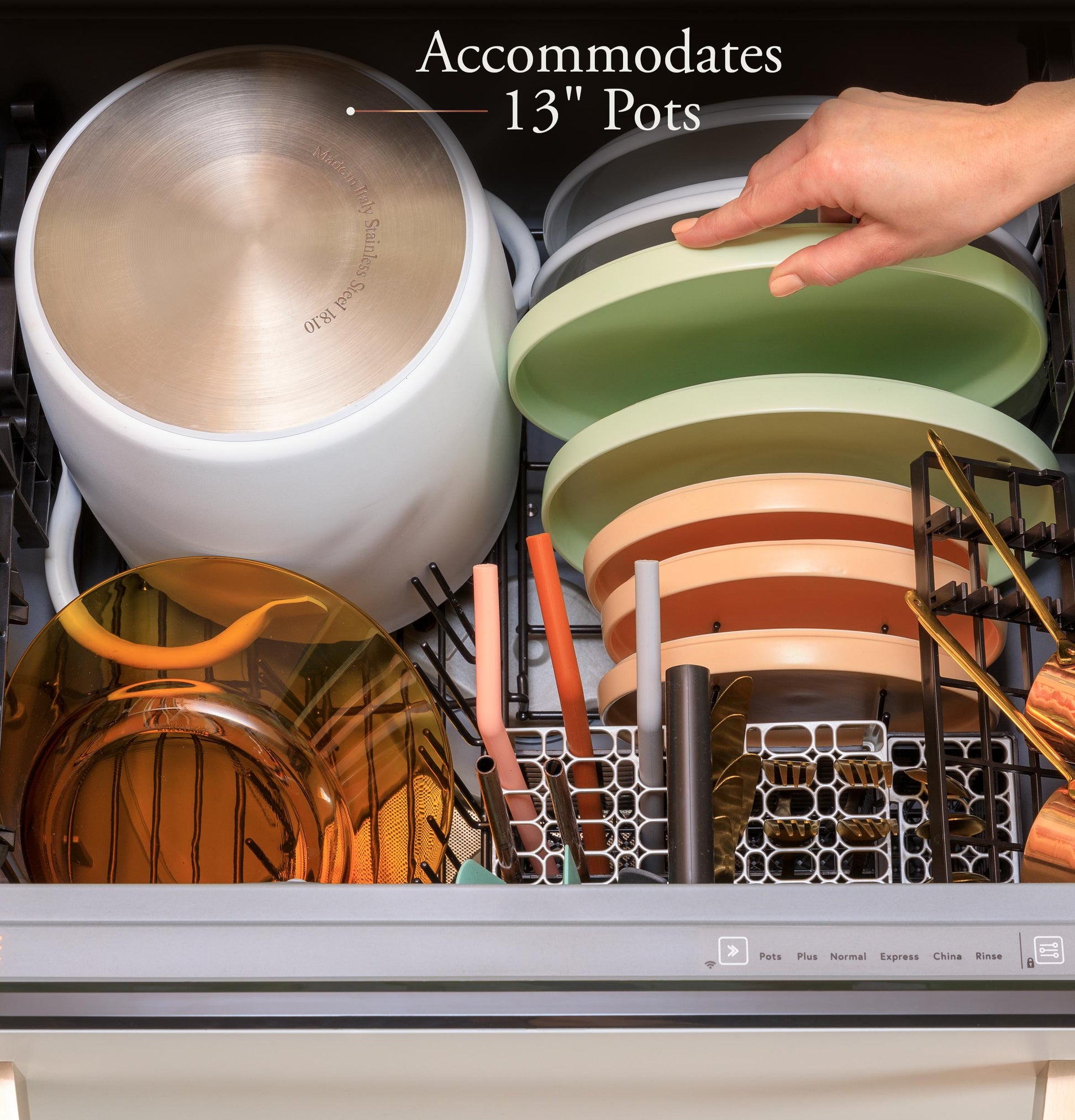

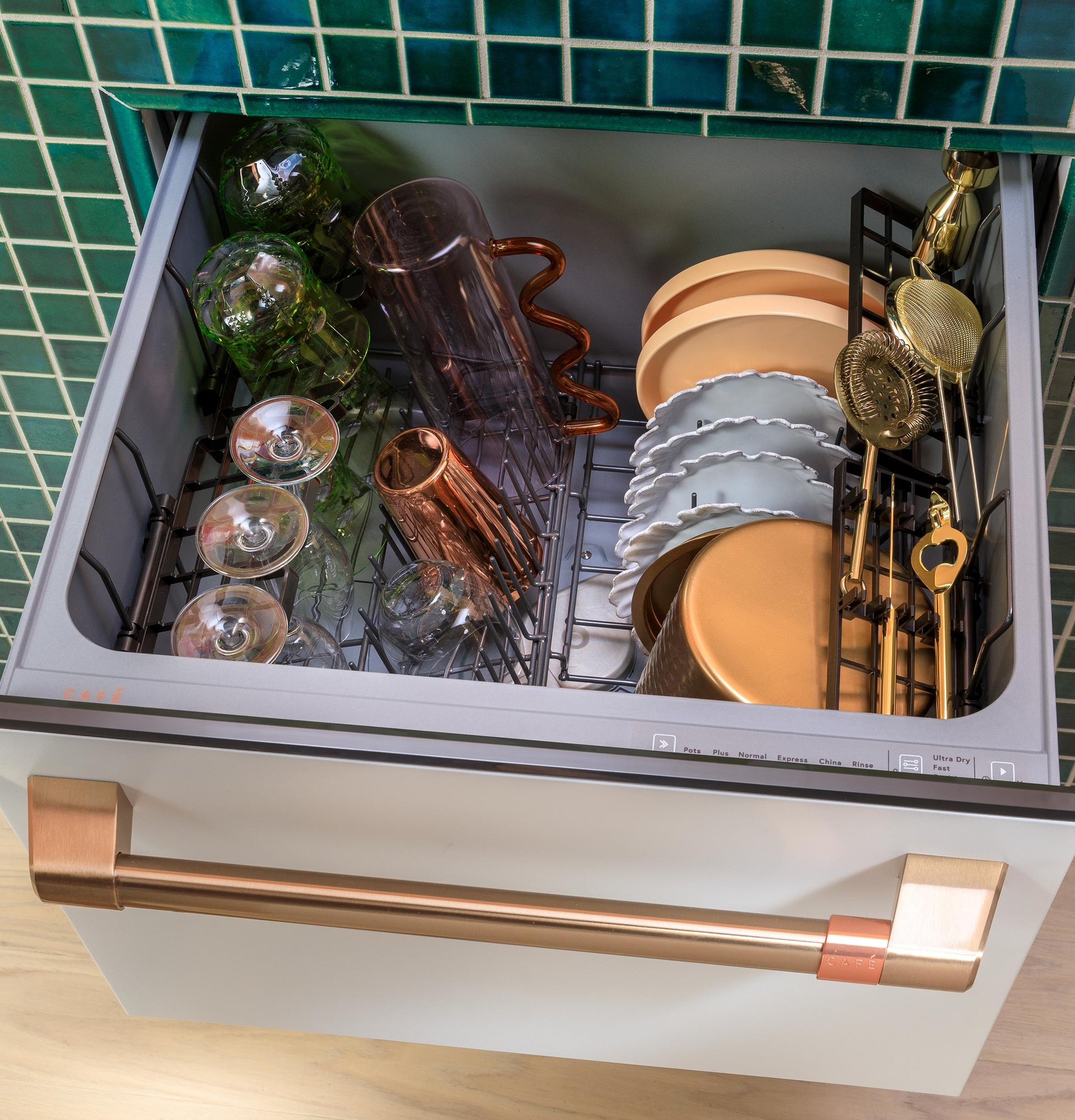

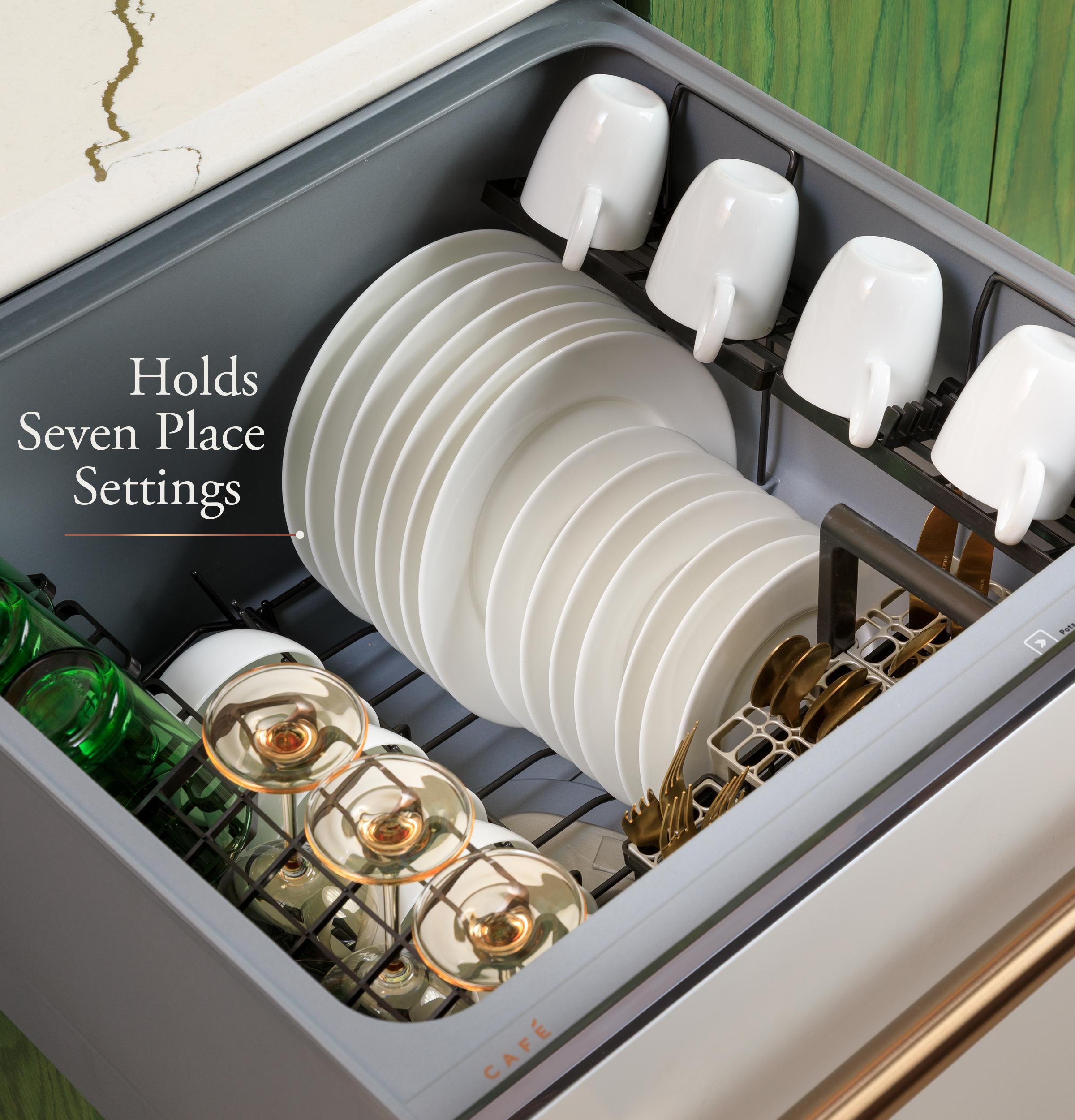

Accommodates Large Dish Loads

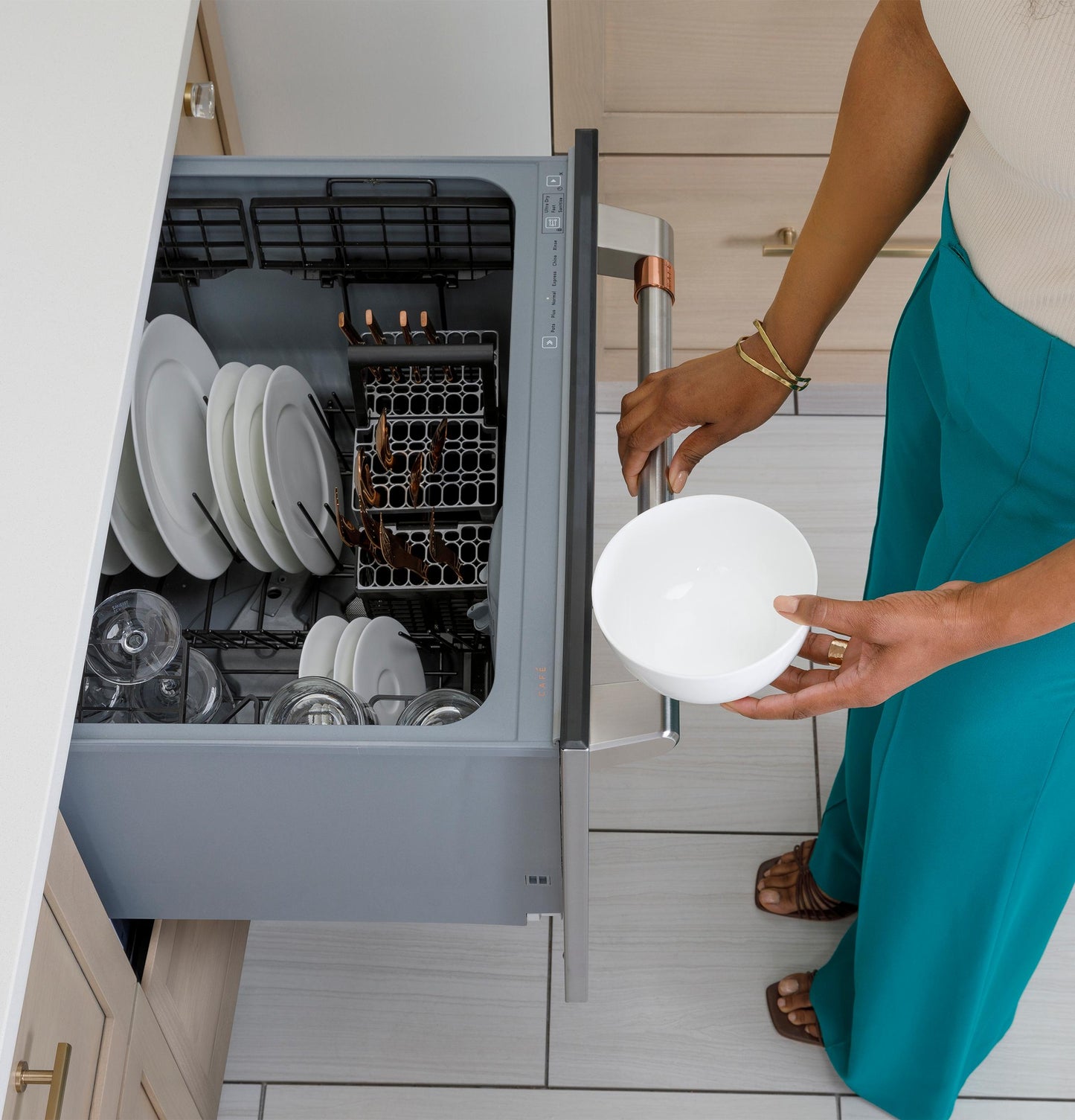

Easily accommodate 7 place settings and 13-inch pots in this large-capacity dishwasher that offers a place for everything.

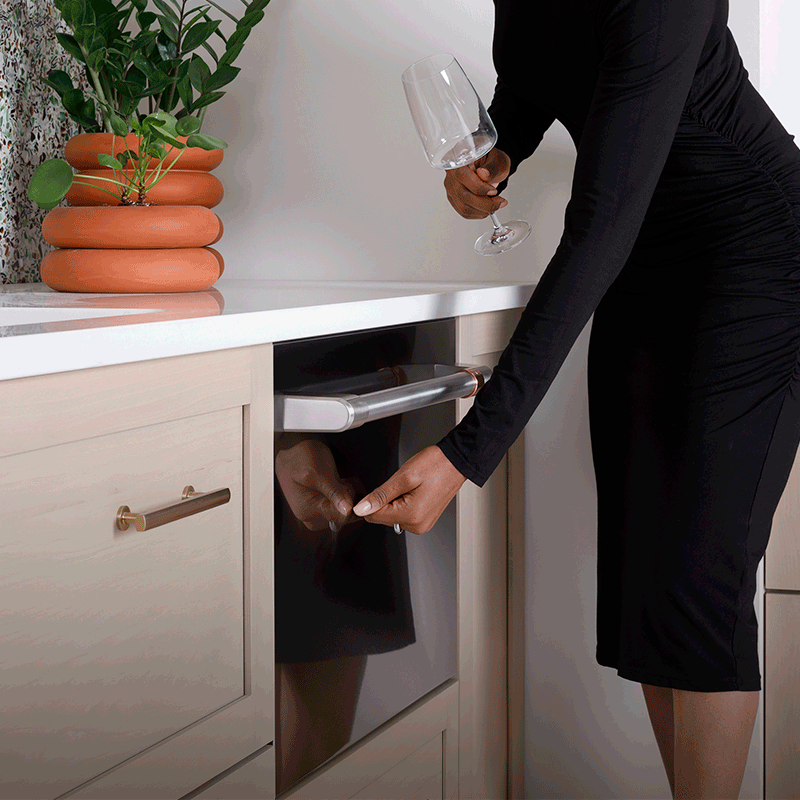

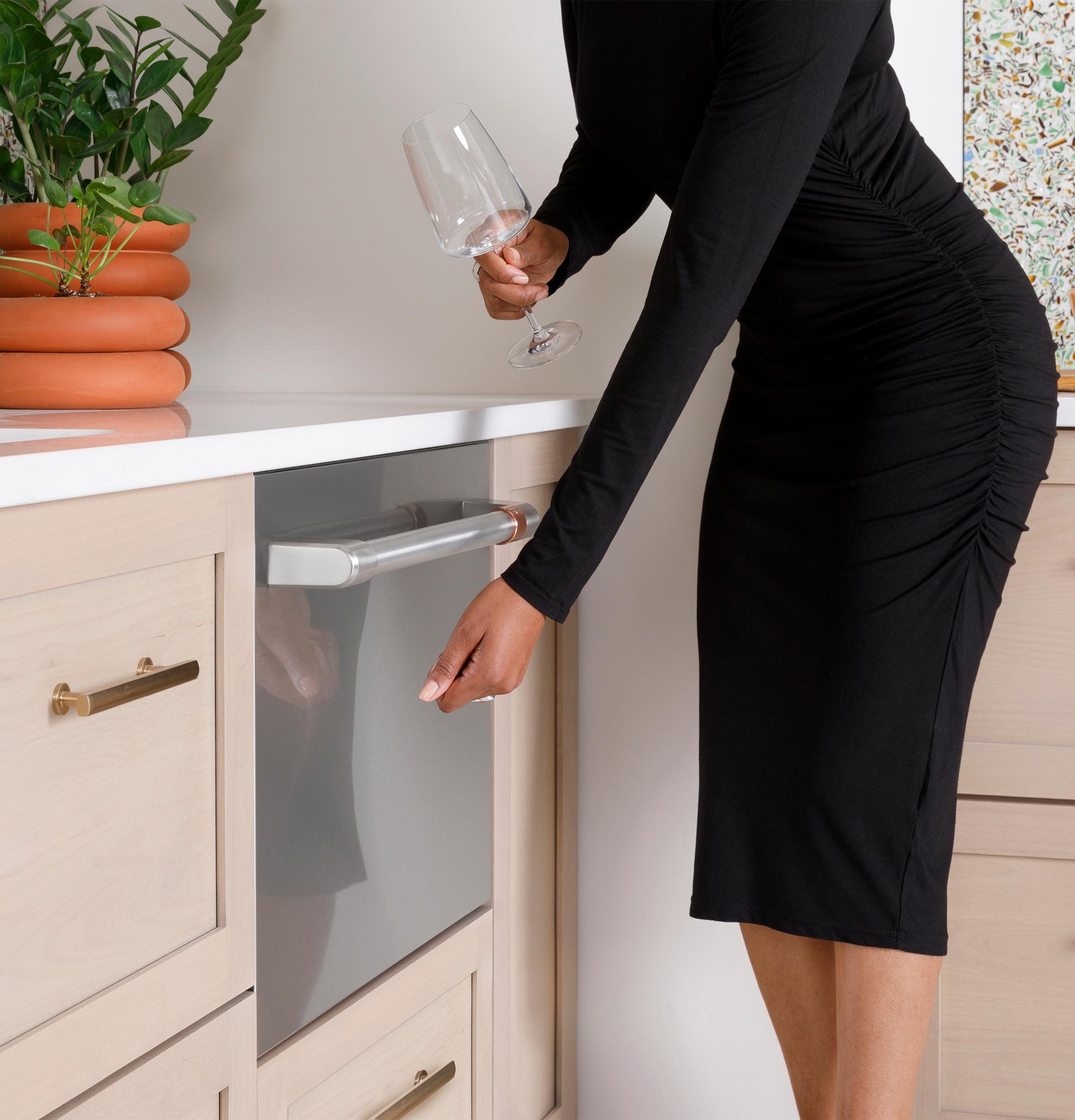

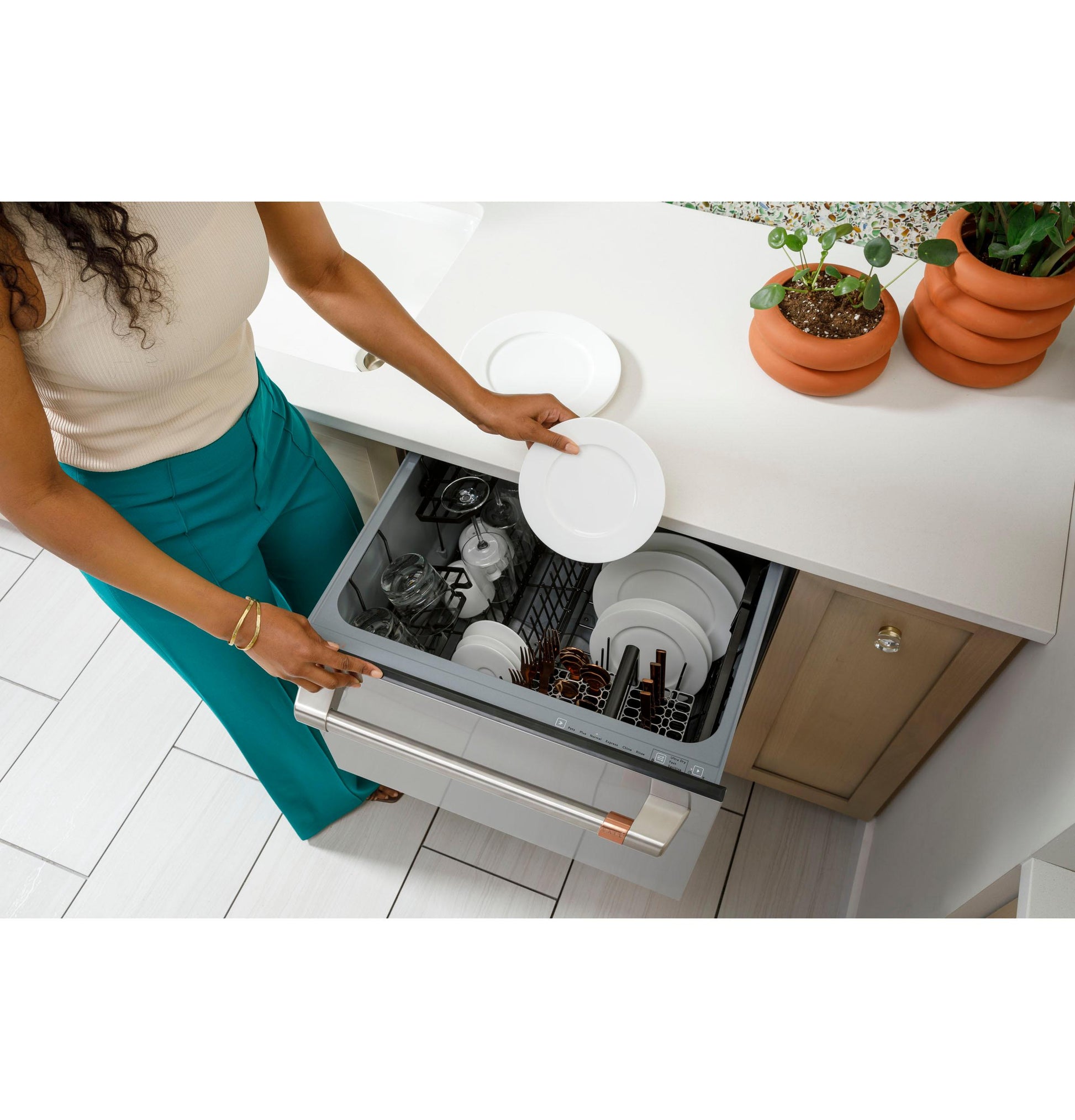

Easy to Load & Unload

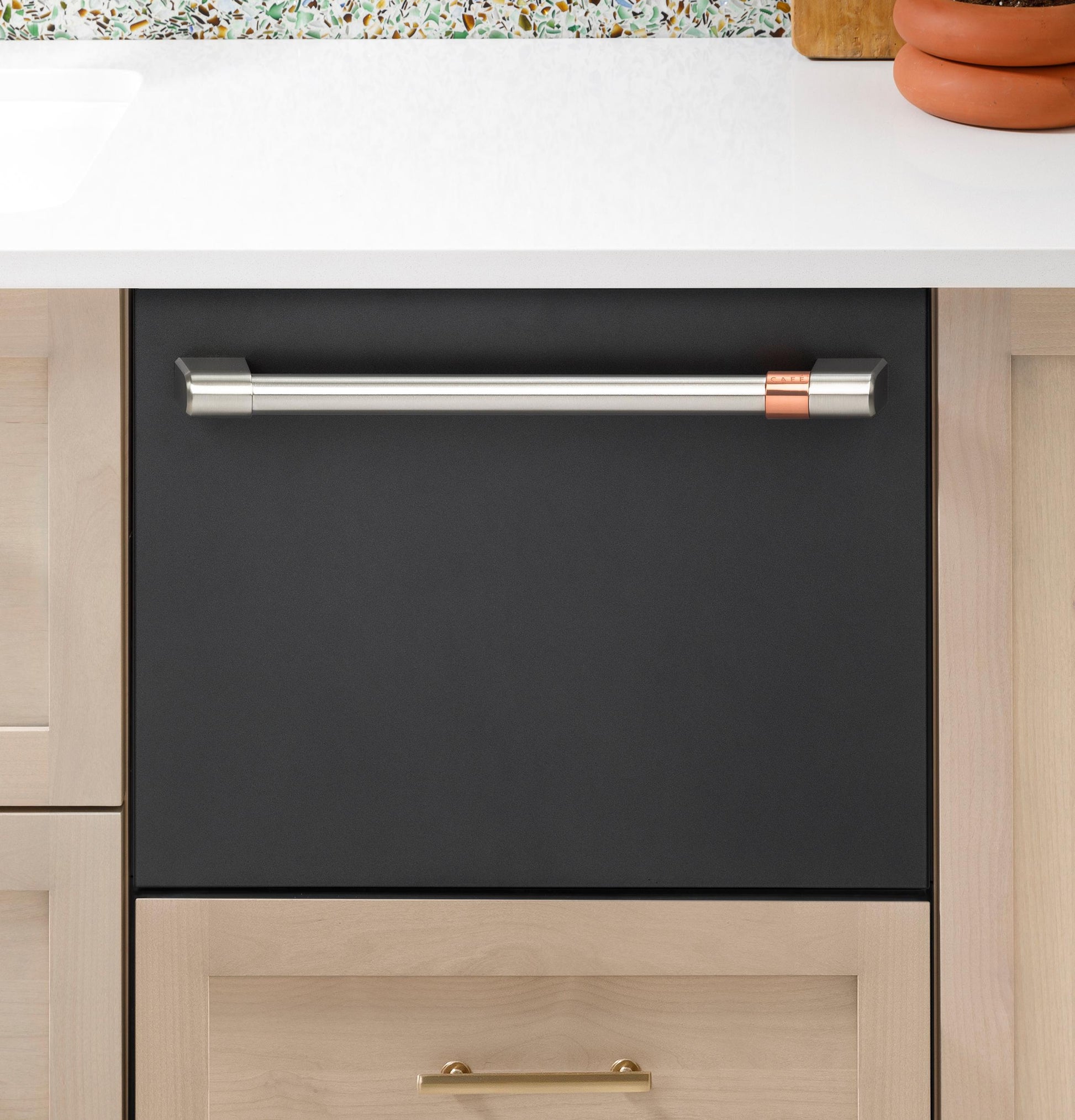

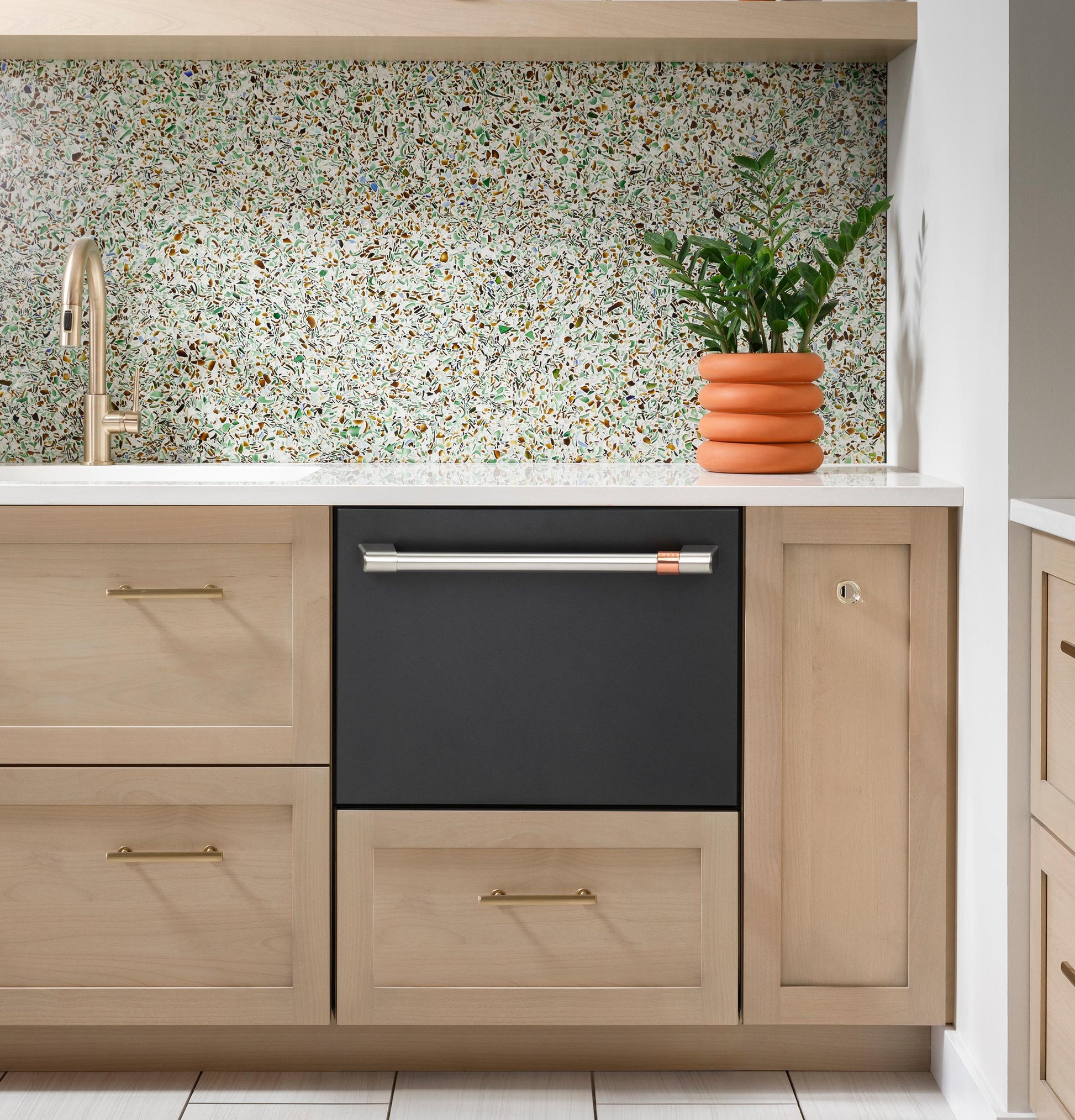

The single-drawer dishwasher is installed at counter height, so owners don't have to bend over to unload or load, making it the perfect solution for those who seek out ease and accessibility but don't want to sacrifice style.

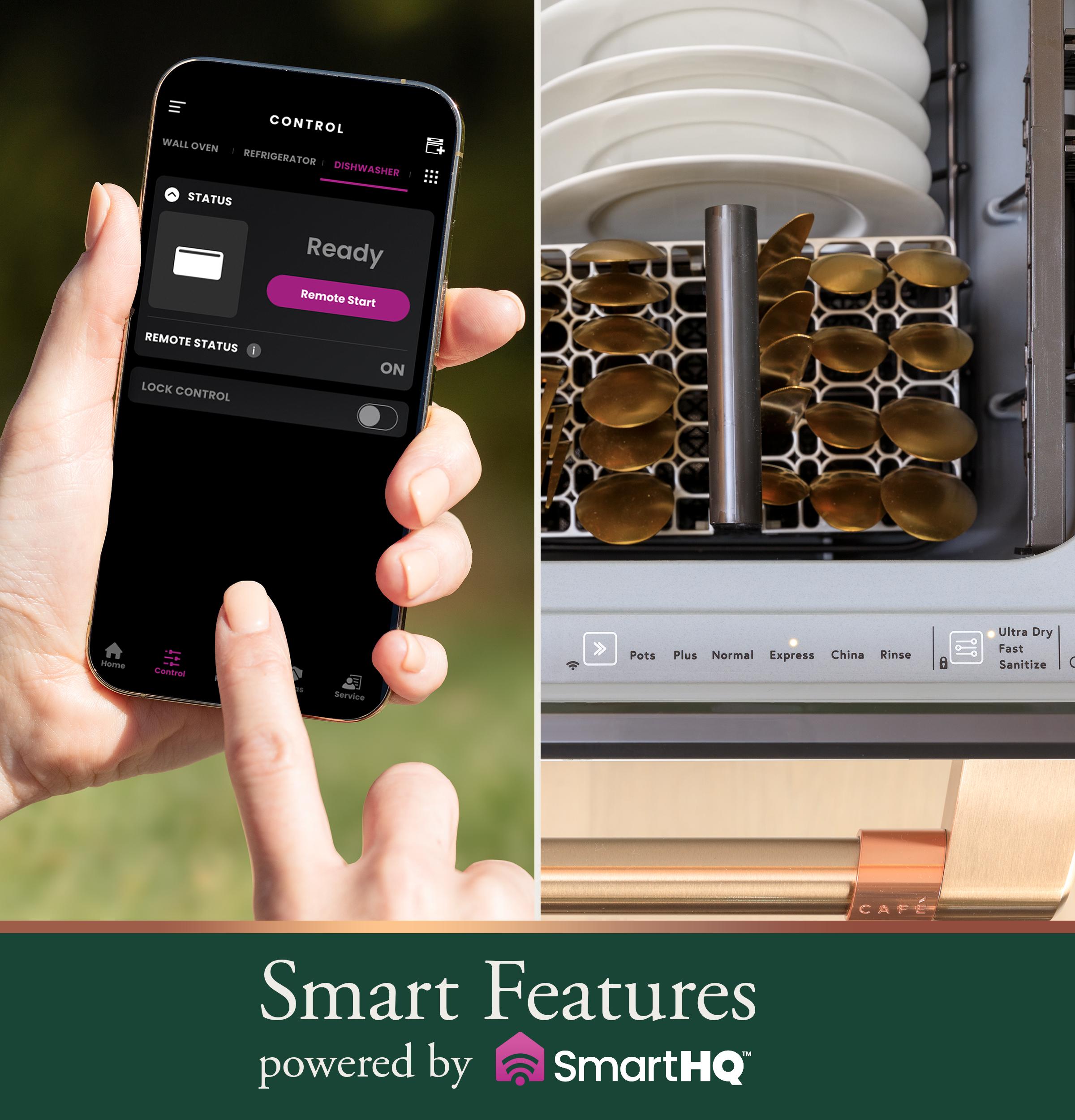

Built-in WiFI Powered by SmartHQ™
Built-In WiFi and the SmartHQ™ app make it easy to connect, control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features, including remote status and notifications.

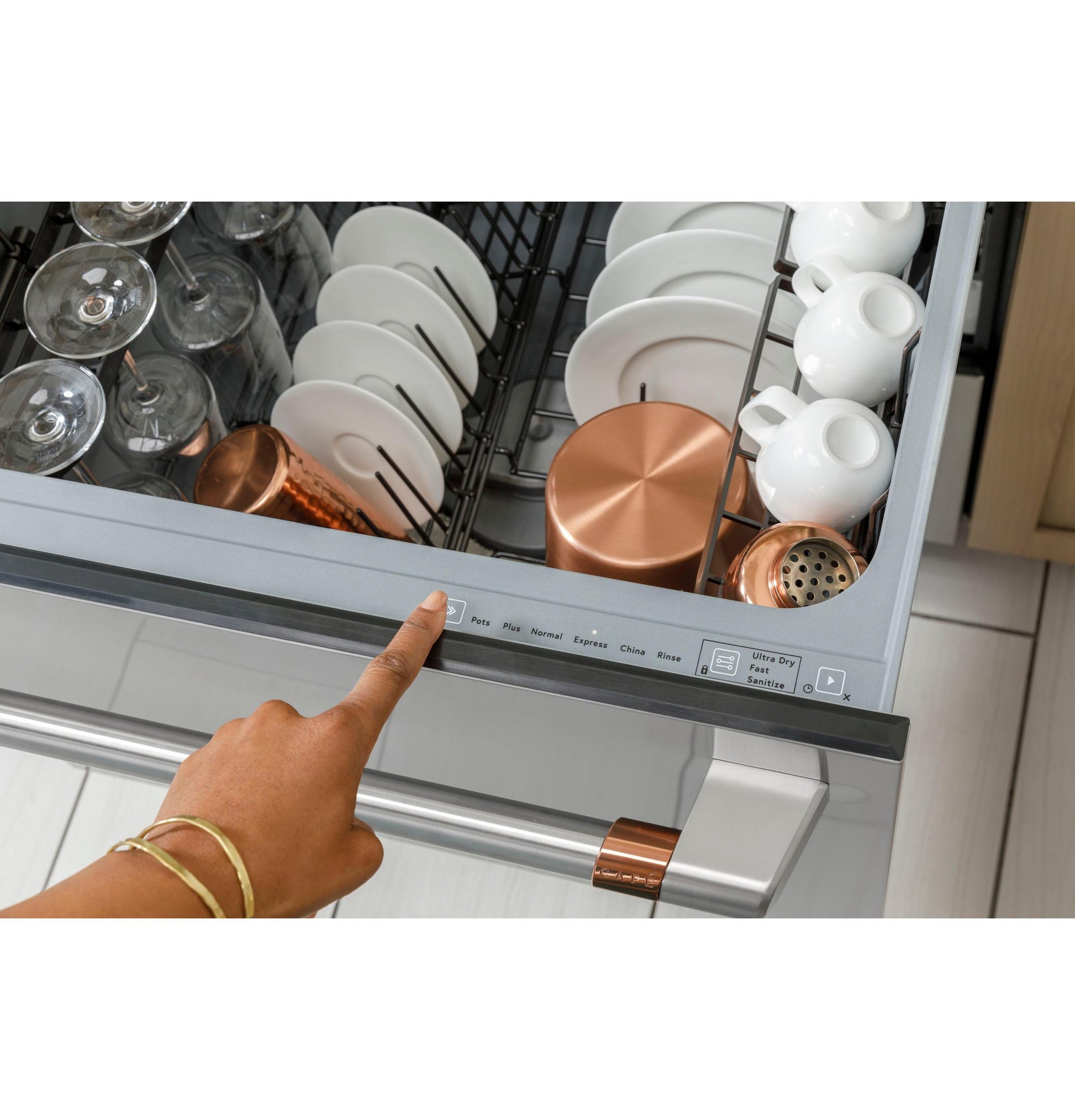

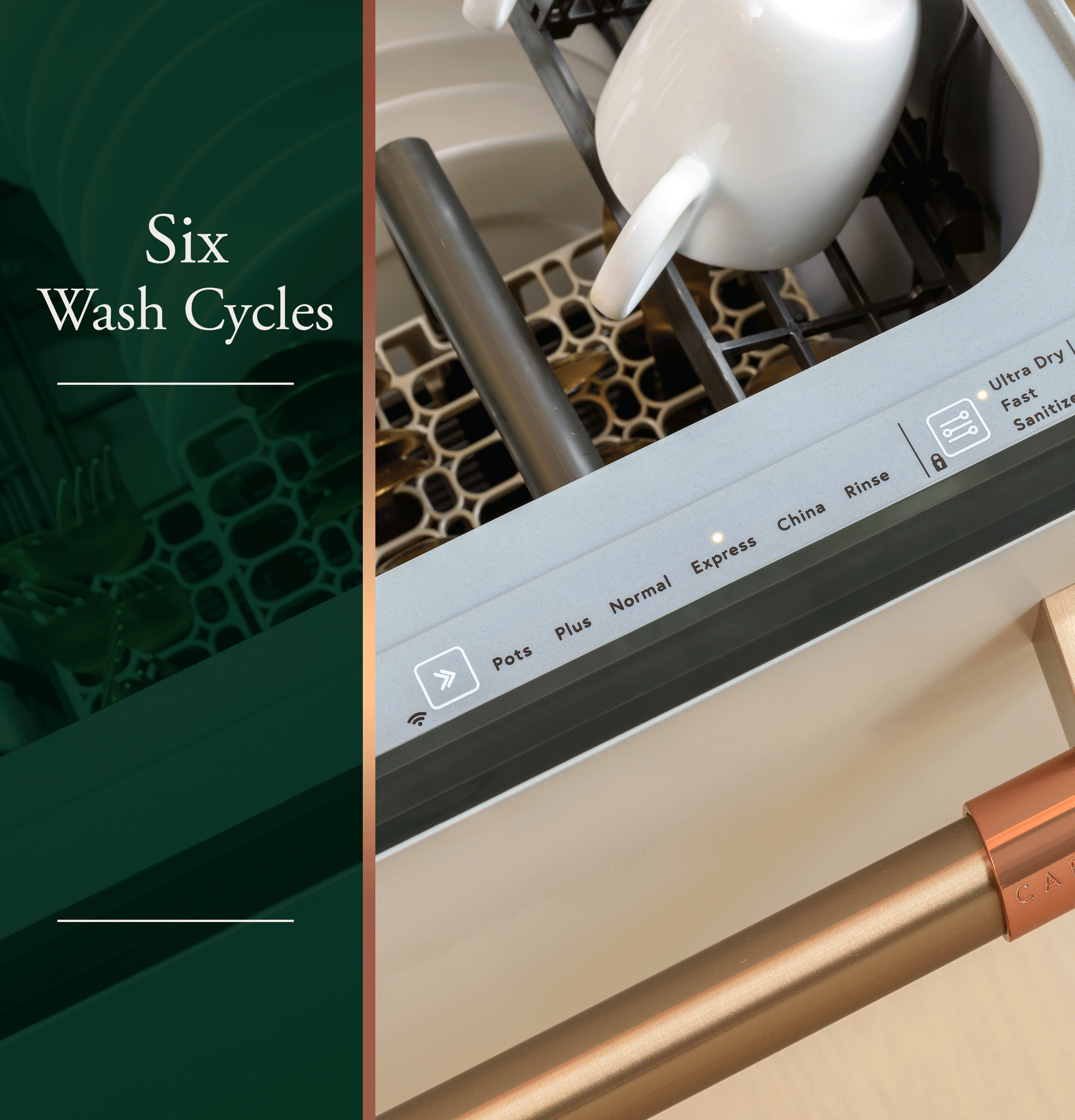

6 Wash Cycles
Go beyond the normal wash and dry with six cycles, including Fast Wash, Sanitize, and Ultra Dry options in this single drawer dishwasher.

45 dBA Single Drawer
Keep your kitchen space peaceful through every cycle thanks to this 45-decibel dishwasher.

Knock to Pause
Stop your dishwasher mid cycle with a convenient Knock to Pause feature. Then, simply press Start/Play to resume.

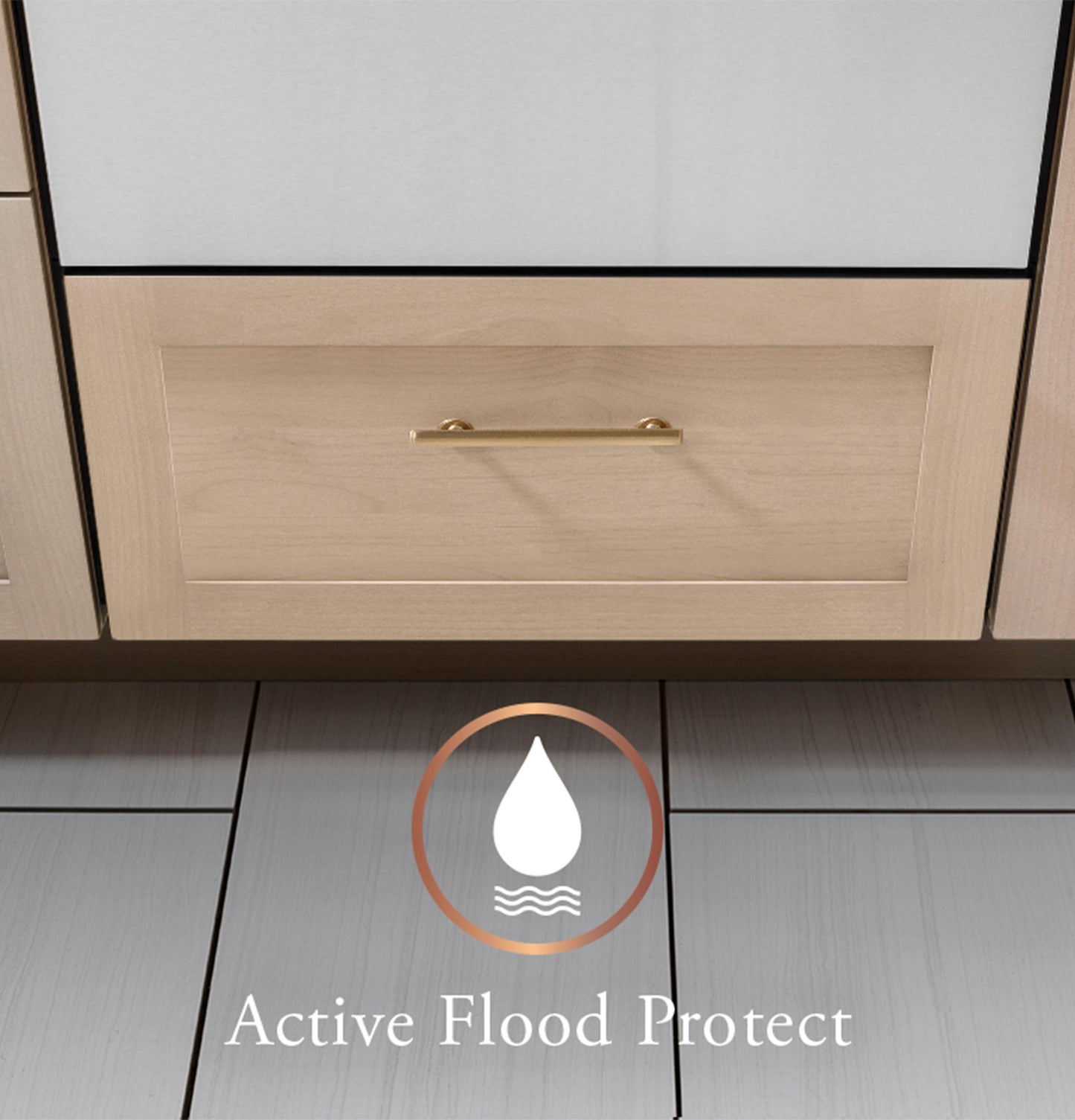

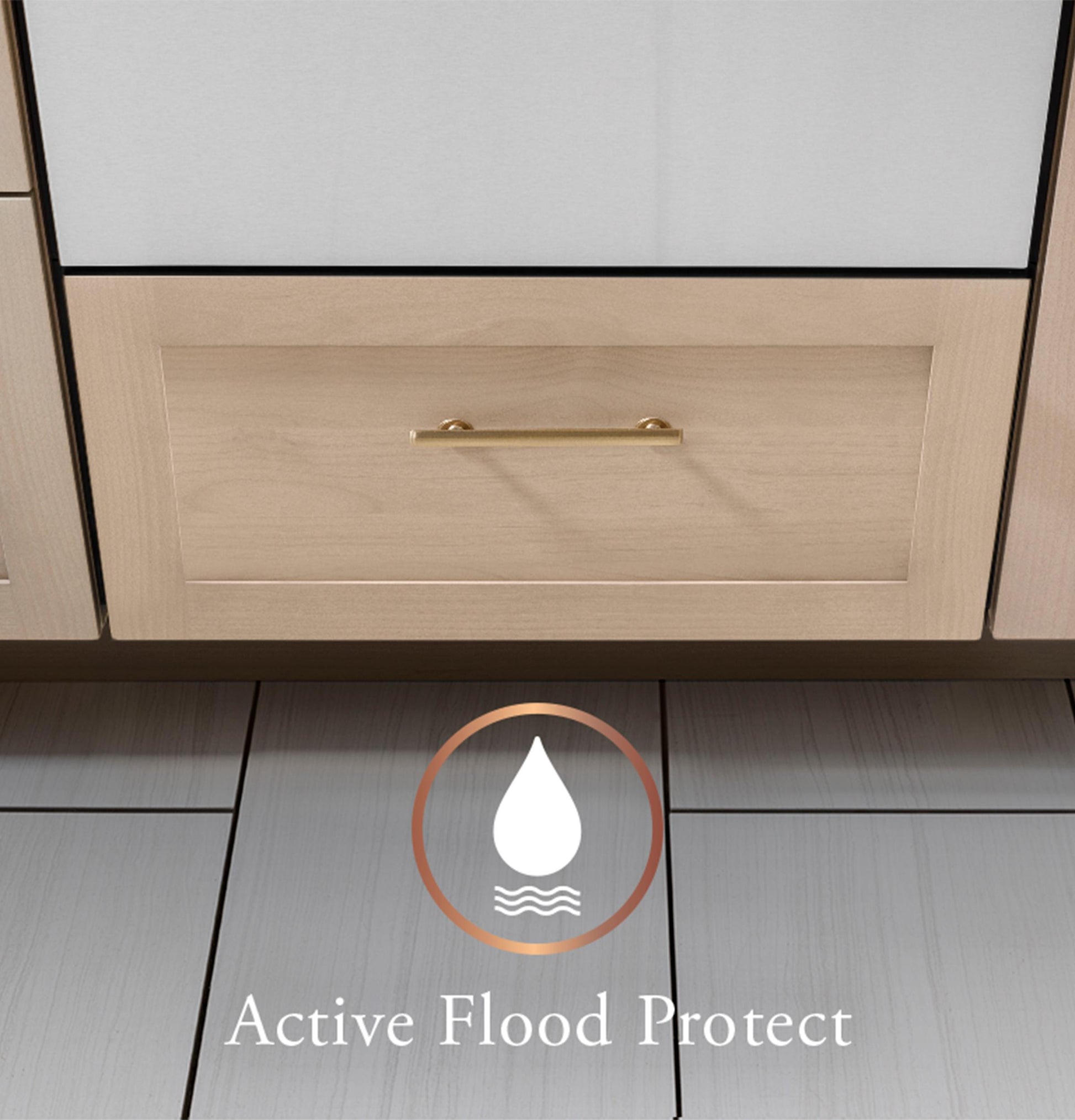

Water Leak Sensor
The Water Leak Sensor prevents potential overflows by canceling the wash cycle before a flood can occur and alerting you with blinking lights and a tone.

Delay Start
This delay start dishwasher lets you set it to start while you're working, sleeping or out of the house.

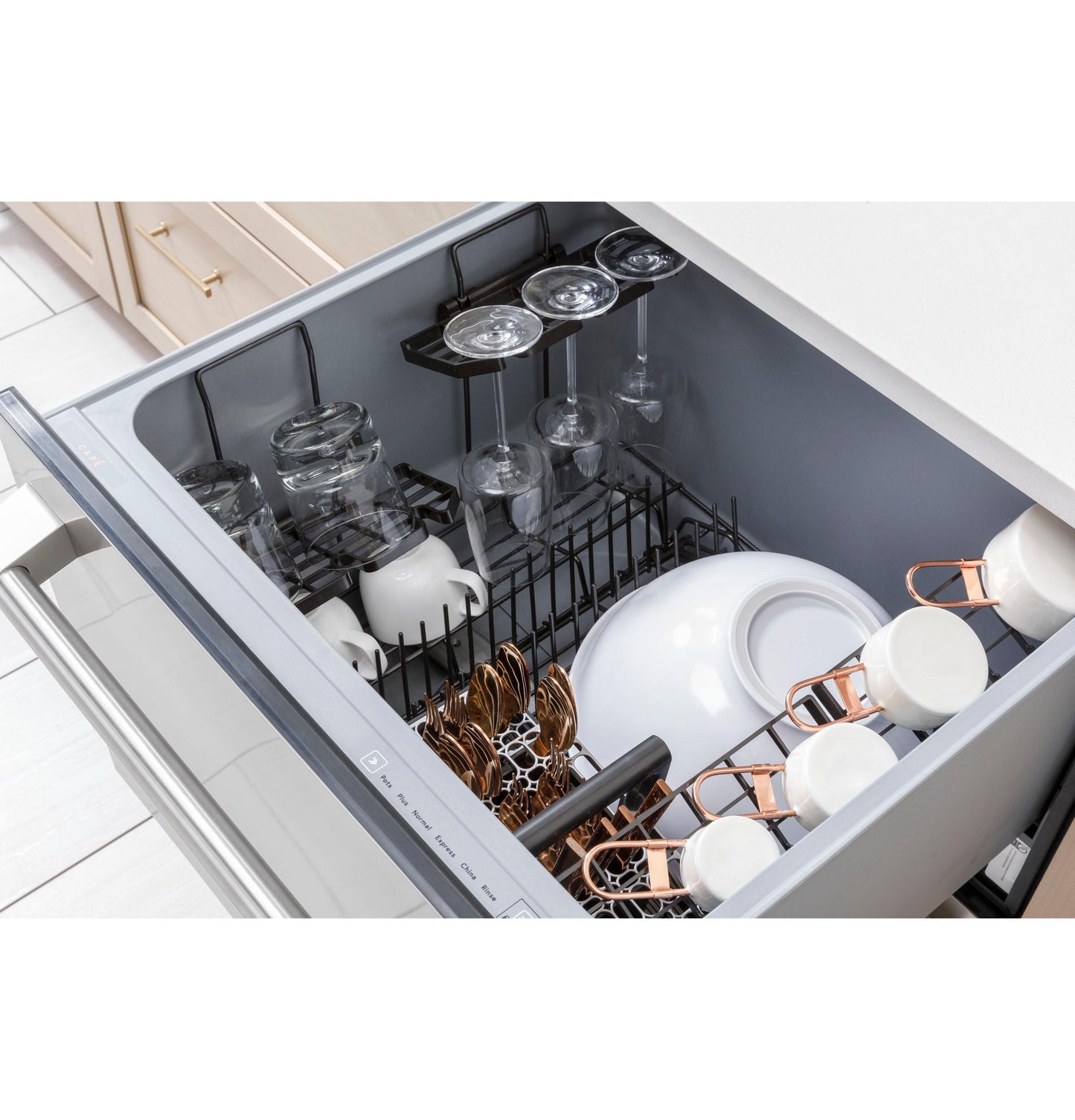

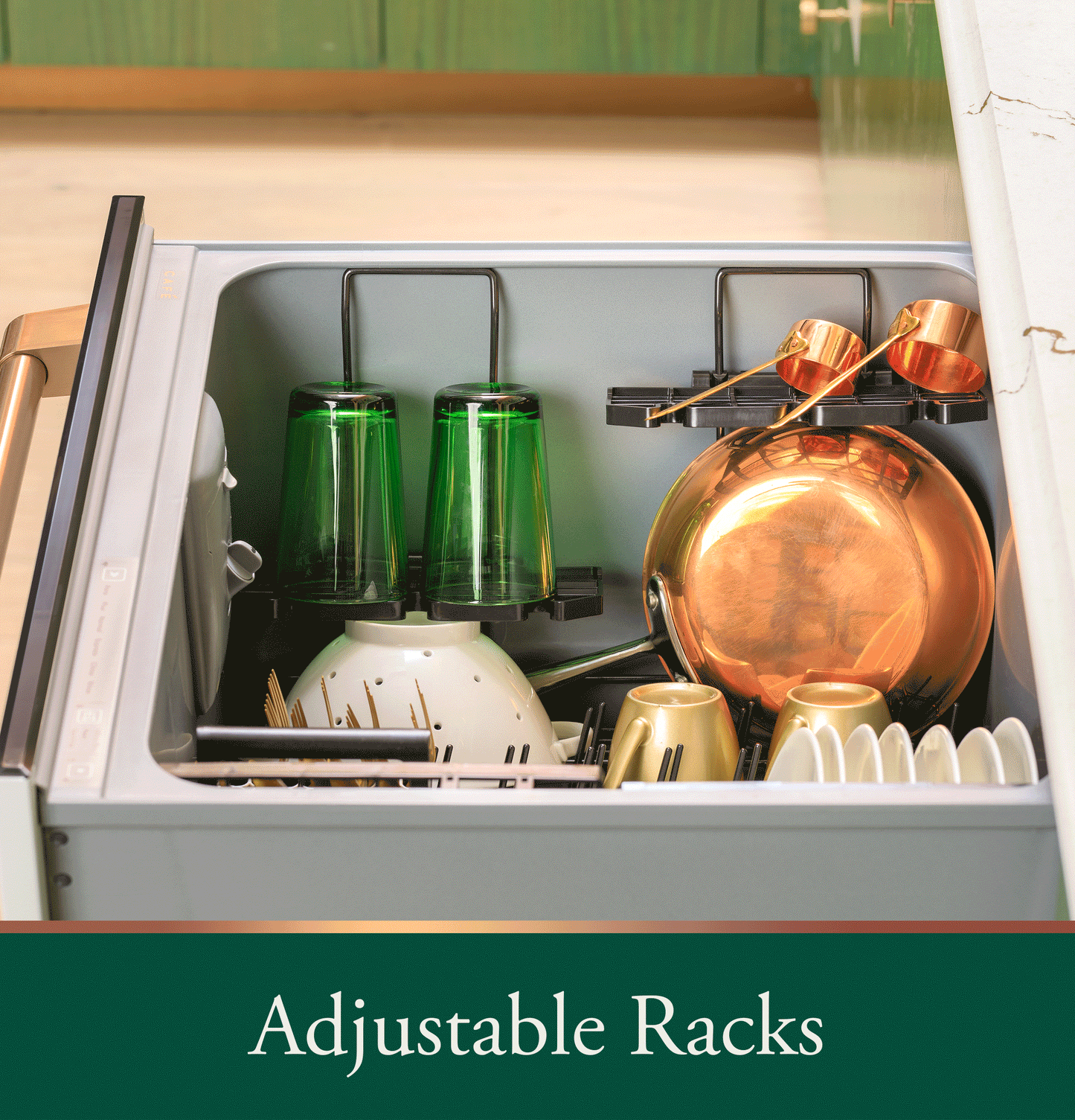

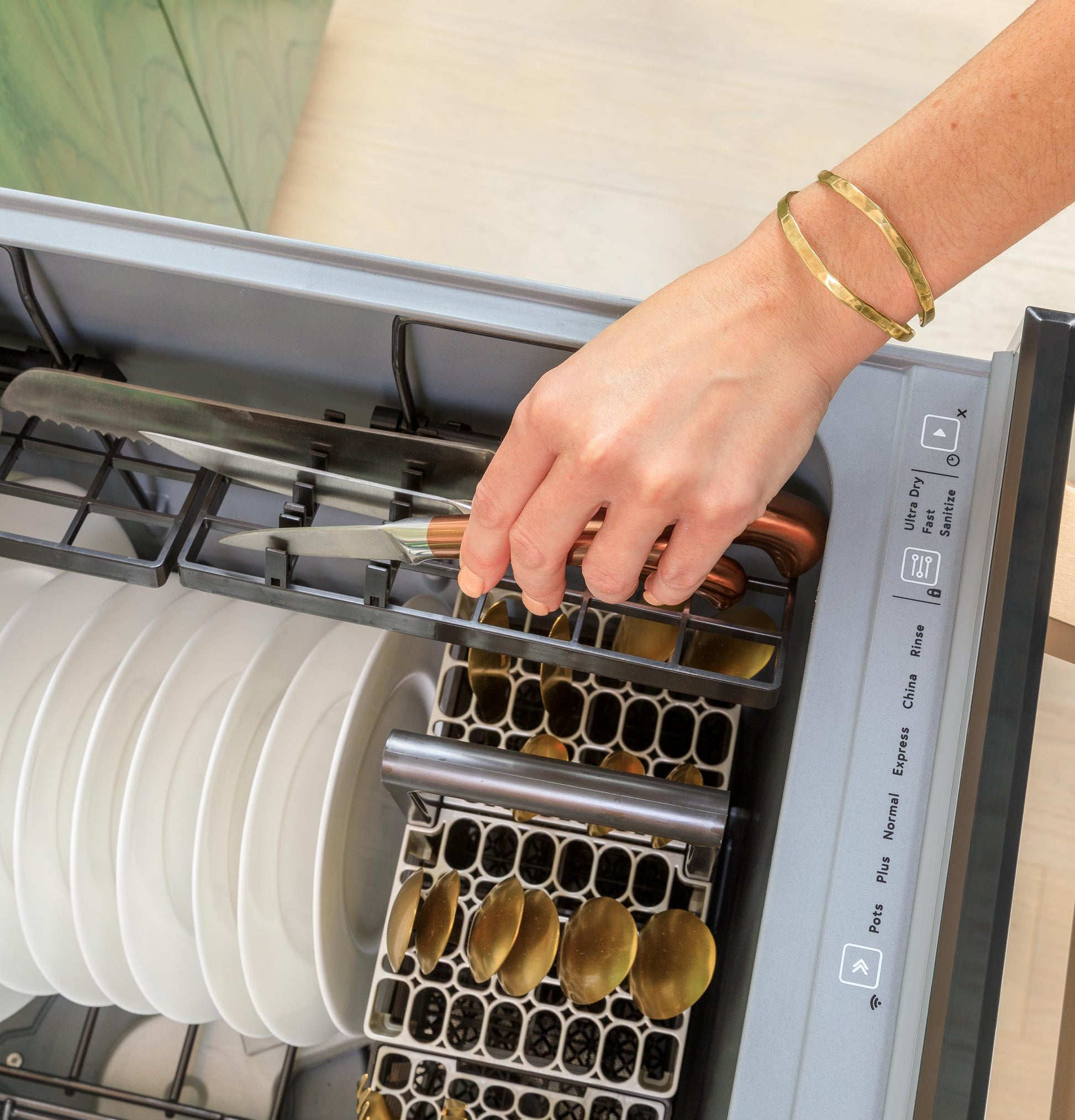

Adjustable Racks
Load with flexibility and maximize space thanks to adjustable racks that can be adjusted to accommodate any item.

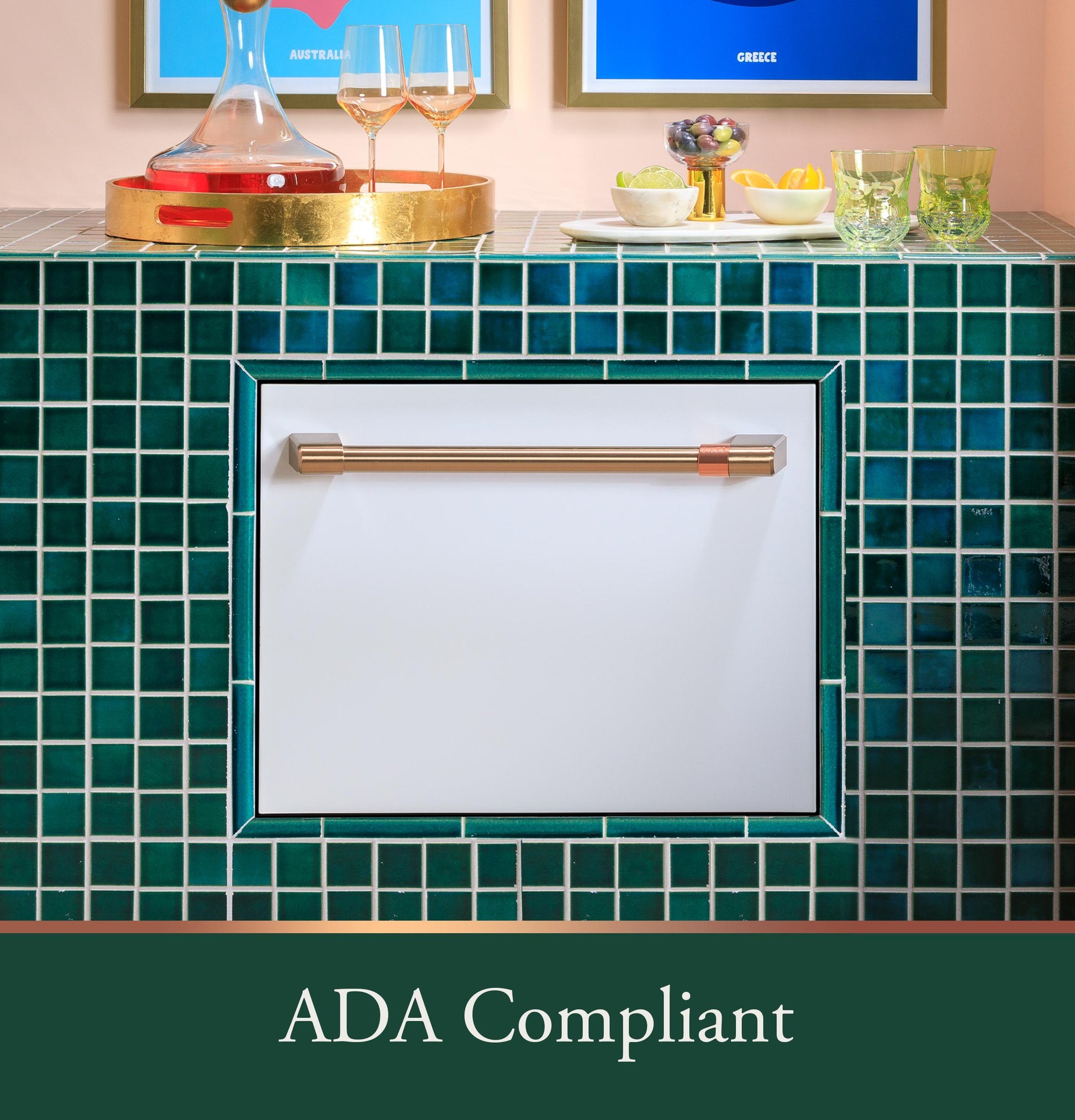

ADA Compliant
Easily install this accessible dishwasher at an American Disabilities Act (ADA) compliant height for loading and unloading.

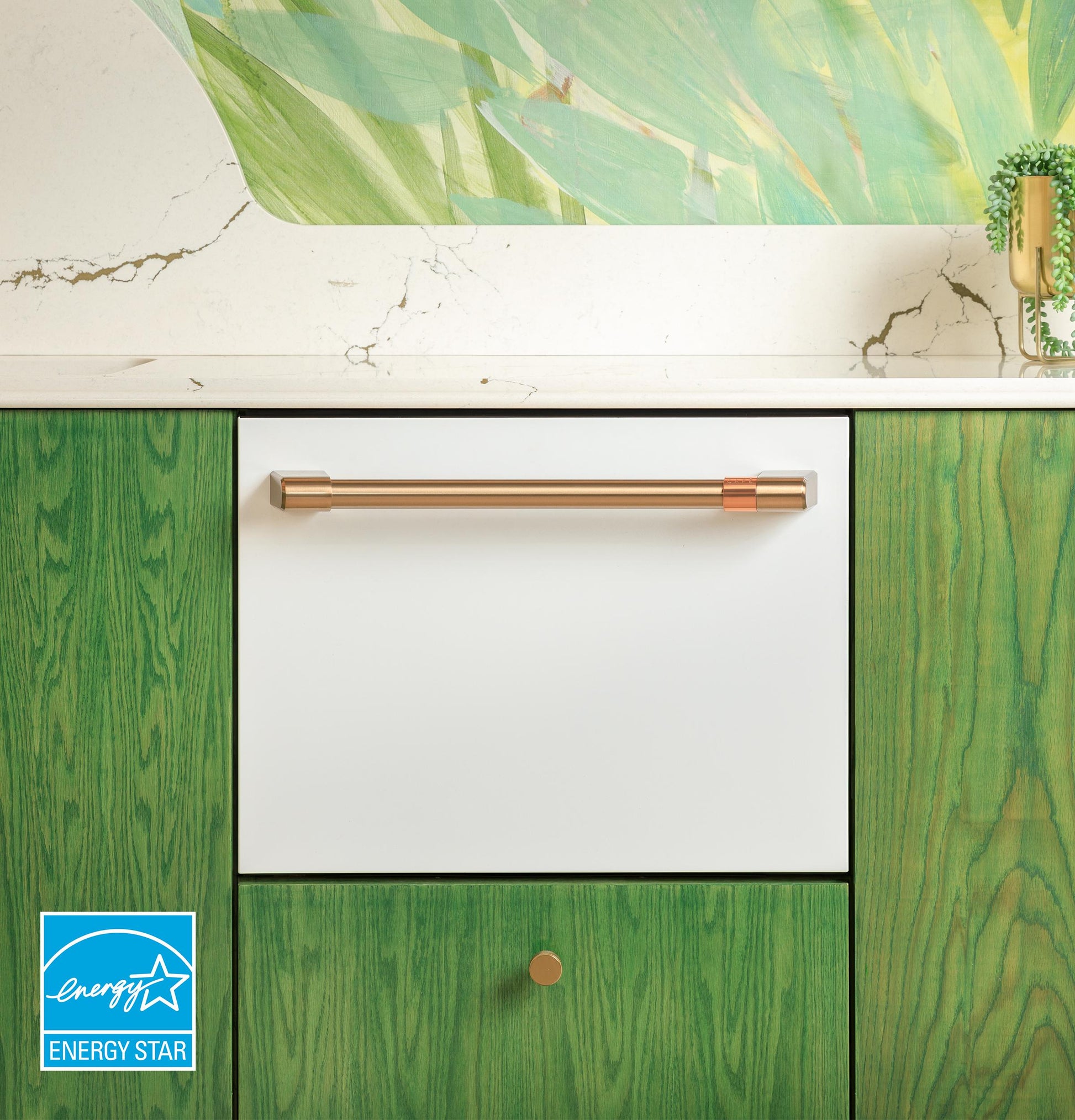

ENERGY STAR® Qualified
Wash every load with a clean conscience thanks to this efficient ENERGY STAR® dishwasher that saves energy without sacrificing features or functionality.

APPEARANCE
Handle	Café™
Installation	Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included
Handle Color	Brushed Stainless
Door Style	1 Drawer
Door Appearance	1 Drawer

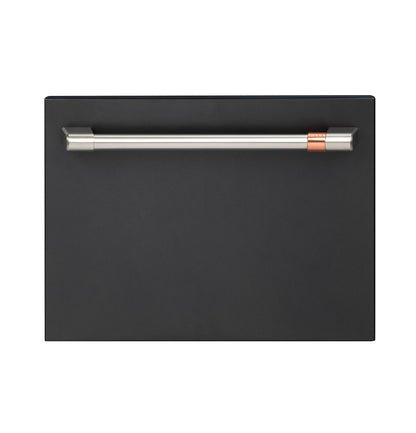

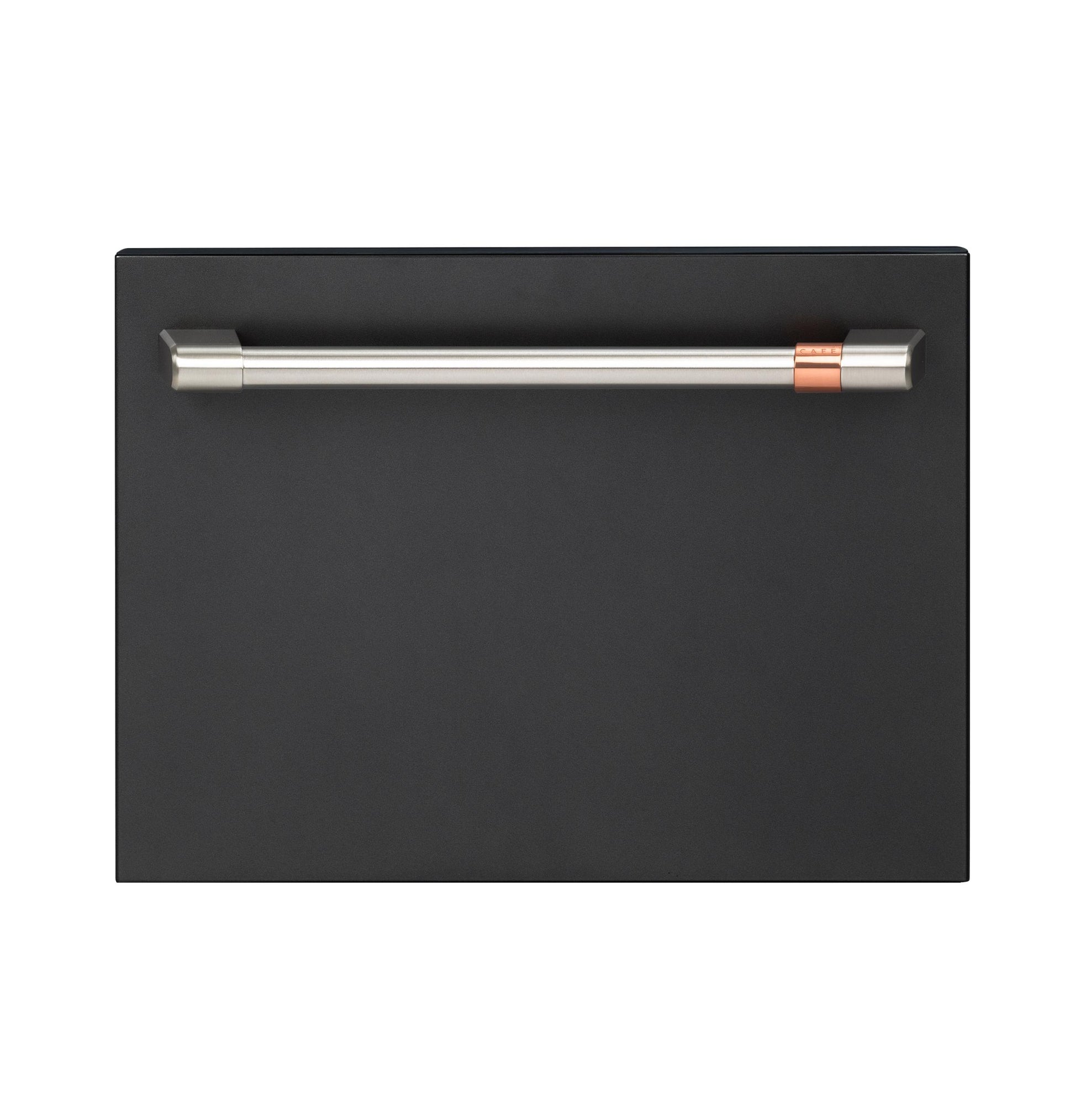

Color Appearance	Matte Black
Control Panel Color	Grey
Handle Design	Customizable
POWER / RATINGS
Power Connection	Power Cord - Included
Energy Consumption (kWh/year)	155
Electrical Requirements	120V ; 60Hz ; 4.7A
Calrod Heater Watts	503
Volts/Hertz/Amps	120V; 60Hz; 4.7A
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Door Insulation	Yes
Quiet Package	45 dBA
Outer Wrap	Full Steel Inclosure
Motor Type	Variable Speed, BLDC
ACCESSORIES

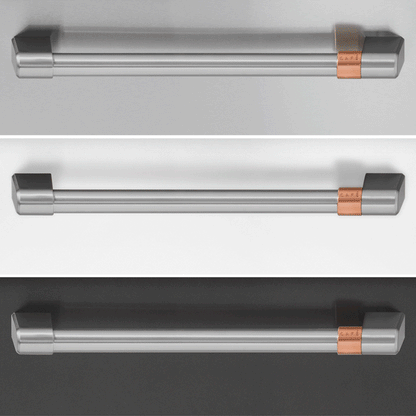

Optional Kits	CXADTH1PMBT - Brushed Black CXADTH1PMBZ - Brushed Bronze CXADTH1PMCG - Brushed Brass CXADTH1PMCU - Brushed Copper CXADTH1PMFB - Flat Black CXADTH1PMSS - Brushed Stainless

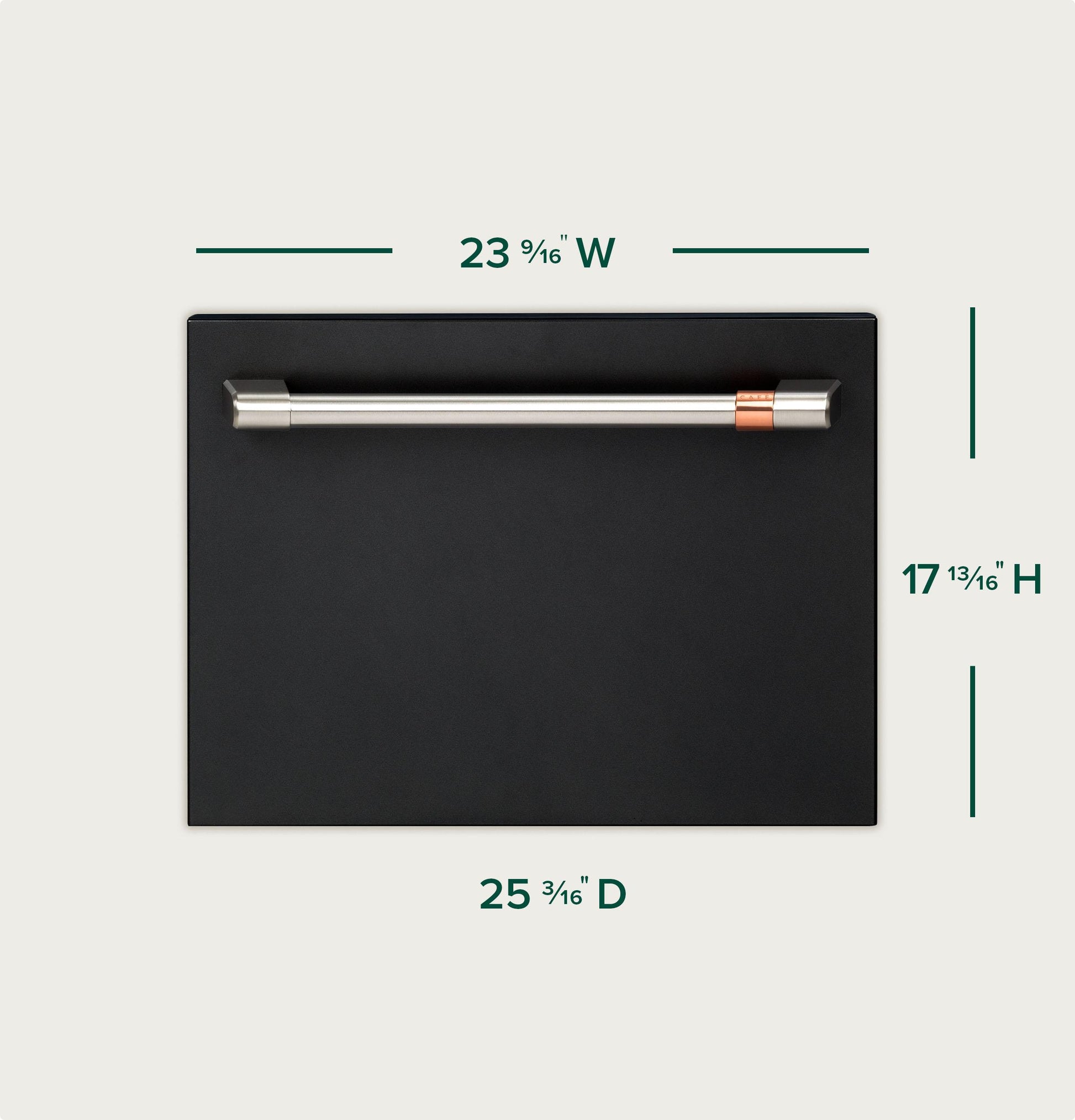

WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height	17.9375 in
Cutout Height (in)	17.9375 in
Cutout Width (in)	23.625 in
Overall Depth	0.1875 in
Cabinet Width	24 in
Net Weight	50 lb
Overall Width	23.5625 in
Depth Without Handle	0.5625 in
Approximate Shipping Weight	50 lb
Overall Height	17.8125 in
Overall Depth with Handle	0.1875 in
Cutout Depth (in)	22.8125 in
Height w/Legs Extended - Maximum Height	17.9375 in
Depth with Door Open	21.5625 in
FEATURES
Wash System	1 independent wash system
Tub Type	Single Drawer
Additional Protection	Active Flood Protect
Number of Place Settings	7
Dishwasher Options	Ultra Dry; Fast; Sanitize; Lock Controls, Delay
Latch	Pull with Handle; Interior lid closes during cycle
Number of Options	3
Style	Built-In Top Control
Water Filtration System	100% Filtration

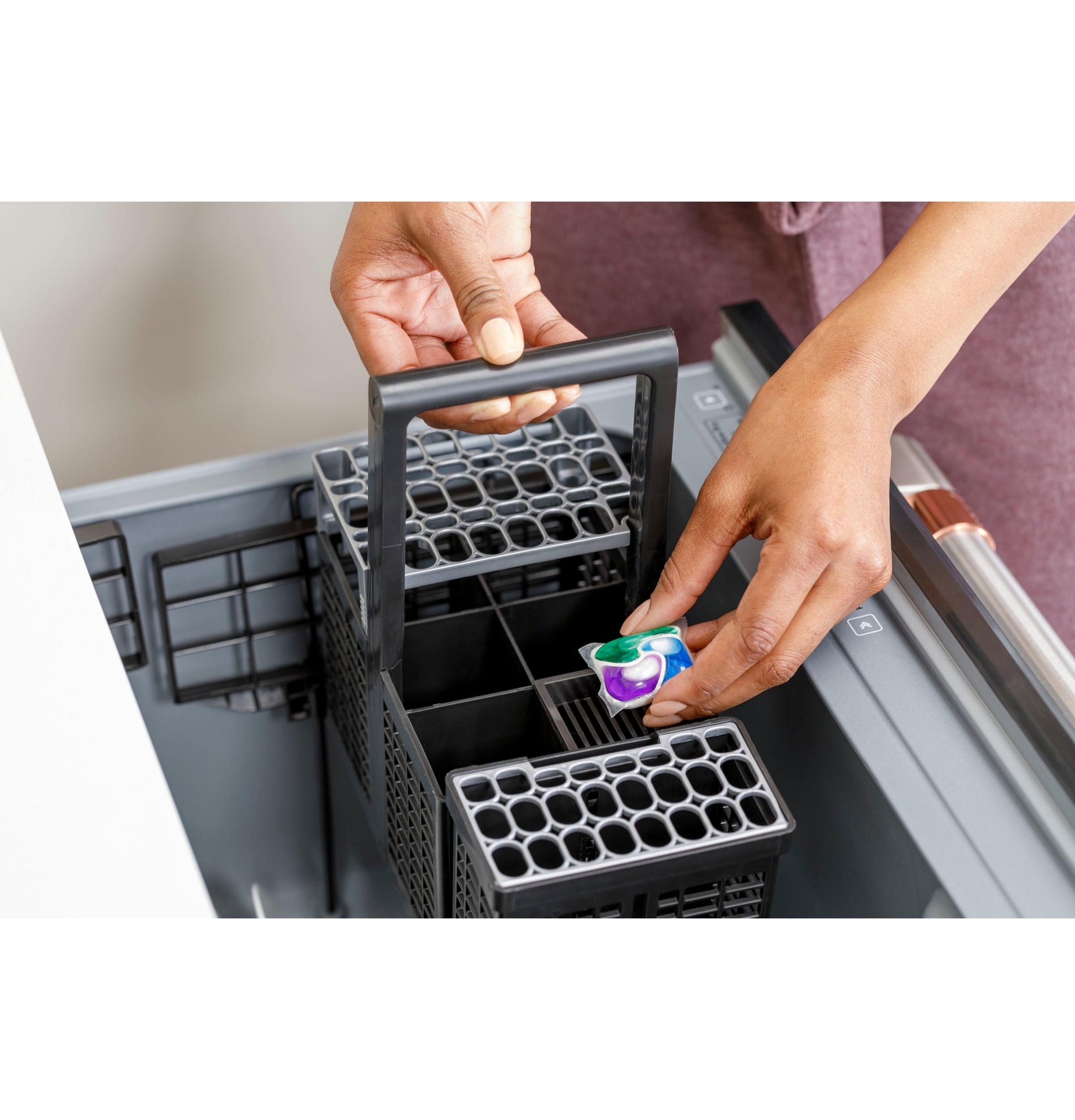

Rack Features	2 long and 2 short articulating plastic utility shelves w/Stemsafe; Fold Down and Adjustable Tines; 2 piece Silverware Basket Ball-Tipped Tines Full Extension Slides
Racking Material	Nylon
Dishwasher Cycles	China Express Normal Plus Pots Rinse
Upper Drawer	2 Utility Shelves with StemSafe Fold Down Tines Large Silverware Basket with cell covers Upper drawer fits 13 inch plates
Rack Color	Grigio

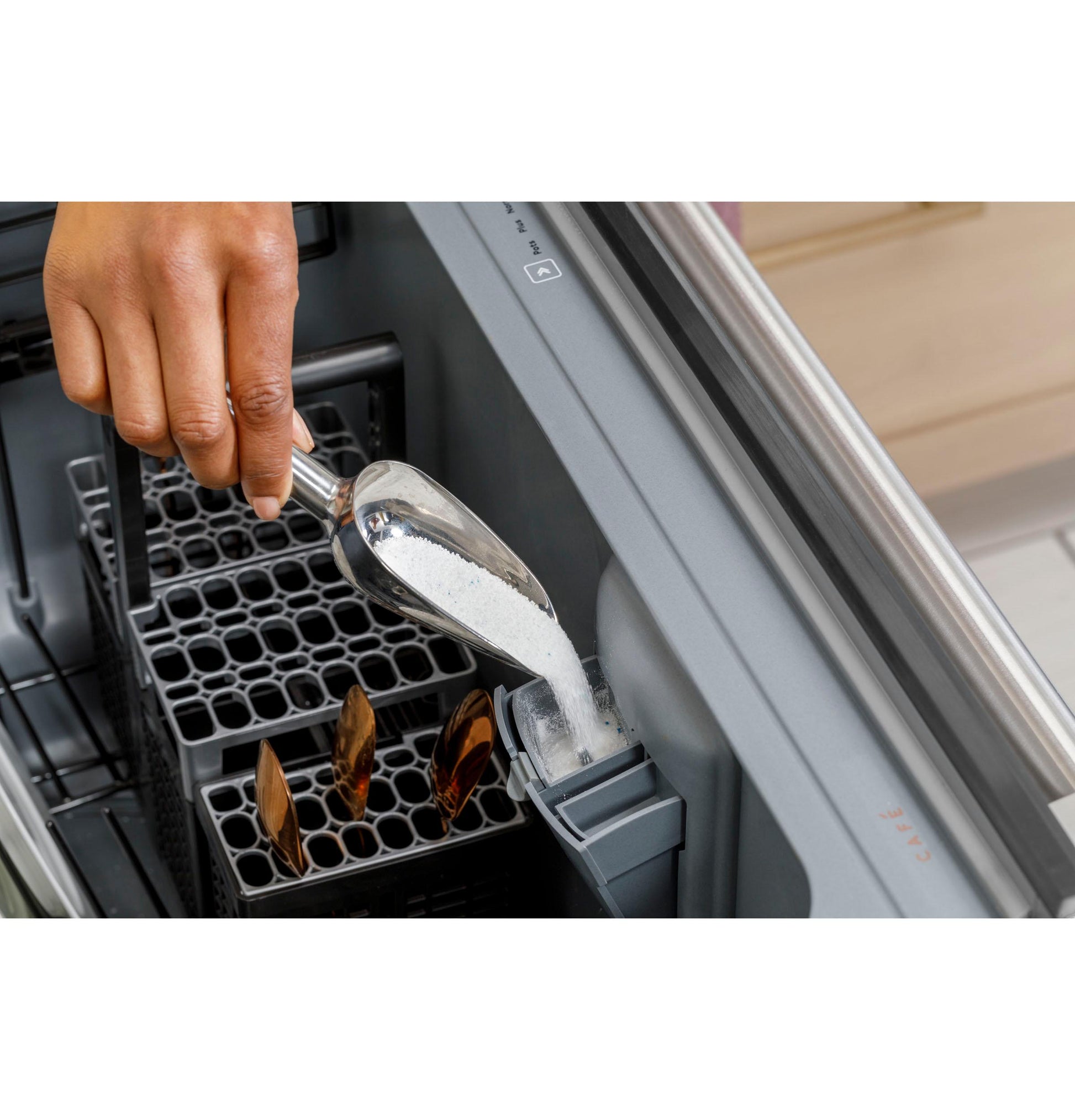

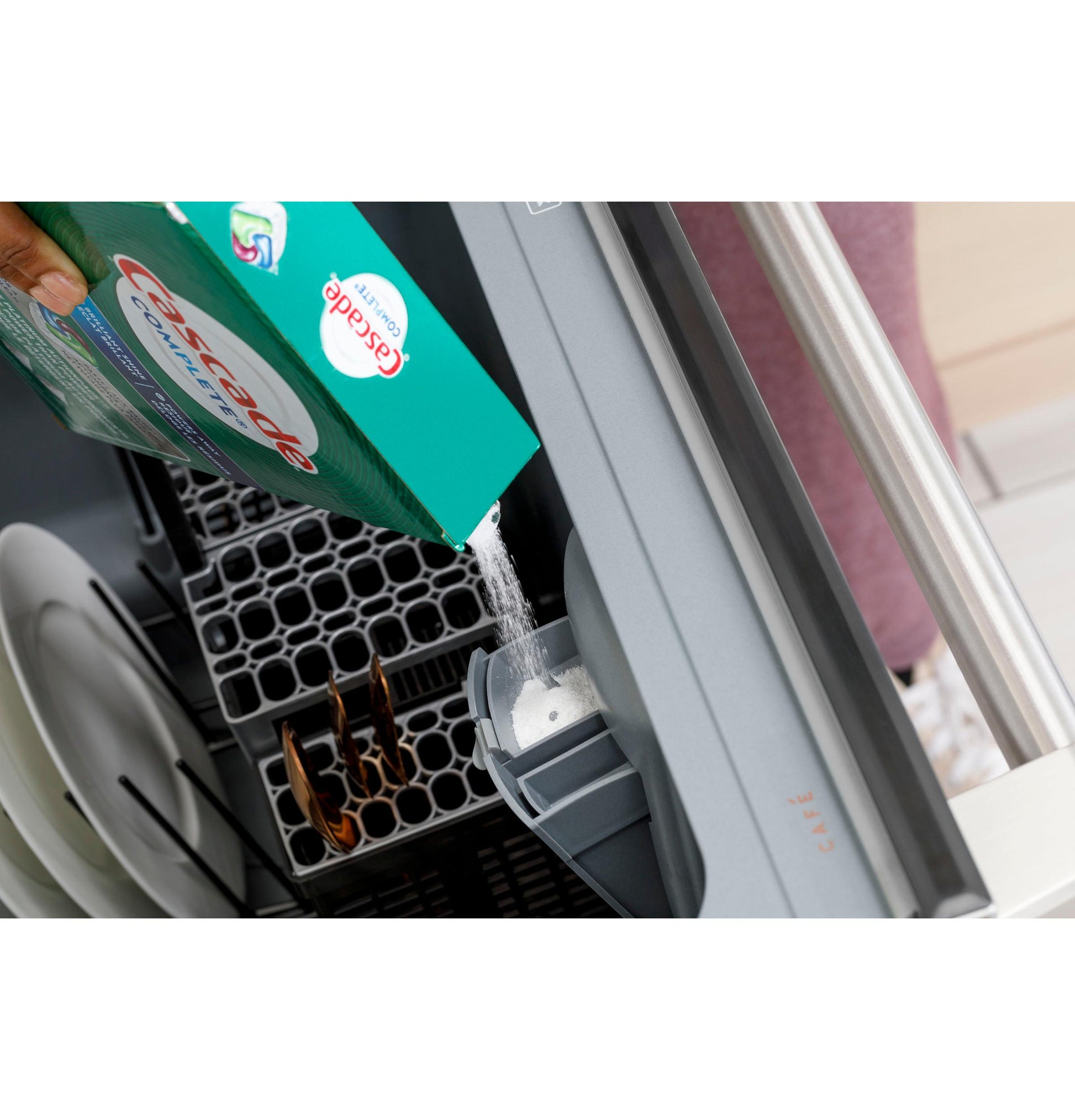

Dispenser	Rinse Aid
WiFi Connect	Built-In

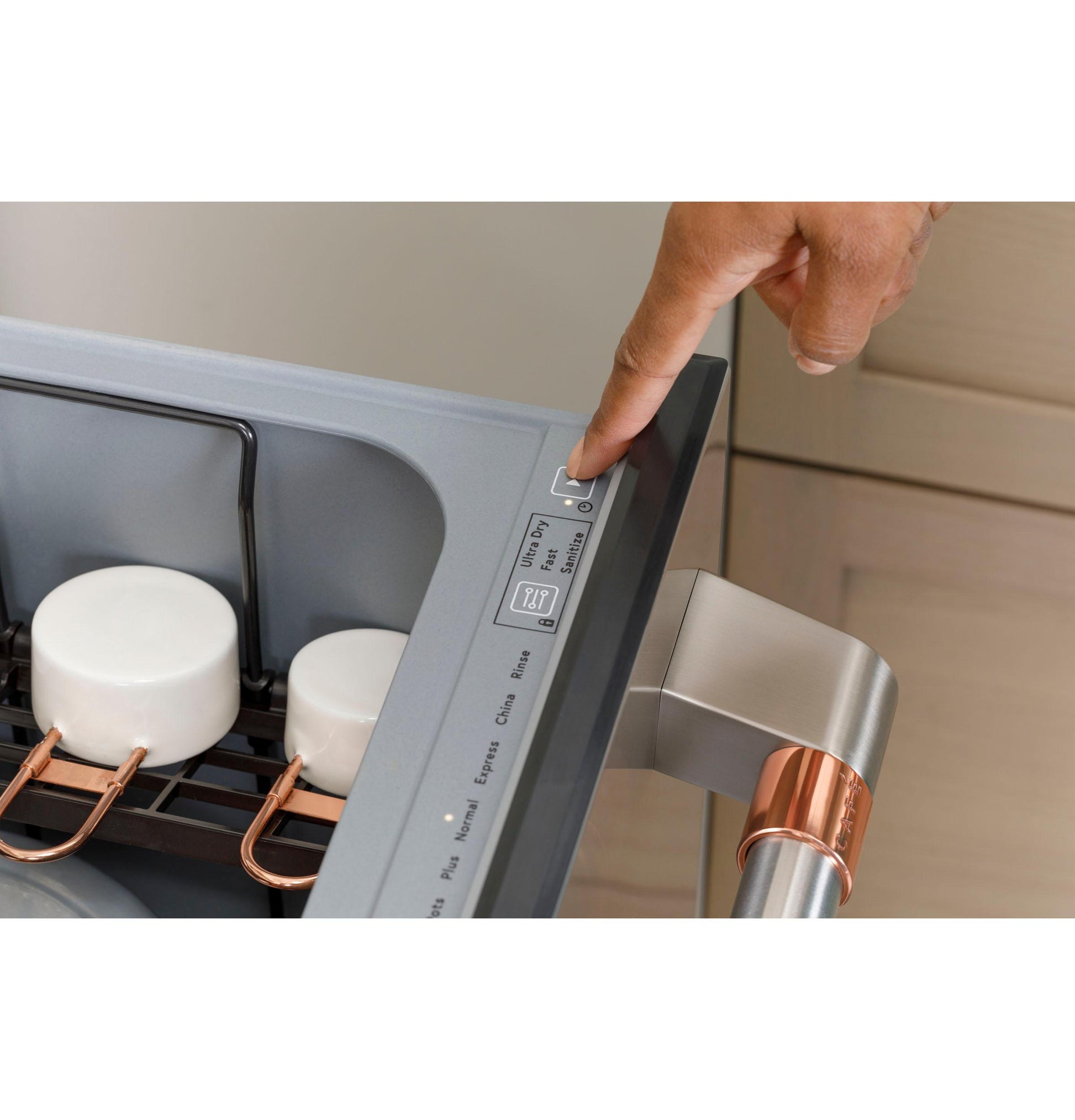

Control Type	3 Touchpads Cap Touch Controls Top Controls
Racking System	1 Racks with 2 sets of Cup Shelves
Dishwasher Drying Features	Fan Assist Dry
Wash Arms	1
Wash System Features	Automatic HotStart Automatic Temperature Control Single pump; Water and Prime regulator for efficiency
Exterior Style	Traditional
Active Flood Protection	Active Flood Protect
Product Type	Built-In
Dishwasher Control Features	Delay and Lock capabilities, Audible End-of-Cycle Signal; Last Cycle Memory, Non Sanitization Temp Error
Number of Cycles	6
Tub and Door Liner	Gray Plastic
Showroom Power Mode	Yes
