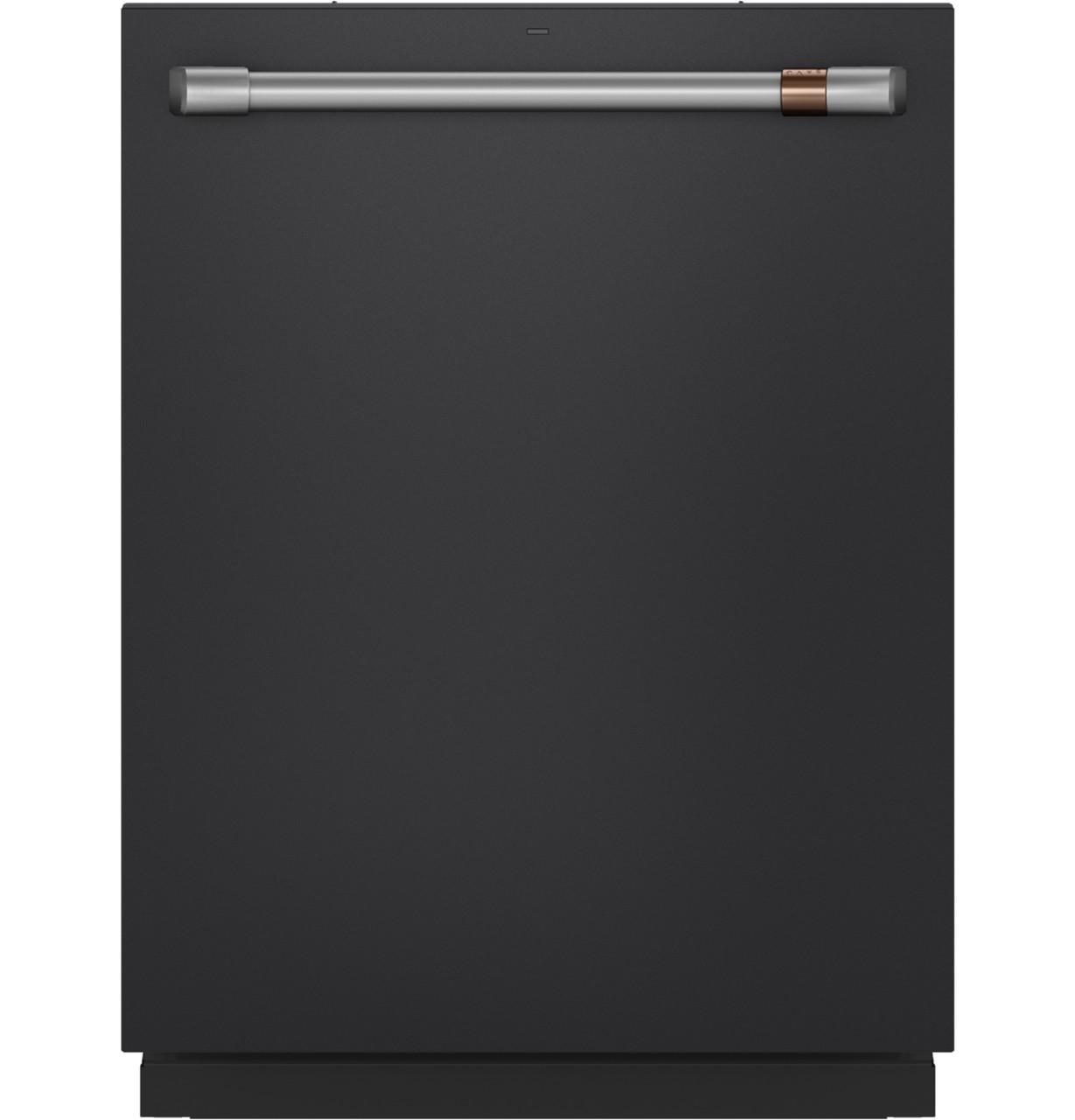

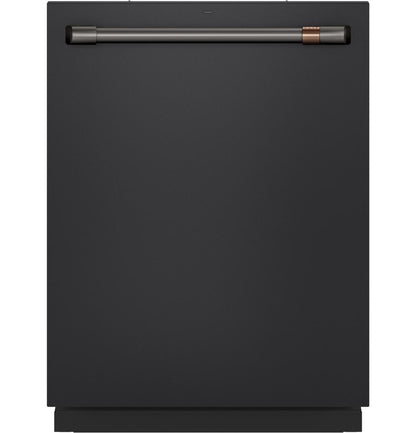

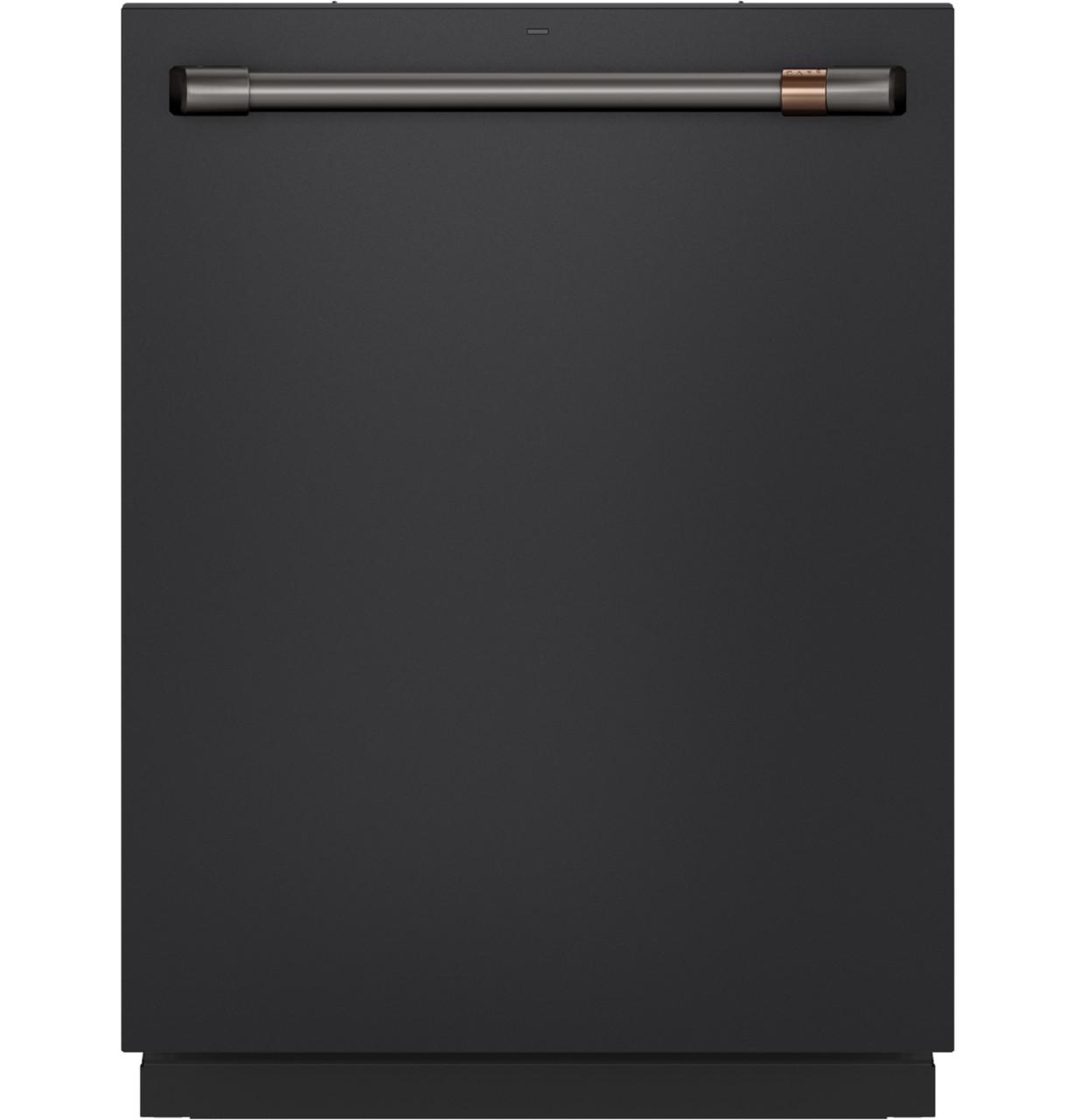

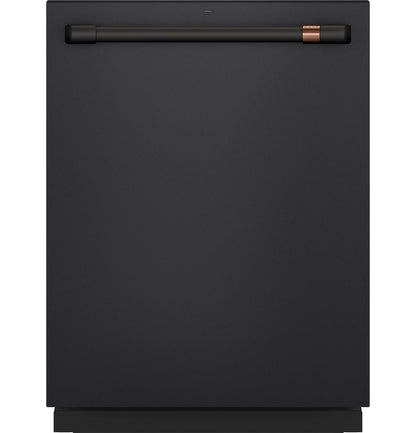

Cafe Caf(eback)™ ENERGY STAR® Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash CDT845P3ND1

Ultra Wash & Dry
This ultra-wash and dry dishwasher ensures sparkling clean, table-ready dishes. Its comprehensive wash system has over 90 jets and a reversing quad spray arm for full coverage. Plus a premium drying system dries every item completely

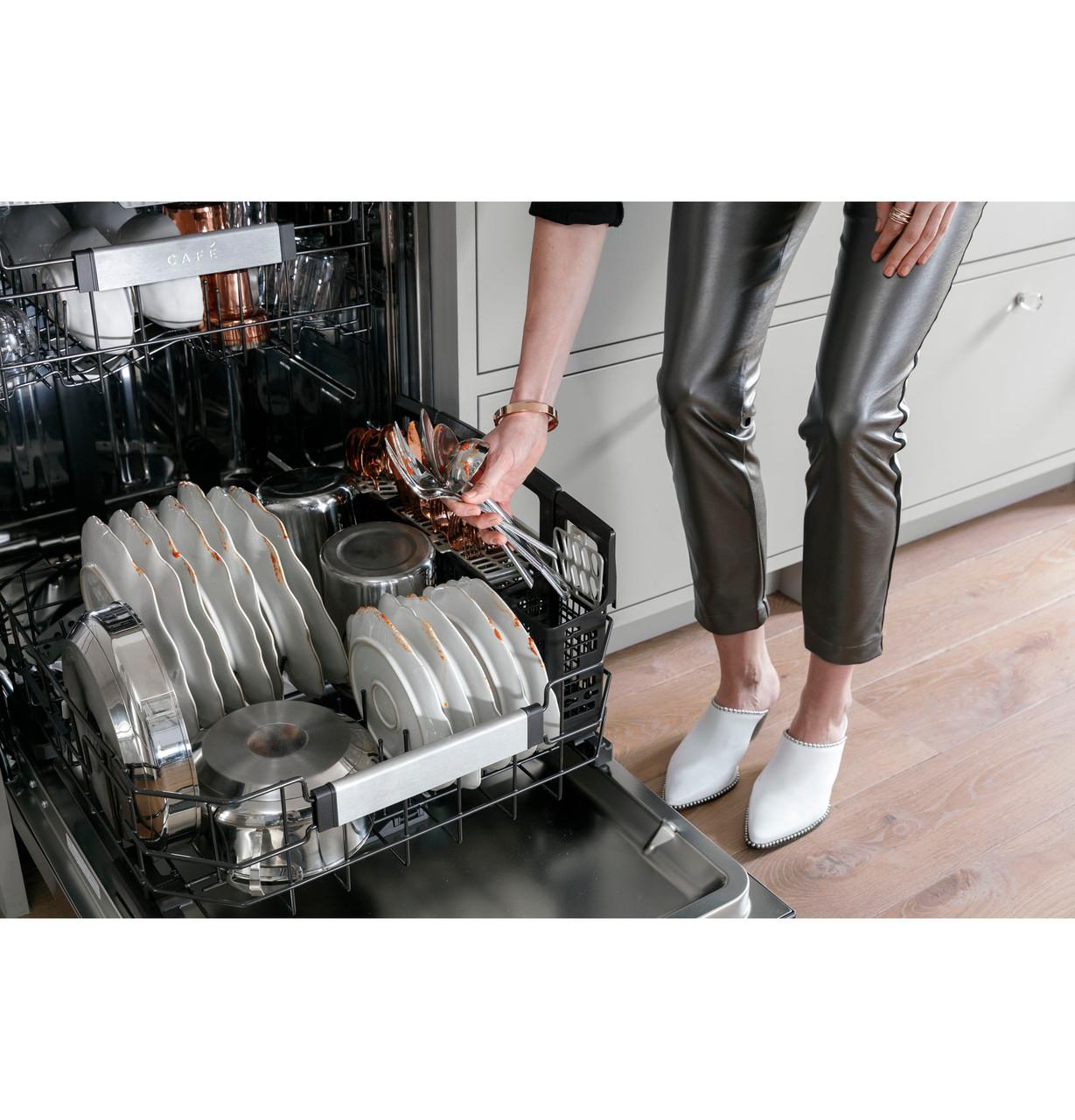

Loading Flexibility
A dishwasher with fold-down tines for uniquely shaped items and a third rack for extra capacity gives you the loading flexibility to store every dish how you want, and still get perfect results

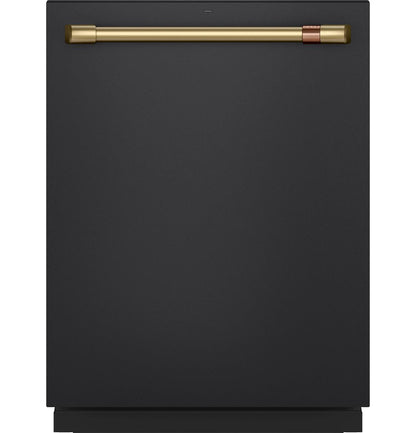

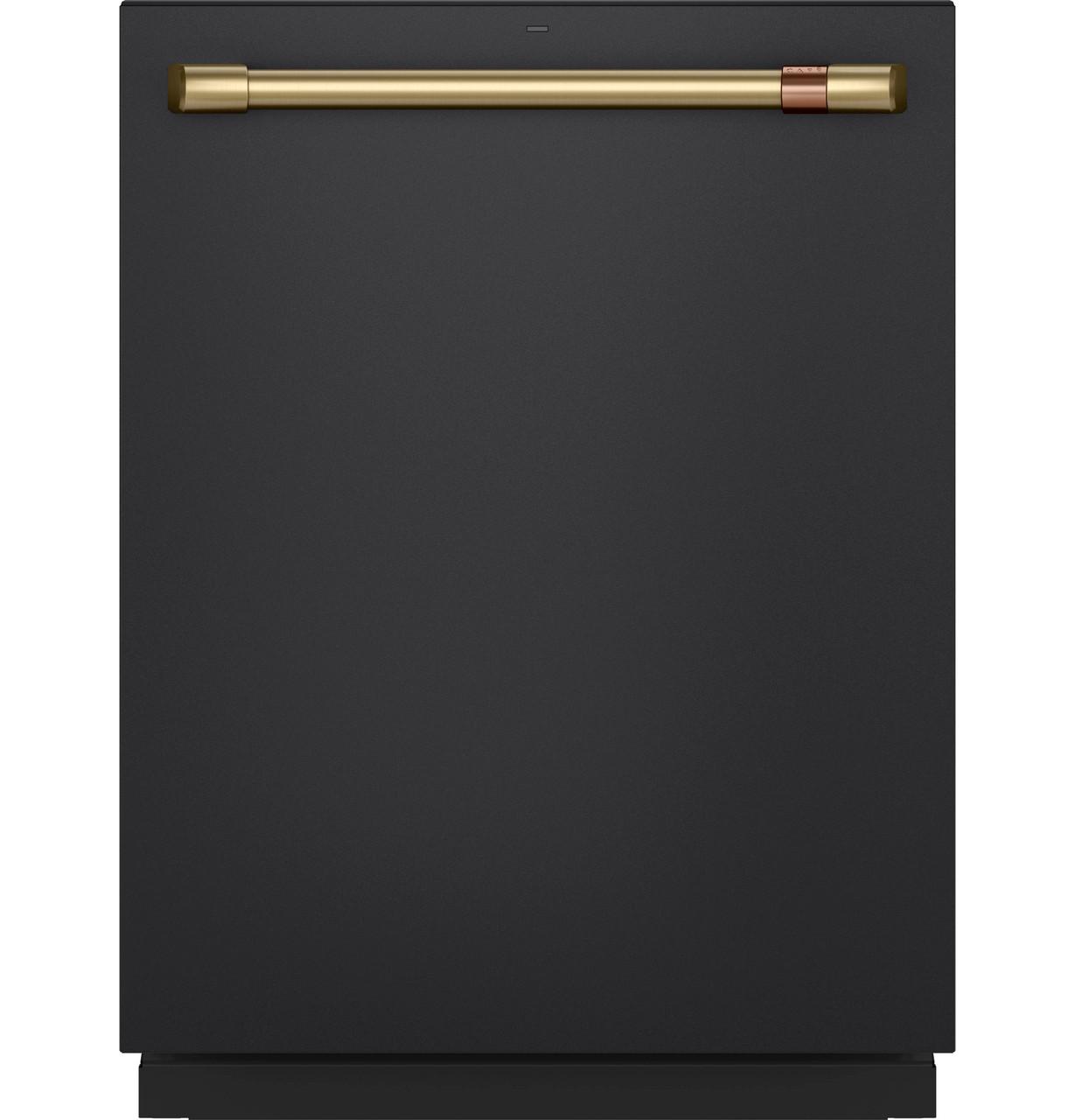

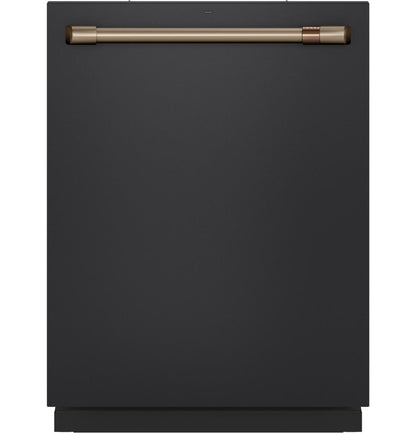

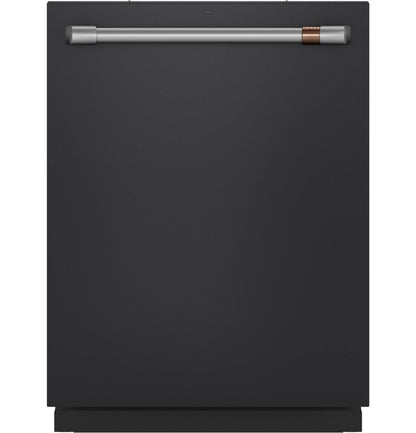

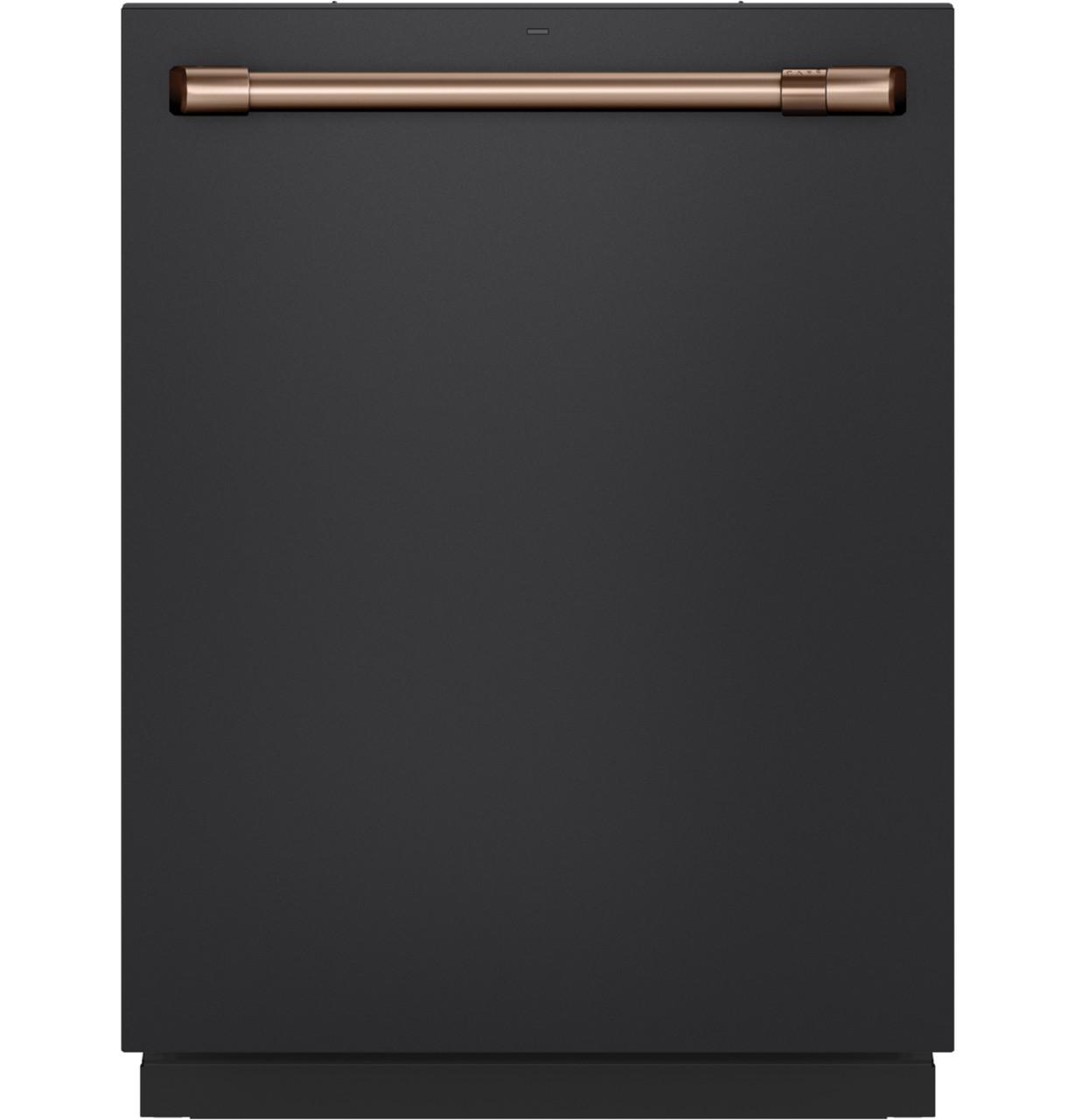

Customizable Hardware Options

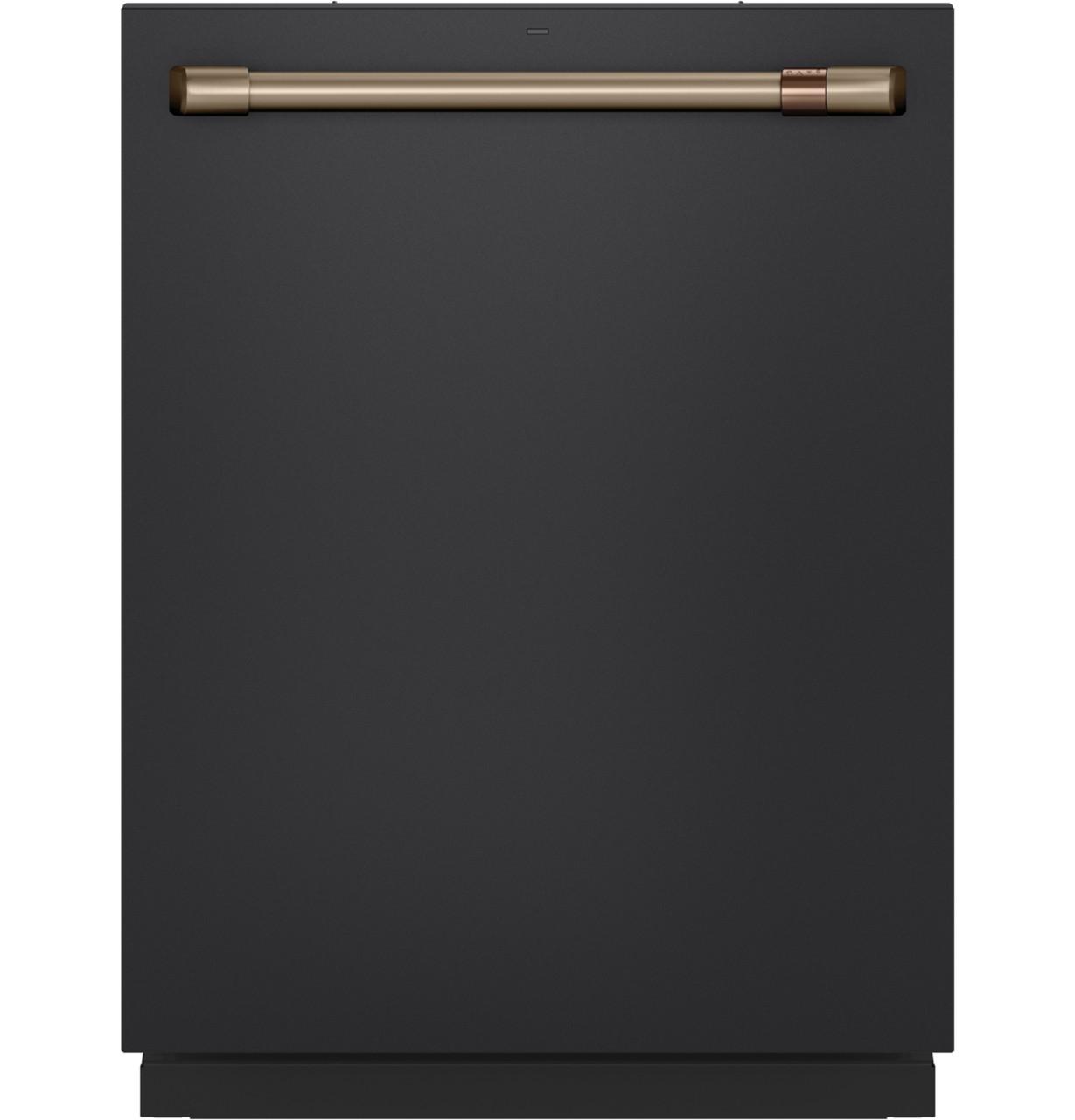

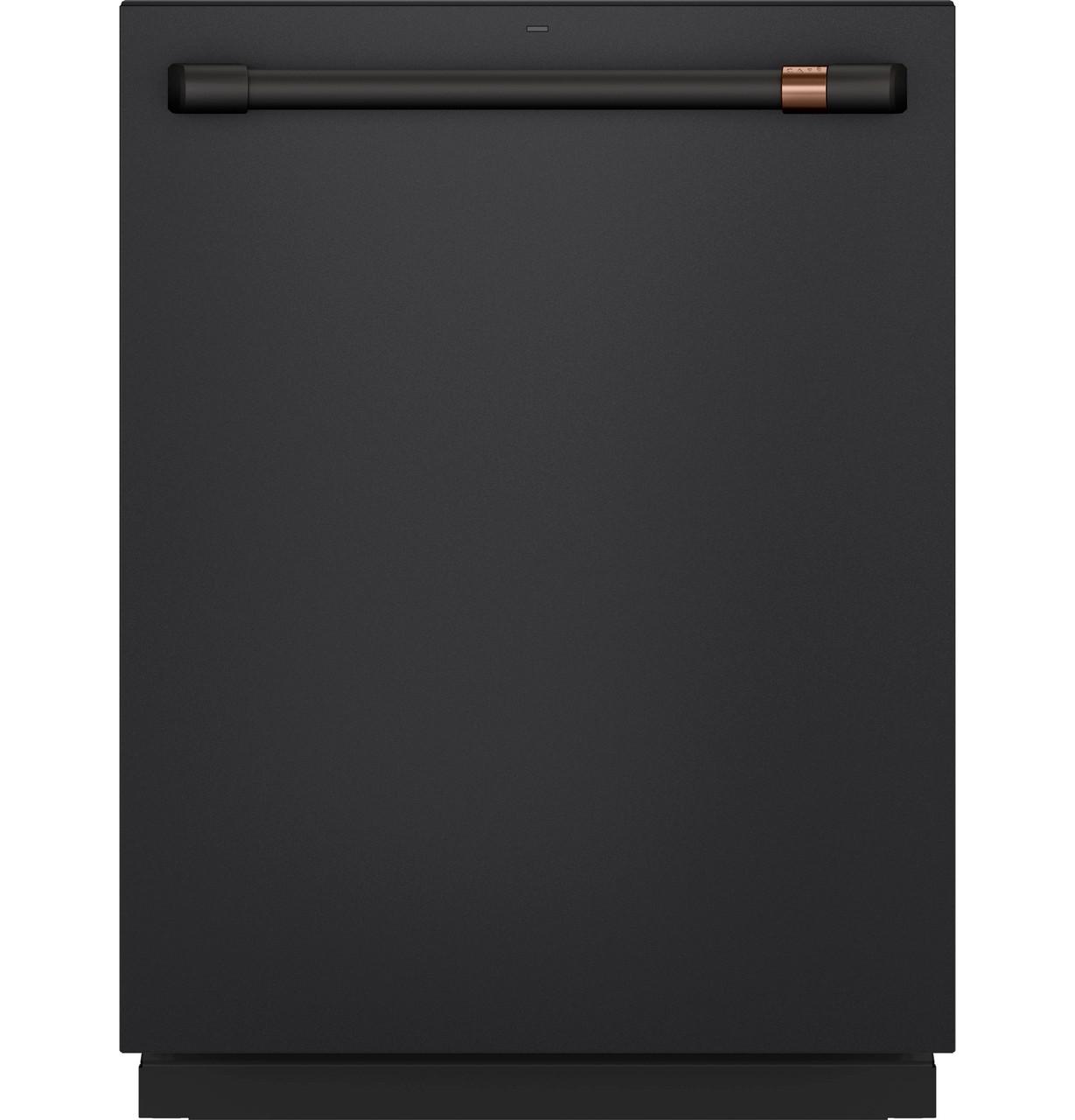

Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen, or your other Caf(eback) appliances

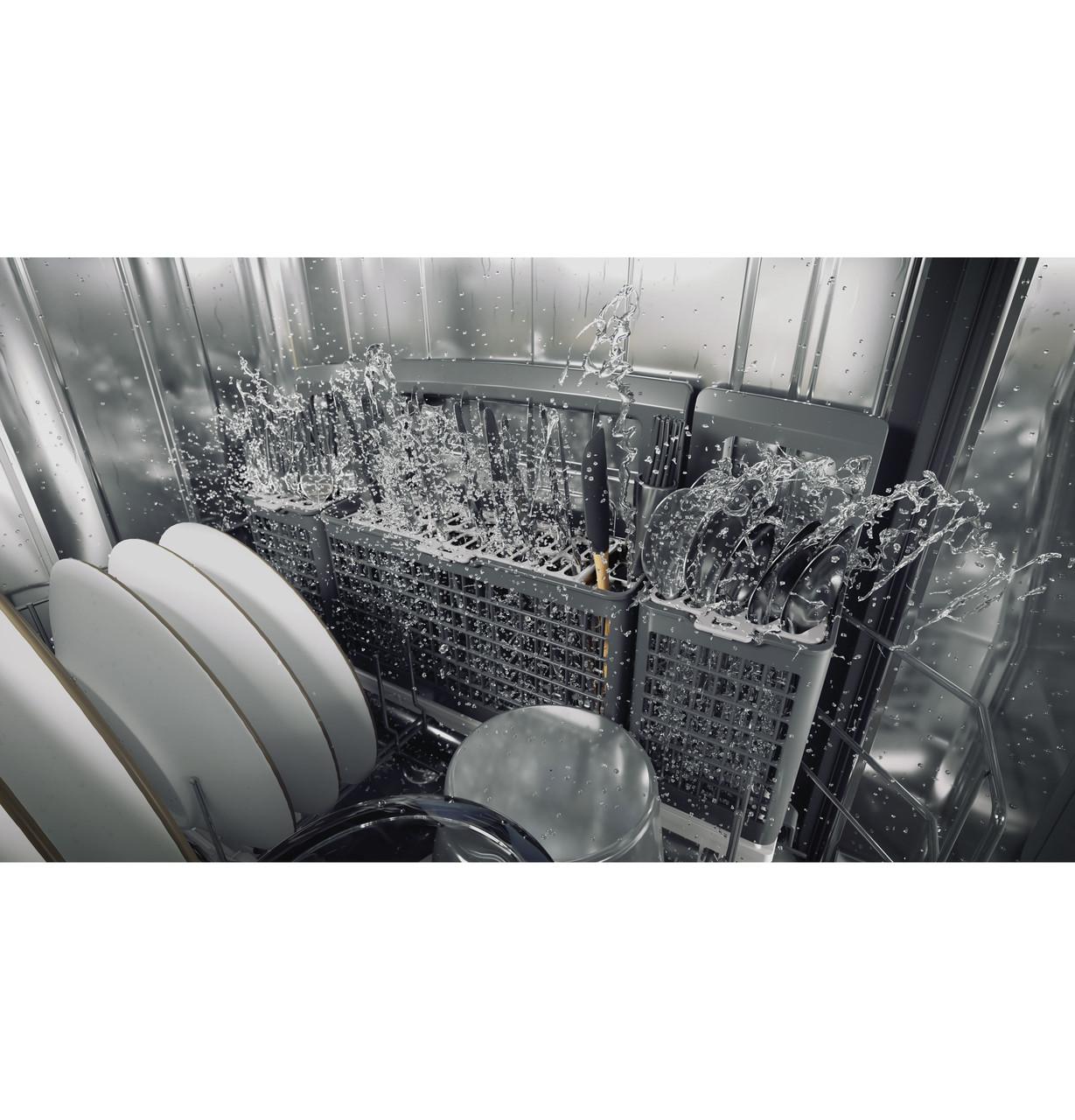

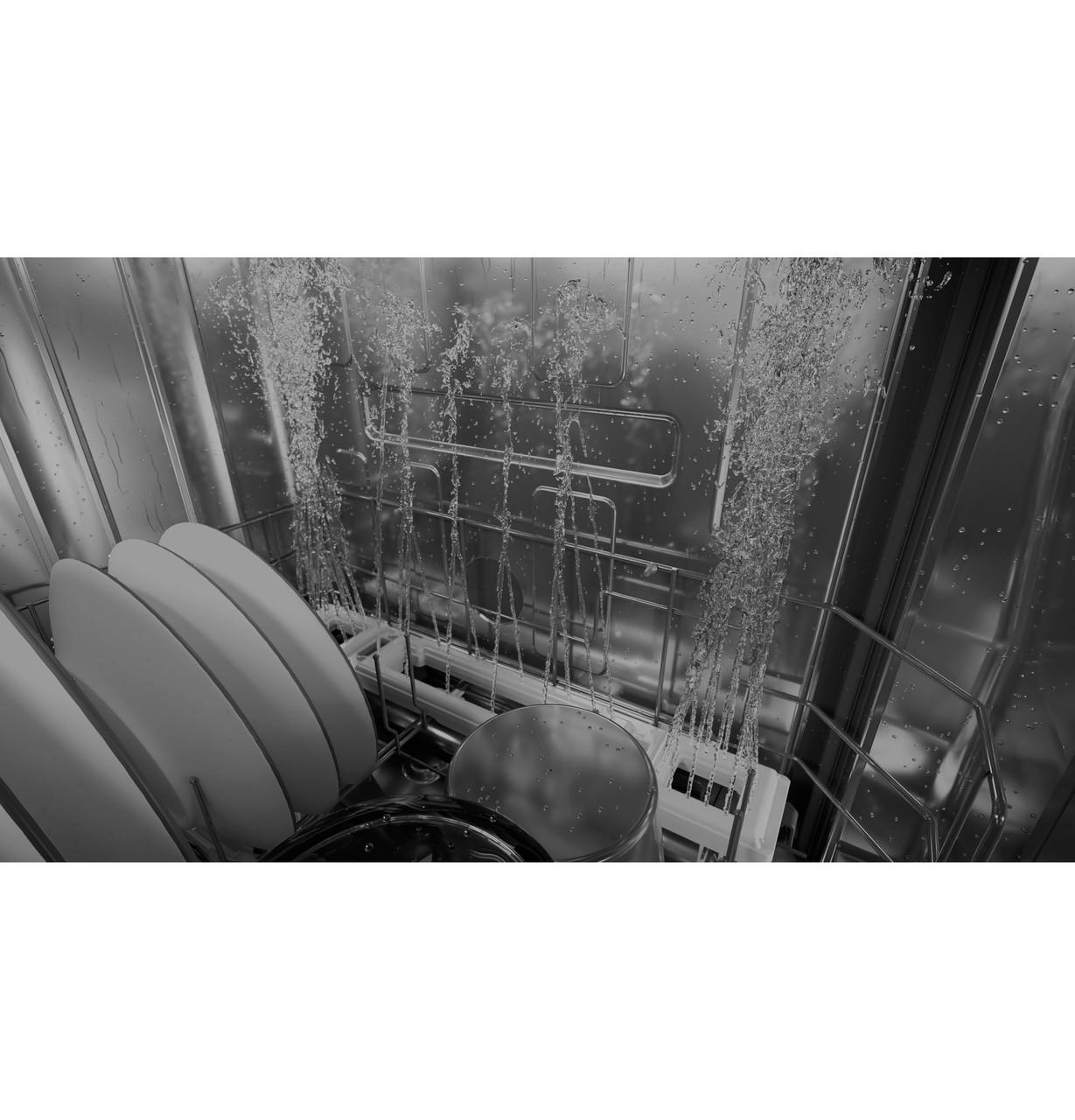

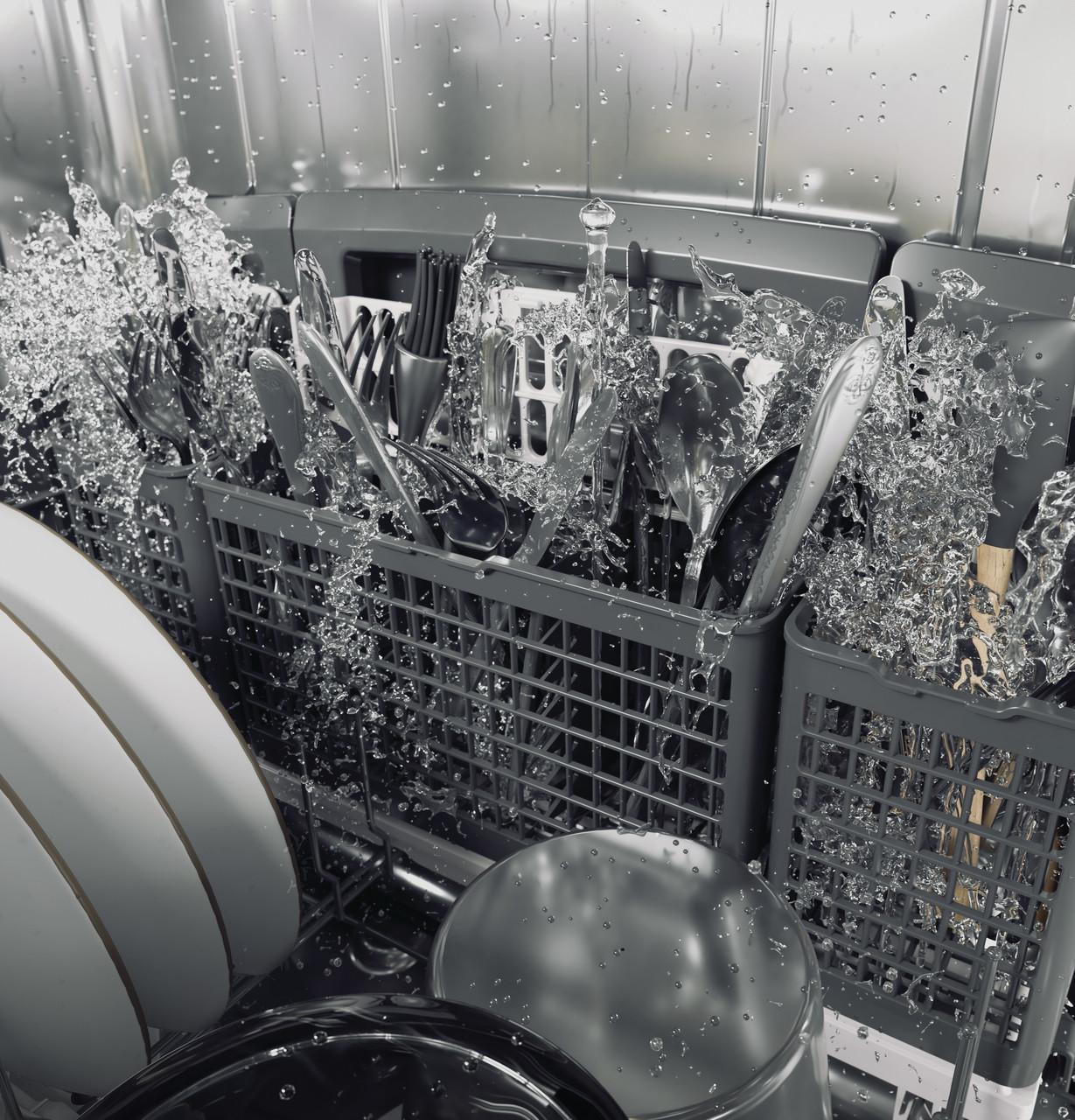

Deep Clean Silverware Jets
This dishwasher with powerful cleaning jets washes your silverware to perfection, no matter how you load it. A system of 40 jets blast the silverware basket from the bottom up, removing all stuck-on foods

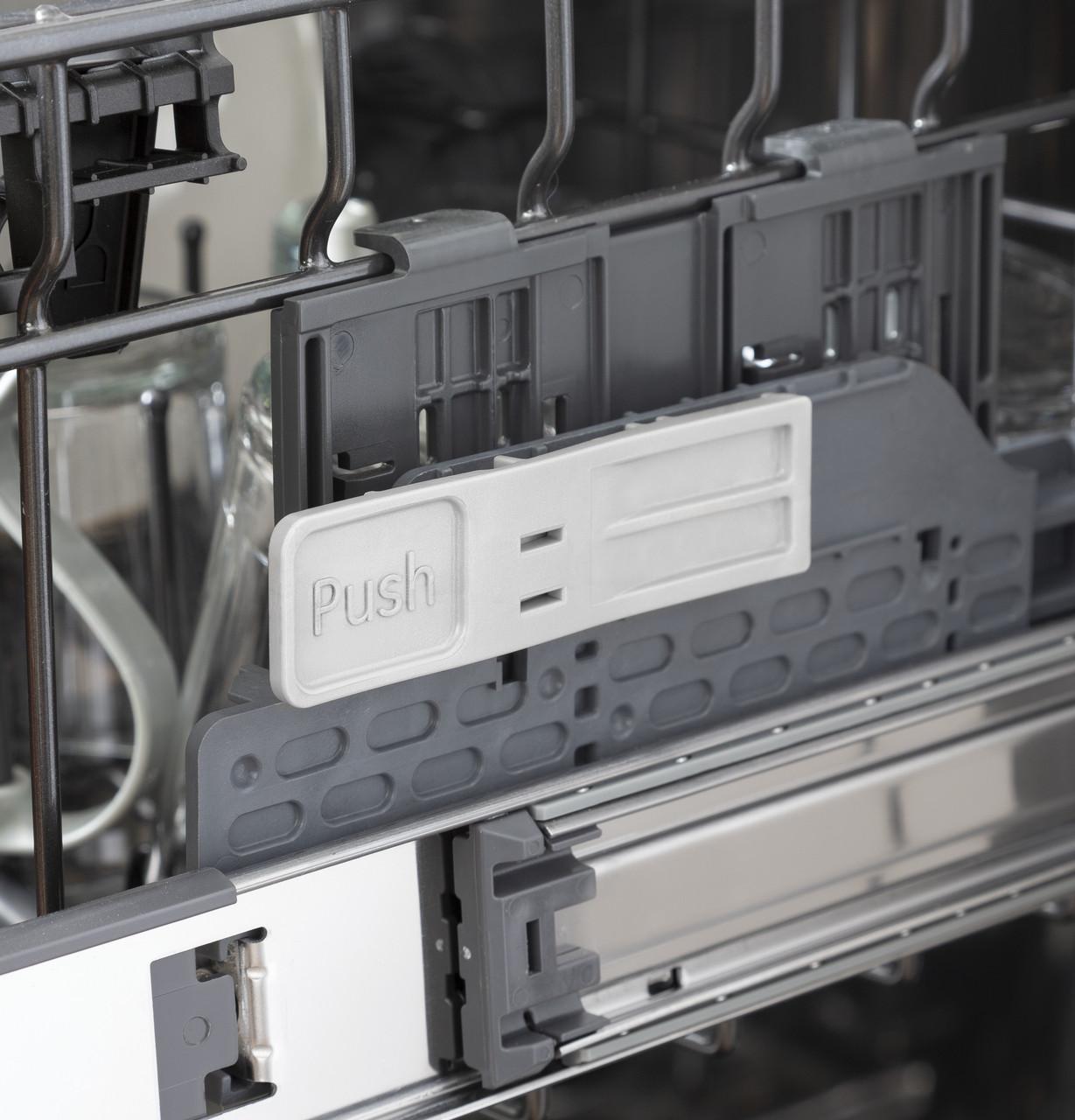

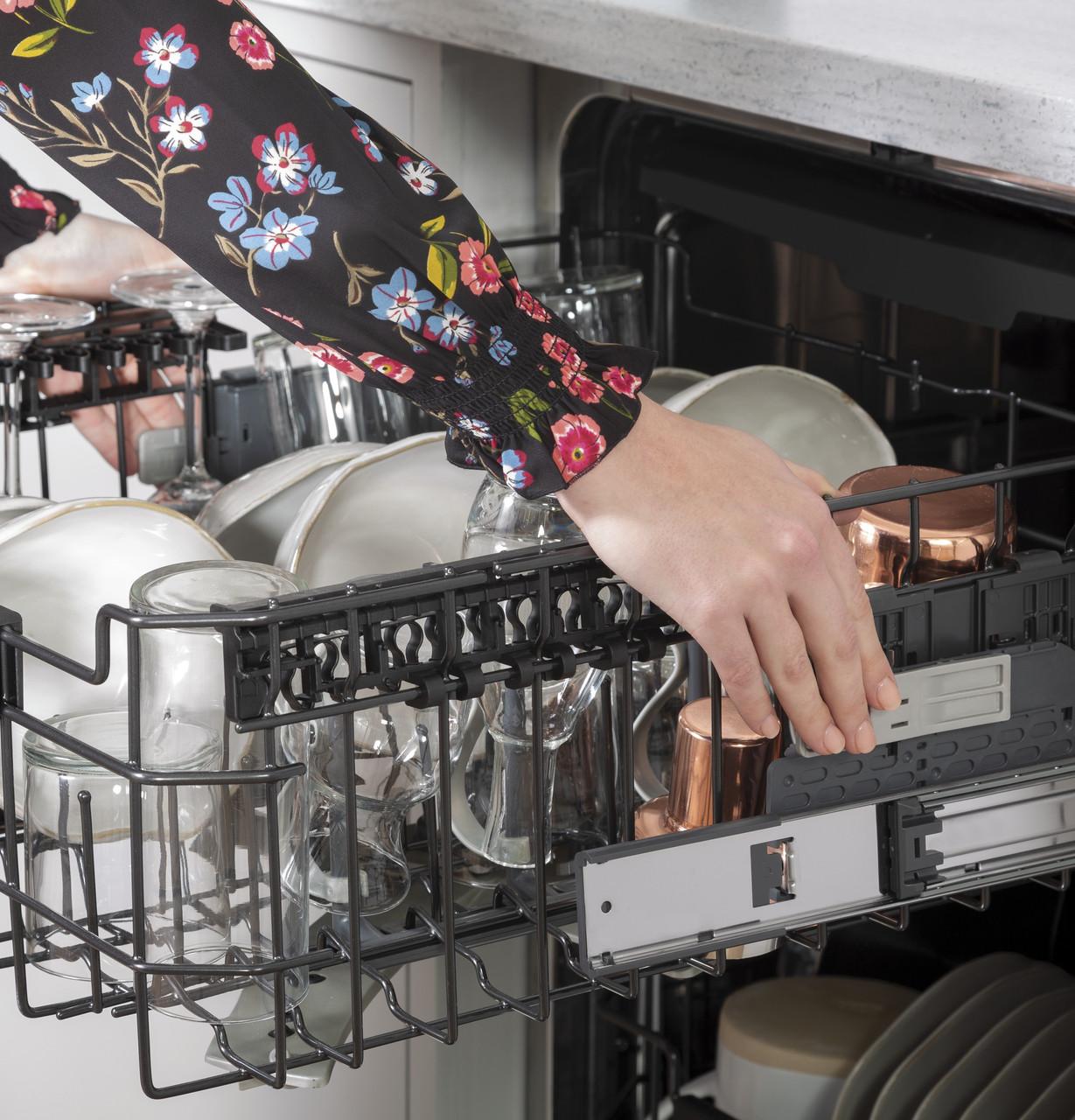

Adjustable Upper Rack
Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"

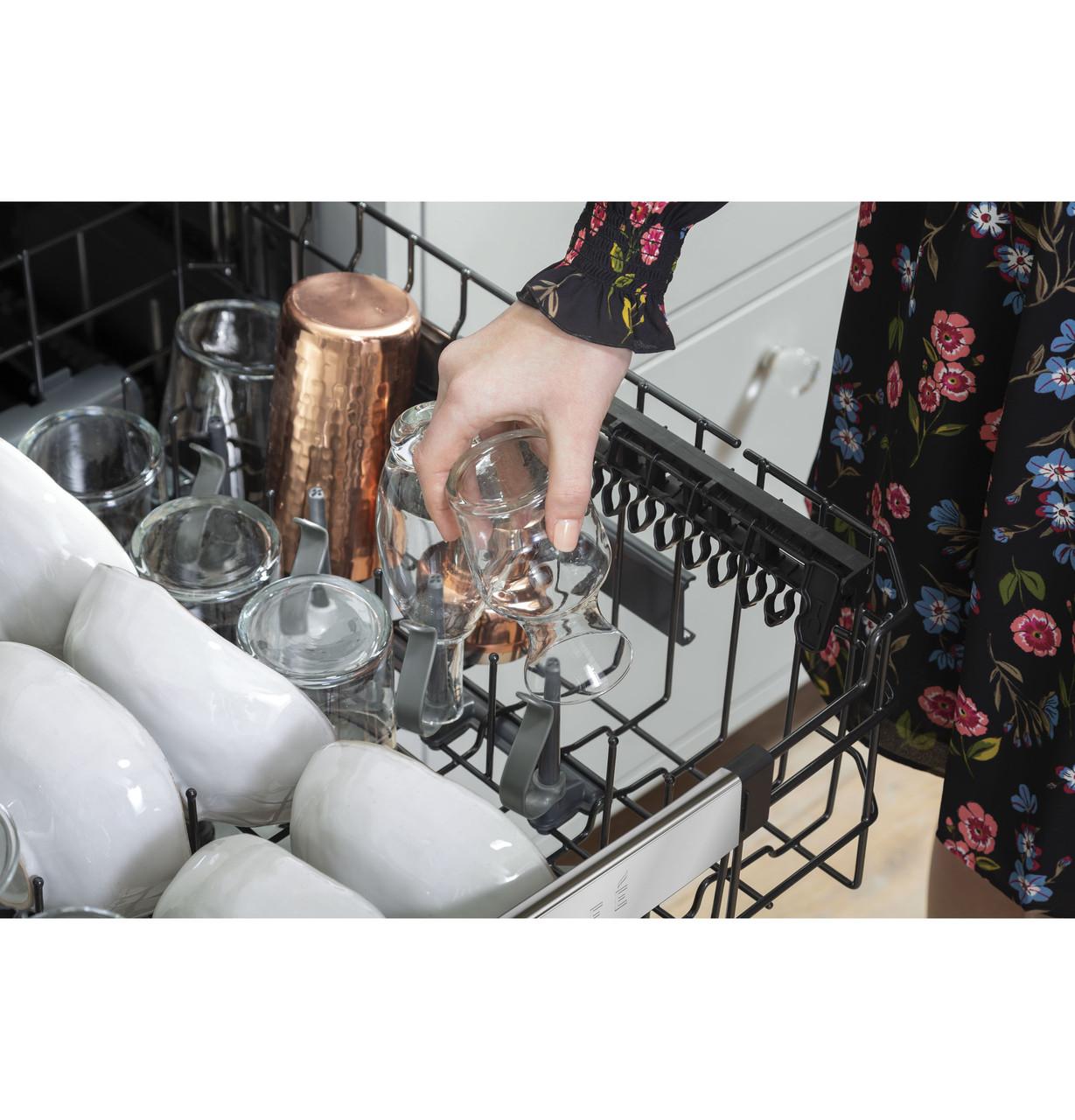

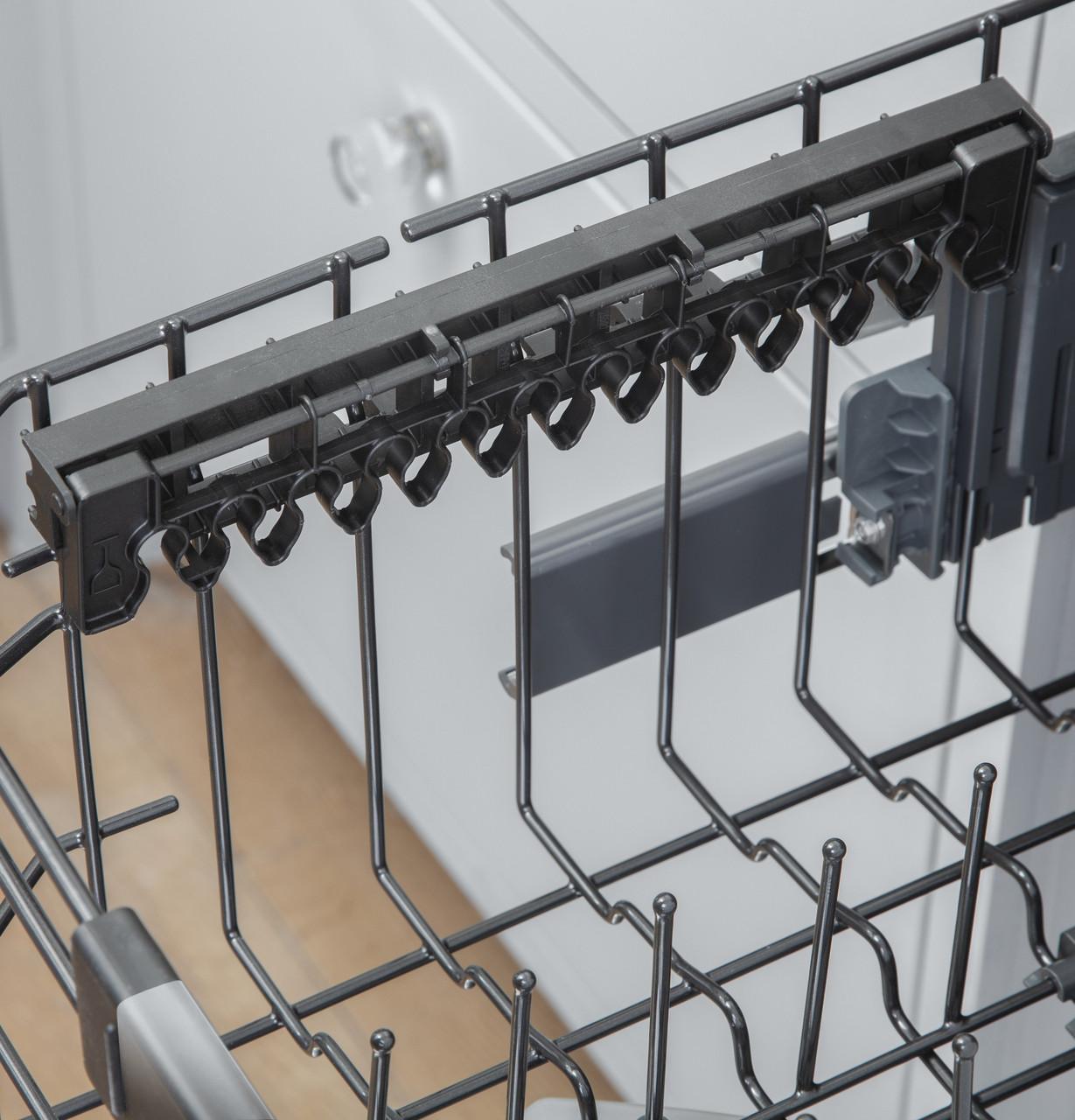

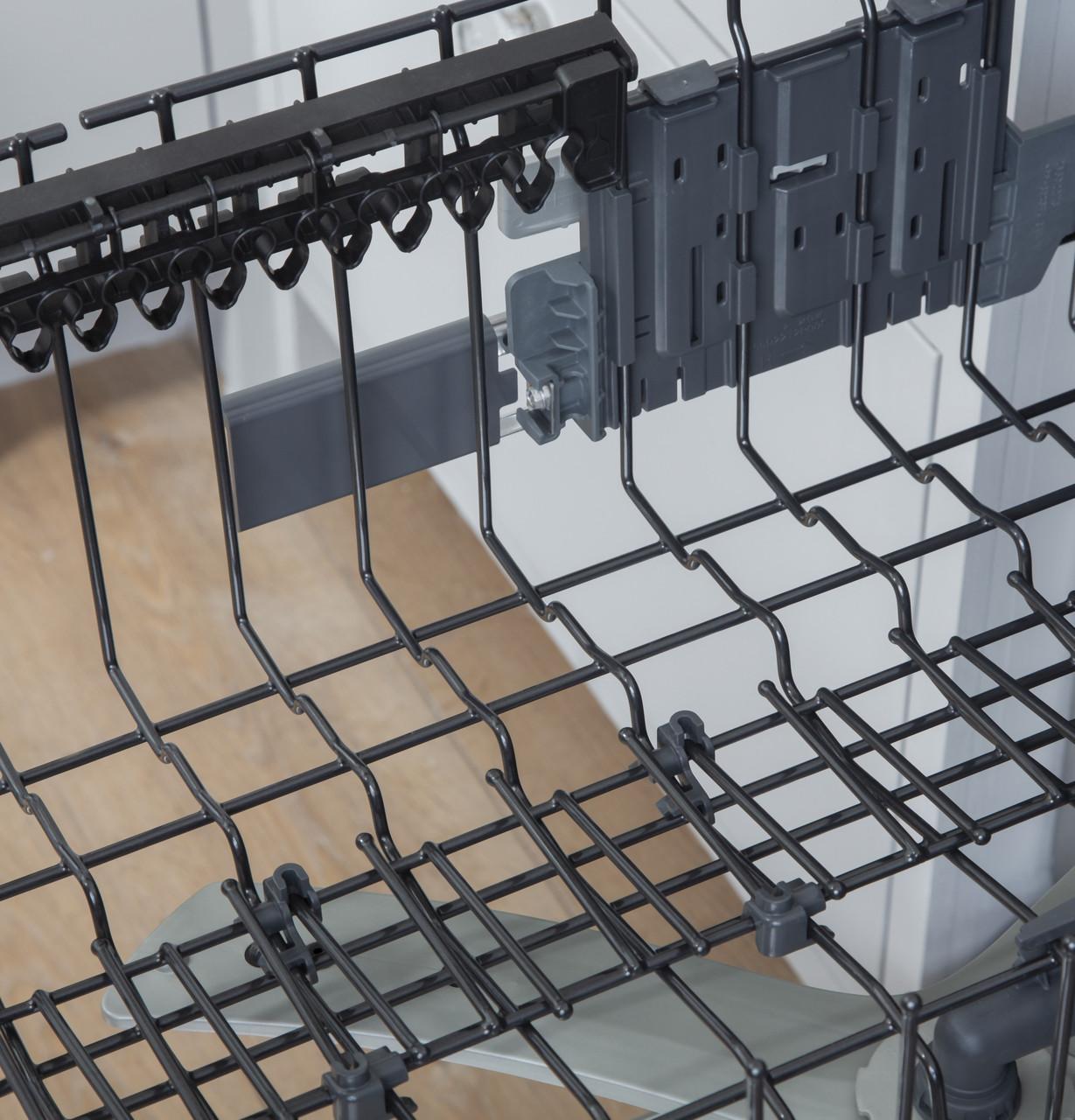

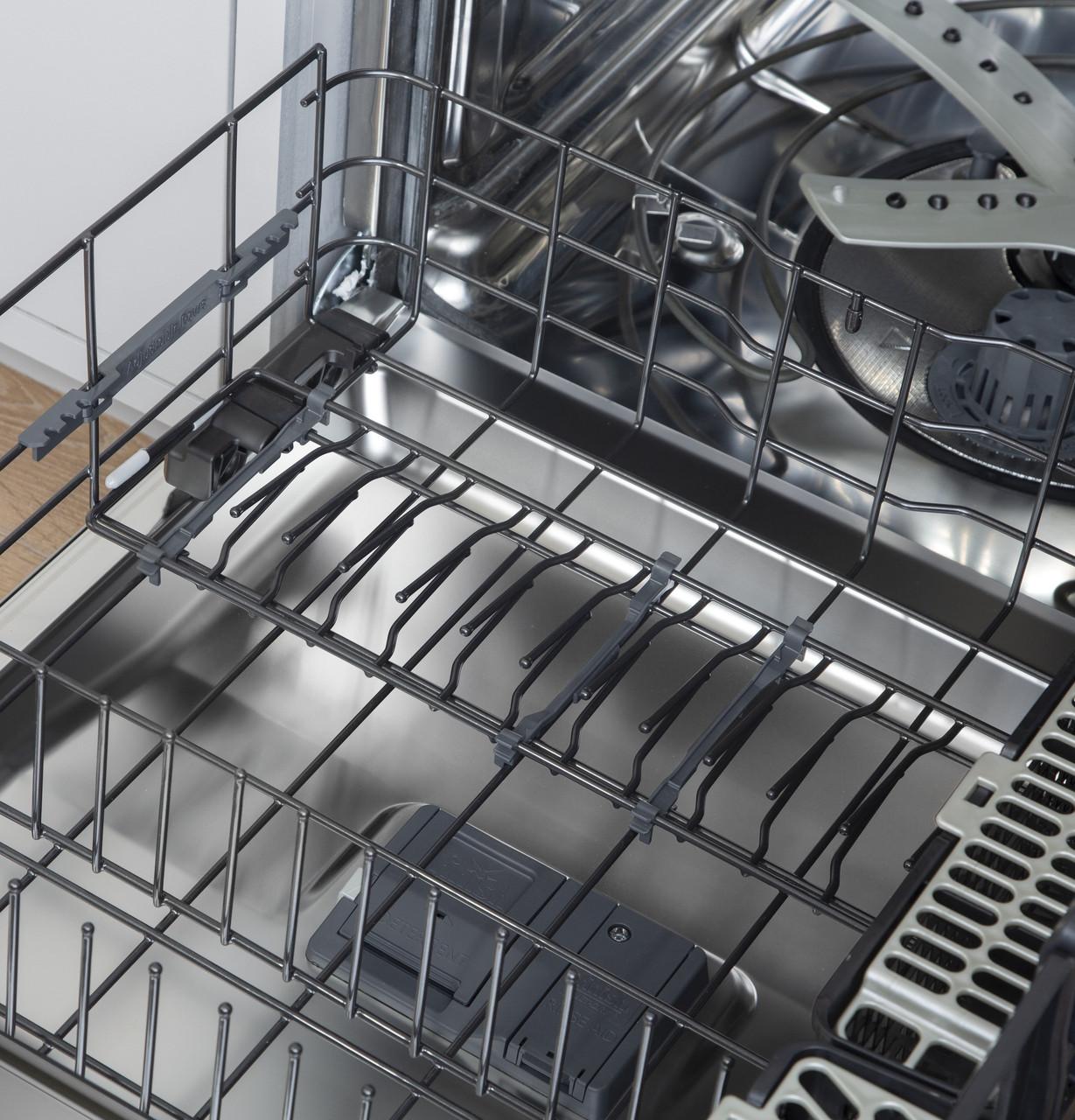

Upper Rack Fold-Down Tines
With multi-position, fold-down tines in the upper rack, you have the loading flexibility. Adjust each tine into three different positions and configure the rack to fit any item, so you can wash less loads

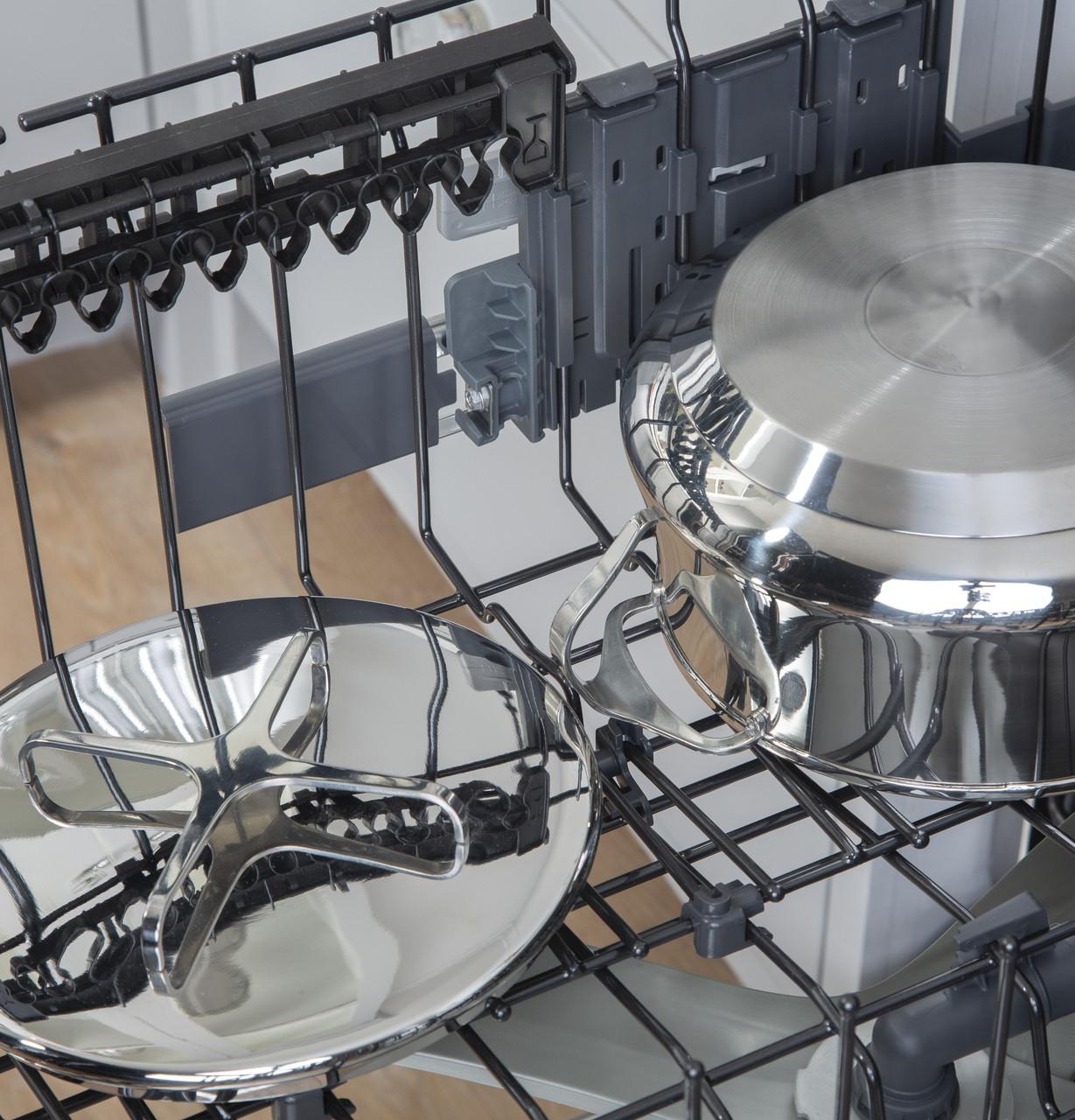

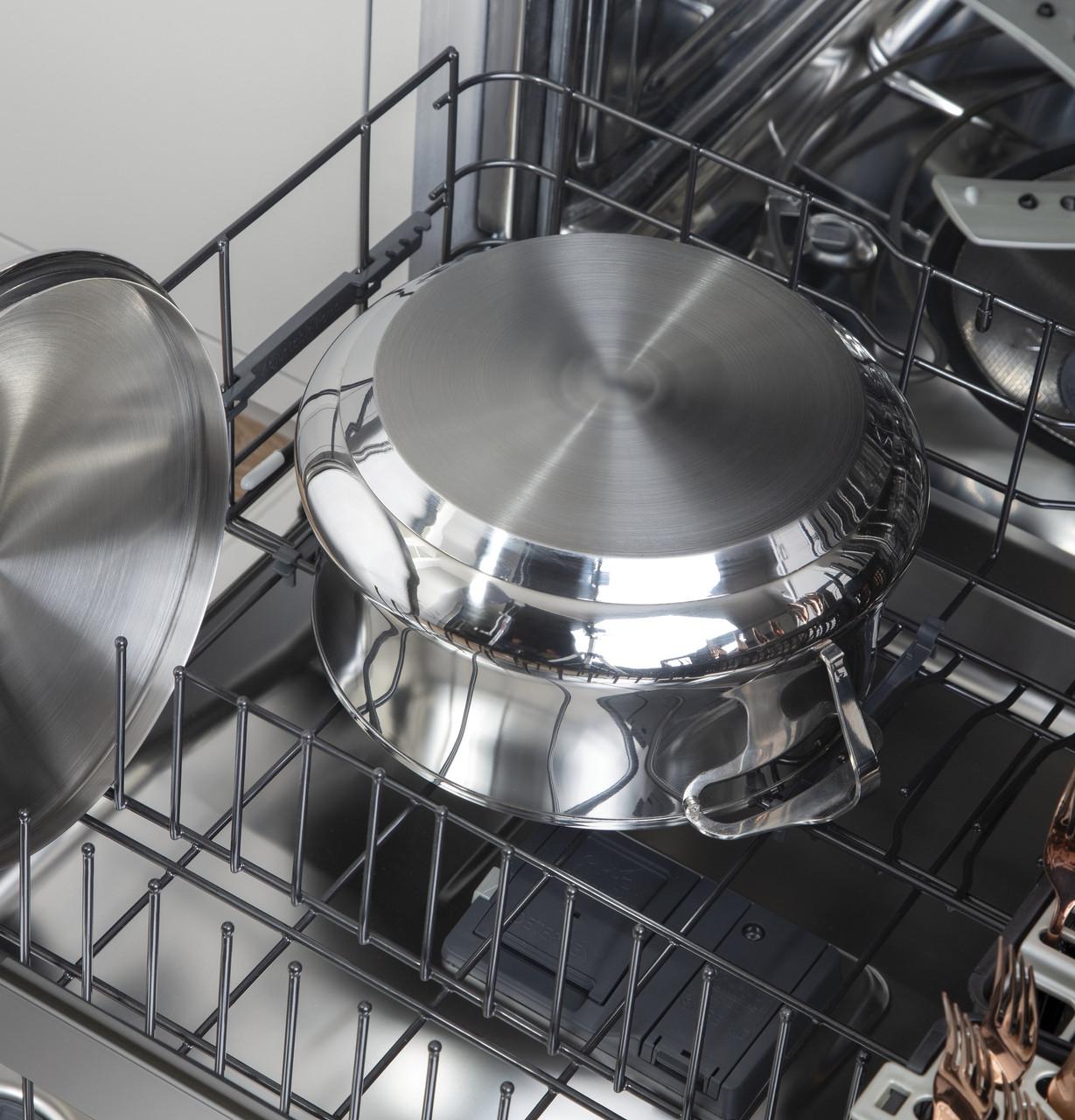

Lower Rack Fold-Down Tines
Enjoy next-level this loading flexibility dishwasher thanks to multi-position, fold-down tines in the lower rack. Adjust them into three different positions and configure your rack to accommodate any item

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy

Steam + Sani
Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

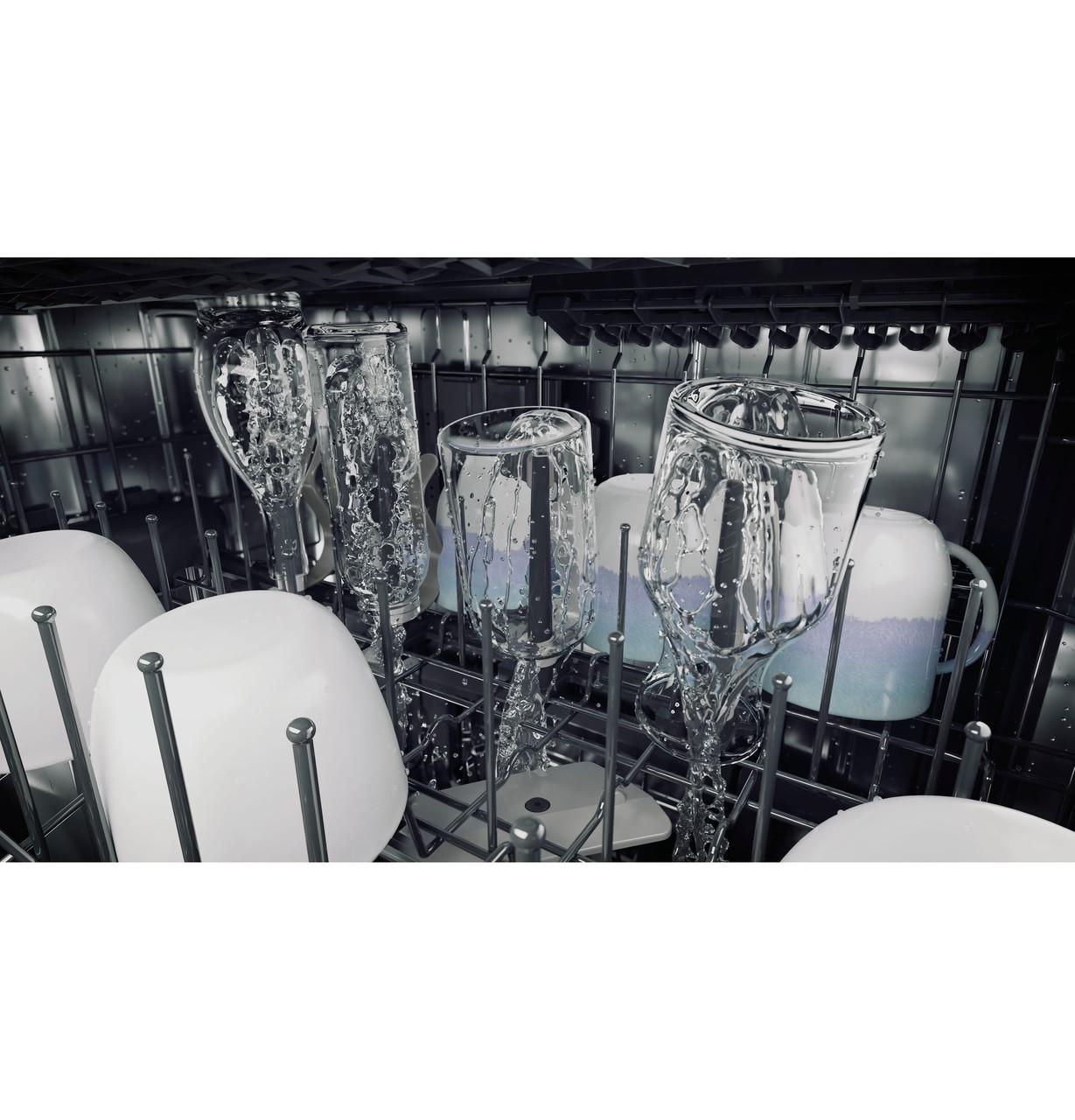

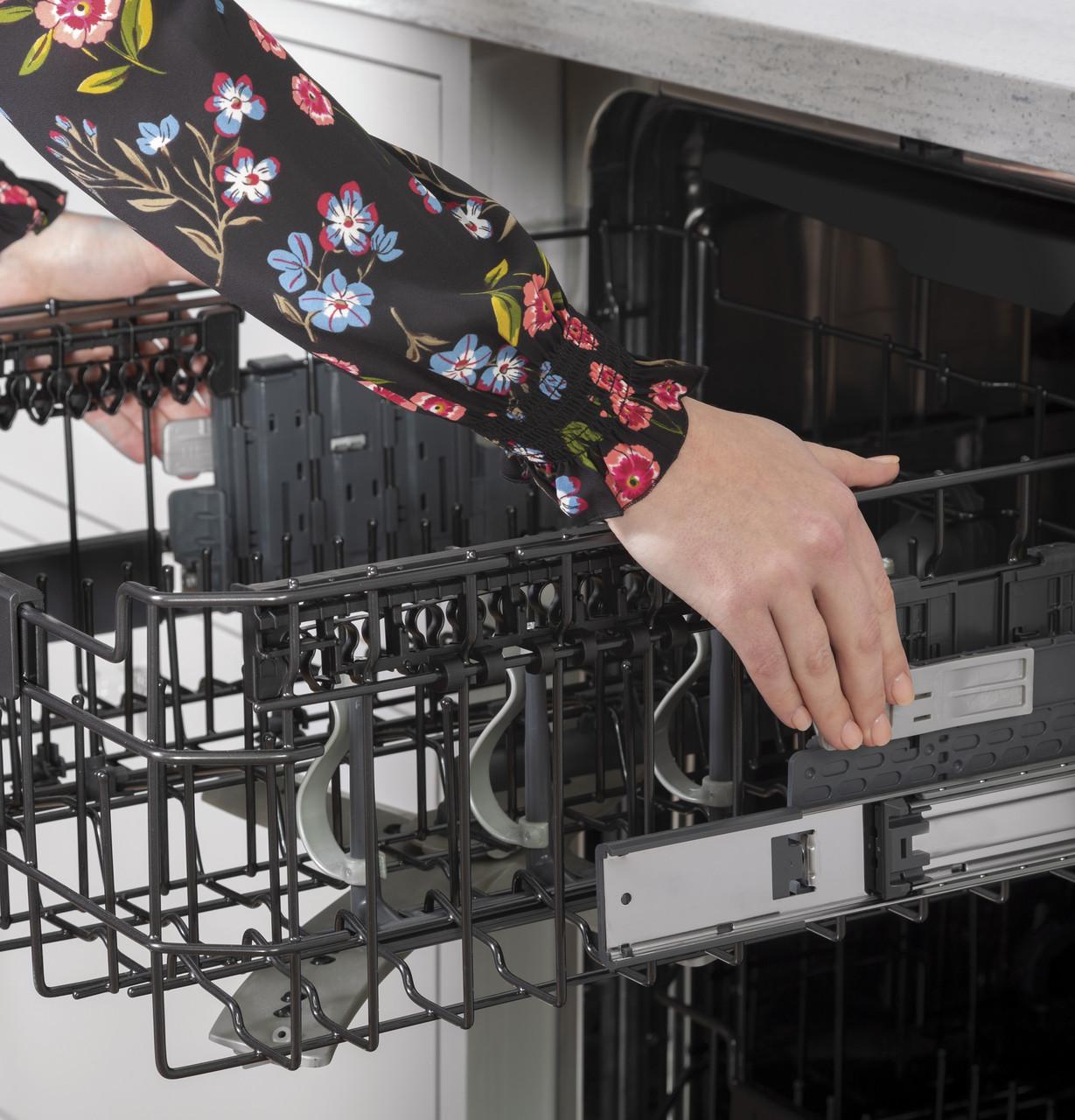

4 Bottle Wash Jets
This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas

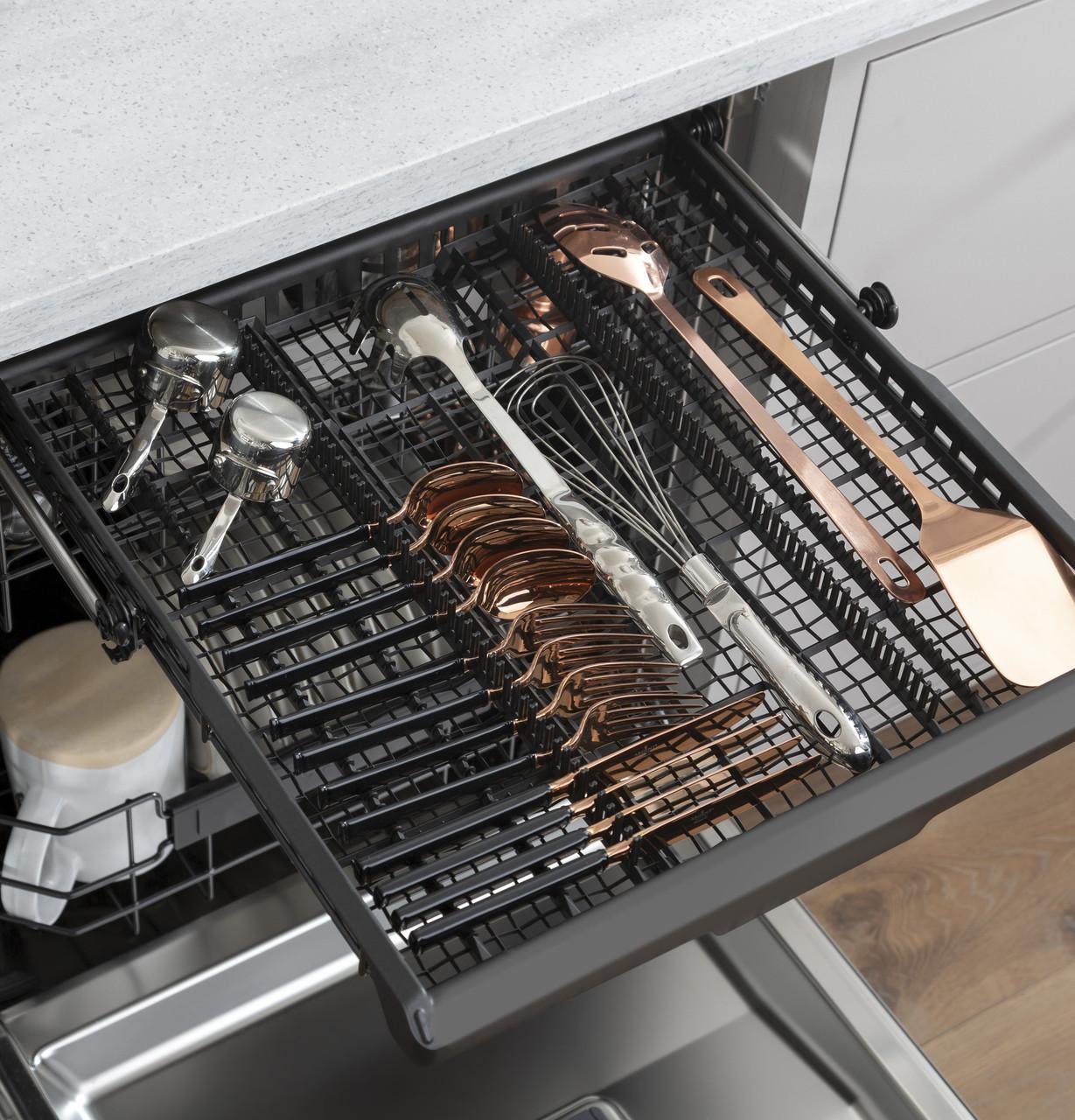

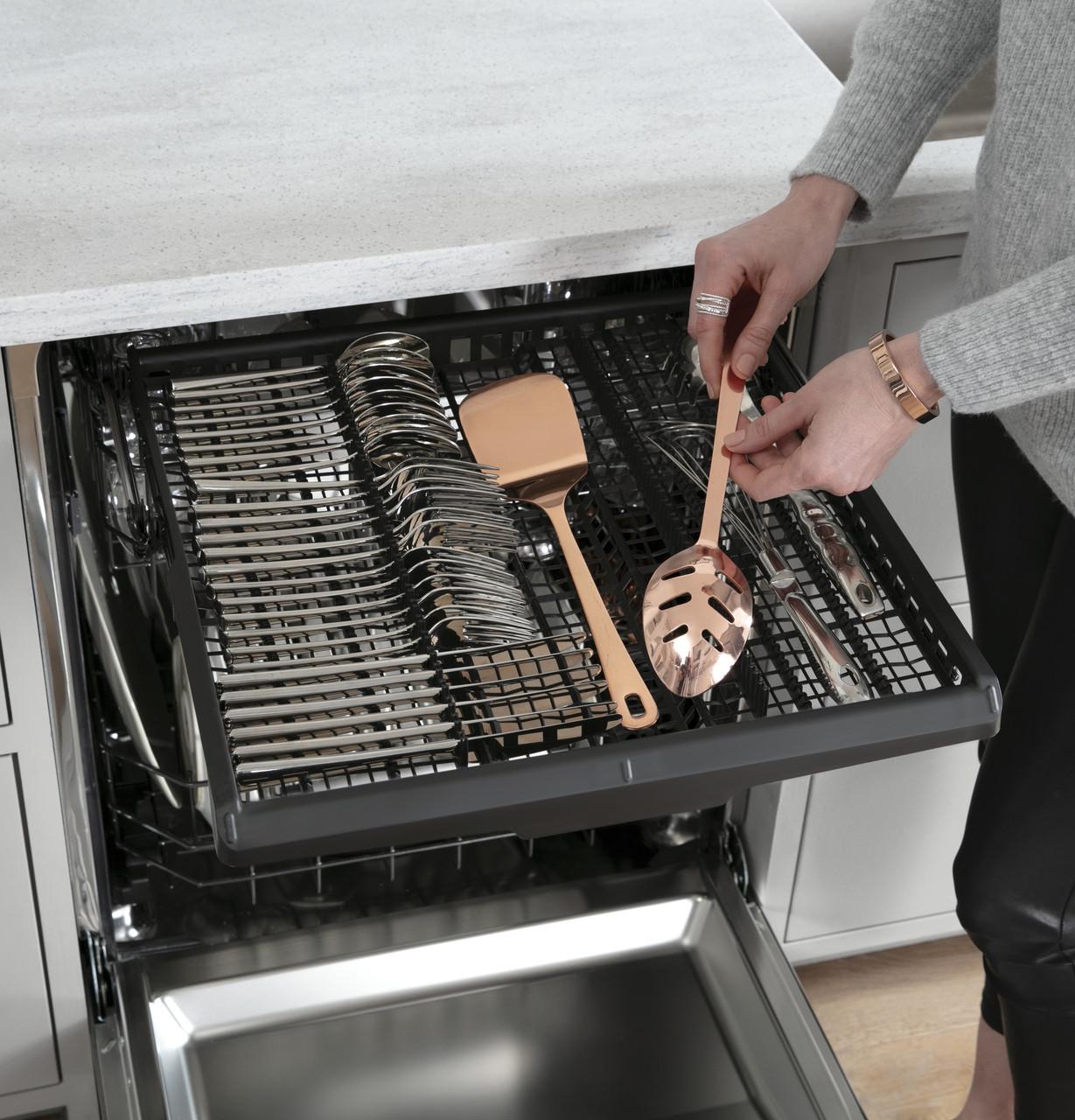

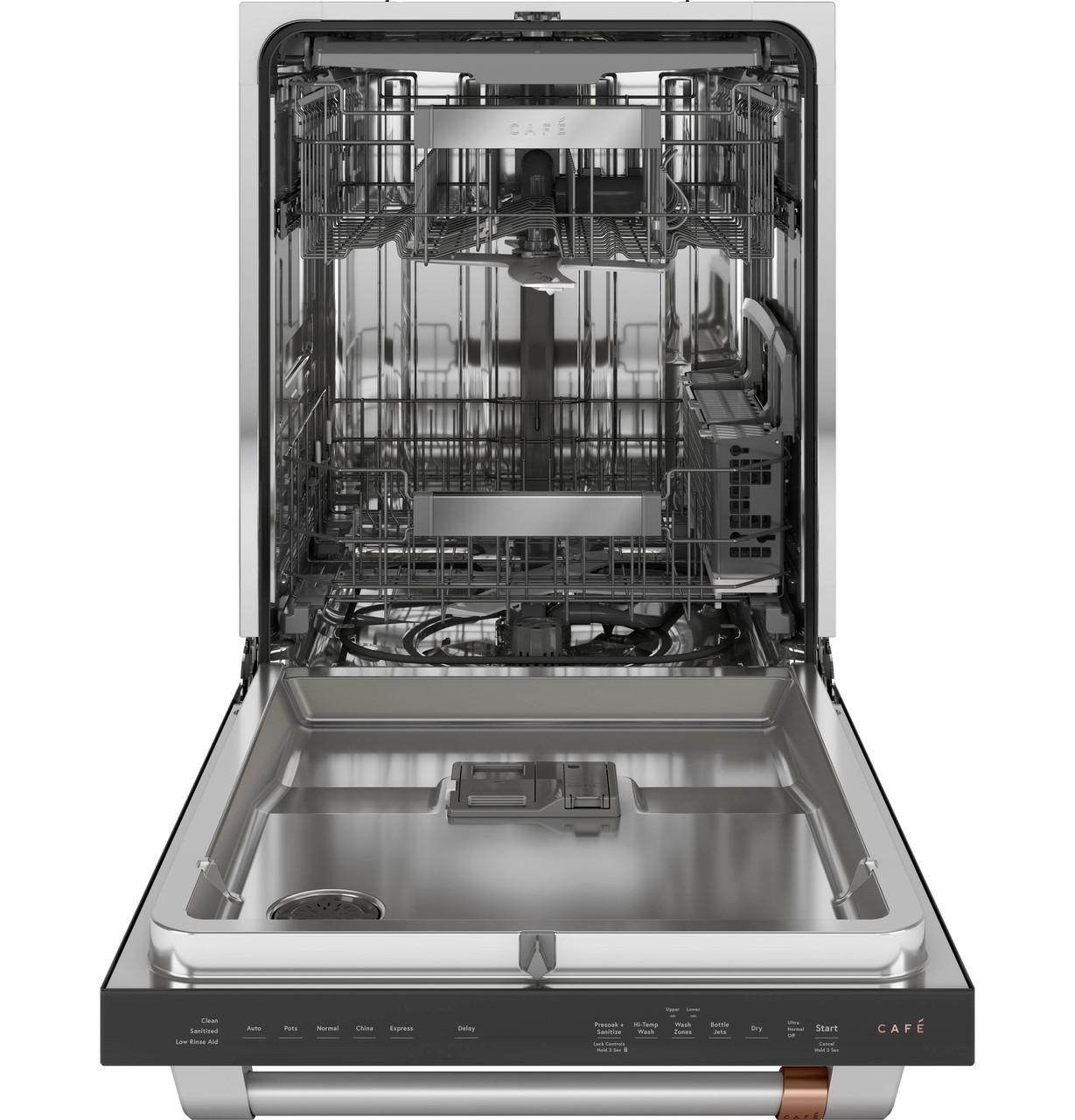

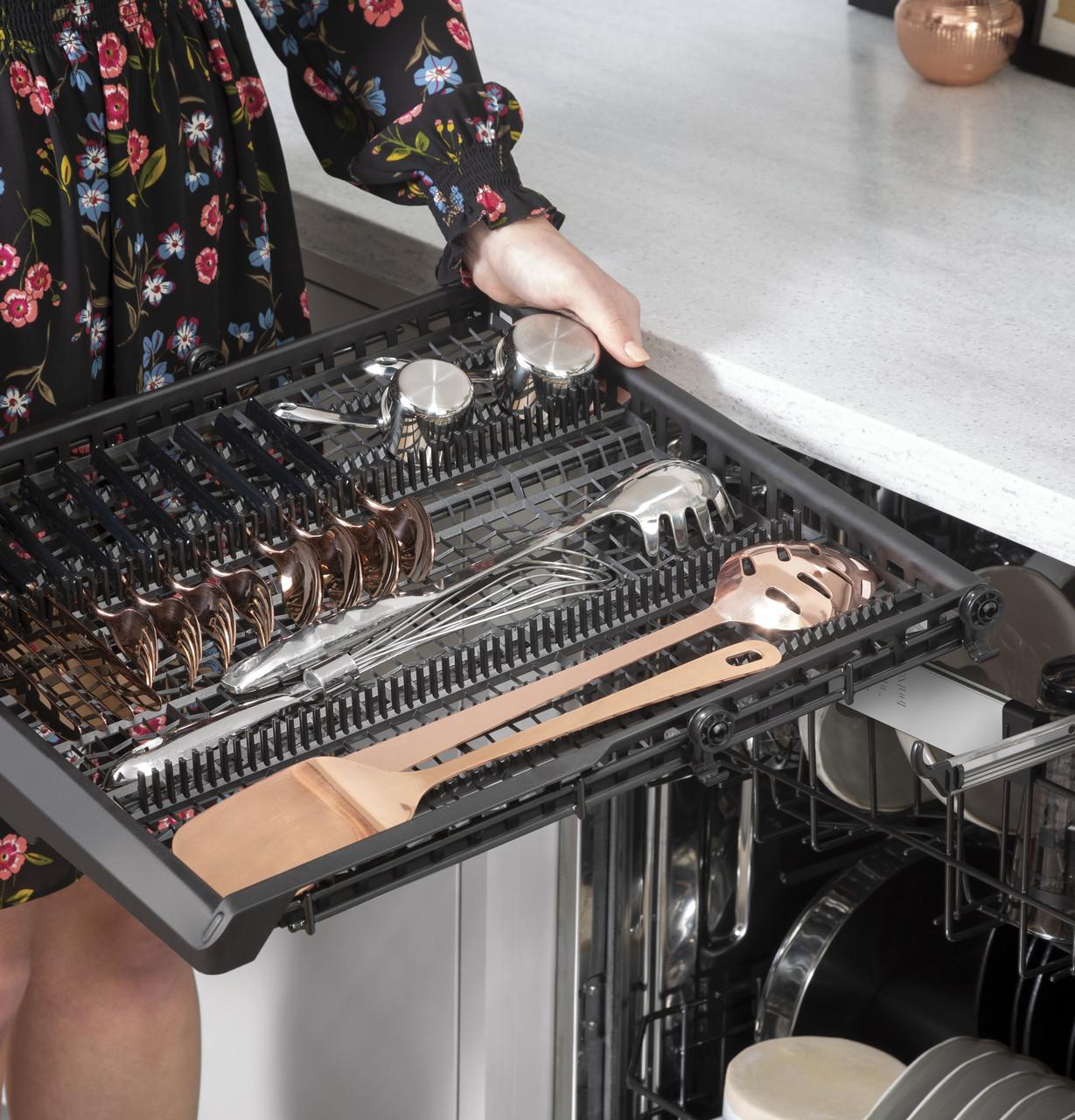

Built-In Third Rack
This dishwasher with third rack storage lets you easily clean more items in fewer loads. It gives you extra loading flexibility with a place to wash and dry silverware, spatulas, lids and more

Water Leak Sensor
This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached

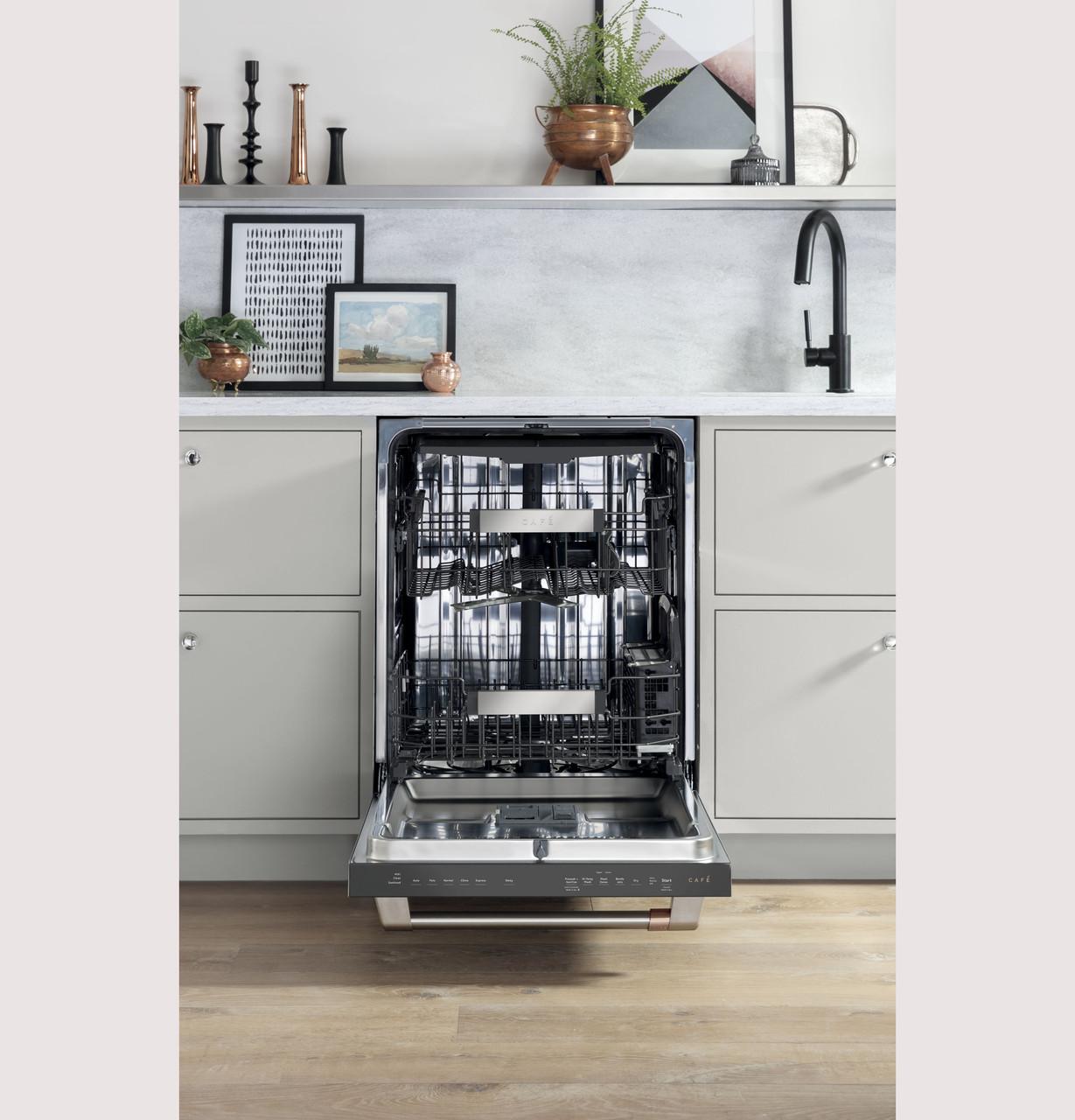

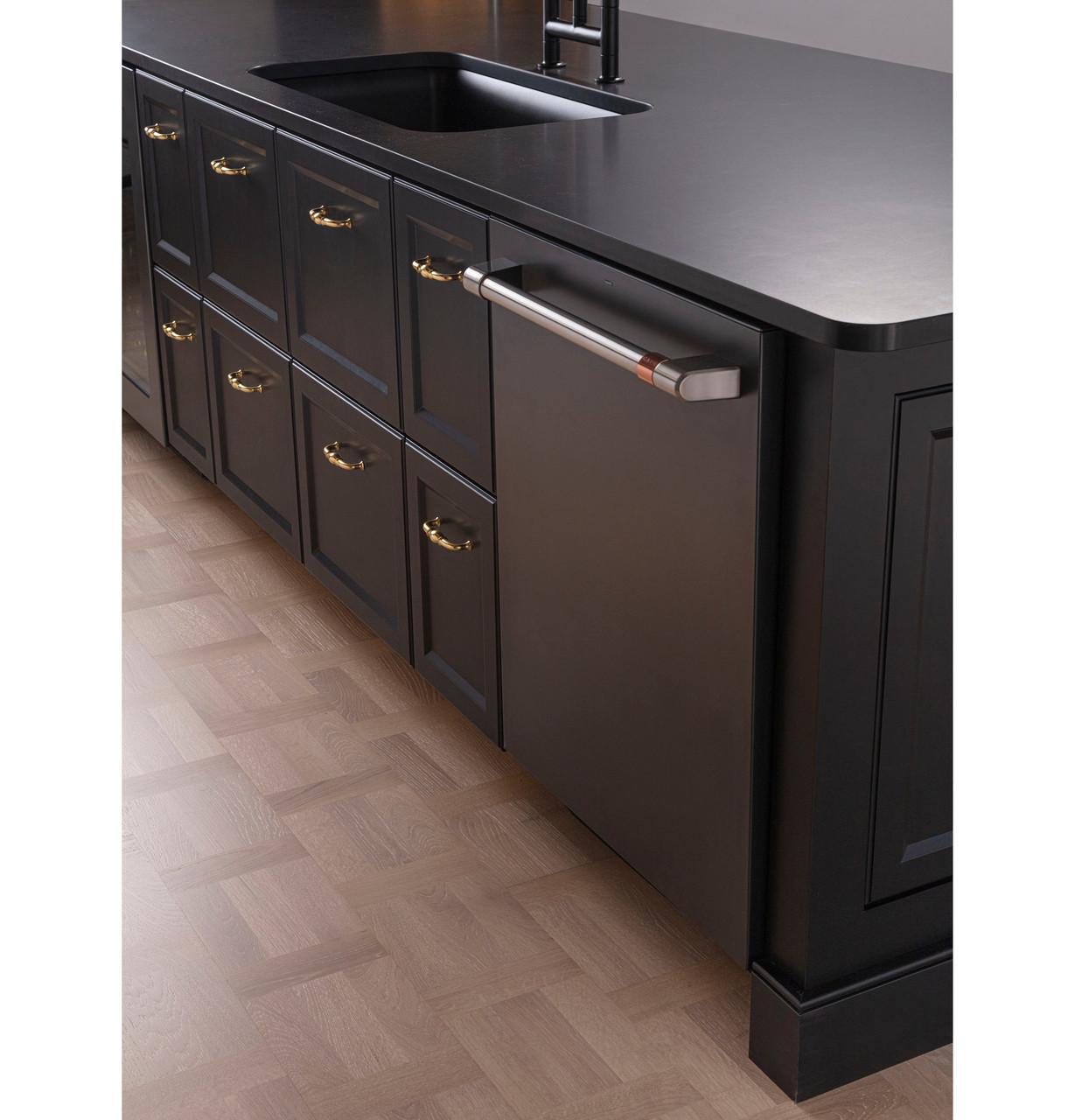

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside

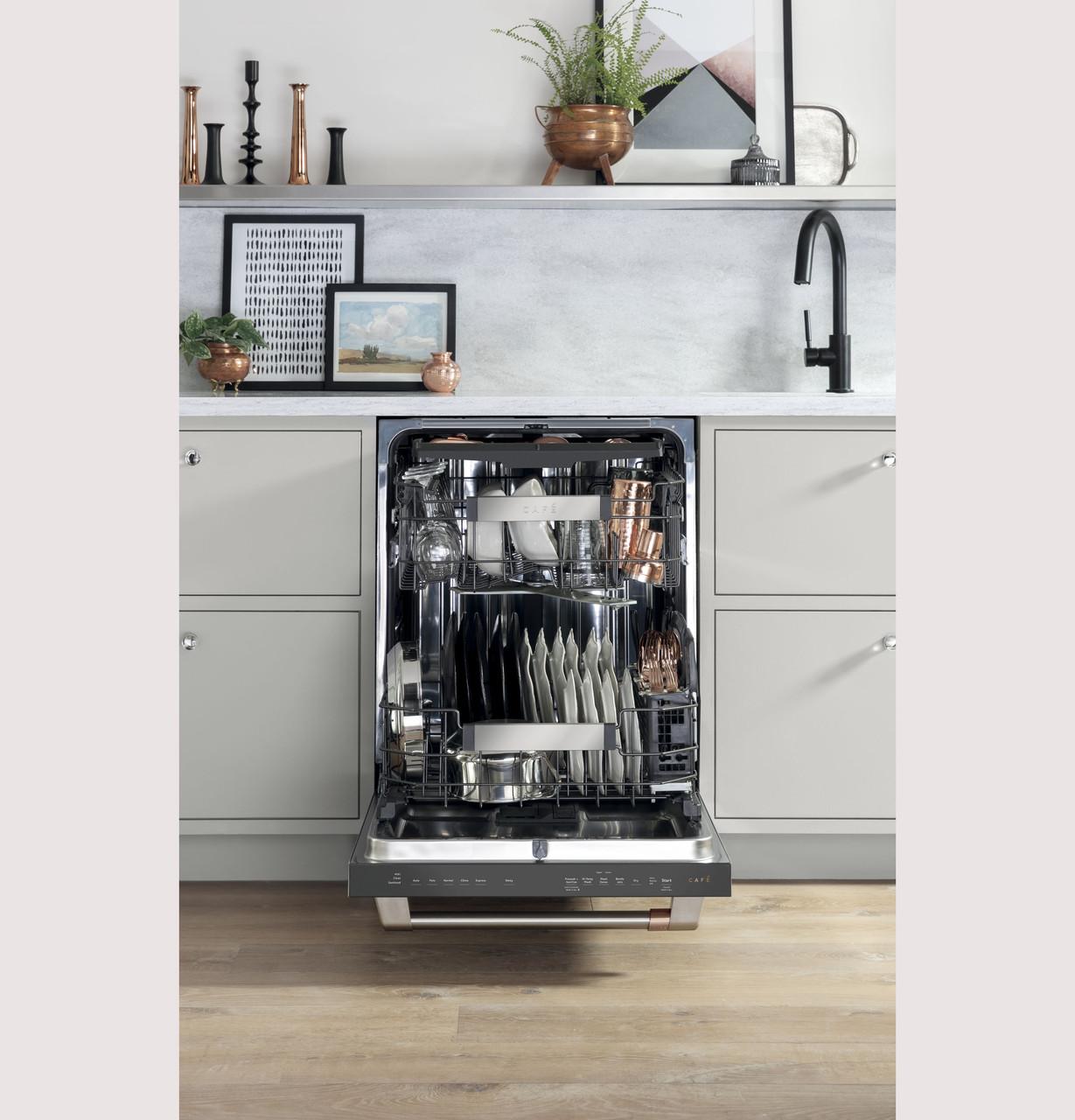

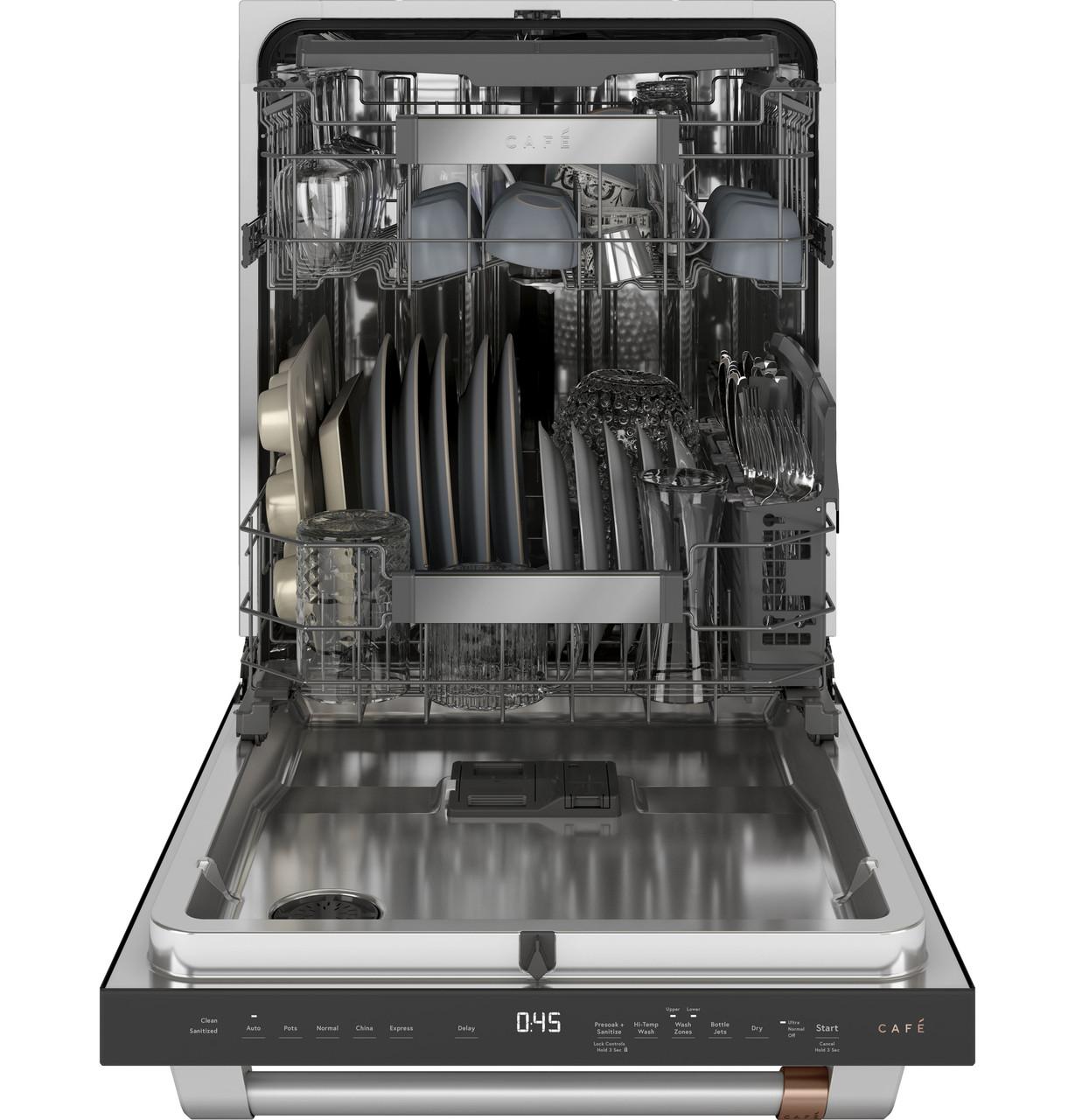

Extra Large Capacity
This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings

45 dBA Dishwasher
This 45 decibel dishwasher offers quiet operation that will make your kitchen more peaceful, while delivering a powerful wash for clean results every time

FILTER
App Filter - Cabinet Width	Dish Traditional 24 in.
App Filter - Stainless Steel Interior	Yes
App Filter - Product Type	Dish Built-In Top Control
App Filter - WiFi Connect	Optional
App Filter - Food Disposer	Yes
App Filter - Bottle Wash	Yes
APPEARANCE
Handle	Café™
Installation	Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included
Handle Color	Brushed Stainless
Door Style	Long Door with Top Controls
Door Appearance	Full-length flat door
Color Appearance	Matte Black
POWER / RATINGS
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Calrod Heater Watts	800/500
Volts/Hertz/Amps	120v; 60Hz; 7.2A
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Door Insulation	Insulation Mastic
Quiet Package	45 dBA
Outer Wrap	Bitumen Full-wrap Blanket
Motor Type	Single Speed
Quiet Features	Quiet Water Valve Sealed Toe Kick Tub Collar Trim
ACCESSORIES
Optional Kits	CXADTH1PMBT Brushed Black CXADTH1PMBZ Brushed Bronze CXADTH1PMCG Brushed Brass CXADTH1PMCU Brushed Copper CXADTH1PMFB Flat Black CXADTH1PMSS Brushed Stainless
WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height	33.375 in
Overall Depth	24 in
Cabinet Width	24 in
Net Weight	124 lb
Overall Width	23.75 in
Approximate Shipping Weight	137 lb
Overall Height	34 in
Overall Depth with Handle	26.3 in
Height w/Legs Extended - Maximum Height	34.625 in
FEATURES
Wash System	3-Level 800 Series
Sensor	Clean Sensor
Lower Rack	1/2 fixed tines, 1/2 fold down tines Ball-Tip Tines
Tub Type	Tall Tub
Leveling System	4 Leveling Legs
OU Certified	No
Additional Protection	Active Flood Protect
Number of Place Settings	16
Dishwasher Options	Bottle Jets Delay Start 1-12 Hr. Heated Dry Off Hi-Temp Wash Lock Controls Normal Dry Presoak + Sanitize (Certified to NSF Standard 184) Sabbath Mode Start/Reset Ultra Dry Wash Zone Lower Only Wash Zone Upper Only
Latch	Pull with Handle
Number of Options	12
Style	Built-In Top Control
Water Filtration System	100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray	One piece removable 3rd rack

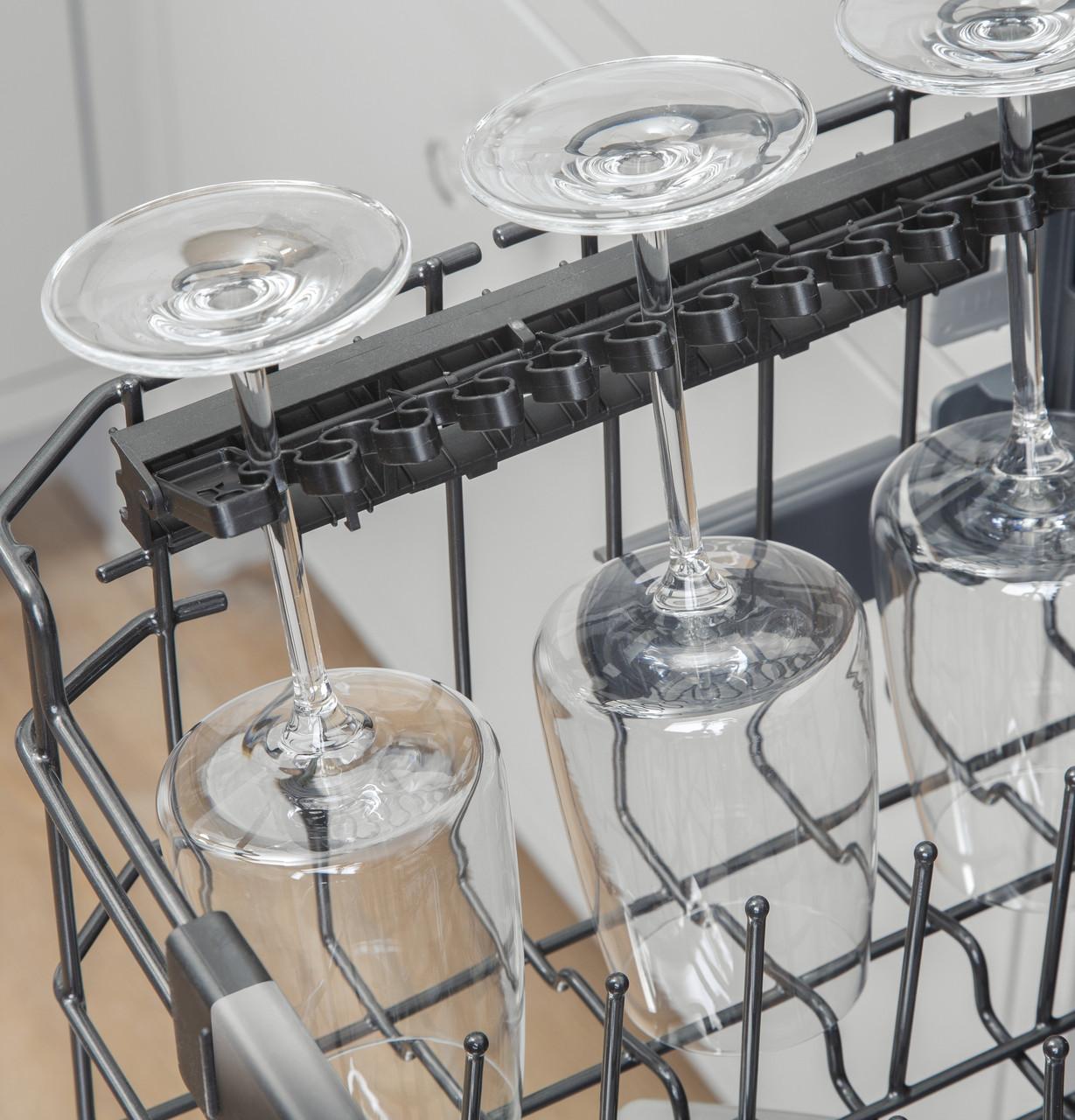

Rack Features	2 short articulating plastic utility shelves w/Stemsafe and chop-stick slots 3-Piece Silverware Basket with Cell Covers Adjustable Upper Rack Ball-Tipped Tines Full Extension Slides - Upper
Racking Material	Nylon
Dishwasher Cycles	Auto China Express Normal Pots
Rack Color	Black Pearl
Dispenser	Rinse Aid with Indicator and Adjustment
WiFi Connect	Optional (Requires part no. PBX23W00Y0)

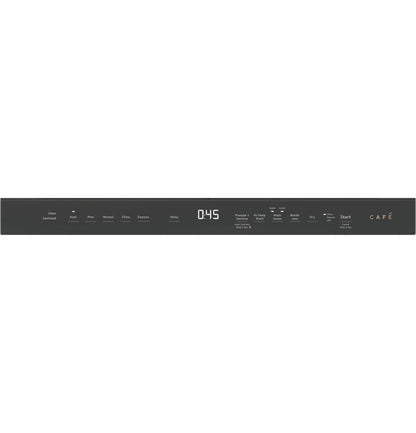

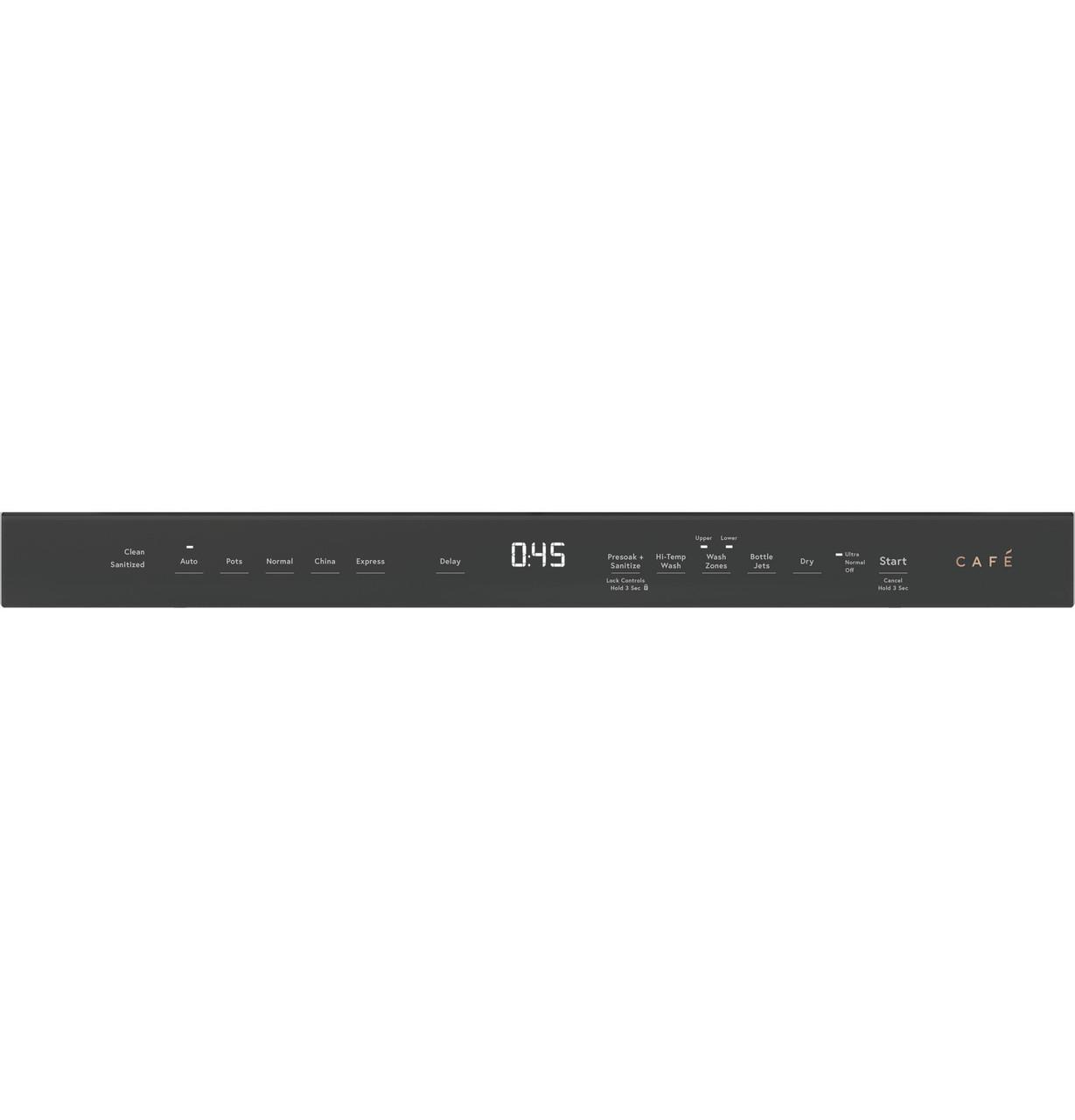

Control Type	12 Touchpads Cap Touch Controls Top Controls
Racking System	Full 3rd rack
Dishwasher Drying Features	Fan Assist Dry Heated Dry - Ultra/On/Off Multi-Wattage Wash & Dry Element

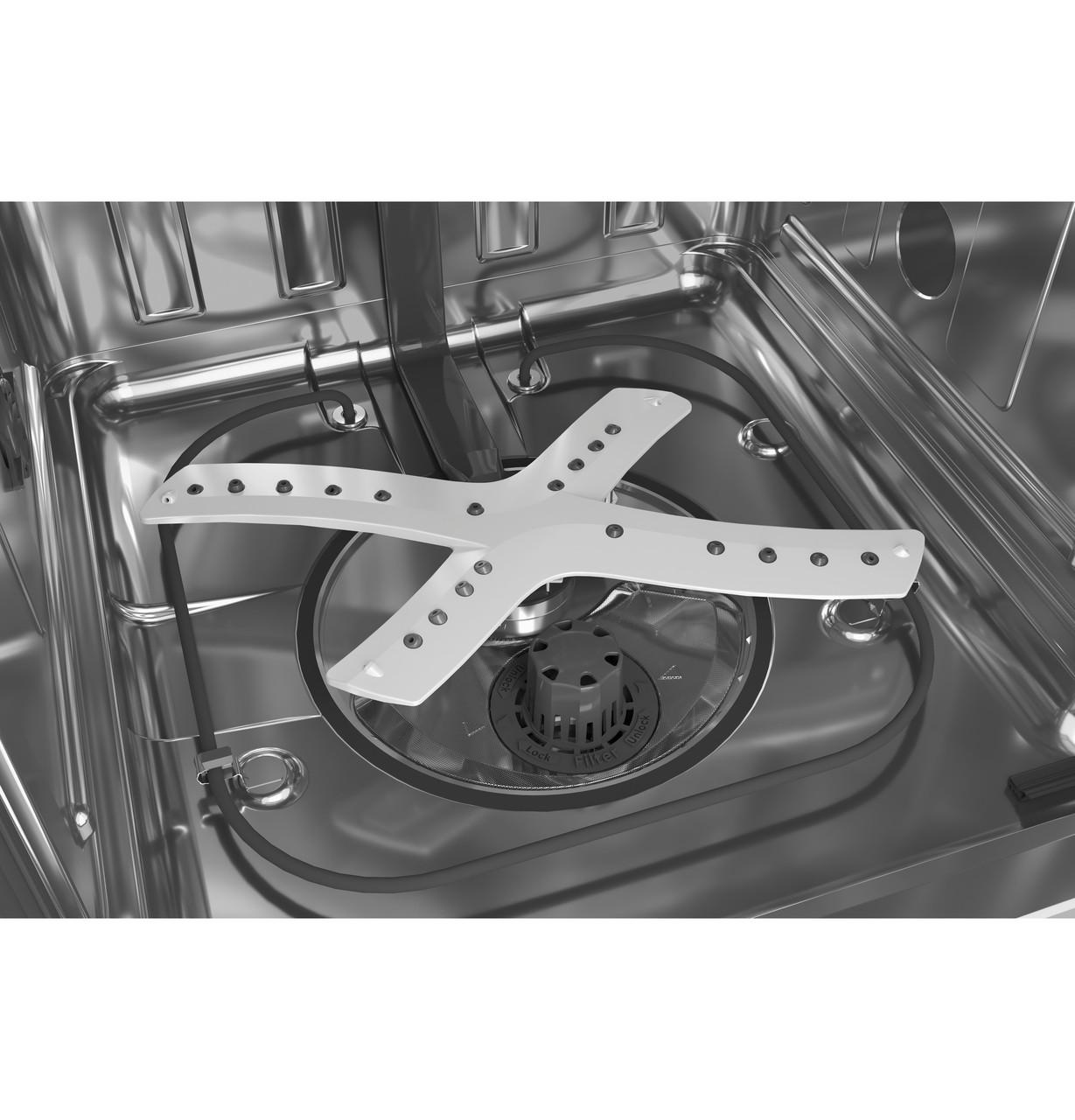

Wash Arms	3 Wash Levels Bottle Jets Deep Clean Silverware Jets Lower- Reversing Quad Blade Middle - Quad Blade
Wash System Features	90+ Spray Jet Wash System Automatic HotStart Automatic Temperature Control Bottle Jets (4) Deep Clean Silverware Jets Drain Pump Dual Pumps and Motors Hard Food Disposer with removable filter Quad Blade Middle Wash Arm Reversing Quad Blade Lower Wash Arm
Exterior Style	Traditional
Upper Rack	1 Rack handle 1/2 fixed tines, 1/2 fold down tines 2 Stem Safe Shelves Ball-Tip Tines Chop stick slots Fixed tines with Bottle Jets Premium Height Adjustable
Dishwasher Control Features	1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown with Bi-Color LED Status Light on door Last Cycle Memory
Number of Cycles	5
Tub and Door Liner	Stainless Steel
Sabbath Mode	Yes
Showroom Power Mode	Yes
