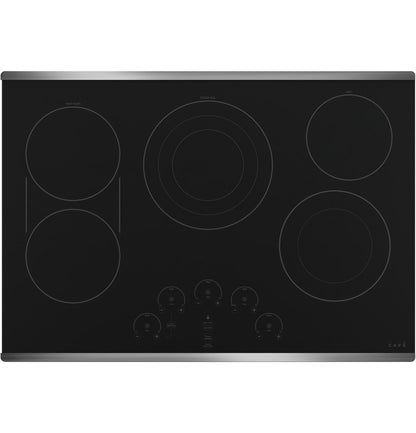

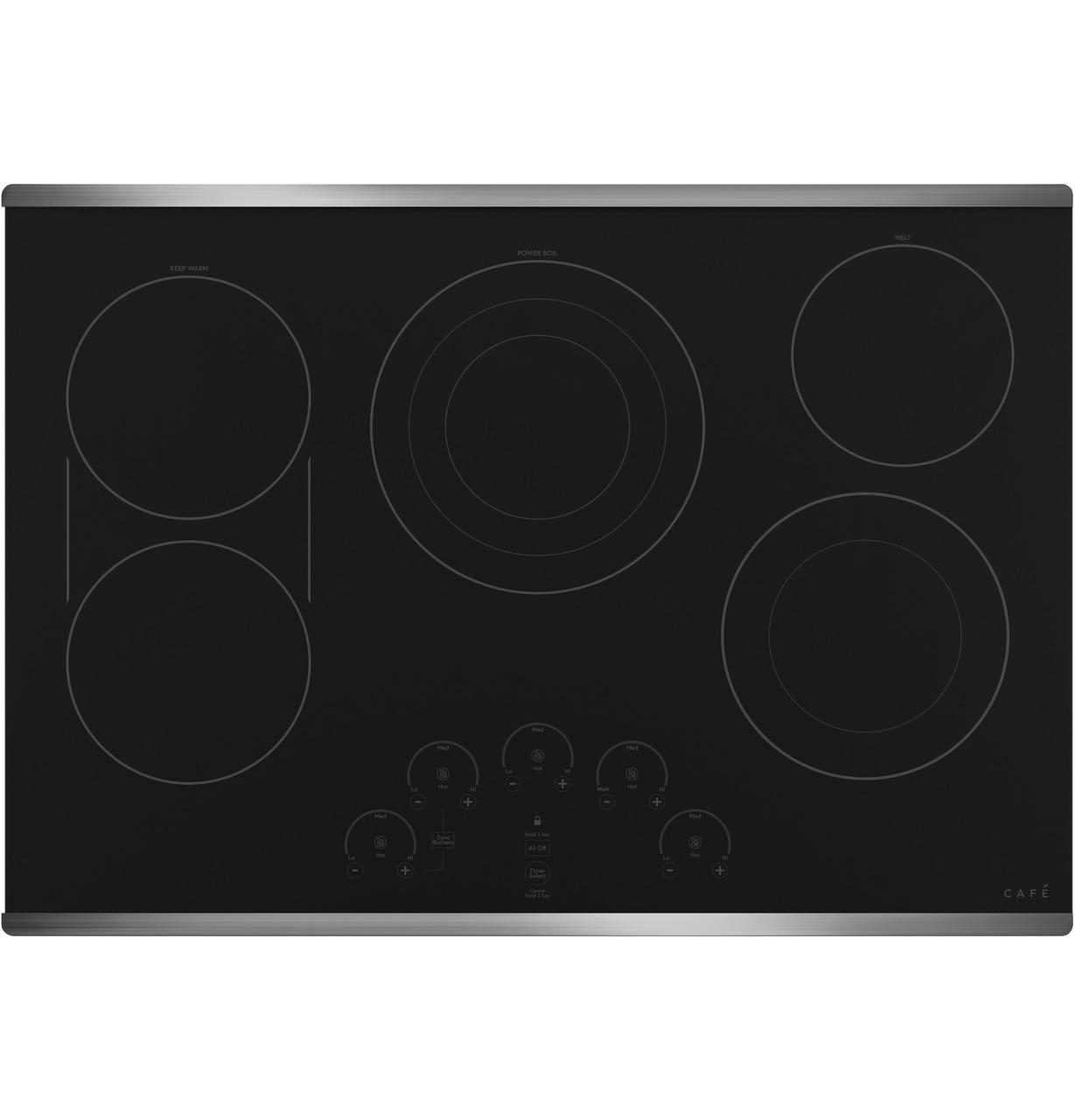

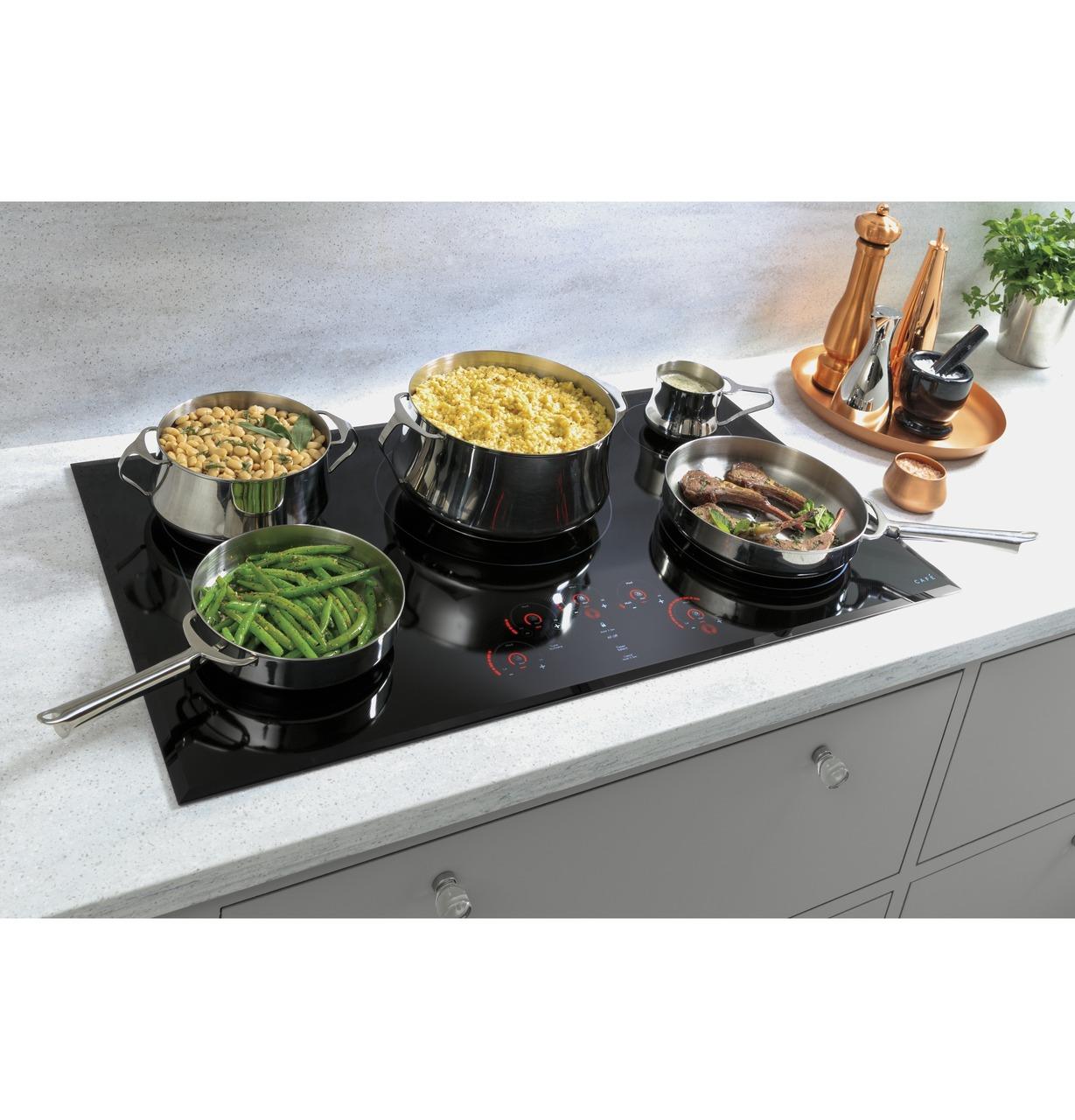

Caf(eback)™ 30" Touch-Control Electric Cooktop CEP90302NSS
Discontinued- Cook more food. Entertain more possibilities.

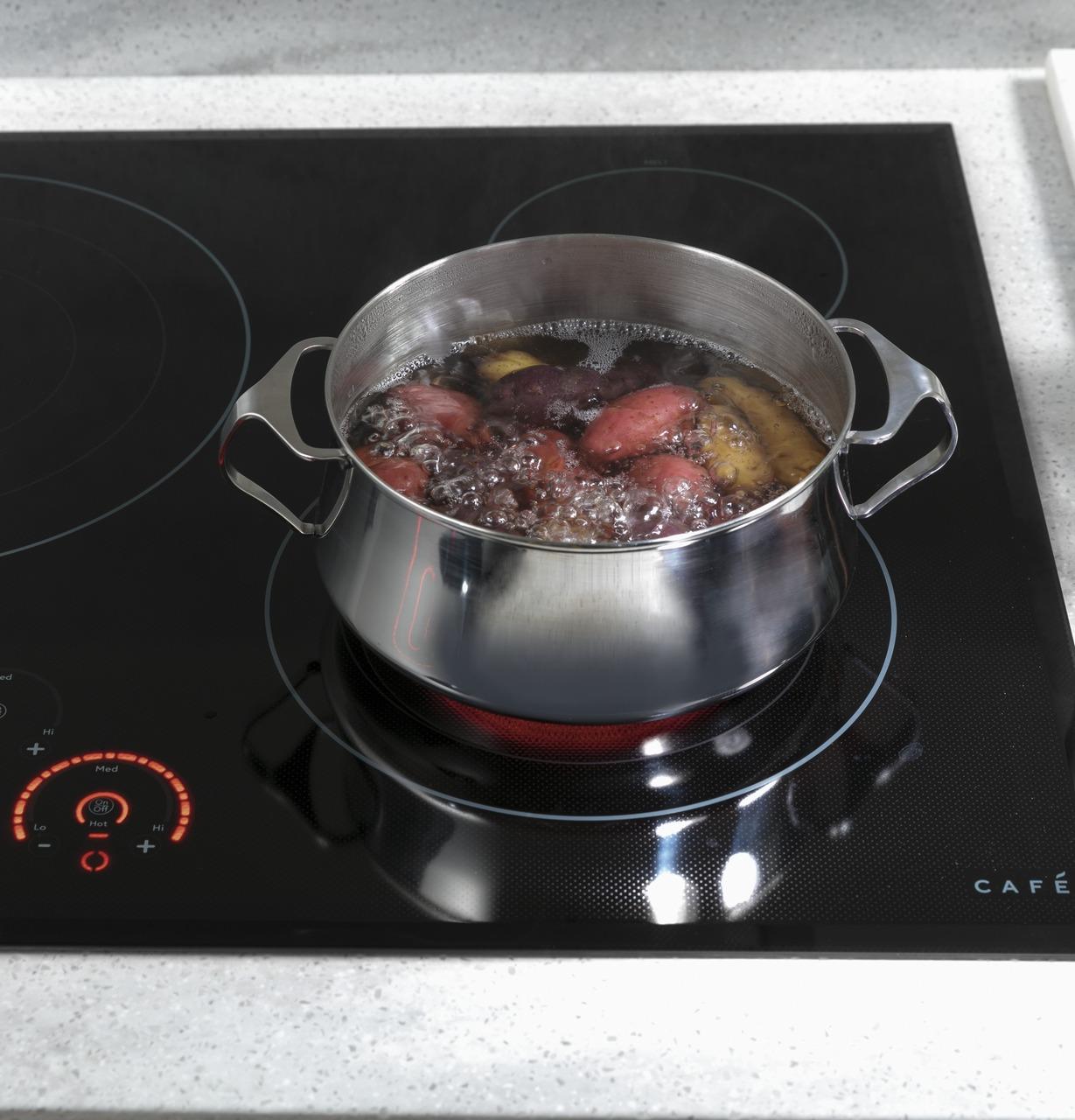

- More heat for more space

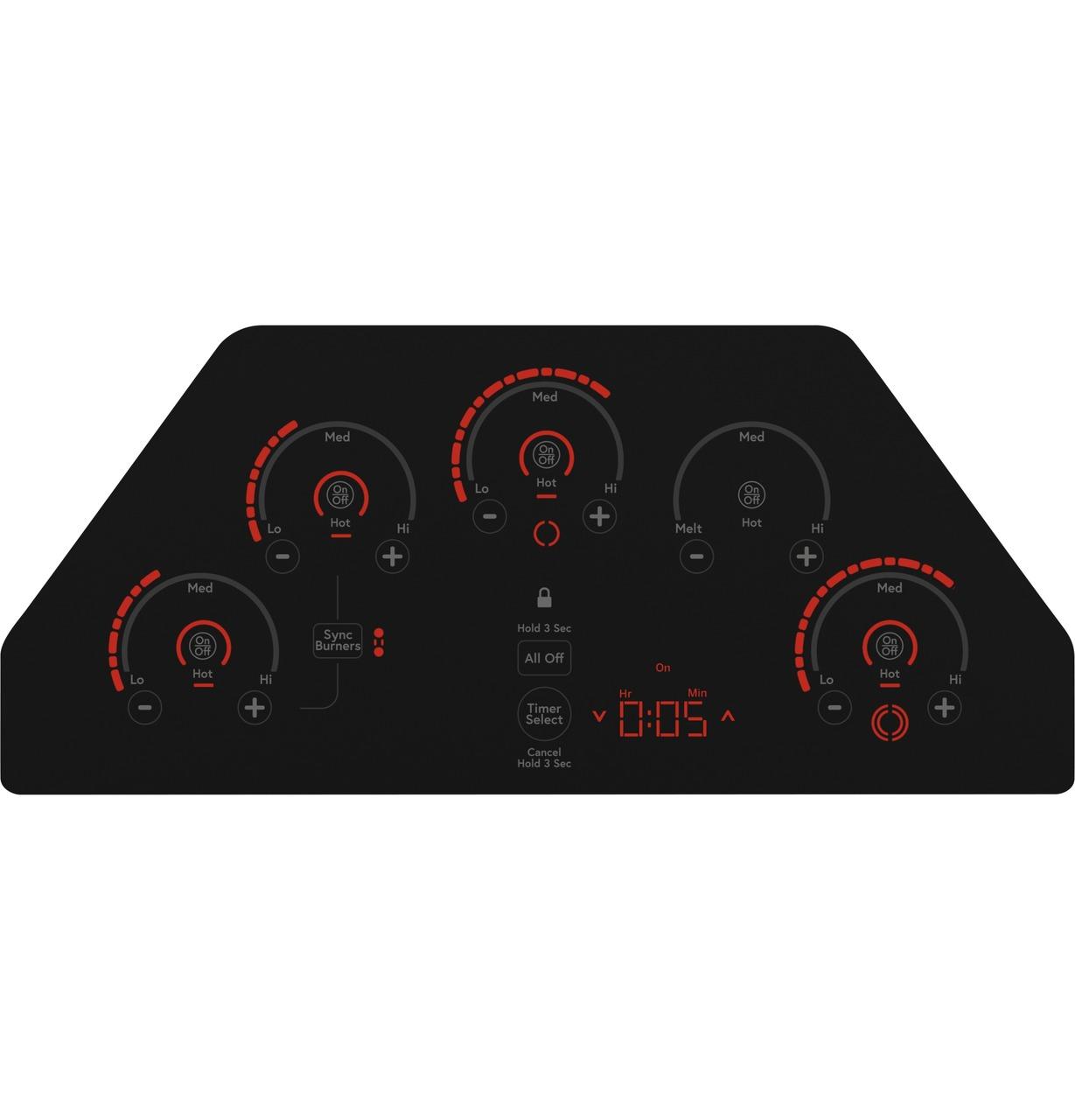

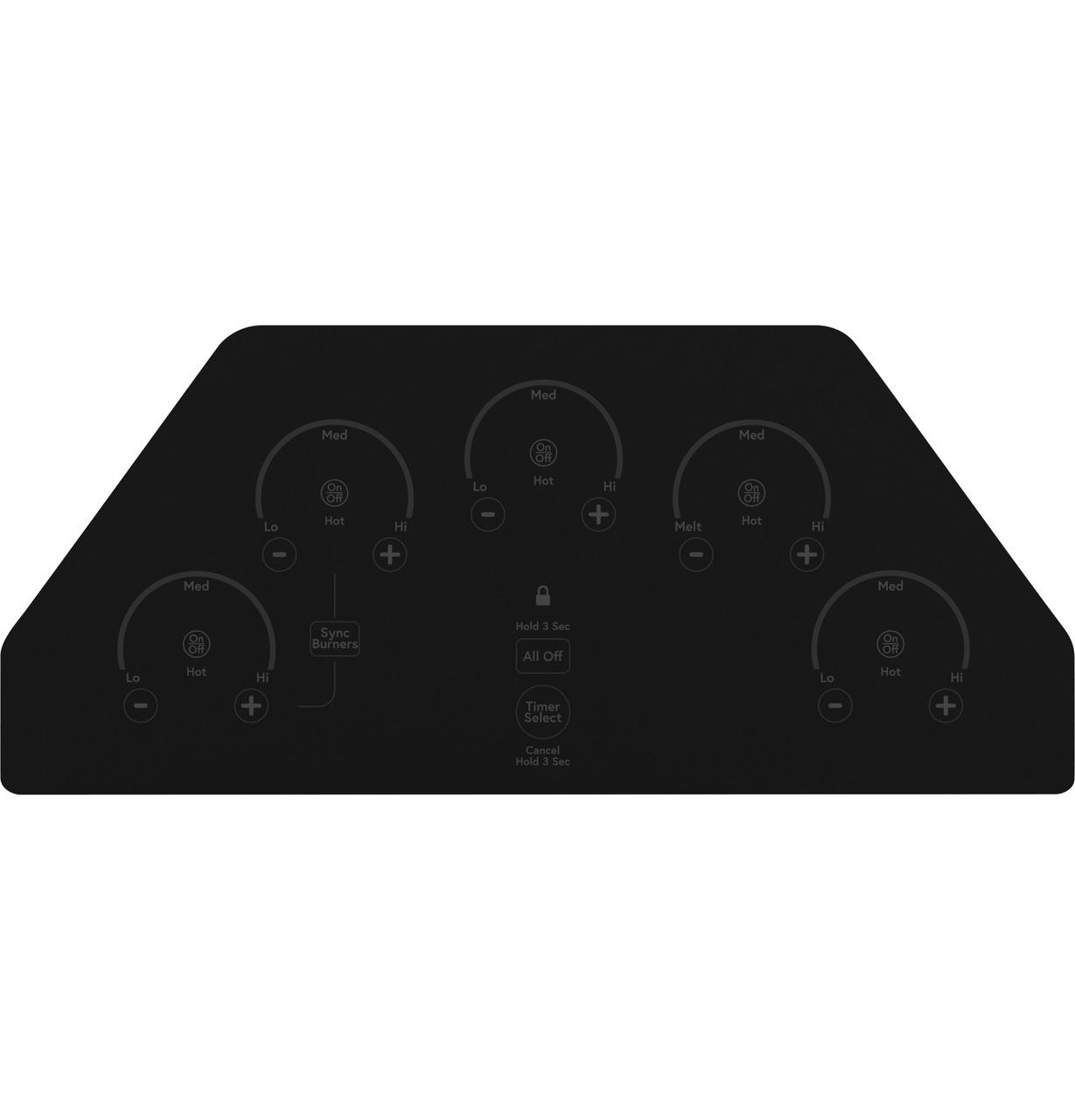

- Control at your fingertips
- The perfect match for pots and pans of all sizes
- Flexible burner sizes add more function

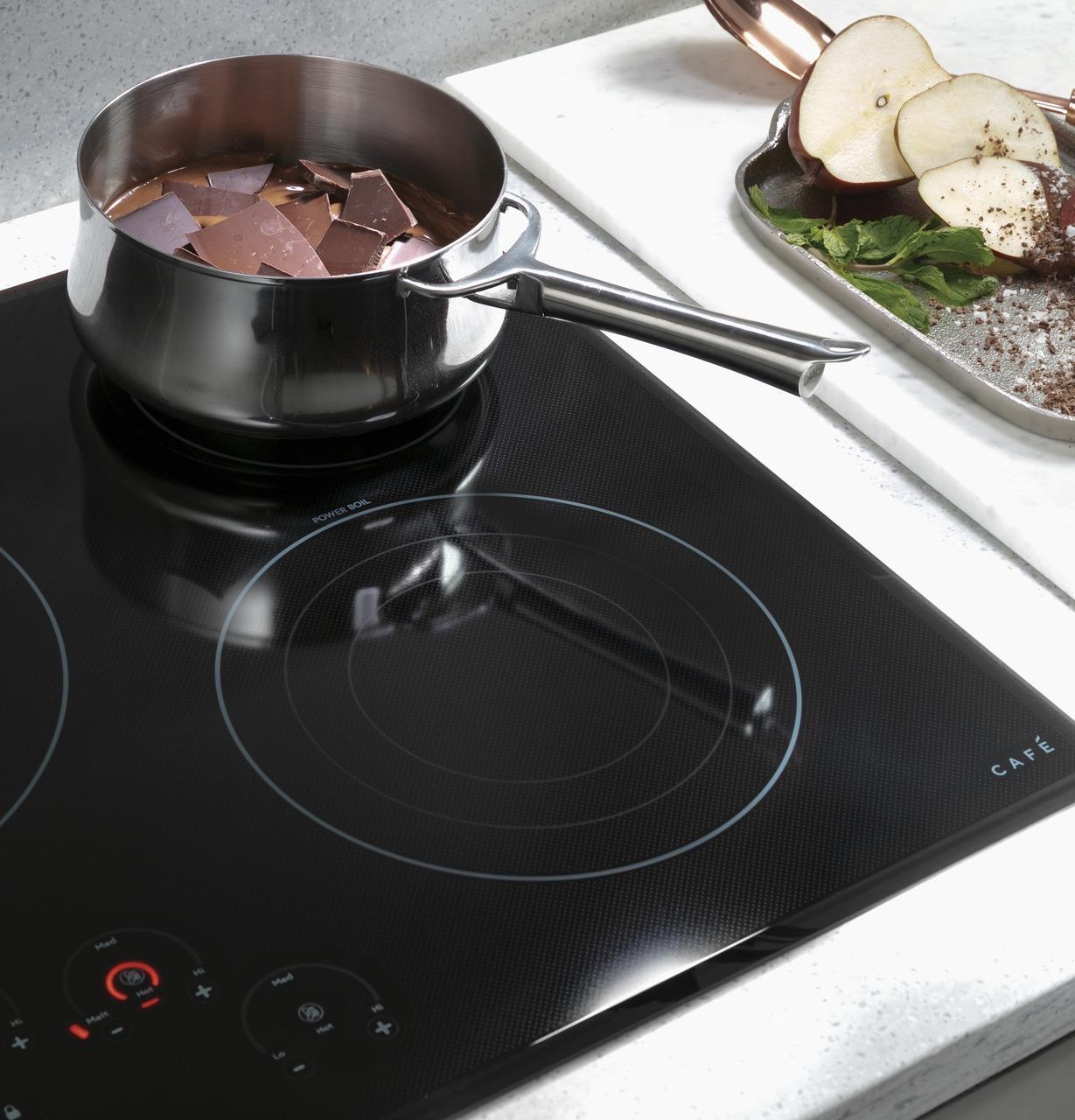

- Melting just got more precise

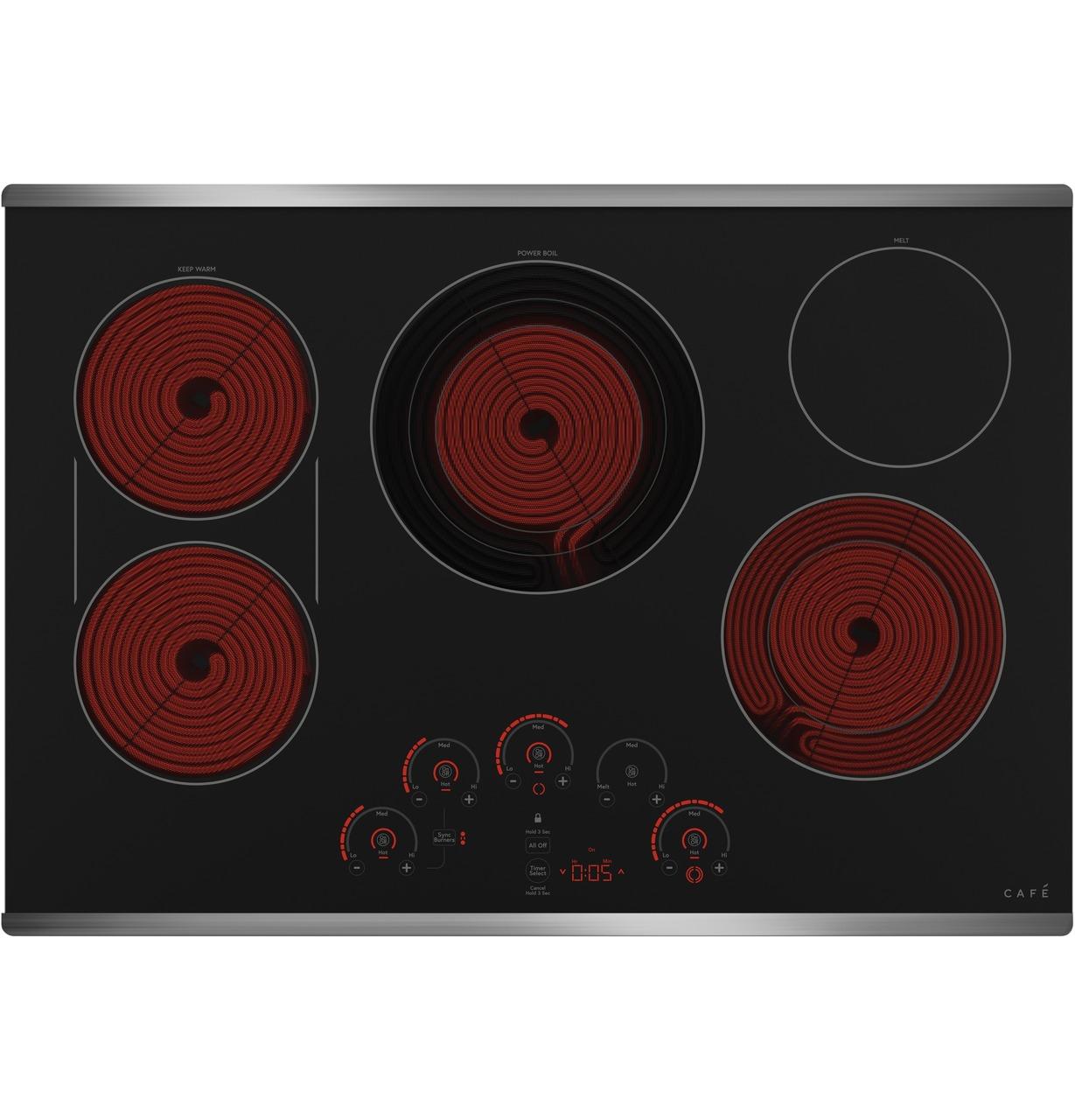

Entertain more possibilities thanks to five radiant cooking elements, allowing you to prepare more dishes at the same time. With two synchronized 7" burners, you can evenly heat large cookware such as griddles or dutch ovens with a single tap, and the stylish touch control system will make cooking your food as impressive as serving it.
APPEARANCE | |
Color Appearance | Stainless Steel |
Frameless | Yes |
FEATURES | |
Control Location | Front Center |
Control Type | Glass Touch |
Cooktop Burner Type | 5 Ribbon Smoothtop |
Cooktop Control Features | All-Off Control Control Lock Capability Custom Settings Keep-Warm Setting Sync-Burners Capability Melt Setting Multi-element timer |
Cooktop Surface | Black Ceramic Glass with Beveled Edge |
Cooktop Type | Radiant Smoothtop |
Element - Center | 9"/7"/5" 3000W Power Boil |
Element - Left Front | 7" 1500W |
Element - Left Rear | 7" 1500W |
Element - Right Front | 8"/5" 2200W Dual |
Element - Right Rear | 6" 1200W |
Filler trim kit | JXTR32B |
Fuel Type | Electric |
Griddle | Included |
Indicator Lights | 5 Hot Surface Surface Element "ON" Red |
Melt Setting | Yes |
Product Type | Cooktop |
POWER / RATINGS | |
Max. Connected Load (kW) at 208V | 7.1 |
Max. Connected Load (kW) at 240V | 9.4 |
Max. Current Draw (Amps) at 208V | 33.9 |
Max. Current Draw (Amps) at 240V | 39.2 |
Recommended Circuit Breaker (Amps) at 208V | 40 |
Recommended Circuit Breaker (Amps) at 240V | 40 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS | |
Approximate Shipping Weight | 46 lb |
Cabinet Width | 30 in |
Cooktop Size | 30 in |
Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
Net Weight | 40 lb |
Overall Depth | 21 1/2 in |
Overall Height | 3 3/8 in |
Overall Width | 29 7/8 in |
