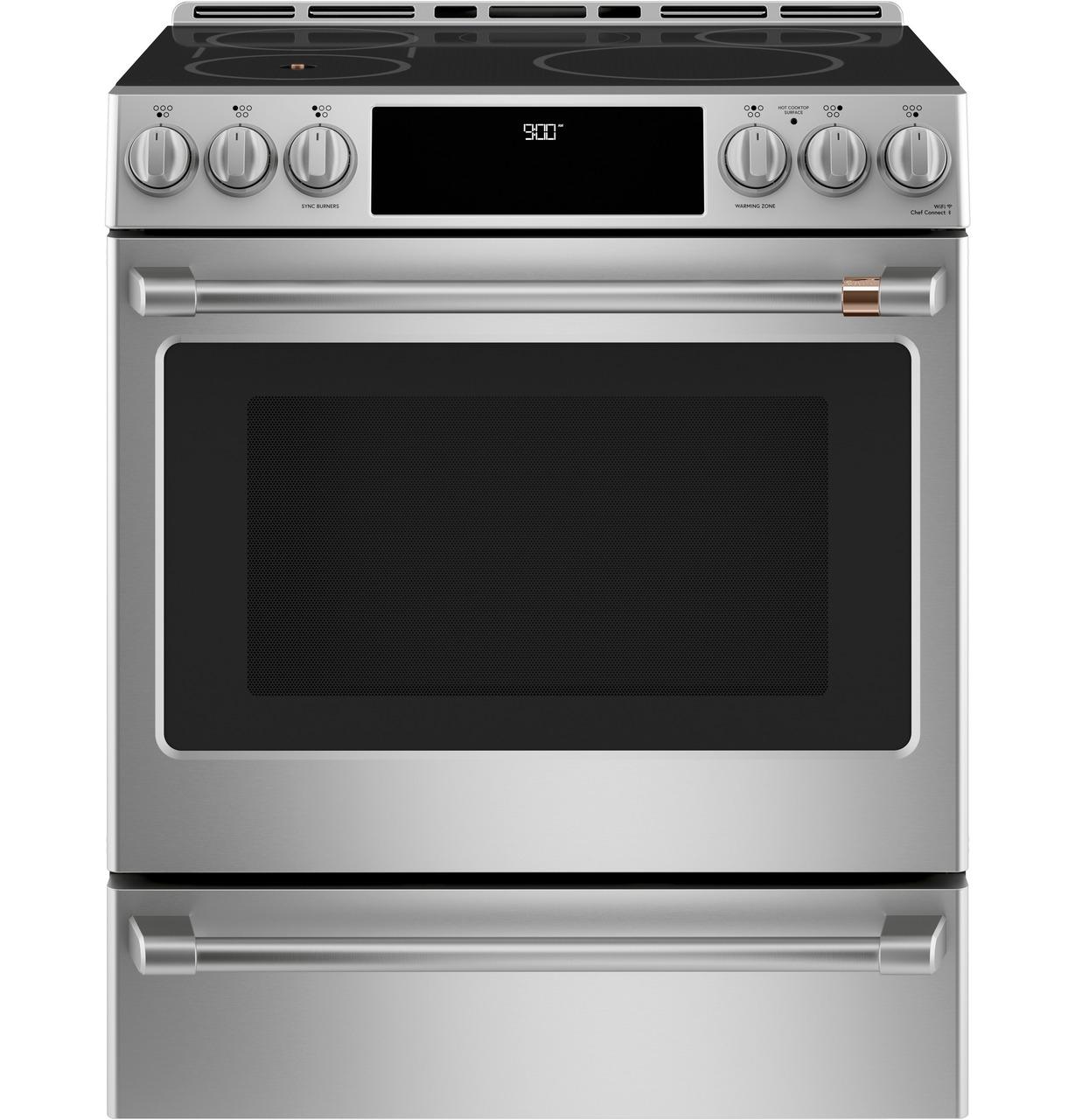

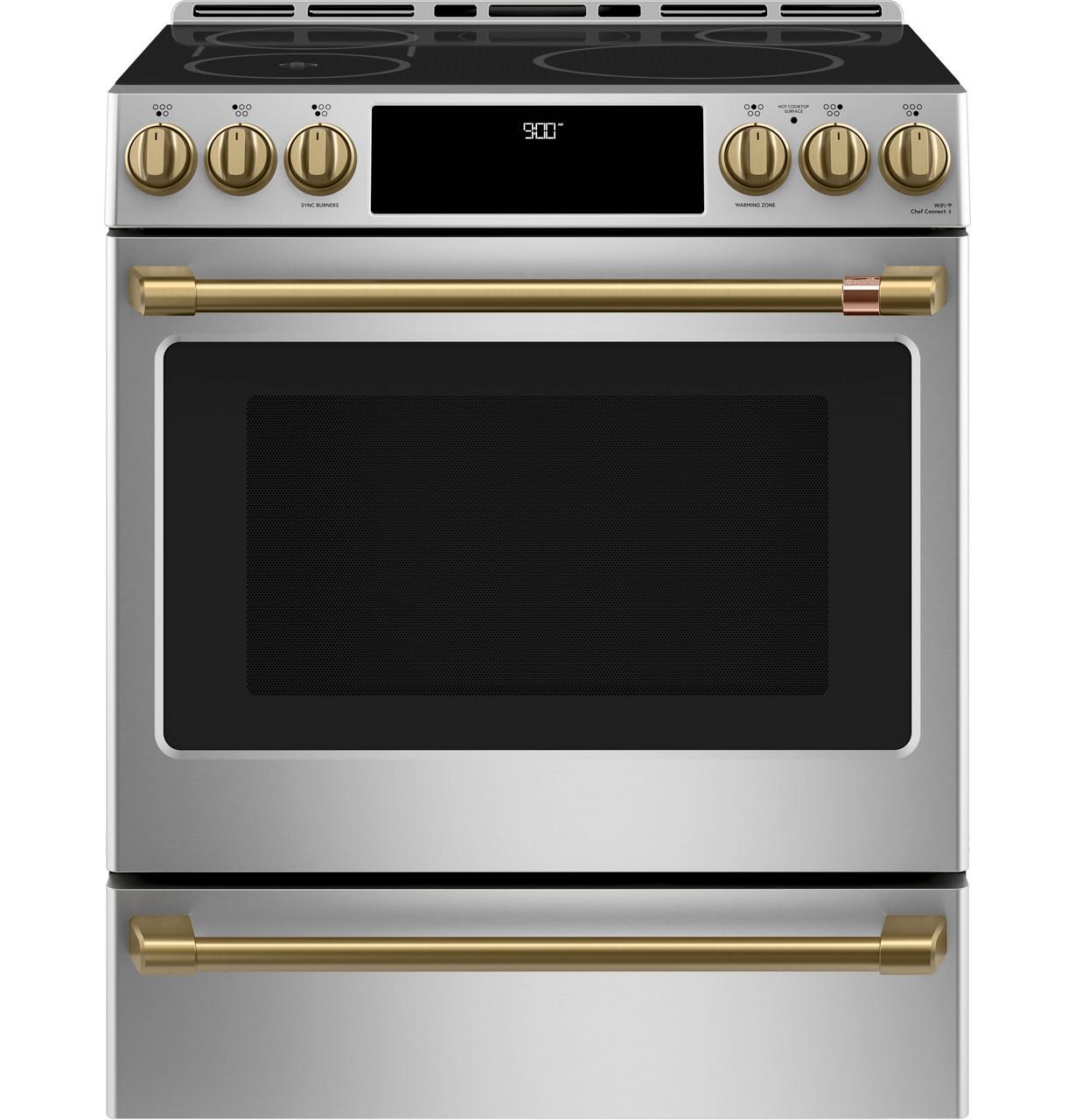

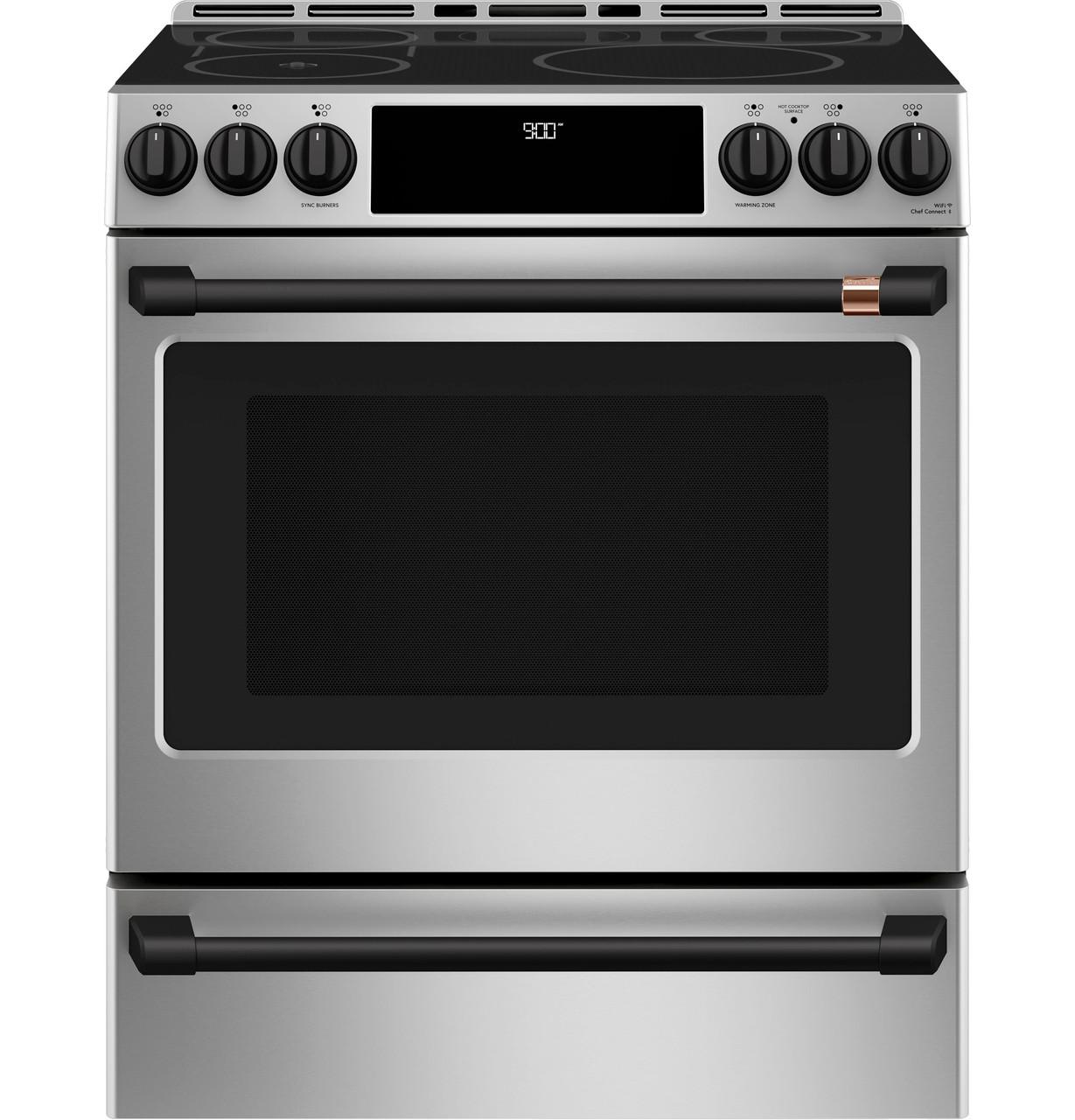

Cafe CHS90XP2MS1 Caf(eback)™ 30" Smart Slide-In, Front-Control, Induction and Convection Range with In-Oven Camera CHS90XP2MS1

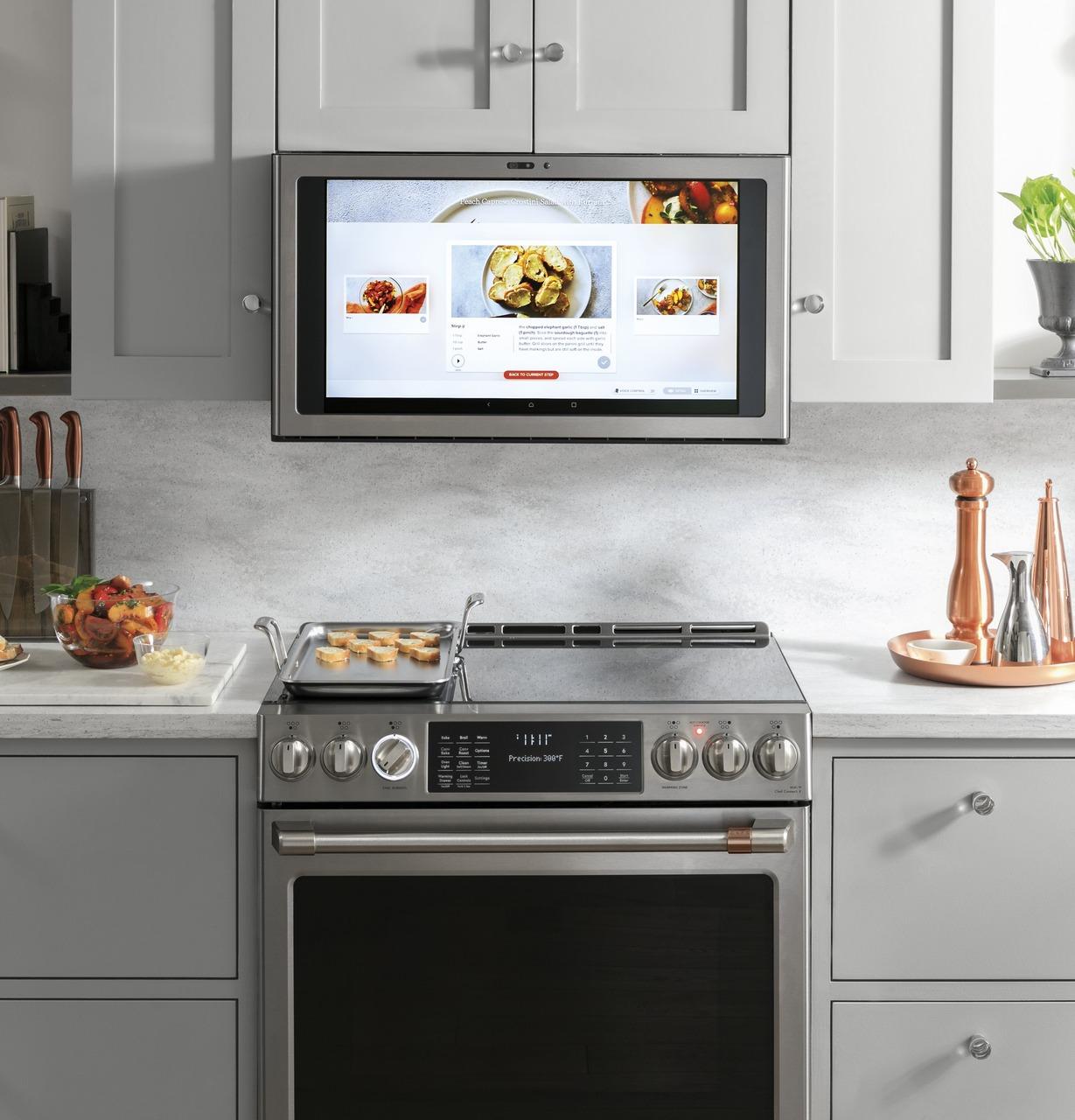

Enhanced Cooking Experience

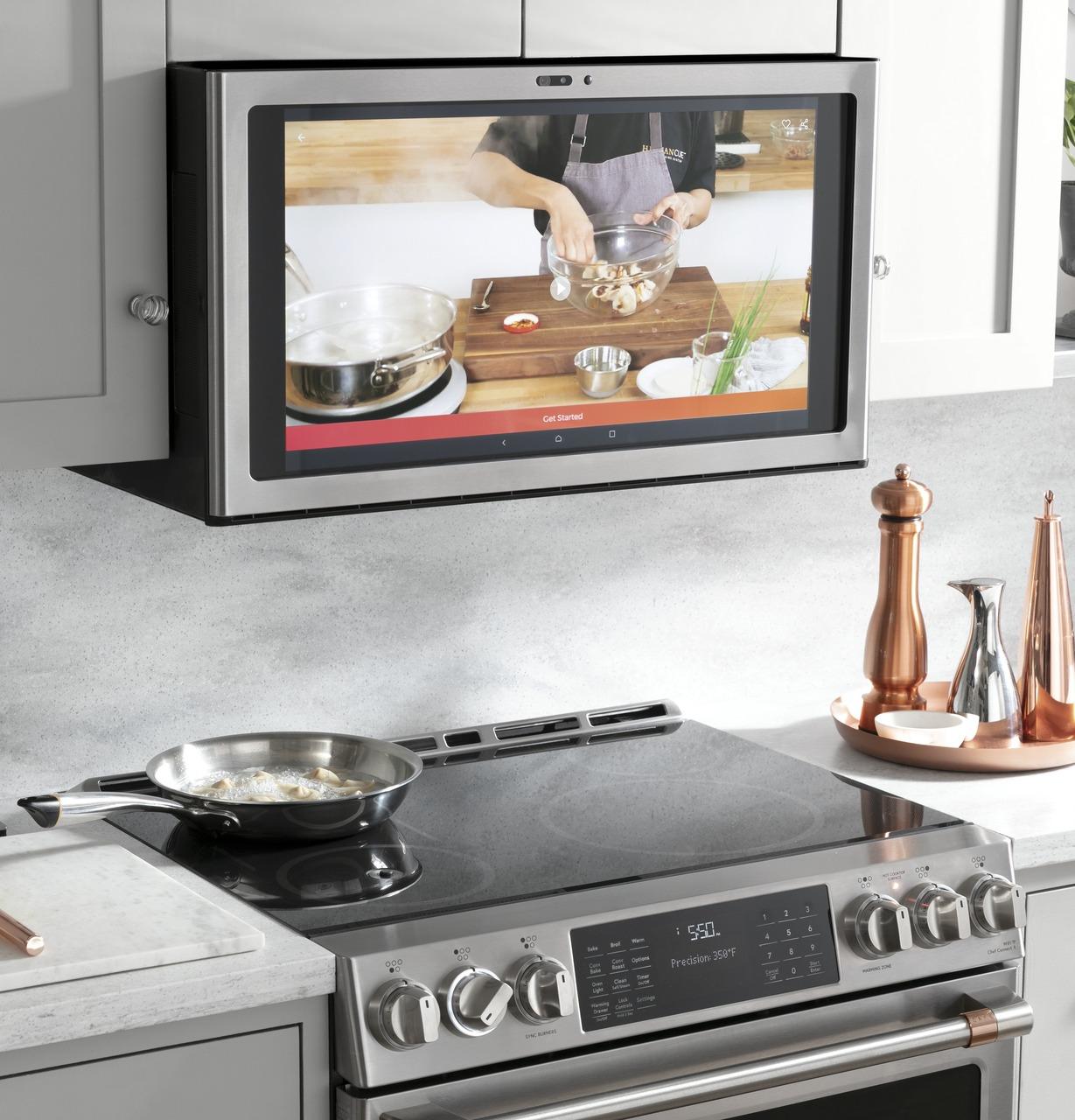

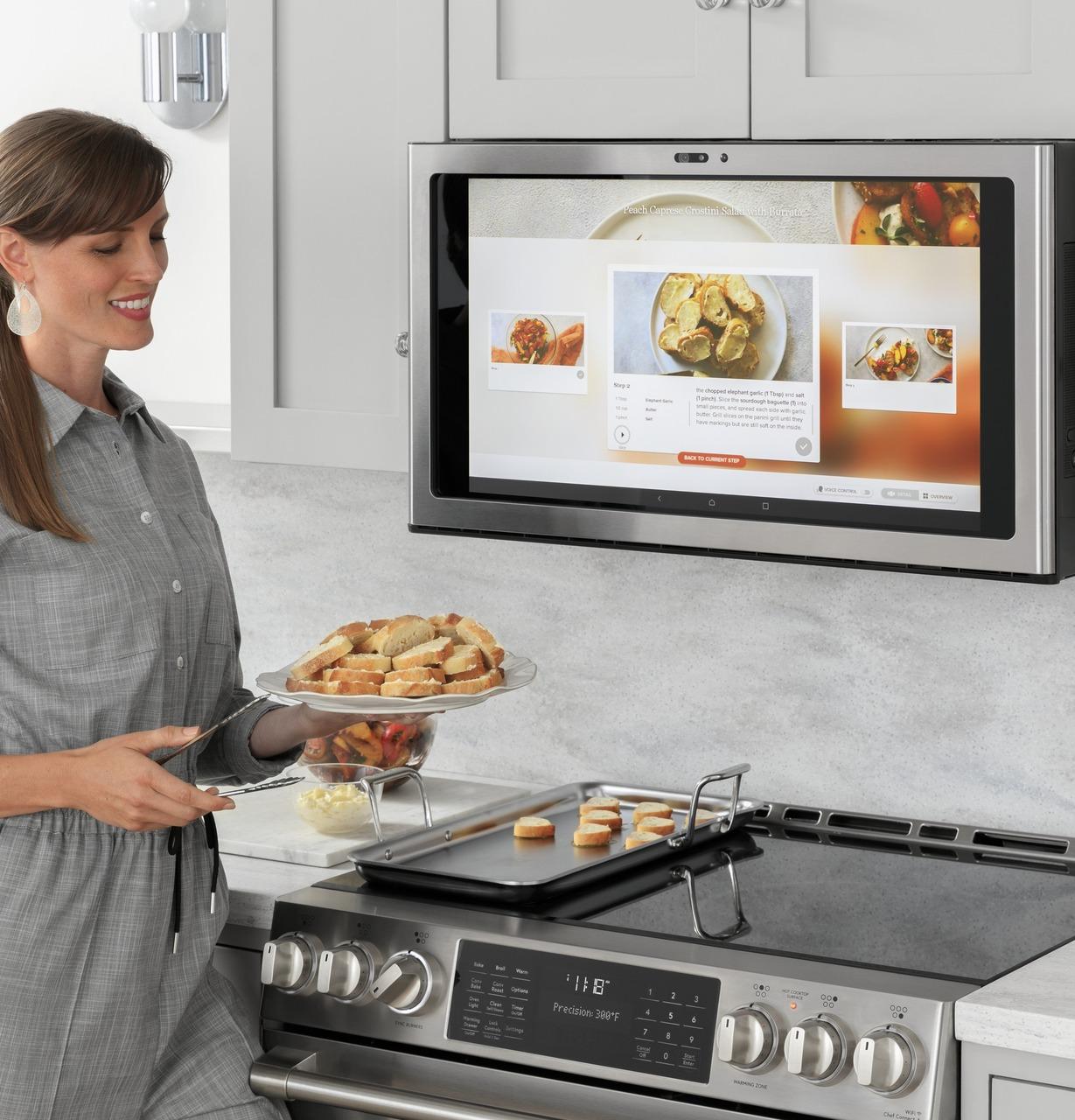

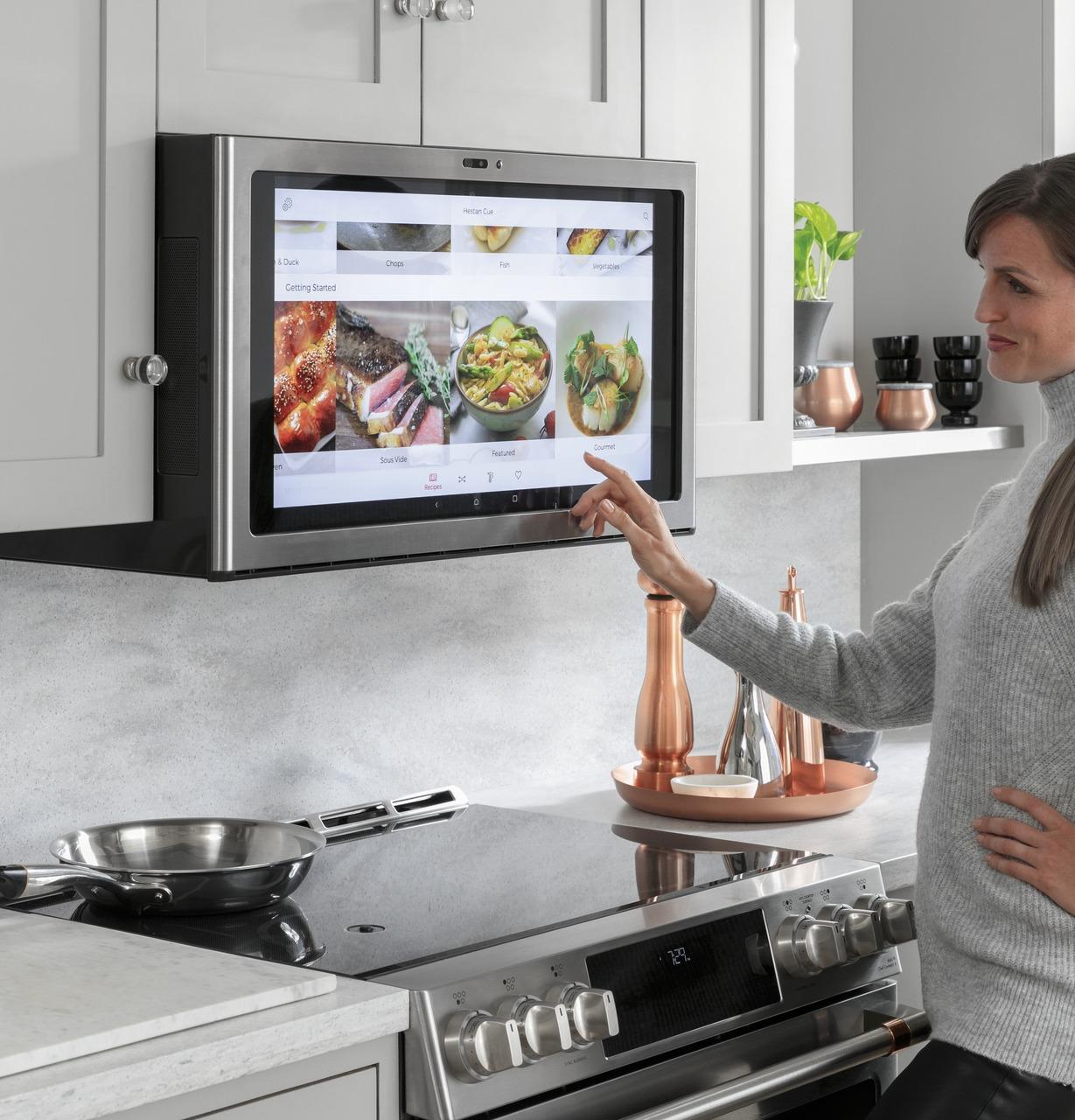

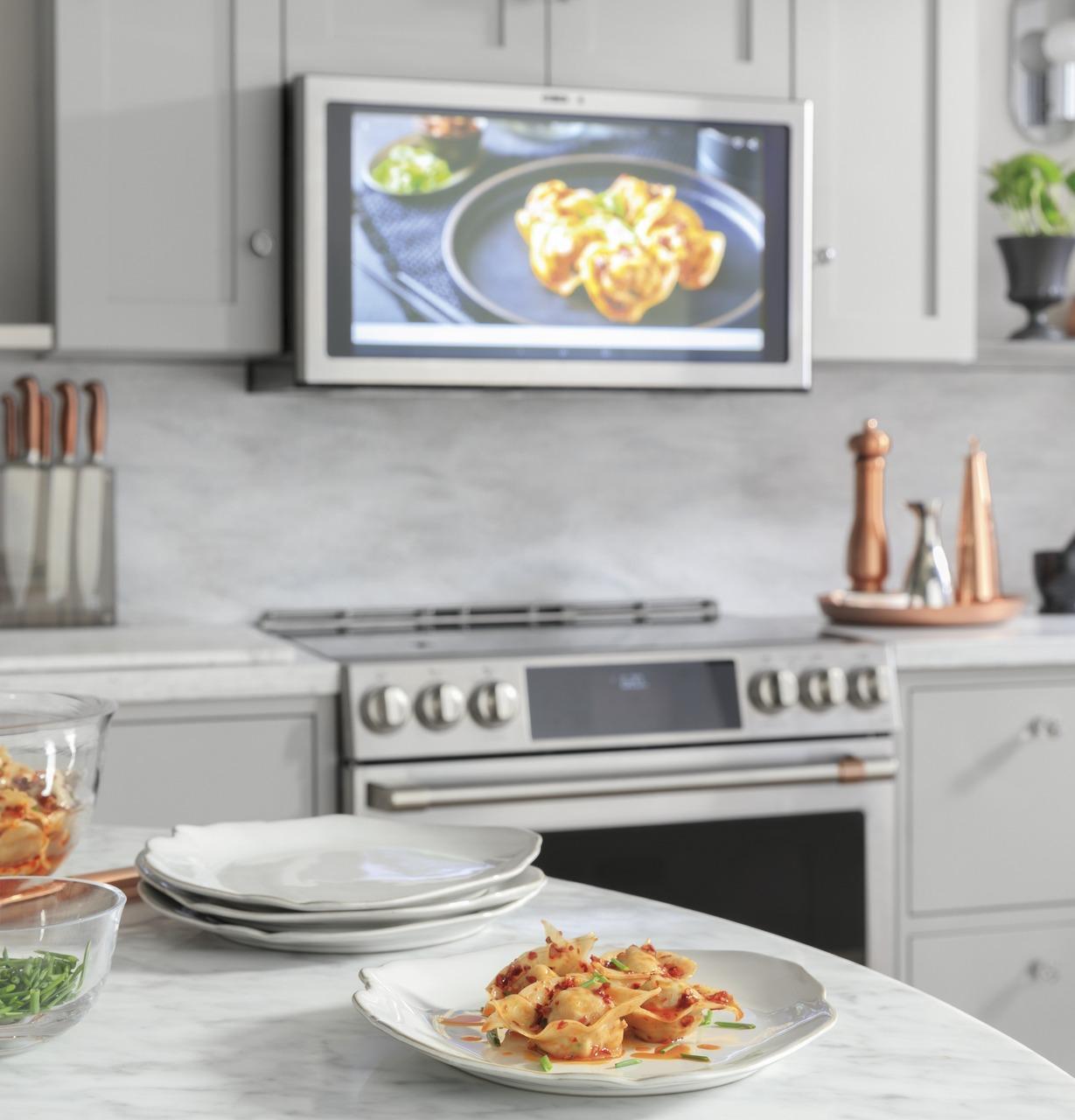

Put new recipes, tutorials and unrivaled performance at the center of your cooking experience with the CHS90X range and the Kitchen Hub. Together, the range and Hub give you everything you need to pull off even the most complex recipes

Gourmet results without any guesswork
Take culinary skills to the next level with Gourmet Guided Cooking, which combines video-guided recipes from chefs with a system that automatically adjusts the time, temperature and cooking pace for perfect results

Harness a sense of control

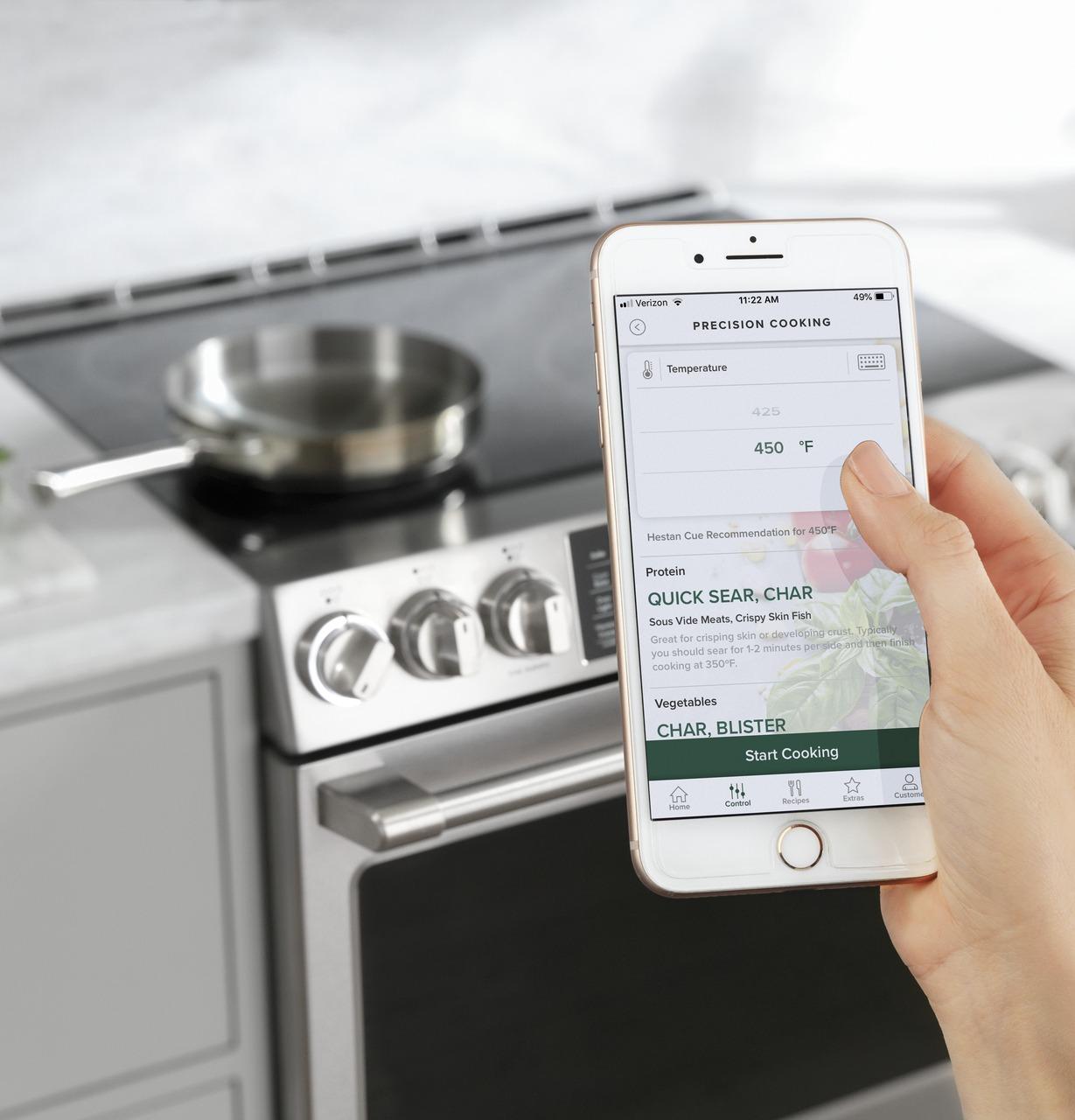

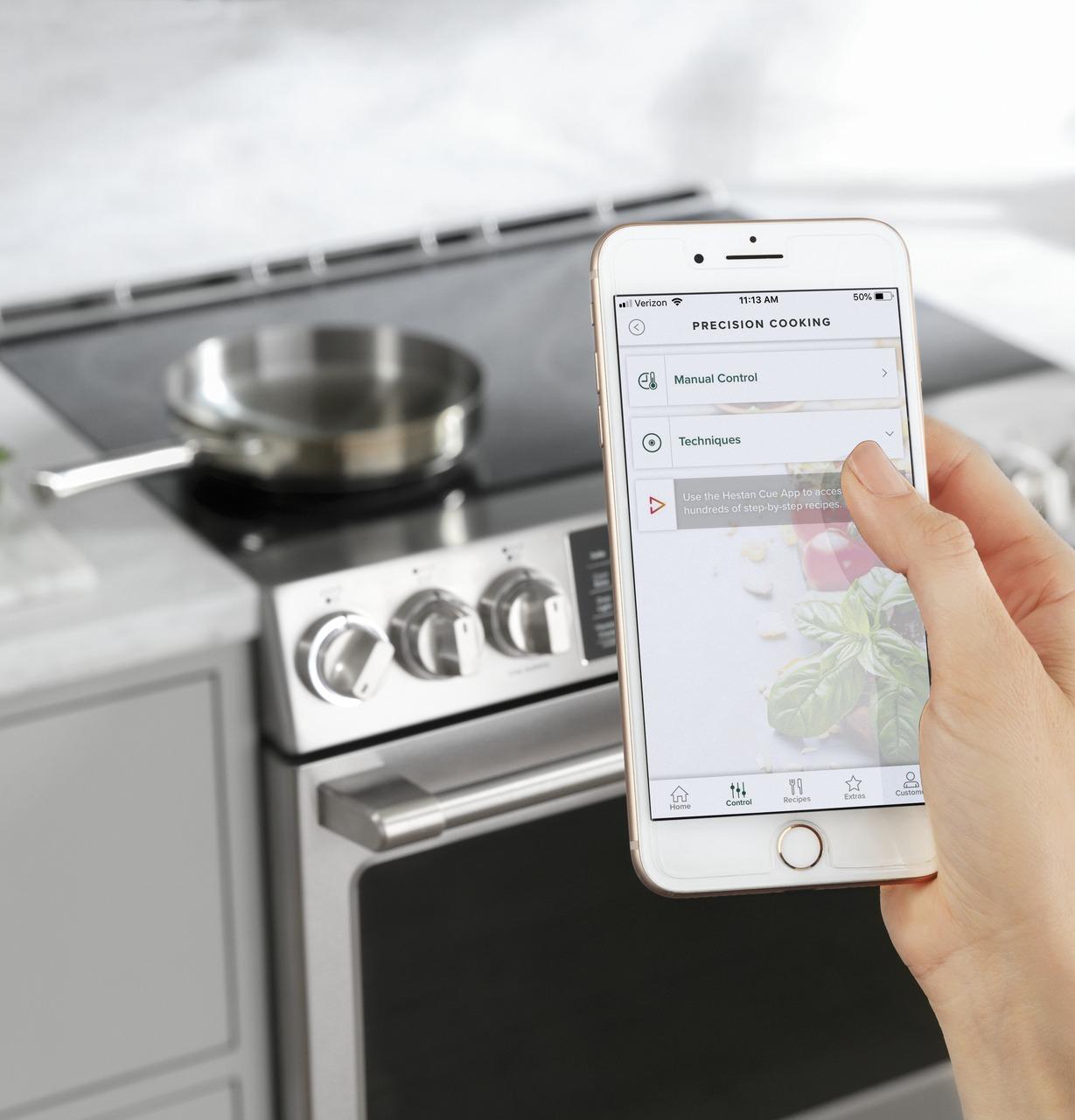

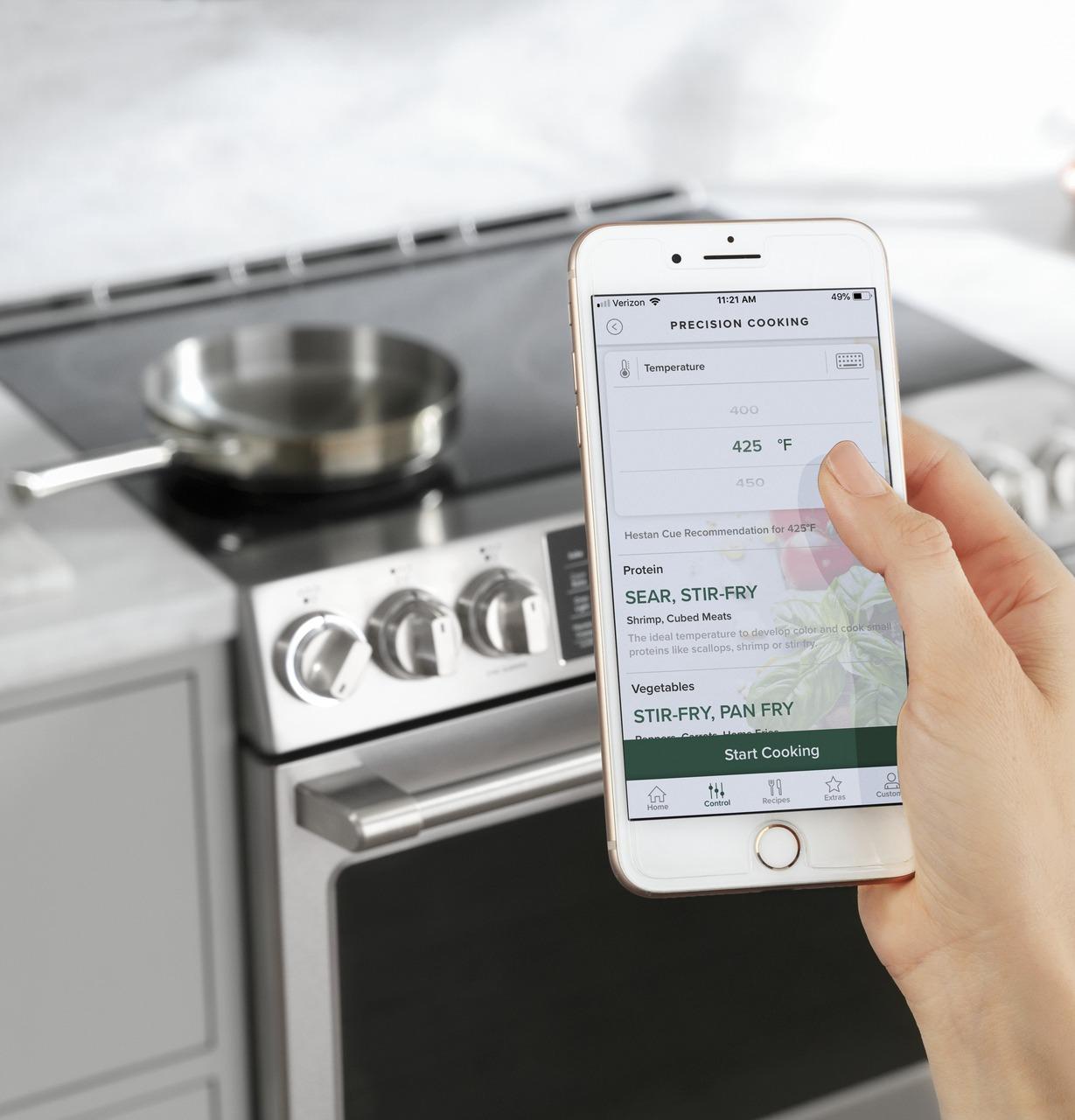

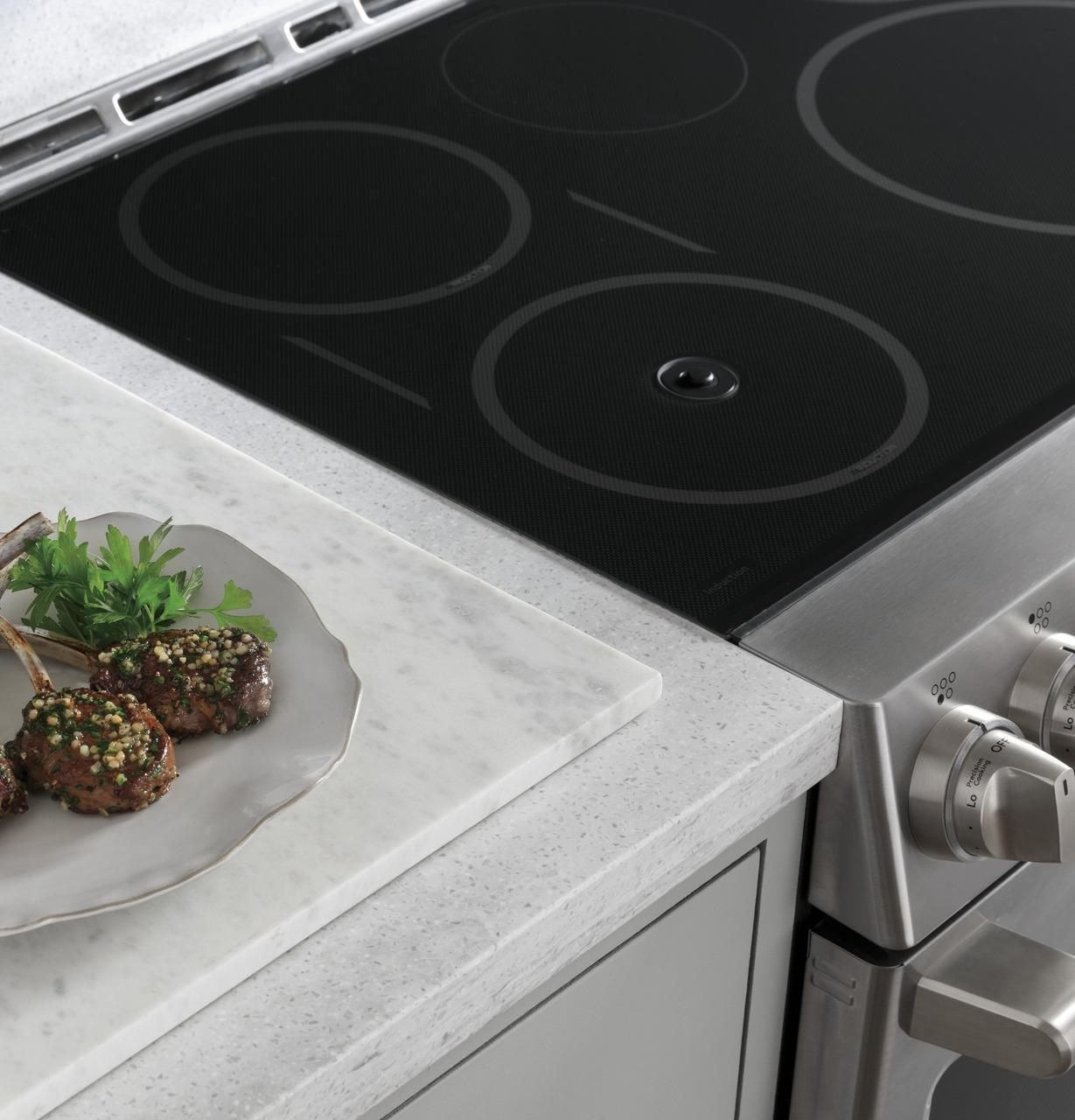

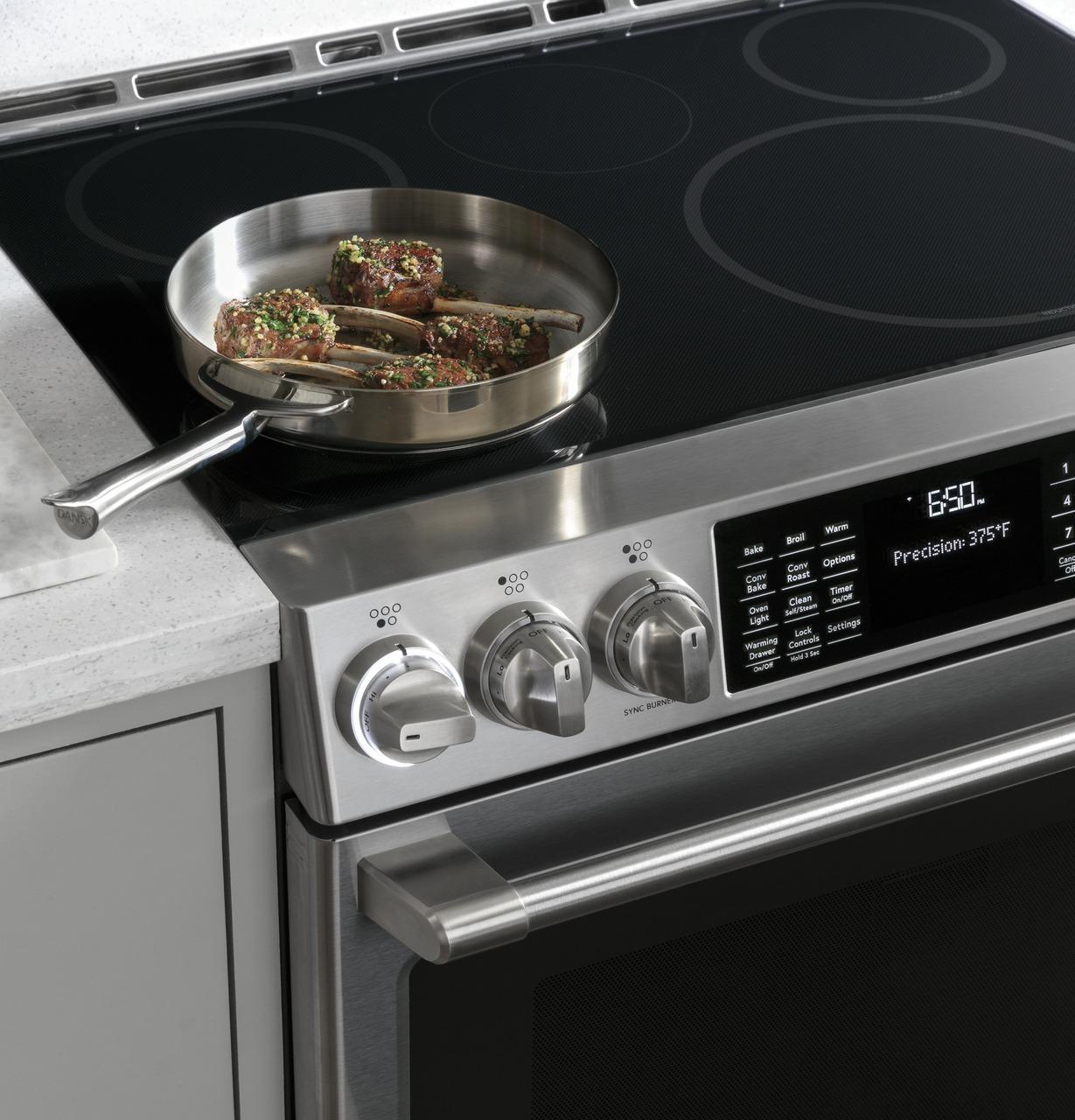

Turn any pan into a smart pan and automatically maintain a set temperature within one degree, thanks to a cooktop sensor that gives you total control from either the display or your smartphone

You've got an eye for perfect timing
Monitor the progress of time-sensitive dishes without needing to open the oven door, with an in-oven camera that provides an interior view of cooking food visible from your smartphone

An attractive appearance at all times

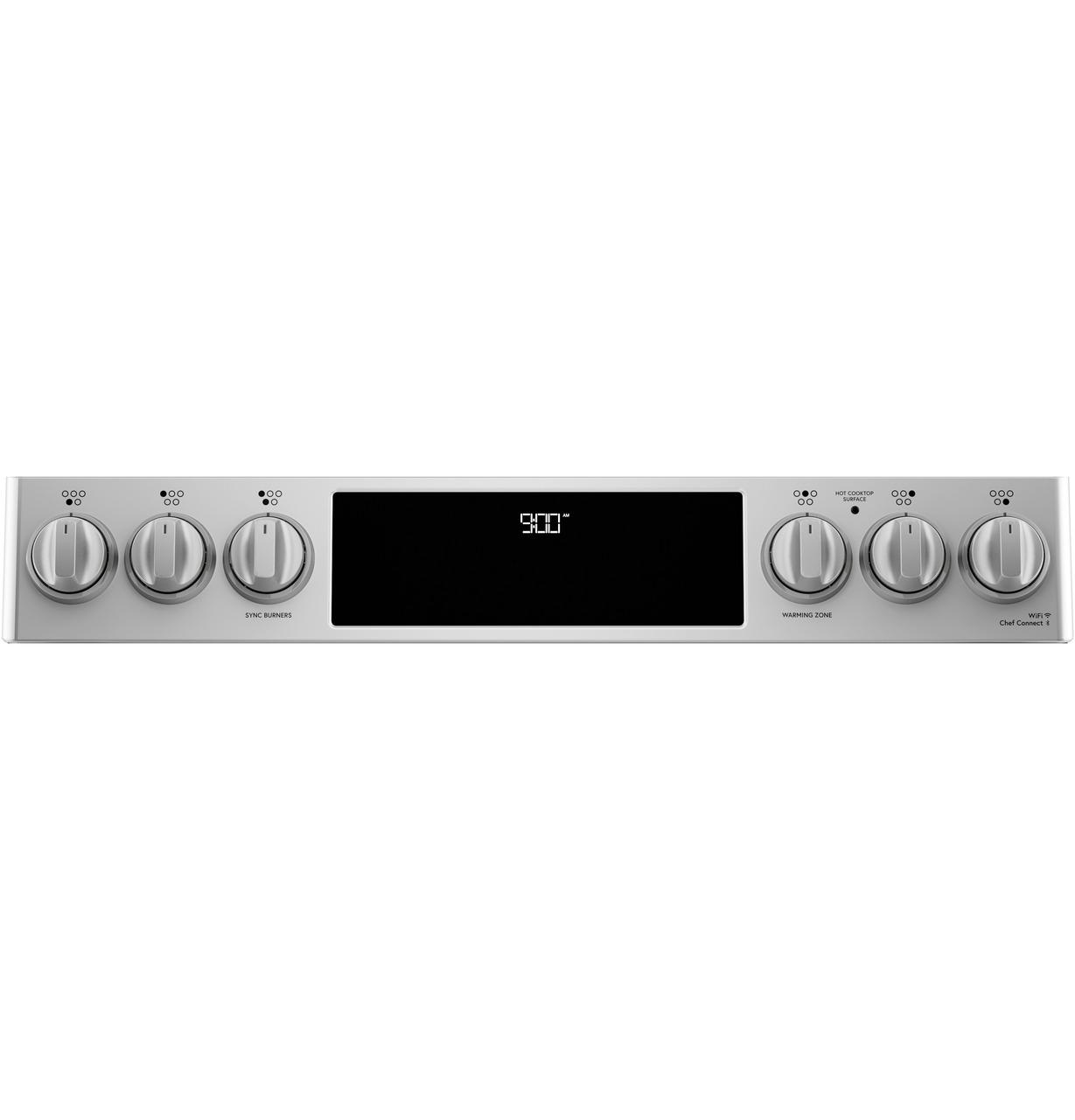

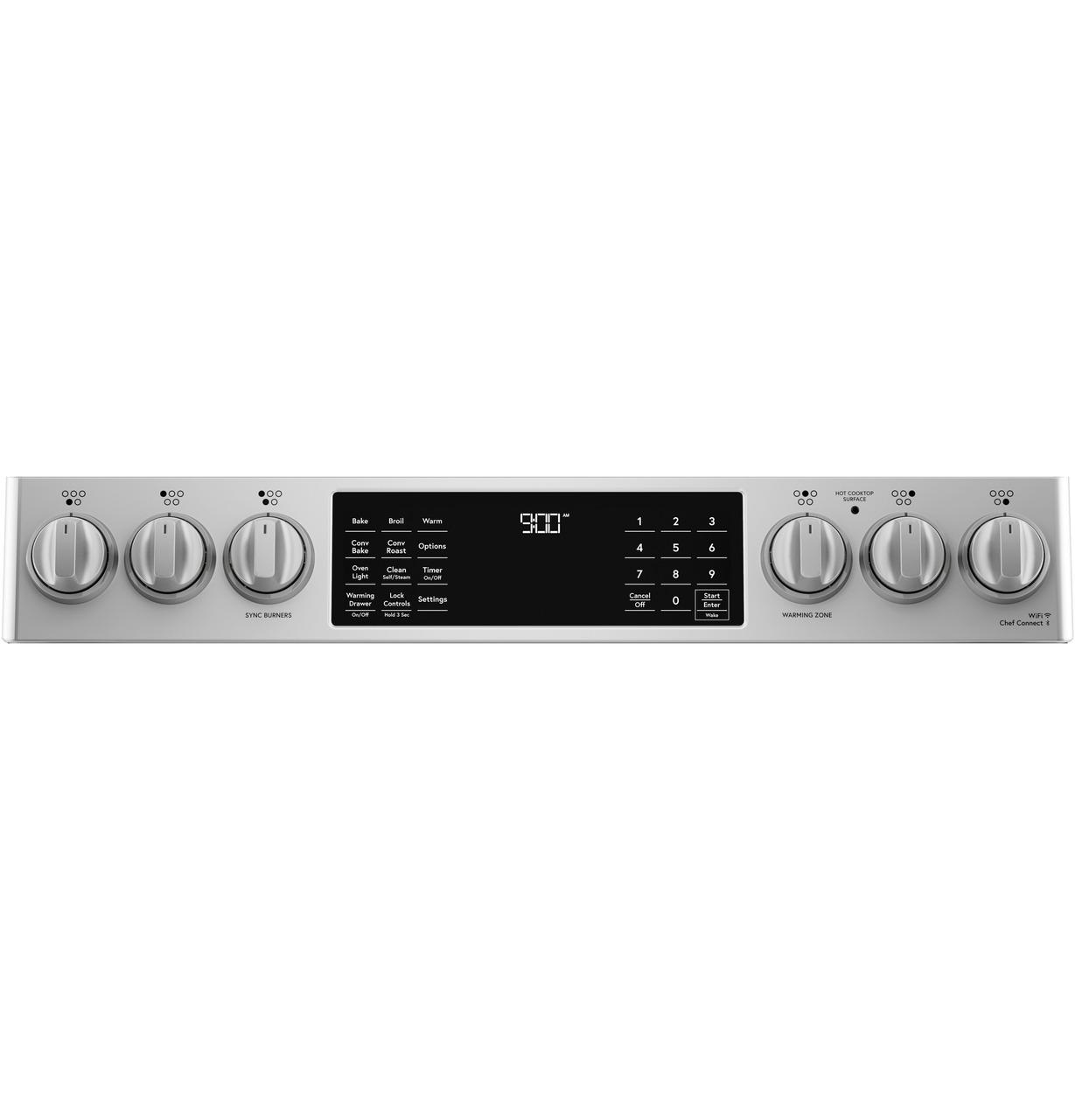

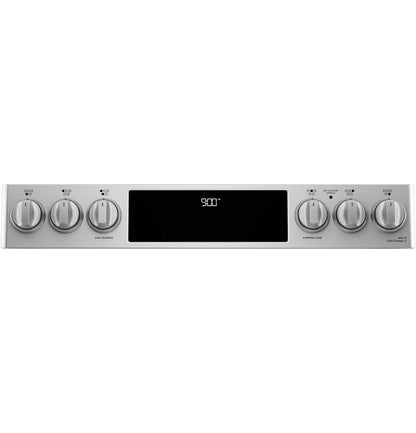

Every detail of your kitchen is designed to delight, thanks to a sleek backlit glass touch control panel that visually disappears when not in use and wakes up when prompted

Enjoy total control in the kitchen and beyond
Control your oven with your smart device or simply your voice using WiFi Connect See details

The perfect combination of power & precision

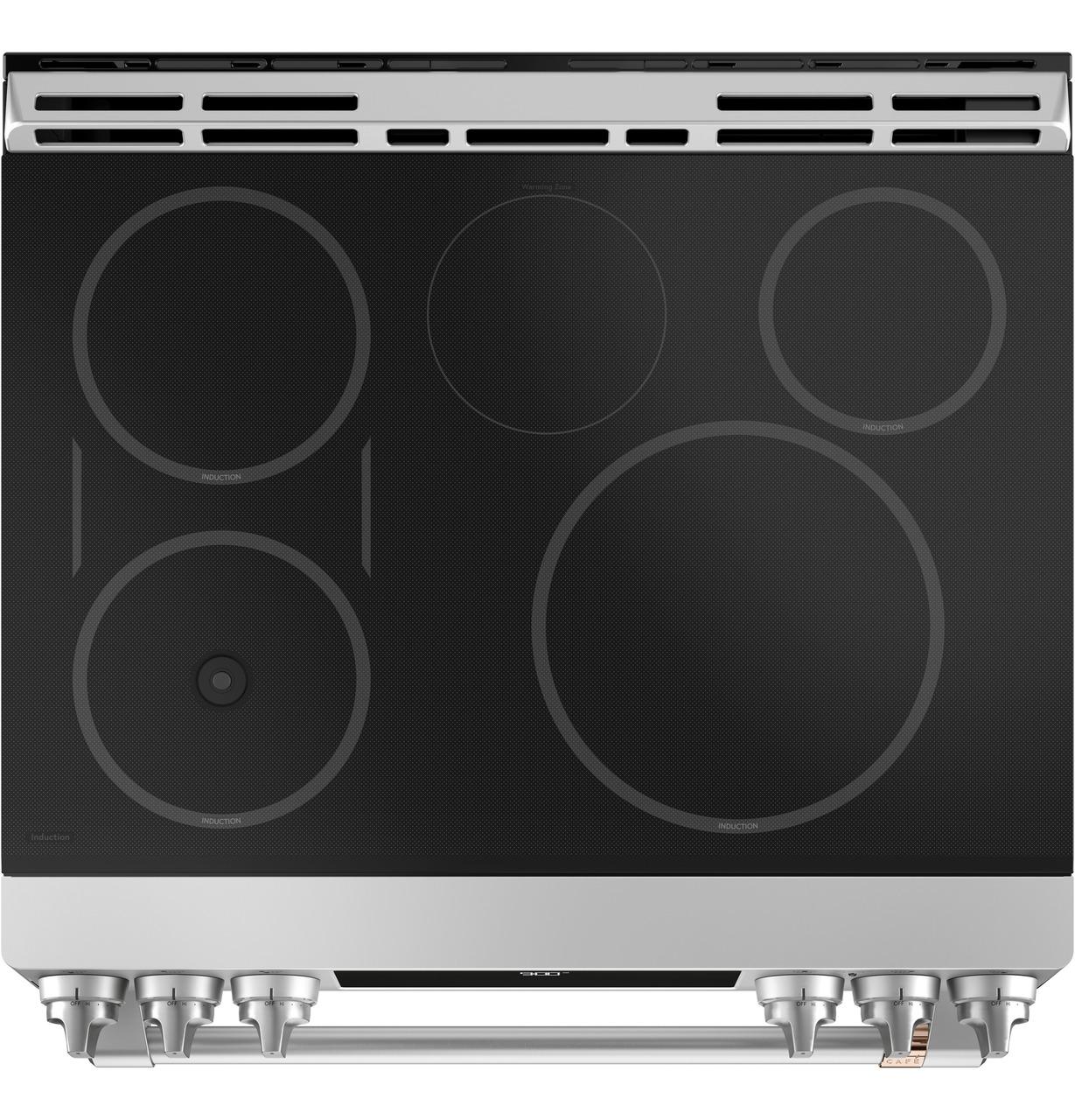

Stun guests by showing off your 11" 3,700-watt induction element, which uses chef-preferred induction cooktop technology to deliver precise heat to cookware only. That means you can do everything from boiling a quart of water in 101 seconds to melting butter at exact temperatures with amazing efficiency.

Precise control for flawless results
Delight guests with the precision of sous vide cooking or perfectly prepared fondues and delicate sauces using a precision cooking probe that is sold separately

Ensure consistent temperature across a large area

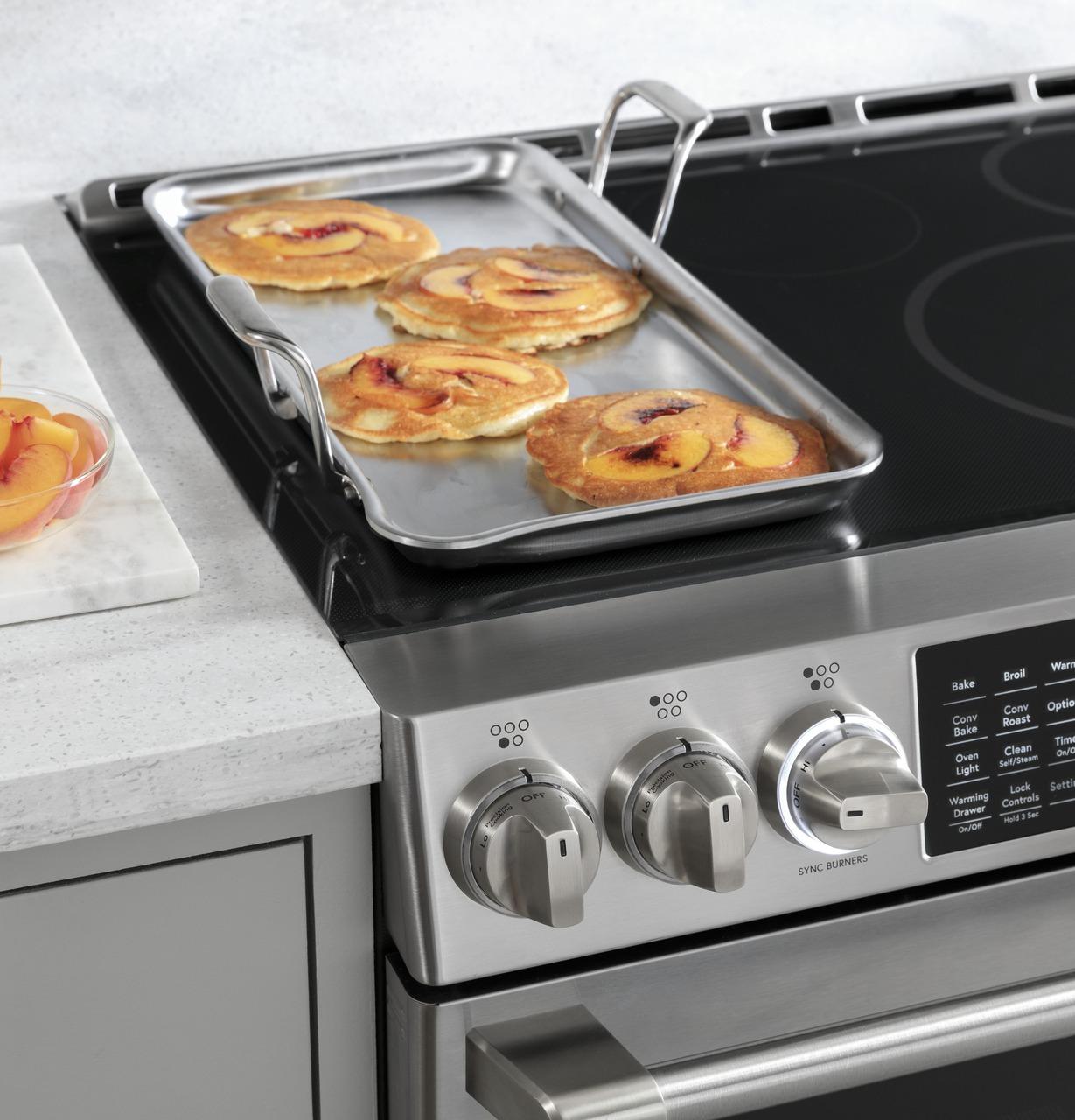

Evenly heat large griddles or enamel cookware across two 8" synchronized elements

Allow your appliances to interact with one another

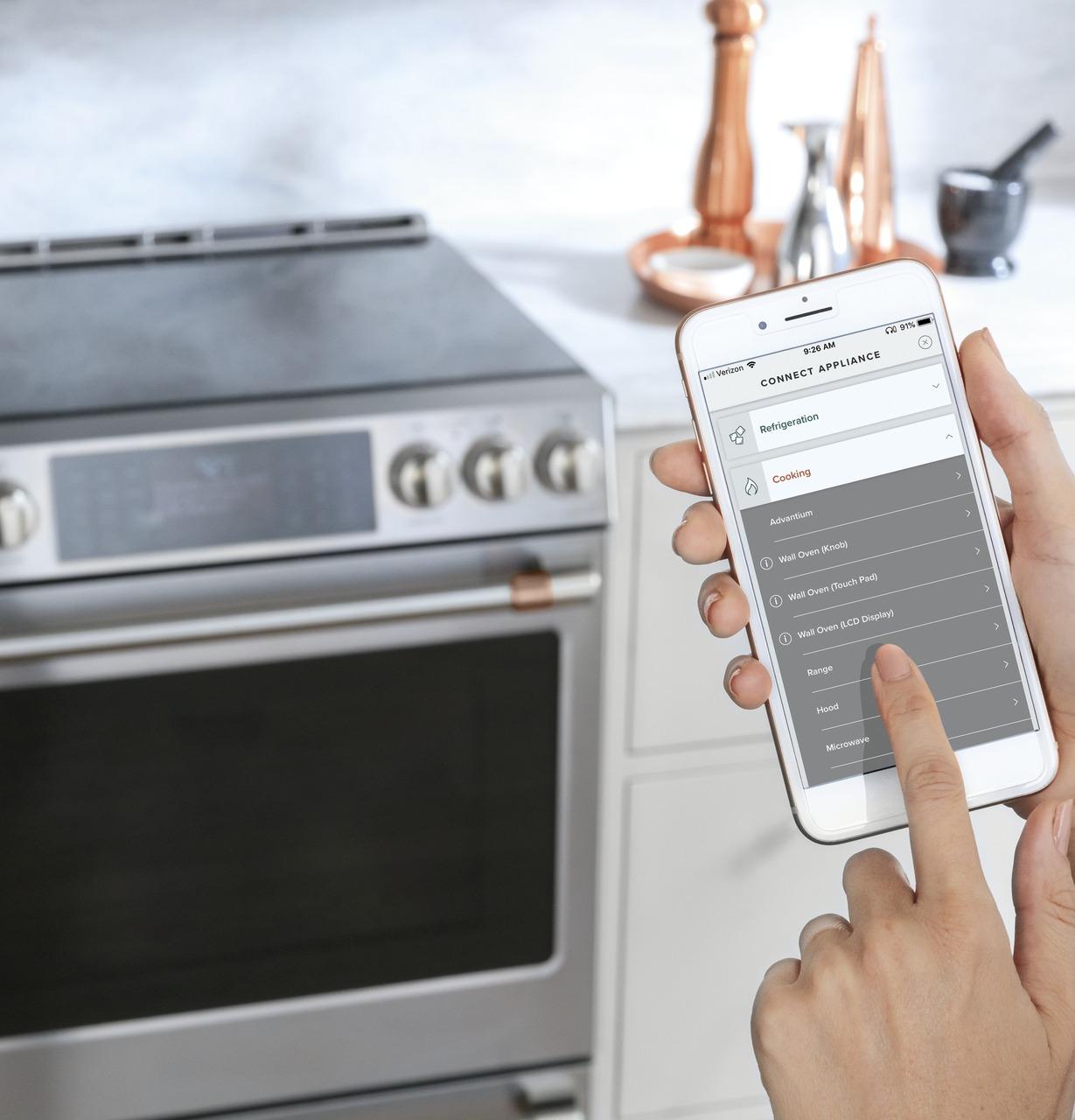

Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocks

Choose the range you want with total confidence
When you're updating your kitchen, attention to detail is a priority. That's why Caf(eback) 30" slide-in ranges are guaranteed for an exact fit or Caf(eback) Appliances will pay up to $300 toward modifications.

CAPACITY
Total Capacity (cubic feet)	5.7 cu ft
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Slide-In Single Oven
App Filter - Fuel Type	Electric
App Filter - Cooking Technology	Convection
App Filter - Convection	Yes
App Filter - Edge-to-Edge Cooktop	Yes
App Filter - Drawer Type	Warming Drawer
App Filter - Cleaning Type	Steam and Self-Clean
App Filter - Cooktop Type	Induction
App Filter - WiFi Connect	Built-In
APPEARANCE
Handle	Café Pro Style Consumer Removable Customizable
Textured Steel Side Panels	Yes
Installation	Flush Appearance Free-standing cut-out
Oven Door Features	Big View Oven Window Full-Wrapped Metal Frame Full-Wrapped Stainless
Handle Color	Brushed Stainless
Control Knobs	Stainless Steel Appearance Weighted
Color Appearance	Stainless Steel
POWER / RATINGS
Amp Rating at 208V	40
Broiler Wattage	4000W
Amp Rating at 240V	40
Convection Wattage	2500W
KW Rating at 240V	13.6
Bake Wattage	2850W
KW Rating at 208V	11.3
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Air Fry Basket	Optional- JXAFTRAY1VSS
Optional Kits	CXFCHHKPMBT Brushed Black CXFCHHKPMBZ Brushed Bronze CXFCHHKPMCG Brushed Brass CXFCHHKPMCU Brushed Copper CXFCHHKPMFB Flat Black CXFCHHKPMSS Brushed Stainless
Probe Accessory	Sous Vide JXPROBE1 - optional
Trim Kit	JXFILLR1SS Optional
WEIGHTS & DIMENSIONS
Net Weight	236 lb
Depth Without Handle	26.875 in
Height to Cooking Surface (in.)	36 1/4 +/- 1/4
Cabinet Width	30 in
Approximate Shipping Weight	256 lb
Overall Width	29.875 in
Overall Height	37.375 in
Height to Top of Rear Vent Trim	37.375 in
Overall Depth	29.5 in
Depth with Door Open	47.5 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 19-7/8 x 20-5/8
FEATURES
Cooking System	True Convection with Precise Air
Oven Interior	1 Incandescent Light Black In Oven Camera
Element - Center	6" 100W Warming Zone
Oven Control Features	Audible Preheat Signal Auto Oven Shut-Off with Override Auto Recipe Conversion Certified Sabbath Mode Chef Connect Control Lock Capability C° or F° Programmable Delay Bake Option (Time Bake) Electronic Clock & Kitchen Timer Fast Preheat Hi / Low Broil Oven "ON" Light Oven Camera Pan Temperature Sensor Precision Cooktop Sensor Steam Clean Temperature Probe

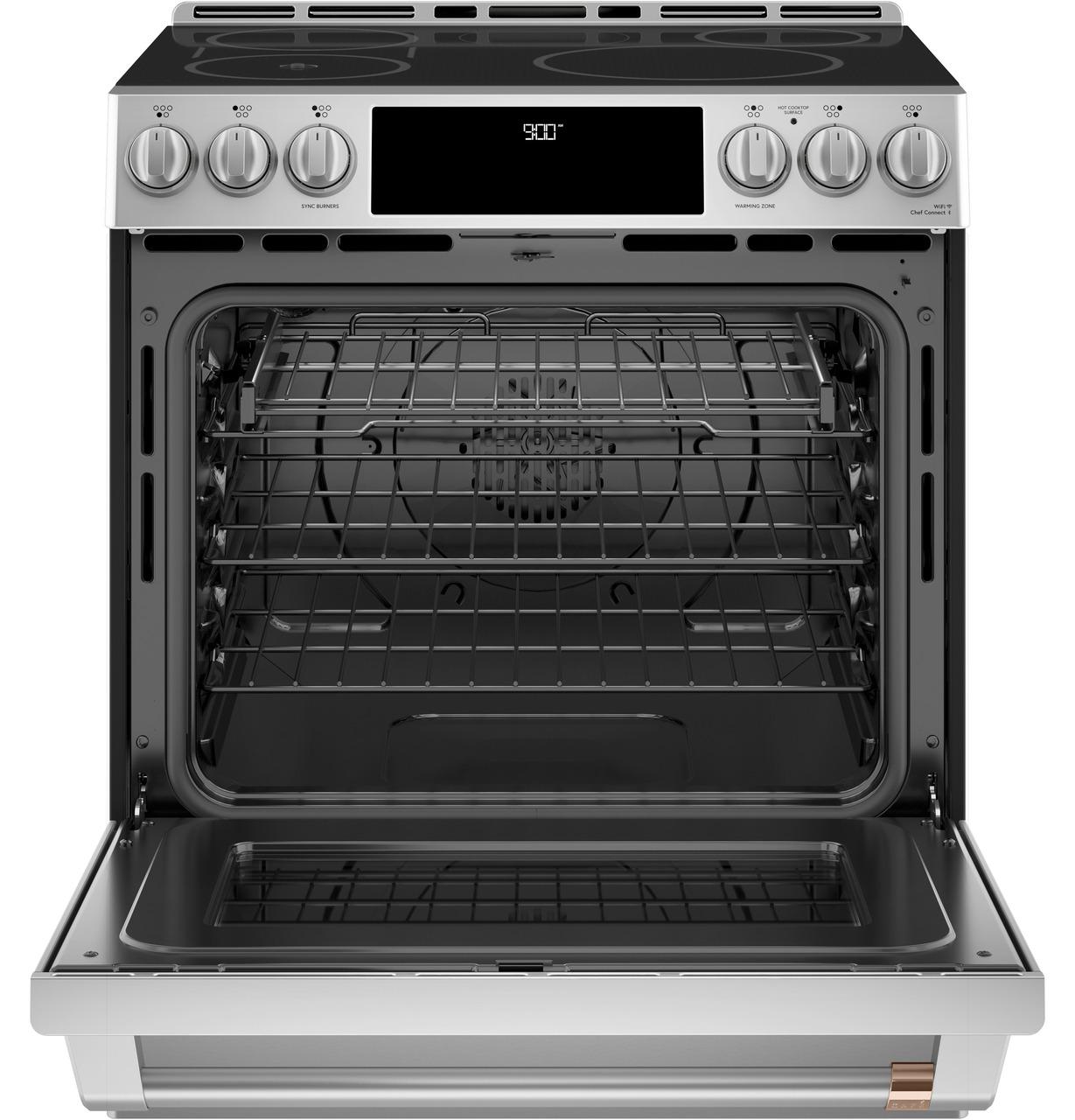

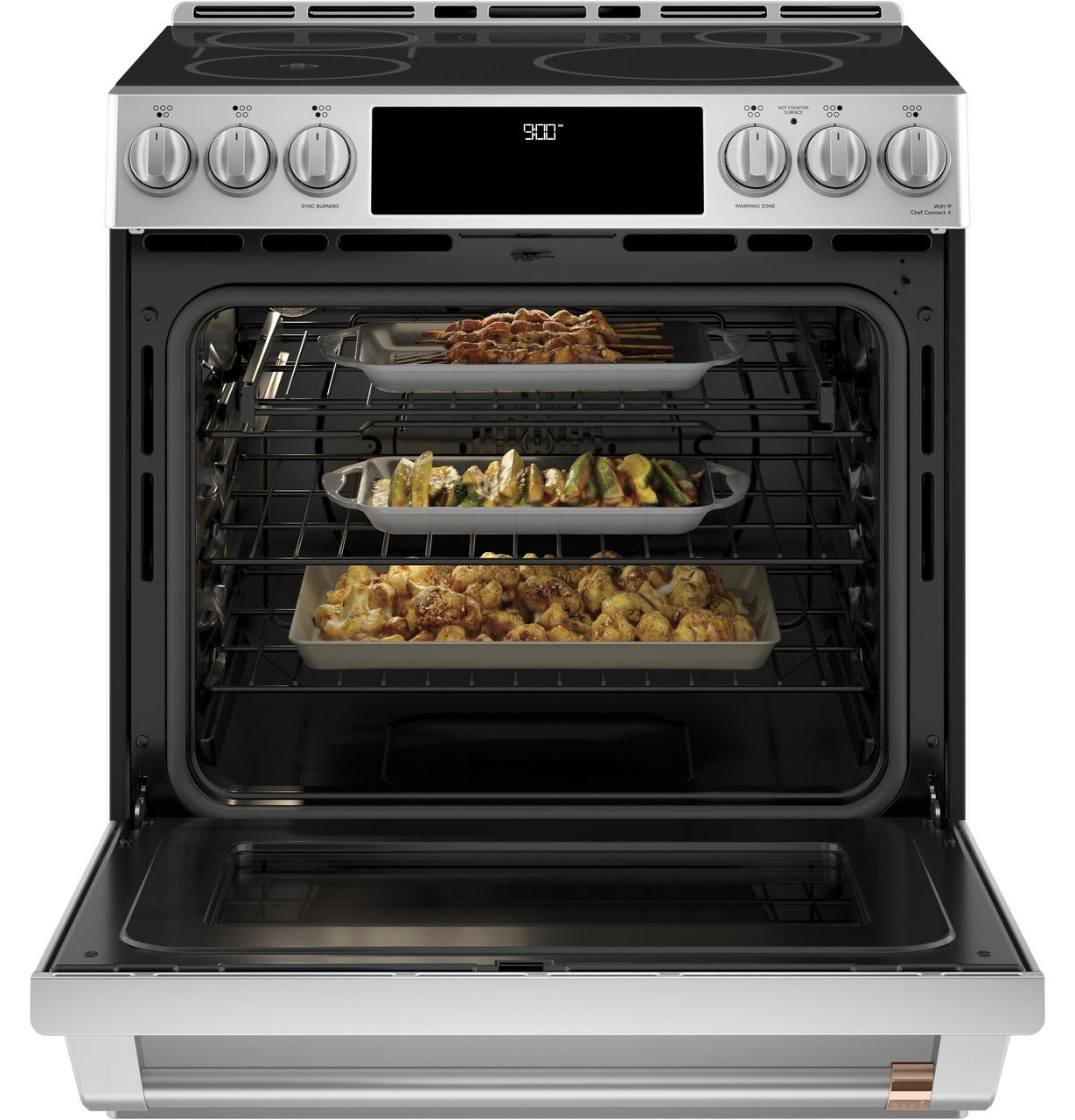

Oven Rack Features	1 Self-Clean Heavy-Duty Roller Rack 2 Self-Clean Heavy-Duty Oven Racks
Element - Left Front	8" 2500W Sync Element with Temp Sensor
Power Boil Burner	Yes
Oven Cleaning Type	Self-clean *Requires download via WIFI connection Steam Clean
Connected Capabilities	Amazon Alexa DiGiorno Fresco Hestan Cue IFTTT In-Oven Camera Innit Sonos The Google Assistant
Product Type	Slide-In Single Oven
Heating Element "ON" Indicator Light	5
Cooktop Type	Induction
Fuel Type	Electric
Element - Right Front	11" 3700W Power Boil
WiFi Connect	Built-In
Control Location	Front controls
Warming Drawer Features	(3) levels
Control Type	Digital Temperature Display Electronic Touchpads
Drawer Type	Warming Drawer; 3 Settings (High, Medium, Low)
Hot Surface Indicator Lights	1
Sabbath Mode	Yes
Element - Left Rear	8" 2500W Sync Element
Cooking Technology	Convection
Configuration	Range with Warming Drawer
Oven Features	8-Pass Broil Element Hidden Bake
Melt Setting	Yes
OU Certified	No
Oven Cooking Modes	*Some features require connection to SmartHQ app Baked Goods Convection Bake Multi-Rack Convection Roast Frozen Pizza Multi Rack Frozen Pizza Single Rack (No Preheat) Frozen Snacks Multi Rack Frozen Snacks Single Rack (No Preheat) No Preheat Air Fry Proof Turkey Mode Warming
Cooktop Burner Type	Induction
Element - Right Rear	6" 1800W
Cooktop Surface	Edge-to-Edge Gray Patterned Ceramic Glass
Oven Rack Positions (Single or Upper/Lower)	6
