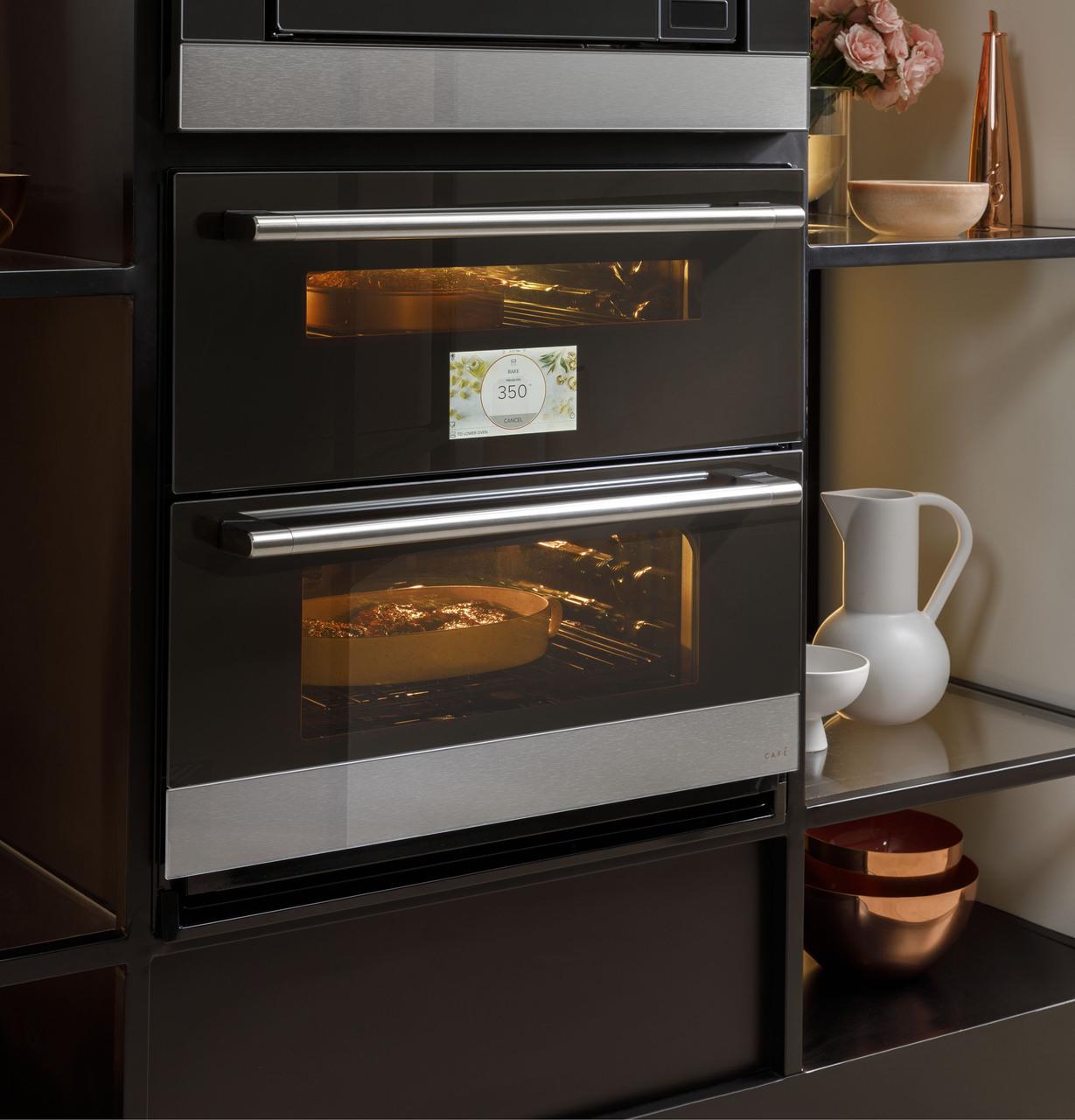

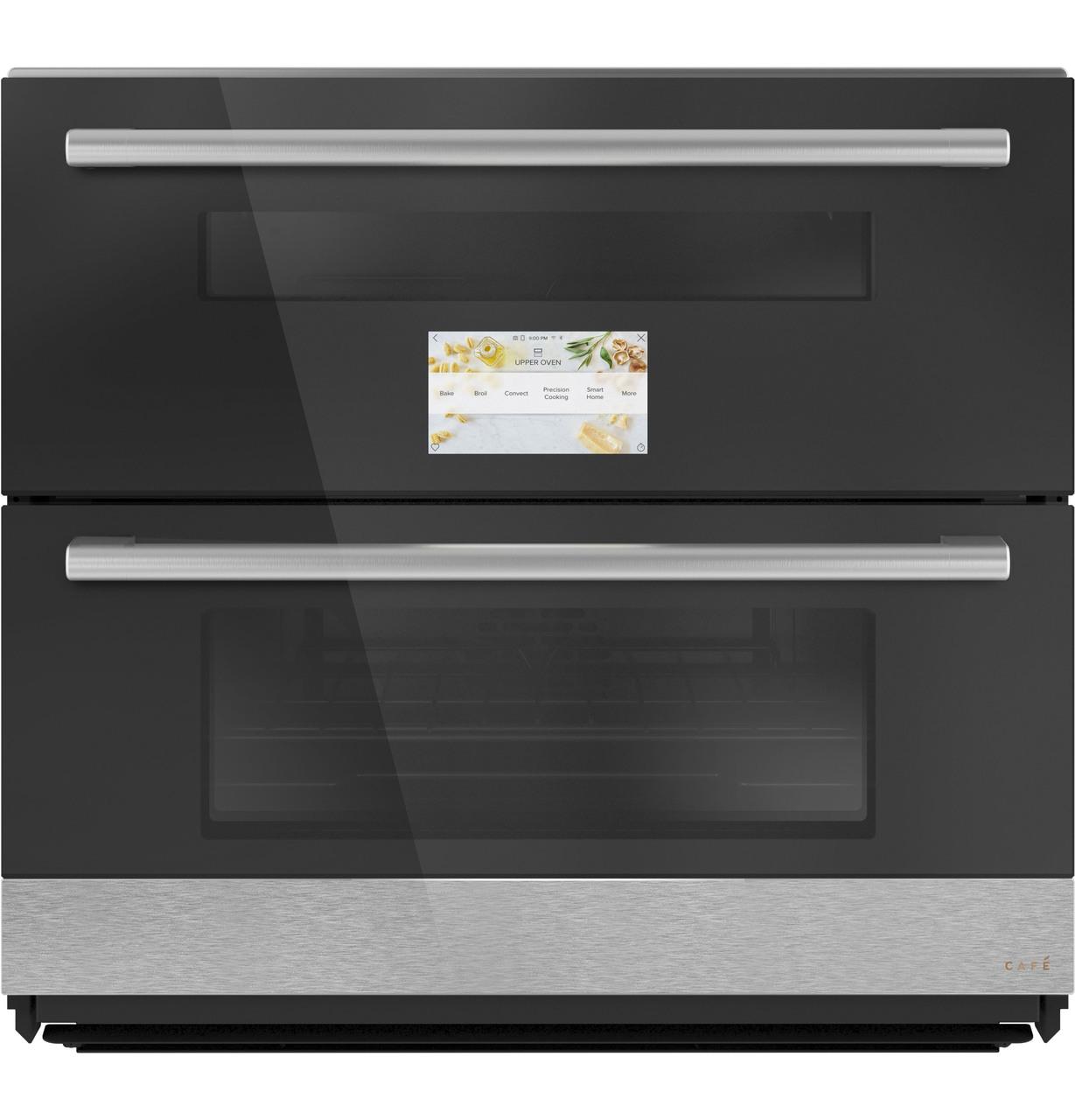

Cafe CTS92DM2NS5 CAF(EBACK)™ 30" Duo Smart Single Wall Oven in Platinum Glass

Built-In WiFi, Powered by SmartHQ App
Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

Unlock More When You Connect
Ensure your oven always has the latest features with downloadable software updates

Platinum Glass Finish
Create an easy-to-clean, contemporary look for your kitchen with the striking reflective glass finish

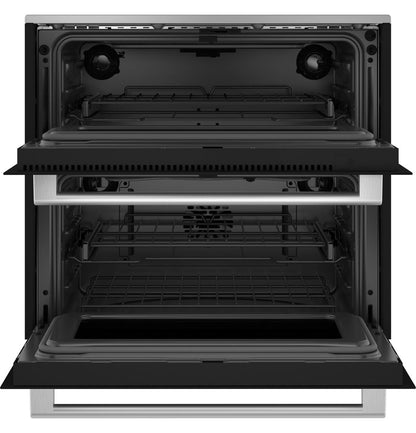

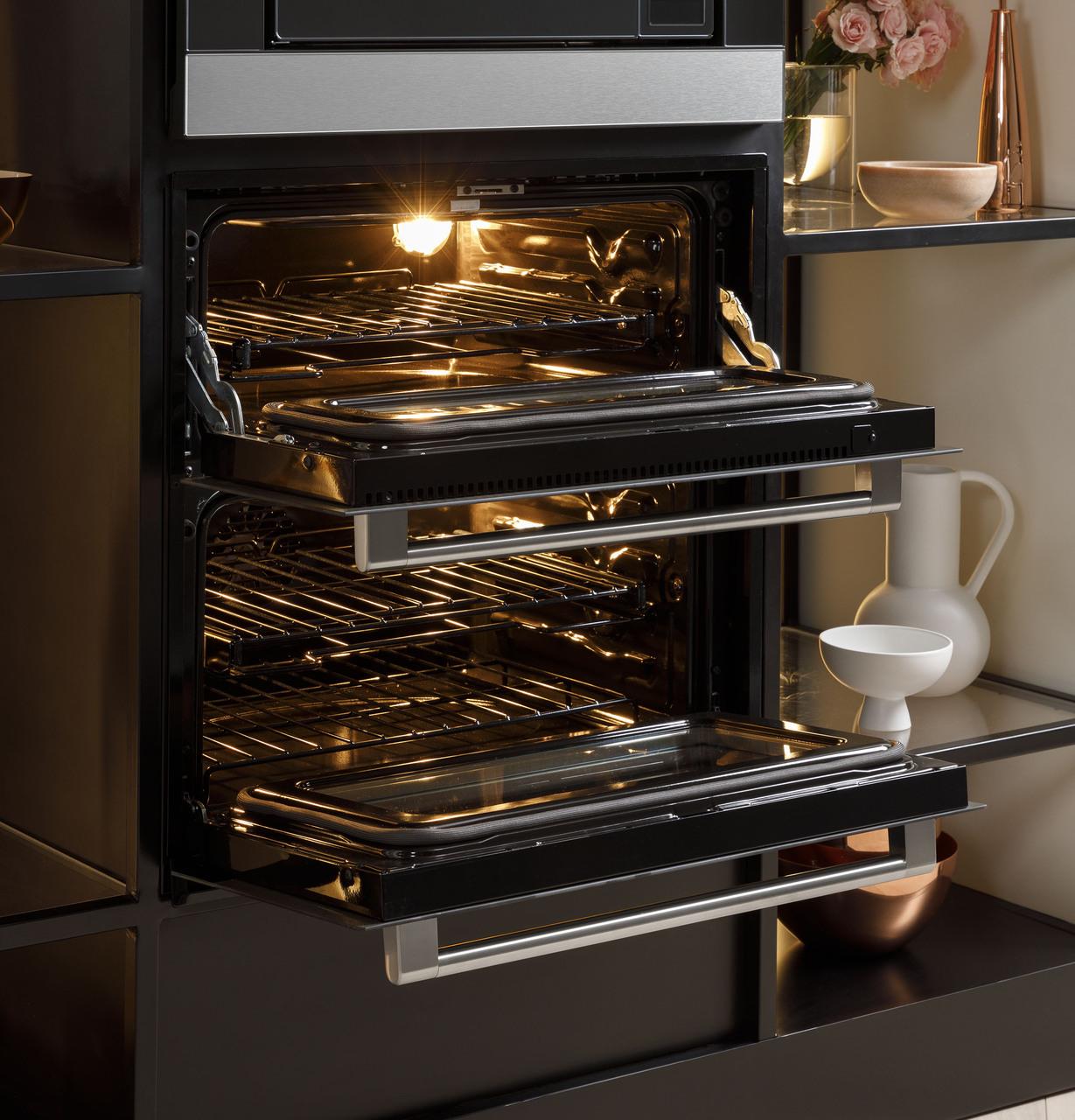

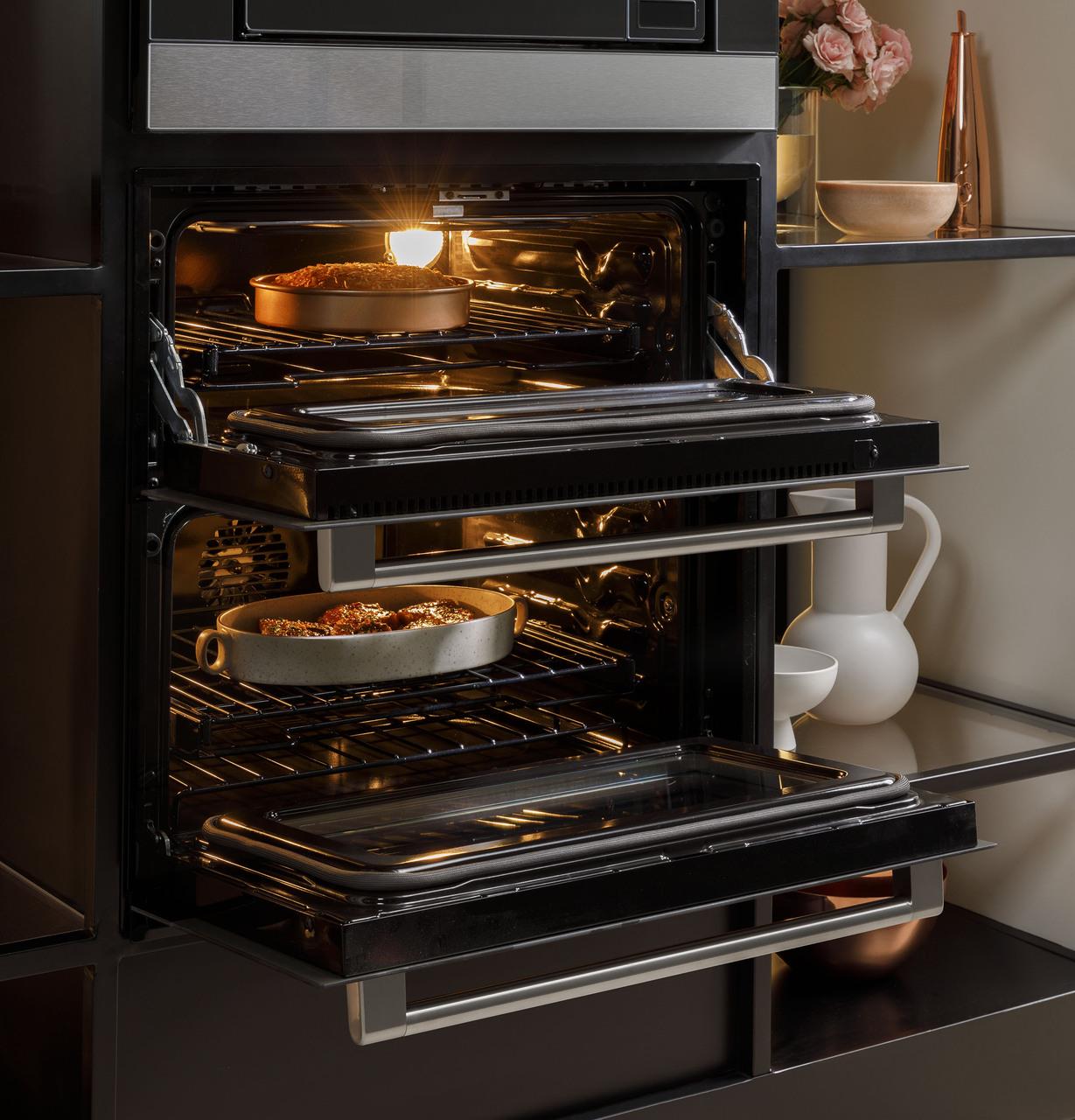

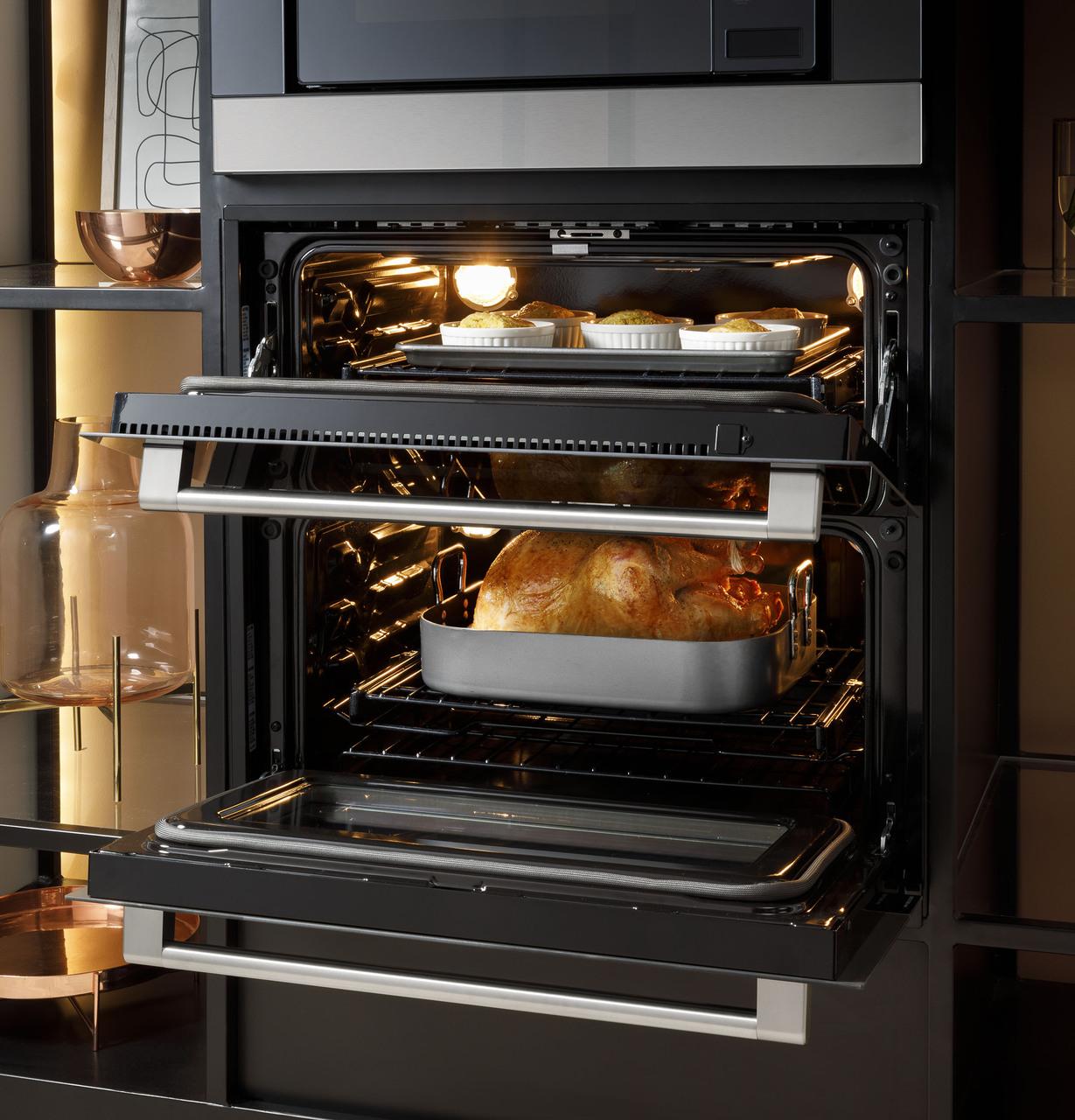

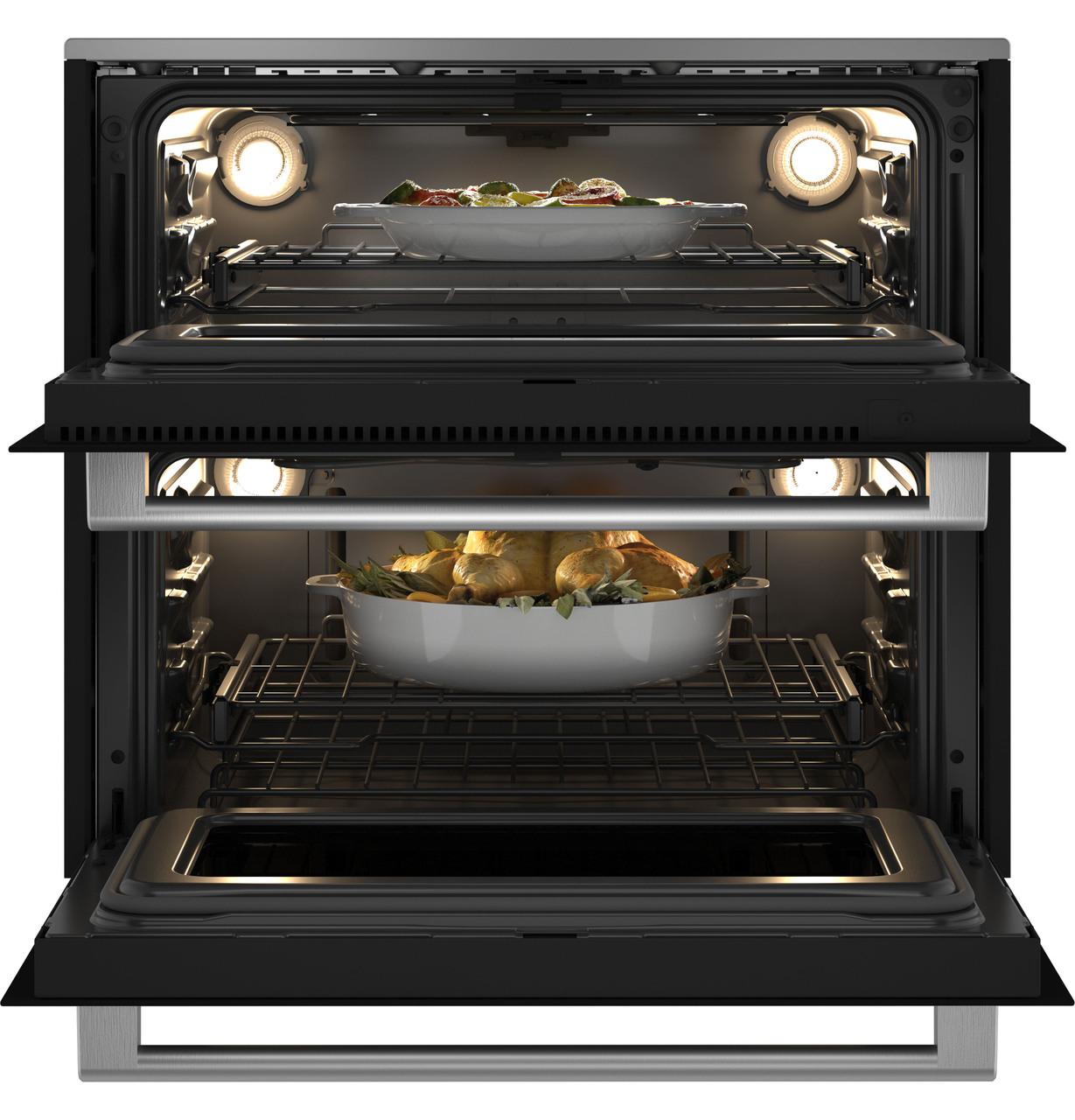

Two-In-One Oven
Cook two things in the oven at once, at two different temperatures, so that your entire meal will be done on time

Fast Preheat
Preheat the oven quickly and cut down on preheat time with a speedy preheat feature

Large Capacity Oven
Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes

Personalized Features + Upgrades
Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

No Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray

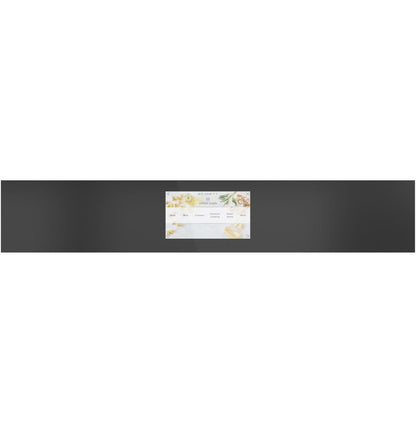

Brighten up life in the kitchen

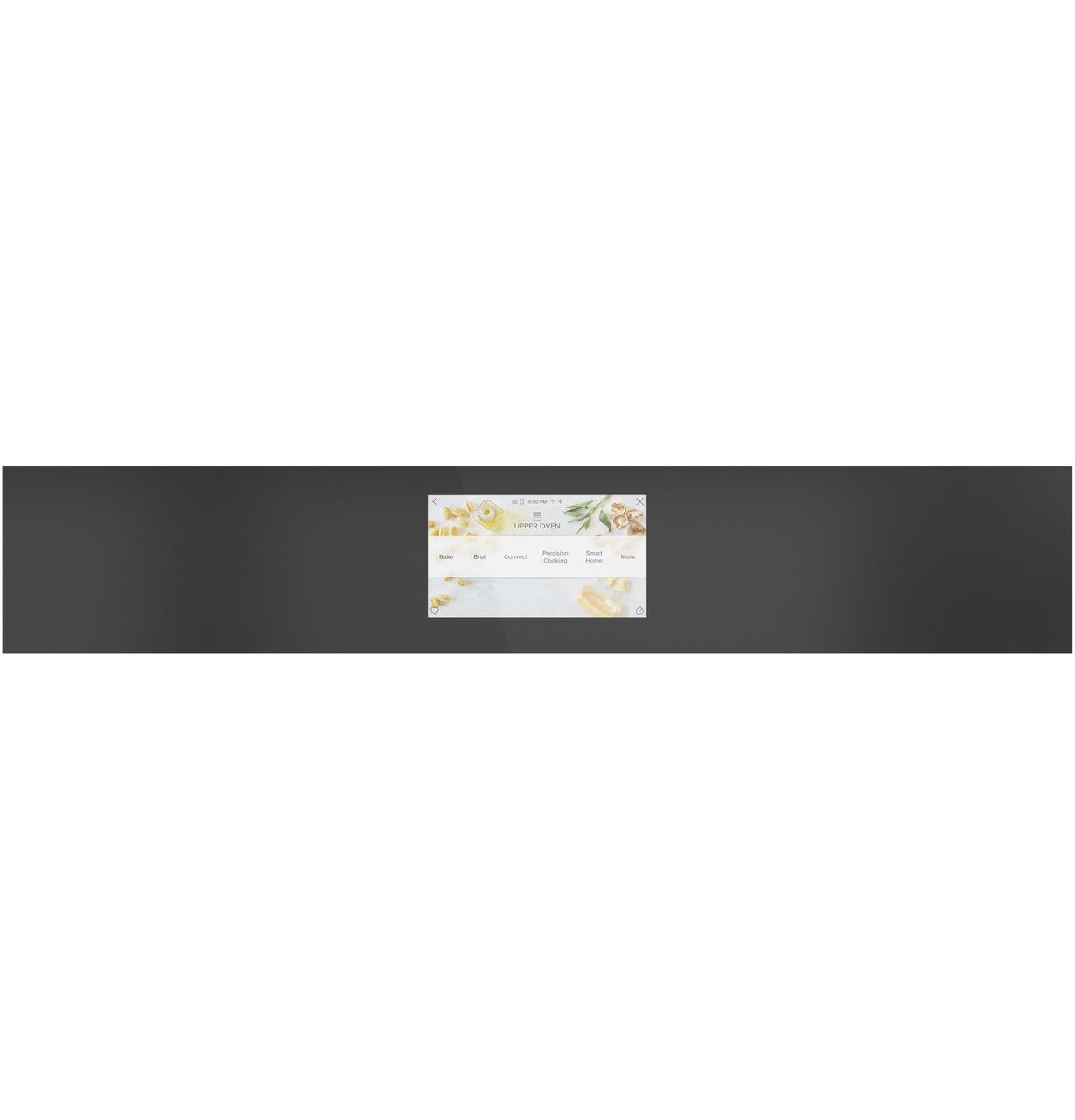

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

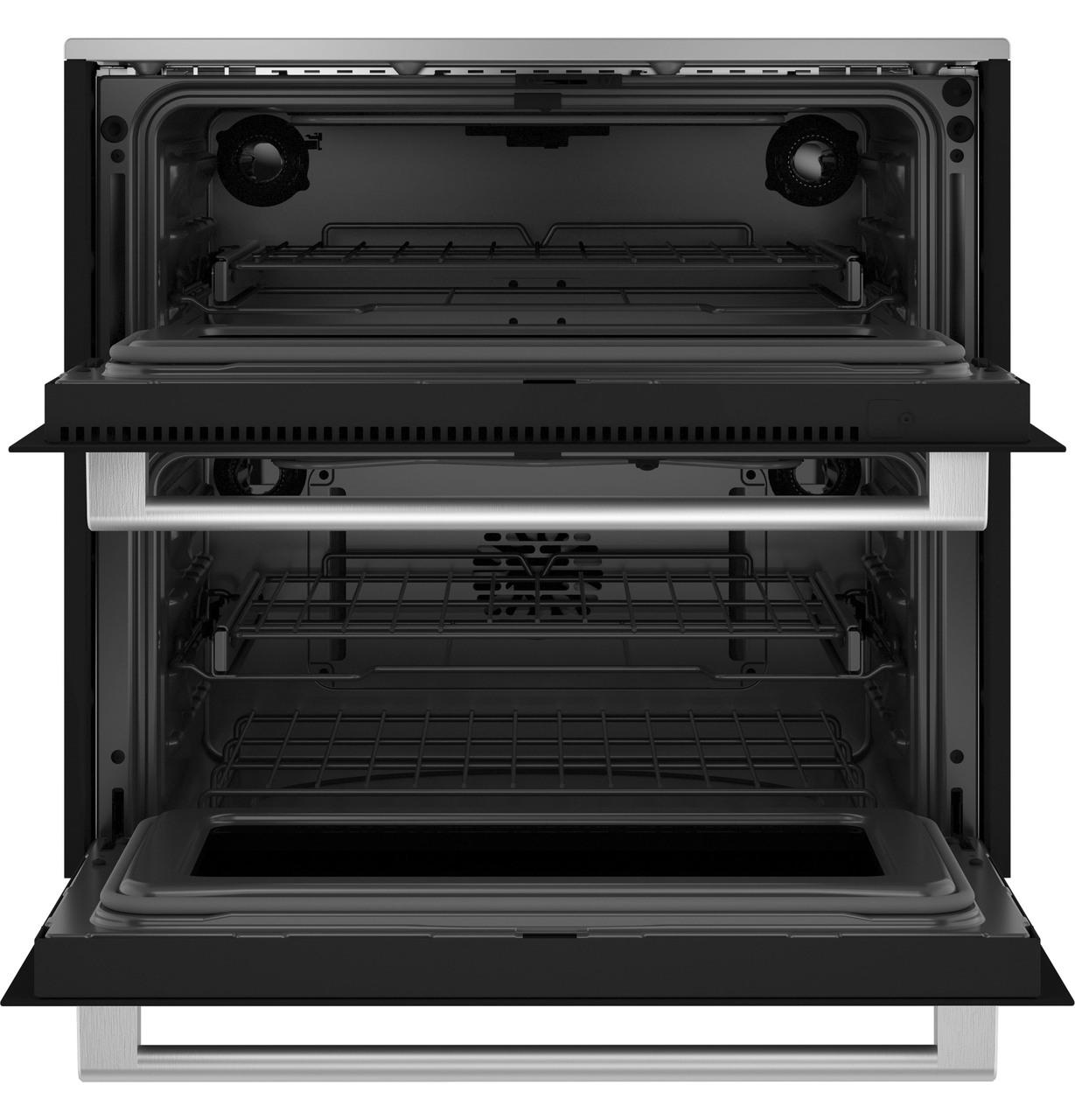

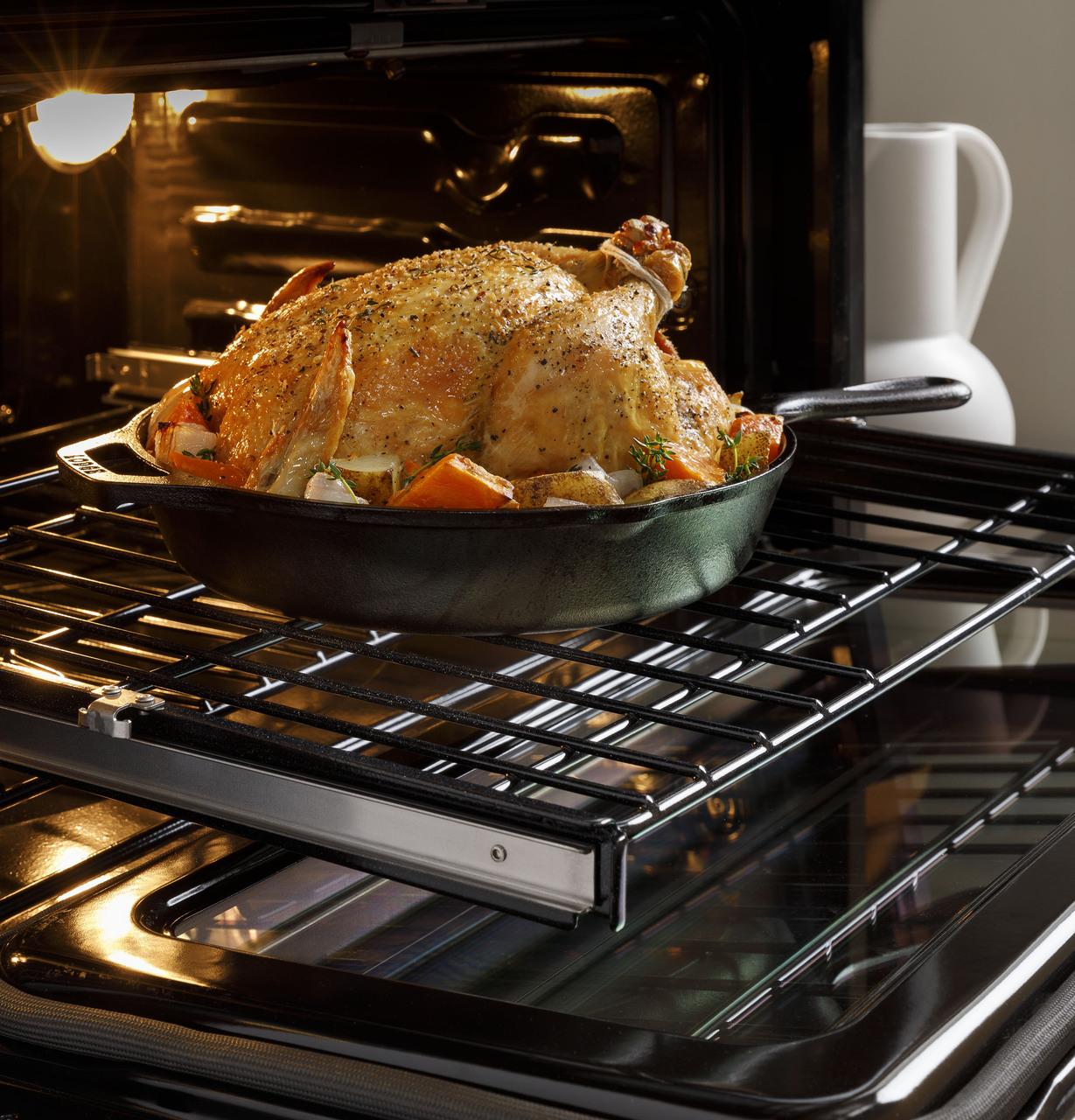

Easy-Glide, Never-Scrub Rack
This smooth-gliding oven rack can be left in the oven during the self-clean cycle so you never have to scrub

Pizza Mode
Achieve pizza perfection from the crust to the toppings with a convenient pizza mode

Slow Cook Mode
Slow cook tender roasts and more with a slow cook mode that eliminates the need for an additional slow cooker

CAPACITY
Total Capacity (cubic feet)	5 cu ft
Capacity (Cu. Ft.)	2.2 Upper / 2.8 Lower
FILTER
App Filter - Product Type	Wall Oven Single Wall Oven Single/Double
App Filter - Control Type	Electronic touchpad
App Filter - WiFi Connect	Built-In
App Filter - Cooking Technology	Convection Traditional
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Fuel Type	Electric
App Filter - Convection	Yes
App Filter - Cleaning Type	Self-Clean
APPEARANCE
Handle Color	Brushed Stainless

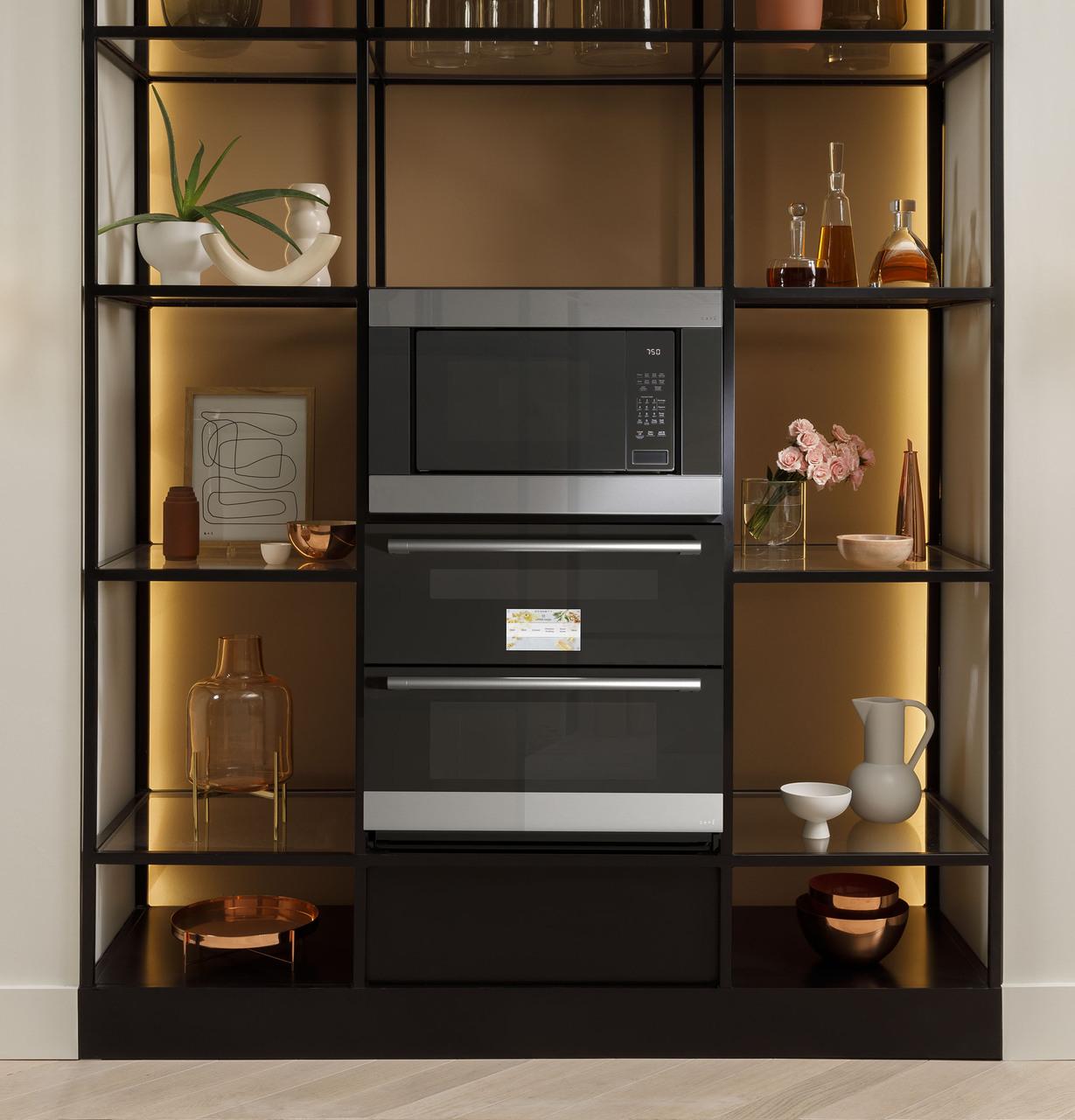

Installation	Above Warming Drawer Side-by-Side Under Built-In Advantium Under Built-In Microwave Under Cooktop Undercounter
Handle	CAFé™ Minimal Style
Oven Door Features	Profile™ XL
Color Appearance	Platinum Glass
POWER / RATINGS
Bake Wattage	1700W Upper / 2200W Lower
Electrical Requirements	208/240V ; 60Hz ; 20A
Amp Rating at 208V	20
Hertz	60
Broiler Wattage	2750W Upper / 2950W Lower
Convection Wattage	1300W
KW Rating at 240V	4.2
Amp Rating at 240V	20
KW Rating at 208V	3.2
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Overall Depth	26.75 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 8-3/4 x 17 7/8 - Upper; 24 x 12-1/2 x 16 - Lower
Cabinet Width	30 in
Oven Interior Dimensions (lower)	24 x 12 1/2 x 16
Overall Width	29.75 in
Oven Interior Dimensions (upper)	24 x 8 3/4 x 17 7/8
Cutout Height (in)	27.3125 in
Net Weight	190 lb
Approximate Shipping Weight	212 lb
Cutout Depth (in)	23.5
Depth with Door Open	41.75 in
Overall Height	28.125 in
Cutout Width (in)	28.625 in
Cutout Dimensions (w x h x d) (in.)	28-5/8 x 27-5/16 x 23-1/2
FEATURES
Fuel Type	Electric
Oven Interior	2 Halogen Interior Oven Lights (Both Ovens) Black Gloss Finish Hidden Bake
Oven Features	6-Pass Dual Broil Element (Upper) 8-Pass Bake Element (Both Ovens) 8-Pass Dual Broil Element (Lower) Closed Door Broiling
Configuration	Double Oven Single Oven
Product Type	Single/Double Oven
Oven Rack Features	1 Self-Clean Heavy-Duty Offset Oven Rack 2 Self-Clean Roller Racks Embossed Rack Positions (Both Ovens)
Cooking Technology	Traditional Upper; Convection Lower
Self-Clean Oven Door Lock	Automatic
Control Type	7" Full-Color Touch LCD Screen
Connected Capabilities	Amazon Alexa Fresco Google Home IFTTT Innit Sonos The Google Assistant
Cooking System	True European Convection with Precise Air (Lower)
Sabbath Mode	Yes
Oven Cooking Modes	Convection Bake Convection Bake Multi-Rack Convection Roast No Preheat Air Fry Precision Cooking Modes Thermal Bake Thermal Broil Turkey Mode
OU Certified	No
Oven Cleaning Type	Self-Clean with Steam Clean Option
WiFi Connect	Built-In
Cleaning Time	Variable with Delay Clean Option
Oven Rack Positions (Single or Upper/Lower)	2/3
Oven Control Features	12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Sabbath Mode Scan-to-cook Temperature Probe Warm Mode
