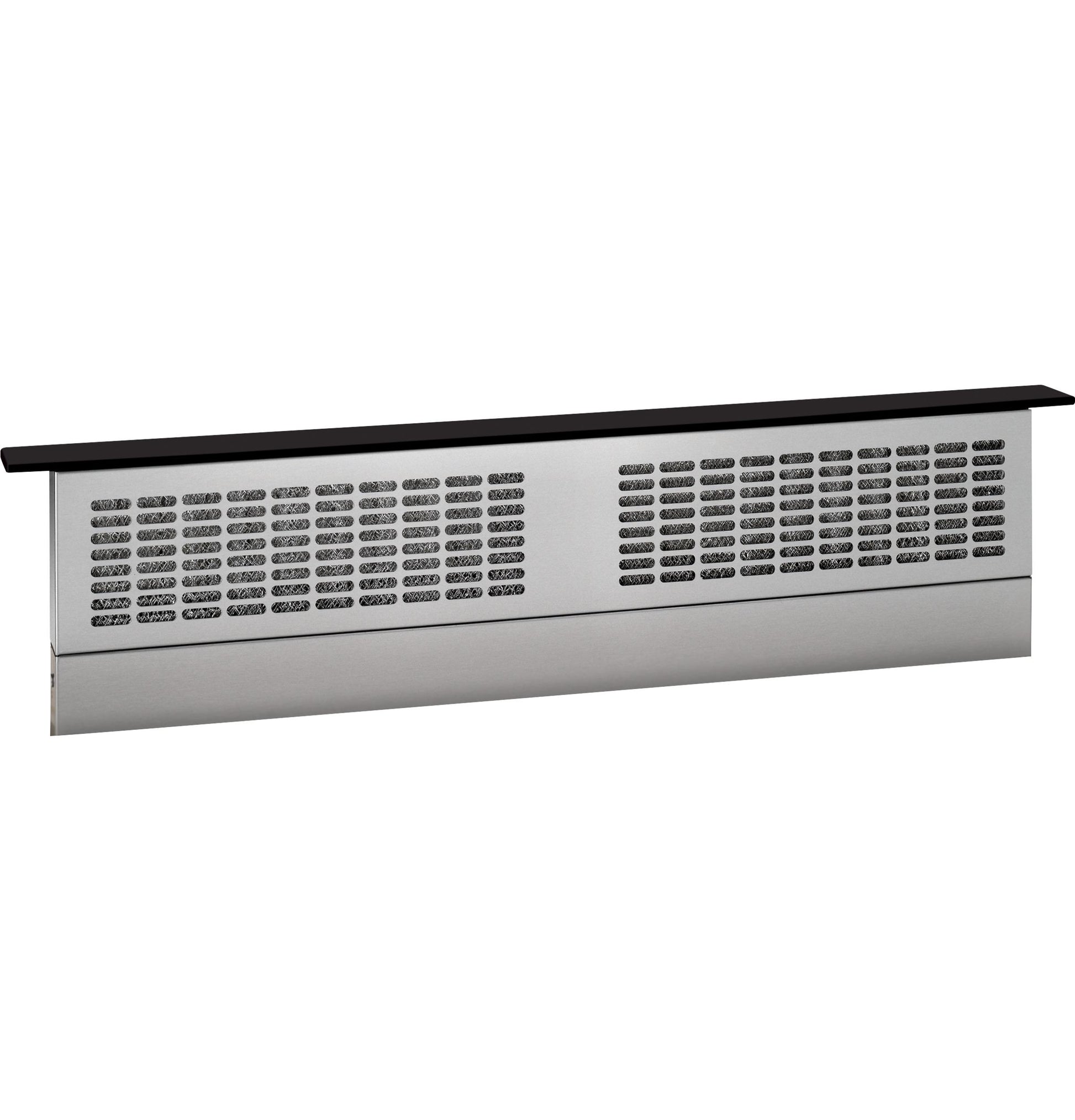

Cafe UVB36DKBB Universal 36" Telescopic Downdraft System

370-CFM venting system
Effectively remove smoke, grease, odor and moisture

Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air

Telescopic hood
Raises over cooktop surface and retracts when not in use

Separate remote raise/lower switch

FILTER
App Filter-Multi Brand	GE Monogram
App Filter - Hood Type	Telescopic downdraft
App Filter - Venting Type	External
App Filter - Cabinet Width	Vent 36 in.
APPEARANCE
Color Appearance	Black
POWER / RATINGS
Hertz	60
Amp Rating at 120V	4.0
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type	Externally Vented
ACCESSORIES
Duct Extension	100 ft.

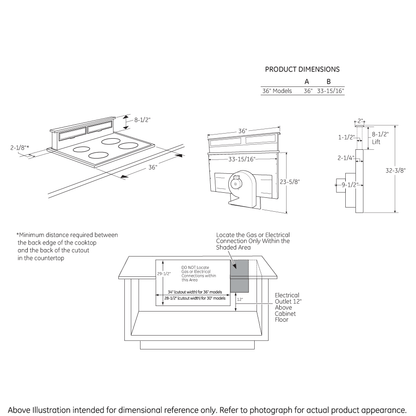

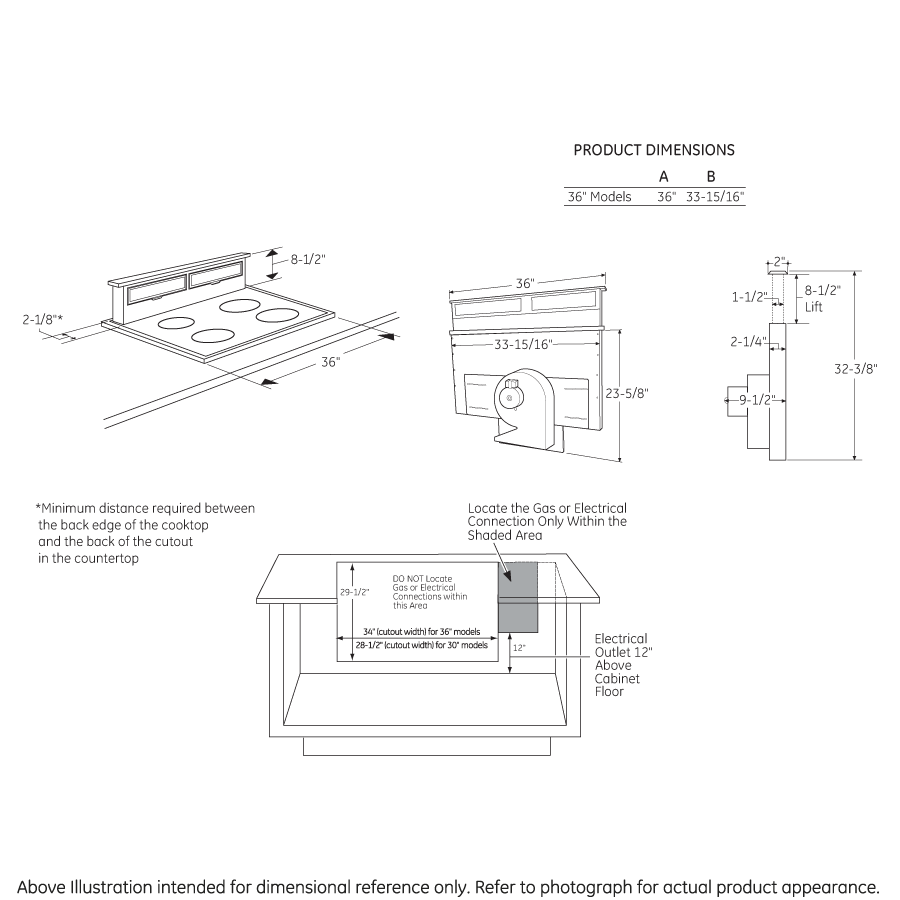

WEIGHTS & DIMENSIONS
Cabinet Width	36 in
Net Weight	59 lb
Overall Depth	9.5 in
Approximate Shipping Weight	74 lb
Telescoping Height	8.5 in
Overall Height	27 in
Overall Width	36 in
FEATURES
Fan Speed Control	4-Speed
Max CFM	370
Optional Blower Mount Capabilities	Yes
Separate Remote Raise/Lower Switch	Yes
CFM/ Sones Rating	140/2.5 (Working Speed) 370/9.0 (High Speed)
Exhaust Options	3-1/4" x 10" Rectangular Duct Downdraft Minimum 6" Round Duct Capability Vented to Outside
Product Type	Telescopic Downdraft
Control Type	Electronic Remote Control
Telescopic Assembly	Stainless Steel
Cover Plate	Black
Blower Type	Internal
Removable Grease Filter(s)	Mesh Yes
