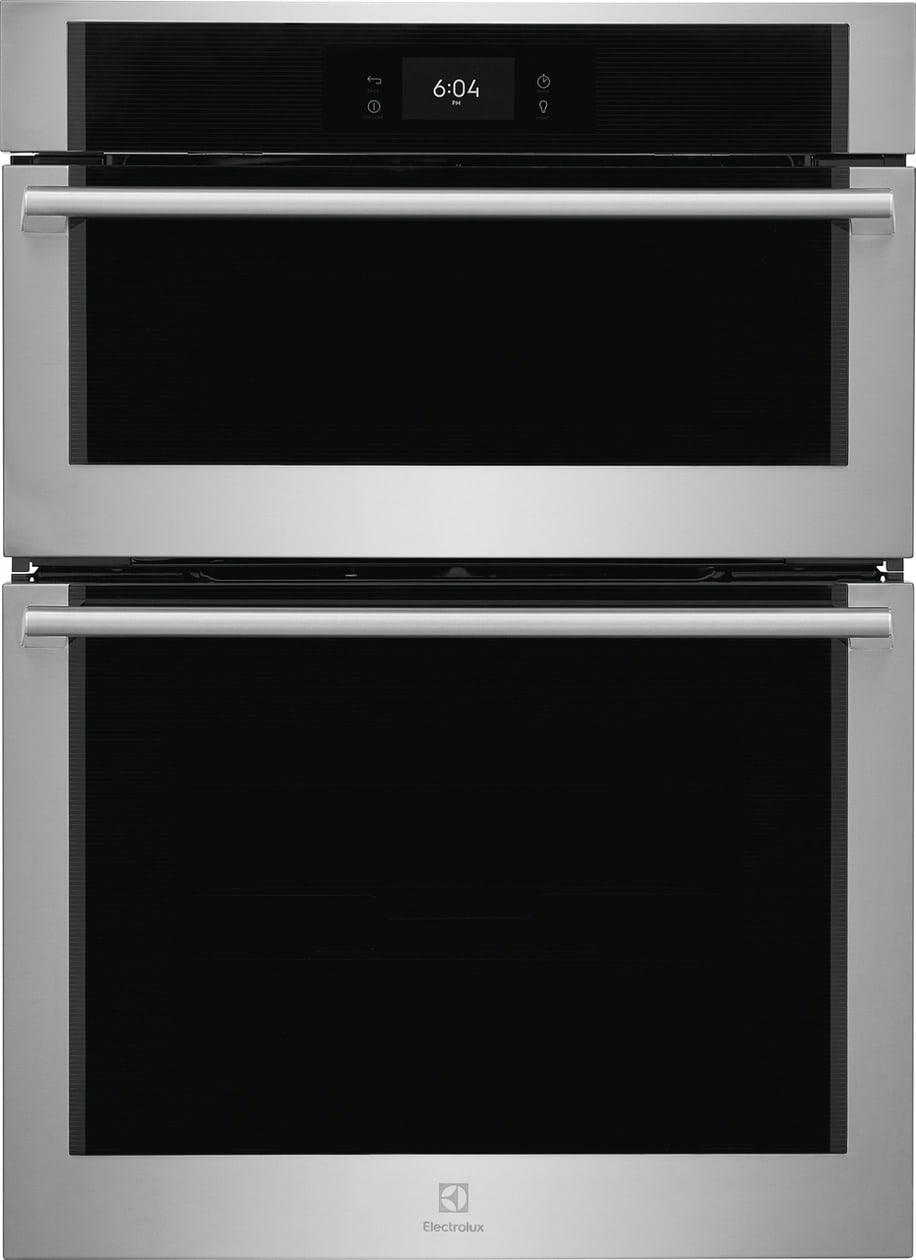

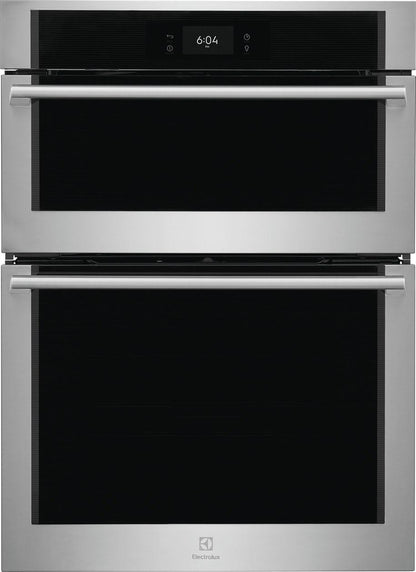

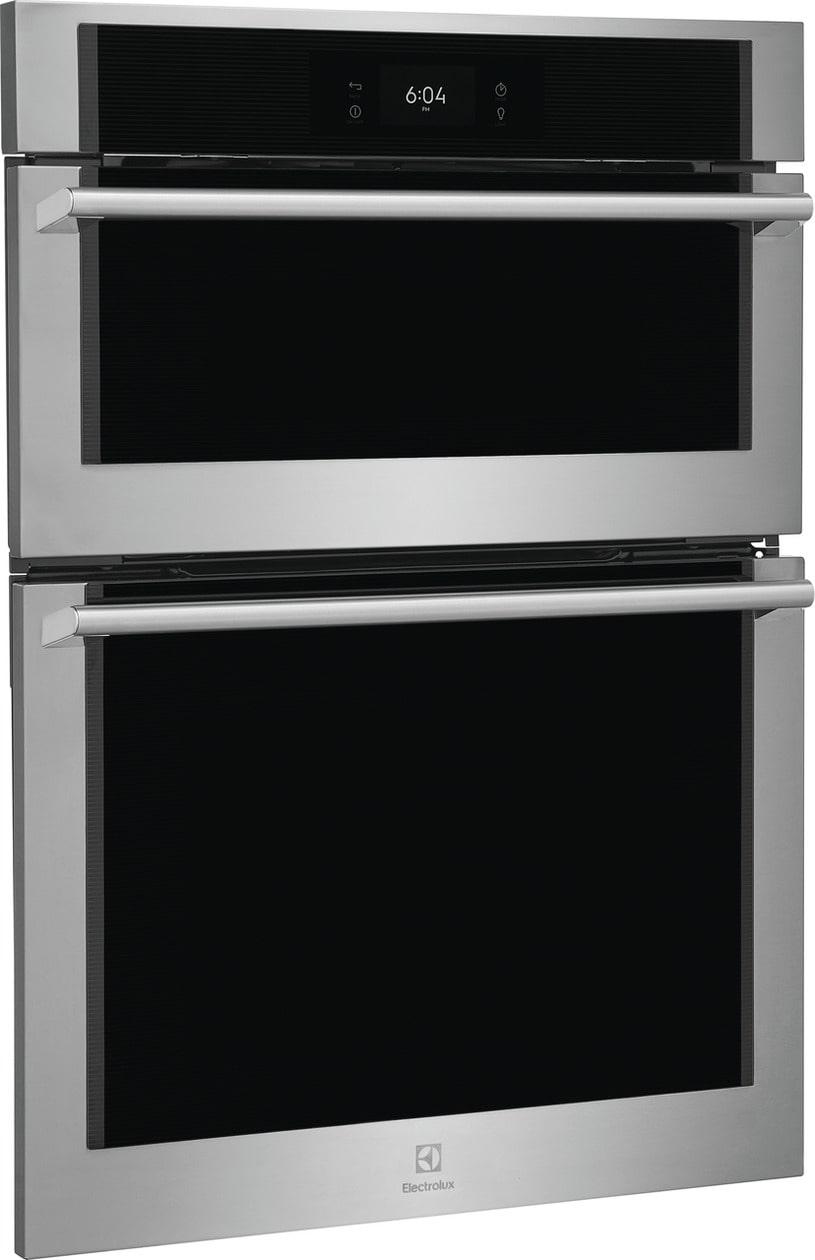

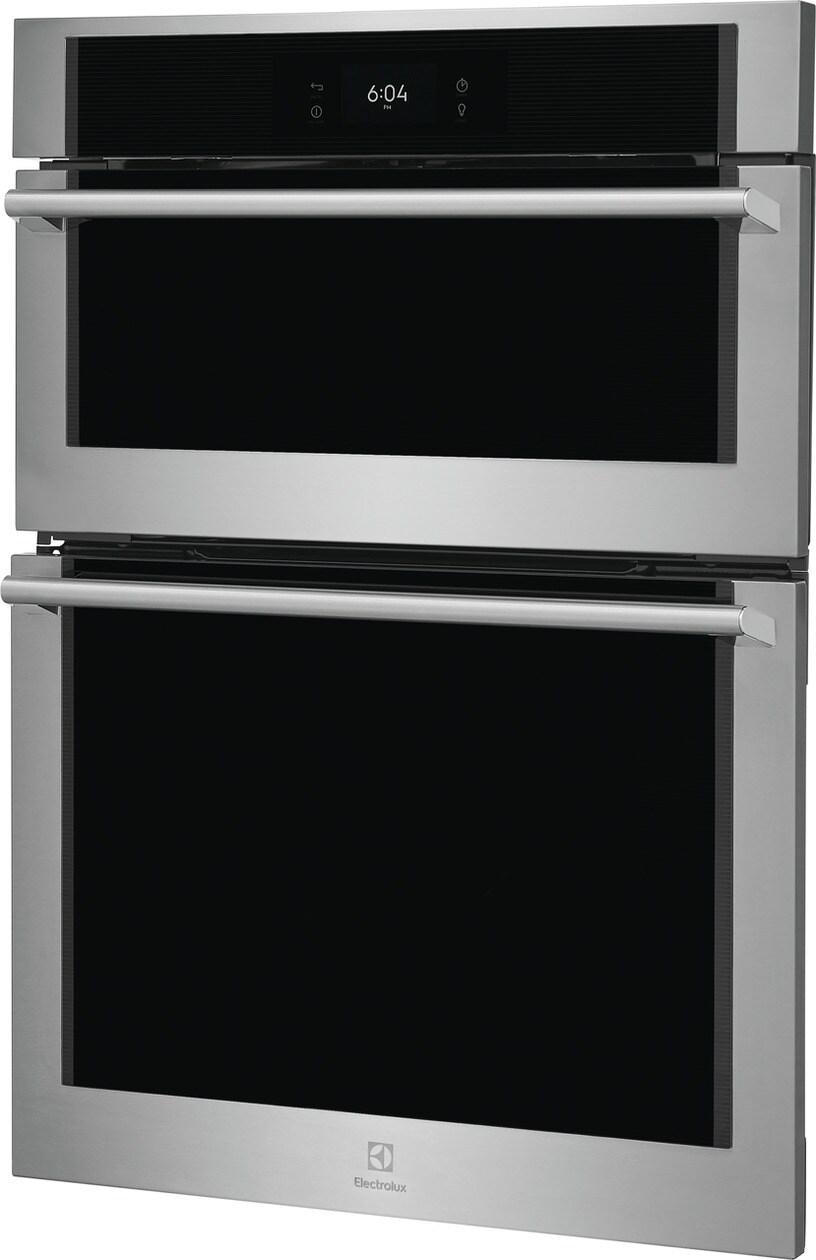

Electrolux ECWM3012AS 30" Wall Oven and Microwave Combination
Electrolux ECWM3012AS 30" Wall Oven and Microwave Combination
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- Air Sous Vide Technology
- Steam Bake & Steam Roast
- Electrolux Connect Technology
- Built-In Air Fry
- Advanced Convection
- Smoke Shield

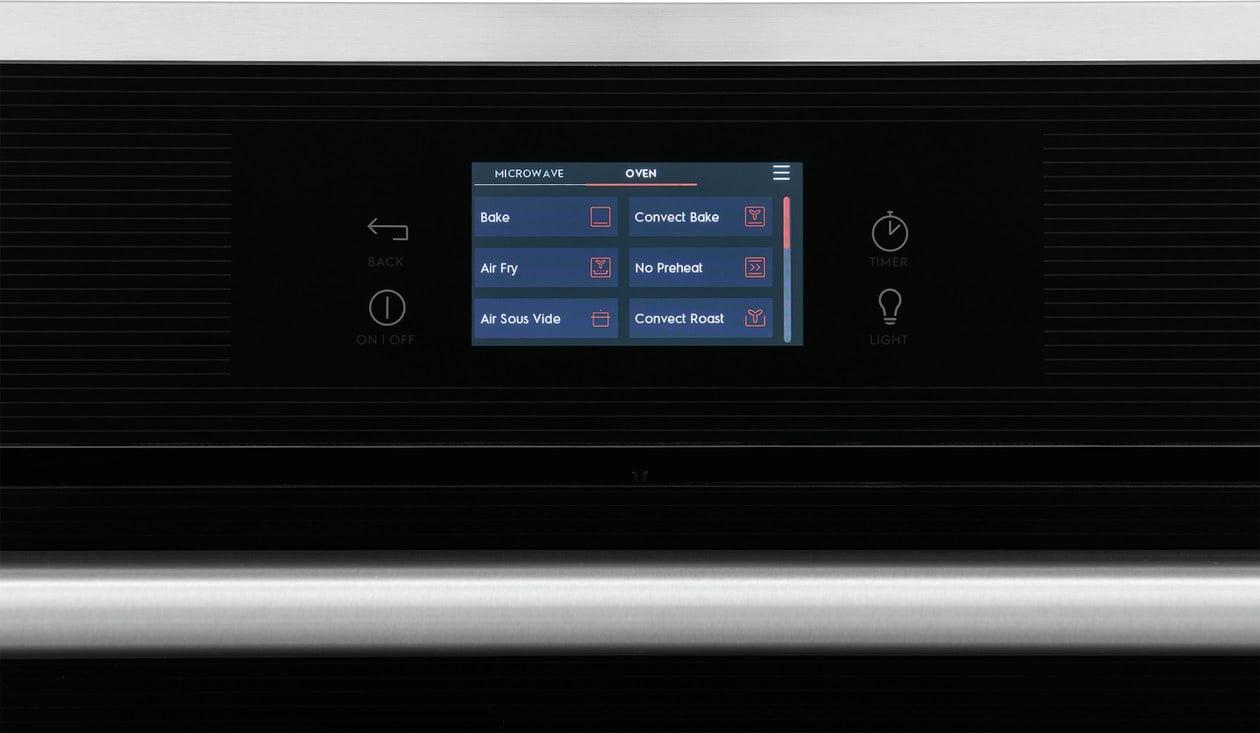

- Full-Color Touch Controls
- No Preheat
- Temperature Probe

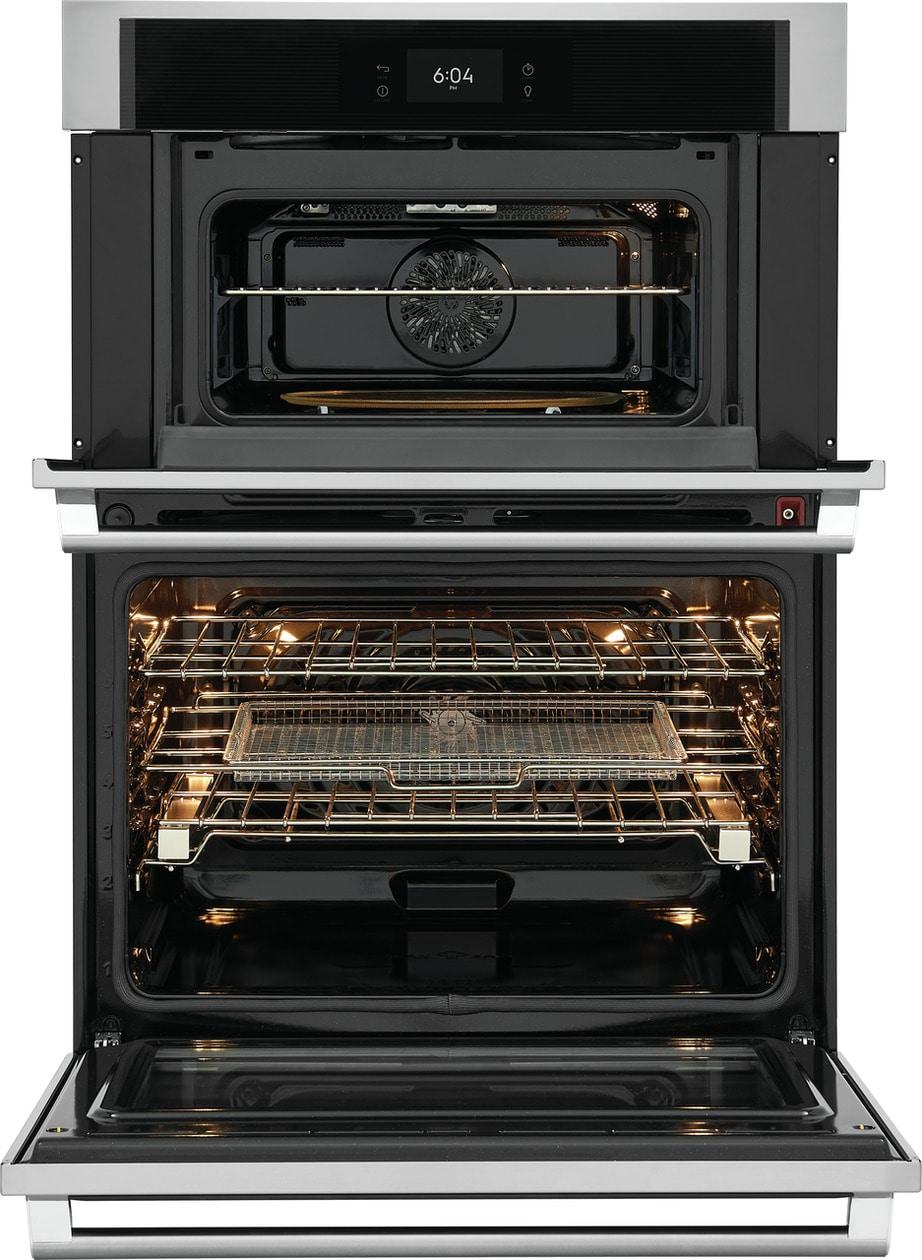

- Luxury-Glide® Oven Racks
- Luxury-Design® Lighting
- Included Air Fry Tray
- 30-Minute Steam Clean
- Bread Proof
- Dehydrate
- Turkey Option
- Sleek Design
- Microwave Convection Cooking
- Microwave Keep Warm Mode
- Platinum Star® Limited Warranty
The Electrolux Connected Wall Oven and Microwave is designed to inspire culinary creativity. Packed with advanced technologies like Air Sous Vide, Steam cooking modes, Built-In Air Fry and Advanced Convection, the wall oven also features Electrolux Connect Technology which allows for seamless operation from the mobile app.
| Product Line | Microwave Combination Wall Oven |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Built-In |
| Factory | Springfield |
| Color | Stainless Steel |
| Cooking Controls | |
| Air Fry | Yes |
| Air Sous Vide | Yes |
| Bake | Yes |
| Bake Time | Yes |
| Bread Proof | Yes |
| Broil | Yes |
| Cancel | Yes |
| Child Lock | Yes |
| Clear Off | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Dehydrate | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Fast Preheat | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| My Favorite | Yes |
| Off | Yes |
| Oven Light | Yes |
| Perfect Turkey | Yes |
| Preheat | Yes |
| Probe | Yes |
| Self Clean | Yes |
| Set Clock | Yes |
| Slow Cook | Yes |
| Start | Yes |
| Start Time | Yes |
| Steam Bake | Yes |
| Steam Clean | Yes |
| Steam Roast | Yes |
| Stop | Yes |
| Temperature Display | Yes |
| Timed Bake | Yes |
| Timer On / Off | Yes |
| User Preferences | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| Timed Cooking | Yes |
| Oven | |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Element | 3800 Watts |
| Convection Type | Total |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 2 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Handle Bull Nose |
| Rack Type 1 Quantity | 1 |
| Rack Type 2 | Glide |
| Rack Type 2 Quantity | 1 |
| Rack Type 3 | Air Fry Tray |
| Rack Type 3 Quantity | 1 |
| Microwave Cooking | |
| Microwave Cooking Power | 1000 Watts |
| Bacon | Yes |
| Beverage | Yes |
| Defrost | Yes |
| Melt / Soften | Yes |
| Popcorn | Yes |
| Reheat | Yes |
| Rice | Yes |
| Top Grill Mode | Yes |
| Veggies | Yes |
| Convection Cooking | |
| Convection Cooking - Bake | Yes |
| Convection Element | 1650 Watts |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Connectivity | |
| Wi-Fi Enabled | Yes |
| Microwave Control Features | |
| + 30 Seconds | Yes - One Touch |
| Display | |
| Control Location | Front |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Capacitive Touch |
| Internal Specifications | |
| Rack | Yes |
| Turntable Diameter | 14" |
| Turntable Material | Glass |

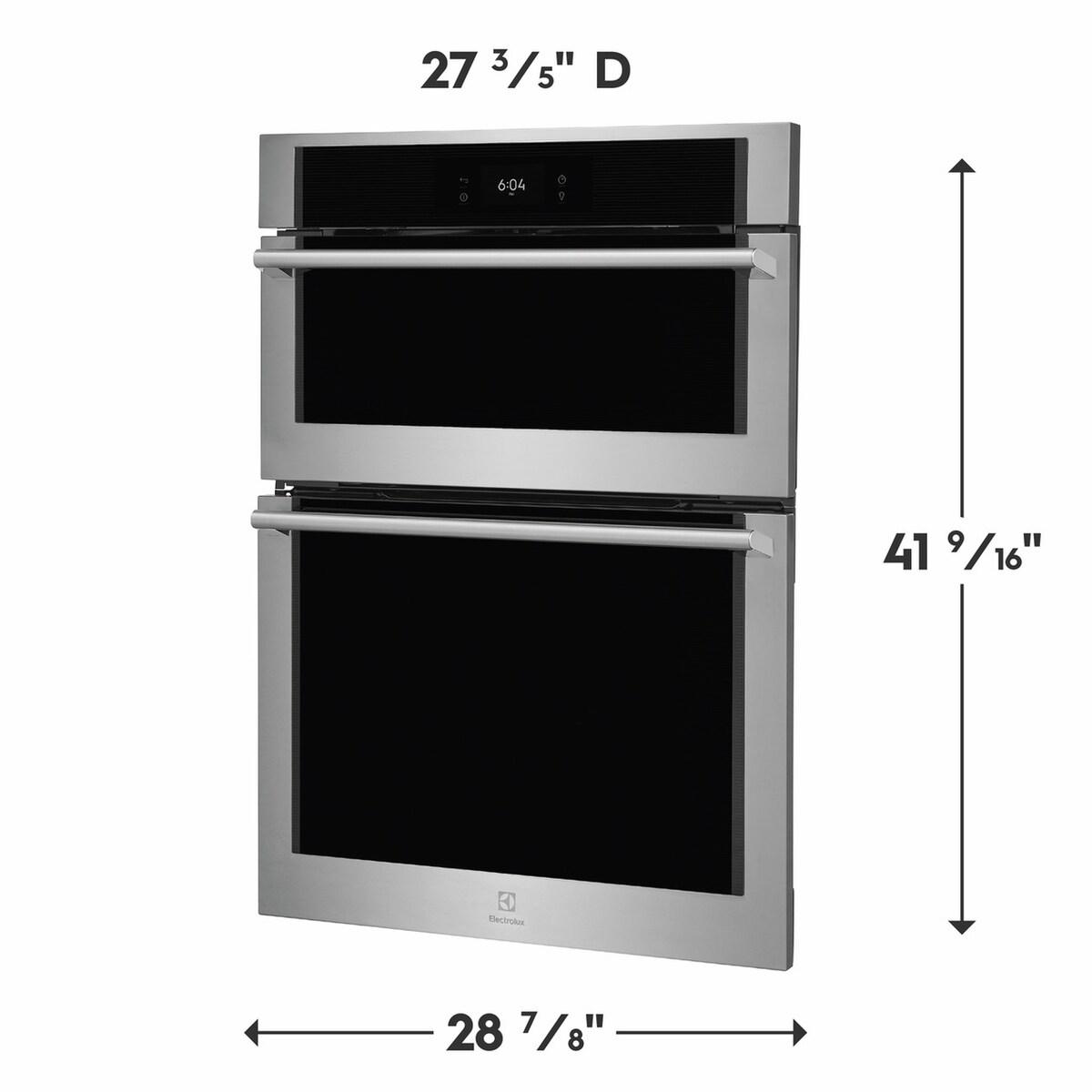

| Dimensions and Volume | |
| Height | 41 9/16" |
| Width | 28 7/8" |
| Depth | 25 3/16" |
| Depth With Door 90° Open | 47 3/16" |
| Depth With Handle | 27 3/5" |
| Cutout Depth | 23 5/8" |
| Oven Interior Height | 18 1/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Microwave Interior Height | 9 5/16" |
| Microwave Interior Width | 18 7/8" |
| Microwave Interior Depth | 16 1/8" |
| Minimum Cutout Height | 40 5/8" |
| Minimum Cutout Width | 28 1/2" |
| Maximum Cutout Height | 41 1/2" |
| Maximum Cutout Width | 29" |
| Microwave Capacity | 1.7 Cu. Ft. |
| Oven Capacity | 5.3 Cu. Ft. |
| Electrical Specifications | |
| Amps @ 240 Volts | 40 Amps |
| Connected Load @ 240V | 8.3 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Power Supply Connection Location | Top Left |
| General Specifications | |
| Product Weight | 245 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at electrolux.com/en/ab1200 |
| Certifications and Approvals | |
| ADA Compliant | No |
| CSA Listed | Yes |
| RoHS | Yes |
| Star-K Certification | Yes |
| UL Listed | Yes |
