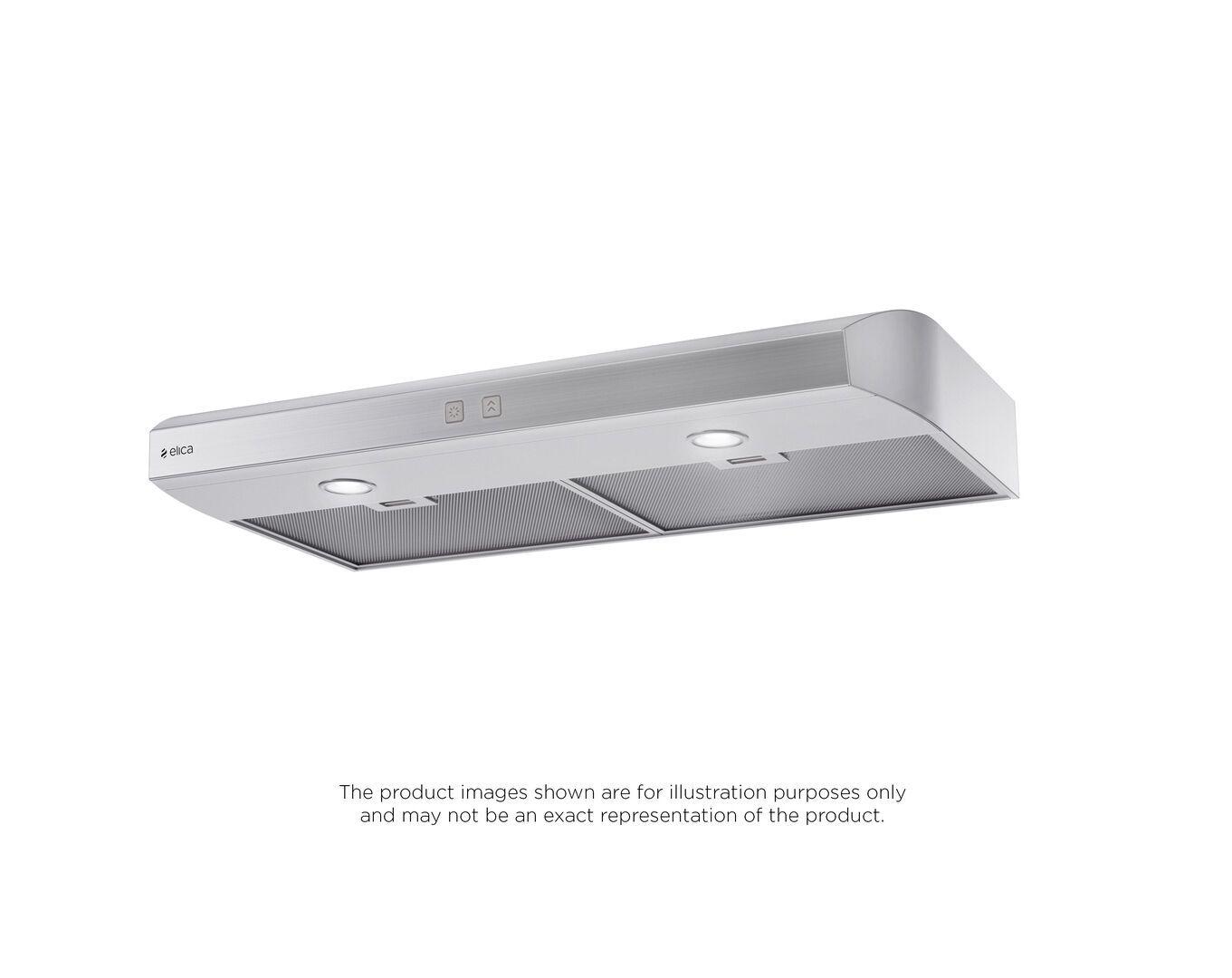

Elica EAL336S2 ALLASIO Undercabinet Range Hood 36" wide - 300CFM EAL336S2
Elica EAL336S2 ALLASIO Undercabinet Range Hood 36" wide - 300CFM




- 3x layer mesh
- Led light

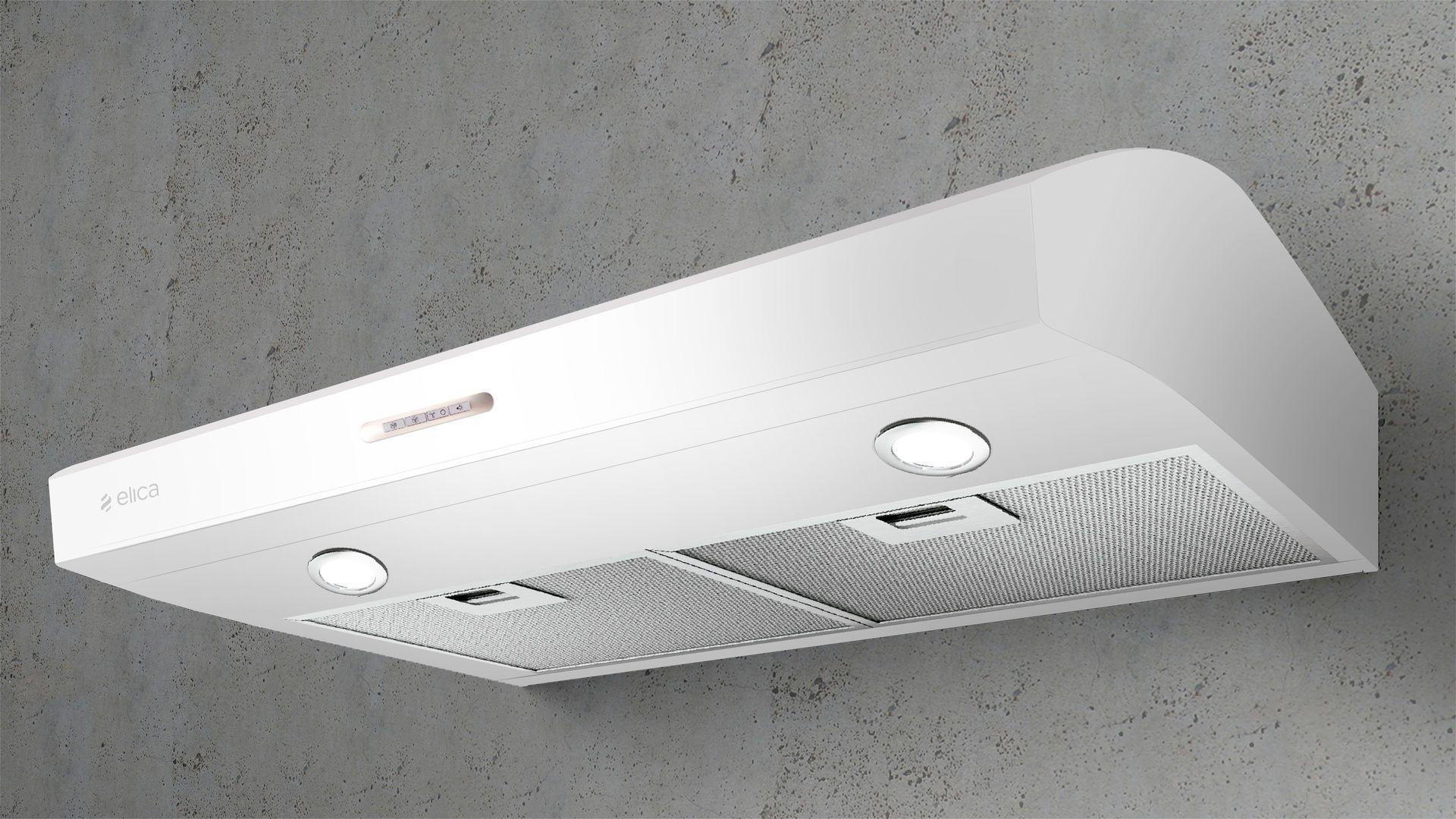

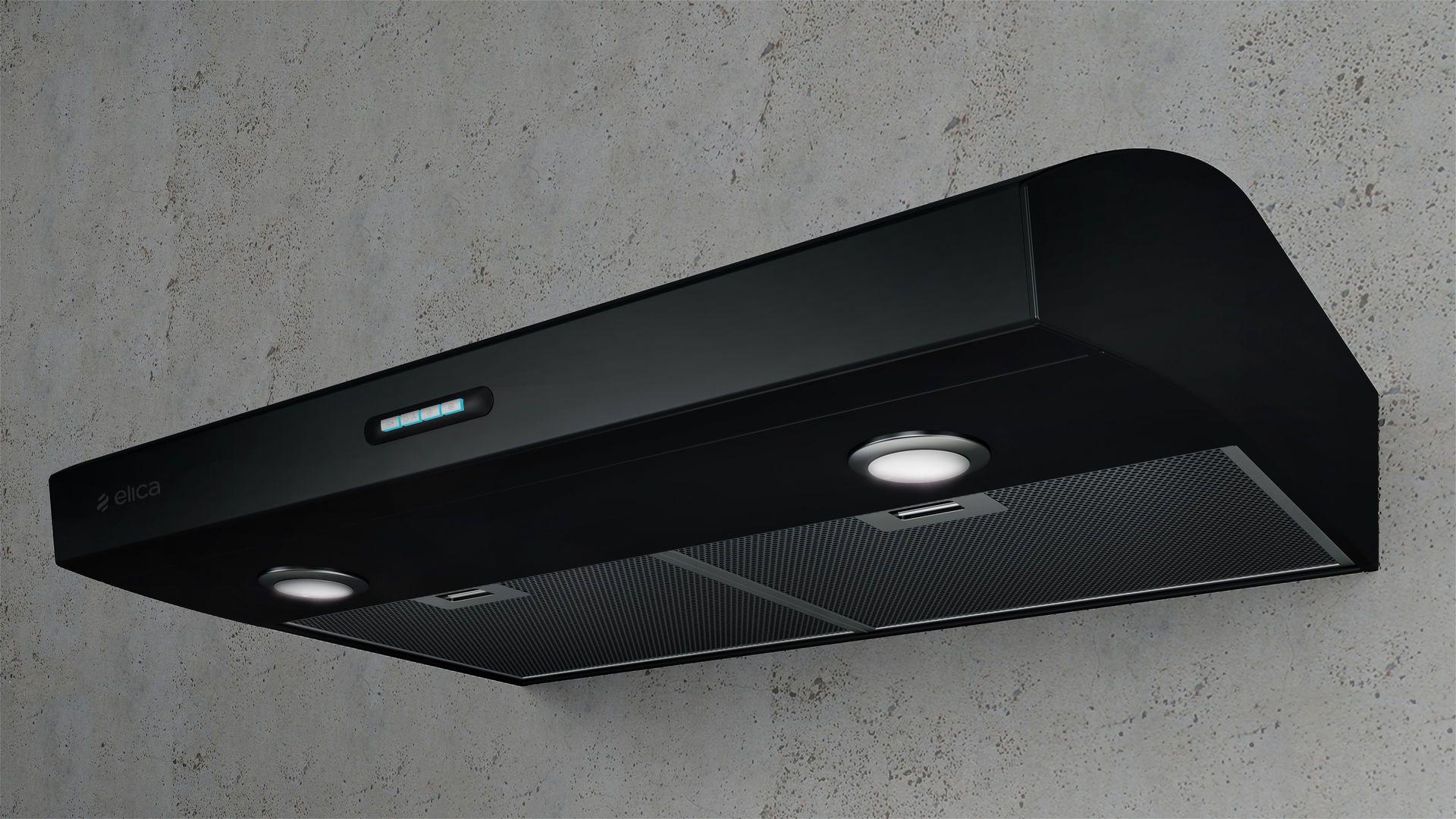

The slim Allasio with 4 3/ height is ideal where under-cabinet space is limited, plus the contemporary styling and gleaming colors will compliment other appliances and most cabinetry. Allasio features a 3-speed, 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive Soft-touch, Blue Illuminated Control allows the user to manage easily the blower speeds and lights. Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. Available in 36 width and Black & White colors, Allasio is designed for standard ducted installation and can be installed as a recirculating system, using the Recirculating Kit
Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
SHIPPING WEIGHT (kg) | 12.20 |
NET WEIGHT (kg) | 10.80 |
CARTON LENGHT (mm) | 1016.00 |
CARTON HEIGHT (mm) | 618.00 |
CARTON WIDTH (mm) | 149.00 |
VOLUMEN (M3) | 0.16 |
SHIPPING WEIGHT | 26.90 |
NET WEIGHT | 23.81 |
CARTON LENGHT | 40.00 |
CARTON HEIGHT | 24.33 |
CARTON WIDTH | 5.87 |
COUNTRY OF MANUFACTURE | MX |
QTY PACKAGE | 1.00 |
INTENDED APPROVED USE | Residential use |
Finish | Stainless Steel |
Color | inox |
Type of Ventilation | Convertible |
HOODS FEATURES | 3x layer mesh, Led light |
WIDTH (IN) | 36" |
WIDTH (CM) | 90.00 |
AIRFLOW (M3/H) | 510.00 |
CFM (MAX) | 300.00 |
db (min) | 35.65 |
db (max) | 51.00 |
SONES | 1.7 - 5.0 |
EXHAUST VERSION | Convertible with Kit |
EXHAUST SIZE | Rectangular 10 x 3 1/4" or round 7" (sold separately) |
DUCT SHAPE | Rectangular or round (sold separately) |
EXHAUST LOCATION | Top or Rear |
RECTANGULAR DUCTH HEIGHT | 10" |
RECTANGULAR DUCT WIDTH | 3.25 |
Round duct diameter | 7" |
ELECTRIC (VOLTS) | 120 V/60 Hz |
AMPERAGE | 2.3 A |
HERTZ | 60.00 |
WATTS | 255.00 |
LIGHTING | LED 2 x 2.1 ww 3000 KK |
BULB TYPE | LED |
BULB INCLUDED | YES |
NUMBER OF LIGHTS | 2.00 |
BULB WATTS | 2.10 |
KELVINS | 3000.00 |
GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
DISHWASHERSAFE FILTER | YES |
FILTER MATERIAL | Aluminum Mesh |
BLOWER TYPE | Interior Unit |
CONTROL TYPE | Backlit Electronic Push Button |
SPEED CONTROL | YES |
NUMBER OF SPEEDS | 3.00 |
REMOTE CONTROL | NO |
POWER SOURCE | Hardwired |
OUTDOOR USE | NO |
SMUDGE RESISTANT | NO |
RECIRCULATION KIT NEEDED | YES |
CFM REDUCTION | NA |
DIMENSIONS | 76 x 51 x 12 |
DIMENSIONS inches | 30" x 20" x 4 3/4" |
ADJUSTABLE HEIGHT | NO |
Minimum Overall Height - Top to Bottom | 4 3/4" |
Maximum Overall Height - Top to Bottom | 4 3/4" |
Overall Height - Top to Bottom | 4 3/4" |
Overall Width - Side to Side2 | 36" |
Overall Depth - Front to Back | 20" |
Hood Height | 4 3/4" |
Minimum Compatible Ceiling Height | NA |
Maximum Compatible Ceiling Height | NA |
Minimum Height Above Cooktop | 30" |
Maximum Height Above Cooktop | 36" |
Chimney Width - Side to Side | NA |
Chimney Depth - Front to Back | NA |
Chimney Height - Top to Bottom | NA |
STYLE | Modern |
cUL listed | YES |
UL listed | YES |
AHAM verified | YES |
TITLE 24 | YES |
Prop65 Disclosure | YES |
ENERGY STAR | NO |
WIFI CAPABLE | NO |
COMERCIAL USE APPROVED | NO |
ADA COMPLIANT | NO |
APP CAPABLE | NO |
VENTILATION DIRECTION | HORIZONTAL |
SMART COMPATIBLE | NO |
FITLER INDICATOR LIGHT | NO |
HEAT SENSOR | NO |
CHAROCAL FILTER | YES |
CERTIFICADO NOM | No |
