ELICA EAS328S1
Authorized Reseller

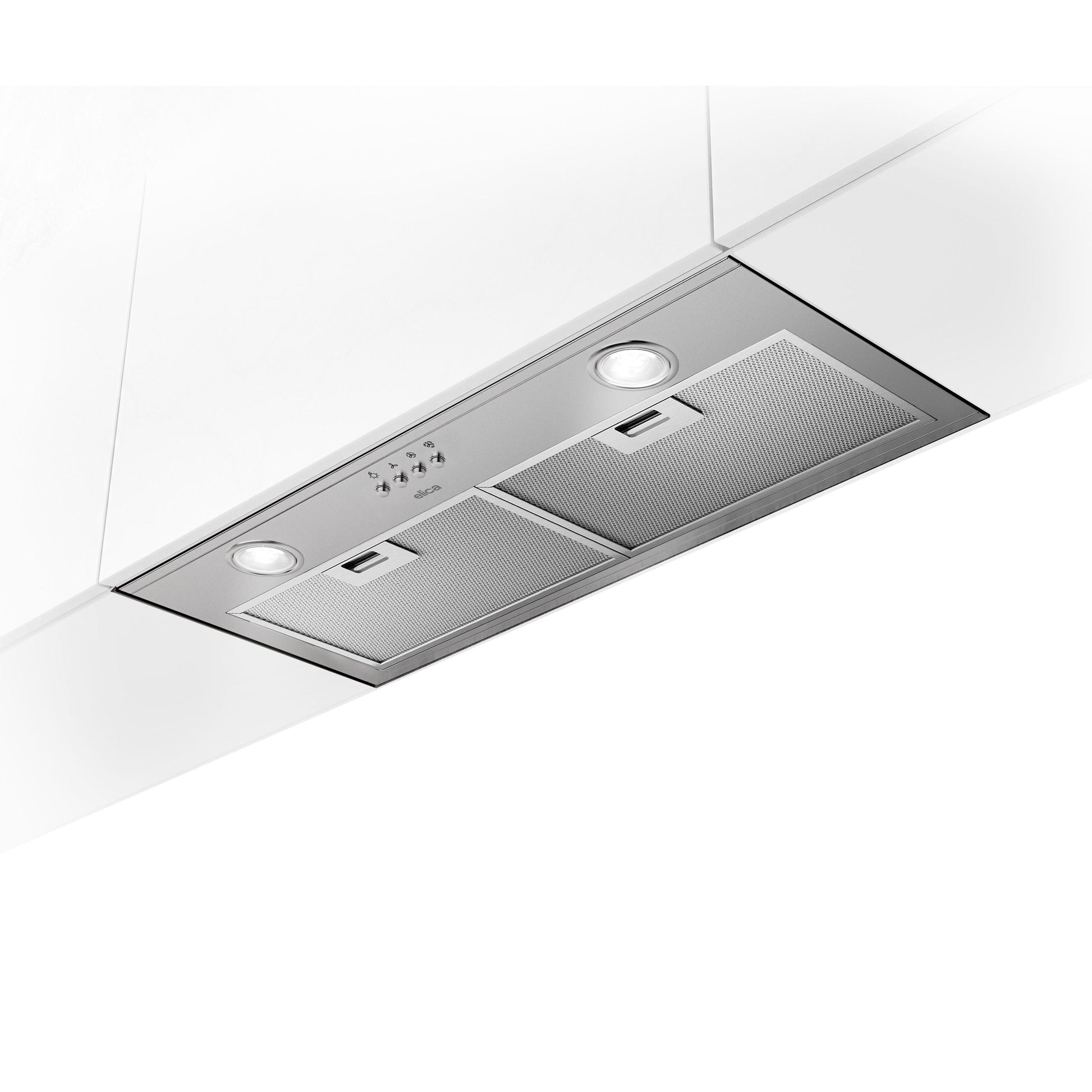

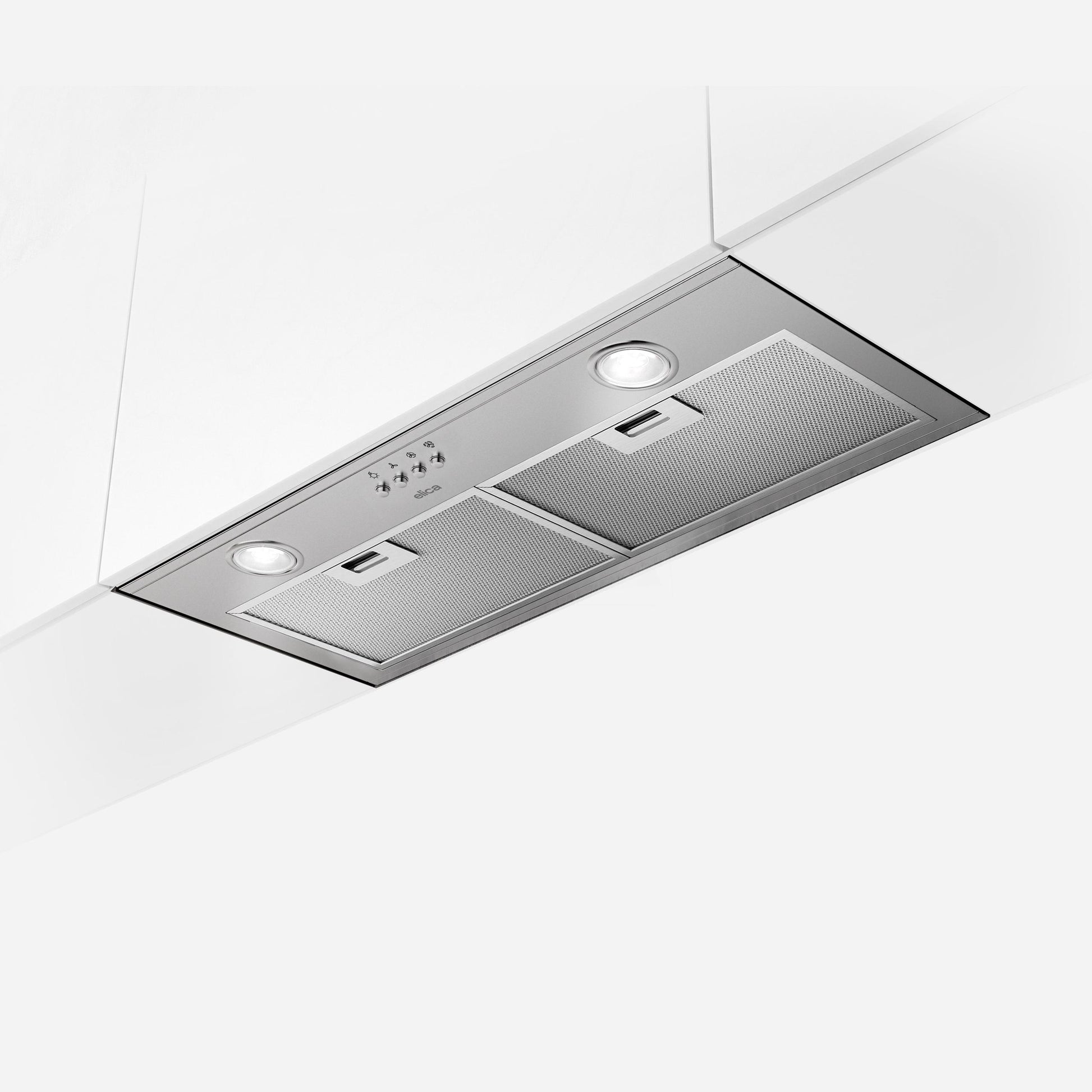

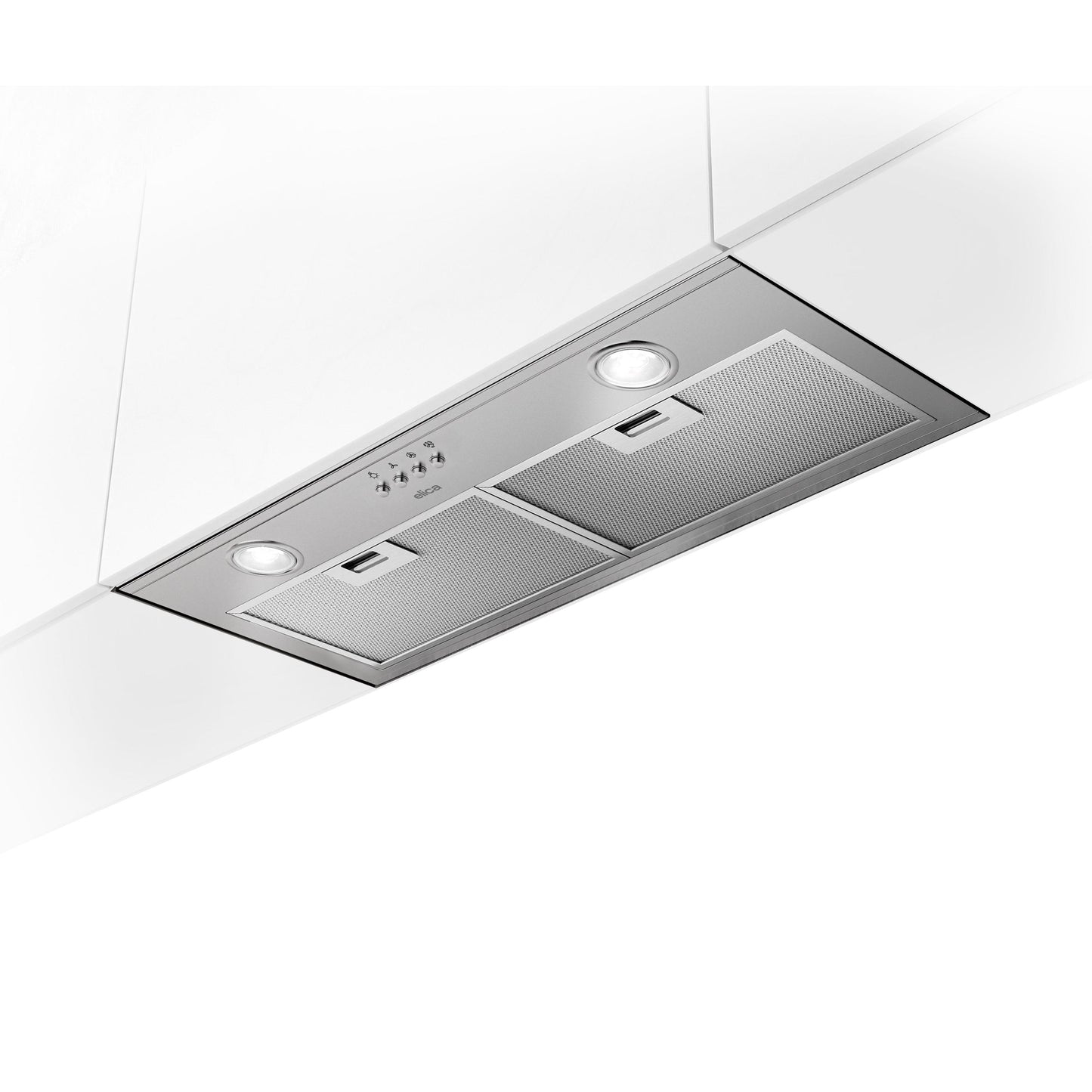

Elica EAS328S1 ASTI 300-28 Insert Range Hood 28 1/4" wide - 300CFM
Elica EAS328S1 ASTI 300-28 Insert Range Hood 28 1/4" wide - 300CFM
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- 3x layer mesh Led light Super easy installation Top or rear outlet
ASTI 300-28 Insert Range Hood 28 1/4" wide - 300CFM
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 12.80 |
| NET WEIGHT (kg) | 9.20 |
| CARTON LENGHT (mm) | 837.00 |
| CARTON HEIGHT (mm) | 426.00 |
| CARTON WIDTH (mm) | 389.00 |
| VOLUMEN (M3) | 0.14 |
| SHIPPING WEIGHT | 28.22 |
| NET WEIGHT | 20.28 |
| CARTON LENGHT | 32.95 |
| CARTON HEIGHT | 16.77 |
| CARTON WIDTH | 15.31 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh Led light Super easy installation Top or rear outlet |
| WIDTH (IN) | 28" |
| WIDTH (CM) | 72.00 |
| AIRFLOW (M3/H) | 0.00 |
| CFM (MAX) | 300.00 |
| db (min) | 36.00 |
| db (max) | 48.00 |
| SONES | 1.7 - 4 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 15-20 A |
| HERTZ | 60.00 |
| WATTS | 260.00 |
| LIGHTING | LED 2 x 6.5 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Mechanical Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | NA |
| DIMENSIONS | 72 x 27 x 24 |
| DIMENSIONS inches | 28 1/4" x 10 3/4 x 9 1/2 |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 9 1/2" |
| Maximum Overall Height - Top to Bottom | 14 9/16" |
| Overall Height - Top to Bottom | 9 1/2" |
| Overall Width - Side to Side2 | 28 1/4" |
| Overall Depth - Front to Back | 10 3/4" |
| Hood Height | 9 1/2" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02770 |
| CHIMNEY EXTENTION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | KIT02773/KIT02774 |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| VERSION ADVANCES | REAR OUTLET |
| CERTIFICADO NOM | NA |
