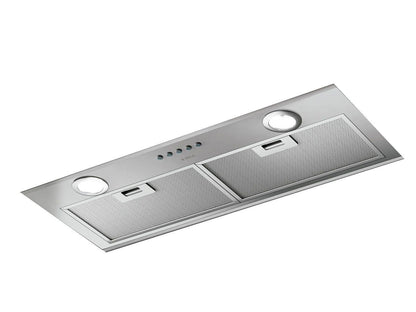

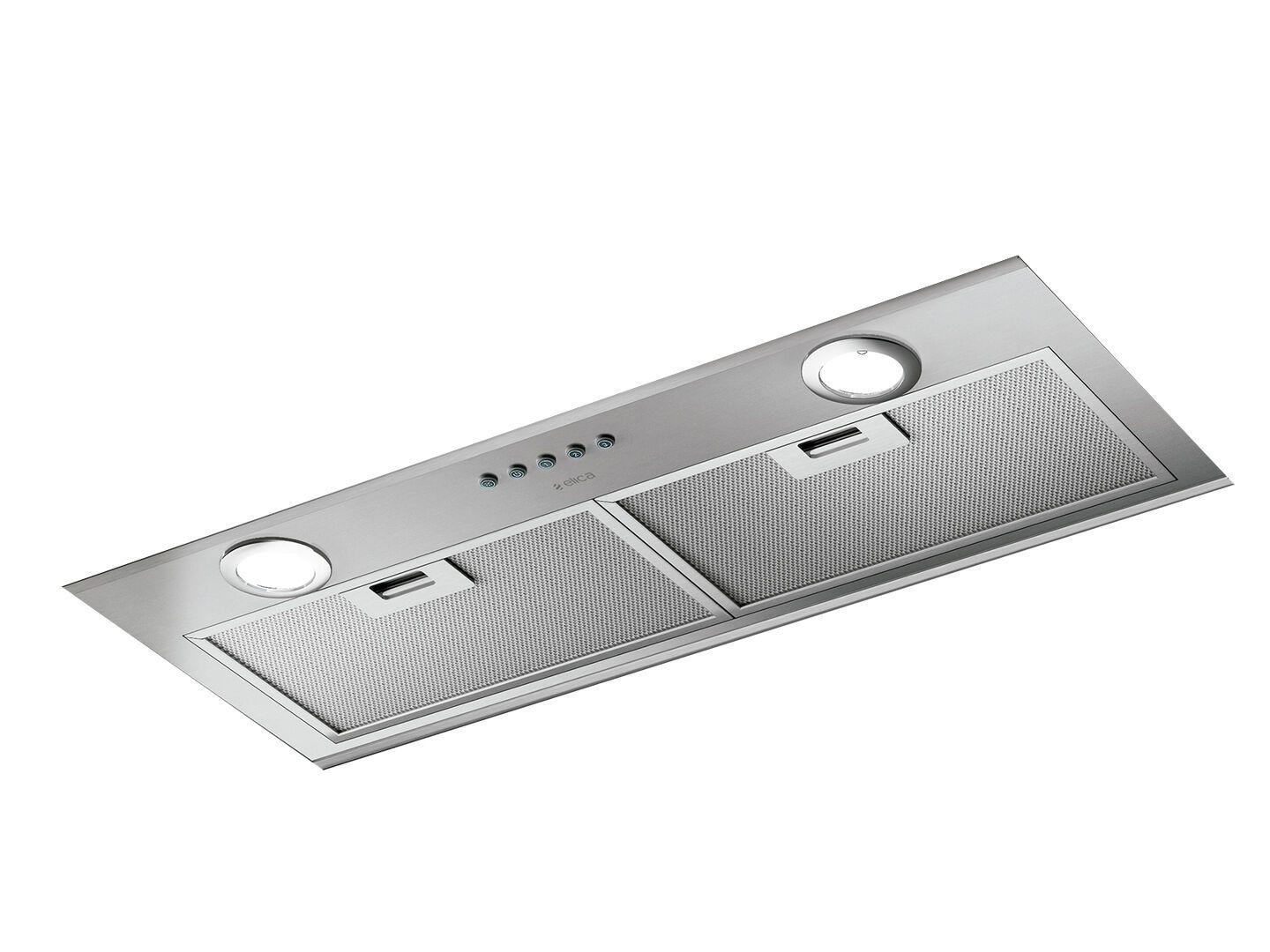

Elica EAS428S1 ASTI Insert Range Hood 28 1/4" wide - 400CFM EAS428S1

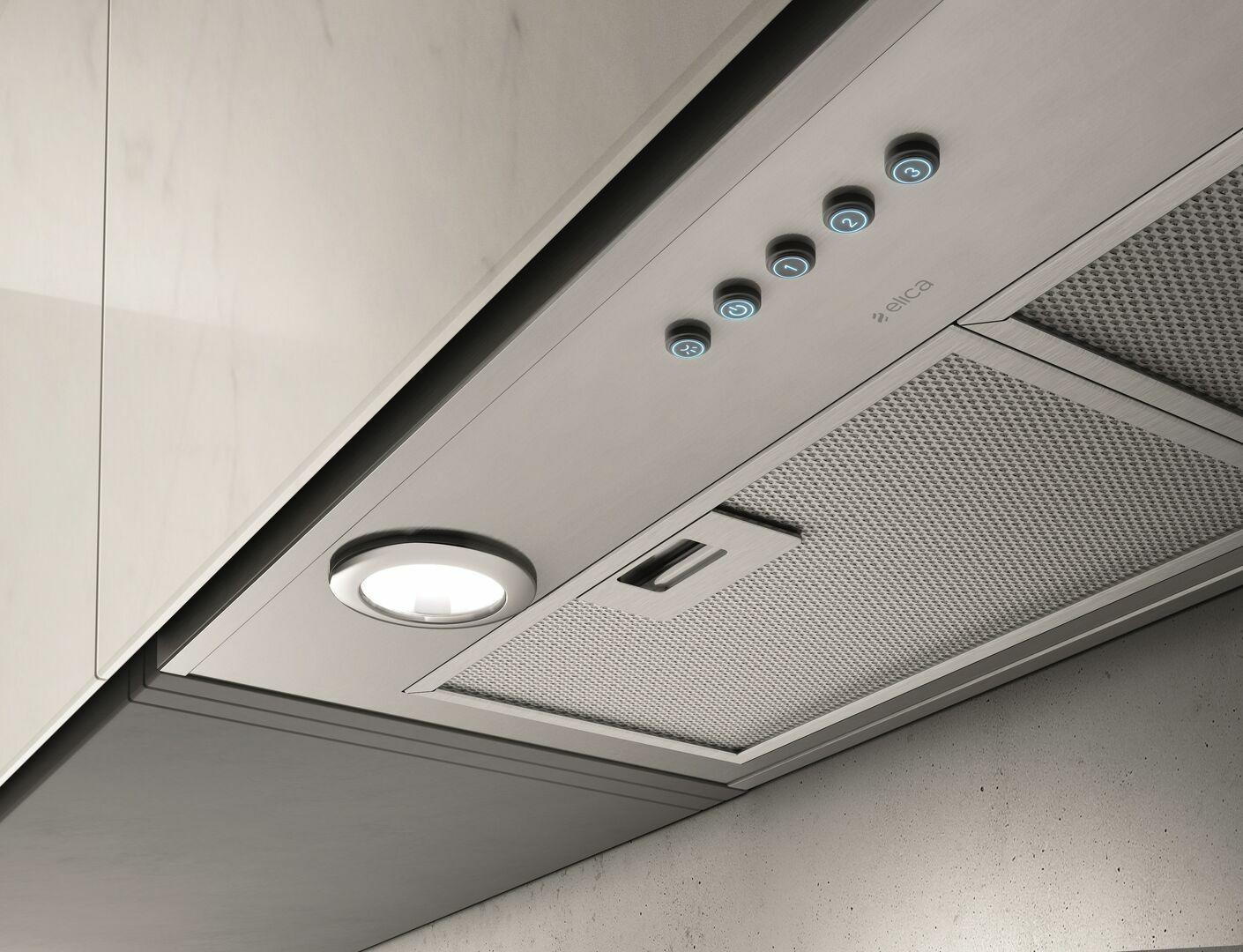

Asti is designed for discreet mounting inside cabinetry, fits perfectly into 12 deep cabinetry, and is ideal for kitchens where space is limited, or the range hood needs to be out of sight. Asti comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient Backlit Electronic Push Button Controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters o er easy maintenance. Asti is designed for standard ducted or recirculating installation.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	13.40
NET WEIGHT (kg)	9.90
CARTON LENGHT (mm)	837.00
CARTON HEIGHT (mm)	426.00
CARTON WIDTH (mm)	389.00
VOLUMEN (M3)	0.10
SHIPPING WEIGHT	29.54
NET WEIGHT	21.83
CARTON LENGHT	32.95
CARTON HEIGHT	16.77
CARTON WIDTH	15.31
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	3x layer mesh,Led light
WIDTH (IN)	28"
WIDTH (CM)	72.00
AIRFLOW (M3/H)	680.00
CFM (MAX)	400.00
db (min)	15.00
db (max)	51.00
SONES	0.4 - 5.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	2.3 A
HERTZ	60.00
WATTS	289.00
LIGHTING	LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Backlit Electronic Push Button
SPEED CONTROL	YES
NUMBER OF SPEEDS	3.00
REMOTE CONTROL	NO
POWER SOURCE	Power Cord
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS	72 x 27 x 24
DIMENSIONSinches	28 1/4" x 10 3/4 x 9 1/2
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	9 1/2"
Maximum Overall Height - Top to Bottom	14 9/16
Overall Height - Top to Bottom	9 1/2"
Overall Width - Side to Side2	28 1/4"
Overall Depth - Front to Back	10 3/4
Hood Height	9 1/2"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02770
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0175561
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	KIT02773/KIT02774
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	Activo
