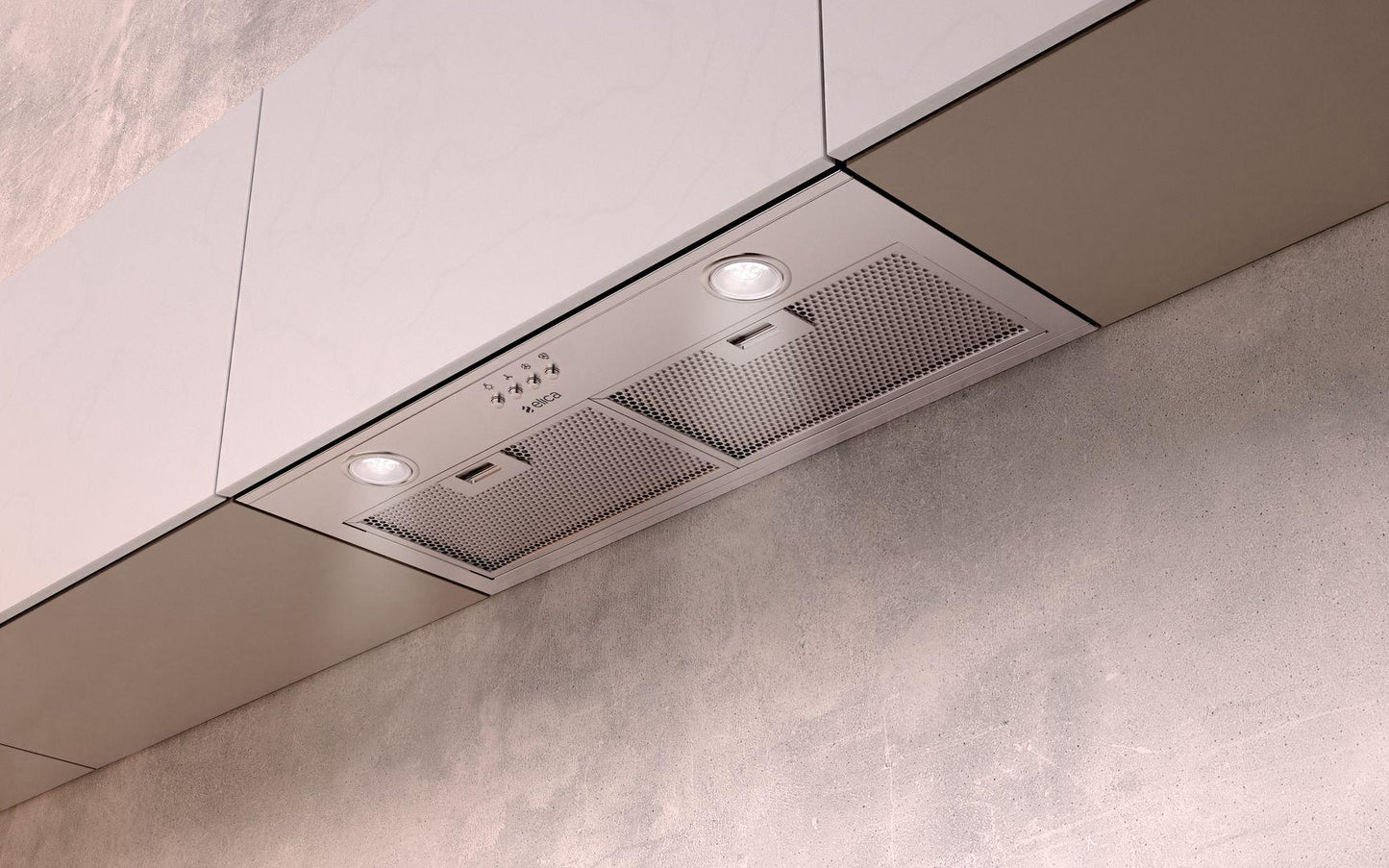

Elica EAS430SS ASTI 30 Insert Range Hood 30" wide - 400CFM EAS430SS

Asti 30 is designed for discreet mounting inside cabinetry, fits perfectly into 12 deep cabinetry, and is ideal for kitchens where space is limited or the range hood needs to be out of sight. Asti 30 comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient mechanical push button controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters covered by a stainless steel protective layer, o_x001E_er easy maintenance. Asti 30 is designed for standard ducted or recirculating installation.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	15.20
NET WEIGHT (kg)	11.00
CARTON LENGHT (mm)	389.00
CARTON HEIGHT (mm)	426.00
CARTON WIDTH (mm)	837.00
VOLUMEN (M3)	0.10
SHIPPING WEIGHT	33.51
NET WEIGHT	24.25
CARTON LENGHT	15.31
CARTON HEIGHT	16.77
CARTON WIDTH	32.95
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	Led light
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	0.00
CFM (MAX)	400.00
db (min)	11.00
db (max)	51.00
SONES	0.3 - 5.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	2.2 A
HERTZ	60.00
WATTS	260.00
LIGHTING	LED 2 x 6.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	6.50
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-safe, Aluminum Mesh + Stainless Steel Layer
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit
CONTROL TYPE	Mechanical Push Button
SPEED CONTROL	YES
NUMBER OF SPEEDS	3.00
REMOTE CONTROL	NO
POWER SOURCE	Power Cord
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS	76 x 30 x 24
DIMENSIONSinches	30" x 12 x 9 1/2
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	9 1/2"
Maximum Overall Height - Top to Bottom	14 1/2
Overall Height - Top to Bottom	9 1/2"
Overall Width - Side to Side2	30"
Overall Depth - Front to Back	11 15/16
Hood Height	9 1/2"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02770
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0175561
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	Activo
