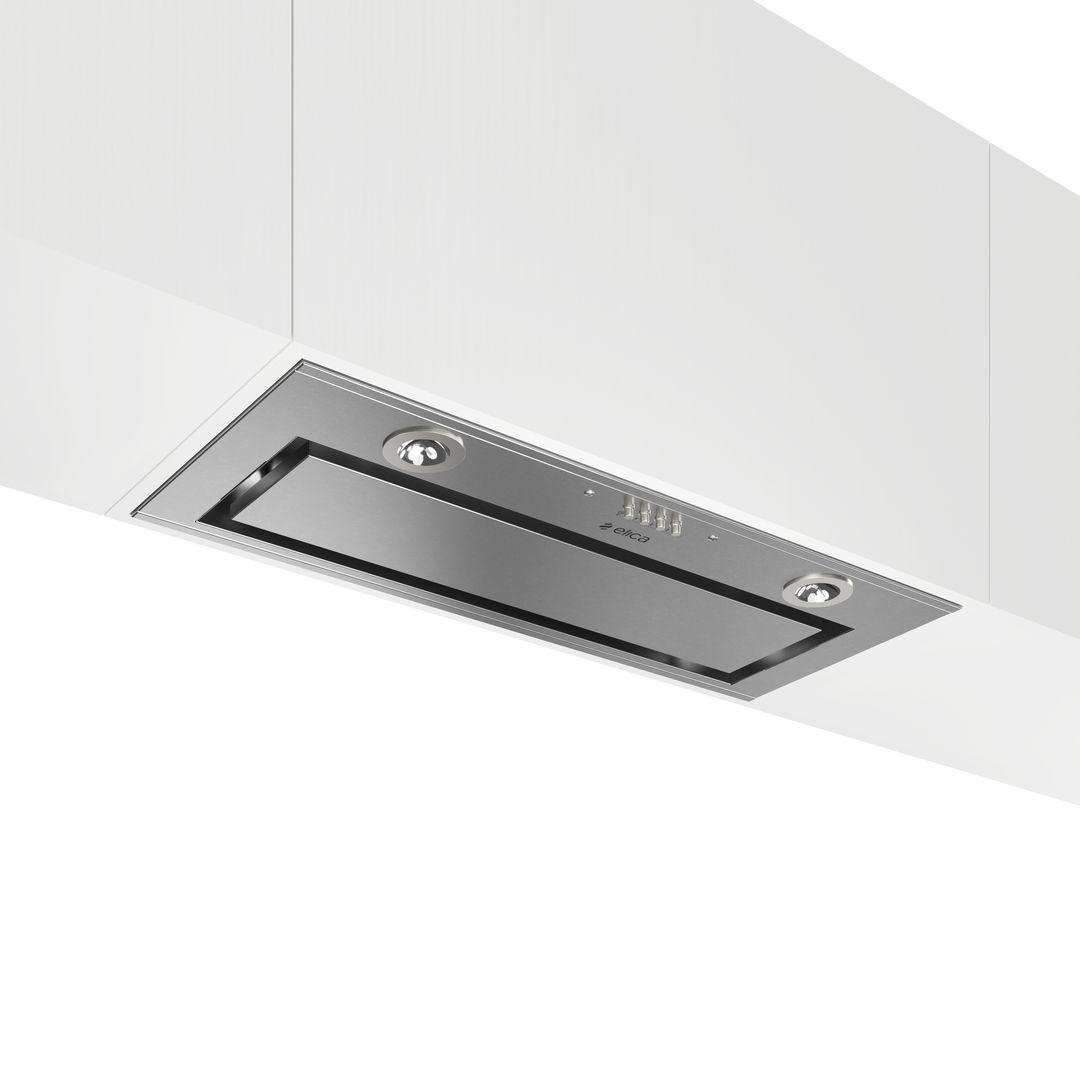

Elica EUM634SS UMBRIA Insert Range Hood 34" wide - 600CFM EUM634SS
Elica EUM634SS UMBRIA Insert Range Hood 34" wide - 600CFM
- Perimeter aspiration
- Hush system
- Led light
- Top performance
Umbria with 28 and 34 width models available and 10 3/ depth enables it to be discreetly installed within standard 12 deep cabinetry. With Perimeter Aspiration technology that helps to achieve Top Performance by delivering more powerful and efficient fume extraction, plus it reduces noise. Umbria is designed for both ducted out or recirculating installation with available kit.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 15.90 |
| NET WEIGHT (kg) | 12.10 |
| CARTON LENGHT (mm) | 917.00 |
| CARTON HEIGHT (mm) | 440.00 |
| CARTON WIDTH (mm) | 397.00 |
| VOLUMEN (M3) | 0.17 |
| SHIPPING WEIGHT | 35.05 |
| NET WEIGHT | 26.68 |
| CARTON LENGHT | 36.10 |
| CARTON HEIGHT | 17.32 |
| CARTON WIDTH | 15.63 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Perimeter aspiration, Hush system, Led light, Top performance |
| WIDTH (IN) | 34" |
| WIDTH (CM) | 86.00 |
| AIRFLOW (M3/H) | 0.00 |
| CFM (MAX) | 600.00 |
| db (min) | 35.65 |
| db (max) | 55.00 |
| SONES | 1.7 -6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 15-20 A |
| HERTZ | 60.00 |
| WATTS | 455.00 |
| LIGHTING | LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Stainless Steel Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS | 87 x 27 x 24 |
| DIMENSIONS inches | 34 1/4" x 10 3/4" x 9 1/2" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 9 1/2 |
| Maximum Overall Height - Top to Bottom | 9 1/2 |
| Overall Height - Top to Bottom | 9 1/2 |
| Overall Width - Side to Side2 | 34 1/4 |
| Overall Depth - Front to Back | 10 3/4 |
| Hood Height | 9 1/2 |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop | 30" |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| STYLE | Modern |
| RECIRCULATION KIT NUMBER | KIT02770 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | KIT0175561 |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | Activo |
