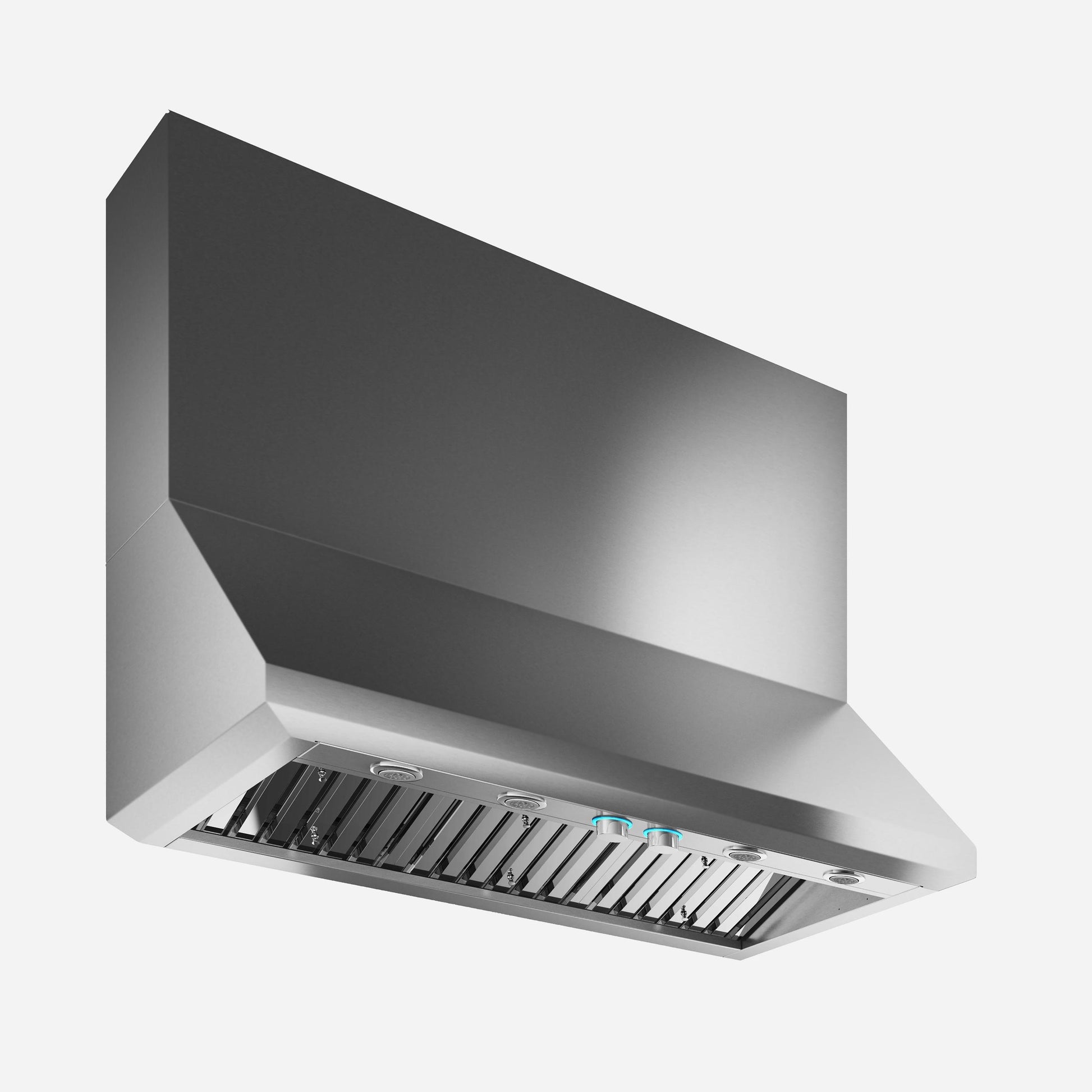

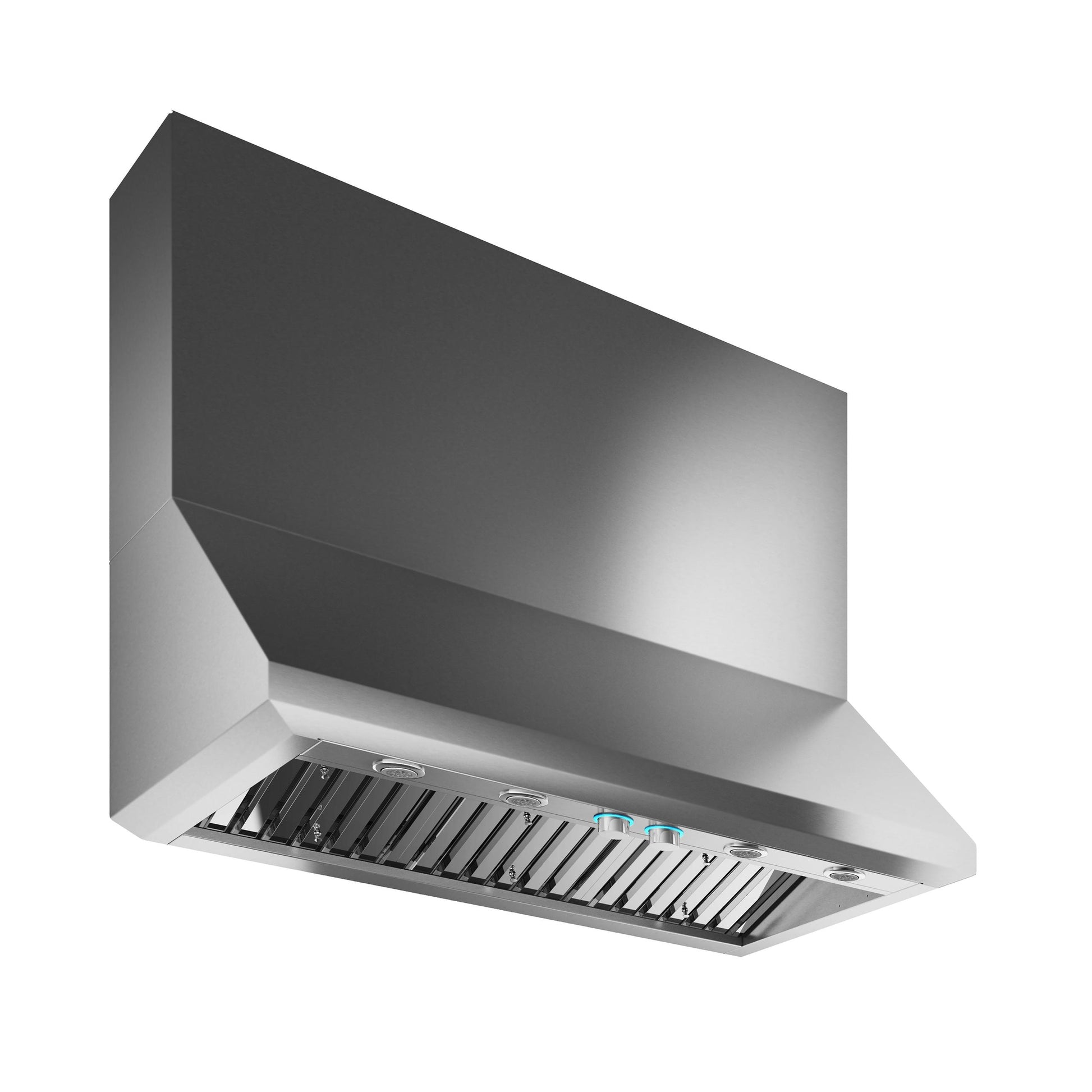

Elica ECP148S1 CAPRI Outdoors Range Hood 48" wide - 1200CFM
Elica ECP148S1 CAPRI Outdoors Range Hood 48" wide - 1200CFM
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- Heat guard
- Professional performance
- Grease collectors
- Seamless look
Tame the outdoors, without sacrificing style and luxury. Capri features a heavy gauge, corrosion-resistant 302-grade stainless steel body, which will withstand the harshest environment. The extra deep 32 hood body is complimented with dual sets of angled stainless steel professional baffle filters, that provide a 1200 CFM blower that has the power to do the job. For exceptional air capture Capri is available in 36 and 48 widths, an optional 3 spacer will extend the depth to 35 for added capture efficiency, plus optional 12 and 6 duct covers are available to reach any ceiling height.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 62.20 |
| NET WEIGHT (kg) | 51.20 |
| CARTON LENGHT (mm) | 880.00 |
| CARTON HEIGHT (mm) | 943.00 |
| CARTON WIDTH (mm) | 584.00 |
| VOLUMEN (M3) | 0.79 |
| SHIPPING WEIGHT (lb) | 137.13 |
| NET WEIGHT (lb) | 112.88 |
| CARTON LENGHT | 34.65 |
| CARTON HEIGHT | 37.13 |
| CARTON WIDTH | 22.99 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Corrosion Resistant Grade Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Non-Vented |
| HOODS FEATURES | Heat guard, Professional performance, Grease collectors, Seamless look |
| WIDTH (IN) | 48" |
| WIDTH (CM) | 120.00 |
| AIRFLOW (M3/H) | 2040.00 |
| CFM (MAX) | 1200.00 |
| db (min) | 35.65 |
| db (max) | 59.00 |
| SONES | 1.7 - 8.5 |
| EXHAUST VERSION | Ducted Only |
| EXHAUST SIZE | Round 10" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 10" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 7,6 A |
| HERTZ | 60.00 |
| WATTS | NA |
| LIGHTING | LED 4 x 6.5 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 4.00 |
| BULB WATTS | 7.50 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Sold separately |
| CONTROL TYPE | Fully Retractable Rotating Knobs w/ Blue Backlighting |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | YES |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | NO |
| CFM REDUCTION | No |
| DIMENSIONS (CM) | 122 x 81 x 46 |
| DIMENSIONS (INCH) | 48" W x 32" D x 18" H |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 17 15/16" |
| Maximum Overall Height - Top to Bottom | 22 / |
| Overall Height - Top to Bottom | 17 15/16" |
| Overall Width - Side to Side2 | 48" |
| Overall Depth - Front to Back | 32" |
| Hood Height | 17 15/16" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | NA |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | NA |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 48" |
| Chimney Depth - Front to Back | 11 15/16" |
| Chimney Height - Top to Bottom | 12 1/ |
| RECIRCULATION KIT NUMBER | NA |
| CHIMNEY EXTENTION NUMBER | NA |
| LONG CHIMNEY EXTENSION NUMBER | NA |
| LONG CHIMNEY EXTENSION ( W/ GRATES) | NA |
| TELESCOPIC DUCT COVER | KIT0205343 |
| DUCT TRANSITION | 10 Round (Top or Rear) |
| TRANSITION REDUCER KIT | NA |
| BACKDRAFT DAMPER | NA |
| NON RETURN VALVE | NA |
| UPGRADE FILTER | NA |
| RECIRCULATION DUCT COVERS | NA |
| RECIRCULATION DEFLECTOR | NA |
| RECIRCULATION FILTERS | NA |
| CFM REDUCTION KIT | NA |
| BACKSPLASS KIT | NA |
| INTERNAL BLOWER | KIT0198968 |
| INLINE BLOWER | KIT0154387 |
| EXTERNAL BLOWER | KIT0153054 |
| INLINE BLOWER SHELL KIT | NA |
| EXTERNAL BLOWER SHELL KIT | NA |
| HEAT LAMPS | NA |
| SPACER/LINER | KIT0199479 |
| WALL MOUNT BRACKET | NA |
| HIGH CEILING EXTENSION KIT | NA |
| REMOTE CONTROL KIT | NA |
| DUCT COVER | KIT0156641 / KIT0156649 |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | YES |
| CHAROCAL FILTER | NO |
