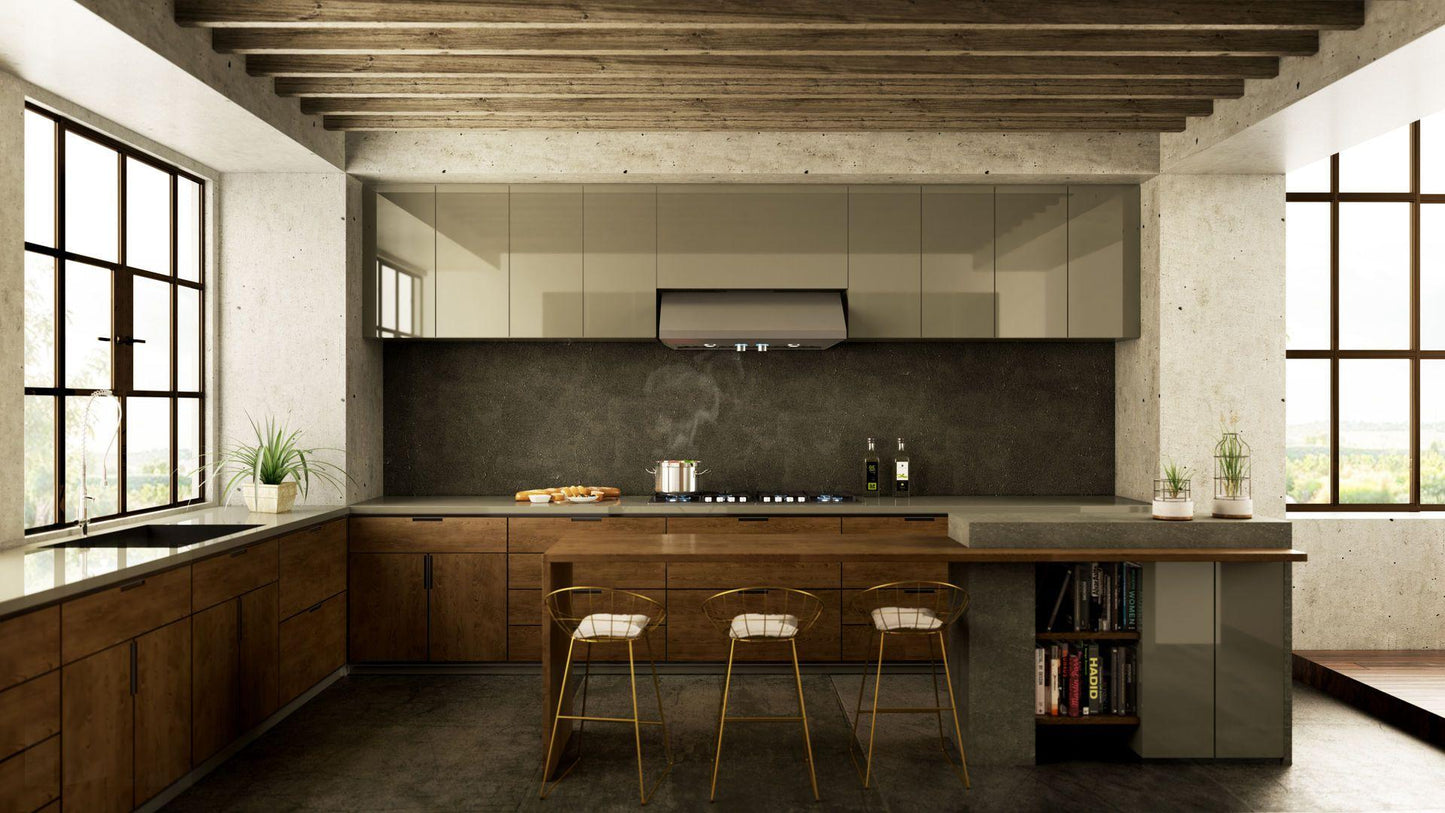

Elica ECV630S3 CERVINIA Undercabinet Range Hood 30" wide - 600CFM

Available in 30" and 36" widths and only 11 1/32" high, the Cervinia is a streamlined version of the full-size Calabria model. This hood features professional styling, seamless welded corner craftsmanship, a powerful 600 CFM blower with high airflow, heavy duty stainless steel ba_x001B_e grease filters, Replaceable LED lighting, plus backlit hidden metallic in/out knobs for convenience and safety. Cervinia also delivers higher e_x0019_ciency and easy maintenance for a cleaner kitchen.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	26.20
NET WEIGHT (kg)	17.60
CARTON LENGHT (mm)	851.00
CARTON HEIGHT (mm)	698.00
CARTON WIDTH (mm)	381.00
VOLUMEN (M3)	0.23
SHIPPING WEIGHT (lb)	57.76
NET WEIGHT (lb)	38.80
CARTON LENGHT	33.50
CARTON HEIGHT	27.48
CARTON WIDTH	15.00
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Material	Stainless Steel
Color	inox
Type of Ventilation	Vented
HOODS FEATURES	Hush system, Heat guard, Grease collectors, Professional performance, Seamless look
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	35.65
db (max)	56.00
SONES	1.7 - 7.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Rectangular 10 x 3 1/4"
DUCT SHAPE	Rectangular
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	10"
RECTANGULAR DUCT WIDTH	3.25
Round duct diameter	NA
ELECTRIC (VOLTS)	120.00
AMPERAGE	4.1 A
HERTZ	60.00
WATTS	457.00
LIGHTING	Premium LED 2 x 6.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	6.50
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit
CONTROL TYPE	Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
PANEL READY	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS (CM)	76.2 x 58.42 x 28
DIMENSIONS (INCH)	30" x 23" x 11 1/32"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	11 1/32"
Maximum Overall Height - Top to Bottom	11 1/32"
Overall Height - Top to Bottom	11 1/32"
Overall Width - Side to Side2	30"
Overall Depth - Front to Back	23"
Hood Height	11 1/32"
Min - Max Compatible Ceiling Height (Cover electronic cooking)	NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)	NA
Minimum Height Above Cooktop (ELECTRIC)	24
Minimum Height Above Cooktop (GAS)	30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02770
CHIMNEY EXTENTION NUMBER	NA
LONG CHIMNEY EXTENSION NUMBER	KIT02159/KIT02160
LONG CHIMNEY EXTENSION ( W/ GRATES)	KIT0207173
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0185097
BACKSPLASS KIT	KIT0142864
INTERNAL BLOWER	-
INLINE BLOWER	KIT0154387
EXTERNAL BLOWER	KIT0153054
INLINE BLOWER SHELL KIT	KIT0205342
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
ETL	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	YES
CHAROCAL FILTER	YES
