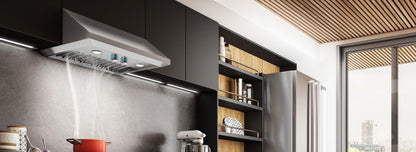

Elica ECV636S3 CERVINIA Undercabinet Range Hood 36" wide - 600CFM ECV636S3

Available in 30" and 36" widths and only 11 1/32" high, the Cervinia is a streamlined version of the full-size Calabria model. This hood features professional styling, seamless welded corner craftsmanship, a powerful 600 CFM blower with high airflow, heavy-duty stainless-steel baffle grease filters, Replaceable LED lighting, plus backlit hidden metallic in/out knobs for convenience and safety. Cervinia also delivers higher efficiency and easy maintenance for a cleaner kitchen.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	26.30
NET WEIGHT (kg)	21.80
CARTON LENGHT (mm)	1002.00
CARTON HEIGHT (mm)	698.00
CARTON WIDTH (mm)	381.00
VOLUMEN (M3)	0.30
SHIPPING WEIGHT	58.00
NET WEIGHT	48.00
CARTON LENGHT	39.45
CARTON HEIGHT	27.48
CARTON WIDTH	15.00
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Vented
HOODS FEATURES	Hush system,Heat guard,Grease collectors,Professional performance,Seamless look
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	36.00
db (max)	56.00
SONES	1.7 - 7.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Rectangular 10 x 3 1/4"
DUCT SHAPE	Rectangular
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	10"
RECTANGULAR DUCT WIDTH	3.25
Round duct diameter	NA
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	4.1 A
HERTZ	60.00
WATTS	457.00
LIGHTING	Premium LED 2 x 6.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	6.50
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit
CONTROL TYPE	Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS	91 x 58 x 28
DIMENSIONSinches	36" x 23" x 11 1/16"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	11 1/16"
Maximum Overall Height - Top to Bottom	11 1/16"
Overall Height - Top to Bottom	11 1/16"
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	23"
Hood Height	11 1/16"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02770
CHIMNEY EXTENSION NUMBER	KIT02158/KIT02161
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0185097
BACKSPLASH KIT	KIT0142867
INTERNAL BLOWER	-
INLINE BLOWER	KIT0154387
EXTERNAL BLOWER	KIT0153054
INLINE BLOWER SHELL KIT	KIT0205342
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	YES
CHAROCAL FILTER	YES
CERTIFICADO NOM	NA
