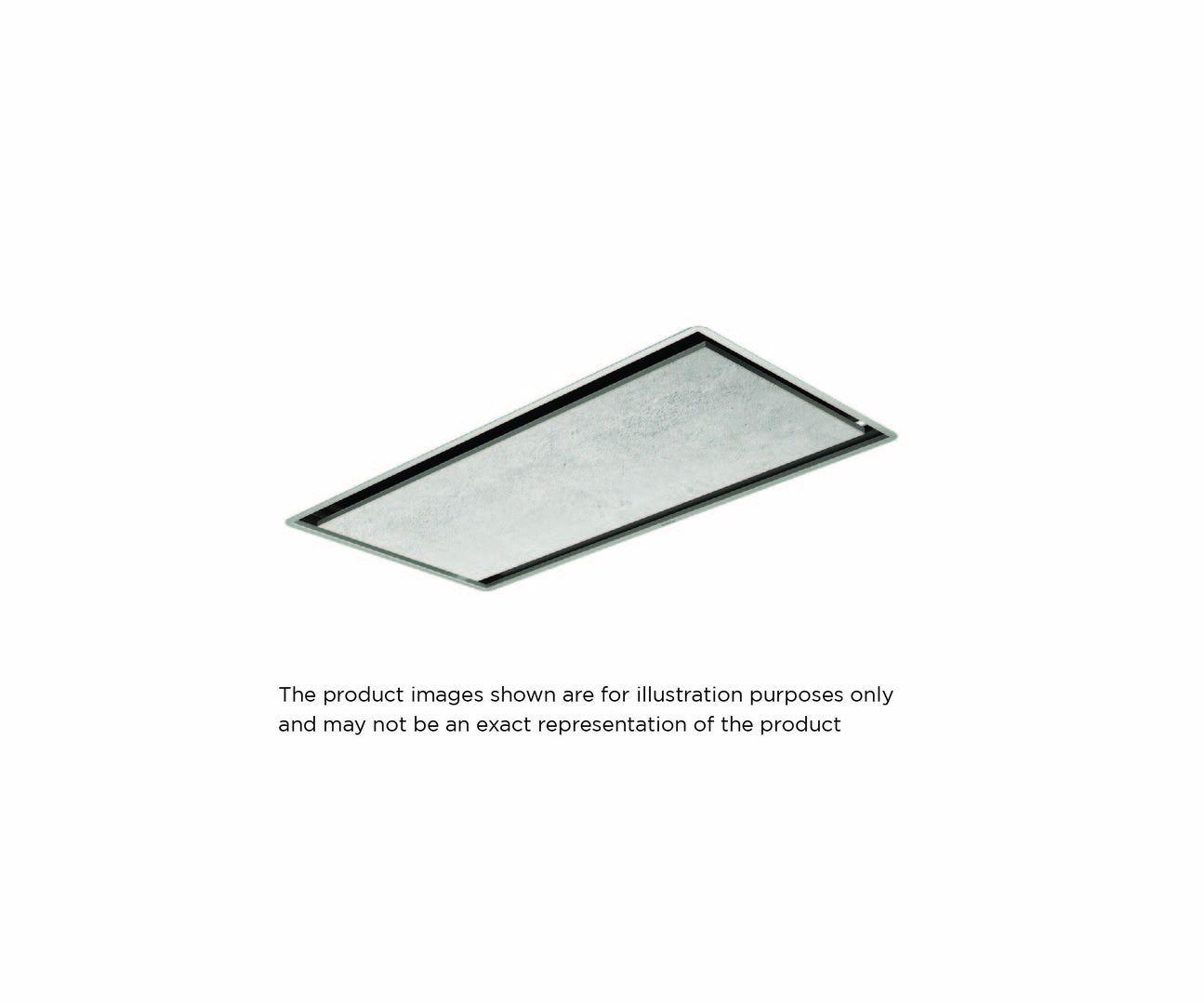

Elica EIL640DW ILLUSION Ceiling Range Hood 40" wide - 600CFM
Elica EIL640DW ILLUSION Ceiling Range Hood 40" wide - 600CFM
Regular price
$2,639.00
Regular price
Sale price
$2,639.00
Unit price
per
Couldn't load pickup availability
When Will I Get My Order?
- Special materials
- Tune white
- Long life filter
- Dim light
- Total integration
- Super easy installation
- Remote control
- Perimeter aspiration

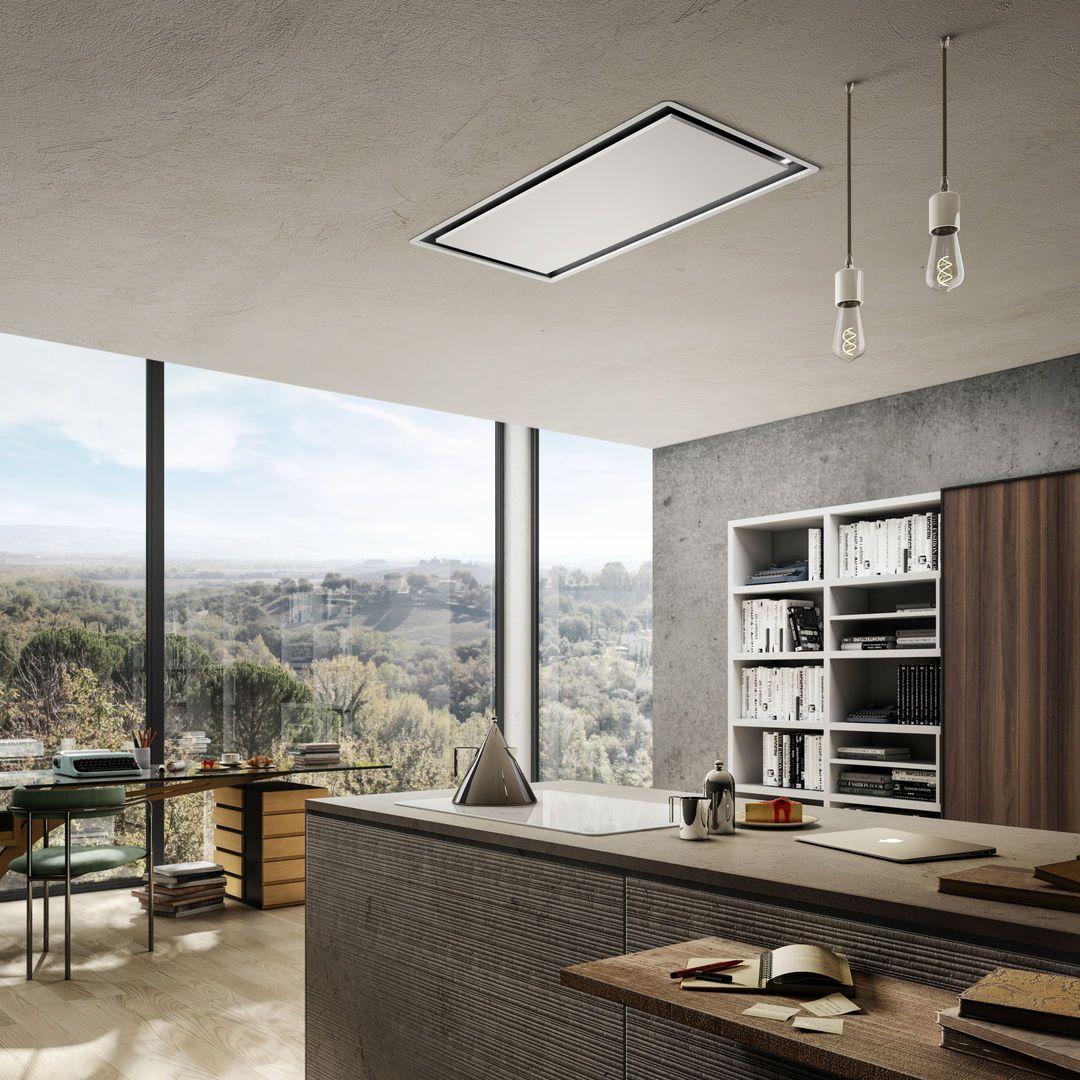

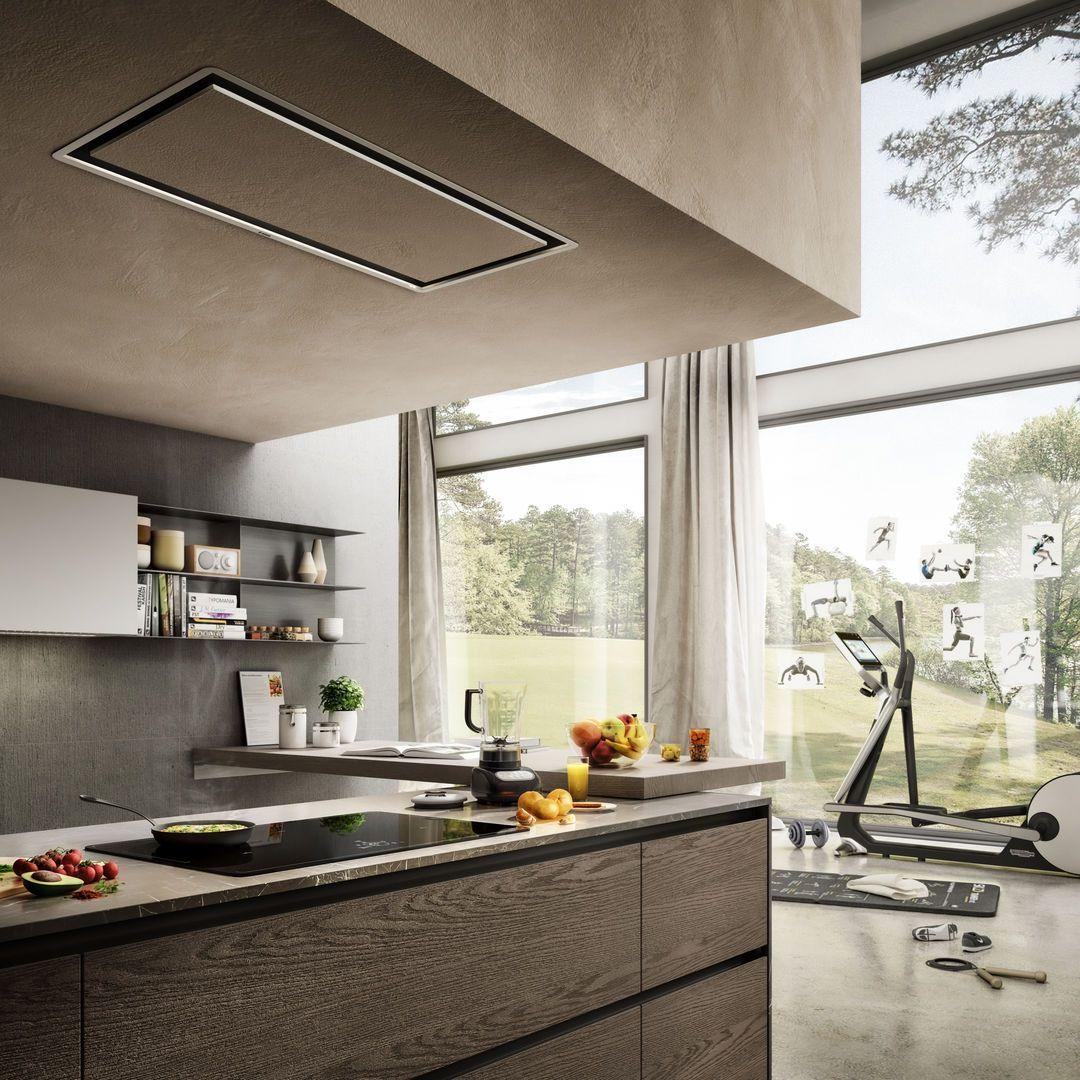

First panel-ready ceiling hood in the market, perfectly fitting the ceiling texture of the living space, disappearing like a true Illusion. Also naturally saves valuable kitchen space and frees the area of inconvenient obstructions cleverly hiding a powerful extraction system that guarantees always clean air in the living space. Combining discreet shapes and high performance, Illusion has been created for consumers who ask for an essential and bespoke style without compromising on functionality.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 30.00 |
| NET WEIGHT (kg) | 21.80 |
| CARTON LENGHT (mm) | 678.00 |
| CARTON HEIGHT (mm) | 385.00 |
| CARTON WIDTH (mm) | 1108.00 |
| VOLUMEN (M3) | 0.27 |
| SHIPPING WEIGHT (lb) | 66.14 |
| NET WEIGHT (lb) | 48.06 |
| CARTON LENGHT | 26.69 |
| CARTON HEIGHT | 15.16 |
| CARTON WIDTH | 43.62 |
| COUNTRY OF MANUFACTURE | PL |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel + panel ready |
| Material | Stainless Steel |
| Color | custom |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Special materials, Tune white, Long life filter, Dim light, Total integration, Super easy installation, Remote control, Perimeter aspiration |
| WIDTH (IN) | 40" |
| WIDTH (CM) | 101.60 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 36.00 |
| db (max) | 55.00 |
| SONES | 1.8 - 6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Multidirectional |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 4A |
| HERTZ | 60.00 |
| WATTS | 578.00 |
| LIGHTING | Dimmable Strip LED 2 x 14 W 3500 K |
| BULB TYPE | Strip LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 14.00 |
| KELVINS | 3500.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Remote control |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | YES |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | No |
| DIMENSIONS (CM) | 101.6 W x 50.01 D x 28.58 H |
| DIMENSIONS (INCH) | 40" W x 19 11/16 D x 11 /4 H |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | NA |
| Maximum Overall Height - Top to Bottom | NA |
| Overall Height - Top to Bottom | NA |
| Overall Width - Side to Side2 | 40" |
| Overall Depth - Front to Back | 19 11/16 |
| Hood Height | 11 1/4" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | NA |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | 10'0" |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 9' |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT0167875 |
| CHIMNEY EXTENTION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | KIT0121469 |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | YES |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | YES |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
