Elica EIV430BL VOLTA 9+1 TCFLEX G5 UL 30 EIV430BL

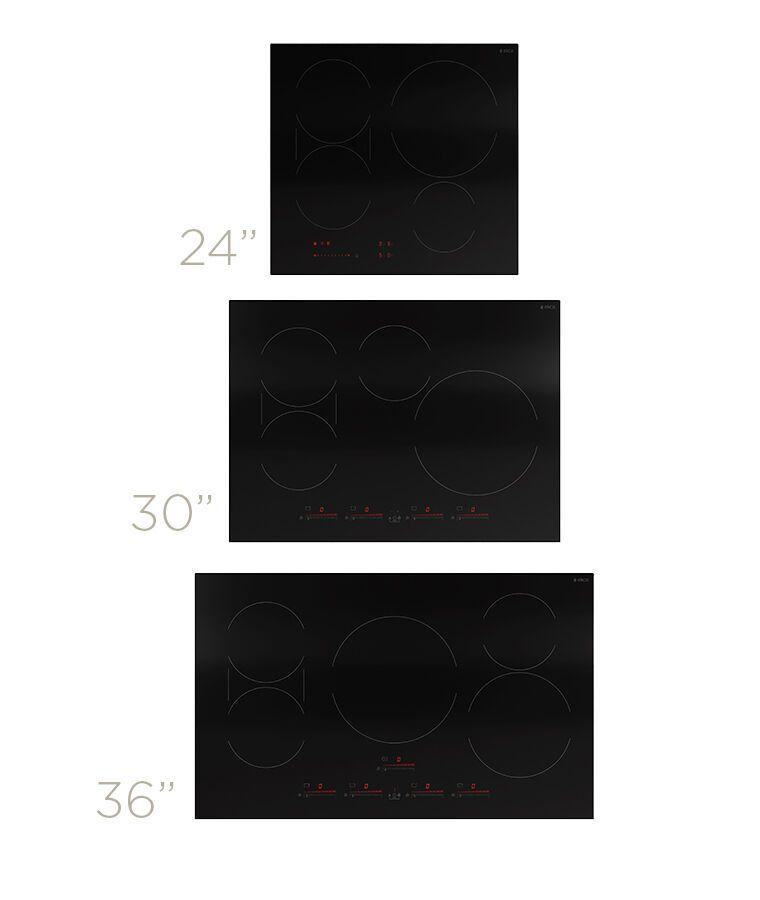

Our Volta cooktops provide a versatile solution to harmonize with any kitchen layout, with our three sizes 24 , 30 & 36 available. Its 4 to 5 cooking zones with intion technology come with a bridge zone that allows flexible cooking. Induction technology offers instant heat adjustment perfect for delicate tasks such as melting and simmering. This improved efficiency as compared to gas and electricity can reduce home energy costs and indoor air pollution. Volta offers the perfect fit to seamlessly merge style and performance, making every meal a culinary masterpiece.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	21.60
NET WEIGHT (kg)	18.70
CARTON LENGHT (mm)	1210.00
CARTON HEIGHT (mm)	1047.00
CARTON DEPTH (mm)	815.00
VOLUMEN (M3)	168.00
SHIPPING WEIGHT	47.62
NET WEIGHT	41.23
CARTON LENGHT	32.09
CARTON HEIGHT	6.61
CARTON DEPTH	24.09
COUNTRY OF MANUFACTURE	MX
Finish	Black Ceramic Glass
Color	Deep-black
FEATURES	Timer,Stop and go, Delay switch off_x001F_Temperature manager,Bridge zones,Pot self-detection, Total integration,Extralarge zone, Touch controls
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	NA
CFM (MAX)	NA
db (min)	NA
db (max)	NA
SONES	NA
GREASE FILTER TYPE	NA
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	NA
BLOWER TYPE	NA
EXHAUST SIZE	NA

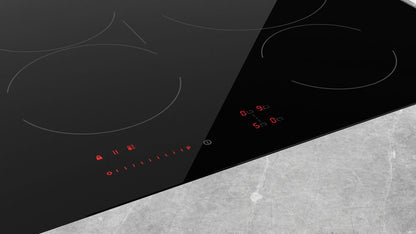

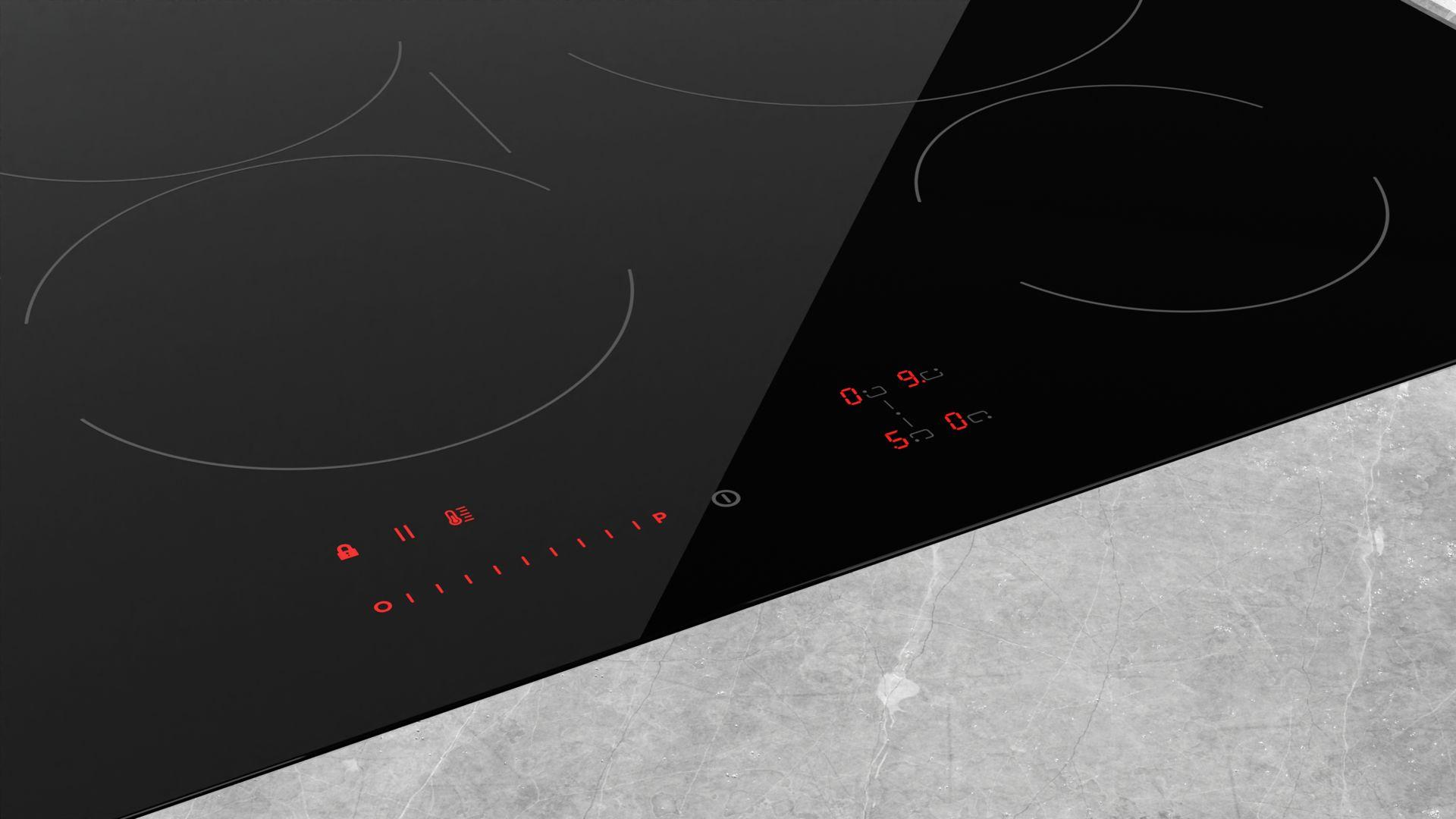

CONTROL TYPE	Electronic Glass Touch & Slide w/ Red Illumination
SPEED CONTROL	NA
NUMBER OF SPEEDS	NA
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
CFM REDUCTION	NA
HEATING LEVEL	9 levels + Boost
COOKING ZONE	4.00
Burner Style	Induction
Cooktop Type	Cooktop
Fuel Type	Induction
Element Type	Induction
Ignition Type	Automatic Electronic
Induction	Yes
Number Of Burners	4.00
Hot Surface Indicator Lights	YES
Installation Type	Self Rimming or Flush Installation
Material	Ceramic Tempered Glass
Cooktop Surface Style	Glass-Top
Total BTUs	NA
Auto Shut Off	Yes
Child Lock	Yes
Approved for Commercial Use	No
Commercial	No
Continuous Grates	YES
Downdraft Ventilated	No
Griddle	No
Grill	No
Ignition Type	Electric
Outdoor Approved	No
Power Burner	No
Sabbath Mode	No
Smart Home	No
WIFI APPROVED	No
Fingerprint Resistant Finish	No
Bridge Element	Yes
Pan Recognition Sensor	Yes
Warm Function	Yes
App Compatibility	NO
Wireless Communication	NO
ELECTRIC (VOLTS)	220 V/60 Hz
AMPERAGE	32.00
HERTZ	64 Hz
EXHAUST VERSION	NA
DIMENSIONS	76 x 56 x 6
DIMENSIONSinches	30 3/8" x 22 3/16" x 2 1/2"
Depth	22 3/16"
Height	2 1/2"
Width	30 3/8"
Cutout Depth	20 1/2"
Cutout Height	3 5/8"
Cutout Width	28 7/8"
Wattage	7.00
Back Left Burner Watts	3700.00
Back Middle Burner Watts	NA
Back Right Burner Watts	2200.00
Front Left Burner Watts	3700.00
Front Middle Burner Watts	NA
Front Right Burner Watts	3700.00
Middle Burner Watts	NA
Transition Conversion Fitting	NA
Recirculating Kits	NA
Certifications	ADA, UL, cUL.
ADA	YES
CEC Approved for CA Sale	YES
Title 20 Compliant	YES
Energy Star	NO
Certification NOM	Activo
