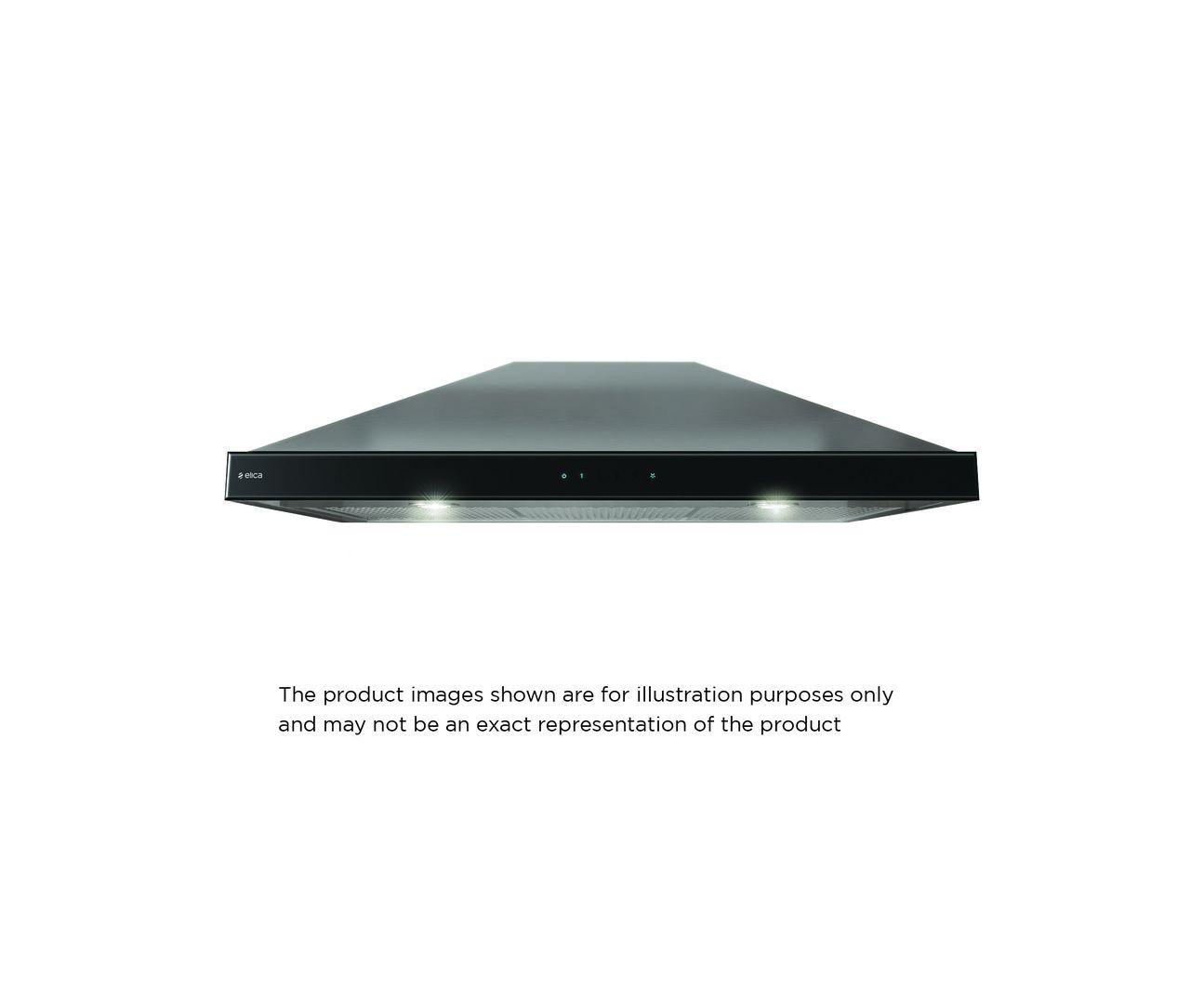

Elica EMD530S3 MODENA Undercabinet Range Hood 30" wide - 600CFM

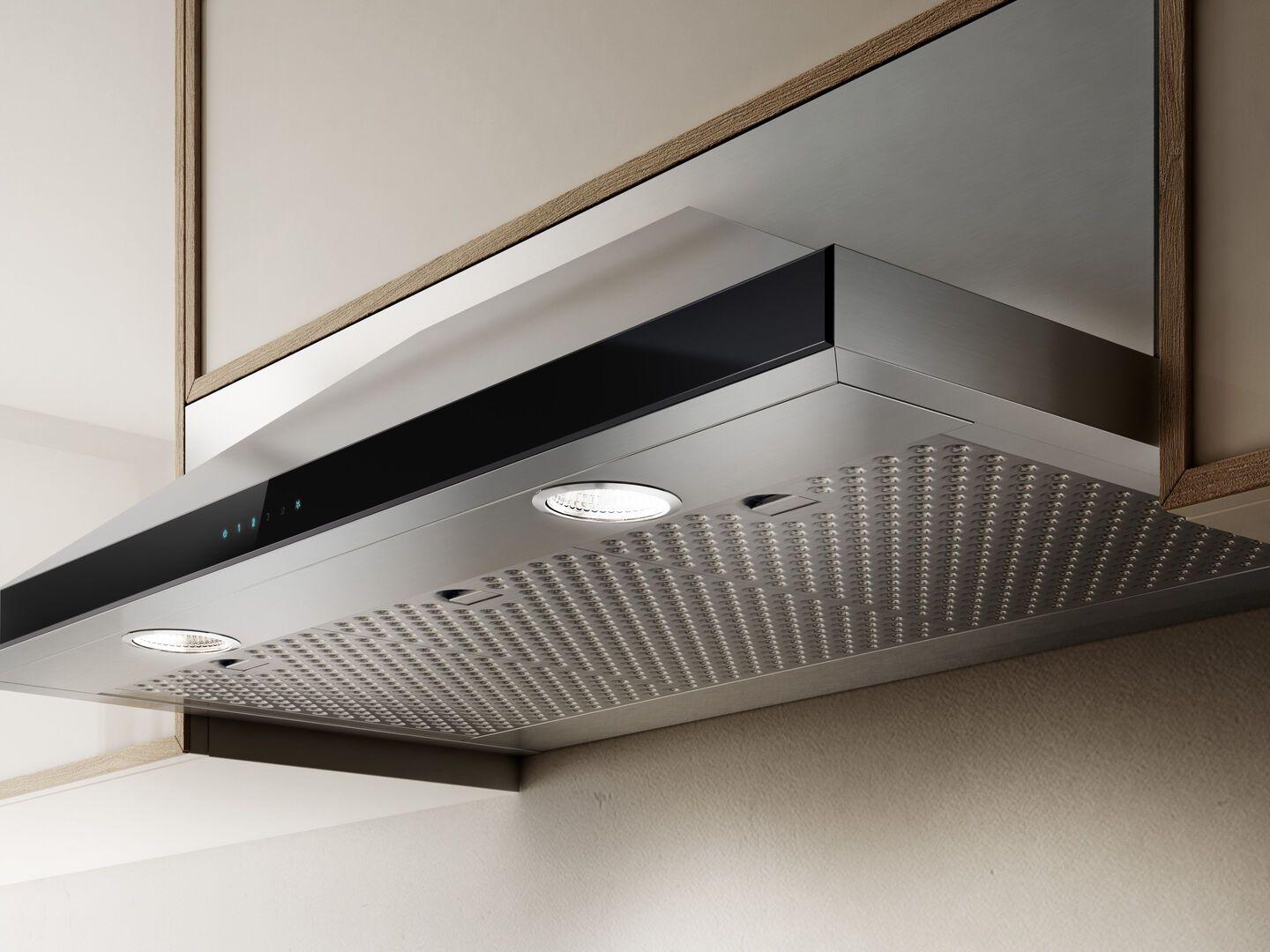

Modena off ers a classic designer chimney appearance for under-cabinet installations, with a striking 9" high pyramid shape. Modena also provides high-end features not commonly found in under-cabinet hoods, including a 600 CFM blower, dimmable LED lighting, stainless steel micro hole filters, and easy-to-use glass capacitive touch controls for convenience and safety. Available in 30" and 36" widths, and designed for standard ducted installation, Modena can also be installed as a recirculating system using the optional kit. Its design versatility suits almost any kitchen.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	19.90
NET WEIGHT (kg)	15.00
CARTON LENGHT (mm)	849.00
CARTON HEIGHT (mm)	618.00
CARTON WIDTH (mm)	349.00
VOLUMEN (M3)	0.18
SHIPPING WEIGHT (lb)	43.87
NET WEIGHT (lb)	33.07
CARTON LENGHT	33.43
CARTON HEIGHT	24.33
CARTON WIDTH	13.74
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel + Black Glass
Material	Stainless Steel
Color	inox + glass
Type of Ventilation	Convertible
HOODS FEATURES	Led light, Dim light, Top performance, CFM reduction system, Touch controls, Hush system
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	32.00
db (max)	55.00
SONES	1.3 - 6.8
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Rectangular 10 x3 1/4" or round 6" (sold separately)
DUCT SHAPE	Rectangular or round (sold separately)
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	10"
RECTANGULAR DUCT WIDTH	3.25
Round duct diameter	6"
ELECTRIC (VOLTS)	120.00
AMPERAGE	3.8 A
HERTZ	60.00
WATTS	445.00
LIGHTING	Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit
CONTROL TYPE	Multi-function Electronic with black glass touch display
SPEED CONTROL	YES
NUMBER OF SPEEDS	3 + booster
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
PANEL READY	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes
DIMENSIONS (CM)	76 x 50 x 25
DIMENSIONS (INCH)	30" x 19 5/8" x 9 3/4"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	9 3/4"
Maximum Overall Height - Top to Bottom	9 3/4"
Overall Height - Top to Bottom	9 3/4"
Overall Width - Side to Side2	30"
Overall Depth - Front to Back	19 5/8"
Hood Height	9 3/4"
Min - Max Compatible Ceiling Height (Cover electronic cooking)	NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)	NA
Minimum Height Above Cooktop (ELECTRIC)	24
Minimum Height Above Cooktop (GAS)	30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02667
CHIMNEY EXTENTION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASS KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
ETL	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
