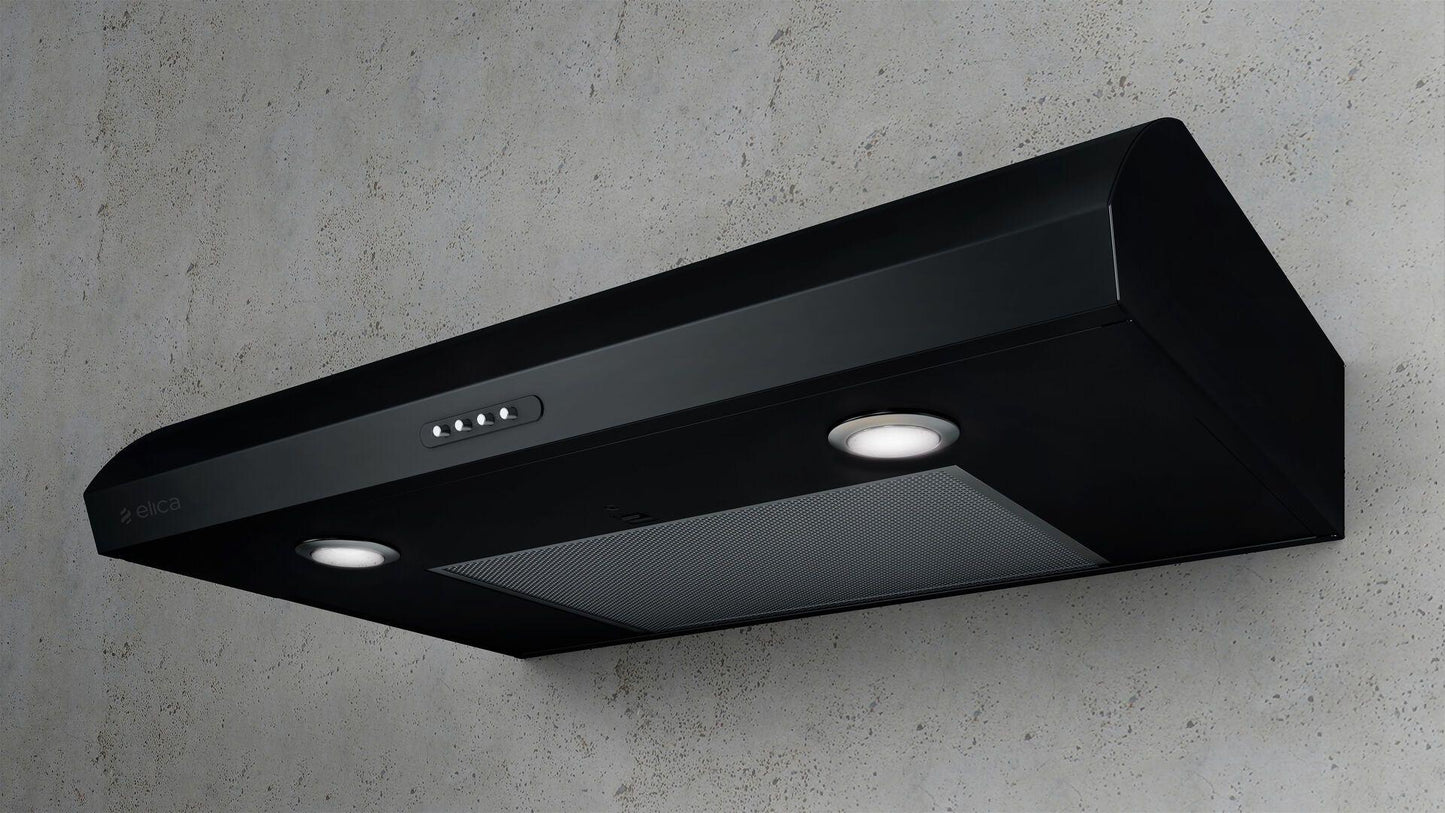

Elica ENM230S1 NEMI Undercabinet Range Hood 30" wide - 280CFM ENM230S1

Nemi sports a slender 5" height and soft curves, designed to modernize and perfectly fit kitchens where space is premium. Nemi features a 3-speed, 280 CFM internal blower, which provides sufficient ventilating power for most kitchens. The backlit push button controls allow for easy adjustment of blower speeds and dual LED lamps. A single dishwasher-safe anodized aluminum mesh filter is easy to clean. Available in 30" or 36" widths, Nemi is designed for standard ducted installation and can be installed as a recirculating system, using the Recirculating Kit, available as an accessory.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	8.60
NET WEIGHT (kg)	7.60
CARTON LENGHT (mm)	173.00
CARTON HEIGHT (mm)	536.00
CARTON WIDTH (mm)	803.00
VOLUMEN (M3)	0.10
SHIPPING WEIGHT	18.96
NET WEIGHT	16.76
CARTON LENGHT	6.81
CARTON HEIGHT	21.10
CARTON WIDTH	31.61
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	3x layer mesh,Led light
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	475.00
CFM (MAX)	280.00
db (min)	32.00
db (max)	51.00
SONES	1.3 - 4.9
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Rectangular 10 x 3 1/4" or round 7" (sold separately)
DUCT SHAPE	Rectangular or round (sold separately)
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	10"
RECTANGULAR DUCT WIDTH	3.25
Round duct diameter	7"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	1.0 A
HERTZ	60.00
WATTS	115.00
LIGHTING	LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Backlit Electronic Push Button
SPEED CONTROL	YES
NUMBER OF SPEEDS	3.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	NA
DIMENSIONS	76 x 47 x 12.5
DIMENSIONSinches	30" x 18 5/8" x 5"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	5"
Maximum Overall Height - Top to Bottom	4 5/16
Overall Height - Top to Bottom	4 5/16
Overall Width - Side to Side2	30"
Overall Depth - Front to Back	18 5/8"
Hood Height	5"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02179
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	KIT02722
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	KIT02723
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	NA
