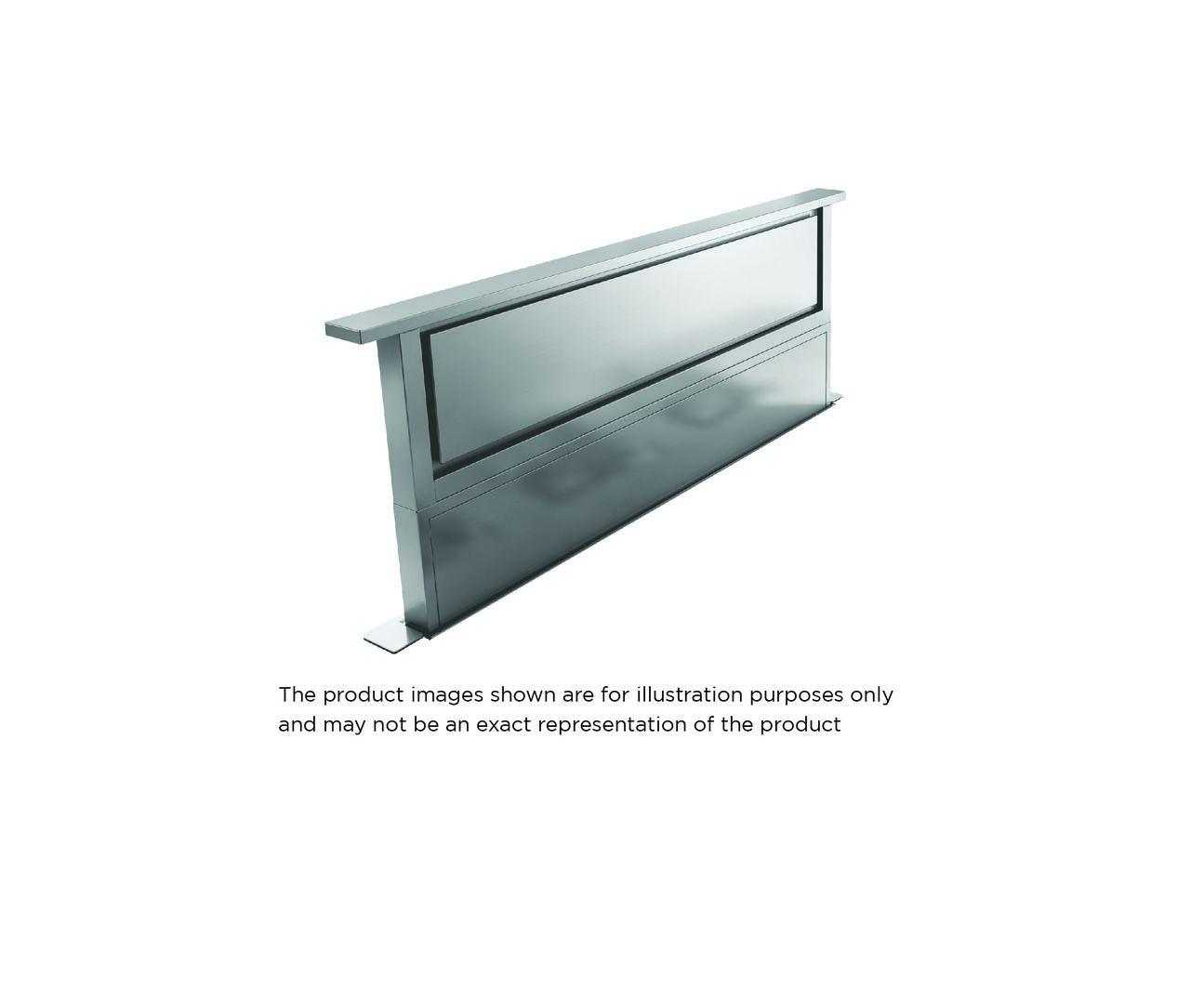

Elica ERS636S1 RISE Downdraft Range Hood 36" wide - 600CFM ERS636S1

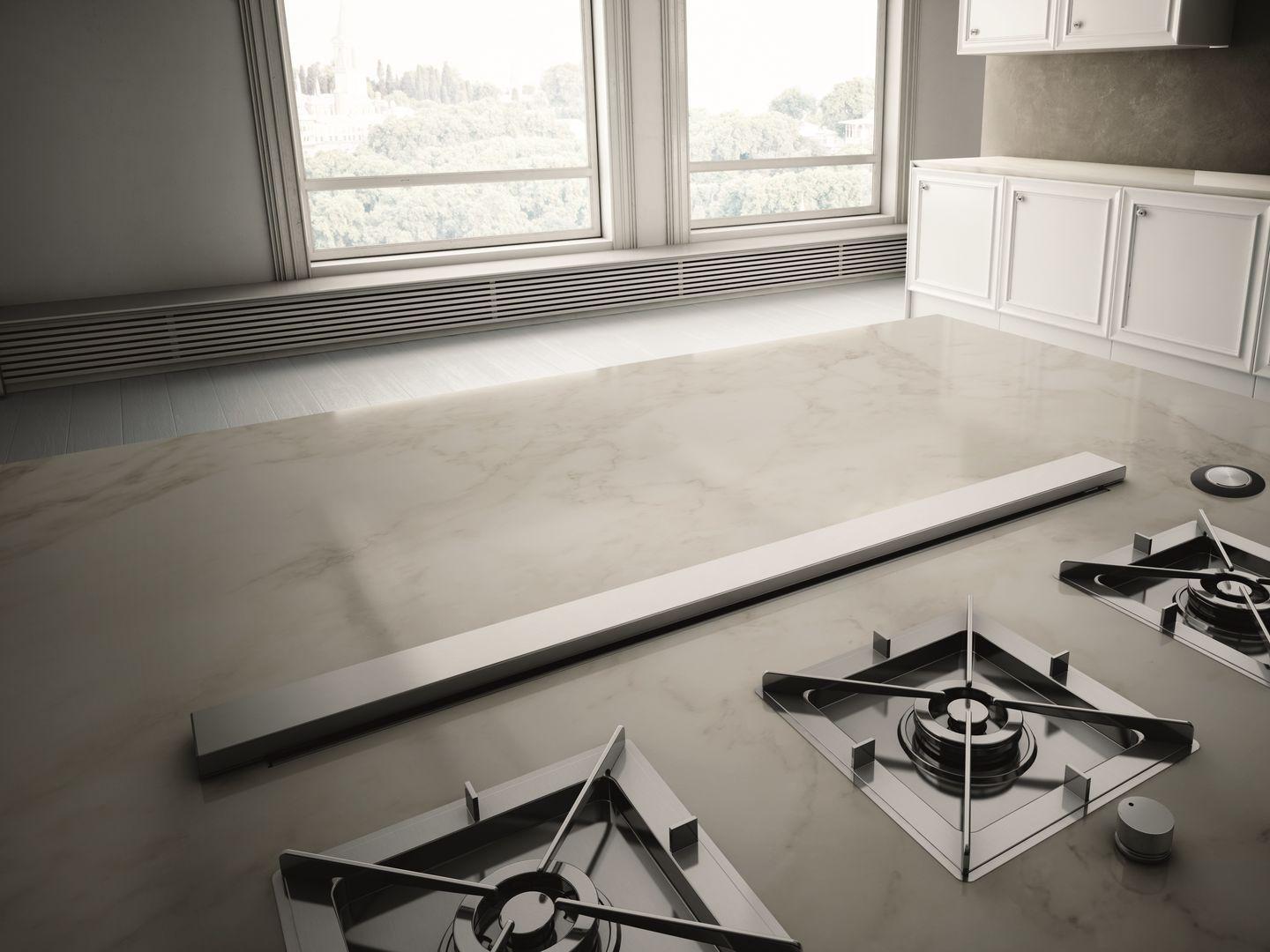

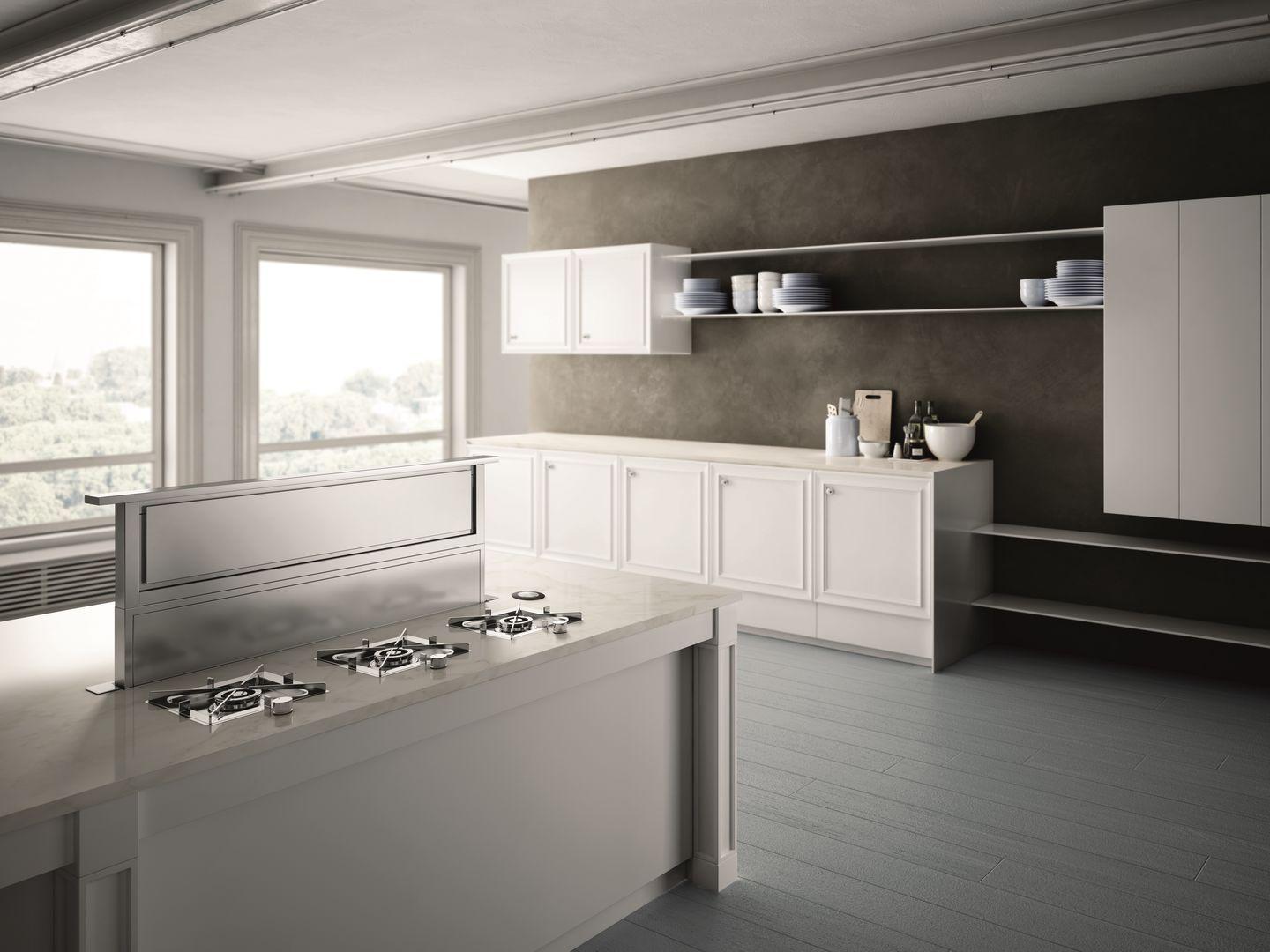

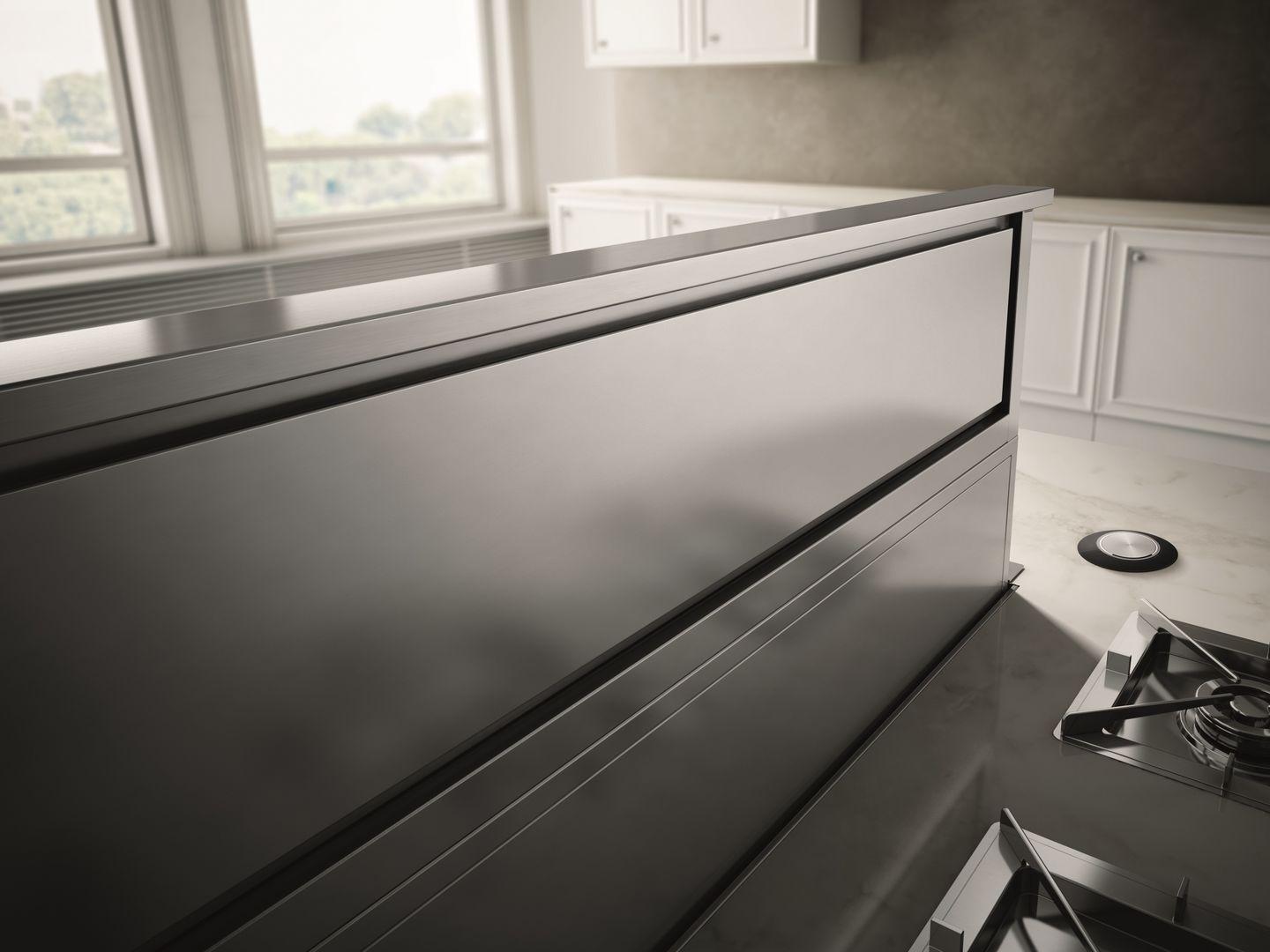

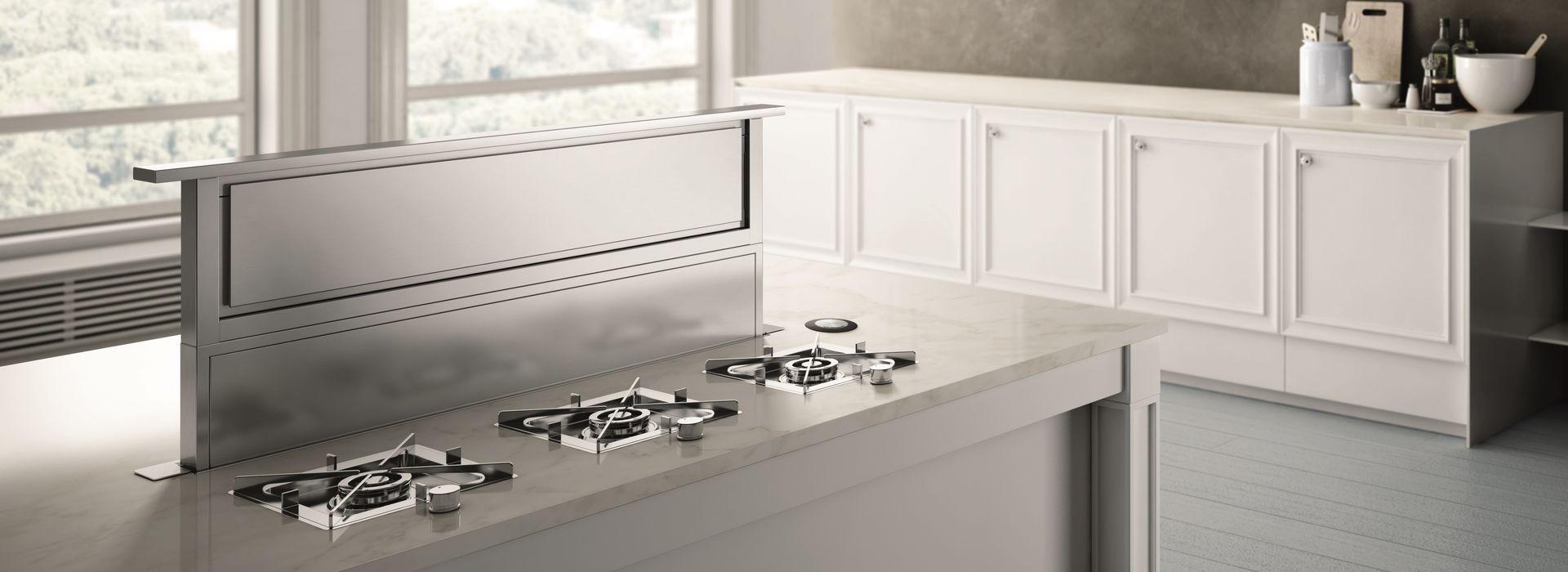

When the view out your kitchen window is too spectacular to disrupt with a range hood, Elica s Rise is the perfect solution. Rise recesses completely out of sight into the countertop when not in use, but when it s time to cook, it elevates a full 14 above the countertop-almost twice the height of competitors-for added ventilating efficiency. Additionally, Elica's Perimeter Aspiration Technology increases suction by 35%, effectively drawing air from the front burner to create the best functioning downdraft on the market. Rise comes equipped with a powerful 600 CFM internal blower, operated by an electronic rotating control mounted into the countertop or cabinet face. For maximum flexibility, the blower can be rotated to the opposite side to make room for a floor-mounted range.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	57.00
NET WEIGHT (kg)	43.00
CARTON LENGHT (mm)	1010.50
CARTON HEIGHT (mm)	409.00
CARTON WIDTH (mm)	889.00
VOLUMEN (M3)	0.40
SHIPPING WEIGHT	125.66
NET WEIGHT	94.80
CARTON LENGHT	39.78
CARTON HEIGHT	16.10
CARTON WIDTH	35.00
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Non-Vented
HOODS FEATURES	Perimeter aspiration,Top performance
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	36.00
db (max)	55.00
SONES	1.7 - 6.8
EXHAUST VERSION	Ducted Only
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Side
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	3.6 A
HERTZ	60.00
WATTS	550.00
LIGHTING	NA
BULB TYPE	NA
BULB INCLUDED	NA
NUMBER OF LIGHTS	NA
BULB WATTS	NA
KELVINS	NA
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Electronic Rotating Disc
SPEED CONTROL	YES
NUMBER OF SPEEDS	3 + booster
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	NO
CFM REDUCTION	No
DIMENSIONS	76 x 32 x 35
DIMENSIONSinches	36" x 12 1/2 x 14"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	14"
Maximum Overall Height - Top to Bottom	14"
Overall Height - Top to Bottom	14"
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	12 1/2
Hood Height	14"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02728
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	DOWNDRAFT
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	NO
CERTIFICADO NOM	NA
