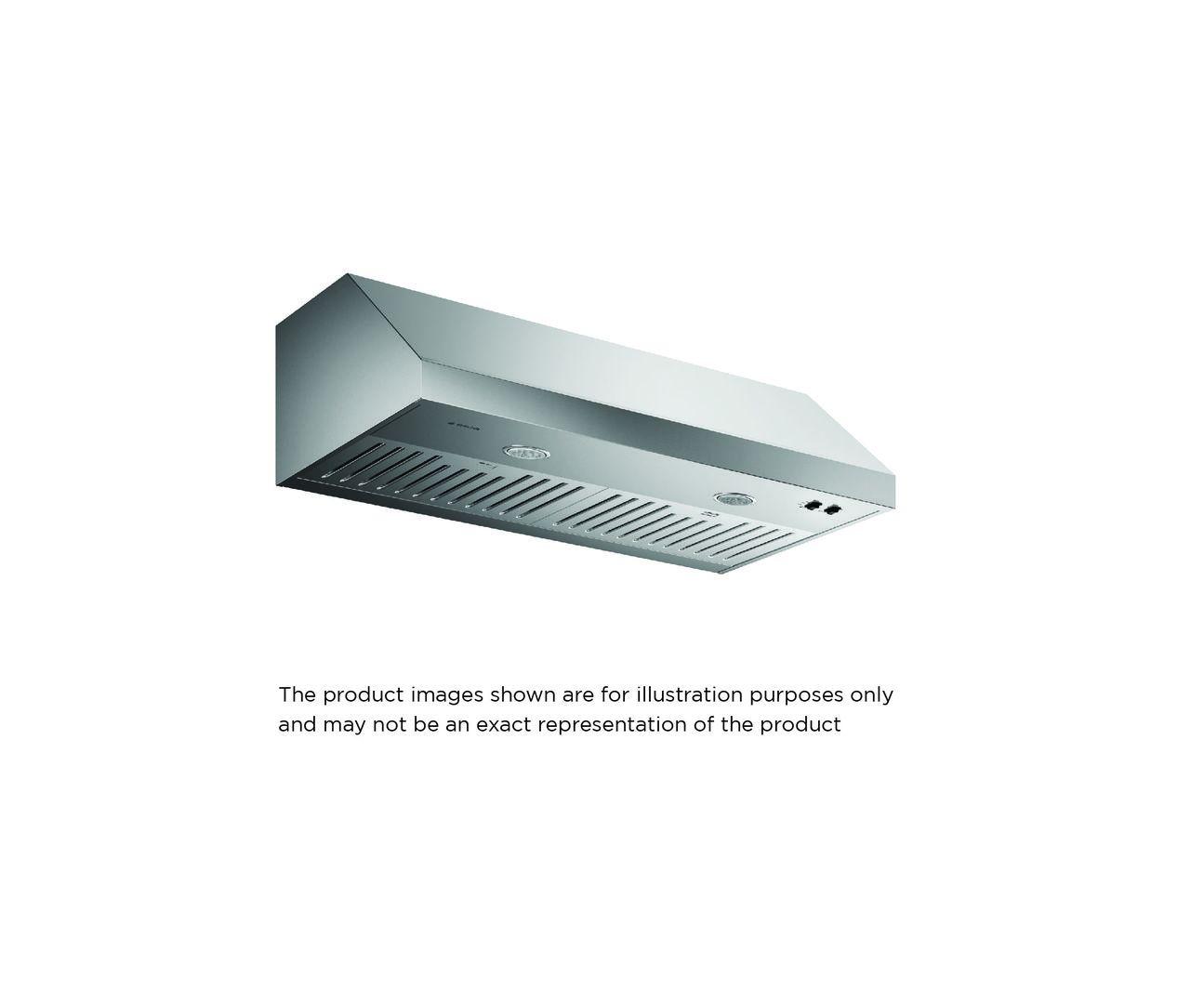

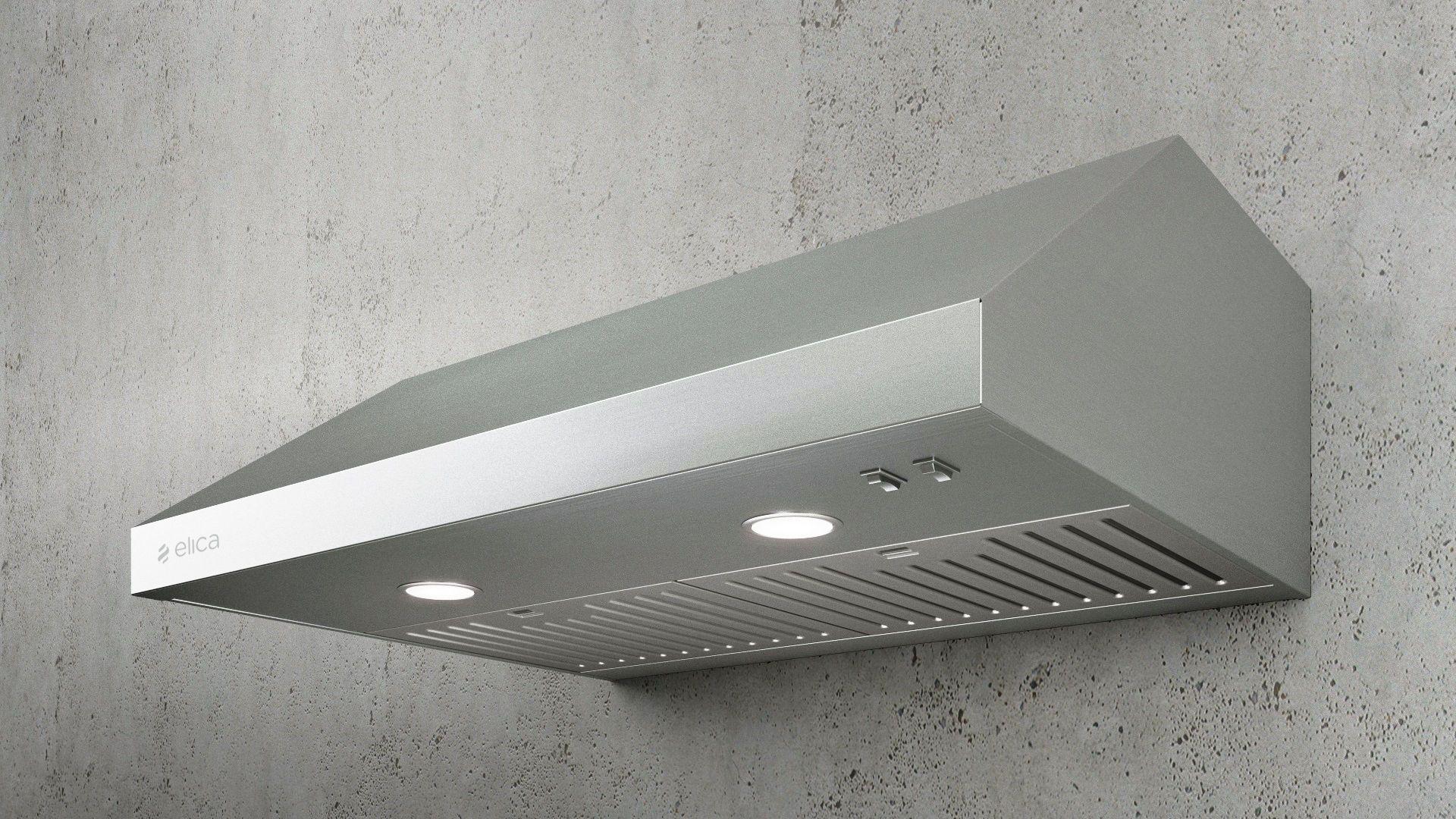

Elica ESR436S1 SORA Undercabinet Range Hood 36" wide - 400CFM ESR436S1
Elica ESR436S1 SORA Undercabinet Range Hood 36" wide - 400CFM
- Semi baffle filter
- Led light
Available in 30 and 36 widths and only 10 high, the Sora off ers professional styling and adequate power for most cooking needs. Sora features a 400 CFM blower with a dishwasher-safe Stainless steel semi-baffle slot filter, LED lighting, and rocker switch controls for convenience and safety. Sora is sure to deliver easy maintenance, higher efficiency, and a cleaner kitchen.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 20.60 |
| NET WEIGHT (kg) | 15.60 |
| CARTON LENGHT (mm) | 1078.00 |
| CARTON HEIGHT (mm) | 769.00 |
| CARTON WIDTH (mm) | 354.00 |
| VOLUMEN (M3) | 0.30 |
| SHIPPING WEIGHT | 45.42 |
| NET WEIGHT | 34.39 |
| CARTON LENGHT | 42.44 |
| CARTON HEIGHT | 30.28 |
| CARTON WIDTH | 13.94 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Semi baffle filter,Led light |
| WIDTH (IN) | 36" |
| WIDTH (CM) | 90.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 15.00 |
| db (max) | 51.00 |
| SONES | 0.4 - 5.0 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Rectangular 10 x 3 1/4" |
| DUCT SHAPE | Rectangular |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | NA |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 2.2 A |
| HERTZ | 60.00 |
| WATTS | 265.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Baffle Slot Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Rocker Switches |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 2.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS | 91 x 58 x 25 |
| DIMENSIONSinches | 36" x 23" x 10" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 10" |
| Maximum Overall Height - Top to Bottom | 10" |
| Overall Height - Top to Bottom | 10" |
| Overall Width - Side to Side2 | 36" |
| Overall Depth - Front to Back | 23" |
| Hood Height | 10" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02770 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | KIT0175561 |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
