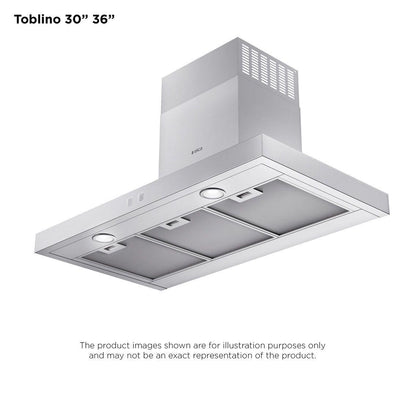

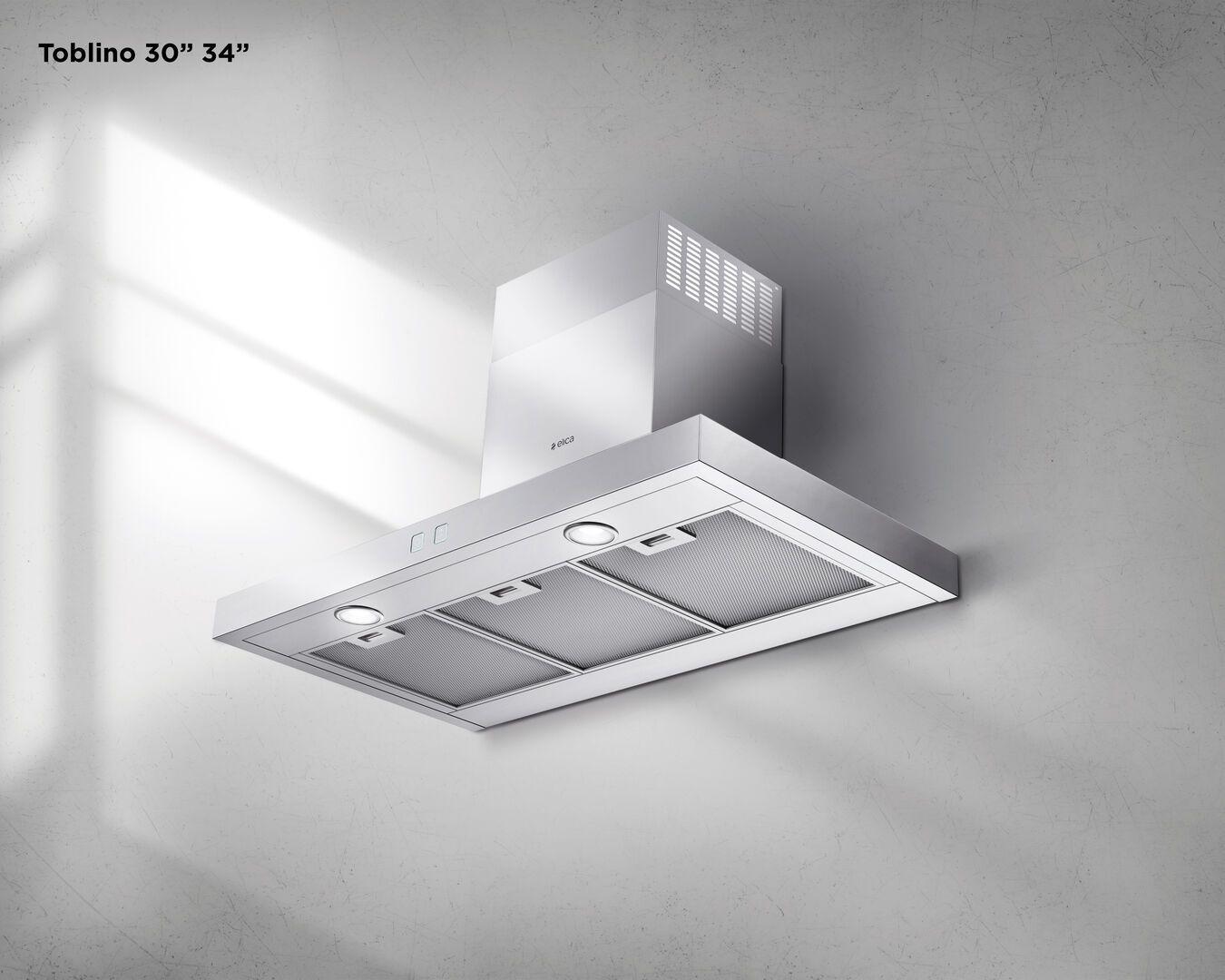

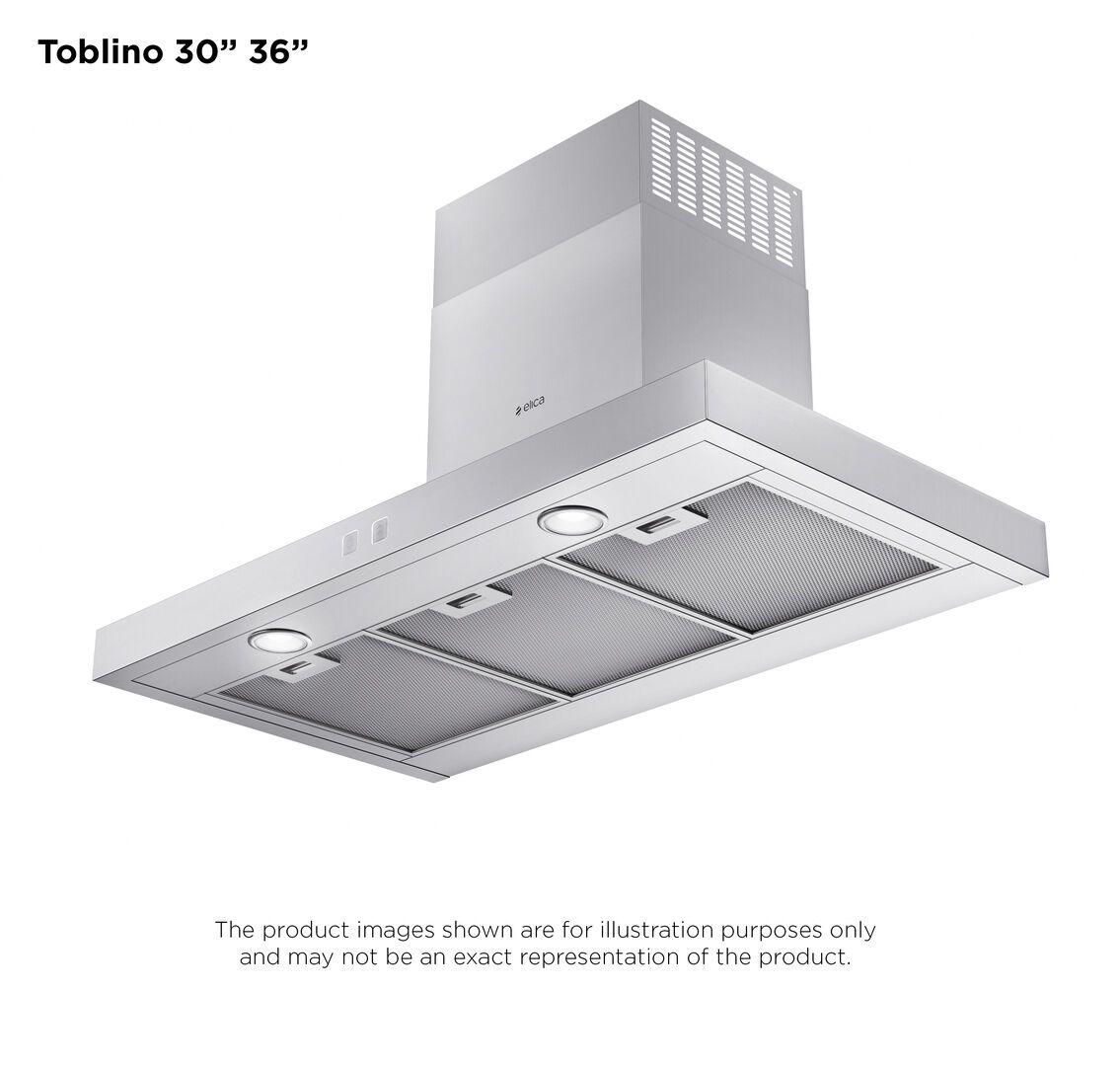

Elica ETB436S3 TOBLINO Wall Mount Range Hood 36" wide - 400CFM ETB436S3

Toblino, with its super sleek hood design that s only 2 high, is the perfect complement for modern kitchen designs featuring sharp, futuristic architectural lines. Available in 30 and 36 widths, Toblino features multiple backlight color touch controls that illuminate in elegant white, green, blue, or red, operating the LED lights and 4-speed blower. Multiple clicking sound options are also available. Designed for standard ducted installation, Toblino can also be installed as a recirculating system using the optional kit.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	23.80
NET WEIGHT (kg)	18.40
CARTON LENGHT (mm)	1020.00
CARTON HEIGHT (mm)	673.00
CARTON WIDTH (mm)	458.00
VOLUMEN (M3)	0.30
SHIPPING WEIGHT	52.47
NET WEIGHT	40.57
CARTON LENGHT	40.16
CARTON HEIGHT	26.50
CARTON WIDTH	18.03
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	3x layer mesh,Led light,CFM reduction system
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	680.00
CFM (MAX)	400.00
db (min)	15.00
db (max)	53.00
SONES	0.4 - 5.9
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	2.5 A
HERTZ	60.00
WATTS	265.00
LIGHTING	LED 2 x 2.1 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Electronic Touch Controls with Adjustable Color Backlight
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	YES
DIMENSIONS	91 cm x 69 cm x76
DIMENSIONSinches	36" x 19 11/16" x 20 3/4"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	20 3/4"
Maximum Overall Height - Top to Bottom	35"
Overall Height - Top to Bottom	20 3/4"-35"
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	19 11/16"
Hood Height	1 5/8"
Minimum Compatible Ceiling Height	6'11"
Maximum Compatible Ceiling Height	8'11"
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	13"
Chimney Depth - Front to Back	10 3/4"
Chimney Height - Top to Bottom	33 3/8
RECIRCULATION KIT NUMBER	KIT0184663
CHIMNEY EXTENSION NUMBER	KIT02785/KIT01935
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	GF04YB
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
VERSION ADVANCES	Button change
CERTIFICADO NOM	NA
