Elica ETT424S1 TT Undercabinet Range Hood 24" wide - 400CFM ETT424S1

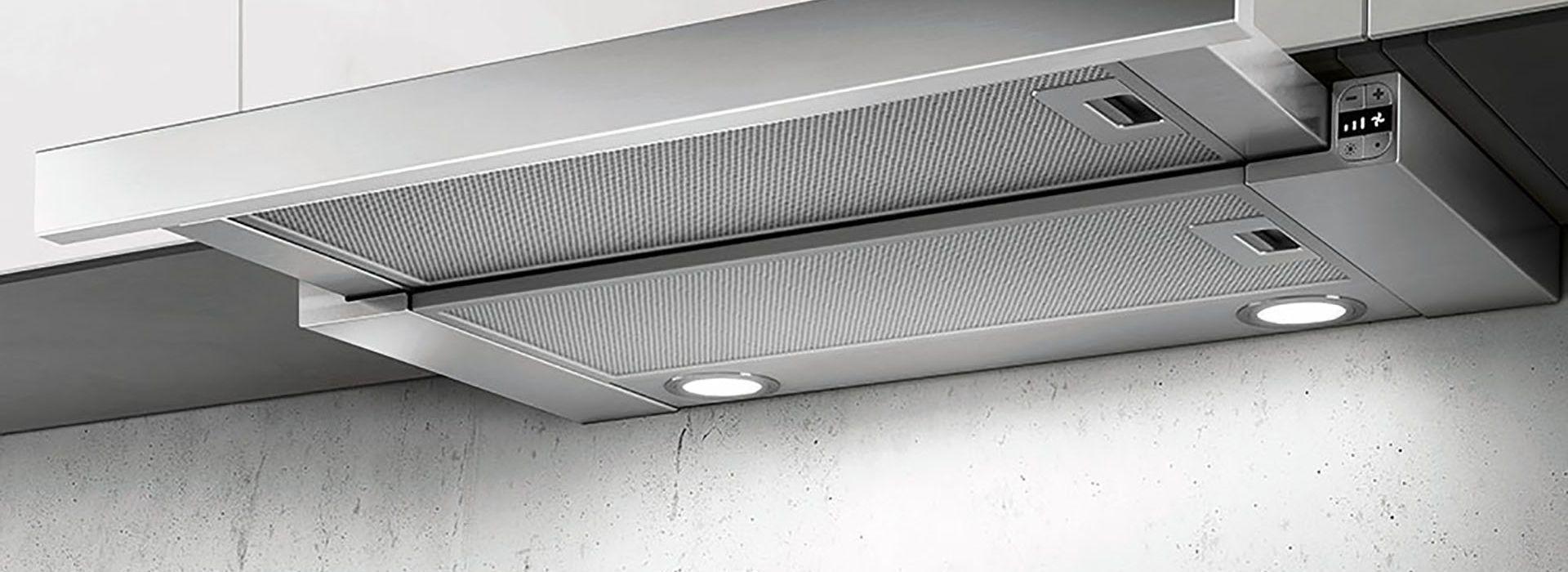

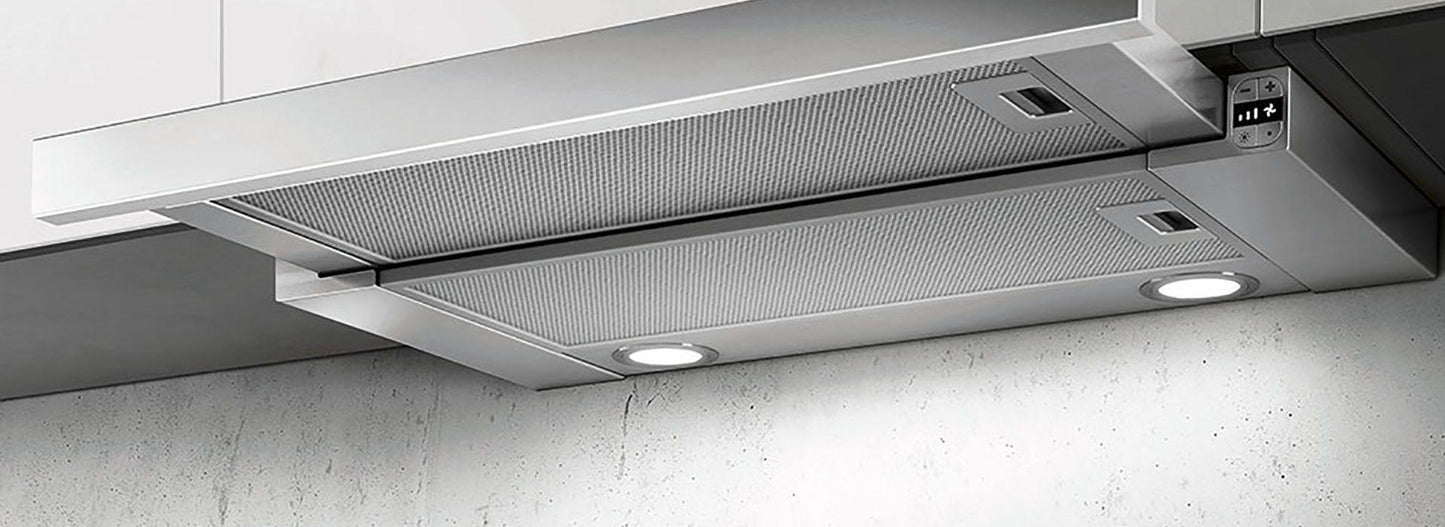

The ultra-slim design of TT hides quietly within cabinetry and extends less than 2 below the edge. When called to action, the horizontal visor eff ortlessly pulls out to provide added air capture during cooking. TT design is ideal for smaller kitchens or where under-cabinet space is limited. The 400 CFM blower provides more than adequate power for everyday cooking. The 3-speed blower and LED lighting are operated with modern electronic touch controls, which are out of sight and behind the visor when idle.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	11.90
NET WEIGHT (kg)	10.20
CARTON LENGHT (mm)	326.00
CARTON HEIGHT (mm)	646.00
CARTON WIDTH (mm)	360.00
VOLUMEN (M3)	0.10
SHIPPING WEIGHT	26.12
NET WEIGHT	22.49
CARTON LENGHT	12.83
CARTON HEIGHT	25.43
CARTON WIDTH	14.17
COUNTRY OF MANUFACTURE	IT
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	Led light
WIDTH (IN)	24"
WIDTH (CM)	60.00
AIRFLOW (M3/H)	680.00
CFM (MAX)	400.00
db (min)	15.00
db (max)	51.00
SONES	0.4 - 5.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	2.3 A
HERTZ	60.00
WATTS	245.00
LIGHTING	LED 2 x 2.1 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Hidden Electronic Touch Controls
SPEED CONTROL	YES
NUMBER OF SPEEDS	3.00
REMOTE CONTROL	NO
POWER SOURCE	Power Cord
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS	60 x 28 x 30
DIMENSIONSinches	24" x 11-17" x 12 5/16"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	1 9/16"
Maximum Overall Height - Top to Bottom	12 5/16"
Overall Height - Top to Bottom	1 9/16"
Overall Width - Side to Side2	24"
Overall Depth - Front to Back	11-17"
Hood Height	1 9/16"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	CFC0038668/DF01EA
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT02748
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	NA
UL listed	NA
AHAM verified	NA
TITLE 24	NA
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	Activo
