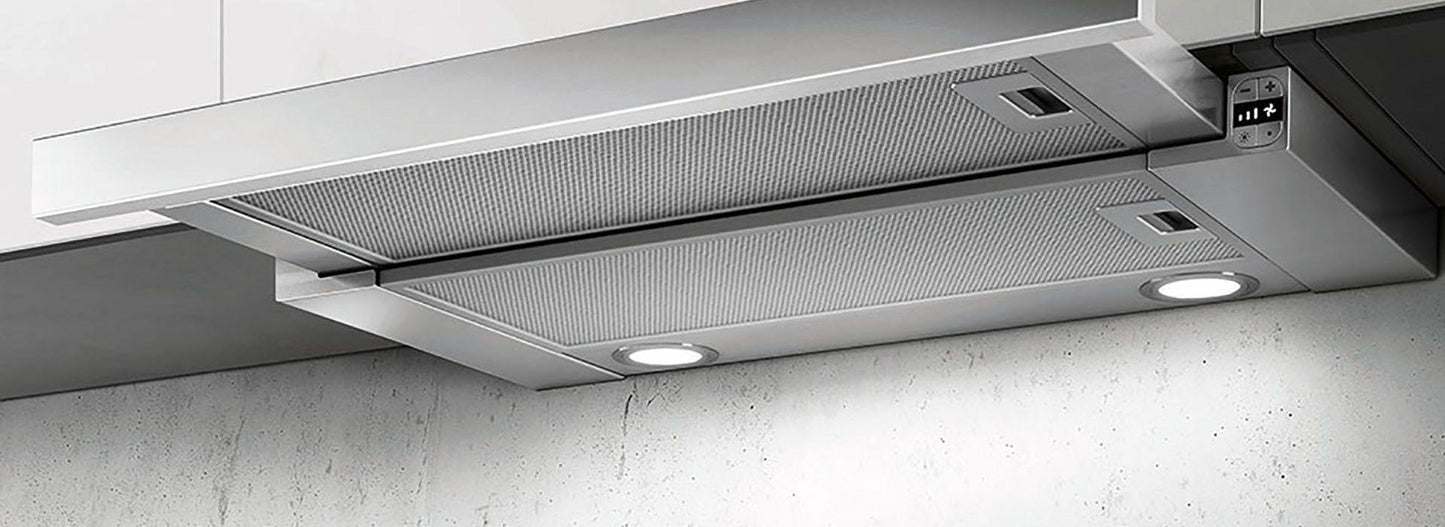

Elica ETT430SS TT Undercabinet Range Hood 30" wide - 400CFM ETT430SS
Elica ETT430SS TT Undercabinet Range Hood 30" wide - 400CFM
- Led light
The ultra slim design of TT hides quietly within cabinetry and extends less than 2 below the edge.
Technical features
When called to action, the horizontal visor effortlessly pulls out to provide added air capture during cooking. TT design is ideal for smaller kitchens or where under-cabinet space is limited.
The 400 CFM blower provides more than adequate power for everyday cooking. The 3 speed blower and LED lighting are operated with modern electronic push button controls, which are out of sight and behind the visor when idle. Clean up is literally a snap with dishwasher safe anodized aluminum mesh filters.
Designed for ducted or recirculating installations.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 13.45 |
| NET WEIGHT (kg) | 11.45 |
| CARTON LENGHT (mm) | 352.00 |
| CARTON HEIGHT (mm) | 359.00 |
| CARTON WIDTH (mm) | 813.00 |
| VOLUMEN (M3) | 0.10 |
| SHIPPING WEIGHT | 29.65 |
| NET WEIGHT | 25.24 |
| CARTON LENGHT | 13.86 |
| CARTON HEIGHT | 14.13 |
| CARTON WIDTH | 32.01 |
| COUNTRY OF MANUFACTURE | IT |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 15.00 |
| db (max) | 51.00 |
| SONES | 0.4 - 5.0 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 2.3 A |
| HERTZ | 60.00 |
| WATTS | 245.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Hidden Electronic Touch Controls |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS | 76 x 28 x 30 |
| DIMENSIONS inches | 30" x 11-17" x 12 5/16 |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 1 9/16" |
| Maximum Overall Height - Top to Bottom | 1 9/16" |
| Overall Height - Top to Bottom | 1 9/16" |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 11-17" |
| Hood Height | 1 9/16" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop | 30" |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| STYLE | Modern |
| RECIRCULATION KIT NUMBER | CFC0038668/DF01EA |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | KIT02748 |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | NA |
| UL listed | NA |
| AHAM verified | NA |
| TITLE 24 | NA |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | Activo |
