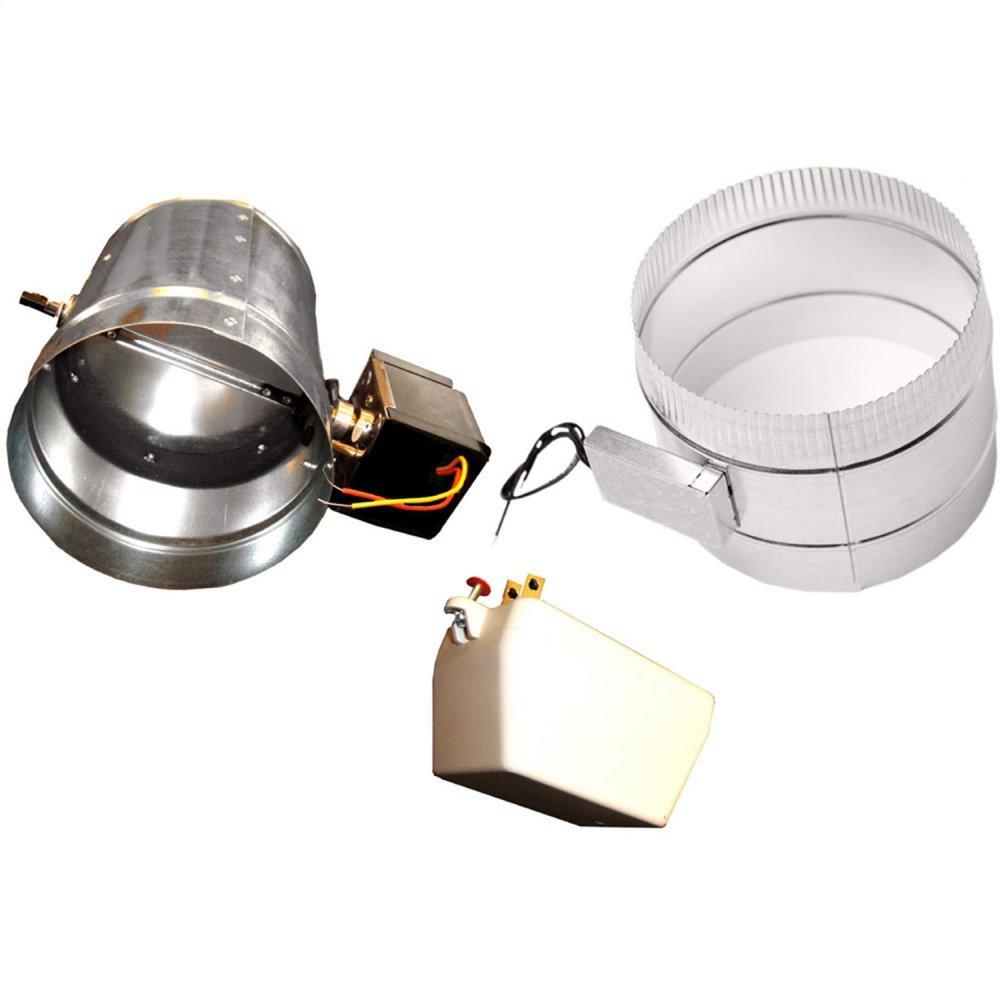

Faber MUDAMPER8 8" Make Up Air Kits MUDAMPER8

SKU/Model #: MUDAMPER8
Faber MUDAMPER8 8" Make Up Air Kits
Authorized Reseller
SKU/Model #: MUDAMPER8
Faber MUDAMPER8 8" Make Up Air Kits
In Stock By Manufacturer
$485.00
List Price:
Instant Savings:
When Will I Get My Order?
  • Faber MUDAMPER8 8-in. universal make-up air damper
  • Attaches on top of the hood in the ductwork and via low voltage wire "talks" to the make-up air damper
  • 24 Vac, 60 hz ac motor on damper
  • Fresh air damper opens automatically when hood is operating, closes shut when fan is turned off
  • Switch assembly attaches directly above the hood inside ducting
  • Can be installed in all ducting configurations (vertical, horizontal, down or after elbows)
  • Switch assembly fits inside all faber chimneys, compatible with all models over 300 cfm
  • Simple installation: no drilling, calibrations or measuring required
  • Designed and engineered to withstand heavy cooking contaminants (grease, steam, smoke and steam)
  • Can be combined with most other hvac components and is a universal makeup air solution
  • Reliable mechanical air switch prevents service issues and false tripping of system
  • Meets IRC (international residential code) M1503.4
  • Recommended CFM: over 600 up to 1200 CFM
The Faber MUDAMPER8 8-in. make-up air damper brings fresh air back into the home and improves hood performance. With higher cfm hoods more air is exhausted in tighter homes with less air coming back in. To "make up" for lost air, the universal make up air kit brings fresh outside air into the home through a separate fresh air duct. The automatic damper opens inside the duct to bring in air when the hood is operating above 400 cfm and closes tightly when the hood is off. The kit includes 8-In. switch assembly, 8-In. automatic return air damper, and 24-Volt plug in transformer. The air switch assembly attaches on top of the hood in the duct work and via low voltage wire "talks" to the make-up air damper. The air switch at the hood duct exit, activated by air flow, opens the damper outside to let in fresh air. The air switch then lowers when hood is off & tightly closes the outside damper. It opens when the hood is on, and closes when the hood is off.
General Information
Product Model MUDAMPER8
Product Name Make-Up Air Damper
Product Type Range Hood Damper
Physical Characteristics
Color Galvanized
Miscellaneous
Application/Usage Vent Hood
Item Details
Part Number MUDAMPER8
Category Hoods/Ventilation
UPS Shippable Y
Shipping Weight 10
UPC Code 8015139911359
Product Dimensions English AIR FLOW SWITCH ASSEMBLY (Located inside Range Hood Ducting): 6 In. (h) x 8 In. (diameter)
AUTOMATIC MAKEUP AIR DAMPER (Located inside Fresh Air Ducting): 8 In. (h) x 8 In. (diameter)
